MPO光连接器技术规格书V1.0

MPO光纤NA参数概述多模光纤（Multi-Mode Fiber，简称MMF）是一种光纤传输介质，主要用于短距离的高速数据传输。

MPO光纤（Multi-Fiber Push-On）是一种多芯光纤连接器，常用于数据中心和高密度光纤布线系统中。

本文将介绍MPO光纤的NA参数及其相关知识。

光纤的数值孔径（Numerical Aperture，简称NA）光纤的数值孔径是光纤传输特性的一个重要参数，它描述了光纤对入射光的接受能力。

数值孔径越大，光纤能够接受的入射光角度范围就越大，传输的光信号损耗就越小。

数值孔径可以通过以下公式计算得到：NA = n * sin(θ)其中，n是光纤的折射率，θ是光纤的半角收敛角度。

MPO光纤的NA参数MPO光纤的NA参数是指MPO光纤连接器的数值孔径。

MPO光纤连接器通常用于高密度光纤布线系统中，其多芯结构能够提供更高的端口密度和更高的数据传输能力。

MPO光纤的NA参数对于保证光信号的传输质量至关重要。

MPO光纤的NA参数通常由两部分组成：主芯（Main Core）的NA参数和分支芯（Branch Core）的NA参数。

主芯的NA参数决定了主光路的传输性能，而分支芯的NA参数决定了分支光路的传输性能。

MPO光纤的NA参数测量方法测量MPO光纤的NA参数通常使用透射法（Transmission Method）。

具体步骤如下：1.准备一束发散的光源，如激光器。

2.将光源的光线通过一个聚焦透镜，使其成为一束平行光。

3.将平行光垂直照射到MPO光纤的端面上。

4.在另一端观察光纤的出射光线，利用光学仪器（如显微镜）测量出射光线的角度。

5.根据测量结果，计算出MPO光纤的NA参数。

MPO光纤的NA参数对光信号传输的影响MPO光纤的NA参数对光信号传输质量有着重要的影响。

较大的NA参数可以提供更大的接受角度范围，从而减小光信号的传输损耗。

而较小的NA参数则会导致光信号的传输损耗增加，影响光信号的传输距离和传输速率。

MPO 光纤连接器是一种多芯多通道的插拔式连接器，它的特征是由一个标准直径为6.4mm*2.5mm 的矩形插芯，利用插芯端面上左右两个直径为0.7mm 直径的引导孔使引针进行定位对准。

飞速（FS）为您详细解答MPO 光纤连接器的相关知识。

MPO 光纤连接器的结构它用于2~12芯并排光纤的连接，最多可以是两排24芯光纤同时连接，对接时，有一个转载插芯尾部的弹簧对插芯施加压力，直到连接头的外框套跟连接器锁紧，插芯上侧面有一个阳键，用作连接时限制连接头之间的相对位置，已确定光纤正确的对接顺序。

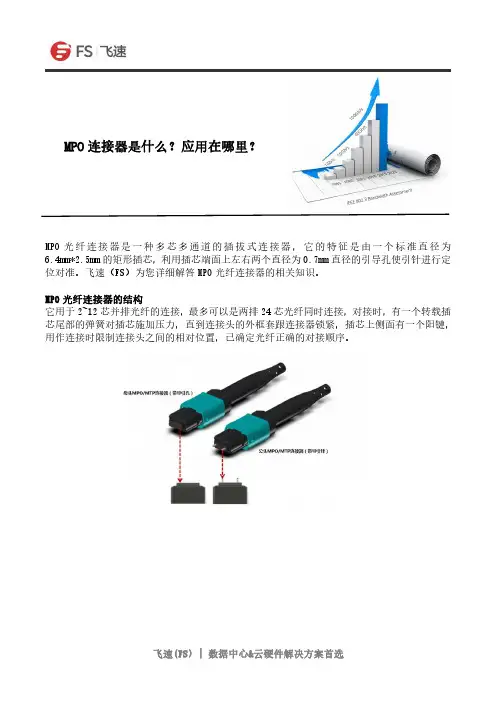

MPO 连接器是什么？应用在哪里？MT插芯是确定连接器连接特性的关键部分，插芯具有两个引导针和若干个引导孔，引导针和光纤孔的间距分别为4.6mm和0.25mm，为了得到单模光纤的低插入损耗，光纤孔的设计位置错位必须小于或者等于1μm。

按照现有的MT插芯设计标准，要把连接器的芯数提高到12芯以上，在插芯端面上吧光纤排成1列已经很困难，于是出现了把光纤排成两行和两行元以上的阵列插芯。

传统包含MT插芯的MPO连接器中，反复的插拔会是引孔的端面发生损伤，影响稳定性，通过在大哦引孔近端面处设置倾角，可以有效的降低损耗。

按照MT插芯的研磨方式，MPO连接器可以分为MOP平面连接器PC，MPO斜面连接器APC（8度的斜面）MPO连接器单/多模光学性能1、MPO单模光纤连接器的插头光学性能指标任意插头通过标准设配器与标准插头的最大插入损耗小于等于0.8dB；回波损耗大于30dB （MPO/PC），大于50dB(MPO/APC)两个连接头通过适配器任意连接的最大插入损耗小于等于1dB；回波损耗大于20dB（MPO/PC），大于40dB(MPO/APC)2、MPO多模光纤连接器的插头光学性能指标任意插头通过标准设配器与标准插头的最大插入损耗小于等于0.7dB两个连接头通过适配器任意连接的最大插入损耗小于等于1dBMPO连接器的优势体积小，体积比SC型连接器还小；精度高，精密的MT导引针和导引孔保证了光纤对接的准确；密度大，采用精确的几何设计，能够支持12~72芯甚至96芯的光纤连接MPO连接器的应用数据中心高密度环境下应用；光纤到户、到楼中应用；分光器、40G/100GSFP、SF+光模块内部连接应用两端连着MPO连接器的光缆就是MPO光纤跳线，由于MPO连接器结构设计十分紧凑，使MPO 光纤跳线具有芯数多和体积小的特点。

≤15.0
长度公差 (厘米) +5/-0 +10/-0 +15/-0 +1%/-0
6. 产品图片
EPCOM-PS-041 A0
发行日期：2009-7-6
Page 5 of 5
合格/不合格 界限
最小值 1000mm
50mm -0.3° 7.7° -0.3° 1000nm
N/A
最大值 ∞ ∞ 0.3° 8.3° 0.3°
5000nm
800nm
N/A
500nm
7.8mm
N/A
EPCOM-PS-041 A0
发行日期：2009-7-6
Page 3 of 5
4. 端面检测标准
光纤端面检测示意图：
插芯
光纤覆层
C
A
B 纤芯
端面检测要求：
区域
区域范围
区域直径 (µm)
允许缺陷
区域 A
0um TO 25um
区域 B 25um TO 115um
区域 C 115um TO 400um
不允许有任缺陷、划痕、脏物
划痕 <2um =1个缺陷 凹坑 <5um =1缺陷 不可擦除的污点<5um =1个缺陷
N/A
IL (dB)
RL (dB)
≤0.5
≥50
APC
≤0.5
≥55
多模
850nm IL (dB)
850nm RL (dB)
≤0.5
≥20
N/A
N/A
3. 干涉测量要求（一般水平Ⅱ进行抽样，按 AQL4.0 判定）
测量
曲率 角度
参数 长轴 短轴 长轴
短轴
光纤高度
APC 平面

MTP*/MPO ADAPTERS AND CABLE ASSEMBLIES*MTP is a registered trademark of US Conec Ltd.ApplicationsNetworking- Data communication centers- Optical electrical modules- Optical switch and routers- PC cards and patch panels- P arallel optic transceiver interconnection - Hubs and servers- Line cardsOrdering InformationMTP/MPO Cables & AdaptersOrder Number Description ISO Drawing106082-1000MTP Connector Kit with FlexiBend™ Boot, 3mm Round Cable, Male and Female - 12-fiber cable106082-1100MTP Connector Kit with FlexiBend™ Boot, 3.8mm Round Cable, Male and Female - 24-fiber cable106081-3250Short MTP Connector Kit, Male and Female -bare ribbon cable106081-2030MTP Connector with Short Push Spring, Male and Female - bare ribbon cable106081-3510MTP Connector Kit, 3mm Round Cable, Male and Female - 12-fiber cable106081-3310MTP Connector Kit, 3mm Round Cable with Enhanced Strain Relief, Male and Female - 12-fiber cable106081-3810MTP Connector Kit, 3.8mm Round Cable, Male and Female - 24-fiber cable106081-3550MTP Connector Kit, 3mm Round Cable, 90° boot, Male and Female - 12-fiber cable106081-3360MTP Connector Kit, 3mm Round Cable with Enhanced Strain Relief 90° boot,Male and Female -12-fiber cable106081-3255MTP Housing Kit, 5mm Round Cable - 48-fiber cable 106085-0000MTP Breakout Kit, Male and FemaleMTP connectors are sold as part of a terminated cable assembly. Components are not sold separately.MTP*/MPO Adapters andCable Assemblies. The extensive line of break-out boxes, break-† discrete fiber leads are ideal for board-level use where ‡ are ideal for Optical Break-Out Cable AssembliesOptical Break-Out Cable AssembliesQSFP , QSFP+ and zQSFP+™ optical cable assemblies use low-profile round cables for improved cable management in high-density applicationsMolex Quad Small Form Pluggable (QSFP+) passive optical cableassemblies meet the QSFP+ interface specification. Multiple cable designs provide improved fiber management options depending on the application and distance requirements. MTP* QSFP+ cables are constructed with 12-fiber 3.0mm round cable for short-run interconnect cable assemblies. A robust 4.5mm round cable with 3.1mm sub-units provides exceptional cable flexibility while ensuring cable integrity and improved cable routing for installations that require chassis to be spread out more than 30m. In addition to the standard MTP QSFP+ jumper assemblies, break-out cables and loopback assemblies provide a complete QSFP+ optical solution.Feature and Benefits• M TP/MPO QSFP+ connector interface meets QSFP+ SFF-8436 interface specification • L ow-profile round cable provides improved cable management • S tandard, high bandwidth or singlemode cables availableCXP optical cable assemblies offer improved fiber management for connecting CXP transceivers and complete Molex’s iPass+™ High-Speed Channel (HSC) CXP Optical SystemMolex’s low-profile CXP optical 3.80mm/5.4mm round cable assembliesoffer improved fiber management over traditional flat cables for connecting CXP transceivers. The CXP optical cable assemblies utilize 24-fibers using industry-standard MTP/MPO connectors, 12 transmit (TX) and 12 receive (RX), cable types include both OM3 and OM4 fiber. This design meets the InfiniBand † bandwidth requirements for CXP modules spaced up to 300.00m (984.25’).Feature and Benefits• MTP/MPO CXP connector interface meets CXP interface specifications • L ow-profile, round cable design for improved cable management over flat cable, with 360° cable-routing capabilityMolex’s CFP(C Form-Factor Pluggable) Cable Assemblies for high density 40 Gig and 100 Gigabit Ethernet ApplicationsMolex’s QSFP and CXP cables also support the MSA interface for cabling for the CFP modules utilizing MTP 12- and 24-fiber cables. The CFP optical cable assemblies utilize 12- and 24-fibers using industry-standard MTP/MPO connectors and cable supporting high-bandwidth (OM3/OM4) fiber.This design meets the Ethernet bandwidth requirements for CFP modules.*MTP is a registered trademark of US Conec Ltd.†InfiniBand is a trademark of the InfiniBand T rade AssociationQSFP , CFP and CXP Cable AssembliesQuad Small Form-factor Pluggable Plus (QSFP+)Ordering Information — QSFP , CXP and CFP CablesPlease note that additional lengths, styles and custom cables are available from the factory . Please contact your local Molex Sales Engineer for more details.QSFP Cable Family Jumpers 12-Fiber Assemblies Part Number Length Cable Type Description 106283-1003 3.0m OM3QSFP Jumper Cable, OFNP, 3.0mm Cable 106283-1005 5.0m OM3QSFP Jumper Cable, OFNP, 3.0mm Cable 106283-101010.0m OM3QSFP Jumper Cable, OFNP, 3.0mm Cable 106283-102525.0m OM3QSFP Jumper Cable, OFNP, 3.0mm Cable106283-1050†50.0m OM3QSFP Jumper Cable, OFNP, 4.5mm Cable 106283-1100†100.0m OM3QSFP Jumper Cable, OFNP, 4.5 mm Cable 106283-7003 3.0m OM4QSFP Jumper Cable, OFNP, 3.0mm Cable 106283-7005 5.0m OM4QSFP Jumper Cable, OFNP, 3.0mm Cable 106283-701010.0m OM4QSFP Jumper Cable, OFNP, 3.0mm Cable 106283-702525.0m OM4QSFP Jumper Cable, OFNP, 3.0mm Cable 106283-7050†50.0m OM4QSFP Jumper Cable, OFNP, 4.5mm Cable 106283-7100†100.0m OM4QSFP Jumper Cable, OFNP, 4.5 mm Cable106260-0102 3.0m OM3QSFP Jumper Cable, OFNP, 3.0mm Cable - FlexiBend™ Boot 106260-0103 5.0m OM3QSFP Jumper Cable, OFNP, 3.0mm Cable - FlexiBend™ Boot 106260-010410.0m OM3QSFP Jumper Cable, OFNP, 3.0mm Cable - FlexiBend™ Boot 106260-010525.0m OM3QSFP Jumper Cable, OFNP, 3.0mm Cable - FlexiBend™ Boot 106260-0106†50.0m OM3QSFP Jumper Cable, OFNP, 4.5mm Cable - FlexiBend™ Boot 106260-0107†100.0mOM3QSFP Jumper Cable, OFNP, 4.5mm Cable - FlexiBend™ Boot106283-4003 3.0m OS2SMQSFP Jumper Cable, OFNP, 3.0mm Cable 106283-4005 5.0m OS2SMQSFP Jumper Cable, OFNP, 3.0mm Cable106283-401010.0m OS2SMQSFP Jumper Cable, OFNP, 3.0mm Cable106283-401325.0m OS2SMQSFP Jumper Cable, OFNP, 3.0mm Cable106283-4018†50.0m OS2SMQSFP Jumper Cable, OFNP, 4.5mm Cable 106283-4028†100.0m OS2SM QSFP Jumper Cable, OFNP, 4.5mm Cable †Cables longer than 30M will be supplied with 4.5mm ruggedized jacketed fiberBreakout- MTP to LCD ‡Part Number Length Cable Type Description106283-5102 3.0m OM3QSFP to SFP Breakout Cable, OFNP,3.0m 106283-5103 5.0m OM3QSFP to SFP Breakout Cable, OFNP,3.0m 106283-510410.0m OM3QSFP to SFP Breakout Cable, OFNP,3.0m 106283-5403 3.0m OM4QSFP to SFP Breakout Cable, OFNP,3.0m 106283-5404 5.0m OM4QSFP to SFP Breakout Cable, OFNP,3.0m 106283-540510.0mOM4QSFP to SFP Breakout Cable, OFNP,3.0m106283-8087 3.0m OS2(SM)QSFP to SFP Breakout Cable, OFNP,3.0m 106283-8088 5.0m OS2(SM)QSFP to SFP Breakout Cable, OFNP,3.0m 106283-808910.0m OS2(SM)QSFP to SFP Breakout Cable, OFNP,3.0m ‡Breakout Cables Available with FlexiBend™ MTP § Connector - please consult factory for details Loopback 106005-1100N/A OM3QSFP MM Loopback - 50/125μm Fiber - OM3Cable Performance SpecificationsFiber T ype*Overfilled Launched Bandwidth (MHz-km) 1 Gigabit Ethernet Link Distance, Min (m)10 Gigabit Ethernet Link Distance, Min. (m)40 and 100Gigabit Ethernet Link Distance,Min. (m)850nm/1300nm 850nm/1300nm 850nm/1300nm 850nm/1300nmOM2500/500600/60086(850nm)No Requirement OM31500/500900/550300(850nm)100 (850nm)OM43500/5001100/550550(850nm)125(850nm)OS2(SM)No Requirement 5000 (1300nm)10000(1300nm)10KM/40KM(1310/1550nm)*Distances are Industry standard averages and are subject to various transmission issues such as glass quality and device performance.§MTP is a registered trademark of US Conec Ltd.Pluggable Plus (QSFP+) CFPCFP OPTICAL CABLE ASSEMBL Y 12-FIBERPN Length Cable Type Description106283-9001 1.0m OM3CFP Jumper Cable, OFNP, 3.0mm Cable106283-9003 3.0m OM3CFP Jumper Cable, OFNP, 3.0mm Cable106283-9005 5.0m OM3CFP Jumper Cable, OFNP, 3.0mm Cable106283-901010.0m OM3CFP Jumper Cable, OFNP, 3.0mm Cable106283-902020.0m OM3CFP Jumper Cable, OFNP, 3.0mm Cable106283-902525.0m OM3CFP Jumper Cable, OFNP, 3.0mm Cable106283-9050*50.0m OM3CFP Jumper Cable, OFNP, 4.5mm Cable106283-9075*75.0m OM3CFP Jumper Cable, OFNP, 4.5mm Cable106283-9100*100.0m OM3CFP Jumper Cable, OFNP, 4.5mm CablePN Length Cable Type Description106283-9201 1.0m OM4CFP Jumper Cable, OFNP, 3.0mm Cable106283-9203 3.0m OM4CFP Jumper Cable, OFNP, 3.0mm Cable106283-9205 5.0m OM4CFP Jumper Cable, OFNP, 3.0mm Cable106283-921010.0m OM4CFP Jumper Cable, OFNP, 3.0mm Cable106283-922020.0m OM4CFP Jumper Cable, OFNP, 3.0mm Cable106283-922525.0m OM4CFP Jumper Cable, OFNP, 3.0mm Cable106283-9250*50.0m OM4CFP Jumper Cable, OFNP, 4.5mm Cable106283-9275*75.0m OM4CFP Jumper Cable, OFNP, 4.5mm Cable106283-9300*100.0m OM4CFP Jumper Cable, OFNP, 4.5mm Cable*Cables longer than 30.0m will be supplied with 4.5mm ruggedized jacketed fiberCFP OPTICAL CABLE ASSEMBL Y 24-FiberPN Length Cable Type Description106284-9001 1.0m OM3CFP Jumper Cable, OFNP, 3.0mm Cable106284-9003 3.0m OM3CFP Jumper Cable, OFNP, 3.0mm Cable106284-9005 5.0m OM3CFP Jumper Cable, OFNP, 3.0mm Cable106284-901010.0m OM3CFP Jumper Cable, OFNP, 3.0mm Cable106284-902020.0m OM3CFP Jumper Cable, OFNP, 3.0mm Cable106284-902525.0m OM3CFP Jumper Cable, OFNP, 3.0mm Cable106284-9050†50.0m OM3CFP Jumper Cable, OFNP, 4.5mm Cable106284-9075†75.0m OM3CFP Jumper Cable, OFNP, 4.5mm Cable106284-9100†100.0m OM3CFP Jumper Cable, OFNP, 4.5mm CablePN Length Cable Type Description106284-9201 1.0m OM4CFP Jumper Cable, OFNP, 3.0mm Cable106284-9203 3.0m OM4CFP Jumper Cable, OFNP, 3.0mm Cable106284-9205 5.0m OM4CFP Jumper Cable, OFNP, 3.0mm Cable106284-921010.0m OM4CFP Jumper Cable, OFNP, 3.0mm Cable106284-922020.0m OM4CFP Jumper Cable, OFNP, 3.0mm Cable106284-922525.0m OM4CFP Jumper Cable, OFNP, 3.0mm Cable106284-9250†50.0m OM4CFP Jumper Cable, OFNP, 4.5mm Cable106284-9275†75.0m OM4CFP Jumper Cable, OFNP, 4.5mm Cable106284-9300†100.0m OM4CFP Jumper Cable, OFNP, 4.5mm Cable†Cables longer than 30.0m will be supplied with 4.5mm ruggedized jacketed fiberPluggable Plus (QSFP+) CFP — continuedCFP FLEXIBEND™ BOOT OPTICAL CABLE ASSEMBL Y 12-FIBERPN Length Cable Type106260-0201 1.0m OM3CFP Jumper Cable, FlexiBend™ Boots, OFNP, 3.0mm Cable106260-0203 3.0m OM3CFP Jumper Cable, FlexiBend™ Boots, OFNP, 3.0mm Cable106260-0205 5.0m OM3CFP Jumper Cable, FlexiBend™ Boots, OFNP, 3.0mm Cable106260-021010.0m OM3CFP Jumper Cable, FlexiBend™ Boots, OFNP, 3.0mm Cable106260-022020.0m OM3CFP Jumper Cable, FlexiBend™ Boots, OFNP, 3.0mm Cable106260-022525.0m OM3CFP Jumper Cable, FlexiBend™ Boots, OFNP, 3.0mm Cable106260-0250*50.0m OM3CFP Jumper Cable, FlexiBend™ Boots, OFNP, 4.5mm Cable106260-0275*75.0m OM3CFP Jumper Cable, FlexiBend™ Boots, OFNP, 4.5mm Cable106260-0300*100.0m OM3CFP Jumper Cable, FlexiBend™ Boots, OFNP, 4.5mm CablePN Length Cable Type106260-0401 1.0m OM4CFP Jumper Cable, FlexiBend™ Boots, OFNP, 3.0mm Cable106260-0403 3.0m OM4CFP Jumper Cable, FlexiBend™ Boots, OFNP, 3.0mm Cable106260-0405 5.0m OM4CFP Jumper Cable, FlexiBend™ Boots, OFNP, 3.0mm Cable106260-041010.0m OM4CFP Jumper Cable, FlexiBend™ Boots, OFNP, 3.0mm Cable106260-042020.0m OM4CFP Jumper Cable, FlexiBend™ Boots, OFNP, 3.0mm Cable106260-042525.0m OM4CFP Jumper Cable, FlexiBend™ Boots, OFNP, 3.0mm Cable106260-0450*50.0m OM4CFP Jumper Cable, FlexiBend™ Boots, OFNP, 4.5mm Cable106260-0475*75.0m OM4CFP Jumper Cable, FlexiBend™ Boots, OFNP, 4.5mm Cable106260-0500*100.0m OM4CFP Jumper Cable, FlexiBend™ Boots, OFNP, 4.5mm Cable*Cables longer than 30.0m will be supplied with 4.5mm ruggedized jacketed fiberCFP FLEXIBEND™ BOOT OPTICAL CABLE ASSEMBL Y 24-FIBERPN Length Cable Type106260-0601 1.0m OM3CFP Jumper Cable, FlexiBend™ Boots, OFNP, 3.0mm Cable106260-0603 3.0m OM3CFP Jumper Cable, FlexiBend™ Boots, OFNP, 3.0mm Cable106260-0605 5.0m OM3CFP Jumper Cable, FlexiBend™ Boots, OFNP, 3.0mm Cable106260-061010.0m OM3CFP Jumper Cable, FlexiBend™ Boots, OFNP, 3.0mm Cable106260-062020.0m OM3CFP Jumper Cable, FlexiBend™ Boots, OFNP, 3.0mm Cable106260-062525.0m OM3CFP Jumper Cable, FlexiBend™ Boots, OFNP, 3.0mm Cable106260-0650†50.0m OM3CFP Jumper Cable, FlexiBend™ Boots, OFNP, 4.5mm Cable106260-0675†75.0m OM3CFP Jumper Cable, FlexiBend™ Boots, OFNP, 4.5mm Cable106260-0700†100.0m OM3CFP Jumper Cable, FlexiBend™ Boots, OFNP, 4.5mm CablePN Length Cable Type106260-0801 1.0m OM4CFP Jumper Cable, FlexiBend™ Boots, OFNP, 3.0mm Cable106260-0803 3.0m OM4CFP Jumper Cable, FlexiBend™ Boots, OFNP, 3.0mm Cable106260-0805 5.0m OM4CFP Jumper Cable, FlexiBend™ Boots, OFNP, 3.0mm Cable106260-081010.0m OM4CFP Jumper Cable, FlexiBend™ Boots, OFNP, 3.0mm Cable106260-082020.0m OM4CFP Jumper Cable, FlexiBend™ Boots, OFNP, 3.0mm Cable106260-082525.0m OM4CFP Jumper Cable, FlexiBend™ Boots, OFNP, 3.0mm Cable106260-0850†50.0m OM4CFP Jumper Cable, FlexiBend™ Boots, OFNP, 4.5mm Cable106260-0875†75.0m OM4CFP Jumper Cable, FlexiBend™ Boots, OFNP, 4.5mm Cable106260-0900†100.0m OM4CFP Jumper Cable, FlexiBend™ Boots, OFNP, 4.5mm Cable†Cables longer than 30.0m will be supplied with 4.5mm ruggedized jacketed fiberQuad Small Form-factorPluggable Plus (QSFP+)CXPCXP CableFamily24-Fiber AssembliesJumpersPart Number Length Cable Type Description106284-1003 3.0m OM3CXP Jumper Cable, OFNP, 3.8mm Cable106284-1005 5.0m OM3CXP Jumper Cable, OFNP, 3.8mm Cable106284-101010.0m OM3CXP Jumper Cable, OFNP, 3.8mm Cable106284-102525.0m OM3CXP Jumper Cable, OFNP, 3.8mm Cable106284-1050*50.0m OM3CXP Jumper Cable, OFNP, 5.4mm Cable106284-1100*100.0m OM3CXP Jumper Cable, OFNP, 5.4mm Cable106284-7003 3.0m OM4CXP Jumper Cable, OFNP, 3.8mm Cable106284-7005 5.0m OM4CXP Jumper Cable, OFNP, 3.8mm Cable106284-701010.0m OM4CXP Jumper Cable, OFNP, 3.8mm Cable106284-702525.0m OM4CXP Jumper Cable, OFNP, 3.8mm Cable106284-7050*50.0m OM4CXP Jumper Cable, OFNP, 5.4mm Cable106284-7100*100.0m OM4CXP Jumper Cable, OFNP, 5.4mm Cable106260-0109 3.0m OM3CXP Jumper Cable, OFNP, 3.8mm Cable – FlexiBend™ Boot106260-0110 5.0m OM3CXP Jumper Cable, OFNP, 3.8mm Cable – FlexiBend™ Boot106260-011110.0m OM3CXP Jumper Cable, OFNP, 3.8mm Cable – FlexiBend™ Boot106260-011225.0m OM3CXP Jumper Cable, OFNP, 3.8mm Cable – FlexiBend™ Boot106260-0113*50.0m OM3CXP Jumper Cable, OFNP, 5.4mm Cable – FlexiBend™ Boot106260-0114*100.0m OM3CXP Jumper Cable, OFNP, 5.4mm Cable – FlexiBend™ Boot*Cables longer than 30.0m will be supplied with 4.5mm ruggedized jacketed fiberBreakout- MTP to LCD†Part Number Length Cable Type Description106284-5102 3.0m OM3CXP to SFP Breakout Cable, OFNP,3.8m106284-5103 5.0m OM3CXP to SFP Breakout Cable, OFNP,3.8m106284-510410.0m OM3CXP to SFP Breakout Cable, OFNP,3.8m106284-5402 3.0m OM4CXP to SFP Breakout Cable, OFNP,3.8m106284-5403 5.0m OM4CXP to SFP Breakout Cable, OFNP,3.8m106284-540410.0m OM4CXP to SFP Breakout Cable, OFNP,3.8m106284-3003 3.0m OM2CXP to QSFP Breakout Cable, OFNP, 3.8mm106284-3005 5.0m OM2CXP to QSFP Breakout Cable, OFNP, 3.8mm106284-3503 3.0m OM3CXP to QSFP Breakout Cable, OFNP, 3.8mm106284-3505 5.0m OM3CXP to QSFP Breakout Cable, OFNP, 3.8mm106284-7503 3.0m OM4CXP to QSFP Breakout Cable, OFNP, 3.8mm106284-7505 5.0m OM4 CXP to QSFP Breakout Cable, OFNP, 3.8mm†Breakout Cables Available with FlexiBend™ MTP‡ Connector - please consult factory for detailsLoopback106005-1602N/A OM3CXP MM Loopback – 50/125μm Fiber – OM3106284-7000NA OM3CXP MM Loopback – 50/125μm Fiber – OM3 (Jumper Version)‡MTP is a registered trademark of US Conec Ltd.Order No. 987650-9711Printed in USA/KC/2015.07©2015 Molex。
