6_POWER8学习提纲201506

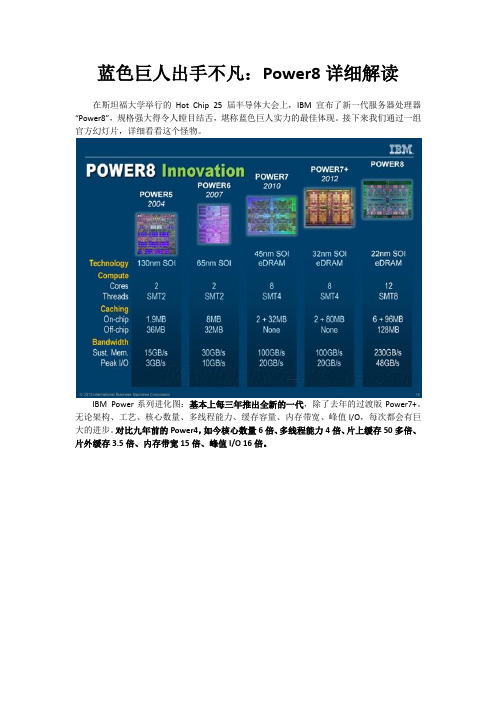

蓝色巨人出手不凡：Power8详细解读在斯坦福大学举行的Hot Chip 25届半导体大会上，IBM宣布了新一代服务器处理器“Power8”，规格强大得令人瞠目结舌，堪称蓝色巨人实力的最佳体现。

接下来我们通过一组官方幻灯片，详细看看这个怪物。

IBM Power系列进化图：基本上每三年推出全新的一代，除了去年的过渡版Power7+。

无论架构、工艺、核心数量、多线程能力、缓存容量、内存带宽、峰值I/O，每次都会有巨大的进步。

对比九年前的Power4，如今核心数量6倍、多线程能力4倍、片上缓存50多倍、片外缓存3.5倍、内存带宽15倍、峰值I/O 16倍。

Power8采用了最先进的IBM 22nm SOI工艺制造(AMD跪求)，核心面积达650平方毫米，但未透露集体晶体管数量。

核心数量达12个，而且每个核心都支持八线程，总线程因此多达96个。

架构方面，它采用了8分派、10发射、16流水线的设计，并增强了预取能力。

缓存拥有一级数据64KB、一级指令32KB、二级4MB(每核心512KB)、三级96MB eDRAM(所有核心共享)、片外四级最大128MB eDRAM。

双通道内存控制器，带宽最大230GB/s。

Power8整合了多种加速器，包括加密、内存扩展、事务性内存、VMM(虚拟机管理器)助手、数据转移和虚拟机移动性，总线方面则支持PCI-E 3.0、SMP互联CAPI(一致性加速处理器接口)。

电源管理方面有片上功耗管理微控制器、每核心整合VRM、关键路径监视器等等，但是具体功耗没有披露。

核心构成分布图：除了刚才提到的作为对比，这是Power7的核心分布。

缓存支持NUCA(非对称缓存架构)，带宽和延迟很灵活，而每个缓存区块的单向互联带宽高达150GB/s。

带宽：假设频率为4GHz(这是惟一一次提到频率规格但强调说实际产品会不一样)，那么二三级缓存的总带宽会分别有4TB/s、2TB/s。

内存管理：支持最多8个通道、32个DDR端口、1TB容量。

走近Power8 -芯片技术详解POWER8 处理器使用IBM 22纳米绝缘硅(SOI)技术。

每个处理器芯片649平方毫米,包含42亿个晶体管。

如图所示，芯片包含12核心,两个内存控制器，PCIe Gen3的I/O控制器和一个芯片内互联系统连接所有组件。

在不同系统中，会配置6、8、10或12核处理器到服务器。

每个处理器核心都有512 KB的L2高速缓存，所有处理器核心共享96 MB的L3嵌入式DRAM(eDRAM)。

互联系统还通过处理器模块和主板连接其他扩展处理器DDR3内存以及虚拟I/O设备。

POWER8系统使用内存缓存芯片处理POWER8处理器与DDR3 DDR4内存间的数据交换。

同时每个内存芯片还包括一个L4缓存来减少本地内存访问延迟。

POWER8处理器为企业提供的单CPU插槽服务器和多CPU插槽企业服务器。

采用SMP架构提供优越的扩展属性。

Multiple-scope一致性协议减少SMP链接操消耗的带宽。

IBM SMP架构高效的支持处理器核心的扩展。

多个处理器核心之间没有区别，平等地访问内存、外设、一个操作系统。

操作系统管理着一个队列，每个处理器依次处理队列中的进程。

如果两个处理器同时请求访问一个资源（例如同一段内存地址），由硬件、软件的锁机制去解决资源争用问题。

在AIX中，每个处理器依据其物理位置，依次标记为：proc0，proc1，…不同处理器在正常运行的时候没有区别，但是在机器启动的时候，通常由proc0控制引导过程，如果必要，也可以控制系统内核从其他的处理器引导系统。

POWER8处理器的增强功能:•POWER8内存控制器支持DDR3芯片和DDR4内存内存缓冲区，提升内存交换效率•每个内存板CDIMM提供16 MB L4缓存芯片，降低了本地访问内存的内存延迟，L4缓存的对POWER8处理器上运行的应用程序完全透明。

每个POWER8处理器最大支持128 MB的L4缓存。

•支持硬件事务内存。
