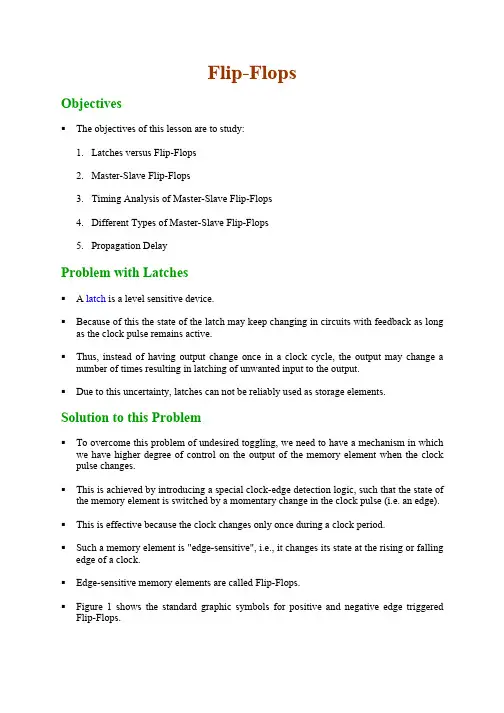

Flip-FlopsObjectivesThe objectives of this lesson are to study:tches versus Flip-Flops2.Master-Slave Flip-Flops3.Timing Analysis of Master-Slave Flip-Flops4.Different Types of Master-Slave Flip-Flops5.Propagation DelayProblem with LatchesA latch is a level sensitive device.Because of this the state of the latch may keep changing in circuits with feedback as long as the clock pulse remains active.Thus, instead of having output change once in a clock cycle, the output may change a number of times resulting in latching of unwanted input to the output.Due to this uncertainty, latches can not be reliably used as storage elements. Solution to this ProblemTo overcome this problem of undesired toggling, we need to have a mechanism in which we have higher degree of control on the output of the memory element when the clock pulse changes.This is achieved by introducing a special clock-edge detection logic, such that the state of the memory element is switched by a momentary change in the clock pulse (i.e. an edge). This is effective because the clock changes only once during a clock period.Such a memory element is "edge-sensitive", i.e., it changes its state at the rising or falling edge of a clock.Edge-sensitive memory elements are called Flip-Flops.Figure 1 shows the standard graphic symbols for positive and negative edge triggered Flip-Flops.Figure 1: Graphic Symbols of Edge-Triggered Flip-FlopsMaster-Slave Flip-FlopsThe simplest way to build a flip-flop is by using two latches in a ‘Master-Slave’ configuration as shown in Figure 2.In this configuration, one latch serves as the master receiving the external inputs and the other as a slave, which takes its inputs from the master.When the clock pulse goes high, information at S and R inputs is transmitted to master. The slave flip-flop however remains isolated since its control input C is 0.Now when the clock pulse returns to ‘0’, the master gets disabled and blocks the external inputs to get to its outputs whereas slave gets enabled and passes the latched information to its outputs.Figure 2: Block diagram of SR Master-Slave Flip-FlopTiming Analysis of Master-Slave Flip-FlopNow let's view the operation of the master-slave flip-flop by analyzing its timing wave forms (See Figure 3).Consider a master-slave flip-flop in the clear state (i.e. Y=0 and Q=0) prior to the occurrence of a pulse.The inputs S=1 and R=0 are applied. So when the clock goes high, the output of the master latch will change to the set state, while the slave latch remains disabled.When the clock returns to 0, the master latch is disabled and the slave latch is enabled.Thus, the data at the slave's input when the clock was high gets latched at the slave's output.Figure 3: Timing wave form of SR Master-Slave Flip-FlopDifferent Types of Master-Slave Flip-FlopsMaster-Slave JK-FFThe SR flip-flop can be modified to a JK flip-flop to eliminate the undesirable condition that leads to undefined outputs and indeterminate behavior.A Master-Slave JK Flip-Flop is shown in the Figure 4.Here, the output gets complemented when both J and K inputs are high.Figure 4: JK Master-Slave Flip-FlopD-Type Positive-Edge-Triggered FFThe logic diagram of a positive edge triggered D-type flip-flop is shown in the Figure 5. This flip-flop takes exactly the form of a master-slave flip-flop, with the master a D latch and the slave an SR latch. Also, an inverter is added to the clock input of the master latch.Because the master latch is a D latch, the flip-flop exhibits edge-triggered rather than master-slave (pulse-triggered) behavior.Figure 5: D-Type Positive-Edge-Triggered FFPropagation DelayIn digital logic, every gate has got some finite amount of delay because of which the change in the output is not instantaneous to the change in the input.In simple terms, the times it takes for an input to appear at the output is called the propagation delay.In Figure 6, t PHL, describes the time it takes for an input to cause the output to change from logic-level-high to logic-level-low.Similarly, t PLH, refers to the delay associated when an input change causes the output to change from logic-level-low to logic-level-high.The overall delay is average of these two delays.Figure 6: Propagation DelaySetup and Hold TimesFor correct operation of logic gates we need to satisfy some timing constrains regarding application of inputs and collecting of their outputs.Setup time (T s) refers to a constant duration for which the inputs must be held prior to the arrival of the clock transition (See Figure 7).Once the inputs are properly set, it must be kept for some time for their proper reading-in by the gate once the transition signal is triggered.Hold time (T h) refers to the duration for which the inputs must not change after the arrival of the transition (See Figure 7).If the setup and hold times are violated, a gate may produce an unknown logic signal at its output. This condition is called as meta-stability.Figure 7: Setup and Hold TimesPropagation DelayTo set or clear flip-flops asynchronously (i.e., without the use of clock and inputs) some flip-flops have direct inputs usually called direct preset or direct clear.These inputs are needed to bring the flip-flops to a known initial state prior to the normal clocked operation.A direct preset input, sets the output of a flip-flop to some known value, asynchronously,for example logic-1 or logic-0.A direct clear switch clears or resets all the flip-flops to logic value-0.Figure 8 shows the graphical symbol of a negative-edge-triggered JK-flip-flop with a direct clear.Figure 8: Negative-edge-triggered JK Flip-Flop with Asynchronous Clear。

1、汉译英1)直流电路direct current circuits2)放大器（扩音器）amplifier3)模拟电子技术analog electronics4)半导体二极管semiconductor diode5)晶体管效应transistor effect6)微处理器microprocessor7)电气工程electrical engineering8)能源工程（或电力工程）power engineering9)通信工程telecommunications engineering10)内部器件internal devices11)电子元件electrical components12)欧姆定律Ohm law13)限制电流limit current14)分压器voltage divider15)晶体管偏置电路transistor biasing circuits16)阻碍电流block DC current17)存储点能store electrical energy18)感抗inductive reactance19)绝缘材料insulating material20)交流阻抗AC resistancea)通用仪表general-purpose meterb)模拟仪表analog meterc)交换测试笔reverse the test leadsd)机械调节mechanical adjuste)测量电阻measure resistancef)正向电压positive voltageg)测量电流measure currenth)电压幅度voltage amplitudei)双踪示波器dual-trace oscilloscopej)信号发生器signal generator21)PN结PN junction22)三极管bipolar transistor23)电子和空穴electron and hole24)稳压电源electronic power supply或steady DC voltage source25)桥式整流器bridge rectifier26)脉冲直流电pulsating DC27)二极管的正极anode of diode28)峰值电压peak voltage29)电容滤波器capacitor filter30)充电和放电charge and discharge31)稳压管Zener diode32)电器电子工程师学会IEEE(Institute of Electrical and Electronics Engineers)33)专业技术组织technical professional association34)基尔霍夫电压定律Kirchhoff’s V oltage Law35)电压源voltage sources36)电荷守恒定律the law of conservation of electric charge37)在每一瞬时at every instant of time38)元件两端的电压voltages across elements39)无线电传输radio transmission40)频率调制或调频frequency modulation41)频域the frequency domain42)线性电阻linear resistor43)调幅波形amplitude modulation wave44)专用集成电路（ASIC）45)快速时间响应fast response time46)有效信号valid signal47)十进制数字系统decimal system48)逻辑运算logic operation1)控制信号线the control bus2)中断线interrupt lines1)结构化语言structured language2)局部变量local variables3)副作用side effect4)汇编语言指令assembly language instructions1)静止图像still image2)阴极射线管，显像管CRT or the cathode ray tube3)像素pixel4)电子束electron beam2、英译汉1)assembler language汇编语言2)alternating current circuits交流电路3)passive electrical circuits无源电路4)three phase circuits三相电路5)digital electronics数字电子技术6)logic gates逻辑门7)3D virtual reality image三维虚拟图像8)computer programming计算机编程9)major in（在大学里）主修10)advanced programming techniques高级编程技术1)known as capacitive reactance称为容抗2)with units ohms单位为欧姆3)prevent device from burning out防止器件烧掉4)has an AC resistance to AC current对交流电流由阻抗5)adjustment with a screw用一个螺丝调节6)in the shape of a cylinder 呈圆柱形式7)block DC current，but pass AC current阻直流通交流8)to vary the inductance改变电感9)be given by the formula 由公式给出10)the RF amplifier 音频放大器1)analog multimeter模拟万用表2)extended range扩展范围3)specific meters特殊仪表4)includes the function and range switches具有功能及范围选择旋钮5)present an electronic picture呈现一幅电子图像6)display the voltage waveform显示电压波形7)appear on the screen在屏幕上出现8)phase relationships相位关系9)an example例如，作为一个例子10)in series with the circuit串连接入电路1)Semiconductor material半导体材料2)forward biased正向偏置3)depend on the external circuit resistance取决于外部电路的电阻4)excessive reverse-biased voltage过高的反偏电压5)is directly proportional to the amount ofbase current是正比于基极电流6)may even appear almost as a short几乎可看成是短路7)cause stability problems for a transistorcircuit引起晶体管电路的稳定性问题8)digital technology数字技术9)the most popular technology最常用的技术10)use two complementary typeset oftransistors N-channel and P-channel用两种互补型的晶体管——N沟道和P沟道1)equipment operation设备的运行2)device that converts AC into DC把交流电转换成直流电的器件3)the power lines电源线4)depending on the value of DC voltageneeded 根据所需要的直流电压值5) a half-wave rectifier平波整流器6)so as to produce a constant DC output从而产生一个稳定的直流输出7)in the negative side of the capacitor在电容的负极8)flow through the load流过负载9)in the forward-biased condition在加正向偏置电压的条件下10) a series（current-limiting）resistor一个串联（限制电流）电阻1)current source电流源2)under this circumstance在这种情况下3)present the second of Kirchhoff’s laws给出基尔霍夫第二定律4)introduce the concept of a “loop”引入“回路”的概念5)An alternative statement of KVLKVL的另一种表述法6)voltages algebraically sum电压代数和7)sinusoidal steady-syate response正弦稳态响应8)ordinary household voltage日常用电的电压9)time-invariant circuit时不变电路10)percentage of modulation调制百分比reduce the power consumption减小消耗功率flip-flop 触发器the octal and hexadecimal systems当时钟脉冲信号来到时改变状态①直流电路direct current circuits②放大器（扩音器）amplifier③欧姆定律Ohm law④正极positive electrode⑤充电与放电Charge and discharge⑥无线电传输Radio transmission⑦模拟仪表Analogue Meters⑧模拟电子技术analog electronics⑨半导体二极管semiconductor⑩晶体管效应transistor effect⑪微处理器microprocessor⑫通信工程telecommunications engineering ⑬汇编语言assembler language⑭电子元件electrical components⑮限制电流limit current⑯分压器voltage divider⑰偏置电路biasing circuits⑱阻碍电流block DC current⑲感抗inductive reactance⑳容抗capacitive21正向电压positive voltage22扩展范围extended range23电压波形voltage waveform24连接入电路in series with the circuit25PN结PN junction 26三极管bipolar transistor27电子与空穴electron and hole28半导体材料semiconductor material29正向偏置forward biased30数字技术digital technology31桥式整流器bridge rectifier32稳压管Zener diode33电源线the power lines34在电容的负极in the negative side of the capacitor 在加正向偏置的条件下in the forward-biased condition一个串联电阻 a series (current-limiting)resistor35电压源voltage sources36在每一瞬时at every instant of time37无线电传输radio transmission38频率调制或调频frequency modulation39快速时间响应fast response time40有效信号valid signal41结构化语言structured language42局部变量local variables43副作用side effect44静止图像still image45阴极射线管pixel46电子束electron beam1.resistors are used to limit current flowing to adevice ,thereby preventing it from burning out, as voltage dividers to reduce voltage for other circuits, as transistor biasing circuits, and to serve as circuit loads.电阻常用做限流器，限制流过器件的电流防止烧坏器件，电阻也可用作分压器，以减小其他电路电压，还可以用在晶体管偏执电路中和作为电路负载。

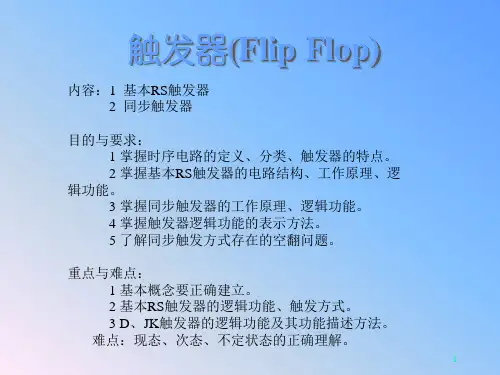

第五章触发器Flip－Flop1、触发器的定义和分类2、常用的触发器3、触发器的分析触发器（Flip-Flop）：能够存储一位二进制数字信号的基本单元电路叫做触发器。

（P179引言部分）特点：具有“记忆”功能。

分析下面的电路：当A＝0时，F=0某一时刻，由于外界的干扰使得A信号突然消失，此时，相当于A输入端悬空由电路结构得：F=1。

干扰发生前后， F的输出值发生的变化，故该电路没有“记忆”功能再看下面的电路：当A＝0时，F＝0。

某一时刻，由于外界的干扰使得A信号突然消失，此时，相当于A输入端悬空，但F端反馈回来的值仍然为0，由电路结构得：F=0。

说明该电路具有“记忆”功能。

其根本原因在于，该电路带有反馈。

触发器的分类：P179①按稳定工作状态分：双稳态、单稳态和无稳态（多谐振荡器）触发器。

本章仅讨论双稳态触发器。

②按结构分：主从结构和维持阻塞型（边沿结构）触发器。

本章仅讨论边沿触发器。

③按逻辑功能分：RS、JK、D、T和T’触发器。

本章重点讨论后四种。

常用触发器1、基本RS触发器①电路组成和逻辑符号基本RS触发器有两种：由与非门构成的和由或非门构成的。

我们以前者为例：输出端在正常情形下应是完全相反的两种逻辑状态，即两个稳态。

当Q=0时，称为“0态”；当Q=1时，称为“1态”。

②逻辑功能分析：A）当R=S=0时）（即1==SR11 QQQQ==⋅1可以保证门1的输出值不变。

QQQ=⋅1可以保证门2的输出值不变。

此时，门1和2的输出值均保持不变，称为：触发器的保持功能。

B）当S=0，R=1时）（即0,1==RS1111==⋅可以保证门1的输出值为0。

Q10==⋅Q可以保证门2的输出值为11此时，触发器的Q端始终输出低电平0，称为：触发器复位或触发器清0。

C）当S=1，R=0时）（即1,0==RS1111==⋅可以保证门1的输出值为1。

10==⋅Q可以保证门2的输出值为01此时，触发器的Q端始终输出高电平1，称为：触发器置位或触发器置1。

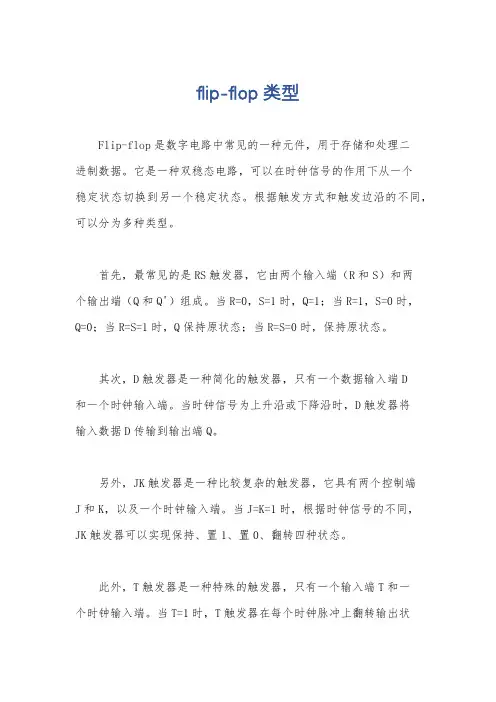

flip-flop类型
Flip-flop是数字电路中常见的一种元件，用于存储和处理二
进制数据。

它是一种双稳态电路，可以在时钟信号的作用下从一个
稳定状态切换到另一个稳定状态。

根据触发方式和触发边沿的不同，可以分为多种类型。

首先，最常见的是RS触发器，它由两个输入端（R和S）和两
个输出端（Q和Q'）组成。

当R=0，S=1时，Q=1；当R=1，S=0时，
Q=0；当R=S=1时，Q保持原状态；当R=S=0时，保持原状态。

其次，D触发器是一种简化的触发器，只有一个数据输入端D
和一个时钟输入端。

当时钟信号为上升沿或下降沿时，D触发器将
输入数据D传输到输出端Q。

另外，JK触发器是一种比较复杂的触发器，它具有两个控制端
J和K，以及一个时钟输入端。

当J=K=1时，根据时钟信号的不同，JK触发器可以实现保持、置1、置0、翻转四种状态。

此外，T触发器是一种特殊的触发器，只有一个输入端T和一
个时钟输入端。

当T=1时，T触发器在每个时钟脉冲上翻转输出状
态；当T=0时，保持原状态。

总的来说，不同类型的Flip-flop在数字电路中有不同的应用场景，可以根据具体的需求选择合适的类型来实现数据存储和控制功能。

希望这些信息能够帮助你更好地理解Flip-flop的类型和功能。
