实用文档第一讲:介面介绍无模式命令：G 修改设计栅格：G：修改设计栅格和过孔栅格GR：只修改设直栅格GV：只修改过孔栅格GD：修改可视栅格GP：打开/关闭极坐标：板层：PADS默认的层面有30层。

电路板的层面指的是电气:从Top——Bottom层。

L21——L30层为系统指定的，包括阻焊、丝印等。

修改板层：设置——板层定义。

无模式命令：L1或Ltop ：格式：L <名称>｜<编号>：查询(Ctrl+Q) ：打开对应对象的属性，相当双击左键。

：循环选择（Tab）：用于重叠对象的切换:选择需要与右键的过滤功能配合使用。

实用文档实用文档一个网络（net ）是由一个或多个管脚对（pair ）构成。

管脚对：从一个脚到另外一个脚。

Anything:任意Components:元件Unions:结合体Clusters:簇Nets:网络 Pin Pairs:管脚对Traces:导线Unroutes:未布通连线 Pins:管脚 Vias:过孔 Shapes:整体外形 Documentation:文档（字符）Board Outline:电路板边框在Anything 任意项下：先点中一段导线，再按住shift 键，单击相同的一段导线，就选择了网络。

按住shift 键，单击导线，就会选择管脚对。

:绘图工具盒:设计工具盒:尺寸标注工具盒:ECO(电气工程修改)工具盒包括：增加、删除元件，增加、删除连线，更改元件编号，更改网络名称。

:BGA工具盒:撤消：(Ctrl+Z) 无模式命令：un<n> n ：表示撤消的次数:重复:撤消撤消的操作。

与撤消相反:缩放左键放大，右键缩小缩放：１2 pg up 放大pg dn 缩小3 用滚轮：按下滚轮向左上：放大右下：缩小4 可view 下的zoom：显示整个电路板(ctrl+B):刷新(ctrl+D)或（End）画面控制一、用小键盘控制:数字键打开:1,刷新2,6,4,8方向3,缩小9,放大7,显示整块电路5, 启动中心放大 . , 边缘放大实用文档数字键关闭2,4,6,8 移动光标二、用三键鼠标控制1，滚轮上下移动：使屏幕上下移动２，按Shift+滚轮：使屏幕左右移动３，单击滚轮移动画面，将单击的位置显示在屏幕中间４，按下滚轮向左上角移动可以放大，向右下角移动可以缩小。

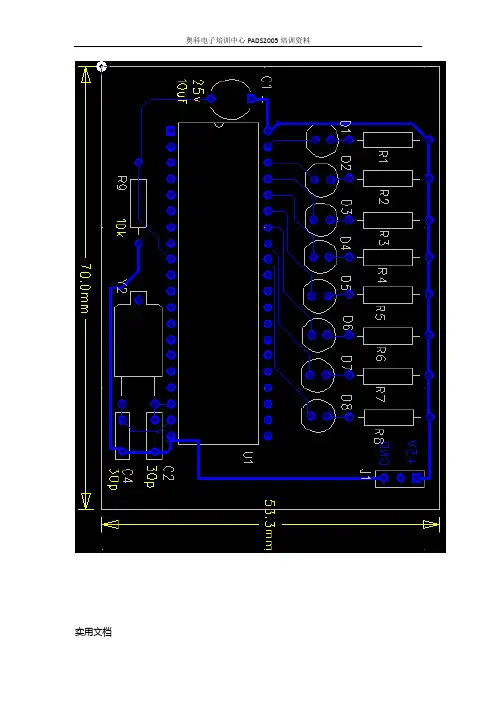

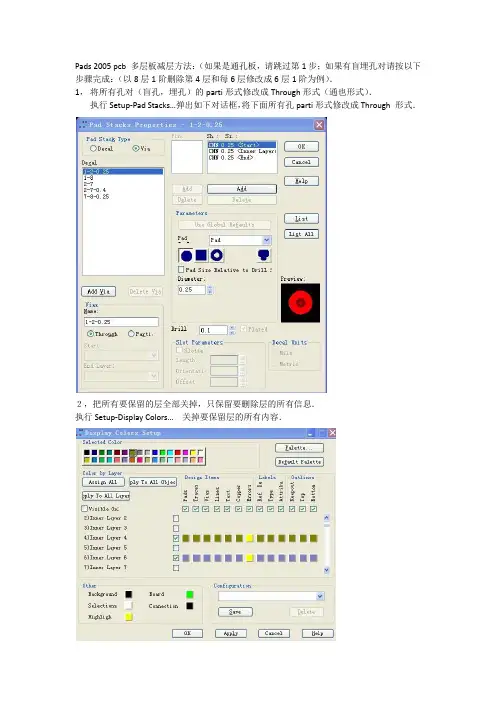

Pads 2005 pcb 多层板减层方法：（如果是通孔板，请跳过第1步；如果有盲埋孔对请按以下步骤完成：（以8层1阶删除第4层和每6层修改成6层1阶为例）．1，将所有孔对（盲孔，埋孔）的parti形式修改成Through形式（通也形式）．执行Setup-Pad Stacks…弹出如下对话框，将下面所有孔parti形式修改成Through 形式．２，把所有要保留的层全部关掉，只保留要删除层的所有信息．执行Setup-Display Colors…关掉要保留层的所有内容．3,删除这两层中所有的（非固定）内容，如shapes,traces,keepout等．注：千万不要在这两层中删除net,这样会把其它层相关联的网络删掉．确认要删除的内容执行删除命令．执行Setup-Layer Definition…点Reassign…按钮弹出如下对话框：观察要删除层（4和6）的对应的信息是否有Yes 变成了No..若已经变成了No证明这两层内的内容已经删除干净了．可进行下一步操作．4,Setup-Layer Definition…点Modify…按钮弹出如下对话框，将上面对话框内的10修改成6 点OK.弹出如下对话框．点ok返回到以下窗口：再点OK 会弹出如下对话框:点是删层完成5，更改减层后的层对应关系：Setup-Layer Definition…弹出以下对话框，在Name:内将层信息修改成同实际层相同的名字．修改后：6，Setup-Drill Pairs…弹出如下对话框，并修改钻孔对的层对应关系：（修改后）点OK.6，更改钻孔类型（将应该修改的Through 形式修改回parti形式）和修改相对应的钻孔名,完全完成删层工作．并另存为文件．Setup-Pad Stacks…修改后：。

pads 教程Pads教程：基本操作入门Pads是一款常用的电子设计自动化（EDA）工具，用于电路设计、仿真和布局。

下面是Pads的基本操作入门教程。

步骤1：创建新项目首先，打开Pads软件并点击“文件”菜单中的“新建项目”。

在弹出的对话框中输入项目名称，并选择存储项目的目录。

然后，点击“确定”按钮。

步骤2：添加原理图在新建项目中，右键点击“设计文件”文件夹，并选择“添加新文件”。

选择创建原理图文件，并命名为“schematic”。

然后，进入原理图编辑器。

步骤3：绘制电路图在原理图编辑器中，使用工具栏上的元件库选择所需的元件，如电阻、电容、晶体管等。

将这些元件拖拽到画布上，并使用连接线连接它们。

步骤4：添加零件属性在绘制电路图时，需要为每个元件添加属性。

选中元件，右键点击并选择“属性”。

然后，填写元件的参数，如阻值、容值等。

步骤5：进行仿真完成电路图的绘制后，可以进行仿真以验证电路设计的正确性。

点击“工具”菜单中的“仿真”选项，并选择相应的仿真工具。

配置仿真参数后，运行仿真。

步骤6：完成布局设计在验证电路设计无误后，可以进行布局设计。

在Pads中，可以通过将原理图导入布局编辑器来完成布局设计。

点击“文件”菜单中的“导入”选项，并选择原理图文件。

步骤7：布局布线在布局编辑器中，使用工具栏上的布线工具将元件进行布线。

确保布局符合电路设计的要求，并注意避免干扰和干扰源的位置。

步骤8：进行设计规则检查完成布线后，进行设计规则检查以确保布局符合规范。

点击“工具”菜单中的“设计规则检查”选项。

根据检查结果进行必要的修正。

步骤9：生成制造文件最后，生成制造文件以供PCB（印刷电路板）制造商使用。

点击“文件”菜单中的“生成制造文件”选项，并选择所需的制造文件格式。

这就是Pads的基本操作入门教程。

通过学习这些步骤，您可以开始在Pads中进行电路设计、仿真和布局。

希望本教程能对您有所帮助！。

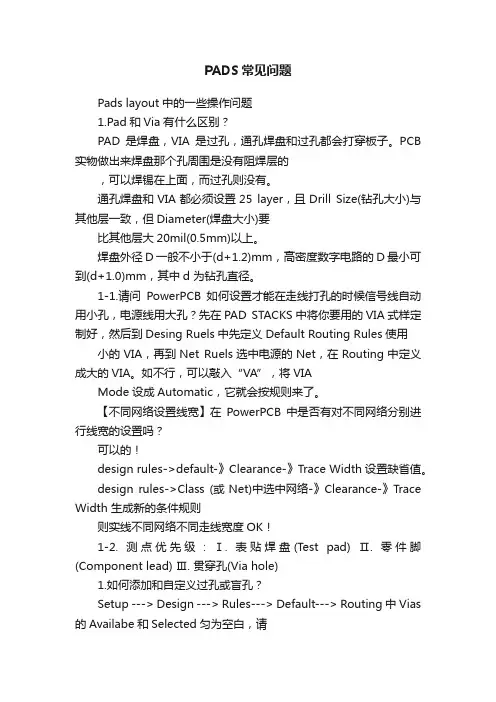

PADS常见问题Pads layout中的一些操作问题1.Pad和Via有什么区别？PAD是焊盘，VIA是过孔，通孔焊盘和过孔都会打穿板子。

PCB 实物做出来焊盘那个孔周围是没有阻焊层的，可以焊锡在上面，而过孔则没有。

通孔焊盘和VIA都必须设置25 layer，且Drill Size(钻孔大小)与其他层一致，但Diameter(焊盘大小)要比其他层大20mil(0.5mm)以上。

焊盘外径D一般不小于(d+1.2)mm，高密度数字电路的D最小可到(d+1.0)mm，其中d 为钻孔直径。

1-1.请问PowerPCB如何设置才能在走线打孔的时候信号线自动用小孔，电源线用大孔？先在PAD STACKS中将你要用的VIA式样定制好，然后到Desing Ruels中先定义Default Routing Rules使用小的VIA，再到Net Ruels选中电源的Net，在Routing中定义成大的VIA。

如不行，可以敲入“VA”，将VIAMode设成Automatic，它就会按规则来了。

【不同网络设置线宽】在PowerPCB中是否有对不同网络分别进行线宽的设置吗？可以的！design rules->default-》Clearance-》Trace Width设置缺省值。

design rules->Class (或Net)中选中网络-》Clearance-》Trace Width 生成新的条件规则则实线不同网络不同走线宽度OK！1-2. 测点优先级：Ⅰ. 表贴焊盘(Test pad) Ⅱ. 零件脚(Component lead) Ⅲ. 贯穿孔(Via hole)1.如何添加和自定义过孔或盲孔？Setup ---> Design ---> Rules---> Default---> Routing 中Vias 的Availabe和Selected匀为空白，请问怎样设置过孔？那你就新建一个VIA类型SETUP->PAD STACKS->在PAD STACK TYPE中选VIA->ADD VIA……然后Setup --->Design --->Rules---> Default---> Routing 中，把新建的VIA 添加到SELECT VIA!1-3.怎么加测试点?【SCH上手动增加测试点】原理图中就增加测试点符号，并PCB库中做好对应测试点的封装(表贴封装、via封装)，然后在layout中导入网表即可----------------------------------【PCB上直接手动加测试点】1) 连线时，点鼠标右键在end via mode 中选择end test point2) 选中一个网络的某段走线，右键-Add testpoint(只能加Via测试点)或Add Via，选中Via 或Pad修改属性为TestPoint3)将焊盘(表贴封装、via封装)做成一个部件，在ECO模式下用添加Component的方式增加进来，并修改属性为测试点--------------------------------【自动增加针床测试用的测试点】在PADS Layout中有专门加入测试点的方法。

香港：00852-26371886 sales@
3
PADS Router 教程
第一节：PADS Router 操作界面（User Interface）
PADS Router 的操作界面注重易用和实效性。当你使用 PADS Router 进行设 计时，操作界面与其他的 Windows 应用程序相似，尤其是 PADS Layout。同样你 可以通过界面下的工具栏、菜单、热键等命令进行相应的操作。

深圳：0755-83689810 szkgs@
上海：021-62725136 shkgs@
北京：010-82561903 bjkgs@
香港：00852-26371886 sales@
6
PADS Router 教程
选中需要操作的工作区域，按 F5 在导航窗中放大该区域，按 F6 按比例缩 小显示。
取景(Panning) 1、选中要查看的区域。 2、不要移动鼠标，按下键盘区 Insert 键，光标将会自动确定到工作区域的 中心位置。 3、点击 OK 按钮完成操作。
比思电子有限公司（KGS Technology Ltd.）
在该课程中，你将学习到： ·工具条 ·实时坐标显示 ·撤消指令 ·快捷菜单 ·取景，缩放，拖动 ·选取对象 启动 PADS Router，在 PADS Projects\Samples 文件夹中打开 preview.pcb。
打开文件后，整个工作界面如下，根据你的配置，打开时可能会有很多个小 窗口，如 Project Explorer 窗口、Navigation Window、Command Window 等等。 可以根据你的布线需要，随时关闭或打开这些子窗口。
香港：00852-26371886 sales@

11
点击选择(Design)工具盒
该工具盒包含工具条：
复 删 制 除
增 加 元 件
增 加 连 接
增 加 总 线
增 加 文 本
创 建 二 维 图 线
修 改 二 维 图 线
2012-2-7
12
2、生成原理图报表
完成原理图绘制后，需要对当前设计产生各种报表 Unused：未使用项目的报表 Part Statistics: 元件统计报表 Net Statistics: 网络统计报表 Limits：资源限制报表 Connectivity：连接性报表 Bill of Material：物料清单报表
2012-2-7
52
单击
画出不覆铜的边框，如图1所示， 选中边框
使用Setup/Drill Pairs打开
公司不推荐使用埋孔。因此一般不用设置
2012-2-7
32
层设置
使用Setup/Layer打开
2012-2-7
33
2012-2-7
34
2012-2-7
35
4、设计规则
PADS优点是能把Logic中定义的规则直接输入到Layout中，当然， 也可以选择直接在Layout中定义设计规则。
2012-2-7 14
三、PADS Layout介绍 PADS Layout界面
2012-2-7
15
1、PADS Layout工具条
2012-2-7
16
2012-2-7
17
2012-2-7
18
选 对 水 择 任 平 意 方 方 向 向 的 的 尺 直 寸 线 标 标 注 注 尺 寸
垂 直 方 向 的 尺 寸 标 注
2012-2-7

PADS铺铜属性使用技巧PADS铺铜属性使用技巧在PCB 设计上，铺铜是相当必要的动作，而PADS 提供了三种铺铜方法，可让使用者在Copper Properties 中方便的切换，以下就为各位介绍三种铺铜切换使用方式与Properties 的内容说明。

一. 如何呼叫Copper Properties 窗口在PCB 中绘制好铜箔，选取铜箔后再使用右键功能选单即可二. 使用Copper Properties(1) 可利用Type 下拉选单切换所需要的铜箔模式( Plane Area 在复合层面方可使用)(2) 利用铜箔线宽与格点的数值差异，可控制为网铜或实心铜(3) 可调整铜箔所在层面与指定铜箔导通NET三. 范例利用Copper pour 来完成大铜包小铜，并为一网铜一实心铜(1) 将铺铜格点设定为0(2) 绘制Copper pour 后呼叫Properties，并使用Options(3) 设定铺铜优先级与网铜格点(4) 利用铺铜控制器即可完成四. 结论PADS 中提供多功能的铜箔给使用者应用，若是能熟悉Copper Properties 操作，不仅是在铜箔使用类型切换上可更快速，在应用于是否为网铜或大铜包小铜等等进阶使用的操作上可更加的顺手与方便。

PADS铺铜设置一些常见问题问1。

使用POWER PCB 画图,在PCB 板上铺铜时,铜块的query/modify drafting 中有一个width 设置,有何意义?2。

如果我想在铺铜位置均匀的放置一些小过孔,要怎么设置?3。

在大面积铺铜时,网格状和全部铺满相比各有何优劣；如果全部铺满，是否必须增加一些小过孔；而铺成网格状的时候，这些小过孔是否还有必要？谢谢!!答 1:小说几句一、你提到的WIDTH 的设定是关于组成铺铜块的线径，设小了，就形成网格，设大了就铺满。

二、想加过孔最简单的办法是加一个焊盘。

正常是在走线上右键ADD VIA。

三、随你的高兴，想怎么样就怎么样。

1. pads学习方法交流有很多初学者由于学习方法不对，导致学习慢学习吃力，原因就是方法不对和没有坚持不断地学习直到学会为止。

以下是个人的学习pads的经验，仅供大家参考。

希望对初学者有帮助。

首先要了解用pads画原理图和pcb的流程，有很多人不了解流程，不知道从何开始学习，流程大慨为：画封装，画原理图符号，建元件，建元件库，画原理图，导入生成pcb，画外形边框，布局，布线，设计检验，生成gerber. 2.3. 了解了流程后就要开始看资料或者看视频讲解一步一步的按照流程中需要掌握的学习，把流程走一遍。

找一块完整的简单项目从头到尾地按照流程画一块完整的pcb。

在画的过程中，你会碰到很多问题，这时需要不断的问或者查资料看教程来解决在画的过程中碰到的问题，直到项目画完。

4.5.6.7.8. 总结在画的过程中慢的地方，找到最快的操作方法和技巧，学会总结一些快捷键。

经常练习，给自己规定一个时间在时间内完成，提高自己的速度和熟练程度。

学习一些布线规则和一些生产工艺，以确保画出来的pcb无论是性能还是工艺最好。

建立积累自己的元件库，为后续画其他的pcb板做准备，可以避免再去重新做元件而浪费时间。

介绍一个学习pads的网址给大家，里面有很多好的学习资料，尤其是一些视频讲解资料和pads的技巧，和大家分享，希望对大家有帮助。

下载方法，点击电信下载后进入另外一个页面，再点击下载，下载的为exe文件，再在电脑上运行安装此文件就会自动将资料下载到电脑上。

篇二：pads学习学会orcad和pads layout软件的基本使用步骤，orcad(找元件，定参数，添加库，生成链接文件，放大缩小、删除等基本操作等等)，pads layout( 导入链接文件、设置各种规则，布局、布线、检查等等) 利用上面学到的完整的画一个简单的电路图。

先把整个流程过一遍。

pads logic,是设计电子电路图，原理图的工具，pads layout是设计pcb，pcb布局，布局，到gerber file，pads router是自动布线工具，附助pcb layout布线的工具。

PADS概述1.1 什么是PADSPADS是Mentor Graphics公司旗下的印制电路板（PCB）设计工具软件套装，本书以PADS 9.5为蓝本写作，目前最新版本为PADS VX，提供中文、英文、日文、巴西葡萄牙语4种语言版本。

大名鼎鼎的Power PCB是PADS的前身。

PADS功能强大，涵盖了电子产品从原理图设计、性能仿真，直至印制电路板设计实现整个流程的各个环节。

通俗地讲，学会使用PADS就具备了使用计算机辅助设计电子产品的原理图和电路板的能力。

对于PADS初学者，通常会把PADS的模块名称及其具体功能混淆。

Mentor Graphics为了满足电子行业中各类设计工作的需求，将PADS 的众多功能模块整合为3 个套件，即PADS DS Suite、PADS LS Suite、PADS ES Suite，为方便大家记忆，表1-1-1列出了PADS套件及模块清单。

表1-1-1 PADS套件及模块清单由于本书篇幅有限，内容仅涉及PADS Logic、Layout、Router模块。

1.2 安装、启动PADS在安装之前，需要准备一台符合表1-2-1所示配置的个人计算机。

当然，更高配置的个人计算机有助于提高软件运行速度和提升设计效率。

表1-2-1 运行PADS 9.5 PC硬件配置要求将PADS安装光盘放入计算机的光驱后，按照如图1-2-1所示的14个步骤，即可完成PADS评估版软件的安装。

图1-2-1 安装PADS图1-2-1 安装PADS （续）如同其他的应用软件一样，在Windows操作系统的程序菜单中可以找到如图1-2-2所示的程序菜单及快捷方式。

找到图1-2-2 所示的PADS Logic、Layout、Router快捷命令后，就可以启动相应的程序。

除了安装随书赠送的PADS 光盘外，还可以通过访问Mentor Graphics PADS 官方网站获得最新版本的PADS试用。

图1-2-2 PADS Logic、Layout、Router程序快捷方式所处位置1.3 查看已安装的选项根据表1-1-1所示，PADS的套件配置配备的模块数量有所不同，用户可以根据自身的需求选择合适的组件。

PADS2005的REUSE功能
3. 选中另一块电路的件（只选件）。这块电路必需与REUSE块的拓扑结 构一样，件的数量、封装一样，网络数量一样。
4. 按设计工具条上的“Make Like Reuse”按钮，这块电路的布局布线 就完成了，并被抓在鼠标上。
5. 选择一个合适的位置将电路块放下即可。
相同的电路都可以这样设计（只布局也可以），效果如下图：
PADS2005的REUSE功能
PADS2005的REUSE功能
张明龙
PADS2005的REUSE功能
PADS2005的REUSE功能
先前，我们只是用该功能将一个PCB中的走线复制到另一个PCB 中。其实，它可以用来完成同一个PCB中相同结构的块的布局布线， 介绍如下：
1. 先完成一块电路的布局布线，如图： 2. 选中这块电路中的件、走线、过孔， 设置一个块参考点，生成一个Rro类似功能 比较：有一点不匹配 就不能使用，没有 Allegro灵活。

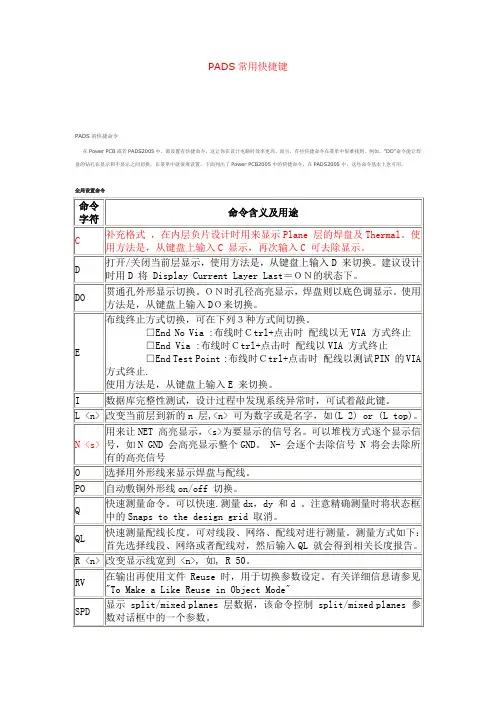

PADS常用快捷键PADS的快捷命令在Power PCB或者PADS2005中，都设置有快捷命令，这让你在设计电路时效率更高。

而且，有些快捷命令在菜单中很难找到，例如，"DO"命令能让焊盘的钻孔在显示和不显示之间切换，在菜单中就很难设置。

下面列出了Power PCB2005中的快捷命令，在PADS2005中，这些命令基本上也可用。

全局设置命令Grid 命令检索命令角度命令（drafting 时的快速设定）设计规则检查命令Design Rule Checking (DRC)布线命令绘图相关命令Drafting Objects与鼠标动作相关的命令其它命令Z+1 显示的为第一层Z+2 显示的为第二层依次类推。

Z+o 显示外层，即首层Z（n-M)即显示第几层到第几层。

Z*. 显示所有层.ZT 显示顶层ZB 显示底层ZSMZ B 显示底层Z C 显示当前层Z D 显示所有文档层.Z E 显示所有电气层.Z I 显示内层.Z O 显示板的外层，就是顶层和底层. Z T 显示底层Z PMB 显示助焊底层Z PMT 显示助焊顶层Z SMB 显示阻焊底层Z SMT 显示阻焊顶层Z SSB 显示丝印底层Z SST 显示丝印顶层PADS快捷键设置通孔显示模式：D+O设置铜只显示外框形式：P+O打开铺铜显示：SPD，关闭铺铜显示：SPO改变当前层：L（如改当前层为第二层，为L2）测量：从当前位置开始测量：Q改变线宽：W设置栅格：G对找元件管脚或元件：S寻找绝对坐标点：S（n）(n)改变走线角度：AA任意角，AD斜角，AO直角取消当前操作：UN，如UN(1)为取消前一个操作重复多次操作：RE设计规则检查：打开:DRP,关闭：DRO，忽略设计规则：DRI，以无过孔形式暂停走线：E锁定当前操作层对：PL(n)(n)选择当前过孔使用模式：自动过孔选择：V A埋孔或盲孔：VP通孔模式：VT保存：CTRL+S打开：CTRL+O新建：CTRL+N选择全部：CTRL+A全屏显示：CTRL+W移动：CTRL+E翻转：CTRL+F任意角度翻转：CTRL+I高亮：CTRL+H查询与修改：CTRL+Q45度翻转：CTRL+R增加走线：F2锁定层对：F4选择网络：F6选择管脚对：F5全局设置命令命令字符命令含义及用途C 补充格式，在内层负片设计时用来显示Plane 层的焊盘及Thermal。

PADS2005(Power PCB)教程实例之高级应用(每日更新）PADS2005(Power PCB)教程实例之高级应用(每日更新)将下面的问题进行讨论1. 设计复用2. IC扇出3. 蛇行布线4. 差分对布线5. 等长布线6. 多层板层叠分析7. 信号完整性分析8. 电磁兼容分析9. 串扰分析10. 多板分析11. 可测试性设计12. 可制造性设计13. Pro/ENGINEER 链接... ...Power PCB 设计复用(以PADS 2005为例)建立一个设计复用(*.reu文件)1.选择要设计的对象。

2.右键，弹出菜单中选Make Reuse，可以看后面的选择和未选择报告(Selection deselection)3.输入Reuse的文件名4.选取Save to file5.保存该文件到文件夹以备后用。

在以下学习中，所有的应用环境必须在ECO下,关闭设计规则检查(可用DRO命令),下次再续... ...增加一个设计复用1.在菜单中单击Add Reuse,弹出对话框。

2.选择要增加的复用文件，弹出“Reuse Properties 对话框。

点击浏览该文件3.如已经存在一个复用文件，则弹出一个提示，“确定”增加一个副本，“否则”取消。

4.. “Reuse Properties 对话框中，点”Net Properties”看是否有网络冲突，如果有需要合并的网络，必须在ECO下手动合并。

点击浏览该文件5. 如果没有错误，将出现一个如下提示对话框.点击浏览该文件6.完成增加设计复用。

编辑设计复用1.打开要编辑的设计复用(文件类型选*.reu)，根椐需要编辑它或者在右键弹出菜单中选择Break Reuse取消设计复用。

2.编辑完成后，将选择类型定为“select Reuse”，右键，Save to file,覆盖掉以前的文件，提示:是否覆盖XXX文件，选“Yes"，完成～比如有些成熟的黄金电路，能够在设计中重复使用，省去许多时间，你可以把它当成元件库存在库里。
