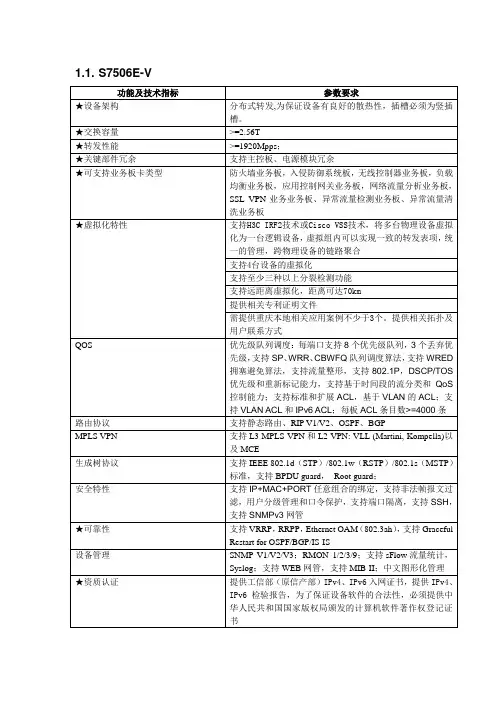

S7506E设备参数

S7506E设备参数
支持基于端口、MAC地址、IP地址、IP优先级、DSCP优先级、TCP/UDP端口号、协议类型等方式的流分类；
支持流量整形和流量监管
MPLS特性
支持L3VPN：支持跨域MPLS VPN（Option1/2/3）、嵌套MPLS VPN、支持分层PE（HoPE）、CE双归属、MCE、多角色主机、GRE隧道等；支持L2VPN：Martini、Kompella、CCC和SVC方式；支持MPLS TE、RSVP TE
安全特性
支持IP+MAC+PORT任意组合的绑定，支持非法帧报文过滤，用户分级管理和口令保护，支持端口隔离，支持SSH，支持SNMPv3网管
★可靠性
支持VRRP，RRPP，Ethernet OAM（802.3ah），支持Graceful Restart for OSPF/BGP/IS-IS
设备管理
SNMP V1/V2/V3；RMON1/2/3/9；支持sFlow流量统计，Syslog；支持WEB网管，支持MIB-II；中文图形化管理
QOS
优先级队列调度：每端口支持8个优先级队列，3个丢弃优先级，支持SP、WRR、CBWFQ队列调度算法，支持WRED拥塞避免算法，支持流量整形，支持802.1P，DSCP/TOS优先级和重新标记能力，支持基于时间段的流分类和QoS控制能力；支持标准和扩展ACL，基于VLAN的ACL；支持VLAN ACL和IPv6 ACL；每板ACL条目数>=4000条
★虚拟化特性
支持H3C IRF2技术或Cisco VSS技术，将多台物理设备虚拟化为一台逻辑设备，虚拟组内可以实现一致的转发表项，统一的管理，跨物理设备的链路聚合
支持4台设备的虚拟化
支持至少三种以上分裂检测功能
支持远距离虚拟化，距离可达70km

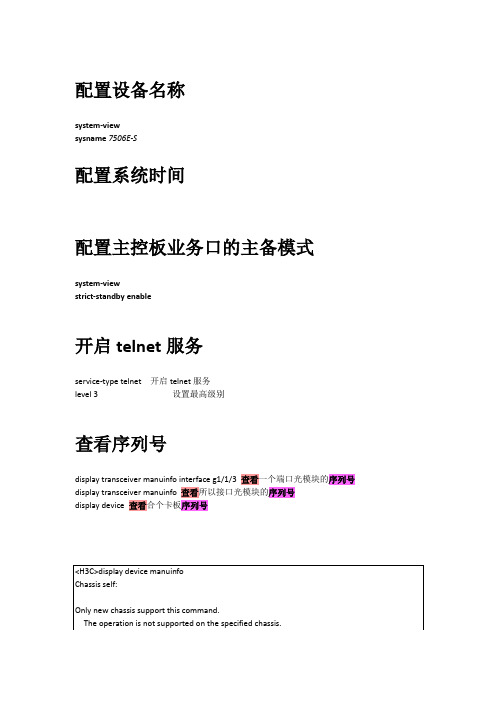

7506E-S配置

7506E-S配置
MAC_ADDRESS : NONE
MANUFACTURING_DATE : 2014-01-12
VENDOR_NAME : H3C
Slot 5:
DEVICE_NAME : LSQ1FWBSC0
DEVICE_SERIAL_NUMBER : 210231A832B125000018
MAC_ADDRESS : NONE
Only new chassis support this command.
The operation is not supported on the specified power.
Fan 1:
Only new chassis support this command.
The operation is not supported on the specified fan.
<WX3024>reboot
Start to check configuration with next startup configuration file, please wait.........DONE!
This command will reboot the device. Current configuration will be lost, save current configuration? [Y/N]:n
MANUFACTURING_DATE : 2014-01-11
VENDOR_NAME : H3C
Power 1:
Only new chassis support this command.
The operation is not supported on the specified power.

三层交换机详细配置实例(图)

三层交换机详细配置实例(图)

三层交换机与路由器的配置实例（图解）目的：学会使用三层交换与路由器让处于不同网段的网络相互通信实验步骤：一：二层交换机的配置：在三个二层交换机上分别划出两VLAN，并将二层交换机上与三层交换或路由器上的接线设置为trunk接口二：三层交换机的配置：1：首先在三层交换上划出两个VLAN，并进入VLAN为其配置IP，此IP将作为与他相连PC 的网关。

2：将与二层交换机相连的线同样设置为trunk接线，并将三层交换与路由器连接的线设置为路由接口（no switchsport）3：将路由器和下面的交换机进行单臂路由的配置实验最终结果：拓扑图下各个PC均能相互通信交换机的配置命令：SW 0:Switch>Switch>enSwitch#confConfiguring from terminal, memory, or network [terminal]?Enter configuration commands, one per line. End with CNTL/Z.Switch(config)#vlan 2Switch(config-vlan)#exitSwitch(config)#int f0/2Switch(config-if)#switchport access vlan 2Switch(config-if)#no shutSwitch(config-if)#int f0/3Switch(config-if)#switchport mode trunk%LINEPROTO-5-UPDOWN: Line protocol on Interface FastEthernet0/3, changed state to down%LINEPROTO-5-UPDOWN: Line protocol on Interface FastEthernet0/3, changed state to upSwitch(config-if)#exitSwitch(config)#SW 1:Switch>enSwitch#confConfiguring from terminal, memory, or network [terminal]?Enter configuration commands, one per line. End with CNTL/Z.Switch(config)#int f0/2Switch(config-if)#switchport access vlan 2% Access VLAN does not exist. Creating vlan 2Switch(config-if)#no shutSwitch(config-if)#exitSwitch(config)#int f0/3Switch(config-if)#switchport mode trunk%LINEPROTO-5-UPDOWN: Line protocol on Interface FastEthernet0/3, changed state to down%LINEPROTO-5-UPDOWN: Line protocol on Interface FastEthernet0/3, changed state to upSwitch(config-if)#SW 2:Switch>enSwitch#confConfiguring from terminal, memory, or network [terminal]?Enter configuration commands, one per line. End with CNTL/Z.Switch(config)#int f0/2Switch(config-if)#switchport access vlan 2% Access VLAN does not exist. Creating vlan 2Switch(config-if)#exitSwitch(config)#int f0/3Switch(config-if)#switchport mode trunkSwitch(config-if)#三层交换的配置命令：Switch>enSwitch#confConfiguring from terminal, memory, or network [terminal]?Enter configuration commands, one per line. End with CNTL/Z.Switch(config)#int f0/1Switch(config-if)#switchport mode trunk%LINEPROTO-5-UPDOWN: Line protocol on Interface FastEthernet0/2, changed state to downSwitch(config-if)#exitSwitch(config)#int f0/2Switch(config-if)#switchport mode trunkSwitch(config-if)#exitSwitch(config)#vlan 2Switch(config-vlan)#exitSwitch(config)#int vlan 1Switch(config-if)#no shut%LINK-5-CHANGED: Interface Vlan1, changed state to up%LINEPROTO-5-UPDOWN: Line protocol on Interface Vlan1, changed state to up Switch(config-if)#ip address 192.168.1.168 255.255.255.0Switch(config-if)#exitSwitch(config)#int vlan 2%LINK-5-CHANGED: Interface Vlan2, changed state to up%LINEPROTO-5-UPDOWN: Line protocol on Interface Vlan2, changed state to upSwitch(config-if)#ip addSwitch(config-if)#ip address 192.168.2.168 255.255.255.0Switch(config-if)#%LINK-5-CHANGED: Interface FastEthernet0/3, changed state to up%LINEPROTO-5-UPDOWN: Line protocol on Interface FastEthernet0/3, changed state to upSwitch(config-if)#exitSwitch(config)#int f0/3Switch(config-if)#no switchport%LINEPROTO-5-UPDOWN: Line protocol on Interface FastEthernet0/3, changed state to down%LINEPROTO-5-UPDOWN: Line protocol on Interface FastEthernet0/3, changed state to upSwitch(config-if)#Switch(config-if)#ip address 192.168.10.1 255.255.255.0Switch(config-if)#no shutSwitch(config-if)#exitSwitch(config)#ip routingSwitch(config-if)#exitSwitch(config)#ip route 0.0.0.0 0.0.0.0 192.168.10.2Switch(config)#路由器的配置：Router>enRouter#confConfiguring from terminal, memory, or network [terminal]?Enter configuration commands, one per line. End with CNTL/Z.Router(config)#int f0/0Router(config-if)#no shut%LINK-5-CHANGED: Interface FastEthernet0/0, changed state to upRouter(config-if)#exitRouter(config)#int f0/1Router(config-if)#no shut%LINK-5-CHANGED: Interface FastEthernet0/1, changed state to up%LINEPROTO-5-UPDOWN: Line protocol on Interface FastEthernet0/1, changed state to upRouter(config-if)#exitRouter(config)#int f0/0Router(config-if)#no shutRouter(config-if)#exitRouter(config)#int f0/0.1Router(config-subif)#encapsulation dot1Q 1Router(config-subif)#ip address 192.168.3.168 255.255.255.0Router(config-subif)#exitRouter(config)#int f0/0.2Router(config-subif)#encapsulation dot1Q 2Router(config-subif)#ip addRouter(config-subif)#ip address 192.168.4.168 255.255.255.0Router(config-subif)#exitRouter(config)#ip route 0.0.0.0 0.0.0.0 192.168.10.1Router(config)#exit%SYS-5-CONFIG_I: Configured from console by consoleRouter#confConfiguring from terminal, memory, or network [terminal]?Enter configuration commands, one per line. End with CNTL/Z.Router(config)#int f0/1Router(config-if)#ip addRouter(config-if)#ip address 192.168.10.2 255.255.255.0 Router(config-if)#。

三层交换机基本配置

三层交换机基本配置

详细描述
三层交换机的主要功能包括路由，即根据IP地址或网络 层协议（如IPX或AppleTalk）将数据包从一个网络接口 转发到另一个网络接口。此外，它还可以实现访问控制 列表（ACL），这是一种安全功能，用于过滤和限制对 网络资源的访问。另外，三层交换机还可以在不同的 VLAN（虚拟局域网）之间进行路由，这对于大型企业 网络尤其重要，因为它们通常需要将不同的部门或用户 组划分为不同的VLAN。
详细描述
通过配置流量控制，可以限制网络中 数据包的流量，防止网络拥堵和数据 丢失。常见的流量控制技术包括基于 端口的流量控制和基于IP的流量控制。
端口汇聚配置
总结词
实现端口汇聚，提高网络带宽和可靠性
详细描述
端口汇聚可以将多个物理端口绑定为一个逻辑端口，从而提高网络带宽和可靠性。通过配置端口汇聚 ，可以实现负载均衡、备份和故障恢复等功能。
2. 创建ACL规则，指定允许或拒绝的IP地址和端口号。
详细描述：通过定义访问控制规则，ACL可以限制网络 流量，只允许符合规则的数据包通过交换机，从而保护 网络免受恶意攻击和非法访问。 1. 进入交换机的配置模式。
3. 将ACL应用到相应的接口上，以过滤进出的网络流量 。
IP源防护（IP Source Guard）配置
总结词：IP Source Guard用于防止IP地址欺骗攻击， 确保网络的安全性。
配置步骤
详细描述：IP Source Guard可以防止非法用户通过伪 造IP地址来攻击网络，通过绑定IP地址和MAC地址， 确保只有合法的用户能够通过交换机访问网络。
1. 进入交换机的配置模式。
2. 启用IP Source Guard功能。
动态路由配置（RIP）
总结词

三层交换机的连接和配置

三层交换机的连接和配置

课堂小结
例：
vlan 2 //建立编号为2的VLAN，并进入VLAN配置模式
port 0/0 untagged //加入接口0
exit
ห้องสมุดไป่ตู้
port 0/0 //进入设置接口模式
pvid 2 //设置接口0/0默认VLAN为VLAN2
exit
interface sw2 //进入sw2的接口配置模式
ip address 10.0.0.1 255.0.0.0 //配置VLAN网关地址
9.2三层交换机的连接和配置
三层交换机的接口
三层交换机的外观与普通交换机相似，有多种接口。 常用的接口有以下两种： ·以太网接口——一般为R45J接口，用双绞线与以太 网连接。一般有24个接口，通常标记为 “ETHERNET0/0”、“ETHERNET0/1”、…… “ETHERNET0/23”。 ·配置端口——又称为Console接口或控制台接口。大 多数三层交换机的Console接口同样为RJ45，少数使用 串口、IEEE1394接口。
VLAN接口配置命令需在全局配置模式下使用。 ①配置VLAN接口
interface VLAN接口（如sw0；sw1；sw3……） ②配置IP地址和子网掩码
ip address IP地址 子网掩码 例如： ③VLAN接口分配到VLAN。VLAN接口必须关联一个VLAN，此 VLAN必须提前配置好。 vlan-id 虚拟局域网号 vlan-id 1
port——向虚拟局域网中添加接口。
例：①vlan 2
建立编号为2的vlan，并进入vlan配置模式
②port 0/1 untagged 加入端口1
③exit
退出当前VLAN模式，返回上一级模式

S7506E三层交换机配置上课讲义

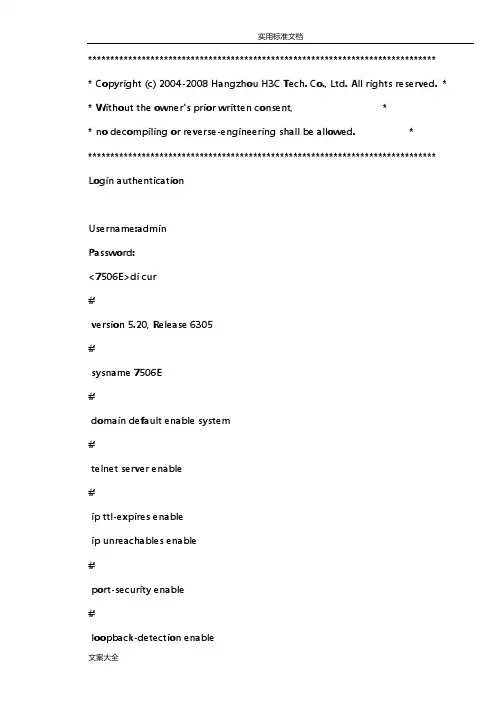

***************************************************************** ************** Copyright (c) 2004-2008 Hangzhou H3C Tech. Co., Ltd. All rights reserved. ** Without the owner's prior written consent, ** no decompiling or reverse-engineering shall be allowed. ****************************************************************** *************Login authenticationUsername:adminPassword:<7506E>di cur#version 5.20, Release 6305#sysname 7506E#domain default enable system#telnet server enable#ip ttl-expires enableip unreachables enable#port-security enable#loopback-detection enable#mirroring-group 1 localmirroring-group 2 local#switch-mode standard#acl number 3010description to UTM200rule 0 permit ip source 192.168.128.0 0.0.15.255 rule 1 permit ip source 192.168.160.0 0.0.31.255 acl number 3011rule 0 permit ip source 192.168.34.0 0.0.0.255 rule 1 permit ip source 192.168.37.0 0.0.0.255 rule 2 permit ip source 192.168.31.0 0.0.0.255 rule 3 permit ip source 192.168.39.0 0.0.0.255 rule 4 permit ip source 192.168.254.0 0.0.0.255 acl number 3500#vlan 1#vlan 2 to 2221#vlan 2222description wireless_guest#vlan 2223 to 2500#vlan 3000description test#vlan 3901description dianxin ap#vlan 3902#vlan 3985description dhcp for temp guest meeting supervlansubvlan 36#vlan 3986description dianxin wirelesssupervlansubvlan 3901#vlan 3987description huisuo vlan 33supervlansubvlan 33#vlan 3988description wirelesssupervlansubvlan 2222#vlan 3989supervlansubvlan 3 to 29#vlan 3990supervlansubvlan 1226 to 1250#vlan 3991subvlan 1200 to 1225#vlan 3992supervlansubvlan 100 to 111#vlan 3993supervlansubvlan 1032 to 1150#vlan 3994supervlansubvlan 911 to 1031#vlan 3995supervlansubvlan 791 to 910#vlan 3996supervlansubvlan 351 to 421 747 to 790 #vlan 3997supervlansubvlan 231 to 350#vlan 3998supervlansubvlan 112 to 230#description to UTM200#vlan 4000 to 4001#ftth#domain systemaccess-limit disablestate activeidle-cut disableself-service-url disable#traffic classifier kefang operator andif-match acl 3010traffic classifier denyvlanclass operator and if-match acl 3500#traffic behavior kefangredirect next-hop 192.168.145.2traffic behavior dengvlanfilter deny#qos policy kefangclassifier kefang behavior kefangqos policy denyvlanclassifier denyvlanclass behavior dengvlan #dhcp server ip-pool 3985network 192.168.36.0 mask 255.255.255.0 gateway-list 192.168.36.254expired day 0 hour 8#dhcp server ip-pool 3986network 192.168.160.0 mask 255.255.224.0 gateway-list 192.168.160.1dns-list 202.96.128.86 8.8.8.8 202.96.128.166 expired day 0 hour 2#dhcp server ip-pool 3987network 192.168.33.0 mask 255.255.255.0gateway-list 192.168.33.254dns-list 202.96.128.86 202.96.128.166 8.8.8.8 expired day 0 hour 8#dhcp server ip-pool 3988network 192.168.142.0 mask 255.255.254.0 gateway-list 192.168.142.1dns-list 202.96.128.86 202.96.128.166 8.8.8.8 expired day 0 hour 4#dhcp server ip-pool 3989network 192.168.140.0 mask 255.255.254.0 gateway-list 192.168.140.1dns-list 202.96.128.86 202.96.128.166 8.8.8.8 expired day 0 hour 4#dhcp server ip-pool 3990network 192.168.138.0 mask 255.255.254.0 gateway-list 192.168.138.1dns-list 202.96.128.86 202.96.128.166 8.8.8.8#dhcp server ip-pool 3991network 192.168.136.0 mask 255.255.254.0gateway-list 192.168.136.1dns-list 202.96.128.86 202.96.128.166 8.8.8.8expired day 0 hour 4#dhcp server ip-pool 3992network 192.168.134.0 mask 255.255.254.0gateway-list 192.168.134.1dns-list 202.96.128.86 202.96.128.166 8.8.8.8expired day 0 hour 4#dhcp server ip-pool 3993network 192.168.132.128 mask 255.255.255.128 gateway-list 192.168.132.129dns-list 202.96.128.86 202.96.128.166 8.8.8.8expired day 0 hour 4#dhcp server ip-pool 3994network 192.168.132.0 mask 255.255.255.128 gateway-list 192.168.132.1dns-list 202.96.128.86 202.96.128.166 8.8.8.8expired day 0 hour 4#dhcp server ip-pool 3995network 192.168.131.128 mask 255.255.255.128 gateway-list 192.168.131.129dns-list 202.96.128.86 202.96.128.166 8.8.8.8expired day 0 hour 4dhcp server ip-pool 3996network 192.168.131.0 mask 255.255.255.128 gateway-list 192.168.131.1dns-list 202.96.128.86 202.96.128.166 8.8.8.8expired day 0 hour 4#dhcp server ip-pool 3997network 192.168.130.128 mask 255.255.255.128 gateway-list 192.168.130.129dns-list 202.96.128.86 202.96.128.166 8.8.8.8expired day 0 hour 4#dhcp server ip-pool 3998network 192.168.130.0 mask 255.255.255.128 gateway-list 192.168.130.1dns-list 202.96.128.86 202.96.128.166 8.8.8.8expired day 0 hour 4#dhcp server ip-pool 3999#local-user adminpassword cipher _PW\RO>8';4.[DN#`U3;6Q!!service-type telnetlevel 3#stp instance 0 root primarystp enable#monitor-link group 1##interface Vlan-interface1ip address 192.168.39.2 255.255.255.0 #interface Vlan-interface2ip address 192.168.31.227 255.255.255.0 #interface Vlan-interface30ip address 192.168.30.254 255.255.255.0 #interface Vlan-interface32ip address 192.168.32.254 255.255.255.0 #interface Vlan-interface34ip address 192.168.34.254 255.255.255.0 #interface Vlan-interface35ip address 192.168.35.254 255.255.255.0 #interface Vlan-interface37ip address 192.168.37.254 255.255.255.0 #interface Vlan-interface38ip address 192.168.38.254 255.255.255.0 #interface Vlan-interface3985ip address 192.168.36.254 255.255.255.0 #interface Vlan-interface3986 (分配网关)ip address 192.168.160.1 255.255.224.0local-proxy-arp enable#interface Vlan-interface3987ip address 192.168.33.254 255.255.255.0#interface Vlan-interface3988ip address 192.168.142.1 255.255.254.0#interface Vlan-interface3989ip address 192.168.140.1 255.255.254.0local-proxy-arp enable#interface Vlan-interface3990ip address 192.168.138.1 255.255.254.0local-proxy-arp enable#interface Vlan-interface3991ip address 192.168.136.1 255.255.254.0local-proxy-arp enable#interface Vlan-interface3992ip address 192.168.134.1 255.255.254.0local-proxy-arp enable#interface Vlan-interface3993ip address 192.168.132.129 255.255.255.128 local-proxy-arp enable#interface Vlan-interface3994ip address 192.168.132.1 255.255.255.128#interface Vlan-interface3995ip address 192.168.131.129 255.255.255.128 local-proxy-arp enable#interface Vlan-interface3996ip address 192.168.131.1 255.255.255.128local-proxy-arp enable#interface Vlan-interface3997ip address 192.168.130.129 255.255.255.128 local-proxy-arp enable#interface Vlan-interface3998ip address 192.168.130.1 255.255.255.128local-proxy-arp enable#interface Vlan-interface3999description to UTM200ip address 192.168.145.1 255.255.255.0#interface Vlan-interface4000description to f1000-sip address 192.168.254.1 255.255.255.0#interface Vlan-interface4001ip address 192.168.254.101 255.255.255.252 #interface GigabitEthernet2/0/1port link-type trunkport trunk permit vlan 1 to 3984 3999 to 4094qos apply policy kefang inbound#interface GigabitEthernet2/0/2port link-type trunkport trunk permit vlan 1 to 3984 4000 to 4094 qos apply policy kefang inbound#interface GigabitEthernet2/0/3port link-type trunkport trunk permit vlan 1 to 3984 4000 to 4094 qos apply policy kefang inbound#interface GigabitEthernet2/0/4port link-type trunkport trunk permit vlan 1 to 3984 4000 to 4094 qos apply policy kefang inbound#interface GigabitEthernet2/0/5port link-type trunkport trunk permit vlan 1 to 3984 4000 to 4094 qos apply policy kefang inbound#interface GigabitEthernet2/0/6port link-type trunkport trunk permit vlan 1 to 3984 4000 to 4094 qos apply policy kefang inbound#interface GigabitEthernet2/0/7port link-type trunkport trunk permit vlan 1 to 3984 4000 to 4094 qos apply policy kefang inbound#interface GigabitEthernet2/0/8port link-type trunkport trunk permit vlan 1 to 3984 4000 to 4094 qos apply policy kefang inbound#interface GigabitEthernet2/0/9port link-type trunkport trunk permit vlan 1 to 3984 4000 to 4094 qos apply policy kefang inbound#interface GigabitEthernet2/0/10port link-type trunkport trunk permit vlan 1 to 3984 4000 to 4094 qos apply policy kefang inbound#interface GigabitEthernet2/0/11port link-type trunkport trunk permit vlan 1 to 3984 4000 to 4094 qos apply policy kefang inbound#interface GigabitEthernet2/0/12port link-type trunkport trunk permit vlan 1 to 3984 4000 to 4094 qos apply policy kefang inbound#interface GigabitEthernet3/0/1port access vlan 4000qos apply policy kefang inbound#interface GigabitEthernet3/0/2port link-type trunkundo port trunk permit vlan 1port trunk permit vlan 3 to 29 39 50 to 99 101 to 3984 4001 to 4094 port trunk pvid vlan 39qos apply policy kefang inboundmirroring-group 1 mirroring-port both#interface GigabitEthernet3/0/3port access vlan 2qos apply policy kefang inbound#interface GigabitEthernet3/0/4port access vlan 1227qos apply policy kefang inboundmirroring-group 2 monitor-port#interface GigabitEthernet3/0/5port access vlan 3901qos apply policy kefang inbound#interface GigabitEthernet3/0/6port access vlan 8#interface GigabitEthernet3/0/7port access vlan 3999description to UTM-200_G 0/0qos apply policy kefang inbound#interface GigabitEthernet3/0/8port access vlan 8qos apply policy kefang inbound#interface GigabitEthernet3/0/9 port access vlan 2stp edged-port enableqos apply policy kefang inbound #interface GigabitEthernet3/0/10 port access vlan 2stp edged-port enableqos apply policy kefang inbound #interface GigabitEthernet3/0/11 port access vlan 2stp edged-port enableqos apply policy kefang inbound #interface GigabitEthernet3/0/12 port access vlan 2stp edged-port enableqos apply policy kefang inbound #interface GigabitEthernet3/0/13 port access vlan 2stp edged-port enableqos apply policy kefang inbound #interface GigabitEthernet3/0/14 port access vlan 2stp edged-port enableqos apply policy kefang inbound #interface GigabitEthernet3/0/15 port access vlan 2stp edged-port enableqos apply policy kefang inbound #interface GigabitEthernet3/0/16 port access vlan 2stp edged-port enableqos apply policy kefang inbound #interface GigabitEthernet3/0/17 port access vlan 2stp edged-port enableqos apply policy kefang inbound #interface GigabitEthernet3/0/18 port access vlan 2stp edged-port enableqos apply policy kefang inbound #interface GigabitEthernet3/0/19 port access vlan 2stp edged-port enableqos apply policy kefang inbound #interface GigabitEthernet3/0/20 port access vlan 2stp edged-port enableqos apply policy kefang inbound #interface GigabitEthernet3/0/21port access vlan 2stp edged-port enableqos apply policy kefang inbound #interface GigabitEthernet3/0/22 port access vlan 2stp edged-port enableqos apply policy kefang inbound #interface GigabitEthernet3/0/23 port access vlan 35stp edged-port enableqos apply policy kefang inbound #interface GigabitEthernet3/0/24 port access vlan 34stp edged-port enableqos apply policy kefang inbound #interface GigabitEthernet3/0/25 port access vlan 2stp edged-port enableqos apply policy kefang inbound #interface GigabitEthernet3/0/26 port access vlan 2stp edged-port enableqos apply policy kefang inbound #interface GigabitEthernet3/0/27 port link-type trunkport trunk permit vlan 1 to 3984 4000 to 4094 qos apply policy kefang inboundmirroring-group 1 monitor-port#interface GigabitEthernet3/0/28port access vlan 2qos apply policy kefang inbound#interface GigabitEthernet3/0/29port access vlan 29qos apply policy kefang inbound#interface GigabitEthernet3/0/30port link-type trunkport trunk permit vlan 1 to 3984 4000 to 4094 qos apply policy kefang inbound#interface GigabitEthernet3/0/31port access vlan 4000qos apply policy kefang inbound#interface GigabitEthernet3/0/32port access vlan 2qos apply policy kefang inbound#interface GigabitEthernet3/0/33port access vlan 2qos apply policy kefang inbound#interface GigabitEthernet3/0/34port access vlan 2qos apply policy kefang inbound #interface GigabitEthernet3/0/35 port access vlan 2qos apply policy kefang inbound #interface GigabitEthernet3/0/36 port access vlan 2qos apply policy kefang inbound #interface GigabitEthernet3/0/37 port access vlan 37qos apply policy kefang inbound #interface GigabitEthernet3/0/38 port access vlan 2qos apply policy kefang inbound #interface GigabitEthernet3/0/39 port access vlan 37qos apply policy kefang inbound #interface GigabitEthernet3/0/40 port access vlan 2qos apply policy kefang inbound #interface GigabitEthernet3/0/41 port access vlan 2stp disablestp loop-protectionqos apply policy kefang inbound#interface GigabitEthernet3/0/42 port access vlan 2qos apply policy kefang inbound #interface GigabitEthernet3/0/43 port access vlan 2qos apply policy kefang inbound #interface GigabitEthernet3/0/44 port access vlan 34qos apply policy kefang inbound #interface GigabitEthernet3/0/45 port access vlan 2qos apply policy kefang inbound #interface GigabitEthernet3/0/46 port access vlan 35qos apply policy kefang inbound #interface GigabitEthernet3/0/47 port link-type trunkport trunk permit vlan 1 30qos apply policy kefang inbound #interface GigabitEthernet3/0/48 port access vlan 34qos apply policy kefang inbound #interface GigabitEthernet4/0/1port link-type trunkport trunk permit vlan 1 to 3984 4000 to 4094 qos apply policy kefang inbound#interface GigabitEthernet4/0/2port link-type trunkport trunk permit vlan 1 to 3984 4000 to 4094 qos apply policy kefang inbound#interface GigabitEthernet4/0/3port link-type trunkport trunk permit vlan 1 to 3984 4000 to 4094 qos apply policy kefang inbound#interface GigabitEthernet4/0/4port link-type trunkport trunk permit vlan 1 to 3984 4000 to 4094 qos apply policy kefang inbound#interface GigabitEthernet4/0/5port link-type trunkport trunk permit vlan 1 to 3984 4000 to 4094 qos apply policy kefang inbound#interface GigabitEthernet4/0/6port link-type trunkport trunk permit vlan 1 to 3984 4000 to 4094 qos apply policy kefang inbound#interface GigabitEthernet4/0/7port trunk permit vlan 1 to 3984 4000 to 4094 qos apply policy kefang inbound#interface GigabitEthernet4/0/8port link-type trunkport trunk permit vlan 1 to 3984 4000 to 4094 qos apply policy kefang inbound#interface GigabitEthernet4/0/9port link-type trunkport trunk permit vlan 1 to 3984 4000 to 4094 qos apply policy kefang inbound#interface GigabitEthernet4/0/10port link-type trunkport trunk permit vlan 1 to 3984 4000 to 4094 qos apply policy kefang inbound#interface GigabitEthernet4/0/11port link-type trunkport trunk permit vlan 1 to 3984 4000 to 4094 qos apply policy kefang inbound#interface GigabitEthernet4/0/12port link-type trunkport trunk permit vlan 1 to 3984 4000 to 4094 qos apply policy kefang inbound#interface GigabitEthernet4/0/13port link-type trunkqos apply policy kefang inbound#interface GigabitEthernet4/0/14port link-type trunkport trunk permit vlan 1 to 3984 4000 to 4094 qos apply policy kefang inbound#interface GigabitEthernet4/0/15port link-type trunkport trunk permit vlan 1 to 3984 4000 to 4094 qos apply policy kefang inbound#interface GigabitEthernet4/0/16port link-type trunkport trunk permit vlan 1 to 3984 4000 to 4094 qos apply policy kefang inbound#interface GigabitEthernet4/0/17port link-type trunkport trunk permit vlan 1 to 3984 4000 to 4094 qos apply policy kefang inbound#interface GigabitEthernet4/0/18port link-type trunkport trunk permit vlan 1 to 3984 4000 to 4094 qos apply policy kefang inbound#interface GigabitEthernet4/0/19port link-type trunkport trunk permit vlan 1 to 3984 4000 to 4094#interface GigabitEthernet4/0/20port link-type trunkport trunk permit vlan 1 to 3984 4000 to 4094 qos apply policy kefang inbound#interface GigabitEthernet4/0/21port link-type trunkport trunk permit vlan 1 to 3984 4000 to 4094 qos apply policy kefang inbound#interface GigabitEthernet4/0/22port link-type trunkport trunk permit vlan 1 to 3984 4000 to 4094 qos apply policy kefang inbound#interface GigabitEthernet4/0/23port link-type trunkport trunk permit vlan 1 to 3984 4000 to 4094 qos apply policy kefang inbound#interface GigabitEthernet4/0/24port link-type trunkport trunk permit vlan 1 to 3984 4000 to 4094 qos apply policy kefang inbound#interface GigabitEthernet4/0/25port link-type trunkport trunk permit vlan 1 to 3984 4000 to 4094 qos apply policy kefang inboundinterface GigabitEthernet4/0/26port link-type trunkport trunk permit vlan 1 to 3984 4000 to 4094 qos apply policy kefang inbound#interface GigabitEthernet4/0/27port link-type trunkport trunk permit vlan 1 to 3984 4000 to 4094 qos apply policy kefang inbound#interface GigabitEthernet4/0/28port link-type trunkport trunk permit vlan 1 to 3984 4000 to 4094 qos apply policy kefang inbound#interface GigabitEthernet4/0/29port link-type trunkport trunk permit vlan 1 to 3984 4000 to 4094 qos apply policy kefang inbound#interface GigabitEthernet4/0/30port link-type trunkport trunk permit vlan 1 to 3984 4000 to 4094 qos apply policy kefang inbound#interface GigabitEthernet4/0/31port link-type trunkport trunk permit vlan 1 to 3984 4000 to 4094 qos apply policy kefang inbound#port link-type trunkport trunk permit vlan 1 to 3984 4000 to 4094 qos apply policy kefang inbound#interface GigabitEthernet4/0/33port link-type trunkport trunk permit vlan 1 to 3984 4000 to 4094 qos apply policy kefang inbound#interface GigabitEthernet4/0/34port link-type trunkport trunk permit vlan 1 to 3984 4000 to 4094 qos apply policy kefang inbound#interface GigabitEthernet4/0/35port link-type trunkport trunk permit vlan 1 to 3984 4000 to 4094 qos apply policy kefang inbound#interface GigabitEthernet4/0/36port link-type trunkport trunk permit vlan 1 to 3984 4000 to 4094 qos apply policy kefang inbound#interface GigabitEthernet4/0/37port link-type trunkport trunk permit vlan 1 to 3984 4000 to 4094 qos apply policy kefang inbound#interface GigabitEthernet4/0/38port trunk permit vlan 1 to 3984 4000 to 4094 qos apply policy kefang inbound#interface GigabitEthernet4/0/39port link-type trunkport trunk permit vlan 1 to 3984 4000 to 4094 qos apply policy kefang inbound#interface GigabitEthernet4/0/40port link-type trunkport trunk permit vlan 1 to 3984 4000 to 4094 qos apply policy kefang inbound#interface GigabitEthernet4/0/41port link-type trunkport trunk permit vlan 1 to 3984 4000 to 4094 qos apply policy kefang inbound#interface GigabitEthernet4/0/42port link-type trunkport trunk permit vlan 1 to 3984 4000 to 4094 qos apply policy kefang inbound#interface GigabitEthernet4/0/43port link-type trunkport trunk permit vlan 1 to 3984 4000 to 4094 qos apply policy kefang inbound#interface GigabitEthernet4/0/44port link-type trunk#interface GigabitEthernet4/0/45port link-type trunkport trunk permit vlan 1 to 3984 4000 to 4094 qos apply policy kefang inbound#interface GigabitEthernet4/0/46port link-type trunkport trunk permit vlan 1 to 3984 4000 to 4094 qos apply policy kefang inbound#interface GigabitEthernet4/0/47port link-type trunkport trunk permit vlan 1 to 3984 4000 to 4094 qos apply policy kefang inbound#interface GigabitEthernet4/0/48port link-type trunkport trunk permit vlan 1 to 3984 4000 to 4094 qos apply policy kefang inbound#interface GigabitEthernet8/0/1port link-type trunkport trunk permit vlan 1 to 3984 4000 to 4094 loopback-detection enableqos apply policy kefang inbound#interface GigabitEthernet8/0/2port link-type trunk#interface GigabitEthernet8/0/3port link-type trunkport trunk permit vlan 1 to 3984 4000 to 4094 qos apply policy kefang inbound#interface GigabitEthernet8/0/4port link-type trunkport trunk permit vlan 1 to 3984 4000 to 4094 qos apply policy kefang inbound#interface GigabitEthernet8/0/5port link-type trunkport trunk permit vlan 1 to 3984 4000 to 4094 qos apply policy kefang inbound#interface GigabitEthernet8/0/6port link-type trunkport trunk permit vlan 1 to 3984 4000 to 4094 qos apply policy kefang inbound#interface GigabitEthernet8/0/7port link-type trunkport trunk permit vlan 1 to 3984 4000 to 4094 qos apply policy kefang inbound#interface GigabitEthernet8/0/8port link-type trunkport trunk permit vlan 1 to 3984 4000 to 4094#interface GigabitEthernet8/0/9port link-type trunkport trunk permit vlan 1 to 3984 4000 to 4094 qos apply policy kefang inbound#interface GigabitEthernet8/0/10port link-type trunkport trunk permit vlan 1 to 3984 4000 to 4094 qos apply policy kefang inbound#interface GigabitEthernet8/0/11port link-type trunkundo port trunk permit vlan 1port trunk permit vlan 3901qos apply policy kefang inboundmirroring-group 2 mirroring-port both#interface GigabitEthernet8/0/12port access vlan 30description 到集团综合楼qos apply policy kefang inbound#interface GigabitEthernet9/0/1port link-type trunkport trunk permit vlan 1 to 3984 4000 to 4094 qos apply policy kefang inbound#interface GigabitEthernet9/0/2port link-type trunkport trunk permit vlan 1 to 3984 4000 to 4094 qos apply policy kefang inbound#interface GigabitEthernet9/0/3port link-type trunkport trunk permit vlan 1 to 3984 4000 to 4094 qos apply policy kefang inbound#interface GigabitEthernet9/0/4port link-type trunkport trunk permit vlan 1 to 3984 4000 to 4094 qos apply policy kefang inbound#interface GigabitEthernet9/0/5port link-type trunkport trunk permit vlan 1 to 3984 4000 to 4094 qos apply policy kefang inbound#interface GigabitEthernet9/0/6port link-type trunkport trunk permit vlan 1 to 3984 4000 to 4094 qos apply policy kefang inbound#interface GigabitEthernet9/0/7port link-type trunkport trunk permit vlan 1 to 3984 4000 to 4094 qos apply policy kefang inbound#interface GigabitEthernet9/0/8port link-type trunkport trunk permit vlan 1 to 3984 4000 to 4094qos apply policy kefang inbound#interface GigabitEthernet9/0/9port link-type trunkport trunk permit vlan 1 to 3984 4000 to 4094 qos apply policy kefang inbound#interface GigabitEthernet9/0/10port link-type trunkport trunk permit vlan 1 to 3984 4000 to 4094 qos apply policy kefang inbound#interface GigabitEthernet9/0/11port link-type trunkport trunk permit vlan 1 to 3984 4000 to 4094 qos apply policy kefang inbound#interface GigabitEthernet9/0/12port link-type trunkport trunk permit vlan 1 to 3984 4000 to 4094 qos apply policy kefang inbound#interface M-Ethernet0/0/0#interface Ten-GigabitEthernet5/0/1port link-type trunkport trunk permit vlan 1 to 3984 4000 to 4094 qos apply policy kefang inbound#interface Ten-GigabitEthernet5/0/2port link-type trunkport trunk permit vlan 1 to 3984 4000 to 4094qos apply policy kefang inbound#interface Ten-GigabitEthernet6/0/1port link-type trunkport trunk permit vlan 1 to 3984 4000 to 4094qos apply policy kefang inbound#interface Ten-GigabitEthernet6/0/2port link-type trunkport trunk permit vlan 1 to 3984 4000 to 4094qos apply policy kefang inbound#route-policy kefang permit node 0if-match acl 3010apply ip-address next-hop 192.168.129.1#ip route-static 0.0.0.0 0.0.0.0 192.168.254.2ip route-static 10.0.0.0 255.255.255.0 192.168.30.253 ip route-static 10.0.18.0 255.255.255.0 192.168.30.253 ip route-static 10.0.24.0 255.255.255.0 192.168.30.253 ip route-static 10.0.25.0 255.255.255.0 192.168.30.253 ip route-static 10.0.29.0 255.255.255.0 192.168.30.253 ip route-static 10.0.97.0 255.255.255.0 192.168.30.253 ip route-static 10.10.0.0 255.255.0.0 192.168.30.253ip route-static 10.11.2.0 255.255.255.0 192.168.30.253 ip route-static 10.11.30.0 255.255.255.0 192.168.30.253 ip route-static 10.11.70.0 255.255.255.0 192.168.30.253 ip route-static 10.11.72.0 255.255.255.0 192.168.30.253 ip route-static 10.12.41.0 255.255.255.0 192.168.30.253 ip route-static 10.100.1.0 255.255.255.0 192.168.30.253ip route-static 116.6.69.101 255.255.255.255 192.168.30.253 ip route-static 172.16.1.0 255.255.255.0 61.144.43.216ip route-static 172.16.1.0 255.255.255.0 192.168.145.2ip route-static 192.168.0.0 255.255.255.0 192.168.30.253ip route-static 192.168.4.0 255.255.255.0 192.168.30.253ip route-static 192.168.5.0 255.255.255.0 192.168.30.253ip route-static 192.168.7.0 255.255.255.0 192.168.30.253ip route-static 192.168.8.0 255.255.255.0 192.168.30.253ip route-static 192.168.9.0 255.255.255.0 192.168.30.253ip route-static 192.168.19.0 255.255.255.0 192.168.30.253 ip route-static 192.168.21.0 255.255.255.0 192.168.30.253 ip route-static 192.168.22.0 255.255.255.0 192.168.30.253 ip route-static 192.168.23.0 255.255.255.0 192.168.30.253 ip route-static 192.168.24.0 255.255.255.0 192.168.30.253 ip route-static 192.168.26.0 255.255.255.0 192.168.30.253 ip route-static 192.168.28.0 255.255.255.0 192.168.30.253 ip route-static 192.168.29.0 255.255.255.0 192.168.30.253 ip route-static 192.168.41.0 255.255.255.0 192.168.30.253 ip route-static 192.168.46.0 255.255.255.0 192.168.30.253 ip route-static 192.168.68.0 255.255.255.0 192.168.30.253 ip route-static 192.168.76.0 255.255.255.0 192.168.30.253 ip route-static 192.168.82.0 255.255.255.0 192.168.30.253 ip route-static 192.168.84.0 255.255.255.0 192.168.30.253 ip route-static 192.168.86.0 255.255.255.0 192.168.30.253 ip route-static 192.168.88.0 255.255.255.0 192.168.30.253 ip route-static 192.168.91.0 255.255.255.0 192.168.30.253 ip route-static 192.168.96.0 255.255.255.0 192.168.30.253 ip route-static 192.168.103.0 255.255.255.0 192.168.30.253 ip route-static 192.168.202.0 255.255.255.0 192.168.30.253 ip route-static 192.168.253.0 255.255.255.0 192.168.253.1 ip route-static 192.168.254.4 255.255.255.252 192.168.254.2。

三层交换机的基本配置方法

三层交换机的基本配置方法一、前言三层交换机是一种高级网络设备，它能够实现数据包的转发和路由功能。

在企业网络中，三层交换机的应用非常广泛，因为它可以提高网络性能和安全性。

本文将介绍三层交换机的基本配置方法，帮助读者了解如何正确地配置和管理这种设备。

二、基础知识在进行三层交换机的配置之前，需要了解一些基础知识：1. VLAN（Virtual Local Area Network）：虚拟局域网，是一种将物理上分散的计算机连接起来形成逻辑上的局域网的技术。

2. STP（Spanning Tree Protocol）：生成树协议，用于避免网络中出现环路。

3. OSPF（Open Shortest Path First）：开放式最短路径优先协议，用于计算网络中最短路径。

4. ACL（Access Control List）：访问控制列表，用于限制对网络资源的访问。

5. DHCP（Dynamic Host Configuration Protocol）：动态主机配置协议，用于自动分配IP地址和其他网络参数。

6. NAT（Network Address Translation）：网络地址转换，用于将内部IP地址映射为外部IP地址。

7. QoS（Quality of Service）：服务质量，用于优化数据流量传输并确保网络性能。

三、配置步骤下面是三层交换机的基本配置步骤：1. 连接设备首先，需要将三层交换机与其他设备连接起来。

可以使用网线或光纤连接，然后通过串口或SSH等方式进行管理。

2. 设置管理IP地址设置管理IP地址是非常重要的一步，它允许管理员通过网络访问交换机进行配置和管理。

可以使用命令行界面或Web界面设置IP地址。

3. 配置VLANVLAN是将不同的网络设备划分为逻辑上的不同区域，从而提高网络安全性和性能。

可以使用命令行界面或Web界面创建和配置VLAN。

4. 配置STPSTP用于避免网络中出现环路，从而保证网络稳定性和可靠性。

H3C S7506E上配置策略路由

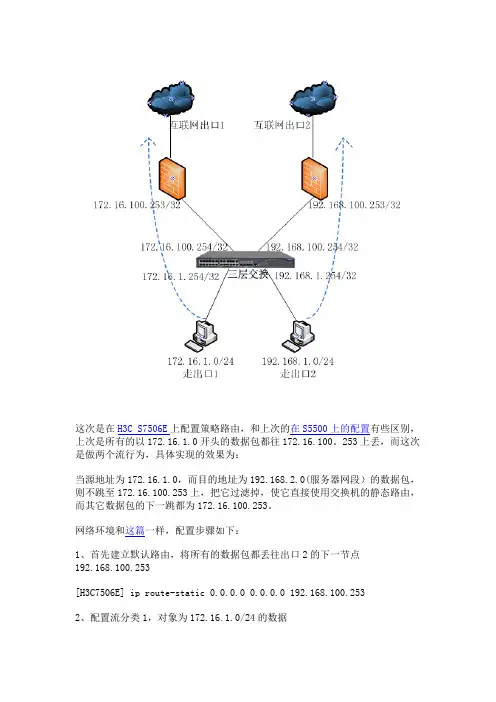

这次是在H3C S7506E上配置策略路由，和上次的在S5500上的配置有些区别，上次是所有的以172.16.1.0开头的数据包都往172.16.100。

253上丢，而这次是做两个流行为，具体实现的效果为：当源地址为172.16.1.0，而目的地址为192.168.2.0(服务器网段）的数据包，则不跳至172.16.100.253上，把它过滤掉，使它直接使用交换机的静态路由，而其它数据包的下一跳都为172.16.100.253。

网络环境和这篇一样，配置步骤如下：1、首先建立默认路由，将所有的数据包都丢往出口2的下一节点192.168.100.253[H3C7506E] ip route-static 0.0.0.0 0.0.0.0 192.168.100.2532、配置流分类1，对象为172.16.1.0/24的数据[H3C7506E]acl number 3001[H3C7506E-acl-adv-3001] rule 0 deny ip source 172.16.1.0 0.0.0.255 dest 192.168.2.0 0.0.0.255[H3C7506E] quit[H3C7506E] traffic classifier 1[H3C7506E-classifier-1] if-match acl 3001[H3C7506E-classifier-1] quit3、配置刚才定义的流分类的行为，定义如果匹配则允许[H3C7506E] traffic behavior 1[H3C7506E-behavior-1] filter permit[H3C7506E-behavior-1] quit4、配置流分类2，对象仍为172.16.1.0、24[H3C7506E]acl number 3002[H3C7506E-acl-adv-3002] rule 0 permit ip source 172.16.1.0 0.0.0.255 [H3C7506E] quit[H3C7506E] traffic classifier 2[H3C7506E-classifier-2] if-match acl 3002[H3C7506E-classifier-2] quit5、配置刚才定义的流分类的行为，定义如果匹配就下一跳至出口1即172.16.100.253[H3C7506E] traffic behavior 2[H3C7506E-behavior-2] redirect next-hop 172.16.100.253[H3C7506E-behavior-2] quit6、将刚才设置的应用至QOS策略中，定义policy 1[H3C7506E] qos policy 1[H3C7506E-qospolicy-2] classifier 1 behavior 1[H3C7506E-qospolicy-2] classifier 2 behavior 2[H3C7506E-qospolicy-2] quit7、在接口上应用定义的QOS策略policy 1[H3C7506E] interface GigabitEthernet 1/0/15[H3C7506E-GigabitEthernet1/0/15] qos apply policy 1 inbound[H3C7506E-GigabitEthernet1/0/15] quit至此，配置已完成。

S7506E 系列交换机IRF2 功能配置案例

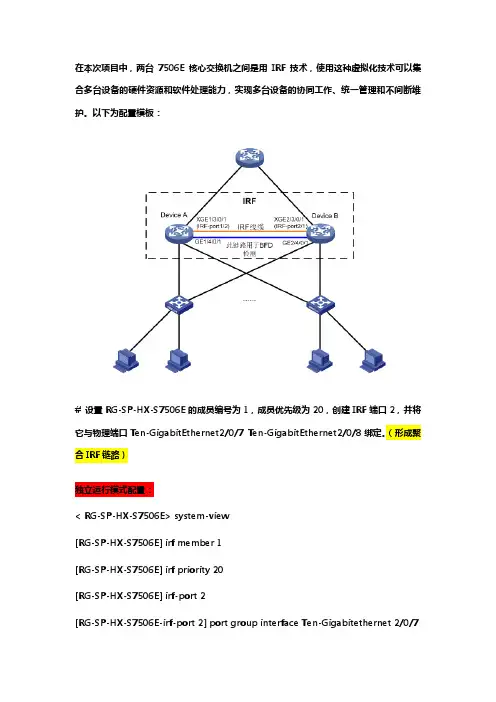

在本次项目中，两台7506E核心交换机之间是用IRF技术，使用这种虚拟化技术可以集合多台设备的硬件资源和软件处理能力，实现多台设备的协同工作、统一管理和不间断维护。

以下为配置模板：# 设置RG-SP-HX-S7506E的成员编号为1，成员优先级为20，创建IRF端口2，并将它与物理端口Ten-GigabitEthernet2/0/7 Ten-GigabitEthernet2/0/8绑定。

（形成聚合IRF链路）独立运行模式配置：< RG-SP-HX-S7506E> system-view[RG-SP-HX-S7506E] irf member 1[RG-SP-HX-S7506E] irf priority 20[RG-SP-HX-S7506E] irf-port 2[RG-SP-HX-S7506E-irf-port 2] port group interface Ten-Gigabitethernet 2/0/7[RG-SP-HX-S7506E-irf-port 2] port group interface Ten-Gigabitethernet 2/0/8[RG-SP-HX-S7506E-irf-port 2] quit将当前配置保存到下次启动配置文件。

[RG-SP-HX-S7506E] quit< RG-SP-HX-S7506E> save将设备的运行模式切换到IRF模式。

< RG-SP-HX-S7506E> system-view[RG-SP-HX-S7506E] chassis convert mode irfThe device will switch to IRF mode and reboot. You are recommended to save the current running configuration and specify the configuration file for the next startup. Continue? [Y/N]:yDo you want to convert the content of the next startup configuration file flash:/startup.cfg to make it available in IRF mode? [Y/N]:yPlease wait...Saving the converted configuration file to the main board succeeded.Slot 1:Saving the converted configuration file succeeded.Now rebooting, please wait...设备重启后7506E-01组成了只有一台成员设备的IRF。
