二三极管参数解读
二三极管参数解读二三极管是一种电子器件，广泛应用于电子电路中。
它由三个电极构成，分别是基极（B）、发射极（E）和集电极（C）。
二三极管是一种双极型晶体管，其中包括NPN型和PNP型两种。
二三极管的参数是指它的一些重要性能指标，下面将对其中一些常见的参数进行解读。
1. 最大集电极电流（ICmax）：它指的是二三极管在工作时允许通过集电极的最大电流。
超过这个电流值会导致二三极管烧坏。
ICmax的数值决定了二三极管的承载能力，对于不同的应用场合需选择合适的ICmax。
2. 最大功耗（PDmax）：它指的是二三极管能够承受的最大功率值，一般以瓦特（W）为单位。
超过这个功耗值会导致二三极管发热过多，甚至烧坏。
PDmax的数值与二三极管内部结构和材料等因素有关，一般需要通过散热措施来确保二三极管不会超过PDmax。
3.最大集电极-发射极电压（VCEO）：它指的是二三极管在工作时允许承受的最大集电极-发射极间的电压。
超过这个电压值会导致二三极管击穿。
VCEO的数值决定了二三极管的耐压能力，需要根据实际应用场合来选择合适的VCEO。
4. 饱和电压（VCEsat）：它指的是二三极管在饱和区时，集电极-发射极的电压。
VCEsat是衡量二三极管导通状态的重要参数，它的数值越小，代表了二三极管的导通能力越好。
5.基极-发射极电压（VBE）：它指的是二三极管在正常工作时基极与发射极之间的电压。
VBE是控制二三极管导通与截止的重要参数，一般为固定值，在不同类型的二三极管中具有不同的数值。
以上是二三极管的一些重要参数，除此之外，还有一些其它参数如最大频率响应、最小封装尺寸等等，这里只是对常见参数进行了解读。
在实际应用中，根据具体需求和工作环境，需要选择合适的二三极管型号，以确保电路的稳定性和可靠性。
2SB系列三极管参数
2SB系列三极管参数1.封装形式和引脚描述：2.最大额定电压（VCEO）：最大额定电压是指三极管中的集电极与发射极之间的最大电压。
对于2SB系列三极管来说，其最大额定电压通常在30V至60V之间。
3.最大额定电流（IC）：最大额定电流是指通过三极管的最大电流。
2SB系列三极管的最大额定电流通常在1A至3A之间，不同型号的三极管具体数值会有所不同。
4.最大功率（P）：最大功率是指三极管能够处理的最大功率。
2SB系列三极管的最大功率通常在0.8W至2W之间。
5.最大频率（fT）：最大频率是指三极管能够达到的最高工作频率。
2SB系列三极管的最大频率通常在100MHz至300MHz之间。
6. 饱和压降（VCE(sat)）：饱和压降是指三极管在饱和区时，集电极与发射极之间的电压降低值。
2SB系列三极管的饱和压降通常在0.2V至1.5V之间，具体数值取决于不同型号的三极管。
7.DC电流增益（hFE）：DC电流增益是指三极管的放大倍数。
2SB系列三极管的DC电流增益通常在40至800之间，具体数值也会因型号而有所不同。
8.封装热阻（θJA、θJC）：封装热阻是指三极管的温度特性。
θJA是指从芯片到环境的热阻，θJC是指从芯片到封装外壳的热阻。
2SB系列三极管的封装热阻通常在50℃/W至200℃/W之间。
总结：2SB系列三极管是一种通用型PNP型三极管，其参数包括封装形式和引脚描述、最大额定电压、最大额定电流、最大功率、最大频率、饱和压降、DC电流增益和封装热阻等。
这些参数对于选取适合的三极管及设计电路都起到了关键作用。
2SB647三极管
Collector to Base Voltage VCB (V)
4
4.8 ± 0.3
3.8 ± 0.3
Unit: mm
8.0 ± 0.5
0.7 2.3 Max
10.1 Min
0.65 ± 0.1
0.75 Max
0.60 Max
0.5 ± 0.1
0.5
1.27 2.54
Hitachi Code JEDEC EIAJ Weight (reference value)
–5
–2
–1 0 –0.2 –0.4 –0.6 –0.8 –1.0 Base to Emitter Voltage VBE (V)
2SB647, 2SB647A
Typical Output Characteristics
–1.0
–120
–100
–0.8
–80
–60
–0.6
–4–030–20
–0.4
–10–5–2
2SB647, 2SB647A
Absolute Maximum Ratings (Ta = 25°C)
Item Collector to base voltage Collector to emitter voltage Emitter to base voltage Collector current Collector peak current Collector power dissipation Junction temperature Storage temperature
Collector cutoff current DC current transfer ratio
I CBO
—
2SB系列三极管参数
2SB系列三极管参数2SB1009 SI-P 40V 2A 10W 100MHz |2SB1010 SI-P 40V 2A 0.75W 100MHz2SB1012K P-DARL 120V 1.5A 8W |2SB1013 SI-P 20V 2A 0.7W2SB1015 SI-P 60V 3A 25W 0.4us |2SB1016 SI-P 100V 5A 30W 5MHz2SB1017 SI-P 80V 4A 25W 9MHz |2SB1018 SI-P 100V 7A 30W 0.4us2SB1020 P-DARL+D 100V 7A 30W 0.8us |2SB1023 P-DARL+D 60V 3A 20W B=5K2SB1035 SI-P 30V 1A 0.9W 100MHz |2SB1039 SI-P 100V 4A 40W 20MHz2SB1050 SI-P 30V 5A 1W 120MHz |2SB1055 SI-P 120V 6A 70W 20MHz2SB1065 SI-P 60V 3A 10W | 2SB1066 SI-P 50V 3A 1W 70MHz2SB1068 SI-P 20V 2A 0.75W 180MHz |2SB1071 SI-P 40V 4A 25W 150MHz2SB1077 P-DARL 60V 4A 40W B>1K |2SB1086 SI-P 160V 1.5A 20W 50MHz2SB1098 P-DARL+D 100V 5A 20W B=80 |2SB1099 P-DARL+D 100V 8A 25W B=6K2SB1100 P-DARL+D 100V 10A 30W B=6 |2SB1109 SI-P 160V 0.1A 1.25W2SB1109S SI-P 160V 0.1A 1.25W |2SB1117 SI-P 30V 3A 1W 280MHz2SB1120 SI-P 20V 2.5A 0.5W 250MHz |2SB1121T SI-P 30V 2A 150MHz2SB1123 SI-P 60V 2A 0.5W 150MHz |2SB1132 SI-P 40V 1A 0.5W 150MHz2SB1133 SI-P 60V 3A 25W 40MHz |2SB1134 SI-P 60V 5A 25W 30W2SB1135 SI-P 60V 7A 30W 10MHz |2SB1136 SI-P 60V 12A 30W 10MHz2SB1140 SI-P 25V 5A 10W 320MHz |2SB1141 SI-P 20V 1.2A 10W 150MHz2SB1143 SI-P 60V 4A 10W 140MHz |2SB1146 P-DARL 120V 6A 25W2SB1149 P-DARL 100V 3A 15W B=10K |2SB1151 SI-P 60V 5A 20W2SB1154 SI-P 130V 10A 70W 30MHz |2SB1156 SI-P 130V 20A 100W2SB1162 SI-P 160V 12A 120W |2SB1163 SI-P 170V 15A 150W2SB1166 SI-P 60V 8A 20W 130MHz |2SB1168 SI-P 120V 4A 20W 130MHz2SB1182 SI-P 40V 2A 10W 100MHz |2SB1184 SI-P 60V 3A 15W 70MHz2SB1185 SI-P 50V 3A 25W 70MHz |2SB1186 SI-P 120V 1.5A 20W 50MHz2SB1187 SI-P 80V 3A 35W | 2SB1188 SI-P 40V 2A 100MHz2SB1202 SI-P 60V 3A 15W 150MHz |2SB1203 SI-P 60V 5A 20W 130MHz2SB1204 SI-P 60V 8A 20W 130MHz |2SB1205 SI-P 25V 5A 10W 320MHz2SB1212 SI-P 160V 1.5A 0.9W 50MHz |2SB1223 P-DARL+D 70V 4A 20W 20MHz2SB1236 SI-P 120V 1.5A 1W 50MHz |2SB1237 SI-P 40V 1A 1W 150MHz2SB1238 SI-P 80V 0.7A 1W 100MHz |2SB1240 SI-P 40V 2A 1W 100MHz2SB1243 SI-P 60V 3A 1W | 2SB1254 P-DARL 160V 7A 70W2SB1255 P-DARL 160V 8A 100W B>5K |2SB1258 P-DARL+D 100V 6A 30W B>1K2SB1274 SI-P 60V 3A 30W 100MHz |2SB1282 P-DARL+D 100V 4A 25W 50MHz2SB1292 SI-P 80V 5A 30W | 2SB1302 SI-P 25V 5A 320MHz2SB1318 P-DARL+D 100V 3A 1W B>200 |2SB1326 SI-P 30V 5A 0.3W 120MHz2SB1329 SI-P 40V 1A 1.2W 150MHz |2SB1330 SI-P 32V 0.7A 1.2W 100MHz2SB1331 SI-P 32V 2A 1.2W 100MHz |2SB1353E SI-P 120V 1.5A 1.8W 50MHz2SB1361 SI-P 150V 9A 100W 15MHz |2SB1370 SI-P 60V 3A 30W 15MHz2SB1373 SI-P 160V 12A 2.5W 15MHz |2SB1375 SI-P 60V 3A 25W 9MHz2SB1382 P-DARL+D 120V 16A 75W B>2 |2SB1393 SI-P 30V 3A 2W 30MHz2SB1420 SI-P 120V 16A 80W 50MHz |2SB1425 SI-P 20V 2A 1W 90MHz2SB1429 SI-P 180V 15A 150W 10MHz |2SB1434 SI-P 50V 2A 1W 110MHz2SB1468 SI-P 60/30V 12A 25W |2SB1470 P-DARL 160V 8A 150W B>5K2SB1490 P-DARL 160V 7A 90W B>5K |2SB1493 P-DARL 160/140V 7A 70W 202SB1503 P-DARL 160V 8A 120W B>5K |2SB1556 P-DARL 140V 8A 120W B>5K2SB1557 P-DARL 140V 7A 100W B>5K |2SB1559 P-DARL 160V 8A 80W B>5K2SB1560 P-DARL 160V 10A 100W 50MHz |2SB1565 SI-P 80V 3A 25W 15MHz2SB1587 P-DARL+D 160V 8A 70W B>5K |2SB1624 P-DARL 110V 6A 60W B>5K2SB206 GE-P 80V 30A 80W | 2SB324 GE-P 32V 1A 0.25W2SB337 GE-P 50V 7A 30W LF-POWER |2SB407 GE-P 30V 7A 30W2SB481 GE-P 32V 1A 6W 15KHz |2SB492 GE-P 25V 2A 6W2SB511E SI-P 35V 1.5A 10W 8MHz |2SB524 SI-P 60V 1.5A 10W 70MHz2SB527 SI-P 110V 0.8A 10W 70MHz |2SB531 SI-P 90V 6A 50W 8MHz2SB536 SI-P 130V 1.5A 20W 40MHz |2SB537 SI-P 130V 1.5A 20W 60MHz2SB541 SI-P 110V 8A 80W 9MHz |2SB544 SI-P 25V 1A 0.9W 180MHz2SB546A SI-P 200V 2A 25W 5MHz |2SB549 SI-P 120V 0.8A 10W 80MHz2SB557 SI-P 120V 8A 80W |2SB560 SI-P 100V 0.7A 0.9W 100MHz2SB561 SI-P 25V 0.7A 0.5W |2SB564 SI-P 30V 1A 0.8W2SB598 SI-P 25V 1A 0.5W 180MHz |2SB600 SI-P 200V 15A 200W 4MHz2SB601 P-DARL 100V 5A 30W |2SB605 SI-P 60V 0.7A 0.8W 120MHz2SB621 SI-N 25V 1.5A 0.6W 200MHz |2SB621A SI-N 50V 1A 0.75W 200MHz2SB631 SI-P 100V 1A 8W | 2SB632 SI-P 25V 2A 10W 100MHz2SB633 SI-P 100V 6A 40W 15MHz |2SB637 SI-P 50V 0.1A 0.3W 200MHz2SB641 SI-P 30V 0.1A 120MHz |2SB647 SI-P 120V 1A 0.9W 140MHz2SB649A SI-P 160V 1.5A 1W 140MHz |2SB656 SI-P 160V 12A 125W 20MHz2SB673 P-DARL+D 100V 7A 40W 0.8us |2SB676 P-DARL 100V 4A 30W 0.15us2SB681 SI-N 150V 12A 100W 13MHz |2SB688 SI-P 120V 8A 80W 10MHz2SB700 SI-P 160V 12A 100W |2SB703 SI-P 100V 4A 40W 18MHz2SB705 SI-P 140V 10A 120W 17MHz |2SB707 SI-P 80V 7A 40W POWER2SB709 SI-P 45V 0.1A 0.2W 80MHz |2SB716 SI-P 120V 0.05A 0.75W2SB720 SI-P 200V 2A 25W 100MHz |2SB727 P-DARL+D 120V 6A 50W B>1K2SB731 SI-P 60V 1A 10W 75MHz |2SB733 SI-P 20V 2A 1W >50MHz2SB734 SI-P 60V 1A 1W 80MHz |2SB739 SI-P 20/16V 2A 0.9W 80MHz2SB740 SI-P 70V 1A 0.9W | 2SB744 SI-P 70V 3A 10W 45MHz2SB750 P-DARL+D 60V 2A 35W B>100 |2SB753 SI-P 100V 7A 40W 0.4us2SB764 SI-P 60V 1A 0.9A 150MHz |2SB765 P-DARL+D 120V 3A 30W B>1K2SB766 SI-P 30V 1A 200MHz | 2SB772 SI-P 40V 3A 10W 80MHz2SB774 SI-P 30V 0.1A 0.4W 150MHz |2SB775 SI-P 100V 6A 60W 13MHz2SB776 SI-P 120V 7A 70W 15MHz |2SB788 SI-P 120V 0.02A 0.4W 150MHz2SB791 P-DARL+D 120V 8A 40W B>10 |2SB794 P-DARL+D 60V 1.5A 10W B=72SB795 P-DARL+D 80V 1.5A 10W B<3 |2SB808 SI-P 20V 0.7A 0.25W 250MHz2SB810 SI-P 30V 0.7A 0.35W 160MHz |2SB815 SI-P 20V 0.7A 0.25W 250MHz2SB816 SI-P 150V 8A 80W 15MHz |2SB817 SI-P 160V 12A 100W2SB817F SI-P 160V 12A 90W 15MHz |2SB819 SI-P 50V 1.5A 1W 150MHz2SB822 SI-P 40V 2A 0.75W 100MHz |2SB824 SI-P 60V 5A 30W 30 MHz2SB825 SI-P 60V 7A 40W 10MHz |2SB826 SI-P 60V 12A 40W 10MHz2SB827 SI-P 60V 7A 80W 10MHz |2SB828 SI-P 60V 12A 80W 10MHz2SB829 SI-P 60V 15A 90W 20MHz |2SB857 SI-P 50V 4A 40W NF/S-L2SB861 SI-P 200V 2A 30W | 2SB863 SI-P 140V 10A 100W 15MHz2SB865 P-DARL 80V 1.5A 0.9W |2SB873 SI-P 30V 5A 1W 120MHz2SB882 P-DARL+D 70V 10A 40W B>5K |2SB883 P-DARL+D 70V 15A 70W B=5K2SB884 P-DARL 110V 3A 30W B=4K |2SB885 P-DARL+D 110V 3A 35W B=4K2SB891 SI-P 40V 2A 5W 100MHz |2SB892 SI-P 60V 2A 1W2SB895A P-DARL 60V 1A B=8000 |2SB897 P-DARL+D 100V 10A 80W B>12SB908 P-DARL+D 80V 4A 15W 0.15us |2SB909 SI-P 40V 1A 1W 150MHz2SB922 SI-P 120V 12A 80W 20MHz |2SB926 SI-P 30V 2A 0.75W2SB938A P-DARL+D 60V 4A 40W B>1K |2SB940 SI-P 200V 2A 35W 30MHz2SB941 SI-P 60V 3A 35W POWER |2SB945 SI-P 130V 5A 40W 30MHz2SB946 SI-P 130V 7A 40W 30MHz |2SB950A P-DARL+D 80V 4A 40W B>1K2SB953A SI-P 50V 7A 30W 150MHz |2SB955 P-DARL+D 120V 10A 50W B=42SB975 P-DARL+D 100V 8A 40W B>6K |2SB976 SI-P 27V 5A 0.75W 120MHz2SB985 SI-P 60V 3A 1W 150MHz | 2SB986 SI-P 60V 4A 10W 150MHz2SB988 SI-P 60V 3A 30W <400/2200。

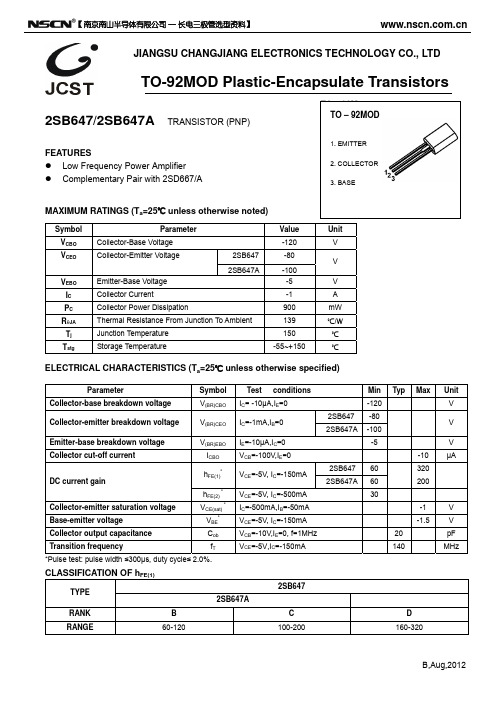

2SB647三极管(TO-92MOD)
Stamp “EMPTY” on the empty box
Seal the box with the tape
QA Label
Outer Box: 525 mm× 360mm× 262mm
Label on the Outer Box
-80
-100
COLLECTOR CURRENT I (mA) C
P —— T
C
a
CAPACITANCE C (pF)
1
-0.1
-1
-10
-30
REVERSE VOLTAGE V (V)
0
0
25
50
75
100
125
150
AMBIENT TEMPERATURE T (℃) a
B,Aug,2012
【 南京南山半导体有限公司 — 长电三极管选型资料】
Sponge strip
Sponge strip
2000 pcs
The top gasket
Label on the Inner Box
Inner Box: 333 mm×245mm×43mm
Stamp “EMPTY” on the empty box
Seal the box with the tape
18.0 + 1.0, - 0.5 6.0 ± 0.5 9.0 ± 0.5 1.0 MAX. 19.0 ±1.0 16.0 ± 0.5 2.5 MIN. 4.0 ± 0.2 0.4 ± 0.05 0.2 ± 0.05
3.85 ± 0.03 0 ± 1.0 Unit : mm
【 南京南山半导体有限公司 — 长电三极管选型资料】
COMMON EMITTER V = -5V
2S系列三级管参数手册
100MHz 15MHz 200MHz
140MHz 140MHz 20MHz 0.8us 0.15us 13MHz 10MHz
2SB700 2SB703 2SB705 2SB707 2SB709 2SB716 2SB720 2SB727 2SB731 2SB733 2SB734 2SB739 2SB740 2SB744 2SB750 2SB753 2SB764 2SB765 2SB766 2SB772 2SB774 2SB775 2SB776 2SB788 2SB791 2SB794 2SB795 2SB808 2SB810 2SB815 2SB816 2SB817 2SB817F 2SB819 2SB822 2SB824 2SB825 2SB826 2SB827 2SB828 2SB829 2SB857 2SB861 2SB863 2SB865 2SB873 2SB882
SI-P 0.5W 2.5A 20V
250MHz
SI-P
2A
30V
150MHz
SI-P 0.5W 2A
60V
150MHz
SI-P 0.5W 1A
40V
150MHz
SI-P 25W
3A
60V
40MHz
SI-P 25W
5A
60V
30W
SI-P 30W
7A
60V
10MHz
SI-P 30W
12A
60V
10MHz
7A 8A 8A 7A 8A 10A 3A 8A 6A 30A 1A 7A 7A 1A 2A 1.5A 1.5A 0.8A 6A 1.5A 1.5A 8A 1A 2A 0.8A 8A 0.7A 0.7A 1A 1A 15A 5A 0.7A 1.5A 1A 1A 2A 6A 0.1A 0.1A 1A 1.5A 12A 7A 4A 12A 8A
140MHz 140MHz 20MHz 0.8us 0.15us 13MHz 10MHz
2SB700 2SB703 2SB705 2SB707 2SB709 2SB716 2SB720 2SB727 2SB731 2SB733 2SB734 2SB739 2SB740 2SB744 2SB750 2SB753 2SB764 2SB765 2SB766 2SB772 2SB774 2SB775 2SB776 2SB788 2SB791 2SB794 2SB795 2SB808 2SB810 2SB815 2SB816 2SB817 2SB817F 2SB819 2SB822 2SB824 2SB825 2SB826 2SB827 2SB828 2SB829 2SB857 2SB861 2SB863 2SB865 2SB873 2SB882
SI-P 0.5W 2.5A 20V
250MHz
SI-P
2A
30V
150MHz
SI-P 0.5W 2A
60V
150MHz
SI-P 0.5W 1A
40V
150MHz
SI-P 25W
3A
60V
40MHz
SI-P 25W
5A
60V
30W
SI-P 30W
7A
60V
10MHz
SI-P 30W
12A
60V
10MHz
7A 8A 8A 7A 8A 10A 3A 8A 6A 30A 1A 7A 7A 1A 2A 1.5A 1.5A 0.8A 6A 1.5A 1.5A 8A 1A 2A 0.8A 8A 0.7A 0.7A 1A 1A 15A 5A 0.7A 1.5A 1A 1A 2A 6A 0.1A 0.1A 1A 1.5A 12A 7A 4A 12A 8A
2SB系列晶体管参数
LF PA/LS PSW HV LS SW LF PA LF A LF A LF A LF PA/MS SW LF PA/MS SW LF PA/MS SW LF PA/MS SW HV SW/LF PA LF A LF PA LF PA GA GA GA LF HV A LF HV A LF PA LF PA LF HV A LF HV A LF PA LF PA LF PA
结构 PNP PNP PNP PNP PNP PNP PNP PNP PNP PNP PNP PNP PNP PNP PNP PNP PNP PNP PNP PNP PNP PNP PNP PNP PNP PNP PNP PNP PNP PNP PNP PNP PNP PNP PNP PNP PNP PNP PNP PNP PNP PNP PNP PNP PNP PNP PNP PNP PNP PNP PNP PNP PNP
松下 松下 松下 松下 日立 松下 松下 松下 松下 日电
日电 日电 日电 日电 日电 日电 日电 三洋 日电 日电 三洋 三洋 三洋 松下 罗姆 罗姆 三洋 三洋 三洋 三洋 日立 东芝 东芝 松下 日电 日电 富士电机 富士电机 罗姆 罗姆 日立 日立 日立 日立 日立 日立 富士电机 东芝 三洋 松下 松下 松下 日立 三洋
vcbo(V) -60 -50 -110 -60 -60 -35 -130 -130 -25 -200 -200 -100 -100 -100 -220 -70 -180 -20 -100 -25 -25 -30 -70 -70 -100 -80 -25 -100 -500 -60 -30 -60 -30 -100 -120 -25 -35 -100 -50 -100 -100 -60 -30 -60 -120 -120 -120 -120 -180 -180 -180 -180 -100
结构 PNP PNP PNP PNP PNP PNP PNP PNP PNP PNP PNP PNP PNP PNP PNP PNP PNP PNP PNP PNP PNP PNP PNP PNP PNP PNP PNP PNP PNP PNP PNP PNP PNP PNP PNP PNP PNP PNP PNP PNP PNP PNP PNP PNP PNP PNP PNP PNP PNP PNP PNP PNP PNP
松下 松下 松下 松下 日立 松下 松下 松下 松下 日电
日电 日电 日电 日电 日电 日电 日电 三洋 日电 日电 三洋 三洋 三洋 松下 罗姆 罗姆 三洋 三洋 三洋 三洋 日立 东芝 东芝 松下 日电 日电 富士电机 富士电机 罗姆 罗姆 日立 日立 日立 日立 日立 日立 富士电机 东芝 三洋 松下 松下 松下 日立 三洋
vcbo(V) -60 -50 -110 -60 -60 -35 -130 -130 -25 -200 -200 -100 -100 -100 -220 -70 -180 -20 -100 -25 -25 -30 -70 -70 -100 -80 -25 -100 -500 -60 -30 -60 -30 -100 -120 -25 -35 -100 -50 -100 -100 -60 -30 -60 -120 -120 -120 -120 -180 -180 -180 -180 -100
2SB1260--三极管
TransistorsPower Transistor (−80V, −1A)2SB1260 / 2SB1181 / 2SB1241!Features1) High breakdown voltage and high current.BV CEO = −80V , I C =−1A 2) Good h FE linearity .3) Low V CE(sat).4) Complements the 2SD1898 /2SD1863 / 2SD1733.!StructureEpitaxial planar type PNP silicon transistor!External dimensions (Units : mm)FE!Absolute maximum ratings (T a=25°C)Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector currentCollector power dissipation Junction temperature Storage temperature*1 Single pulse, Pw=100ms*2 When mounted on a 40×40×0.7 mm ceramic board.*3 Printed circuit board, 1.7mm thick, collector copper plating 100mm 2 or larger.ParameterV CBO V CEO V EBO I C P CTj Tstg -80V V V A(DC)W˚C ˚C-80-5-1I CPA(Pulse)-2*10.52*21*3102SB12602SB1241, 2SB11812SB1181150-55~+150Symbol Limits Unit W(Tc=25˚C)Transistors!Electrical characteristics (T a=25°C)!Packaging specifications and h FEh FE values are classified as follows :Item P Q R h FE82~180120~270180~390!Electrical characteristic curvesFig.1 Grounded emitter propagationcharacteristicsBASE TO EMITTER VOLTAGE : VBE (V)C O L L E C T O R C U R R E N T : I C (m A )Fig.2 Grounded emitter outputcharacteristicsC O L L E C T O R C U R R E N T : I C (m A )COLLECTOR TO EMITTER VOLTAGE : V CE (V)Fig.3 DC current gain vs.collector currentCOLLECTOR CURRENT : I C (mA)D C C U R RE N T G A I N : hF ETransistorsFig.4 Collector-emitter saturationvoltage vs. collector currentC O L L E C T O R S A T U R A T I O N V O L T A G E : V C E (sa t ) (V )COLLECTOR CURRENT : I C (mA) Fig.5 Gain bandwidth product vs.emitter current EMITTER CURRENT : I E (mA)T R A N S I T I O N F R E Q U E N C Y : f T (M H z )Fig.6 Collector output capacitancevs. collector-base voltageC O L L E C T O R O U T P U T C A P A C I T A N C E : C o b (p F )COLLECTOR TO BASE VOLTAGE : V CB (V)Fig. 7 Emitter input capacitancevs. emitter-base voltageE M I T T E R I N P U T C A P A C I T A N C E : C i b (pF )EMITTER TO BASE VOLTAGE : V EB (V)Fig. 8 Safe operating area(2SB1260)C O L L E C T O R C U R R E N T : I C (A )COLLECTOR TO EMITTER VOLTAGE : V CE (V)Fig.9 Safe operating area (2SB1241)C O L L E C T O R C U R R E N T : I C (A )COLLECTOR TO EMITTER VOLTAGE : V CE (V)C O L L E C T O R C U R R E N T : I C (A )COLLECTOR TO EMITTER VOLTAGE : V CE (V)Fig.10 Safe operating area(2SB1181)。
2SB927三极管(TO-92MOD)
Unit V V V A W ℃/W ℃ ℃
ELECTRICAL CHARACTERISTICS (Ta=25℃ unless otherwise specified)
Parameter Collector-base breakdown voltage Collector-emitter breakdown voltage Emitter-base breakdown voltage Collector cut-off current Emitter cut-off current DC current gain Collector-emitter saturation voltage Base-emitter saturation voltage Collector output capacitance Transition frequency Symbol V(BR)CBO V(BR)CEO V(BR)EBO ICBO IEBO hFE(1) hFE(2) VCE(sat) VBE (sat) Cob fT Test conditions Min -30 -25 -6 -0.1 -0.1 100 65 -0.6 -1.2 32 150 V V pF MHz 560 Typ Max Unit V V V μA μA
【 南京南山半导体有限公司 — 长电三极管选型资料】
JIANGSU CHANGJIANG ELECTRONICS TECHNOLOGY CO., LTD
TO-92MOD Plastic-Encapsulate Transistors
2SB927
TRANSISTOR (PNP)
Symbol VCBO VCEO VEBO IC PC RθJA Tj Tstg Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Collector Power Dissipation Thermal Resistance From Junction To Ambient Junction Temperature Storage Temperature Value -30 -25 -6 -2.5 1 125 150 -55~+150
