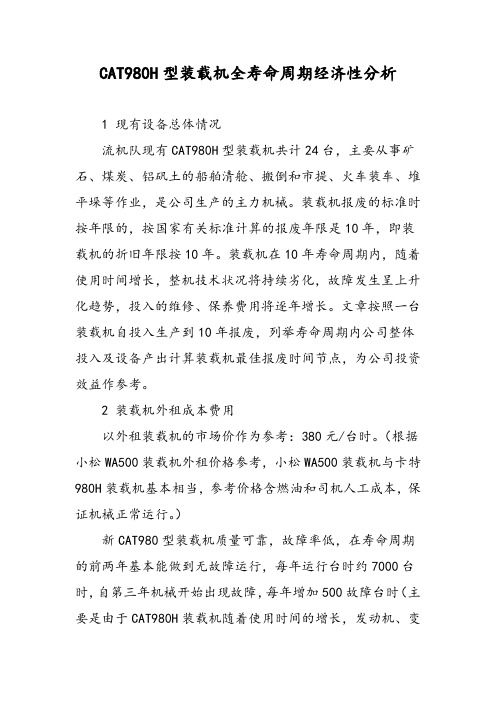

CAT980H型装载机全寿命周期经济性分析1 现有设备总体情况流机队现有CAT980H型装载机共计24台，主要从事矿石、煤炭、铝矾土的船舶清舱、搬倒和市提、火车装车、堆平垛等作业，是公司生产的主力机械。
装载机报废的标准时按年限的，按国家有关标准计算的报废年限是10年，即装载机的折旧年限按10年。
装载机在10年寿命周期内，随着使用时间增长，整机技术状况将持续劣化，故障发生呈上升化趋势，投入的维修、保养费用将逐年增长。
文章按照一台装载机自投入生产到10年报废，列举寿命周期内公司整体投入及设备产出计算装载机最佳报废时间节点，为公司投资效益作参考。
2 装载机外租成本费用以外租装载机的市场价作为参考：380元/台时。
（根据小松WA500装载机外租价格参考，小松WA500装载机与卡特980H装载机基本相当，参考价格含燃油和司机人工成本，保证机械正常运行。
）新CAT980型装载机质量可靠，故障率低，在寿命周期的前两年基本能做到无故障运行，每年运行台时约7000台时，自第三年机械开始出现故障，每年增加500故障台时（主要是由于CAT980H装载机随着使用时间的增长，发动机、变速箱、驱动桥、液压系统等不断出现故障，造成故障台时不断增加，平均每年增加约500故障台时。
例如：发动机大修间隔期为15000-20000台时；变速箱大修间隔期为15000-20000台时；驱动桥大修间隔期为15000-20000台时；中央铰接部分轴承使用周期为12000台时。
），10年运行期台时、租赁成本分布如表1：装载机寿命周期汇总数据报表。
租赁成本，即装载机创造的收益，即一台卡特980H装载机10年寿命周期内可以创造1824万元经济效益。
3 装载机折旧费用装载机年折旧额=（固定资产原值-预计使用残值）/预计使用年限。
装载机月折旧率=年折旧率/12。
购买一台新CAT980H装载机需248.3万元，按照10年期限进行折旧，10年后预计净残值约为资产总值4%，即：预计使用残值：248.3*10000*4%=99320元。
