数据库课程设计银⾏存取款管理银⾏储蓄业务数据库分析⼀、系统功能简介本系统是银⾏⽤户的存取款系统。
主要功能是管理各个⽤户存取款的相关数据。
⼆、本系统由三张表组成，具体如下：表名属性(字段)名储户表账号、⾝份证号、姓名、性别、⾝⾼、地址、存款余额存款单表存款单号、⾦额、存款⽅式、账号、存款⽇期取款单表取款单号、⾦额、取款⽅式、账号、取款⽇期系统表基本信息三、表间关系如下：⼀个存款单或取款单属于⼀个⽤户，⼀个⽤户可以拥有多次存款单或取款单。
⽤户通过存款操作与存款单建⽴联系，通过取款操作与取款单建⽴联系。

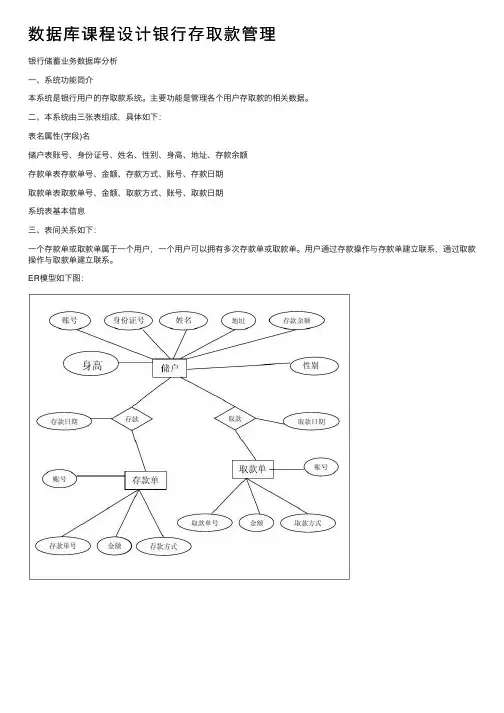

ER模型如下图：四、数据准备前期准备⼯作：以system账户登录，创建新账户create user dy identified by lyjn;grant dba to dy;connect dy/dy@orcl;各个表的具体信息和创建表的代码如下：CREATE TABLE luser(acnum VARCHAR2(5) NOT NULL ,id NUMBER NOT NULL ,name VARCHAR2(20) NOT NULL ,sex VARCHAR2(2) CHECK(sex IN ('男','⼥') ) , height NUMBER(3,2) NOT NULL, address VARCHAR2(20) NOT NULL ,balance INT NOT NULL);ALTER TABLE luser添加主键约束ADD CONSTRAINT XPKluser PRIMARY KEY (acnum);CREATE TABLE depositslip(dps_num NUMBER NOT NULL ,money INT CHECK(money>=0) ,dps_way VARCHAR2(10) NOT NULL ,acnum VARCHAR2(5) NOT NULL ,dps_time TIMESTAMP NULL);ALTER TABLE depositslip添加主键约束ADD CONSTRAINT XPKdepositslip PRIMARY KEY (dps_num,acnum);ALTER TABLE depositslip在depositslip表中的acnum字段中添加外键约束ADD (CONSTRAINT R_5 FOREIGN KEY (acnum) REFERENCES luser(acnum));CREATE TABLE drawslip(dw_num NUMBER NOT NULL ,money INT CHECK(money>=0),dw_way VARCHAR2(10) NOT NULL ,acnum VARCHAR2(5) NOT NULL ,dw_time TIMESTAMP NULL);ALTER TABLE drawslip添加主键约束ADD CONSTRAINT XPKdrawslip PRIMARY KEY (dw_num,acnum);ALTER TABLE drawslip在drawslip表中的acnum字段中添加外键约束ADD (CONSTRAINT R_6 FOREIGN KEY (acnum) REFERENCES luser(acnum));五、插⼊(insert)数据1、插⼊储户表(luser)数据insert into luser (ACNUM, ID, NAME, SEX,HEIGHT, ADDRESS, BALANCE) values ('00001', 3422101, '刘忠⽥', '男',1.72 ,'北京市朝阳区', 345);insert into luser (ACNUM, ID, NAME, SEX,HEIGHT, ADDRESS, BALANCE) values ('00002', 3422102, '周正义', '男',1.78, '天津市宝坻区', 123);insert into luser (ACNUM, ID, NAME, SEX,HEIGHT, ADDRESS, BALANCE) values ('00003', 3422103, '陈光标', '男',1.80, '南京市新街⼝', 333);insert into luser (ACNUM, ID, NAME, SEX,HEIGHT, ADDRESS, BALANCE) values ('00004', 3422104, '张茵', '⼥',1.65, '上海市黄浦区', 234);insert into luser (ACNUM, ID, NAME, SEX,HEIGHT, ADDRESS, BALANCE) values ('00005', 3422105, '陈丽华', '⼥',1.70, '⾹港市旺⾓区', 111);2、插⼊存款单表(depositslip)数据insert into depositslip (DPS_NUM, ACNUM, MONEY, DPS_TIME, DPS_WAY)values (98001,'00001', 120,to_date('08-08-2009','dd-mm-yyyy'), '整存整取');insert into depositslip (DPS_NUM, ACNUM, MONEY, DPS_TIME, DPS_WAY) values (98002,'00001', 300,to_date('10-08-2009','dd-mm-yyyy'), '整存整取');insert into depositslip (DPS_NUM, ACNUM, MONEY, DPS_TIME, DPS_WAY) values (98003,'00002', 100,to_date('12-08-2009','dd-mm-yyyy'), '整存零取');insert into depositslip (DPS_NUM, ACNUM, MONEY, DPS_TIME, DPS_WAY) values (98004,'00002', 150,to_date('12-09-2009','dd-mm-yyyy'), '整存零取');insert into depositslip (DPS_NUM, ACNUM, MONEY, DPS_TIME, DPS_WAY) values (98005,'00003', 200,to_date('15-08-2009','dd-mm-yyyy'), '零存整取');insert into depositslip (DPS_NUM, ACNUM, MONEY, DPS_TIME, DPS_WAY) values (98006,'00003', 100,to_date('14-09-2009','dd-mm-yyyy'), '零存整取');insert into depositslip (DPS_NUM, ACNUM, MONEY, DPS_TIME, DPS_WAY) values (98007,'00003', 80,to_date('23-09-2009','dd-mm-yyyy'), '零存整取'); insert into depositslip (DPS_NUM, ACNUM, MONEY, DPS_TIME, DPS_WAY) values (98008,'00004', 80,to_date('23-08-2009','dd-mm-yyyy'), '零存零取');insert into depositslip (DPS_NUM, ACNUM, MONEY, DPS_TIME, DPS_WAY) values (98009,'00004', 180,to_date('24-09-2009','dd-mm-yyyy'), '零存零取');insert into depositslip (DPS_NUM, ACNUM, MONEY, DPS_TIME, DPS_WAY) values (98010,'00005', 190,to_date('24-08-2009','dd-mm-yyyy'), '通知存款');insert into depositslip (DPS_NUM, ACNUM, MONEY, DPS_TIME, DPS_WAY) values (98011,'00005', 210,to_date('30-09-2009','dd-mm-yyyy'), '通知存款'); 3、插⼊取款单表(drawslip)数据insert into drawslip (DW_NUM, ACNUM, MONEY, DW_TIME, DW_WAY) values (52001,'00001', 75,to_date('08-08-2010','dd-mm-yyyy'), '柜台');insert into drawslip (DW_NUM, ACNUM, MONEY, DW_TIME, DW_WAY) values (52002,'00002', 27,to_date('08-09-2010','dd-mm-yyyy'), '取款机');insert into drawslip (DW_NUM, ACNUM, MONEY, DW_TIME, DW_WAY) values (52003,'00002',100,to_date('12-10-2010','dd-mm-yyyy'), '柜台');insert into drawslip (DW_NUM, ACNUM, MONEY, DW_TIME, DW_WAY) values (52004,'00003',47,to_date('15-08-2010','dd-mm-yyyy'), '取款机');insert into drawslip (DW_NUM, ACNUM, MONEY, DW_TIME, DW_WAY) values (52005,'00004',26,to_date('12-09-2010','dd-mm-yyyy'), '取款机');insert into drawslip (DW_NUM, ACNUM, MONEY, DW_TIME, DW_WAY) values (52006,'00005',100,to_date('23-09-2010','dd-mm-yyyy'), '柜台');insert into drawslip (DW_NUM, ACNUM, MONEY, DW_TIME, DW_WAY) values (52007,'00005',150,to_date('10-10-2010','dd-mm-yyyy'), '柜台');insert into drawslip (DW_NUM, ACNUM, MONEY, DW_TIME, DW_WAY) values (52008,'00005',39,to_date('31-10-2010','dd-mm-yyyy'), '取款机');七、索引建⽴索引遵循的规律：1.建⽴在where⼦句经常引⽤的列上，2.经常需要排序的列上，3.连接属性列上等在存款单表的存款单号字段和账号字段建⽴组合索引CREATE UNIQUE INDEX XPKdepositslip ON depositslip(dps_num ASC,acnum ASC);在存款单表的账号字段建⽴索引CREATE INDEX XIF1depositslip ON depositslip(acnum ASC);在取款单表的取款单号字段和账号字段建⽴组合索引CREATE UNIQUE INDEX XPKdrawslip ON drawslip(dw_num ASC,acnum ASC);在取款单表的账号字段建⽴索引CREATE INDEX XIF1drawslip ON drawslip(acnum ASC);在储户表的账户字段上建⽴索引，⽅便查询CREATE UNIQUE INDEX XPKluser ON luser(acnum ASC);⼋、触发器1、插⼊存款，对应储户表的相应储户的余额(balance)增加插⼊记录包含的⾦额数(money)CREATE OR REPLACE TRIGGER OperatingDpsAFTER INSERT ON depositslipFOR EACH ROWDECLAREn_ac VARCHAR2(5);n_mo INT;BEGINn_ac:=:new.acnum;n_mo:=:new.money;update luser set balance=balance+n_mo where luser.acnum=n_ac;END OperatingDps;2、删除存款，对应储户表的相应储户的余额(balance)减去所删除记录的⾦额数(money) CREATE OR REPLACE TRIGGER OperatingDps2AFTER DELETE ON depositslipFOR EACH ROWDECLAREo_ac VARCHAR2(5);o_mo INT;BEGINo_ac:=:old.acnum;o_mo:=:old.money;update luser set balance=balance-o_mo where luser.acnum=o_ac;END OperatingDps2;3、插⼊取款，对应储户表的相应储户的余额(balance)减少插⼊记录包含的⾦额数(money) CREATE OR REPLACE TRIGGER OperatingDwAFTER INSERT ON drawslipFOR EACH ROWDECLAREn_ac VARCHAR2(5);n_mo INT;BEGINn_ac:=:new.acnum;n_mo:=:new.money;update luser set balance=balance-n_mo where luser.acnum=n_ac;END OperatingDw;4、删除取款，对应储户表的相应储户的余额(balance)加上所删除记录的⾦额数(money) CREATE OR REPLACE TRIGGER OperatingDw2AFTER DELETE ON drawslipFOR EACH ROWDECLAREo_ac VARCHAR2(5);o_mo INT;BEGINo_ac:=:old.acnum;o_mo:=:old.money;update luser set balance=balance+o_mo where luser.acnum=o_ac;END OperatingDw2;5、插⼊的取款⾦额(money)⼤于对应⽤户的余额(balance)时，系统报错CREATE OR REPLACE TRIGGER OperatingDw3 AFTER insert ON drawslipFOR EACH ROWDECLAREn_ac VARCHAR2(5);n_mo INT;n_ba INT;BEGINn_ac:=:new.acnum;n_mo:=:new.money;select balance into n_ba from luser where acnum=n_ac;if n_mo>n_ba thenRAISE_APPLICATION_ERROR(-20000, '存款余额不⾜！请重新插⼊存款！'); end if;END OperatingDw3;测试(以刘忠⽥为例)：查看刘忠⽥的余额数select name,balance from luser where name='刘忠⽥'1、插⼊存款时插⼊⼀条存款记录insert into depositslip (DPS_NUM, ACNUM, MONEY, DPS_TIME, DPS_WAY) values (98012,'00001', 80,to_date('08-09-2009','dd-mm-yyyy'), '整存整取');查看插⼊后，刘忠⽥余额数的变化select name,balance from luser where name='刘忠⽥’2、删除存款时删除⼀条存款记录delete from depositslip where dps_num=98012查看删除后，刘忠⽥余额数的变化select name,balance from luser where name='刘忠⽥’3、插⼊取款时插⼊⼀条取款记录insert into drawslip (DW_NUM, ACNUM, MONEY, DW_TIME, DW_WAY)values (52007,'00001', 80,to_date('08-11-2010','dd-mm-yyyy'), '柜台'); 查看插⼊取款后，刘忠⽥余额数的变化select name,balance from luser where name='刘忠⽥’4、删除取款时删除⼀条取款记录delete from drawslip where dw_num=52007查看删除后，刘忠⽥余额数的变化select name,balance from luser where name='刘忠⽥’5、插⼊的取款数⼤于余额数时insert into drawslip (DW_NUM, ACNUM, MONEY, DW_TIME, DW_WAY)values (52007,'00001', 700,to_date('08-12-2010','dd-mm-yyyy'), '柜台'); 700⼤于刘忠⽥的余额数系统会报错：ORA-20000: 存款余额不⾜！请重新插⼊存款！ ORA-06512: 在"DY.OPERATINGDW3", line 10ORA-04088: 触发器 'DY.OPERATINGDW3' 执⾏过程中出错九、存储过程创建过程dpspro，查询某位储户共取过多少钱create or replace procedure dpspro(dname varchar2) assmoney int;beginselect sum(money) into smoney from drawslip natural join luser where name=dname; DBMS_OUTPUT.PUT_LINE(smoney); end dpspro;创建存储过程luinf，查询余额⼤于取款总数储户的相关信息先创建两张表create table new1 as select name 姓名,sum(money) 总数from luser inner join drawslip onluser.acnum=drawslip.acnum group by name;create table new2 as select * from luser inner join new1 on /doc/2ae93f3f0912a2161479298b.html=new1.姓名;存储过程create or replace procedure luinfiscursor mycur isselect * from new2 where new2.balance>new2.总数;v_record new2%rowtype;)beginif mycur%isopen=false thenopen mycur;end if;DBMS_OUTPUT.PUT_LINE(rpad('账号',15,'-')||rpad('⾝份证',15,'-')||rpad('姓名',15,'-')||rpad('性别',15,'-')||rpad('余额',15,'-')||'取款总数');loopfetch mycur into v_record;exit when mycur%notfound;DBMS_OUTPUT.PUT_LINE(rpad(v_record.acnum,15,'-')||rpad(v_/doc/2ae93f3f0912a2161479298b.html,15,'-')||rpad(v_record.id,15,'-')||rpad(v_record.sex,15,'-')||rpad(v_record.balance,15,'-')||v_record.总数);end loop;close mycur;end luinf;⼗、查询1、查询余额最多的⼈共取过多少次款，共取了多少钱select count(*),sum(money) from luser natural join drawslip where name=(select name from luser where balance=(select max(balance) from luser)) 2、查询存款余额⼤于200（亿）的储户，男⼥分别有多少⼈select sex,count(*)from luser where balance>200 group by sex3、查询哪个储户的某次存款期限满16个⽉，显⽰姓名、当次存款⾦额和性别select name,money,sex from luser natural join depositslip where extract(month from sysdate)-extract(month from dps_time)>44、查询哪些储户的取款总数⼤于100select name 姓名,sum(money) 取款数, '亿' 单位from luser inner join drawslip on luser.acnum=drawslip.acnum group by name having sum(money)>1005、查询存款时间长度超过4个⽉的存款信息select name 姓名,dps_num 存款单号,dps_time 存款⽇期,extract(month from sysdate)-extract(month from dps_time) 存款时间长度,'⽉' 单位from luser natural join depositslip where balance>400 and extract(month from sysdate)-extract(month fromdps_time)>=3。
