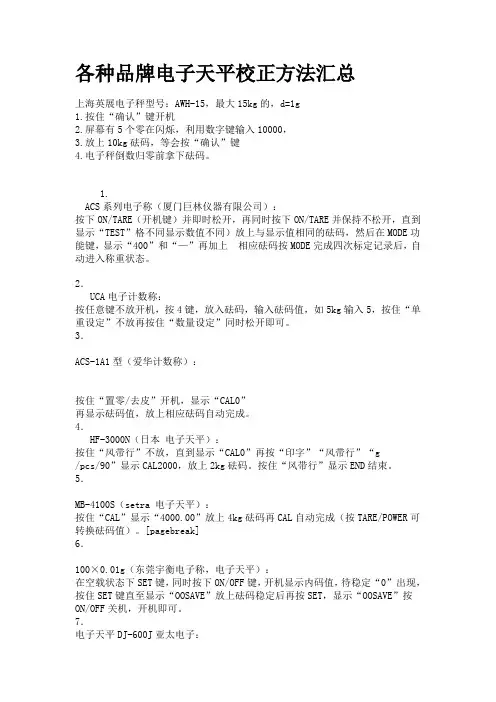

各种品牌电子天平校正方法汇总上海英展电子秤型号：AWH-15，最大15kg的，d=1g1.按住“确认”键开机2.屏幕有5个零在闪烁，利用数字键输入10000，3.放上10kg砝码，等会按“确认”键4.电子秤倒数归零前拿下砝码。
1.ACS系列电子称（厦门巨林仪器有限公司）：按下ON/TARE（开机键）并即时松开，再同时按下ON/TARE并保持不松开，直到显示“TEST”格不同显示数值不同）放上与显示值相同的砝码，然后在MODE功能键，显示“400”和“—”再加上相应砝码按MODE完成四次标定记录后，自动进入称重状态。
2．UCA电子计数称：按任意键不放开机，按4键，放入砝码，输入砝码值，如5kg输入5，按住“单重设定”不放再按住“数量设定”同时松开即可。
3．ACS-1A1型（爱华计数称）：按住“置零/去皮”开机，显示“CAL0”再显示砝码值，放上相应砝码自动完成。
4．HF-3000N（日本电子天平）：按住“风带行”不放，直到显示“CAL0”再按“印字”“风带行”“g/pcs/90”显示CAL2000，放上2kg砝码。
按住“风带行”显示END结束。
5．MB-4100S（setra 电子天平）：按住“CAL”显示“4000.00”放上4kg砝码再CAL自动完成（按TARE/POWER可转换砝码值）。
[pagebreak]6．100×0.01g（东莞宇衡电子称，电子天平）：在空载状态下SET键，同时按下ON/OFF键，开机显示内码值，待稳定“0”出现，按住SET键直至显示“OOSAVE”放上砝码稳定后再按SET，显示“OOSAVE”按ON/OFF关机，开机即可。
7．电子天平DJ-600J亚太电子：按<↓>校正显示“CAL” 放上500g砝码,自动完成。
8．厦门联贸电子UCA-型：按住任意键不放开机,然后按4，再按归零键后放上砝码，输入砝码值，按住单重设定不放,再按“数量设定”同时放开即可。
AW/AHW Professional Weighing ScaleUser ManualSep. 2009Table of Contents Specifications (2)Basic specification (2)Series specification (2)Display and keypad (3)LCD Display (3)Keypad (4)Using the weighing scale (6)Counting function (6)Percentage function (6)Operation of M+ (6)Operation of MR (6)Alarm function (7)Input tare weight by keypad (7)Settings and Calibration (8)General Settings (CAL 1) (8)Print Settings (CAL 2) (9)Calibration Procedure (CAL 3) (11)Linearity Calibration Procedure (CAL 4) (12)RS232C Connection: DB-09 (Male) (13)Bi-directional RS232C Setting (13)Specifications Basic specificationDigital Display LCD, height 40 mm x 125 mm6 digitalsPlatter Size (mm) 245 x 355 (W x H)Dimensions (mm) 387 x 365 x 117(W x L x H) Net Weight (kg) 3.7kg Operating Temperature0 ℃ to +40℃Relative Humidity Less than 85%Power9V / 500mA, AC adapter; Built in 6V Rechargeable BatteryInterface RS-232CSeries specificationModel AW Max.Capacity1.5kg/3lb 3kg/6lb 7.5kg/15lb15kg/30lb 30kg/60lb 50kg/100lbd = 0.1g 0.2g 0.5g 1g 2g 2g Accuracy 1/15000 1/15000 1/15000 1/15000 1/15000 1/25000Model AHW Max.Capacity3kg/6lb 6kg/12lb 15kg/30lb 30kg/60lb 50kg/100lbd = 0.1g 0.2g 0.5g 1g 1g Accuracy 1/30000 1/30000 1/30000 1/30000 1/50000Display and keypadLCD Display.Numerical display to display weight, date & time, IDnumberIndicates the weight is stable.Indicates the weight is at zero.M+Indicates the accumulation weight in memory.G.W When ▼ is shown above the G.W. indicator, the GrossWeight is displayed.N.W. When ▼ is shown above the N.W. indicator, the NetWeight is displayed.T.W When ▼ is shown above the T.W. indicator, the TareWeight is displayed.Hi When you are setting the weight upper bound, ▲ isflashing above the Hi indicator.Lo When you are setting the weight lower bound, ▲ isflashing above the Lo indicator.KeypadFunction key Press to toggle among, Hi/Lo, %,sampling.Sampling key Press to set up sample quantity. (Samplekey: multiple sampling methods areavailable. See Sampling section.)Percentage key Press to set up percentage of the givensample.Print key Press to print the weight data.Unit key Press to switch between kg and lb.Date &time key Press to display the current date and time.Note: The date and time setting can be changedin CAL 1 menu.ID key Press to enter the ID mode. Use thenumeric keypad to enter the user’s IDnumber.Gross/Net/TarekeyPress to toggle among Gross Weight, NetWeight, and Tare Weight on the display.Using the weighing scaleCounting function1.Put certain pieces of objects on to the scale pan.2.In weighing mode, press the numeric key to set the piece count and press .3.Now you are ready to perform parts counting for the specific samples. The input data will becleared in 4 seconds if is not pressed.Percentage function1.Put certain pieces of objects on to the scale pan.2.Press and use the numeric key to enter the percentage of the sample. .3.Place objects of desired piece counts on the weighing pan. The percentage of the objects willbe calculated automatically.Operation of M+1.When there is a load on the weighing pan, press and after a beep sound, the M+indicator will light up on the LCD, indicating a data has been recorded.2.Clear the load and put another load on the weighing pan. When the scale become stable,press . After a beep sound, the M+ indicator will light up on the LCD, indicatingsecond data has been recorded.z After each recording, if the load on the weighing pan is not cleared, pressing will result in the long beep and the scale won’t be able to record the next weighingresult.z The stored memory can memorize up to 180 weighing results.Operation of MR1.In weighing mode, press to display the accumulated weighing result. The LCDdisplay will flash the total number of accumulation and the total weight alternatively. Forinstance, if you added two weighing results and the total weight add up to 2.0 kg. Thescale will flash ACC.002, and then 2.000kg2.Press to exit the MR mode without clearing the data in memory.Alarm function1.Press key to set the upper bound of the weight. The▲ is flashing above the Hiindicator.2.Set up the weight upper bound with the numeric keys Press key again to save yoursetting and return to normal weighing mode.3.Press key to set the lower bound of the weight. The ▲ is flashing above the Loindicator.4.Set up the lower bound with the numeric keys.5.Press key again to save your setting and return to weighing mode.Note:z While the weight exceeds the upper bound of Weight Upper Bound, or lower than the Weight Lower Bound, or between the lower and upper bound and is not zero, the scalewill beep for warning.z You may change the beep settings in CAL 1 menu.Input tare weight by keypad1.In weighing mode, press the numeric keys to input the tare weight. (The unit is in gram.)2.Then, press , and the tare weight has been changed. (The input data will be cleared in 4seconds if is not pressed.)Note: It’s not allowed to set tare weight greater than scale capacity.Settings and Calibration1. Press and hold any key while turning the scale ON. CAL 1 is shown on the LCD display.2. Press key to toggle among the CAL 1, CAL 2, CAL 3, and CAL 4 menus.3. Select CAL 1, press to enter General Settings menu.4. Select CAL 2, press to enter the Print Settings menu6. Select CAL 3, press to enter Calibration procedure.7. Select CAL 4, press to enter Linearity Calibration procedure.Note: To perform CAL 3 and CAL 4 calibration, you must remove the JP3 jumper from the PCB first.Put the JP3 back after calibration is complete.General Settings (CAL 1)In the General Settings menu, press to toggle among the options, and to confirm.1. Aut.oFF– Auto Off SettingDisplay DescriptionsA.oFF 0 Disable auto shutdown function.A.oFF 1 If there is no operation, the scale will shut down in 5 minutes.A.oFF 2 If there is no operation, the scale will shut down in 10 minutes.A.oFF 3 If there is no operation, the scale will shut down in 20 minutes.A.oFF 4 If there is no operation, the scale will shut down in 30 minutes.2. B. LiGHt - Backlight SettingDisplay DescriptionsbL 0 Disable the backlight function.bL 1 Enable the backlight function.bL 2 Automatic backlight when there is load on the weighing pan.3. bbH - Hi Beep SettingDisplay ExplanationbbH_ 0 Disable Hi alarm sound.bbH_ 1 Set Hi alarm sound as continual short beeps.bbH_ 2 Set Hi alarm sound as continual long beeps.4. bbS - Go Beep SettingDisplay ExplanationbbS_ 0 Disable Go alarm sound.bbS_ 1 Set Go alarm sound as continual short beeps.bbS_ 2 Set Go alarm sound as continual long beeps.5. bbL – Lo Beep SettingDisplay ExplanationbbL_ 0 Disable Lo alarm sound.bbL_ 1 Set Lo alarm sound as continual short beeps.bbL_ 2 Set Lo alarm sound as continual long beeps.6. dNY-Date Setting (dd/mm/yy)1.Current date is shown on the display. Press the Date key to select the field for adjustment.2.The date format is displayed as DD/MM/YY. For example to set the date as April 17, 2009,press the date key to select the date field.3.Enter the date with numeric keypad and press date key to go to the next field.4.When the set up is complete, press tare to save your settings.7. HNS-Time Setting (hh/mm/ss)1.Current date is shown on the display. Press the Date key to select the field for adjustment.2.The date format is displayed as H/M/S. For example to set the date as 16: 50: 23, press the datekey to select the date field.3.Enter the date with numeric keypad and press date key to go to the next field.4.When the set up is complete, press tare to save your settings.Print Settings (CAL 2)Press to toggle among the options. Use the numeric keys to input data and press to save your settings.1. Print SettingsDisplay DescriptionsPr.dEFA Set the print format to default settings.Pr.LP50 Set the print format to LP-50 printer.2. Printout settingDisplay DescriptionsP. PrESS Press M+ to print single weighing result. Press C in MRmode to print accumulated weighing result and totalaccumulation.P. StAb.1 Print weighing result (Net wt, Pc. wt, Pc. count) when thescale is stable and weight > 0.* Pressing M+ and MR do not print.P. StAb.2 Print Net wt when the scale is stable and weight > 0.* Pressing M+ and MR do not print.P. ALL.1 Press M+ to print single weighing result. Press C in MRmode to print accumulated weighing result and totalaccumulation.Print weighing result (Net wt, Pc. wt, Pc. count) when thescale is stable and weight > 0.P. ALL.2 Press M+ to print single weighing result. Press C in MRmode to print accumulated weighing result and totalaccumulation.Print Net wt when the scale is stable and weight > 0.P.Count Continuous printing weight data. Usually used for sendingweight data to PC.P. oFF Print function disabled.3. Baud RateDisplay Descriptionsbr2400 Set the baud rate to 2400Br4800 Set the baud rate to 4800br9600 Set the baud rate to 96004. Parity SettingDisplay DescriptionsPA. 7-E-1 Set the parity to 7-E-1PA. 7-o-1 Set the parity to 7-o-1PA. 7-n-2 Set the parity to 7-n-2PA. 8-n-1 Set the parity to 8-n-1Calibration Procedure (CAL 3)Please remove the JP3 jumper before you start the calibration process.In Calibration menu, press to toggle among the menu options. Use the numeric keys to inputdata and press to confirm.1. SEL maximum capacityDisplay DescriptionsLoAd03Set maximum capacity as 3 kg.LoAd06Set maximum capacity as 6 kg.LoAd15Set maximum capacity as 15 kg.LoAd30Set maximum capacity as 30 kg.LoAd50Set maximum capacity as 50 kg.2. A0Display DescriptionsA0 off Zero tracking function is disabled.A0 on Zero tracking function is activated.3. Zero Point CalibrationDisplay DescriptionsXXXXXX0 Firstly, it shows AD Value at Zero point. Press .Make sure the weighing pan is empty. Wait until the AD value becomes stable, press to proceed.4. Setup calibration weightDisplay DescriptionsXXXXXX And put on the calibration weight either by 1/3, 2/3 of the full capacity or the full load. The corresponding AD value is thendisplayed. When AD value become stable, press. The displays will shows 1/3, 2/3 of the full capacity in cycle.When the displayed number corresponds to the calibrationweight user is using, press to confirm.Linearity Calibration Procedure (CAL 4)Note: This section can only be operated by engineers.Please have the jumper JP3 switch OFF before you start the calibration process.In Calibration menu, press to toggle among the menu options, and to confirm.1. Zero Point CalibrationDisplay DescriptionsPnt 0 The AD Value is then displayed.Make sure the weighing pan is empty. Wait until the AD value becomes stable, press to proceed.2. Calibration by 1/3 of the maximum capacityDisplay DescriptionsPnt 1 The AD Value of 1/3 of the full load is then displayed.Put on poise of the 1/3 weight by the maximum capacity. Wait until the AD value becomes stable,press to proceed.3. Calibration by 2/3 of the maximum capacityDisplay DescriptionsPnt 2 The AD Value of 2/3 of the full load is then displayed.Put on poise of the 2/3 weight by the maximum capacity. Wait until the AD value becomes stable,press to proceed.4. Calibration by the maximum capacityDisplay DescriptionsPnt 3 The AD Value of the full load is then displayed.Put on poise of full capacity of the scale. Wait until the AD value becomes stable, press . The linearity calibration is complete.Note: For 50 kg instrument, 5 section linearity calibrations are required.RS232C Connection: DB-09 (Male)Pin setup: 2 (TXD)3 (RXD)5 (GND)others (NC)Bi-directional RS232C SettingThis section is applicable only for models with RS-232C module.PRINTOUT FORMAT1. Key press printSetting Press M+PressPress C in MR modePrint PrESS Print ALL.1 Print ALL.2 ITEM 1 : ----------------------Date 02-04-2009 Time 07:38:35 ID :888888 Gross Weight: S 10.000 kg Net Weight : S 10.000 kg Tare Weight : S 0.000 kgDate 02-04-2009 Time 07:38:59ID :888888 Gross Weight: S 10.000 kg Net Weight : S 10.000 kg Tare Weight : S 0.000 kgTRANSACTION TOTAL ----------------------TOTAL NET WEIGHT of 1 ITEM(S) : 10.000 kgPrint StAbLE.1 Print StAbLE.2 Print oFFNo print out.No print out.No print out.2. Stable auto printSetting Print out when the weight is stable.Print StAbLE.1 Print ALL.1 Date 02-04-2009 Time 07:40:23 ID :888888Gross Weight: S 10.000 kg Net Weight : S 10.000 kg Tare Weight : S 0.000 kgPrintALL.2PrintStAbLE.2Net Weight:S 10.000 kgPrintPrESSPrintoFFNo print out.STA SIGN W6W5W4W3W2W1W0 SPACE U1U0 CR LFSTA ‘U’ (55h) indicates it’s an unstable weight.‘S’ (53h) indicates it’s a stable weight.SIGN ‘-‘(2Dh) means it’s a negative weight.‘ ‘ (20h) space char indicates it’s a positive or zero weight.W6…W0Weight data, decimal point included.SPACE 20hU1, U0‘k’ (6Bh) ‘g’ (67h) indicates that the unit is kilogram.‘l’ (6CH) ‘b’ (62h) indicates that the unit is lb.CR 0DhLF 0AhCommand print outCOMMAND Actions Response<ENQ> (05h) the weight string(not available when the print formatis set to OFF or PRESS.)。
英展电子秤校正英展ALH-C系列2010版校正1. 按[置零]［●]，显示[01 Fnc］2。
按[去皮］，显示[02 Fnc］3。
按[累计清除],显示［EC 00]4。
按［01],显示[EC 01］5。
按[累计清除]，显示［0.000]［517 ］[196169]（零点内码）6。
按［累计清除］,显示［30.000]［517 ］[**＊*＊］（零点内码)7. 加砝码,输入砝码值，按［累计清除],显示［EC 01]8. 按［00],显示[EC 00]9. 按［累计清除]，显示［02 EC]10。
按[去皮]，显示[03 RST]11。
按［去皮］,显示［00 ESC]12。
按［累计清除］，回到正常称重,OK!量程规格及单位设定1。
开机后,开关短路,2。
按累计清除3。
按014。
按累计清除显示[030009] ［30000］[130001]注:为KG如为LB改[067009］［60000]［130201]［最大秤量][校正砝码］［分度值/小数点.单位］5.按累计清除6。
按007。
按累计清除显示[01CSP]8.按去皮9.按累计清除，校正零点10。
累计清除11. 放磅数砝码12。
累计清除13。
将短路开关关上完成倒数。
外校功能设定01FnCFnC 00：回到上一层FnC 01：背光方式设定FnC 02:自动关机时间设定FnC 03：数量取样稳定范围设定FnC 04：自动平均单重设定FnC 05：AD取样稳定范围设定FnC 06：零点显示范围设定FnC 07：零点追踪范围设定FnC 08：累计结束方式设定FnC 09：零点追踪范围设定FnC 10:有数量设定时蜂鸣器“哔哔”声输出条件设定FnC 11：累计接受条件设定一FnC 12:累计接受条件设定二FnC13：复合键设定外校重量校正及G调整设定02ECEC 00：回到上一层EC 01:外部重量校正EC 02：外部重量校正地或使用地G值调整RS232和串口打印设定03Rs1Rs1 00：回到上一层Rs1 01：波特率设定Rs1 02:通讯协议设定Rs1 03:输出数据格式设定Rs1 04：连续传送时每秒输出笔数设定Rs1 05：操作模式设定Rs1 06:连续传送输出条件设定Rs1 07：自动传送置零条件设定Rs1 08:自动传送重置条件设定英展电子秤ALH ALH-C旧版外部校正方法：1．开机归零后，先按住[。
8AWH(QT) V2.0SMC300000039上海英展机电企业有限公司MC 沪制00000028号AWH (QT) 简易电子秤操作手册©上海英展机电企业有限公司版权所有目录注意事项 (2)安全须知 (2)使用前之准备工作 (3)一、产品规格说明 (4)1.产品特色 (4)2.产品规格 (4)3.标准包装 (4)二、显示部份说明 (5)三、产品操作简介 (6)1.按键说明 (6)2.功能操作说明 (7)四、外部功能设定模式 (9)1.自动关机及背光设定 (9)2.重量暂留设定 (10)附录一七节码字样说明 (11)三包事项.............................................................................................................錯誤! 尚未定義書籤。
产品保证卡. (13)感谢爱用者选购英展电子秤为有效帮助您正确的使用本公司产品，请详细阅读本使用说明，将有助于操作顺畅及产品寿命之延长，并可减少故障的机会。
注意事项1. 严禁将电子秤置于高温或潮湿之场所。
2. 勿让蟑螂侵入及小生物寄生机内。
3. 严禁撞击、重压(勿超过其最大秤量)。
4. 电子秤若长期不使用时，请擦拭干净，放入干燥剂后以塑料袋包好，若使用干电池者，需将干电池取出，以防止可能发生的电解液漏出。
5. 请勿混合使用不同类型之干电池，或混合使用新旧干电池◦6. 如对本产品有任何建议，请不吝指正。
7. 本产品是适用于非贸易结算。
安全须知1. 请确认电池“+”、“-”电极的放置方向是否正确。
2. 请勿将电池暴露于热源处，或试图拆开电池，以免引起漏电。
3. 请勿混用不同型号之电池。
4. 请勿将新电池与旧电池一起混用。
5. 请勿将没有电之电池续留在电池座内，以免发生故障。
上海英展机电企业有限公司使用前之准备工作1. 请将电子秤放置于稳固且平坦之桌面上使用，勿放于摇动或振动之台架上。
（版权声明：尊重原创，允许转载，转载时请务必以超链接形式标明文章原始出处，否则将追究法律责任）英展电子秤主要功能：净重，置零，去皮，累计等。
保护措施：智能判别电池电量，通讯接口：Rs 232c，Rs485可连接微型打印机。
适用于五金．塑胶．造纸．化工．电子．物流．货运等行业。
英展计重台秤可实现的特色：（1）秤+连电脑（选配RS232串口），免费串口通讯线一根.（2）秤+外接标签打印机（打印内容可设置如：序号、日期、时间、重量等）.（3）秤+连电脑+软件（公司开发，有了软件可将称重数据读取到电脑上保存，方便快捷）.（4）秤+U盘（市面上任何U盘都支持导入导出，专门定制程序0误差）称重范围：30kg、60kg、75kg、100kg、150kg、200kg、300kg、500kg、600kg、800kg、1000kg台面尺寸：400*500mm、420*520mm、450*550mm、600*800mm（可根据您的需求任意订做）温度范围：0℃～40℃电子台秤电源：AC 220V（±10百分之）+6V/4A电子秤专用蓄电池市场上带RS232通讯电子秤琳琅满目，品牌众多，很多产品不尽相同的通讯格式内容，导致用户选购难度大，不易找到恰当的产品，这里，为大家讲解一下电子秤带RS232通讯功能有COM口输出到软件台称操作方法。
