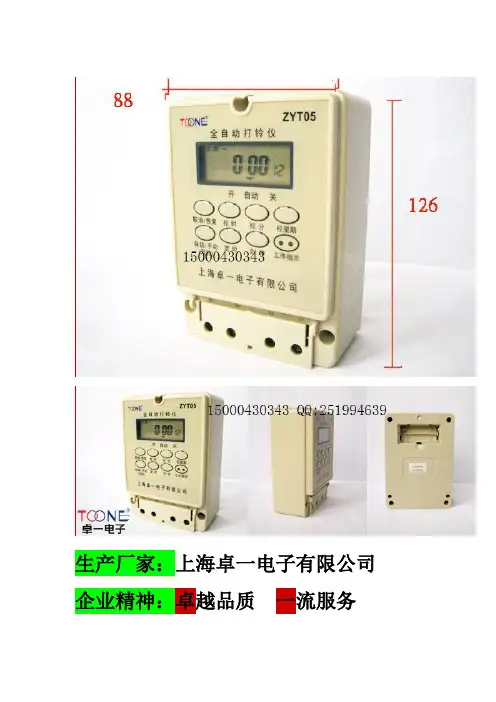

上海卓一全自动打铃仪ZYT05

上海卓一时控开关说明书-CAL-FENGHAI.-(YICAI)-Company One1上海卓一电子微电脑时控器，定时器，时控开关ZYT16G一、功能和用途本产品采用PJ-62定时模块，能根据用户设定时间，自动打开和关闭各种电器设备的电源。

广泛用于路灯、霓虹灯、广告灯、电饭煲、增氧机、喷灌机、预热预冷装置等领域用电设备的编程定时自动控制。

二、显屏显示的符合解释三、技术参数额定电压：220V/50Hz适用电压范围：160～240V额定电流：纯阻性负载25A、感性负载10A,2路的7A时控范围：1分～168小时设定次数：每天10组或2组编程定时（例：设定9点开、10点关称为1组编程）控制周期：可日控或周控循环（可实现一周内每天不同定时设置）计时误差：<±秒/天使用温度：-30℃～60℃防潮防尘性强安装方式：吸壁、挂装、等固定方式外形尺寸：115×75×52mm接线方式：锁扣式端子接线，符合工业标准。

计时方式：24小时制四、调校时钟、定时设置调校时钟：按住[时钟]键，同时按[时]、[分]、[星期]键可调校时钟、星期。

定时设置步骤如下：步骤按键设定项目1按[定时]键进入第1组定时开的设定（显示1开）2分别按[星期]、[时]、[分]键设定开启时间（星期、时、分）3再安[定时]键进入第1组定时关的设定（显示1关）4分别按[星期]、[时]、[分]键设定关的时间（星期、时、分）5重复“1、2、3、4”步骤可设定2-10组开关的时间6连续按[定时]键检查各组开关时间和星期是否与要求的一样，如不正确，还应重复步骤2、47按[自动/手动]键将开关符合（“ ▼ ”）调到当前时间所处的状态（“开”或“关”）再调回到“自动”位置8按[时钟]键结束时间设定进入时钟显示状态注意：如不需要设定10组，把多余的组数用[取消/恢复]键消除，显示“--:--”即表示消除，若再按一次[取消/恢复]键可恢复消除前的原有时间设定。

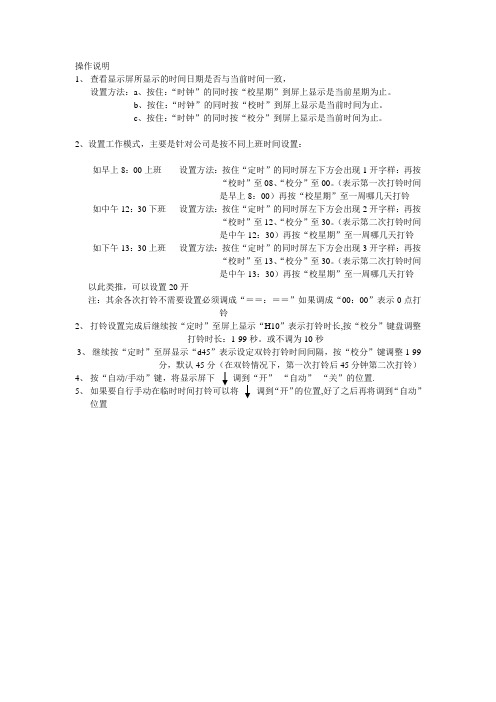

操作说明
1、查看显示屏所显示的时间日期是否与当前时间一致，
设置方法：a、按住：“时钟”的同时按“校星期”到屏上显示是当前星期为止。

b、按住：“时钟”的同时按“校时”到屏上显示是当前时间为止。

c、按住：“时钟”的同时按“校分”到屏上显示是当前时间为止。

2、设置工作模式，主要是针对公司是按不同上班时间设置：
如早上8：00上班设置方法：按住“定时”的同时屏左下方会出现1开字样：再按
“校时”至08、“校分”至00。

（表示第一次打铃时间
是早上8：00）再按“校星期”至一周哪几天打铃如中午12：30下班设置方法：按住“定时”的同时屏左下方会出现2开字样：再按
“校时”至12、“校分”至30。

（表示第二次打铃时间
是中午12：30）再按“校星期”至一周哪几天打铃如下午13：30上班设置方法：按住“定时”的同时屏左下方会出现3开字样：再按
“校时”至13、“校分”至30。

（表示第二次打铃时间
是中午13：30）再按“校星期”至一周哪几天打铃以此类推，可以设置20开
注：其余各次打铃不需要设置必须调成“＝＝：＝＝”如果调成“00：00”表示0点打
铃
2、打铃设置完成后继续按“定时”至屏上显示“H10”表示打铃时长,按“校分”键盘调整
打铃时长：1-99秒。

或不调为10秒
3、继续按“定时”至屏显示“d45”表示设定双铃打铃时间间隔，按“校分”键调整1-99
分，默认45分（在双铃情况下，第一次打铃后45分钟第二次打铃）
4、按“自动/手动”键，将显示屏下调到“开”“自动”“关”的位置.
5、如果要自行手动在临时时间打铃可以将调到“开”的位置,好了之后再将调到“自动”
位置。
