F i n i s a r © Finisar Corporation April, 2007 Rev D Page 1 Product Specification OC-3 SR-1/STM I-1 or OC-3 IR-1/STM S-1.1 2x5 SFF Transceiver FTLF1323F2xTR

PRODUCT FEATURES • Up to OC-3/STM-1 bi-directional data links

• Standard 2x5 pin SFF footprint (MSA compliant)

• Analog diagnostics functions • Uncooled 1310nm FP laser transmitter

• Duplex LC connector • Very low jitter • Metal enclosure, for lower EMI • Single 3.3V power supply • Low power dissipation <700 mW typical

• Extended operating temperature range: -40°C to 85°C

APPLICATIONS • SONET OC-3 SR-1 / SDH STM I-1 • SONET OC-3 IR-1 / SDH STM S-1.1

Finisar’s FTLF1323S2xTR Small Form Factor (SFF) transceivers are compatible with the Small Form Factor Multi-Sourcing Agreement (MSA)1. They comply with SONET OC-3

SR-1/IR-1 (SDH STM I-1/S-1.1) standards2. The transceivers are RoHS compliant and

lead-free per Directive 2002/95/EC5 and Finisar Application Note AN-20386

PRODUCT SELECTION FTLF1323F2xTR

G 2 Grounding Pins, Short EMI shield M 6 Grounding Pins, Short EMI shield K 2 Grounding Pins, Long EMI shield

x

H 6 Grounding Pins, Long EMI shield

元器件交易网www.cecb2b.comFTLF1323F2xTR 2x5 Pin SFF Product Specification –April 2007 F i n i s a r © Finisar Corporation April, 2007 Rev D Page 2 I. Pin Descriptions Pin Symbol Name/Description Logic Family MS MS Mounting Studs for mechanical attachment. Chassis ground is internally isolated from circuit ground. Connection to chassis ground is recommended. NA

1 VEER Receiver Ground (Common with Transmitter Ground) NA 2 VCCR Receiver Power Supply NA 3 SD Signal Detect. Logic 1 indicates normal operation. LVTTL 4 RD- Receiver Inverted DATA out. AC Coupled CML 5 RD+ Receiver Non-inverted DATA out. AC Coupled CML 6 VCCT Transmitter Power Supply NA 7 VEET Transmitter Ground (Common with Receiver Ground) NA 8 TDIS Transmitter Disable LVTTL 9 TD+ Transmitter Non-Inverted DATA in. AC Coupled. CML ECL 10 TD- Transmitter Inverted DATA in. AC Coupled. CML ECL

TOP VIEW MS

MS 10 9 8 7 6

元器件交易网www.cecb2b.comFTLF1323F2xTR 2x5 Pin SFF Product Specification – April 2007 F i n i s a r

© Finisar Corporation April, 2007 Rev D Page 3 II. Absolute Maximum Ratings Parameter Symbol Min Typ Max Unit Ref. Maximum Supply Voltage Vcc -0.5 4.5 V Storage Temperature TS -40 100 °C Case Operating Temperature TOP -40 85 °C Relative Humidity RH 0 85 % 1 Lead Soldering Temperature/Time 260/10 °C/s

III. Electrical Characteristics (TOP = -40 to 85 °C, VCC = 3.00 to 3.60 Volts)

Parameter Symbol Min Typ Max Unit Ref. Supply Voltage Vcc 3.00 3.60 V Supply Current Icc 190 300 mA Transmitter Input differential impedance Rin 100 Ω 2 Single ended data input swing Vin,pp 250 1200 mV Transmit Disable Voltage VD Vcc – 1.3 Vcc V Transmit Enable Voltage VEN Vee Vee+ 0.8 V 3 Transmit Disable Assert Time 10 μs Receiver Single ended data output swing Vout,pp 300 400 800 mV 4 Data output rise/fall time tr 1250 ps 5 SD Assert VSD assert 2.4 Vcc V 6 SD De-Assert VSD deassert Vee 0.5 V 6 Power Supply Rejection PSR 100 mVpp 7 Total Generated Receiver Jitter (peak to peak) JRXp-p 0.07 UI

Total Generated Receiver Jitter (rms) JRXrms 0.007 UI

Notes: 1. Non condensing. 2. AC coupled. 3. Or open circuit. 4. Into 100 ohm differential termination. 5. 20 – 80 % 6. Signal Detect is LVTTL. Logic 1 indicates normal operation; logic 0 indicates no signal detected. 7. All transceiver specifications are compliant with a power supply sinusoidal modulation of 20 Hz to 1.5

MHz up to specified value applied through the power supply filtering network shown on page 23 of the Small Form-factor Pluggable (SFP) Transceiver MultiSource Agreement (MSA), September 14, 2000.

元器件交易网www.cecb2b.comFTLF1323F2xTR 2x5 Pin SFF Product Specification – April 2007 F i n i s a r

© Finisar Corporation April, 2007 Rev D Page 4 IV. Optical Characteristics (TOP = -40 to 85 °C, VCC = 3.00 to 3.60 Volts)

Parameter Symbol Min Typ Max Unit Ref. Transmitter Output Opt. Pwr: 9/125 SMF POUT -15 -8 dBm 1 Optical Wavelength λ 1261 1360 nm 2 Spectral Width σ 7.7 nm 2 Optical Extinction Ratio ER 8.2 dB Optical Rise/Fall Time tr/ tf 1250 ps 3 Relative Intensity Noise RIN -120 dB/Hz Total Generated Transmitter Jitter (peak to peak) JTXp-p 0.07 UI

Total Generated Transmitter Jitter (rms) JTXrms 0.007 UI Receiver Rx Sensitivity @ OC-3 RSENS1 -28 -8 dBm 4 Rx Sensitivity @ 125Mb/s RSENS2 -28 -8 dBm 4 Optical Center (Input) Wavelength λC 1260 1600 nm SD Assert SDA -34 dBm SD De-Assert SDD -45 dBm SD Hysteresis 0.5 5 dB

合集下载

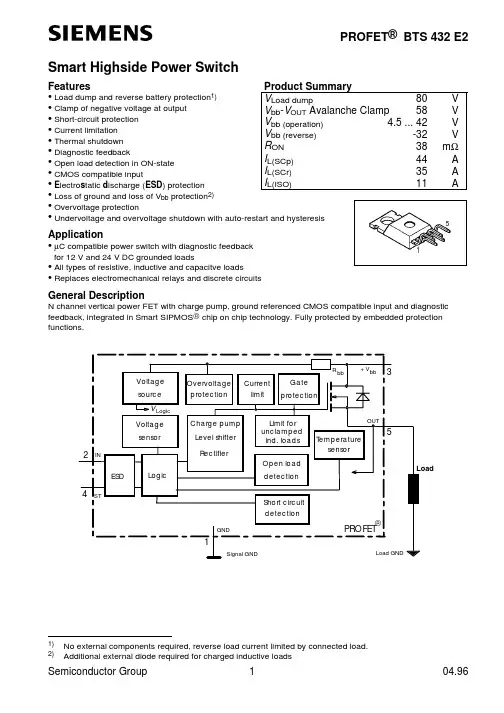

BTS432E2中文资料

BTS432E2中文资料


Semiconductor Group
3
元器件交易网
BTS 432 E2
Parameter and Conditions
at Tj = 25 °C, Vbb = 12 V unless otherwise specified
Symbol
Values min typ max
General Description
N channel vertical power FET with charge pump, ground referenced CMOS compatible input and diagnostic feedback, integrated in Smart SIPMOS® chip on chip technology. Fully protected by embedded protection functions.
Semiconductor Group
1
04.96
元器件交易网
BTS 432 E2
Pin 1 2 3 4 5 Symbol GND IN Vbb ST OUT (Load, L) I + S O Function Logic ground Input, activates the power switch in case of logical high signal Positive power supply voltage, the tab is shorted to this pin Diagnostic feedback, low on failure Output to the load
Unit
Protection Functions Initial peak short circuit current limit (pin 3 to 5)8), IL(SCp) ( max 400 µs if VON > VON(SC) ) Tj =-40°C: Tj =25°C: Tj =+150°C: Repetitive short circuit current limit IL(SCr) Tj = Tjt (see timing diagrams, page 10) Short circuit shutdown delay after input pos. slope VON > VON(SC), Tj =-40..+150°C: td(SC)
2SD1330中文资料

2SD1330中文资料

PC Ta
800 1.2 IB = 4.0 mA
IC VCE
Ta = 25°C 3.5 mA 3.0 mA 0.8 2.5 mA 2.0 mA 0.6 1.5 mA 0.4 1.0 mA 0.5 mA
VCE(sat) IC
Collector-emitter saturation voltage VCE(sat) (V)
(0.85)
0.55±0.1
1 : Base 2 : Collector 3 : Emitter M-A1 Package
Unit V V V nA V V MHz pF Ω
4.1±0.2
4.5±0.1
Publication date: November 2002
SJC00217BED
1
2SD1330
0.1
1
10
0.1
1
10
0 −1
or m
1 000
at io n.
−10
VBE(sat) IC
hFE IC
fT I E
VCB = 10 V Ta = 25°C
−100
Collector current IC (A)
Collector current IC (A)
Emitter current IE (mA)
0.2 0 0 20 40 60 80 100 120 140 160 0 1 2 3 4 5 6
0.01 0.01 0.1 1
10
Ambient temperature Ta (°C)
Collector-emitter voltage VCE (V)
Collector current IC (A)

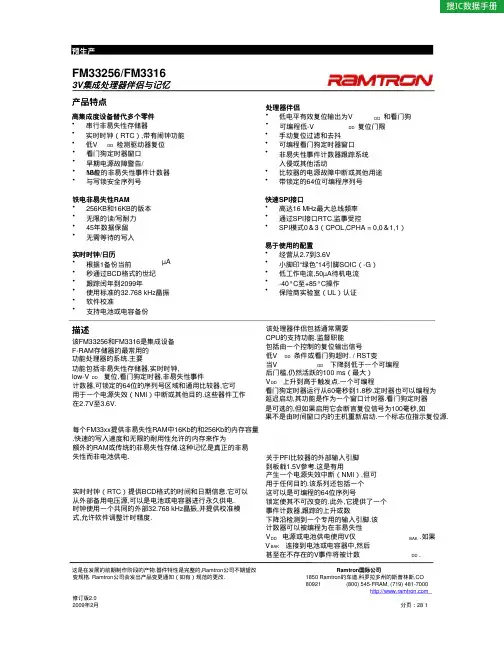

FM33256_FM3316_中文数据手册

FM33256_FM3316_中文数据手册


• 无需等待的写入
实时时钟/日历
• 根据1备份当前
µA
• 秒通过BCD格式的世纪
• 跟踪闰年到2099年
• 使用标准的32.768 kHz晶振
• 软件校准
• 支持电池或电容备份
快速SPI接口
• 高达16 MHz最大总线频率
• •
通过SPI接口RTC,监事受控 SPI模式0＆3（CPOL,CPHA = 0,0＆1,1）
易• 于使经用营的从配2.7置到3.6V • 小脚印“绿色”14引脚SOIC（-G） • 低工作电流,50µA待机电流 • -40°C至+85°C操作 • 保险商实验室（UL）认证
描述
该FM33256和FM3316是集成设备 F-RAM存储器的最常用的 功能处理器的系统.主要
功能包括非易失性存储器,实时时钟, low-V DD 复位,看门狗定时器,非易失性事件 计数器,可锁定的64位的序列号区域和通用比较器,它可 用于一个电源失效（NMI）中断或其他目的.这些器件工作 在2.7V至3.6V.
水平.后t
RPU 已经得到满足,/ RST引脚将
返回到弱上拉状态.当/ RST断言,
串行总线活动被锁定,即使交易
发生为V
DD 下降到低于V
TP .内存
操作开始,而V
DD 以上V
TP 将
在内部完成.
内存操作
该FM33xx产品都可以在16Kb的和256Kb的内存大小.这两种 器件是软件兼容;也就是说,这两个版本使用一致的 twobyte寻址的存储设备.这使得这两个设备相同的独立的存储 器对应,如FM25L16.
该处理器伴侣包括通常需要 CPU的支持功能.监督职能
包括由一个控制的复位输出信号

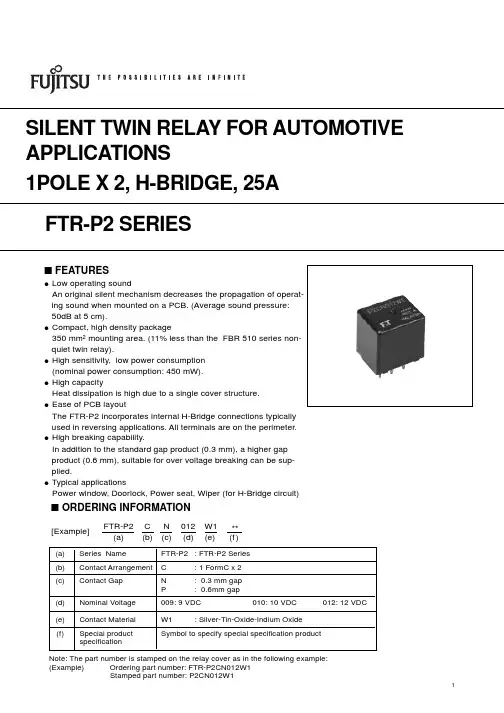

FTR-P2中文资料
