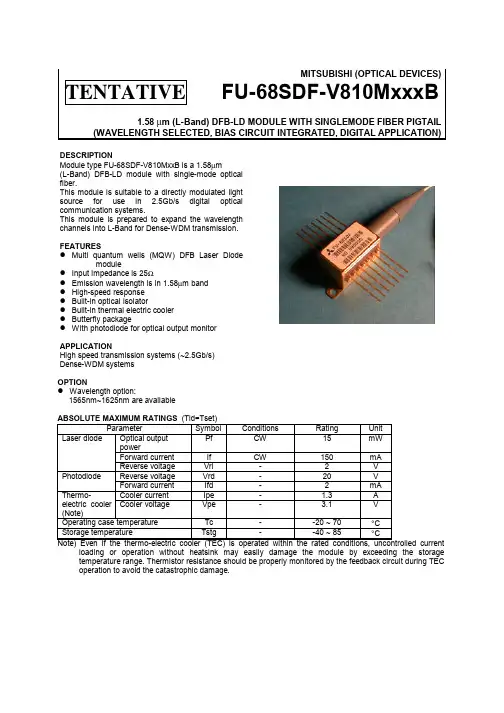

MITSUBISHI (OPTICAL DEVICES) TENTATIVE FU-68SDF-V810MxxxB1.58 µm (L-Band) DFB-LD MODULE WITH SINGLEMODE FIBER PIGTAIL(WAVELENGTH SELECTED, BIAS CIRCUIT INTEGRATED, DIGITAL APPLICATION) DESCRIPTIONModule type FU-68SDF-V810MxxB is a 1.58µm(L-Band) DFB-LD module with single-mode opticalfiber.This module is suitable to a directly modulated light source for use in 2.5Gb/s digital optical communication systems.This module is prepared to expand the wavelength channels into L-Band for Dense-WDM transmission. FEATURESl Multi quantum wells (MQW) DFB Laser Diode modulel Input impedance is 25Ωl Emission wavelength is in 1.58µm bandl High-speed responsel Built-in optical isolatorl Built-in thermal electric coolerl Butterfly packagel With photodiode for optical output monitor APPLICATIONHigh speed transmission systems (~2.5Gb/s)Dense-WDM systemsOPTIONl Wavelength option:1565nm~1625nm are availableABSOLUTE MAXIMUM RATINGS (Tld=Tset)Parameter SymbolConditions Rating UnitOptical outputpowerPf CW15mWForward current If CW150mALaser diodeReverse voltage Vrl-2VReverse voltage Vrd-20VPhotodiodeForward current Ifd-2mACooler current Ipe- 1.3AThermo-electric cooler(Note)Cooler voltage Vpe- 3.1VOperating case temperature Tc--20 ~ 70°CStorage temperature Tstg--40 ~ 85°CNote) Even if the thermo-electric cooler (TEC) is operated within the rated conditions, uncontrolled current loading or operation without heatsink may easily damage the module by exceeding the storage temperature range. Thermistor resistance should be properly monitored by the feedback circuit during TEC operation to avoid the catastrophic damage.1.58 µm (L-Band) DFB-LD MODULE WITH SINGLEMODE FIBER PIGTAIL(WAVELENGTH SELECTED, BIAS CIRCUIT INTEGRATED, DIGITAL APPLICATION) ELECTRICAL/OPTICAL CHARACTERISTICS (Tld=Tset, Tc=25°C unless otherwise noted)Parameter Symbol Test Conditions Limits UnitMin.Typ.Max. Threshold current Ith CW-1025mA Optical output powerat threshold currentPth CW, If=Ith--150µW Operating current Iop CW, Pf=10mW-5095mA Operating voltage Vop CW, Pf=10mW- 1.3 1.8V Input impedance Zin Pf=10mW-25-ΩLight-emission centralwavelengthλc(Note 1)(Note 2)nmCentral wavelength drift withcase temp.∆λc/∆Tc Tc=-20~70°C-1-0pm/°C Laser operating temperature Tset-20-35°C Spectral width∆λ(Note 1), -20dB-0.20.4nm Side mode suppression ratio Sr(Note 1)3340-dB Dispersion penalty Pp(Note 1), at 10-10 BER,+1800ps/nm--2dBCutoff frequency(-1.5dB optical)fc Pf=10mW 3.5--GHzRise and fall time(10~90%)tr, tf(Note 1)--150psecRelative intensity noise Nr CW, Pf=10mW,0.5~3GHz--155-145dB/HzTracking error (Note 3)Er Tc=-20~70°C,APC, ATC--0.5dBDifferential efficiencyηCW, Pf=10mW0.150.250.35mW/mA Linearity∆ηCW, Pf=1~12mW,(Note 4)-20-20% Monitor current Imon CW, Pf=10mW, Vrd=5V0.2-3mATc=25°C35--Optical isolation IsoTc=-20~70°C23--dB Dark current (PD)Id Vrd=5V, Tc=-20~70°C--0.1µA Capacitance (PD)Ct Vrd=5V, f=1MHz--10pF Note 1) 2.48832Gb/s NRZ, 223-1, Pf_ave=5mW, Extinction ratio 10dB, optical return loss of the connectors should be greater than 40dB in order to ensure the specified performance.Note 2) See Table 1.Note 3) Er=max|10×log(Pf / Pf@25°C)|Note 4) Variation of the differential efficiency from the straight line between 1mW and 10mW.1.58 µm (L-Band) DFB-LD MODULE WITH SINGLEMODE FIBER PIGTAIL(WAVELENGTH SELECTED, BIAS CIRCUIT INTEGRATED, DIGITAL APPLICATION) THERMAL CHARACTERISTICS (Tld=Tset, Tc=-20~70°C)Parameter Symbol Test Conditions Limits UnitMin.Typ.Max. Thermistor resistance Rth Tld=25°C9.51010.5kΩB constant of Rth B--3950-K Cooling capacity∆T Pf=10mW, Tc=70°C50--°C-0.61A Cooler current Ipe Pf=10mW, Tc=70°C,Tld=Tset- 1.22V Cooler voltage Vpe Pf=10mW, Tc=70°C,Tld=TsetFIBER PIGTAIL SPECIFICATIONSParameter Limits UnitType SM-Mode field diameter9.5+/-1µmCladding diameter125+/-2µmSecondary coating outer diameter0.9+/-0.1mmConnector FC/PC-Optical return loss of connector40 (min)dBDOCUMENTATION (Tld=Tset)•Fiber output power vs. Laser forward current at Tld=Tset and Tc=-20,25,70°C•BER curves at 2.48832Gb/s modulation•Threshold current (Ith)•Laser forward current (Iop) at Pf=10mW•Laser forward voltage (Vop) at Pf=10mW•Laser operating temperature (Tset) at λc (Note 5)•Monitor current (Imon) at Pf=10mW•Thermistor resistance (Rth)•Cooler current (Ipe) at Pf=10mW and Tc=70°C•Cooler voltage (Vpe) at Pf=10mW and Tc=70°CNote 5) Tset is attached as a reference data. Rth should be used in order to tune the wavelength to the specified value accurately.1.58 µm (L-Band) DFB-LD MODULE WITH SINGLEMODE FIBER PIGTAIL(WAVELENGTH SELECTED, BIAS CIRCUIT INTEGRATED, DIGITAL APPLICATION) Table 1.Type numberλc (nm)Type numberλc (nm)Type numberλc (nm) FU-68SDF-V810M103B1567.13FU-68SDF-V810M139B1582.02FU-68SDF-V810M175B1597.19 FU-68SDF-V810M104B1567.54FU-68SDF-V810M140B1582.44FU-68SDF-V810M176B1597.62 FU-68SDF-V810M105B1567.95FU-68SDF-V810M141B1582.85FU-68SDF-V810M177B1598.04 FU-68SDF-V810M106B1568.36FU-68SDF-V810M142B1583.27FU-68SDF-V810M178B1598.47 FU-68SDF-V810M107B1568.77FU-68SDF-V810M143B1583.69FU-68SDF-V810M179B1598.89 FU-68SDF-V810M108B1569.18FU-68SDF-V810M144B1584.11FU-68SDF-V810M180B1599.32 FU-68SDF-V810M109B1569.59FU-68SDF-V810M145B1584.53FU-68SDF-V810M181B1599.75 FU-68SDF-V810M110B1570.01FU-68SDF-V810M146B1584.95FU-68SDF-V810M182B1600.17 FU-68SDF-V810M111B1570.42FU-68SDF-V810M147B1585.36FU-68SDF-V810M183B1600.60 FU-68SDF-V810M112B1570.83FU-68SDF-V810M148B1585.78FU-68SDF-V810M184B1601.03 FU-68SDF-V810M113B1571.24FU-68SDF-V810M149B1586.20FU-68SDF-V810M185B1601.46 FU-68SDF-V810M114B1571.65FU-68SDF-V810M150B1586.62FU-68SDF-V810M186B1601.88 FU-68SDF-V810M115B1572.06FU-68SDF-V810M151B1587.04FU-68SDF-V810M187B1602.31 FU-68SDF-V810M116B1572.48FU-68SDF-V810M152B1587.46FU-68SDF-V810M188B1602.74 FU-68SDF-V810M117B1572.89FU-68SDF-V810M153B1587.88FU-68SDF-V810M189B1603.17 FU-68SDF-V810M118B1573.30FU-68SDF-V810M154B1588.30FU-68SDF-V810M190B1603.60 FU-68SDF-V810M119B1573.71FU-68SDF-V810M155B1588.73FU-68SDF-V810M191B1604.03 FU-68SDF-V810M120B1574.13FU-68SDF-V810M156B1589.15FU-68SDF-V810M192B1604.46 FU-68SDF-V810M121B1574.54FU-68SDF-V810M157B1589.57FU-68SDF-V810M193B1604.88 FU-68SDF-V810M122B1574.95FU-68SDF-V810M158B1589.99FU-68SDF-V810M194B1605.31 FU-68SDF-V810M123B1575.37FU-68SDF-V810M159B1590.41FU-68SDF-V810M195B1605.74 FU-68SDF-V810M124B1575.78FU-68SDF-V810M160B1590.83FU-68SDF-V810M196B1606.17 FU-68SDF-V810M125B1576.20FU-68SDF-V810M161B1591.26FU-68SDF-V810M197B1606.60 FU-68SDF-V810M126B1576.61FU-68SDF-V810M162B1591.68FU-68SDF-V810M198B1607.04 FU-68SDF-V810M127B1577.03FU-68SDF-V810M163B1592.10FU-68SDF-V810M199B1607.47 FU-68SDF-V810M128B1577.44FU-68SDF-V810M164B1592.52FU-68SDF-V810M200B1607.90 FU-68SDF-V810M129B1577.86FU-68SDF-V810M165B1592.95FU-68SDF-V810M201B1608.33 FU-68SDF-V810M130B1578.27FU-68SDF-V810M166B1593.37FU-68SDF-V810M202B1608.76 FU-68SDF-V810M131B1578.69FU-68SDF-V810M167B1593.79FU-68SDF-V810M203B1609.19 FU-68SDF-V810M132B1579.10FU-68SDF-V810M168B1594.22FU-68SDF-V810M204B1609.62 FU-68SDF-V810M133B1579.52FU-68SDF-V810M169B1594.64FU-68SDF-V810M205B1610.06 FU-68SDF-V810M134B1579.93FU-68SDF-V810M170B1595.06FU-68SDF-V810M206B1610.49 FU-68SDF-V810M135B1580.35FU-68SDF-V810M171B1595.49FU-68SDF-V810M207B1610.92 FU-68SDF-V810M136B1580.77FU-68SDF-V810M172B1595.91FU-68SDF-V810M208B1611.35 FU-68SDF-V810M137B1581.18FU-68SDF-V810M173B1596.34FU-68SDF-V810M209B1611.79 FU-68SDF-V810M138B1581.60FU-68SDF-V810M174B1596.76All wavelengths are referred to vacuum.Tolerance is λc+/-0.05nm.1.58 µm (L-Band) DFB-LD MODULE WITH SINGLEMODE FIBER PIGTAIL(WAVELENGTH SELECTED, BIAS CIRCUIT INTEGRATED, DIGITAL APPLICATION) OUTLINE DIAGRAM(Unit : mm)28.4FU-68SDF-V810MxxxB。
ModelADT681: Regular gaugeADT681IS: ATEX certified intrinsically safe Accuracy681(IS)-02: 0.025% of full scale 681(IS)-05: 0.05% of full scale 681(IS)-10: 0.1% of full scale 681(IS)-20: 0.2% of full scale(For detailed accuracy, please see pressure range table)Gauge TypesGauge pressure Compound pressure Absolute pressure Differential pressureFan-shaped Graph ScaleSimilar to analog dials, including pressure swing, % indication with fan-shaped graph scale for visual reference, low/high alarm.DisplayDescription: 5 full digit FSTN LCDDisplay rate: 3 readings per second (Default setting).Adjustable from 10 readings per second to 1 reading every ten secondsNumeral display height: 16.5mm (0.65")OVERVIEWGauge pressure Differential pressureWith advanced microprocessor technology and state-of-the-art silicon pressure sensors, the 681 series digital pressure gauges provide an accurate, reliable, and economic solution for a wide range of pressure applications. They are loaded with functionality and remarkably easy to use. To reach the best performance, every silicon pressure sensor in our gauges is specially aged, tested and screened before assembly. The 681 series digital pressure gauges are unmatched in performance and reliability. Best of all, they are very affordableFEATURESPressure ranges to 36,000 psi (2500 bar) 0.025% full scale accuracy (681-02) 0.05% full scale accuracy (681-05) 0.1% full scale accuracy (681-10) 0.2% full scale accuracy (681-20)Fully temperature compensated accuracy from 14°F to 122°F (-10°C to 50°C) Up to eleven selectable pressure unitsLarge, easy to read display with 5-digit resolution Backlit display% pressure indication with fan-shaped graph scale for visual referenceDisplay flash warning when pressure over 120% of FSBottom mount or panel mountATEX certified intrinsically safe (Model 681IS) NIST traceable calibration with data(included)9V battery power or AC adapter (optional)SPECIFICATIONSPressure ranges to 36,000 psi (2500 bar)0.025%, 0.05%, 0.1% or 0.2% FS accuracy% pressure indication with fan-shaped graphscale for visual referenceFully temperature compensated accuracy Panel mount gauges are availableDigital Pressure GaugesAdditel 681Pressure RangesNote: [1]. Sealed gauge pressure for above 1000 psi[2]. G=Gas, L=Liquid (please specify media type when place order) [3]. 0.025% FS for gas media onlyPressure UnitsPa, kPa, MPa, psi, bar, mbar, kgf/cm 2, inH 2O@4°C mmH2O@4°C, inHg@0°C, mmHg@0°CEnvironmentalCompensated Temperature: 14°F to 122°F (-10°C to 50°C)Operating Temperature*: 14°F to 122°F(-10°C to 50°C)*0.025%FS accuracy guaranteed only over the ambient temperature range of 68°F to 79°F (20°C to 26°C)Storage Temperature: -4°F to 158°F (-20°C to 70°C)Humidity: <95%SPECIFICATIONS681 with rubber bootSPECIFICATIONSORDERING INFORMATIONPressure Port1/4NPT male, 1/4BSP male, M20×1.5 male (≤15,000 PSI)1/4HP female or 1/4HP male(≥15,000 PSI)*1/4HP female: Autoclave F-250-C, 9/16" - 18 UNF-2B *1/4HP male: Autoclave M-250-C, 9/16" - 18 UNF-2A0.236 inch (Ø6 mm) test hose (for differential pressure)Other connections available per requestPowerBattery: One 9V alkaline battery (included)Battery life: 300 hours (10 readings/s), 600 hours (3 reading/s), or 6000 hours (1 reading/10s)Power auto-off: 60 minutes power auto-off. Auto-off may be disableExternal power: 110/220V external power adapter (optional)*(Do not use the external power adapter in a hazardous atmosphere)Model NumberModel:ADT681ADT681ISAccuracy:02-0.025% of full scale 05-0.05% of full scale 10-0.1% of full scale 20-0.2% of full scaleRange type:PSI-range by psi BAR-range by bar H 2O-range by inH 2OPressure port type:N- 1/4NPT male N2- 1/2NPT male B-1/4BSP male M-M20X1.5 maleAF-Autoclave F-250-C female AM-Autoclave M-250-C malePressure range P/N:See pressure range table PB:Panel mount with back pressure portEnclosureCase material: Aluminum alloy Wetted parts: 316L SS Dimension:Ø110mm X 35mm depth X 176mm height(panel mount gauge: Ø140mm X 86mm depth)Weight: 0.6kgIntrinsic Safety and European Compliance CE markedATEX certified intrinsically safe (ADT681IS)Communication: RS232*(Do not use the RS-232 connector in a hazardous atmosphere)Warranty: 1 yearAccessories includedRubber boot (Except panel mount gauges)9V alkaline battery (1 pc)ManualNIST traceable calibration certificateOptional AccessoriesGP300PSI PB02N 681 Panel mount with back pressure port。

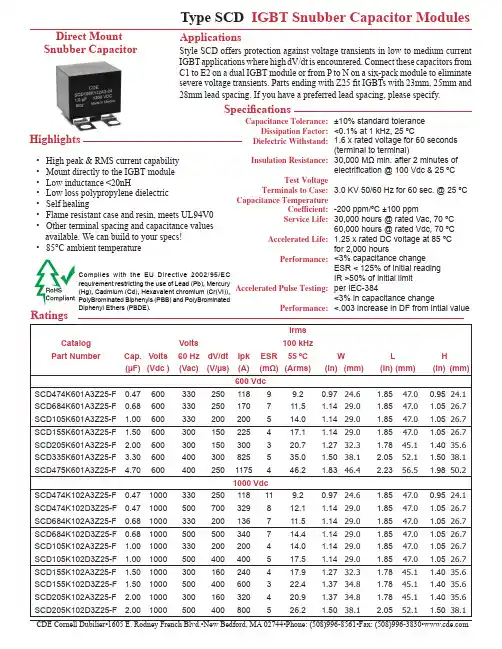

Type SCD IGBT Snubber Capacitor ModulesDirect Mount Snubber CapacitorApplicationsStyle SCD offers protection against voltage transients in low to medium current IGBT applications where high dV/dt is encountered. Connect these capacitors from C1 to E2 on a dual IGBT module or from P to N on a six-pack module to eliminate severe voltage transients. Parts ending with Z25 fit IGBTs with 23mm, 25mm and 28mm lead spacing. If you have a preferred lead spacing, please specify.Highlights High peak & RMS current capabilityMount directly to the IGBT moduleLow inductance <20nHLow loss polypropylene dielectricSelf healingFlame resistant case and resin, meets UL94V0 Other terminal spacing and capacitance values available. We can build to your specs! 85°C ambient temperature ••••••••RatingsIrmsCatalog Volts 100 kHz Part NumberCap.Volts 60 Hz dV/dt Ipk ESR55 ºCW L H (µF)(Vdc )(Vac)(V/µs)(A)(mΩ)(Arms) (in) (mm) (in)(mm)(in) (mm)600 VdcSCD474K601A3Z25-F 0.4760033025011899.20.9724.6 1.8547.00.9524.1 SCD684K601A3Z25-F 0.68600330250170711.5 1.1429.0 1.8547.0 1.0526.7 SCD105K601A3Z25-F 1.00600330200200514.0 1.1429.0 1.8547.0 1.0526.7 SCD155K601A3Z25-F 1.50600300150225417.1 1.1429.0 1.8547.0 1.0526.7 SCD205K601A3Z25-F 2.00600300150300320.7 1.2732.3 1.7845.1 1.4035.6 SCD335K601A3Z25-F 3.30600400300825535.0 1.5038.1 2.0552.1 1.5038.1 SCD475K601A3Z25-F 4.706004002501175446.2 1.8346.4 2.2356.5 1.9850.21000 VdcSCD474K102A3Z25-F 0.471000330250118119.20.9724.6 1.8547.00.9524.1 SCD474K102D3Z25-F 0.471000500700329812.1 1.1429.0 1.8547.0 1.0526.7 SCD684K102A3Z25-F 0.681000330200136711.5 1.1429.0 1.8547.0 1.0526.7 SCD684K102D3Z25-F 0.681000500500340714.4 1.1429.0 1.8547.0 1.0526.7 SCD105K102A3Z25-F 1.001000330200200414.0 1.1429.0 1.8547.0 1.0526.7 SCD105K102D3Z25-F 1.001000500400400517.5 1.1429.0 1.8547.0 1.0526.7 SCD155K102A3Z25-F 1.501000300160240417.9 1.2732.3 1.7845.1 1.4035.6 SCD155K102D3Z25-F 1.501000500400600322.4 1.3734.8 1.7845.1 1.4035.6 SCD205K102A3Z25-F 2.001000300160320420.9 1.3734.8 1.7845.1 1.4035.6 SCD205K102D3Z25-F2.001000500400800526.21.5038.12.0552.11.5038.1Complies with the EU Directive 2002/95/ECrequirement restricting the use of Lead (Pb), Mercury(Hg), Cadmium (Cd), Hexavalent chromium (Cr(VI)), PolyBrominated Biphenyls (PBB) and PolyBrominatedDiphenyl Ethers (PBDE).SpecificationsCapacitance Tolerance:Dissipation Factor:Dielectric Withstand:Insulation Resistance:Test Voltage Terminals to Case:Capacitance TemperatureCoefficient:Service Life:Accelerated Life:Performance:Accelerated Pulse Testing:Performance:±10% standard tolerance<0.1% at 1 kHz, 25 ºC1.6 x rated voltage for 60 seconds(terminal to terminal)30,000 MΩ min. after 2 minutes of electrification @ 100 Vdc & 25 ºC 3.0 KV 50/60 Hz for 60 sec. @ 25 ºC -200 ppm/ºC ±100 ppm30,000 hours @ rated Vac, 70 ºC 60,000 hours @ rated Vdc, 70 ºC 1.25 x rated DC voltage at 85 ºC for 2,000 hours<3% capacitance changeESR < 125% of initial readingIR >50% of initial limitper IEC-384<3% in capacitance change <.003 increase in DF from intial valueType SCDIGBT Snubber Capacitor ModulesNote: Modify Catalog Part Number to specify lead spacing. Example: 44mm spacing would use –44 instead of Z25. Other capacitance values and lead orientations are available. Contact us.Mounting Across the Bus?CDE Will Accommodate Your Bus StructureIrmsCatalog Volts 100 kHz Part NumberCap.Volts 60 Hz dV/dt IpkESR55 ºCWLH (µF)(Vdc )(Vac)(V/µs)(A)(mΩ)(Arms) (in) (mm) (in)(mm)(in) (mm)1200 VdcSCD224K122A3Z25-F 0.221200580650143197.90.9724.6 1.8547.00.9524.1 SCD334K122A3Z25-F 0.3312005806502151310.0 1.1429.0 1.8547.0 1.0526.7 SCD474K122A3Z25-F 0.4712005805002351012.0 1.1429.0 1.8547.0 1.0526.7 SCD684K122A3Z25-F 0.681200580500340715.1 1.2732.3 1.7845.1 1.4035.6 SCD105K122A3Z25-F 1.001200580500500518.5 1.3734.8 1.7845.1 1.4035.6 SCD155K122A3Z25-F 1.501200580400600423.9 1.5038.1 2.0552.1 1.5038.1 SCD205K122A3Z25-F 2.001200580400800430.1 1.8346.4 2.2356.5 1.9850.2 SCD305K122C3Z25-F 3.0012005804001200539.7 3.0076.2 2.4862.9 1.5038.11600 VdcSCD224K162A3Z25-F 0.221600630650143197.90.9724.6 1.8547.00.9524.1 SCD334K162A3Z25-F 0.3316006306502151210.0 1.1429.0 1.8547.0 1.0526.7 SCD474K162A3Z25-F 0.4716006306503061012.6 1.2732.3 1.7845.1 1.4035.6 SCD684K162A3Z25-F 0.681600630650442715.3 1.3734.8 1.7845.1 1.4035.6 SCD105K162A3Z25-F 1.001600630500500619.5 1.5038.1 2.0552.1 1.5038.1 SCD155K162A3Z25-F 1.501600630400600525.6 1.6541.9 2.7068.6 1.5038.1 SCD205K162A3Z25-F 2.001600630400800530.6 1.7544.5 2.6366.7 1.8346.42000 VdcSCD224K202A3Z25-F 0.222000630800176198.20.9724.6 1.8547.00.9524.1 SCD334K202A3Z25-F 0.3320006308002641310.5 1.2732.3 1.7845.1 1.4035.6 SCD474K202A3Z25-F 0.4720006306002821013.0 1.3534.3 2.2055.9 1.2030.5 SCD684K202A3Z25-F 0.682000630600408816.1 1.5038.1 2.0552.1 1.5038.1 SCD105K202A3Z25-F1.002000630600600621.31.8346.42.2356.5 1.9850.2Dual Snubber Assembly OptionOutline Drawings17.27 mm 0.86 in5.0 mm0.20 in 1.0 mm0.04 in 14.0 mm (both leads)0.55 in14.0 mm (both leads)0.55 in7.0 mm 0.28 in25.4 mm 1.00 in6.5 x 8.5 mm 0.26 x 0.33 in both holesPWH。
