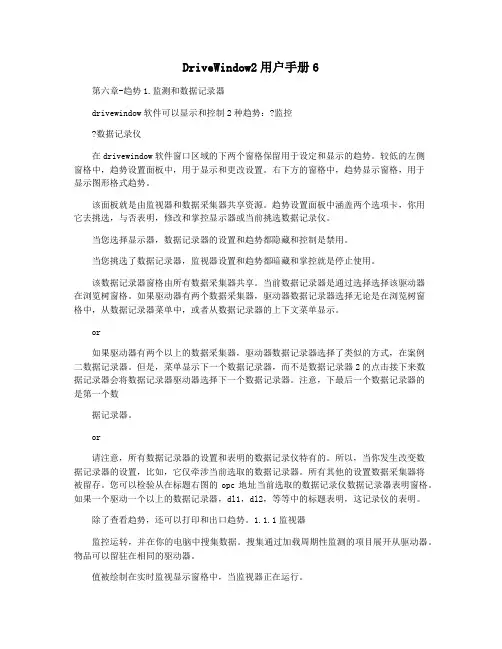

DriveWindow2用户手册6第六章-趋势1.监测和数据记录器drivewindow软件可以显示和控制2种趋势：?监控数据记录仪在drivewindow软件窗口区域的下两个窗格保留用于设定和显示的趋势。
较低的左侧窗格中，趋势设置面板中，用于显示和更改设置。
右下方的窗格中，趋势显示窗格，用于显示图形格式趋势。
该面板就是由监视器和数据采集器共享资源。
趋势设置面板中涵盖两个选项卡，你用它去挑选，与否表明，修改和掌控显示器或当前挑选数据记录仪。
当您选择显示器，数据记录器的设置和趋势都隐藏和控制是禁用。
当您挑选了数据记录器，监视器设置和趋势都暗藏和掌控就是停止使用。
该数据记录器窗格由所有数据采集器共享。
当前数据记录器是通过选择选择该驱动器在浏览树窗格。
如果驱动器有两个数据采集器，驱动器数据记录器选择无论是在浏览树窗格中，从数据记录器菜单中，或者从数据记录器的上下文菜单显示。
or如果驱动器有两个以上的数据采集器，驱动器数据记录器选择了类似的方式，在案例二数据记录器。
但是，菜单显示下一个数据记录器，而不是数据记录器2的点击接下来数据记录器会将数据记录器驱动器选择下一个数据记录器。
注意，下最后一个数据记录器的是第一个数据记录器。
or请注意，所有数据记录器的设置和表明的数据记录仪特有的。
所以，当你发生改变数据记录器的设置，比如，它仅牵涉当前选取的数据记录器。
所有其他的设置数据采集器将被留存。
您可以检验从在标题右图的opc地址当前选取的数据记录仪数据记录器表明窗格。
如果一个驱动一个以上的数据记录器，dl1，dl2，等等中的标题表明，这记录仪的表明。
除了查看趋势，还可以打印和出口趋势。
1.1.1监视器监控运转，并在你的电脑中搜集数据。
搜集通过加载周期性监测的项目展开从驱动器。
物品可以留驻在相同的驱动器。
值被绘制在实时监视显示窗格中，当监视器正在运行。
如果暂停显示器，显示器的表明面板的更新就是暂停，但数值仍在背景搜集。
