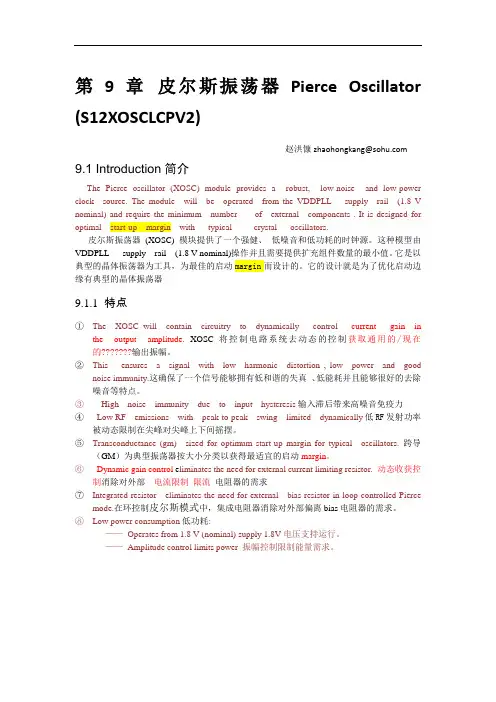

第9章皮尔斯振荡器Pierce Oscillator(S12XOSCLCPV2)赵洪慷zhaohongkang@ 9.1 Introduction简介The Pierce oscillator (XOSC) module provides a robust, low-noise and low-power clock source. The module will be operated from the VDDPLL supply rail (1.8 V nominal) and require the minimum number of external components . It is designed for optimal start-up margin with typical crystal oscillators.皮尔斯振荡器(XOSC) 模块提供了一个强健、低噪音和低功耗的时钟源。
这种模型由VDDPLL supply rail (1.8 V nominal)操作并且需要提供扩充组件数量的最小值。
它是以典型的晶体振荡器为工具，为最佳的启动margin而设计的。
它的设计就是为了优化启动边缘有典型的晶体振荡器9.1.1 特点①The XOSC will contain circuitry to dynamically control current gain inthe output amplitude.XOSC将控制电路系统去动态的控制获取通用的/现在的???????输出振幅。
②This ensures a signal with low harmonic distortion , low power and goodnoise immunity.这确保了一个信号能够拥有低和谐的失真、低能耗并且能够很好的去除噪音等特点。
③High noise immunity due to input hysteresis输入滞后带来高噪音免疫力④Low RF emissions with peak-to-peak swing limited dynamically低RF发射功率被动态限制在尖峰对尖峰上下间摇摆。
