图纸中的一些实用翻译

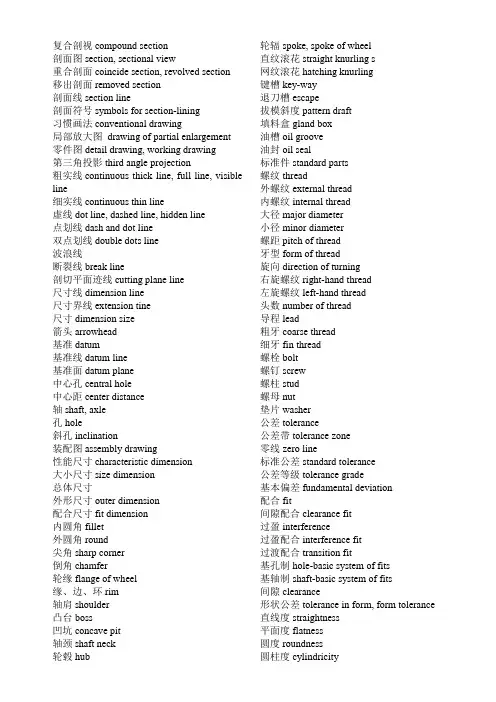

复合剖视compound section剖面图section, sectional view重合剖面coincide section, revolved section移出剖面removed section剖面线section line剖面符号symbols for section-lining习惯画法conventional drawing局部放大图drawing of partial enlargement零件图detail drawing, working drawing第三角投影third angle projection粗实线continuous thick line, full line, visible line细实线continuous thin line虚线dot line, dashed line, hidden line点划线dash and dot line双点划线double dots line波浪线断裂线break line剖切平面迹线cutting plane line尺寸线dimension line尺寸界线extension tine尺寸dimension size箭头arrowhead基准datum基准线datum line基准面datum plane中心孔central hole中心距center distance轴shaft, axle孔hole斜孔inclination装配图assembly drawing性能尺寸characteristic dimension大小尺寸size dimension总体尺寸外形尺寸outer dimension配合尺寸fit dimension内圆角fillet外圆角round尖角sharp corner倒角chamfer轮缘flange of wheel缘、边、环rim轴肩shoulder凸台boss凹坑concave pit轴颈shaft neck轮毂hub 轮辐spoke, spoke of wheel直纹滚花straight knurling s网纹滚花hatching knurling键槽key-way退刀槽escape拔模斜度pattern draft填料盒gland box油槽oil groove油封oil seal标准件standard parts螺纹thread外螺纹external thread内螺纹internal thread大径major diameter小径minor diameter螺距pitch of thread牙型form of thread旋向direction of turning右旋螺纹right-hand thread左旋螺纹left-hand thread头数number of thread导程lead粗牙coarse thread细牙fin thread螺栓bolt螺钉screw螺柱stud螺母nut垫片washer公差tolerance公差带tolerance zone零线zero line标准公差standard tolerance公差等级tolerance grade基本偏差fundamental deviation配合fit间隙配合clearance fit过盈interference过盈配合interference fit过渡配合transition fit基孔制hole-basic system of fits基轴制shaft-basic system of fits间隙clearance形状公差tolerance in form, form tolerance 直线度straightness平面度flatness圆度roundness圆柱度cylindricity线轮廓度profile of any line面轮廓度profile of any plane位置公差tolerance in position, position tolerances平行度parallelism齿轮gear圆柱齿轮cylindrical gear正齿轮spur gear斜齿轮spiral gear轮齿gear tooth节圆pitch circle齿顶圆addendum circle, outside circle齿根圆root circle, addendum circle模数modulus齿数number of teeth齿高tooth height齿顶高height of addendum齿根高height of addendum齿厚circular thickness齿间tooth space齿宽tooth width压力角angle of pressure弹簧spring销pin圆柱销round pin圆锥销taper pin开口销cotter pin, split键key平键flat key半圆键half round key, woodruff key轴承bearing滚动轴承rolling bearing向心铀承radial bearing密封装置sealing equipment锁紧装置locking equipment粗糙度roughness基本尺寸basic size实际尺寸actual size极限尺寸limits size最大极限尺寸maximum limit of size最小极限尺寸minimum limit of size偏差deviation上偏差upper deviation下偏差lower deviation垂直度perpendicularity倾斜度angularity同轴度concentricity对称度symmetry 位置度true position跳动run-out圆跳动cycle run-out全跳动total run-out轴测投影axonometric projection轴测投影面plane of axonometric projection 轴测图axonometric drawing正等轴测投影isometric projection正二测bimetric projection斜二测oblique bimetric projection轴测轴axonometric axis轴间角axis angle, angle between ales缩短foreshortened轴向缩短率coefficient of axial deformation ratio offore shortening for any axis切割法cutting method, by cutting方箱法boxing method坐标法coordinate method方框法enclosing-square method四心近似法four-center approximate method机械工程图中常用的英语词汇Abbreviation 缩写Accuracy 精度、准确性Acme thread 梯形螺纹(29°)Addendum 齿顶高Addendum angle 齿顶角Addendum circle 齿顶圆Addendum of mating gear 啮合齿轮的齿顶高Adjacent-part lines 相邻零件线Aligned sections 旋转剖视Aligned view旋转视图Allowance 容差、加工余量Alloy 合金Alloy steel 合金钢Alphabet 字母Alteration 变更、更改Alternate-position views 位置改变的视图Alternator 交流发电机Induction alternator 感应(交流)发电机Motor alternator 电动(交流)发电机Single-phase alternator 单向(交流)发电机Synchronous alternator 同步(交流)发电机Three-phase alternator 三相(交流)发电机Amount 总量、总计Analyzable assembly 分析装配图Anchor bolt 地脚螺栓Angles 角Acute angle 锐角Blunt angle 钝角Right angle 直角Sliding angle 摩擦角Spiral angle 螺旋角Taper angle 锥角Angular 有角的Angular bearing 径向止推轴承Angular bevel gears 斜交伞齿轮Angular gear人字齿轮Angular section斜剖面Anneal 退火Approval 批准、许可Arc 弧、圆弧Arc thickness 弧长厚度(齿厚)Arc welding 弧焊Arrangement 布置、装置Arrangement of views 视图的布置Clamping arrangement 夹紧装置Cramping arrangement 紧固装置General arrangement 总体布置Arrow 箭头Arrowheads 箭头Assembly 装配图、组装图Assembly drawing 装配图Assembly drawing number 装配图图号Assembly for installation 安装图Assembly parts 组装配合零件Assembly sections 装配图剖视Assembly sketches 装配草图Auxiliary elevation 辅助立面图Auxiliary line辅助线Auxiliary section 辅助剖视Auxiliary surface 辅助面Auxiliary view 辅助视图Average 平均数Axial 轴的、轴向的Axial pitch 轴向节距Axial plane 轴向平面Axial thickness 轴向厚度Axis 轴线、中心线Axis of revolution 回转轴线Axis of rotation 旋转轴线Axis of symmetry 对称轴线Horizontal axis 水平轴Major axis 长轴Minor axis 短轴Vertical axis 垂直轴X axis X轴Y axis Y轴Axle 轴Axle bearing 轴向(止推)轴承Axle sleeve 轴向(止推)套筒Axonometric drawing 轴测图Babbitt 巴氏合金Back cone 背锥Back cone radius 背锥半径Back elevation 后视图Backstop 托架、棘爪Ball bearing 球轴承Bar 杆Angle bar 角钢Channel bar 槽钢Flat bar 扁钢Round bar 圆棒、圆钢Base 基础、底座、基线、基面、基准Base circle 基圆Base circular thickness 基圆弧线齿厚Base cylinder 基圆柱Base helix angle 基圆上的螺旋角Base plane 基平面Base point 基点Key base 键座Basic circle 基准圆Basic hole system 基孔制Base shaft system 基轴制Basic size 基本尺寸、公称尺寸、标称直径Basis 基础、基准、基线Battery 电池、蓄电池Bearing 轴承、支撑、方位Bearing accuracy 定位精度Bearing box 轴承箱Bearing brass 铜轴衬Bearing bridge 轴承支架Bearing oil seal 轴承油封圈Bearing support 轴承架Bearing unit 轴承组合件Anti-friction bearing 减摩轴承Ball and socket bearing 球窝轴承Conical bearing 锥形轴承Journal bearing 径向轴承Needle bearing 滚针轴承Plain bearing 滑动轴承Roller bearing 滚柱轴承Self-aligning bearing 自位轴承Thrust bearing 止推轴承Belt 带、皮带Bench 工作台Work bench 工作台Bend 弯头、接头Elbow bend 肘形弯管Normal bend 正弯管(90°)Bender 弯曲机Bending 挠曲Bending strength 抗弯强度Bent axle 曲轴Bevel 倾斜的、斜角的、斜面Bevel gear 圆锥齿轮、伞齿轮Bevel pinion 小圆锥齿轮Bevel washer 斜垫圈Bevel wheel 伞齿轮、斜摩擦齿轮Bilateral tolerance 双向公差Bill of materials 送料单Block in、block out 画草图Blue paper 蓝晒纸Blueprint 蓝图、设计图Board 板、(管理)局、厅Bottom board 底板Moulding board 模板Body 机体、机身Boiler 锅炉Bolt 螺栓、插销Adjusting bolt 调整螺栓Assembling bolt 装配螺栓Binding bolt 连接螺栓Bright blot 光制螺栓Captive bolt 固定螺栓Double-screw bolt 双头螺栓Fitter bolt 装配螺栓Foundation bolt 地脚螺栓Hexagonal head bolt 六角头螺栓Hook bolt 钩形螺栓Screw bolt 全螺纹螺栓Snap bolt 圆头螺栓Tension bolt 拉紧螺栓Bolted joints 螺栓连接Book 书、册Hand book 手册Instruction book 说明书Bore face machine 镗孔端面加工机床Borer 镗床Jig borer 坐标镗床Table borer 台式镗床Boring 镗孔Boring machine 镗床Boring mill 镗床Bottom case 底座Bottom clearance 径向间隙Bottom view 底视图Bracket 托架、支柱Brake 制动器、闸Brass 黄铜、铜轴衬Braze 铜焊Brazing 铜焊Breadth 宽度、厚度Break line 断裂线Brinell figure (number) 布氏硬度Brinell hardness 布氏硬度Broacher 拉床、绞孔机Broaching 扩孔机、拉床、拉削Broken circle 虚线圆Broken out section 断裂剖面Broken view 局部视图Bronze 青铜Burnishing 抛光、磨光Burr 三角矬、毛刺、去毛刺Bush 衬套、轴瓦Bushing 轴衬、衬套、套管Butt joint 对接焊Butterfly nut 蝶形螺母Butterfly valve 蝶形阀Button 按钮Push button 控制按钮Cable 电缆Cage 盒、罩、箱Caliper 卡尺、卡钳Gauge caliper 卡规、量规Internal caliper 内卡钳Sliding (vernier) caliper 游标卡尺Cam 凸轮Cam design 凸轮设计Cam shaft 凸轮轴Actuating cam 主动凸轮Adjustable cam 可调凸轮Control cam 控制凸轮Cap 盖、帽、罩Cap screw 带帽螺钉Capital 大写字母Carburizing 渗碳Card 卡片Cartographer 制图员Cartography 制图学、制图法Case 箱、盒、容器、表面Case hardened 表面淬火、硬化Nitrogen case hardening 渗氮硬化Casing箱、盒、壳Oil pump casing 油泵(壳) Casting 铸造、铸件Defect casting 铸件缺陷Die casting 压铸Sand casting 砂型铸造Spun casting 离心铸造Steel casting 铸钢Cast-iron 铸铁Castle circular nut 六角圆螺母Castle nut 蝶形螺母Catalogue data 表列数据Cave 凹槽、内腔Centre 中心、圆心Centre distance 中心距Centre hole 中心孔Centre line 中心线Centre-section 中心剖面Centre to centre 中心距Centesimal 百分的、百分之一的Centimeter 厘米、公分Central hole 中心孔Central plane 中心平面Central projection 中心投影Chafe 摩擦、磨损Chain 链Drive chain 主动链Transmission chain 传动链Chamfer 倒角、倒棱、斜面Dimensioning of chamfer 倒角的尺寸注法Changes on drawing 图的更改Channel 沟槽Chapter 章Chart 图表、计算图Chart of symbols 符号图表Auxiliary chart 辅助图Dimensions chart 外廓尺寸图Graphical chart 图表Process chart 工艺程序图Progress chart 工艺程序表、工作进度表Charting 制图(表)、填图Check 校验、校核、制动装置Check drawings 校图Check nut 防松螺母Check ring 挡圈Check test校核试验Chief draftsman 主任制图员Chromium 铬Chromizing 镀铬处理Circle 圆、圆周Circle of reference 参考圆Addendum circle 齿顶圆Base circle 基圆Graduated circle 分度圆Imaginary circle 虚圆Outside circle 齿顶圆、外圆Pitch circle 节圆Rack circle 平面齿轮、扇形齿轮Root circle 根圆Top circle齿顶圆Circular cylinder 圆柱Circular pitch 弧线节距Circular thickness 弧线(齿)厚度Circumference 圆周长Clamp 夹紧、夹板Class 种类Class of fit 配合级别Classification 分类Claw 爪、钩、卡爪Clearance fit 间隙配合Clevice /clevis U形钩、U形夹Clevis bolt 套环(插销)螺栓Clevis pin U形夹销Clockwise 顺时针方向Clutch 离合器、联轴器Coat 外层、涂镀层Coat of metal 金属镀层First coat 底漆Coating 镀、覆盖Electrodeposited coating 电镀层Coaxial circle 共轴圆Cock 旋塞Coil 蛇形管、螺管、线圈Coil spring 盘簧Coincident line 重叠线Cold-rolled steel 冷轧钢Collet 夹头Collet chuck 弹簧夹头Color-harden 着色硬化、发蓝、煮黑Common difference 公差Company 公司Joint company 股份公司Limited company 有限公司Compass 圆规Compass of proportion 比例规Component 零件、构件Compression spring 压力弹簧Compressor 压缩机Computer 计算机Concave face 凹面Concentricity 同心度Cone 圆锥Cones development 锥面展开Cone pulley 锥形轮、塔轮Conical spring 锥形弹簧Connection 联接Bolt-on connection 螺栓联接Flange connection 法兰联接Rivet connection 铆钉联接Screw connection 螺钉联接Contact 接触、接合、啮合Contact angle 啮合角Angular contact ball bearing 向心止推球轴承Contour 外形、轮廓线Contracted drawing 缩图Contrast 对比、对照、比较Convention 惯例、常规、习惯Convention for materials 材料的习惯表示法Conventional break 习惯断裂画法Conventional diagram 习惯画法Conventional intersection 习惯交线(画法) Conventional practice 习惯画法Conventional sign 图例、习惯符号|Convex 凸面Conveyer 输送机、传送机Cooler 冷冻机Coordinate axis 坐标轴Coordinate paper 方格纸、坐标纸Copper 铜Copy 抄本、样板Correction 校正、修正Cotter pin 开口销Split cotter 开口销Counterbore 埋头孔、锥口孔Counterclockwise 逆时针方向Countersink 埋头孔、沉孔Countersink drill 中心钻、钻Countersunk 钻埋头孔、钻锥口孔Countersunk bolt 埋头螺钉Countersunk head 埋头Countersunk hole 锥坑Coupling 联轴节Cover 盖、罩Cylinder cover 汽缸盖Dust cover 防尘罩Cowl 壳、套、盖Crane 起重机Crank 曲柄、曲轴Crankshaft 曲轴Crest 峰、尖、牙尖Cross head 十字头Cross section 横剖面、横断面Crown gear 冕状齿轮Cube 立方形体、正六面体Current 电流Curvature 曲率Curvature radius 曲率半径Curve 弯曲、曲线、曲线板Curve plotter 绘图仪Curve ruler 曲线板French curve 曲线板Moment curve 力矩曲线、力矩图Cutter 刀、刀具Cutting plane 截平面Cutting plane symbols 剖切(迹线)平面符号Cycloid 摆线Cycloidal gear 摆线齿轮Cylinder 圆柱体Cylinder base 汽缸座Pump cylinder 泵缸Cylindrical cam 圆柱凸轮Cylindrical fit 圆柱配合Cylindrical roller bearing 圆柱滚子轴承Dash 短划线、虚线、破折号Dash and dot line 点划线Broken dash 断裂线Data 数据、资料Engineering data工程数据Master data 主要数据Date 日期、年代Datum 基准(点、线、面)、资料Datum line 基准线Datum point 基准点Datum plane 基准面Decade 十进制、十进位Decelerator 减速器、制动器、缓动装置Decimal 小数的、十进位小数的Decimal fraction 十进制分数Decimal fraction system 十进小数制Decimal scale 十进位比例尺Decimeter 分米、公分Dedendum angle 齿根角Dedendum circle 齿根圆Definition 定义Deformation 变形、扭曲Degree 度、程度Degree of accuracy 精度Degree of freedom 自由度Degree of hardness 硬度Degree scale 刻度Circular degree 圆度Delineation 轮廓、草图Delineator 制图者Department 科、处、系、车间Draft department 设计科Engineering department 技术科Fitting department 装配车间Heat treatment department 热处理车间Mechanical department 机加工车间Processing department 工艺科Depth 深度、高度Depth dial gauge 深度千分表Depth of engagement 啮合深度Depth of thread 螺纹深度Depth of tooth 齿高Contact depth of tooth 啮合高度Working depth of tooth 齿工作高度Derivation 偏差Standard derivation 标准偏差Description 描述、作图、绘制Design 设计、计划Design activity 设计机关(组织) Design assembly 设计装配图Design drawing 设计图Design layout 设计草图、初步设计图Preliminary design 初步设计Standard design 标准设计Technical design 技术设计Designation 符号、标志Designation strip 铭牌Designer 设计员、制图者、设计师Desk 桌、控制台Drawing desk 绘图桌Detail 细目、细节、详图、零件Detail drawing 详图、零件工作图Detail paper底图纸、描图纸Detail specification 详细规格Detent 棘爪、扳手、制动器Developable surface 可展曲面Developed view 展开图Development inner port 内表面展开图Development of surface 表面展开图Deviation 偏差、偏移Angular deviation 角偏差Average deviation 平均偏差Standard deviation 标准偏差Tolerance deviation 允许偏差Device 装置、设备Diagram 示意图、图解Diagram drawing 图解图、结构图Arrangement diagram 布置图Assembly diagram 装配示意图Block diagram 方框图Schematic diagram 原理图、简图Diagrammatic drawing 草图、示意图Dial gauge 千分表Dial inside micrometer 内径千分表Diameter 直径Diameter of aperture 孔径Diameter of pitch circle 节圆直径Diameter pitch (齿轮)径节Diameter run-out径向跳动Major diameter 大直径、螺纹外径Minor diameter 小直径、螺纹内径Nominal diameter 公称直径Pitch diameter of screw thread 螺纹中径Thread diameter 螺纹外径(直径) Diametral pitch 齿轮径节Die 模具、扳牙Diesel 柴油机、内燃机Dimension 尺寸Dimension line 尺寸线Limiting dimension 极限尺寸Nominal dimension 公称尺寸Outer dimension 外形尺寸、轮廓尺寸Direction 方位、方向Clockwise direction 顺时针方向Disc = disk 圆盘、原板Disk cam 圆盘凸轮Dismount 拆卸Dismountable 可拆卸的Displacement 移位、变位Distance 距离、路程Distortion 变形、歪扭Distribution 分配、分布、配置Ditto machine 复印机Diversion 变更、转换Dividing head 分规Dot line 虚线Dotted line 虚线Double dots line 双点划线Double helical pinion 人字小齿轮Double helical spur gear 人字齿轮Double thread 双头螺柱Dowel thread 定位销、圆柱销Dozer 推土机Draft = draught (拔模)斜度、草图、制图Drafting 制图Drafting board 制图板Drafting machine 制图机Drafting tape 制图带、胶带Draftsman 绘图员Drawer 制图员Drawing 绘图、图样Drawing board 绘图纸Drawing control 图样管理Drawing free-head 草图Drawing instrument 绘图仪器Drawing number 图号Drawing pencil 绘图铅笔Drawing pin 图钉Drawing size 图纸尺寸Drawing table 制图桌Drawing with compass 用圆规画图Blue print drawing 蓝图Free hand drawing 徒手图Full size drawing 原大图Skeleton drawing 草图、结构图Working drawing 施工图、制造图、工作图Drill 钻孔、穿孔、穿孔器Drive 传动、驱动Drive fit 打入配合Air drive 气动Belt drive 带传动Chain drive 链传动Friction drive 摩擦传动Gear drive 齿轮传动Hydromatic drive 液压传动Speed-reducer drive 减速器传动Variable-speed drive 变速传动Worm-wheel drive 蜗轮传动Driven gear 从动齿轮Driven shaft 从动轴Driving gear 主动齿轮Driving shaft 主动轴Drum cam 凸轮轴Ductile iron 球墨铸铁Duplicating tracing 复制描图Durometer (钢轨)硬度计Dusting cloth 抹灰布、撒粉布Eccentricity 偏心距Edge iron 角铁Edge round 外圆角Edge view 边视图Effective diameter 有效直径Effective face width 有效齿宽Efficiency 效率、性能Mechanical efficiency 机械效率Elastic deformation 弹性变形Elasticity 弹性Elbow 肘形弯管、弯头Electric current 电流Electric element 电池Elephant 绘图纸(28X23英寸) Elevation 正面图、立视图End 末端、头Ball end 秋端Butt end 平端、端面Tail end 尾端Top end 顶端Engagement 啮合Engineer 工程技术人员、工程师Engineer-in-chief 总工程师Equipment 设备Eraser 橡皮Erasing shield 擦图片Erection diagram 安装图、装配图Error 误差Accumulated error 累积误差Allowance error 容许误差Average error 平均误差Permissible error 容许误差Relative error 相对误差Exterior 外表面External 外部External diameter 外径External dimension 外形尺寸External fillet 外圆角External thread 外螺纹Extra fine(screw)特细牙螺纹Eyelet = eyelet-hole 小孔Fabrication 建造、制造Face 面、正面、表面、端面Face cam 平面凸轮Face gear 平面齿轮Face hardening 表面硬化Inner face 里面Outer face 外面Face off 倒角Factor of safety 安全系数Factory 工厂、制造厂Factory made 工厂制造的Fastener 接合件、紧固件Fastening 连接件、紧固件Fatigue 疲劳Faucet 旋塞、龙头、开关Feather 滑键、冒口Feather key 滑键Feature 特征、特性、性能Basic mechanical design feature 主要机械设计性能Mechanical feature 机械性能(特性)Feed-pump 供油泵、供水泵Feet 英尺Ferrous metal 黑色金属Field 工场、现场Figure 形状、图样、插图、数字File 锉刀、锉平Filler 填料、垫片Fillet (内)圆角、填角、嵌条Fillet radius 内圆角半径Filter 过滤器Fine thread series 细螺纹级(系列)Finish 完工、加工、磨光Finish all over 全部加工Finish marks 加工符号Machine finish 机器光制Fit 配合Clearance fit 间隙配合Free fit 自由配合Interference fit 静配合Light press fit 轻压配合Light running fit 轻传动配合Loose fit 松配合Normal-running fit 传动配合Running fit 动配合Shrink fit 冷缩配合Slide fit 滑动配合Transition fit 过渡配合Fix 安装、装配、调整、修理、固定Flange 法兰盘、凸缘Flank 边、侧面、齿侧、后面Flat 扁头、平面Flat key 平键Flat spring 板弹簧Flat surface 平面Flexible disk coupling 挠性盘形联轴节Flexible gear-type coupling 挠性齿轮联轴节Flywheel 飞轮Foot 英尺Foot screw 地脚螺钉Force 力Fore word 序、前言Forge 锻Forge steel 锻钢Former 样板、模型、量规Wooden former 木模Formula 公式Foundation 基础、基座Foundation bolt 地脚螺栓Foundry 铸件、铸工车间Fraction 分数、小数Front view 前视图、主视图Full diameter 大直径、主直径Full line 实线Full size 原大Full scale 原大Full section 全剖视Full section view 全剖视图Furbish 研磨、擦光Fuse 保险丝、熔断器Gage = gauge 量规Gallon 加仑Galvanize 镀锌、电镀Gasket 垫圈、密封垫Gasket material 填料Gasoline engine 汽油(内燃)机Gate 门、阀门Gear 齿轮Gear addendum angle 齿顶角Gear box(case) 齿轮箱Gear centre 齿轮中心Gear dedendum angle 齿根角(圆锥齿轮) Epicyclic gear 行星齿轮Herringbone gear 人字齿轮Ratchet gear 棘轮General drawing 总图Geometry 几何学Gland 压盖、填料盖、密封装置Glass 玻璃Glasscloth 砂布、玻璃布Glossary 词汇(表)Grade 等级、斜度Steel grade 钢号Graduated hardening 分级淬火Graduated scale 比例尺、分度尺Gram 克Graph 图(表、解、形)、曲线图Graph paper 方格纸Graphic图示、制图学Grease 滑脂Grind 磨削、抛光Grinding machine 磨床Grinding wheel 砂轮Groove cam 槽凸轮Groove pulley 槽轮、三角带轮Guide 手册、指南Guide bar 导杆Guide pin 定位销、导向销Guide screw 丝杠Guidebook 参考手册、指南、入门Half 二分之一、一部分Half bearing 轴瓦Half section 半剖视Half section view 半剖视图Hammer 锤子Handbook 手册、指南Hand-made 手工制造的Hand-operated 手控的Handle 手柄Hand wheel 手轮Hard casting 白口铁Hard drawn 冷拔Hard rolled 冷轧的Hard surfacing 表面硬化Harden 淬火、硬化Hardened and tempered 调质的Hardened-steel 淬火钢Hardening 硬化Hardness 硬度Hardometer 硬度计Hatch 剖面线H-beam 工字梁、H形梁Heat–treatment 热处理Heavy force fit 重压配合Height 高度Helical bevel gear 螺旋伞齿轮Helical gear 螺旋齿轮、圆柱斜齿轮Helical rack 斜齿齿条Helical spring 螺旋弹簧Hex nut 六角螺母Hexagon jam nut 六角锁紧螺母Hexagon socket head 内六角头Hidden line 虚线Hidden outline 看不见的轮廓线High-carbon steel 高碳钢High-duty 重型的、大型的、优产的High-speed steel 高速钢Hosting jack 千斤顶Hole 孔Horizontal datum plane 水平基准面Horizontal line 水平线Horizontal projection 水平投影Horizontal projection plane 水平投影面Horse-power 马力、功率Hose 软管Hose coupling 软管接头Hot-rolled steel 热轧钢Hot-work 热加工Hour 小时Housing 机座Housing of pump 泵体Bearing housing 轴承箱Gear housing 齿轮箱Hub 轮、中心、衬套I-beam 工字钢Illustration 插图、实例Inaccuracy 不精确、不准确Incenter 内(切圆)心Inch 英寸Incline 斜度、斜面Index plate 分度盘Indicator 指示计、百分表Industrial 工业公司Industrial drawing 工业制图Industry 工业Inertia 惯性Ink 墨水、油墨Ink holder 钢笔杆China ink 墨汁Inscription 标题Inside diameter 内径Inspection 检修、检查Inspection machine 检修机器Inspector 检查员Installation 装置、设备、安装Installation diagram 安装图Institute 研究所、协会、学院、学会Instruction 说明、指示Instrument 仪器、仪表、工具Instrument drawing 仪器图Intensity 强度Interchangeability 互换性1 Interconnection 互相连接Interference fit 静配合Interior view 内部(的)视图Internal combustion engine 内燃机Internal fillet 内圆角Internal gear 内齿轮Introduction 引言、介绍、序言Invisible line 虚线Involute 渐(伸)开线Involute gear 渐开线齿轮Involute rack 渐开线齿条Involute spline 渐开线花键Involute teeth 渐开线齿形Iron 铁Ingot iron 低碳铁、工业纯铁Knobbled iron 熟铁Magnetic iron 磁铁Malleable iron 可锻铁、韧性铁Plate iron 铁板、钢板Quadrant iron 方钢Rod iron 圆铁、棒钢Round iron 圆铁、圆钢Rustless iron 不锈铁Section iron 型钢Structural iron 结构钢White iron 白口铁Wrought iron 熟铁、锻铁Isometric diagram 等轴测图Isometric drawing 等轴测图Jack-screw 螺旋千斤顶Job sheet 零件图纸Joint 结合、连接、焊接Bolt joint 螺栓连接Riveted joint 铆钉连接Welded joint 焊接Journal 轴径Journal bearing 径向轴承Keeper 保持器(片)、架、定位件卡箍Keep-ring 保持环Key diagram 键、按钮Key way(seat、seating、slot)键槽Key wrench 套筒扳手Gib-head taper key 钩头斜键Square key 方形键Tightening key 斜扁键Woodruff key 半圆键Key-bolt 键螺栓Kilogram(me)公斤、千克Kilogram-meter 公斤米、千克米Kilometer 公里、千米Kilovolt 千瓦Kilowatt 千伏Kit 一套工具Knee 弯头、升降台Knee bend 弯管Knob 捏手、按钮Knuckle thread 圆形螺纹Knurl 滚花、压花Knurled nut滚花螺母L-bar = L-beam 角钢Laboratory 实验室、研究室Lamp 灯Alarm lamp 信号灯Daylight lamp 日光灯Incandescent lamp 白炽灯Indicating lamp 信号灯、指示灯Lantern 游环、套环Large compasses 大圆规Lathe 车床Lathe-hand 车工Lattin = Latten 金属薄板、黄铜片Law 规律、定律Lay 布置、安排、放置Layer 层Carburized layer 渗碳层Layout 计划、方案、草图Layout design 草图设计、方案设计Layout drawing 方案草图Lead angle 螺旋升角Lead line 指引线Leaf spring 板弹簧Left hand 左方向Left hand thread 左旋螺纹Legend 图例、图表符号、代号、说明书Length 长度、距离Length gauge 长度规Length of normal 法线长Length of side 边长Effective length 有效长度Lens 透镜、镜片Letter 字、字母Capital letter 大写字母Level surface 水平面Lift 升降机、电梯Light alloy 轻合金Light beam 光束Light series 轻系列Light-duty 轻型Lighting installation 照明装置Lightning switch 照明开关Liquid 液体Limit 极限尺寸Limit switch 限位开关Line 线Line of action (齿轮)压力线Line of contact (齿轮)接触线Line of shaft轴线Line of thickness 线型的粗度Line weight线的粗细程度Actual line实线Addendum line齿顶线Broken line断裂线Center line = central line中心线Continuous line实线Dash(ed) line虚线Diagonal line 对角线Imaginary line 假想线Generation line 母线Pitch line 节线Real line 实线Reference line 基准线、参考线Right line 直线Skeleton line 轮廓线Solid line 实线Straight line 直线Vertical line 垂直线Liner 衬套Bearing line 轴瓦Link 连接环、链节Line assembly 连杆装配图Chain link 链节L-iron 角铁List 注册、记录、名册、目录Load 符合Actual load 有效载荷、实际载荷Allowable load 容许载荷Full load 满载(荷)、全负载(荷) Local view 局部视图Localization 定位\固定Locating pin 定位销Location by angle 角度定位Location by dimension 定位尺寸Location pin 定位销Location tolerance 定位公差Lock 锁\阀Lock nut 防松螺母Lock screw 锁紧螺钉Lock washer 弹簧垫圈Valve lock 阀簧抵座销、气门制销Loco 机车、火车头Logarithm 对数Long break 长断裂线Long radius 长半径Longitudinal key 长方键Lower limit 下限Lubricant pump 润滑油泵Lubricating ring 润滑油环Lubrication 润滑Bath lubrication 油浴润滑Bearing lubrication 轴承润滑Ring lubrication 油环润滑Shot lubrication 油枪润滑Splash lubrication 飞溅润滑Lubricator 润滑器Lubro-pump 油泵Luminaire 光源Machine 机器、切割Machine building (manufacturing) 机械制造Machine drawing 机械制图Machine finish 机械加工Machine maker 机械工厂(制造者) Machine part 机械零件Machine shop 机工车间Drawing machine 绘图机Tracing machine 描图机Machining allowance 加工余量Machinist 机械工人\机械师Magazine 杂志Magnetic-particle clutch 电磁离合器Magnitude 数量、长度、大小Major type of slotted nut 大型锁母Make 制造、构造Malleable cast iron 可锻铸铁Malleable casting 韧铸件Malleable steel 软钢、展性钢Manual 手册、说明书Manual control 手控Manufacture 加工、制造业Manucturing engineering 制造工艺(技术) Manucturing machine 生产机械Manucturing tolerance 制造公差Master check 校正、校对Master drawing 样图Master gauge 标准规、校准规Master gear 主齿轮、标准齿轮Master making 手工Master screw 标准螺纹Match 匹配、配合Mate 啮合部分Material 物质、材料Fibre material 纤维材料Insulating material 绝缘材料Plastic material 塑料Maximal valve 极大值Maximum 极点、极限、最大量Maximum admitted diameter of work 工件最大许可直径Mean axis 中间轴Measure 量度、大小、尺寸Measure of precision 精确度Measurement 测定、尺寸、大小Measuring device 量具Measuring tools 量具Mechanical bolt 螺钉Mechanical drawing 机械制图Mechanical engineering’s scale 机械工程比例尺Mechanical properties 机械性能Mechanical reduction gear 齿轮减速装置Mechanism 机械结构、机械装置Medium series 中系列Mating member 配合件Meshing gear 啮合齿轮Metal 金属Admiralty metal 含锡黄铜Bell metal 青铜合金、种铜、铜锡合金Brazing metal 铜锌合金Hard metal 硬质合金Heavy metal 重金属Light metal 轻金属Monel metal 铜镍合金Power(ed) metal 粉末合金Wear-resistant metal 耐磨金属White metal 白合金(铅锑锡合金)Yellow metal 黄金、黄色金属Metallized 镀金属的、喷涂金属的Meter 米、公尺。

投影projection投影中心center of projection投影面projecting plane 投影线projecting line中心投影法perspective projection平行投影法parallel projection斜投影oblique projection正投影orthographic projection正投影面frontal plane of projection侧面投影面profile plane of projection投影图projection drawing三面投影图three-plane projection drawing投影轴axis of projection投影特性characteristic of projection不变性characteristic of true积聚性characteristic of concentration类似性characteristic of similarity视图view三视图three-view drawing正面frontal plane正面投影frontal projection水平面horizontal plane水平投影horizontal projection侧面profile plane侧面投影profile projection主视图frontal view俯视图top view左视图left side view立体solid平面立体plane body曲面立体body of curved surface 回转面surface of revolution棱柱prism棱锥pyramid边side顶点center vertex棱edge点point直线line straight line棱锥台truncated pyramid frustum of pyramid重影coincidence of projection 积聚concentrate变形deformation实长true length实形true shape正平线frontal line水平线horizontal line侧平线profile line一般位置直线oblique line铅垂线vertical line, frontal-profile line正垂线horizontal--profile line侧垂线frontal-horizontal line一般位置平面oblique plane相交intersection平行parallel垂直perpendicular交线intersecting line, line of intersection 交点point of intersection平行线parallel line垂直线perpendicular line交叉线skew line长度length宽度width高度height组合体complex基本几何体basic body相接built-up相交inter section相切tangent相贯penetration支架brace底板bottom board肋rib支承板bearing plate轮廓线outline, contour line 底图traced drawing截平面cutting plane截交线line of section二重性dual nature平面曲线plane curve圆弧arc椭圆ellipse长轴major axis短轴minor axis双曲线hyperbola抛物线parabola圆circle圆锥顶conic apex相贯体intersecting bodies相贯线line of intersection空间曲线space curve截平面方法cutting plane method辅助面auxiliary surface辅助平面auxiliary plane最高点culminating point尺寸Size定形尺寸size dimension定位尺寸location dimension左视图right view后视图rear view, back view仰视图bottom view辅助图auxiliary view局部视图partial view, broken view斜视图oblique view旋转视图revolved view, aligned view剖视图sectional view, section全剖视full section半剖视half section局部剖视图partial section, broken-out section 斜剖视图oblique section旋转剖视图aligned section阶梯剖视echelon section, offset section复合剖视compound section剖面图section, sectional view重合剖面coincide section, revolved section移出剖面removed section剖面线section line剖面符号symbols for section-lining习惯画法conventional drawing局部放大图drawing of partial enlargement零件图detail drawing, working drawing第三角投影third angle projection粗实线continuous thick line, full line, visible line 细实线continuous thin line虚线dot line, dashed line, hidden line点划线dash and dot line双点划线double dots line波浪线break line断裂线剖切平面迹线cutting plane line尺寸线dimension line尺寸界线extension tine尺寸dimension size箭头arrowhead基准datum基准线datum line基准面datum plane中心孔central hole中心距center distance轴shaft, axle孔hole斜孔inclination装配图assembly drawing性能尺寸characteristic dimension 大小尺寸size dimension总体尺寸outer dimension外形尺寸配合尺寸fit dimension内圆角fillet外圆角round尖角sharp corner倒角chamfer轮缘flange of wheel缘、边、环rim轴肩shoulder凸台boss凹坑concave pit轴颈shaft neck轮毂hub轮辐spoke, spoke of wheel 直纹滚花straight knurling s 网纹滚花hatching knurling 键槽key-way退刀槽escape拔模斜度pattern draft填料盒gland box油槽oil groove油封oil seal标准件standard parts螺纹thread外螺纹external thread内螺纹internal thread大径major diameter小径minor diameter螺距pitch of thread牙型form of thread旋向direction of turning右旋螺纹right-hand thread左旋螺纹left-hand thread头数number of thread导程lead粗牙coarse thread细牙fin thread螺栓bolt螺钉screw螺柱stud螺母nut垫片washer公差tolerance公差带tolerance zone零线zero line标准公差standard tolerance公差等级tolerance grade基本偏差fundamental deviation 配合fit间隙配合clearance fit过盈interference过盈配合interference fit过渡配合transition fit基孔制hole-basic system of fits基轴制shaft-basic system of fits间隙clearance形状公差tolerance in form, form tolerance直线度straightness平面度flatness圆度roundness圆柱度cylindricity线轮廓度profile of any line面轮廓度profile of any plane位置公差tolerance in position, position tolerances 平行度parallelism齿轮gear圆柱齿轮cylindrical gear正齿轮spur gear斜齿轮spiral gear轮齿gear tooth节圆pitch circle齿顶圆addendum circle, outside circle齿根圆root circle, addendum circle模数modulus齿数number of teeth齿高tooth height齿顶高height of addendum齿根高height of addendum齿厚circular thickness齿间tooth space齿宽tooth width压力角angle of pressure弹簧spring销pin圆柱销round pin圆锥销taper pin开口销cotter pin, split键key平键flat key半圆键half round key, woodruff key 轴承bearing滚动轴承rolling bearing向心铀承radial bearing密封装置sealing equipment锁紧装置locking equipment粗糙度roughness基本尺寸basic size实际尺寸actual size极限尺寸limits size最大极限尺寸maximum limit of size最小极限尺寸minimum limit of size偏差deviation上偏差upper deviation下偏差lower deviation垂直度perpendicularity倾斜度angularity同轴度concentricity对称度symmetry位置度true position跳动run-out圆跳动cycle run-out全跳动total run-out轴测投影axonometric projection轴测投影面plane of axonometric projection 轴测图axonometric drawing正等轴测投影isometric projection正二测bimetric projection斜二测oblique bimetric projection轴测轴axonometric axis轴间角axis angle, angle between ales缩短foreshortened轴向缩短率coefficient of axialdeformation ratio offore shortening for any axis切割法cutting method, by cutting方箱法boxing method坐标法coordinate method方框法enclosing-square method四心近似法four-center approximate method。

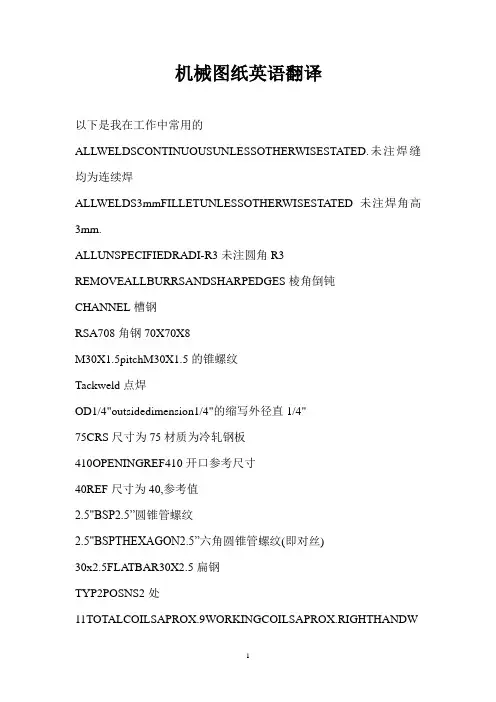

机械图纸英语翻译以下是我在工作中常用的ALLWELDSCONTINUOUSUNLESSOTHERWISESTATED.未注焊缝均为连续焊ALLWELDS3mmFILLETUNLESSOTHERWISESTATED未注焊角高3mm.ALLUNSPECIFIEDRADI-R3未注圆角R3 REMOVEALLBURRSANDSHARPEDGES棱角倒钝CHANNEL槽钢RSA708角钢70X70X8M30X1.5pitchM30X1.5的锥螺纹Tackweld点焊OD1/4"outsidedimension1/4"的缩写外径直1/4"75CRS尺寸为75材质为冷轧钢板410OPENINGREF410开口参考尺寸40REF尺寸为40,参考值2.5"BSP2.5”圆锥管螺纹2.5"BSPTHEXAGON2.5”六角圆锥管螺纹(即对丝)30x2.5FLATBAR30X2.5扁钢TYP2POSNS2处11TOTALCOILSAPROX.9WORKINGCOILSAPROX.RIGHTHANDWOUNDONLY,ENDCOILSSQUARETOTOUCH.总圈数约11圈；工作圈数约9圈；右旋；弹簧的端部磨平以便于接触.(此为弹簧技术说明)FEMALE:内扣(母扣)MALE:外扣(公扣)偏心轴eccentricshaft销轴PIN开口销COTTERPIN螺杆screw紧定螺钉SETSCREW圆螺母ROUNDNUT内六角螺钉SOCKETHEADCAPSCREW六角螺钉HEXHDSETSCREW六角螺栓HEXHDBOLT挡圈closingring弹性挡圈circlip轴承隔套distancesleeveofaxletree轴承axletree深沟球轴承DEEPGROOVEBALLBEARING无扣长non-bucklelongth弹簧SPRING吊环螺钉LIFTINGEYEBOLT开槽盘头螺钉SLOTTEDPANHEADSCREW圆锥滚子轴承TAPEREDROLLERBEARING推力球轴承THRUSTBALLBEARING平键FLATKEY弹簧垫圈SINGLECOILSPRINGW ASHER平垫圈FLATW ASHER螺母FULLNYLOCKNUT圆螺母ROUNDNUT REMOVEALLBURRSANDSHARPEDGES所有尖角/棱角倒角并去毛刺40REF为测量的参考尺寸OD1/4’outsidedimension1/4"的缩写外径直1/4’------->应该为：外径值1/4"75CRS尺75材质为冷轧钢板------->应该为：尺寸75材质为冷轧钢板我见过18GA(.048")CRS、16GA(.060)CRS、14GA(.075)CRS，其中GA是表示厚度的，但与英寸的关系还没研究明白；照此推算75是相当薄的缩写全称翻译ACCESSAccessory附件ADJAdjustable,Adjust调整ADPTAdapter使适应ADV Advance提前ALAluminum铝ALLOWAllowance允许ALTAlternate改变ALYAlloy合金AMTAmout数量ANLAnneal锻炼ANSLAmerNatlStdsInstitute APPROXApproximate大约ASMEAmerSocietyofMechEngrs ASSEMAssemble装配ASSYAssembly装配AUTHAuthorized授权的AUTOAutomatic自动的AUXAuxiliary辅助的A VGAverage平均AWGAmericanWireGauge BCBoltCircle螺栓圆周BETBetween之间BEVBevel斜角BHNBrinellHardnessNumber布氏硬度值BLKBlank,Block空白B/NMBillofMaterial材料费BOTBottom底部BPorB/PBlueprint蓝图BRGBearing轴承BRKBreak破裂BRKTBracket支架BROBroach钻孔BRSBrass黄铜BRZBronze青铜B＆SBrown＆Shape棕色＆形状BSCBasic基本的BUSHBushing套管BWGBirminghamWireGauge CTOCCenter-to-Center中心到中心CADComputer-AidedDrafting电脑辅助设计CAMComputer-AidedMfgCAPCapacity容量CAPSCRCapScrew螺帽CARBCarburize使渗碳CBORECounterbore扩孔CCWCounterClockwise逆时针CDRILLCounerdrillCDSCold-DrawnSteel缩写全称翻译EFFEffective有效的ENCLEnclose,Enclosure附上ENGEngine引擎ENGREngineer工程师ENGRGEngineering工程学EQLSPEquallySpaced等距EQUIVEquivalent相等ESTEstimate估计EXExtra额外EXHExhaust消耗EXPExperimental实验性的EXTExension,External范围,外部FABFabricate伪造FAOFinishAllOver FDRYFoundry铸造FIGFigure数据FILFillet,fillister带子FIMFullIndicatorMovementFINFinishFLXFixture结构FLXFloor.Fluid,Flush基地,液体,冲洗FLEXFlexible易弯曲的FLGFlange边缘FORGForging锻炼FRFrame,Front边框FIGFitting装置FURNFurnish提供FWDForward向前GAGage,Gauge测量GALVGalvanized电镀GRGrade等级GRDGrind磨碎GRVGroove凹槽GSKTGasket垫圈H＆GHardenandGrind加硬和磨碎HDHead主要的HDLHandle处理HDLSHeadless无领导的HDNHarden使硬化HDWHardware硬件HEXHexagon六边形HGRHanger衣架HGTHeight高度HORHorizontal水平的HRSHot-RolledSteelHSGHousing外罩HTTRHeatTreal我见过18GA(.048")CRS、16GA(.060)CRS、14GA(.075)CRS，其中GA是表示厚度的，但与英寸的关系还没研究明白；照此推算75是相当薄的缩写全称翻译ACCESSAccessory附件ADJAdjustable,Adjust调整ADPTAdapter使适应ADV Advance提前ALAluminum铝ALLOWAllowance允许ALTAlternate改变ALYAlloy合金AMTAmout数量ANLAnneal锻炼ANSLAmerNatlStdsInstitute APPROXApproximate大约ASMEAmerSocietyofMechEngrs ASSEMAssemble装配ASSYAssembly装配AUTHAuthorized授权的AUTOAutomatic自动的AUXAuxiliary辅助的A VGAverage平均AWGAmericanWireGauge BCBoltCircle螺栓圆周BETBetween之间BEVBevel斜角BHNBrinellHardnessNumber布氏硬度值BLKBlank,Block空白B/NMBillofMaterial材料费BOTBottom底部BPorB/PBlueprint蓝图BRGBearing轴承BRKBreak破裂BRKTBracket支架BROBroach钻孔BRSBrass黄铜BRZBronze青铜B＆SBrown＆Shape棕色＆形状BSCBasic基本的BUSHBushing套管BWGBirminghamWireGauge CTOCCenter-to-Center中心到中心CADComputer-AidedDrafting电脑辅助设计CAMComputer-AidedMfgCAPCapacity容量CAPSCRCapScrew螺帽CARBCarburize使渗碳CBORECounterbore扩孔CCWCounterClockwise逆时针CDRILLCounerdrillCDSCold-DrawnSteel缩写全称翻译EFFEffective有效的ENCLEnclose,Enclosure附上ENGEngine引擎ENGREngineer工程师ENGRGEngineering工程学EQLSPEquallySpaced等距EQUIVEquivalent相等ESTEstimate估计EXExtra额外EXHExhaust消耗EXPExperimental实验性的EXTExension,External范围,外部FABFabricate伪造FAOFinishAllOver FDRYFoundry铸造FIGFigure数据FILFillet,fillister带子FIMFullIndicatorMovement FINFinishFLXFixture结构FLXFloor.Fluid,Flush基地,液体,冲洗FLEXFlexible易弯曲的FLGFlange边缘FORGForging锻炼FRFrame,Front边框FIGFitting装置FURNFurnish提供FWDForward向前GAGage,Gauge测量GALVGalvanized电镀GRGrade等级GRDGrind磨碎GRVGroove凹槽GSKTGasket垫圈H＆GHardenandGrind加硬和磨碎HDHead主要的HDLHandle处理HDLSHeadless无领导的HDNHarden使硬化HDWHardware硬件HEXHexagon六边形HGRHanger衣架HGTHeight高度HORHorizontal水平的HRSHot-RolledSteel HSGHousing外罩HTTRHeatTreal缩写全称翻译NTSNottoScaleOAOverAll所有OBSObsotetcOCOnCenter ODOutsideDiameter外直径OPPOpposite对立OPTLOptional可选择的OROutsideRadius外半径ORIGOriginal初始的PAT.Patent专利PATTPattern形式PCPiece,PitchCircle件，节距圆PCHPunch打孔PDPitchDiameterPERFPerforate打孔PERMPermanent永久的PERPPerpendicular垂直的PFDPreferred首选的PKGPackage,Packing包装PLPartingLine,Places,Plate PNEUPncumaticPNLPanel面板POLPolish磨光POSPosition,Postive位置PRPair对立PRIPrimary基本的PROCProcess程序PRODProduct,Production产品，产量PSIPoundsperSquareInchPTPart,Point零件，点QTRQuarter四份之一QTYQuantity数量QUALQuality质量RRadius半径RARockwellHarden,A-ScaleRBRockwellHarden,B-Scale RCRockwellHarden,C-Scale RECDReceived巳收到的RECTRectangle长方形REFReference相关的REINFReinforce增强RELRelease,Relief释放，缓解REMRemove移除REQDRequird有需要REERetainer,Return REVReverse,Revision,Revolution RFSRegardlessofFeatureSize RGHRough粗糙的RHRightHand右手RIVRivet起皱RMReam扩展RNDRound周围RPMRevolutionsperMinute RPWResistanceProjectionWeld SAESocietyofAutomotiveEngrs SCHSchedule进度表CFSCold-FinishedSteelCHCaseHardenCHAMChamfer斜面CHANChannel渠道CHGChange改变CHKCheck核查CICastIron铸铁CIRCircle,Circular圆周CIRCCircumference圆周CLCenterline中心线CLPClamp夹子CNCComputerNumericalControl电脑数值控制COMBCombination联合COMLCommercial商业的CONCConcentric同中心的CONNConnect,Connector连接器COVCover盖子CPLGCoupling联结CQCommercialQuality商业等级钢CRSColdStdsAssociation CRTCathodeRayTube阴级射线管CSCastSteel铸铁CSACanadianStdsAssociationCSKCountersink埋头孔CSTGCasting铸件CTRCenter中心CUCubic立方米CWClockwise顺时针CYLCylinder,Cylindrical柱面DBLDouble双倍DECDecimal小数DEGDegree摄氏度DETDetail详情DEVDevelop发展DFTDraft草稿DIADiameter直径DIMDimension尺寸DISTDistance距离DNDown向下DPDeep,DiametralPitch深度,径节DRDrill,DrillRod钻孔DSGNDesign设计DVTLDovetail吻合DWGDrawing图纸DWLDowel木钉DWNDrawn拔出EAEach每个ECCEccentric古怪缩写全称翻译HVYHeavy重量HYDHydraulic水压IDInsideDiameter内部直径IDENTIdentification鉴定ILLUSIllustration说明INInch英寸INCLInclude,Including包括INCRIncrease增加INFOInformation信息INSPInspect检查INSTLInstall安装INSTInstruct,Instrument指示,工具INTInterior,Internal,Intersect内部的,内在的,交叉IRInsideRadius内部半径ISOInternalStdsOrganization国际标准化组织JCTJunction连结JNTJournal杂志JTJoint连接KKey关键KNRLKnurl硬节KSTKeyseatKWYKeyway键沟LBPound英镑LBLLabel标签LGLength,Long长度LHLeftHand左手LMCLeastMaterialCondition LOCLocate位于LTLight光LTRLetter信LUBLubricate润滑MACHMachine机器MAINTMaintenance维护MATLMaterial材料MAXMaximum最大MECHMechanical,Mechanism机械MEDMedium媒介MFGManufacturing制造业MIMalleableIron可锻造的铁MINMinimum,Minute最小，秒MISCMiscellaneous混杂的MMMillimeter毫米MMCMaxMaterialCondition MSMachineSteelMTGMouting装备MULTMultiple倍数MWGMusicWireGagug NANotApplicable不可应用的NATLNational国内的NCNumericalControl数字电脑控制NEGNegative忽略的NO.Number号码NOMNominal名义上的NPSMNatlPipeStraightMech NPTNatlPipeTapered缩写全称翻译SCRScrew螺丝SECSecond秒SECTSection部分SEPSeparate独立SEQSequence顺序SERSerial,Series系列SERRSerrate锯齿状SFSpotfaceSFTShaft轴SGLSingle单个SHSheet纸SIIntlSystemofUnits SLSlide使滑动SLVSleeve袖子SOCSocket插座SPSpace,Spaced,Spare空间SPLSpecial特别SPECSpecification规格SPGSpring跳SPHERSpherical球体SPRKTSprocket链轮齿SQSquare平方SSTStainlessSteel纯铁STDStandard标准STKStock存货STLSteel铁STRStraight,Strip直的SUBSubstitute替代物SUPSupply,Support供应SURFSurface表面SYMSymmetrical对称的SYSSystem系统TTeeth,Tooth牙齿TECHTechnical技术TEMPTemplate,Temporary模板，暂时的THDThread线THKThick厚的TOLTolerance公差TOTTotal总计TPFTaperperFootTPITaperperIn,ThreadsperInch TPRTaper锥形TSToolSteelTYPTypical典型UNCUnifiedNatlCoarse UNEFUnifiedNatlExtraFine UNFUnifiedNatlFineUNIVUniversal普遍V ARVariable变量VERTVertical垂直的VOLV olume音量VSVersus与．．相对WWide,Width宽度W ASHWasher洗衣机WDFWoodruff车叶草WIWroughtIron熟铁WTWeight重量齿轮及齿轮加工中英文对照-A部分A.1.abrasivetoothwear齿面研磨磨损2.absolutetangentialvelocity绝对切向速度3.accelerometer加速表4.addendum齿顶高5.addendumangle齿顶角6.addendumcircle齿顶圆7.addendumsurface上齿面8.adhesivewear粘着磨损9.adjustability可调性10.adjustabilitycoefficients可调系数11.adjustingwedge圆盘端铣刀的可调型楔块12.allowablestress允许应力13.alternatebladecutter双面刀盘14.angularbacklash角侧隙15.angularbevelgears斜交锥齿轮16.angulardisplacement角移位17.angularpitch齿端距18.angulartestingmachine可调角度试验机19.approachaction啮入20.arbor心轴21.arbordistance心轴距22.arcofapproach啮入弧23.arcofrecess啮出弧24.attraction收紧25.averagecutterdiameter平均刀尖直径26.axialdisplacement轴向位移27.axialfactor轴向系数28.axiallocatingsurface轴向定位面29.axialpitch轴向齿距30.axialplane轴向平面31.axialrakeangle轴向前角32.axialthrust轴向推力33.axletestingmachine传动桥试验机07484473lhx0812发表于：07-03-1317:21[只看该作者] 第4楼Pipingwork:铺管工程Steamtrace:加热蒸汽管道Cutting:切割socketweld承插焊接filletweld角焊,填角焊branchconnection分支接续fabricationtolerance.制造容差localheattreatment局部热处理threadedpipe螺纹管sealwelding密封焊接flangejoint凸缘接头undercut底切feeder馈电线conduitoutlet电线引出口sealfitting密封接头,密封配件Screwthreadlubricant螺纹润滑剂Seal绝缘层weldreinforcement焊缝补强lockwasher锁紧[止动,防松]垫圈electricalpanel配电板,配电盘nipple螺纹接头zincplated镀锌的ringjoint环接,围缘接合bolt螺栓control控制器NationalElectricalCode全国电气规程masterschedule主要图表,综合图表,设计任务书,主要作业表torquewrench转矩扳手jobsite施工现场flangeconnection凸缘联接Hardhat安全帽Goggles护目镜Stockpile贮存packinglist装箱单crate柳条箱purchasedmateriallist原材料进货单back-feed反馈wirecoil线盘线卷NPTthread美国标准锥管螺纹cablegland电缆衬垫terminalblock线弧,接头排接线盒,接线板,线夹powerdrill机械钻connector接线器insulatedsleeve绝缘套管wireconnector接线器wireterminal电线接头controlwiring控制线路motorlead电动机引出线powerwiring电力布线tenderdocument提供证件orificeplate挡板nut螺母flangegasket法兰垫片dimensionalinspection尺寸检验burnthrough烧蚀pipingsystem管道系统reinforcementofweld加强焊缝械专业词汇表"机械(常用)""abrasion,abrasivewear","磨料磨损""activeforce,appliedforce","作用力" "actualsize","实际尺寸" "addendumangle","齿顶角""addendum","齿顶高" "addendummodification","径向变位" "addendummodification(forexternalgears)","径向变位量" "addendummodificationcoefficient","径向变位系数" "additive","添加剂""adhesionwear","黏着磨损" "adjustedratinglife","修正额定寿命" "aerodynamicbearing","气体静压滑动轴承" "airspring","空气弹簧""angledrive","角度传动" "angleofcontact","包角" "angleoftransmission","作用角" "angularbevelgear","斜交锥齿轮" "angularcontactbearing","角接触推力轴承" "angularcontactbearing","角接触轴承""anti-frictionbearingmaterial","减磨轴承材料""approach,engaging-in","啮入""archimedesspiral","阿基米德螺线""attitudeangle","偏位角""auto-controlledclutch","自控离合器" "axialloadfactor","轴向载荷系数" "axialmodification","齿向修形""axialmodule","轴向模数""axialpitch","轴向齿距""axialplane","轴平面""axialplaneofwormwheel","蜗轮轴平面" "axialprofile","轴向齿廓""backcone","背锥面""backconeangle","背锥角""backconedistance","中点锥距" "backconetoothprofile","背锥齿廓" "backtobackarrangement(rollingbearing)","背对背配置(滚动轴承)" "balancingmass","平衡质量""balloscillatingteeth","滚珠活齿""ballscrew","滚珠丝杠""ballscrew","滚珠丝杠""ballbearing","球轴承""bandbrake","带式制动器""basecircle","基圆""basehelix","基圆螺旋线" "basetangentlength","公法线长度" "basicprofile","基本牙型""basicrack","基本齿条" "basicracktoothprofile","基本齿廓" "basicratinglife","基本额定寿命" "basicsize","基本尺寸" "bathlubrication","油浴润滑" "bathtubcurve","浴盆曲线""bearing","轴承""bearingaxialload","轴承轴向载荷" "bearingborediameter","轴承内径" "bearingbush","轴套" "Bearingcharacteristicnumber","轴承特性系数" "bearingliner","轴承衬" "bearingloadcarryingcapacity","轴承承载能力" "bearingmeanspecificload","轴承压强" "bearingoutsidediameter","轴承外径" "bearingradialload","轴承径向载荷" "bearingring","轴承套圈""bearingseries(rollingbearing)","轴承系列(滚动轴承)""bearingwidth","轴承宽度" "bearingwithsolidlubricant","固体润滑滑动轴承" "bellevillespring","碟形弹簧""beltdrive","带传动""beltlength","带长""bendingvibration","弯曲振动""bevelgear","锥齿轮" "bevelgearwithaxesatrightangles","正交锥齿轮" "bevelgearwithcirculararctoothprofile","双重锥度齿锥齿轮" "bevelgearwithcirculararctoothprofile","圆弧齿廓锥齿轮" "bevelgearwithstandardtaoeredtoothprofile","正常锥度齿锥齿轮" "bevelgearwithstraighttoothprofile","直线齿廓锥齿轮" "bevelgearwuth90°faceangle","平顶齿轮" "blockbrake","块式制动器""blockchain","块链""bobedbearing","多油叶滑动轴承""bolt","螺栓""bottomclearance","顶隙""bottomland","齿槽底面""boundarydimension(rollingbearing)","外形尺寸(滚动轴承)" "boundarylubrication","边界摩擦""brake","制动器""brakedrum","制动鼓""brakelining","制动衬片""brakepiece","制动块""brakeshoe","制动蹄""brake-bandclutch","闸带离合器" "bushchain","套筒链""cage","保持架""cam","凸轮""camcontour,camprofile","凸轮工作轮廓" "camfollower","凸轮从动件" "campitchcurve","凸轮理论轮廓" "Cavitationwear","气蚀磨损" "centerdistance","中心距" "centerdistancemodificationcoefficient","中心距变动系数" "centergear","中心轮""centricslider-crankmechanism","对心曲柄滑块机构" "centrifugalclutch","离心离合器" "centrifugaltension","离心拉力" "centrifugalforce","离心力" "centrodemechanism","瞬心线机构" "Ceramicfrictionmaterial","金属陶瓷""chain","链条""chaincoupling","链条联轴器""chaintransmission","链传动""chainwheel,sprocket","链轮""chordalheight","弦齿高""circulararcprofile","圆弧齿廓""circularhelix","圆柱螺旋线""circular-arcgear","圆弧圆柱齿轮" "Circulatinglubrication","循环润滑" "circumferentialbacklash","圆周侧隙""classicalV-belt","普通V带""clearancefit","间隙配合""clevispinwithhead","销轴""clutch","离合器""coefficientoftravelspeedvariation,advance-to-returntimeratio","行程速度变化系数""combinedspring","组合弹簧""commonapex","公共锥顶""compensator(hydrostaticbearing)","补偿器(静压轴承〕" "compostbearingmaterial","复合轴承材料" "compoundplanetarygeartrain","组合行星齿轮系" "compoundhinges,multiplehinges","复合铰链" "concaveside","凹面""conepulley","锥轮""conicalpin,taperpin","圆锥销" "conicalspiral","圆锥螺旋线" "conicalspring","截锥螺旋弹簧" "conjugateflank","共轭齿面" "conjugateprofile","共轭齿廓" "connectinglink","联接链节" "Consistency","稠度" "constantloading","恒幅载荷" "constantrate(stiffness)spring","等刚度弹簧" "constantvelocitymotioncurve","等速运动轨迹" "contactfatigue","接触疲劳" "Contactfatigue","接触疲劳" "contactratio","重合度" "Continuouslubrication","连续润滑" "continuoussystem","连续系统" "contrategear","端面齿轮" "controlledclutch","操纵离合器" "conventionalbelt","普通平带" "convexside","凸面" "conveyorchain","输送链" "correspondingflanks","同侧齿面""cosineaccelerationmotioncurve","余弦加速度运动轨迹" "cotterpin,splitpin","开口销""cottonbelt","编织平带""counterpartrack","产形齿条""couple","力偶""coupledmodes","耦合振型""coupler,floatinglink","连杆""coupling","联轴器" "couplingwithcorrugatedpipe","波纹管联轴器" "couplingwithelasticspider","梅花形弹性联轴器" "couplingwithnon-metallicelasticelement","非金属弹性元件联轴器" "couplingwithrubberplates","橡胶板联轴器" "couplingwithrubbertypeelement","轮胎式联轴器" "crank","曲柄""crankedlinkchain","弯板链""crank-rockermechanism","曲柄摇杆机构""crest","齿顶""crewmechanism","螺旋机构" "crossrecessedcountersunkheadscrew","十字槽沉头螺钉" "crossrecessedpanheadscrew","十字槽盘头螺钉""cross-beltdrive","交叉传动" "crossedhelicalgearpair","交错轴斜齿轮副""crossedrollerbearing","交叉滚子轴承" "crossingpointofaxes","轴线交点" "crowngear","冠轮""crownedteeth","鼓形齿" "cumulativeerrorinpitch","螺距累积误差" "cumulativefatiguedamage","疲劳积累损伤" "curtatecycloid","短幅摆线" "curtateepicycloid","短幅外摆线" "curtateinvolute","缩短渐开线" "curvaturecorrectionfactor(spring)","曲度系数(弹簧)" "curvedtoothbevelgear","曲线齿锥齿轮""cycl,,icloading","循环载荷""cycloid","摆线" "cycloidaldrivewithsmallteethdifference","摆线少齿差传动" "cycloidalprofile","摆线齿廓""cycloidal-pingearspeedreducer","摆线针轮减速器" "cylindricalgear","圆柱齿轮" "cylindricalhelicalcompressionspring","圆柱螺旋压缩弹簧" "cylindricalhelicaltensionspring","圆柱螺旋拉伸弹簧" "cylindricalhelicaltorsionspring","圆柱螺旋扭转弹簧" "cylindricalpin,straightpin","圆柱销" "cylindricalrollerbearing","圆柱滚子轴承""cylindricalworm","单导程圆柱蜗杆" "cylindricalworm","圆柱蜗杆""damping","阻尼" "datumcircumference","基准圆周长" "datumdiameter","基准直径" "datumlinedifferential","基准线差" "datumplane","基准平面""datumwidth","基准宽度""dedendum","齿根高""dedendumanle","齿根角" "deepgrooveballbearing","深沟球轴承" "degreeoffreedom","自由度""deviation","尺寸偏差""deviationinpitch","螺距偏差""diameterseries(rollingbearing)","直径系列(滚动轴承)" "diametralpitch","径节" "diaphragmcoupling","膜片联轴器" "differentialmechanism","差动机构" "differentialscrewmechanism","差动螺旋机构" "dimensionseries(rollingbearing)","尺寸系列(滚动轴承)" "discretesystem","离散系统""disengagingtime(clutch)","分离时间(离合器)""distortion","畸变" "doubledirectionthrustbearing","双向推力轴承" "doublerowbearing","双列轴承""doubleV-belt","双面V带""double-circular-arcgear","双圆弧齿轮" "driven","从动件""drivengear","从动齿轮" "drivenpulley","从动带轮" "drivinggear","主动齿轮" "drivingpulley","主动带轮" "drivingforce","驱动力" "drivinglink","主动件" "dryfriction","干摩擦" "dualclutch","双作用离合器" "dualleadcylindricalworm","双导程圆柱蜗杆" "duplexrollerchain","双排滚子链" "dynamicload","动载荷" "dynamicbalanceofrotor","转子的动平衡" "dynamicload","动载荷" "dynamicsofmachinery","机械动力学" "eccentricelement","偏心元件" "eccentricmechanism","偏心轮机构""effectivecircumference","有效圆周长" "effectivecoilnumber","有效圈数" "effectivediameter","有效直径" "effectivelinedifferential","有效线差" "effectivestressconcentrationfactor","有效应力集中系数" "effectivetension","有效拉力" "effectivewidth","有效宽度" "effectiveresistance","工作阻力" "efficiency","效率""elasticpincoupling","弹性柱销齿式联轴器""elasto-hydrodynamiclubrication","弹性流体动力润滑" "electromagneticclutch","电磁离合器" "electromagneticwhirlpoolbrake","电磁涡流制动器" "electrostaticbearing","静电轴承" "ellipticbearing","椭圆滑动轴承" "embeddability","嵌入性""endrelief","齿端修薄""engagement","啮合""engagingtime(clutch)","接合时间(离合器)" "engaging(clutch)","接合过程(离合器)" "epicycloid","外摆线""epicycloidgear","摆线齿锥齿轮""equidistantcurveofcurtatehypocycloid","短幅外摆线的等距曲线" "equidistantcurveofepicycloid","内摆线的等距曲线" "equidistantcurveofepicycloid","外摆线的等距曲线" "equidistantcurveofprolateepicycloid","长幅外摆线的等距曲线" "equilibrium","力平衡" "Equivalentcoefficientoffriction","当量摩擦系数" "equivalentload","当量载荷""equivalentforce","等效力""equivalentlink","等效构件""equivalentmass","等效质量" "equivalentmoment","等效力矩""escapement","擒纵机构""externalthread","外螺纹""externalgear","外齿轮""externalpinwheel","外齿针齿轮" "externaltabwasher","外舌止动垫圈" "externalteethlockwasher","外齿锁紧垫圈""Extreme-pressurelubrication","极压润滑" "facetofacearrangement(rollingbearing)","面对面配置(滚动轴承)" "facewidth","齿宽""failure","失效""farthestdwellangle","远休止角""Fastener","紧固件" "fatiguelimit","疲劳极限" "fatiguestrength","疲劳强度" "fault","故障" "featherkey","滑键""featherkey,divekey","导向平键" "fillet","齿根过渡曲面" "filletradius","齿根圆角半径" "fillingslotballlbearing","装填槽球轴承" "finitelifedesign","有限寿命设计" "flangecoupling","凸缘联轴器" "flangedbearing","凸缘轴承" "flatbeltdrive","平带传动" "flatkey","平键" "flatspring","片弹簧" "flatspringcoupling","簧片联轴器" "flexibilityofspring","弹簧柔度" "flexiblegear,flexpline","柔性齿轮" "floatingbearing","浮环滑动轴承" "fluctuatingload","变载荷" "fluidfriction","流体摩擦" "fluidlubrication","液体润滑""flywheel","飞轮" "forcedvibration","受迫振动" "foundationbolt","地脚螺栓""four-barmechanism","四杆机构""four-pointcontactballbearing","四点接触轴承" "fracturemechanics","断裂力学" "freeheight(spring)","自由高度(弹簧)" "Frettingwear","微动磨损" "Friction","摩擦""frictionbrake","摩擦制动器" "frictionclutch","摩擦式离合器" "Frictionmaterial","摩擦材料" "frictionwheeldrive","摩擦轮传动" "Frictioncoefficient","摩擦系数" "frictionalconformability","摩擦顺应性" "frictionalconpatibility","摩擦相容性" "frontcone","前锥面" "fullcomplementbearing","装满滚动体的轴承" "gaswhirl","气膜振荡" "gaslubrication","气体润滑" "gear","齿轮""gearcoupling","齿式联轴器""geardrive","齿轮传动" "geardrivewithintersectingaxes","相交轴齿轮传动" "geardrivewithnon-parallelnon-intersectingaxes","交错轴齿轮传动" "geardrivewithparallelaxes","平行轴齿轮传动" "gearpairwithmodifiedcenterdistance","角变位齿轮副" "gearpairwithnegativemodifiedcenterdistance","负角变位齿轮副" "gearpairwithpositivemodifiedcenterdistance","正角变位齿轮副" "gearpairwithreferencecenterdistance","高变位齿轮副" "gearratio","齿数比""gearteeth","轮齿" "gearwithaddendummodification","变位齿轮" "generalflatkey","普通平键""generatingcylinder","发生圆柱面" "generatingdiameter","发生圆直径" "generatingflank","产形齿面" "genevamechanism","槽轮机构""gib-headtaperkey","钩头楔键""gorge","咽喉面""gorgecircle","喉圆""governor,speedregulator","调速器""groovedpin","槽销""guiderail","导轨""guidebar,guidelink","导杆""halfofthreadangle","牙型半角""handsofworm","蜗杆旋向""harmonicgeardrive","谐波齿轮传动" "harmonicgeardrivewithradialgearmeshng","径向谐波齿轮传动" "harmonicgeardrivewithtransversegearmeshng","端面谐波齿轮传动" "harmonicgearreducer","谐波齿轮减速器""heightseries(rollingbearing)","高度系列(滚动轴承)" "heightunderultimateload","极限高度""helicalgear","斜齿轮""helicalspring","螺旋弹簧" "helicalspringlockwasher","弹簧垫圈""Helix","螺旋线""helixangle","螺旋角""herringbonegear,doublehelicalgear","人字齿轮" "hexagonbolt","六角头螺栓""hexagonnut","六角螺母" "hexagonsocketheadcapheadscrew","内六角圆柱头螺钉" "hexagonsocketcountersunkheadcapheadscrew","内六角沉头螺钉" "high-cyclefatigue","高周疲劳""higherpair","高副""hingetypeflattopchain","平顶链"。

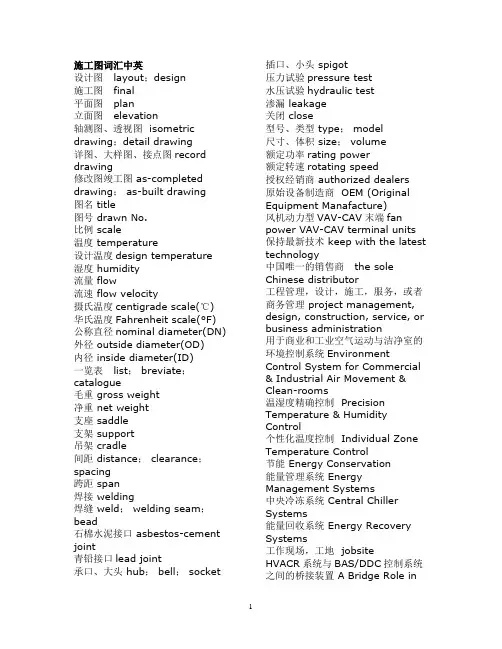

施工图词汇中英设计图 layout；design施工图 final平面图 plan立面图 elevation轴测图、透视图 isometric drawing；detail drawing详图、大样图、接点图record drawing修改图竣工图 as-completed drawing； as-built drawing图名 title图号 drawn No.比例 scale温度 temperature设计温度design temperature湿度 humidity流量 flow流速 flow velocity摄氏温度centigrade scale(℃)华氏温度Fahrenheit scale(°F) 公称直径nominal diameter(DN) 外径 outside diameter(OD)内径 inside diameter(ID)一览表 list； breviate；catalogue毛重 gross weight净重 net weight支座 saddle支架 support吊架 cradle间距 distance； clearance；spacing跨距 span焊接 welding焊缝 weld； welding seam；bead石棉水泥接口 asbestos-cement joint青铅接口lead joint承口、大头 hub； bell； socket 插口、小头 spigot压力试验pressure test水压试验hydraulic test渗漏 leakage关闭 close型号、类型 type； model尺寸、体积 size； volume额定功率rating power额定转速rotating speed授权经销商 authorized dealers原始设备制造商 OEM (Original Equipment Manafacture)风机动力型VAV-CAV末端fan power VAV-CAV terminal units 保持最新技术 keep with the latest technology中国唯一的销售商 the sole Chinese distributor工程管理，设计，施工，服务，或者商务管理 project management, design, construction, service, orbusiness administration用于商业和工业空气运动与洁净室的环境控制系统Environment Control System for Commercial & Industrial Air Movement &Clean-rooms温湿度精确控制 Precision Temperature & Humidity Control个性化温度控制 Individual Zone Temperature Control节能 Energy Conservation能量管理系统 Energy Management Systems中央冷冻系统 Central Chiller Systems能量回收系统 Energy Recovery Systems工作现场，工地 jobsiteHVACR系统与BAS/DDC控制系统之间的桥接装置 A Bridge Role inHVAC & R System and BAS/DDC ControlHVAC总成本和投资估算 Total HVAC cost and investment evaluation系统设计和应用 System design and application系统和设备的选择、效率和运行成本System and equipment selection, efficiency and operating cost和其他工种的配合 Coordination with other departments监督工程进度、分配时间和施工工作Monitoring project progress, delivery time and construction work设备购买，运输，质量保证Appurtenances purchase, delivery and warranties执行设计计划并应对工程部门的检查Implementing the design plan and subject the work to the inspection of the Engineering Department目录1. 密封元件1.1 法兰、法兰盖1.2 螺栓、螺母1.3 垫片1.3.1 常用1.3.2 高压设备用2. 基础构件3. 梯子平台4. 设备常用零部件4.1 筒体封头4.2 支座4.2.1 鞍座、耳座、裙座、其它支座4.3 主要零部件5. 换热器专用名词6. 塔专用名词7. 图面节点术语及图面常用语7.1 节点术语7.2 图面常用语8. 技术要求及特性表中常用语9. 常用技术要求的英文译法10. 常用介质11. 其他1 密封元件1.1 法兰、法兰盖1 对焊法兰：WELDING NECK FLANGE2 平焊法兰：SLIP-ON FLANGE3 衬环法兰：CLADDED FLANGE4 突面法兰：RAISED FACE FLANGE (RF FLANGE)5 凸面法兰：MALE FLANGE (M FLANGE)6 凹面法兰：FEMALE FLANGE (FM FLANGE)7 榫面法兰：TONGUE FLANGE (T FLANGE)8 槽面法兰：GROOVE FLANGE (G FLANGE)9 法兰盖：BLIND FLANGE1.2 螺栓、螺母1 螺栓：BOLT2 双头螺柱：STUD3 螺母：NUT1.3 垫片GASKET1.3.1 常用1 石棉橡胶板： ASBESTOS SHEET (OR GASKET)2 缠绕垫：SPIRAL WOUND GASKET3 橡胶垫：RUBBER GASKET4 金属包垫：METAL JACKETED GASKET5 石墨垫：GRAPHITE GASKET6 聚四氟乙烯： PTFE. GASKET (POLYTETRAFLUOROETHYLENE GASKET)1.3.2 高压设备用1 铝平垫：ALUMINIUM PLAT GASKET2 透镜垫：LENS RING3 齿形垫：TOOTHED GASKET4 椭圆垫：OVAL RING5 八角垫：OCTAGONAL RING6 Ω垫：“Ω” GASKET7 双锥垫：CONICAL RING GASKET2基础构件1 地脚螺栓：ANCHOR BOLT2 模板：TEMPLATE3 锚板：ANCHOR PLATE4 基础构件：FOUNDATION COMPONENT5 筋板：RIB3梯子平台1 梯子：LADDER2 平台：PLATFORM3 钢隔板：GRATING4 槽钢梁：CHANNEL BEAM5 立柱：POST6 扶手：HANDRAIL7 扁钢：PLAT BAR8 踏步：LADDER RUNG9 连接板：CONNECTION PLATE (OR LUG)10安全门：SAFETY CHAIN (链式) OR BAR11角钢：ANGLE STEEL4设备常用零部件4.1 筒体、封头1 椭圆封头：HEAD2 平盖：PLAT COVER3 半球形：HEMISPHERICAL HEAD4 碟形封头：DISHED HEAD5 锥形：CONICAL HEAD6 折边锥形：FLANGED & CONICAL HEAD7 锥段：CONICAL SECTION8 筒体：SHELL 9 多层包扎筒体：LAYERED SHELL 10内筒：INNER SHELL11层板：LAYER PLATE4.2支座4.2.1 鞍座： SADDLE耳座： SUPPORT LUG (OR BRACKET)1 垫板：WEAR PLATE (OR PAD)2 底板：BASE PLATE3 筋板：RIB4 腹板：CELIAC PLATE4.2.2 裙座1 筒体：CYLINDER2 盖板：COVER PLATE3 底板：BASE PLATE4 垫板：PAD5 筋板：RIB6 通气孔：VENT HOLE7 进出口：ACCESS OPENING4.2.3 其他支座1 腿座：SUPPORT LEG4.3主要零部件1 接管：NOZZLE2 管台：NECK3 补强圈：REIN. RING4 加强圈：STIFF. RING5 铭牌：NAME PLATE6 接地板：EARTH LUG7 防冲板：IMPINGEMENT BAFFLE8 防涡流挡板： VORTEX BREAKER9 液位计：LEVEL GAUGE10视镜：GLASSES11补强管：REIN. NOZZLE12筋板：RIB13弯头：ELBOW14管： PIPE15垫板：PAD PLATE16人孔：MANHOLE17手孔：HANDHOLE18组合视镜：COMBINEDGLASSES19内爬梯：INTERNAL LADDER 20内部扶手：INTERNAL HANDRAIL21垫圈：WASHER22吊耳：LIFTING LUG23管轴式吊耳： LIFTING TRUNNIONS24板式吊耳：PLATE LIFTING LUG 25内件：INTERNALS26支承圈：SUPPORT RING27夹、卡子：CLI28保温圈：INSULATION SUPPORT RING29弯管：BEND PIPE30防火螺母：FIREPROOF NUT 31角钢：ANGLE STEEL32管帽：PIPE CAP33凸缘：PAD34丝堵：THREADED PLUG35一般挡板：BAFFLE36预焊件：PREWELDED PARTS 37管架：PIPE RACK38安全阀：SAFETY VALVE39除沫器：DEMISTER40激冷环：QUENCH RING41下降管：DOWNCOMER42溢流管：OVERFLOW NOZZLE 43螺钉：SCREW44铆钉：RIVET45锚栓：ANCHOR46销钉：PIN47夹具：JIG48填料箱：PACKING BOX49填料压盖：PACKING GLAND 50填料：PACKING51锥顶：CONE ROOF52拱顶：COVE ROOF53加热盘管或蛇管： COIL54壁板：SHELL PLATE55底板：BASE PLATE56边缘板：SIDE PLATE57中幅板：MIDDLE PLATE58液封槽：LIQUID SEAL59消防装置：FIREFIGHTING DEVICE60排水槽：DRAIN61夹套筒体：JACKET SHELL62夹套封头：JACKET ELLIP HEAD63插入管：SETIN NOZZLE64复合板：CLAD PLATE65衬里：LINING66堆焊层：DEPOSITED LAYER 67高压筒体端部：SHELL END FLANGE68高压螺栓：HIGH TENSION BOLT5换热器专用名词1 管束：BUNDLE2 管板：TUBESHEET3 折流板：TRANSVERSE BAFFLE4 弓形折流板： SEGMENTAL BAFFLE5 支持板：SUPPORT PLATE6 换热管：TUBE7 定距管：SPACER8 挡管： DUMMY TUBE9 拉杆：TIE ROD10防冲板：IMPINGEMENT BAFFLE11滑道杆：GUIDE ROD (BAR) 12旁路挡板：SEAL STRIP13分程隔板：PASS PARTITION 14壳体纵向隔板：LONGITUDINAL BAFFLE15密封条：SEAL STRIP16U形管：U TUBE17中间分流挡板：INTERMEDIATEBAFFLE18浮动管板：FLOATING TUBESHEET19浮头盖：FLOATING HEAD COVER20浮头盖法兰： FLOATING HEAD COVER FLANGE21钩圈：BACKING DEVICE22平盖管箱：CHANNEL23凸形封头管箱：CHANNEL24外头盖：SHELL COVER25防送支耳：ANTI-LOOSENING LUG26防松螺栓：ANTI-LOOSENING BOLT27环首螺钉：EYE BOLT28顶丝：JACK SCREW29膨胀节：EXPANSION JOINT 30波纹膨胀节： BELLOWS EXPANSION JOINT31排污口：DRAIN32放空口：VENT33堰板：WEIR34釜式锥段：CONICAL SECTION 35偏心锥段：ECCENTRIC CONICAL SECTION36鞍座间调整垫板：SHIM PLATE 6塔专用名词1 塔盘：TRAY2 吊柱：DAVIT3 支持圈：SUPPORT RING4 降液管（板： DOWNCOMER5 填料：PACKING6 填充物：FILLING7 分布器：DISTRIBUTOR8 再分布器：REDISTRIBUTOR9 泡罩：BUBBLE CAP10浮阀：FLOATING VALVE11溢流堰：OVERFLOW WEIR12受液堰：SEAL PAN13入口堰：INLET WEIR14出口堰：OUTLET WEIR 15筛板：SIEVE PLATE16内件：INTERNALS17限位板：STOPPER18拉杆：TIE ROD19防溅溢流板： DECK20碎流挡板：STREAM BREAKER 21预焊件：PREWELDED PART 22管架：BRACKET23栅板：GRATING24支承块：SUPPORT BLOCK25就位吊耳：RETAINING LUG 7施工图图面节点术语及图面常用语7.1节点术语1 壳体纵环焊缝： L&C WELD OF SHELL2 接管与筒体封头焊缝： NOZZLE “A” TO SHELL (HEAD) JOINT3 接管与法兰焊缝：NOZZLE “A” TO FLANGE JOINT4 带补强圈接管与筒体封头焊缝： NOZZLE WITH REINF . RING TO SHELL(HEAD) JOINT5 管口方位图： NOZZLE ORIENTATION6××剖面图：SECTION “××”7 ××向视图：VIEW “××”8 法兰与筒体焊缝：FLANGE TO SHELL JOINT9 管板凸缘与筒体焊缝：TUBESHEET TO SHELL JOINT10管支承拉筋详图：RIB DETAIL OF NOZZLE “A”11搭接焊缝：LAP WELD12搭接角焊缝： LAP FILLET WELD13焊后磨平：RUBDOWN AFTER WELDING14氩弧焊：TIG（TUNGSTEN-INERT-GAS ARC WELD15着色检测：PENETRANT EXAMINATION16磁粉检测：MEGNETIC EXAMINATION17×××详图： DETAIL OF ×××18“U”与“U”焊缝：“U” TO “U” WELD JOINT19“A”向折流板布置图：VIEW “A” BAFFLE ARRANGEMENT20换热管与管板连接：TUBE TO TUBESHEET JOINT21强度焊：STRENGTH WELDED 22密封焊：SEAL WELDED23强度胀：STRENGTH EXPANDED24贴胀：LIGHT EXPANDED7.2图面常用语1 装配图：ASS’Y DWG2 部件图：COM’T DWG3 零件图：PARTS DWG4 零部件图：PART & COM’T DWG5 内件图：INTERNALS DWG6 外部构件图： EXTERNALS DWG7 剖面：SECTION8 详图：DETAILS9 俯视图：VERTICAL VIEW10侧视图：LATERAL VIEW11固定端：FIXED SIDE12滑动端：SLIDING SIDE13镇静钢：KILLED STEEL14沸腾钢：RIMMED STEEL15不锈钢：STAINLESS STELL 16双向钢：DUPLEX STEEL17热轧的：HOT-ROLLED18冷轧的：COLD-ROLLED19淬火的：QUENCH20正火的：NORMALIZE21退火的：ANNEAL22回火的：TEMPER23固溶：SOLUTION24可拆的：REMOVABLE25手工电弧焊： SMAW (SHIELDED METAL ARC WELD) 或MMAW (MANUAL METAL ARC WELD)26埋弧焊：SUBMERGED ARC WELD27定位焊：TACK WELD28点焊：SPOT WELD29连续焊：CONTINUOUS WELD 30间断焊：INTERMITTENT WELD 31焊后热处理： PWHT (POST WELD HEAT TREATMENT)32红丹：RED-LEAD33镀锌：GALVANIZATION34酸洗钝化：PICKLING35泪孔：WEEP HOLE36半圆孔：SEMICIRCLE37长圆孔：LONG ROUND HOLE 38对开：OPPOSITE ORIENTED 39削薄过渡：TAPERED TRANSITION40与封头内壁吻合：AS PER LOCATED INNERSUREFACE OF HEAD41组焊后加工： MACHINED AFTER WELDING42法兰密封面待组焊后加工：THE FLANGE SEAL SURFACESHALL BE MECHINED AFTER WELDING43安装就位后点焊：SPOT-WELDED AFTER INSTALLATION 44热处理后加工：MECHINED AFTER PWHT45（由制造厂（决定最终尺寸：FINAL DIMENSION BY MANUFACTURER46衬里和填充料重量：LINING AND FILLING WEIGHT47修改版次：REVISION48标记：MARKED49管口标高、尺寸和等级：ELEVATION SIZE AND RATING OF NOZZLES8技术要求及特性表中常用语1 FLUID (OR MEDIUM)：介质2 FLAMMABLE：易燃3 HAZARDOUS：危害性的4 TOXIC：毒性5 LETHAL：致死的6 SPEC. GRAV.：密度（填充物的7 DEW POINT：露点8 DESIGN PRESSURE：设计压力9 DESIGN TEMPERATURE：设计温度10OPERATING PRESSURE (TEMPERATURE)：操作压力（温度11MAX OPERATING PRESS & TEMPERATURE：最大操作压力（温度12JOINT EFFICENCY：焊接接头系数13CORROSION ALLOWANCE：腐蚀裕度14INSULATION THICKNESS (WARM/COLD/SOUND)：保温层厚度（暖、冷、声15ULTROSONIC EXAMINATION：超声波检测16RADIOGRAPHIC EXAMINATION：射线检测17HYDROSTATIC TEST：水压试验18PHNEUMATIC TEST：气压试验19LEAKAGE TEST：气密性试验20KEROSENE LEAKAGE TEST：煤油渗透试验21AMMONIA GAS LEAKAGE TEST：氨渗透试验22HEAT TRANSFER AREA：换热面积23TRIANGULAR PATTERN：三角形排列24SQUARE PATTERN：正方形排列25SAFETY VALVE SET PRESSURE：安全阀启跳压力26RUPTURE DISK BURSTING PRESSURE：爆破膜爆破压力27NET WEIGHT：净重 N.W28EMPTY WEIGHT：空重 E.W 29WEIGHT WITH WATER：充水重30TOTAL WEIGHT：总重 T.W 31VACUUM：真空32FULL VACUUM：全真空 F.V 33CAPACITY：容积34MINIMUM DESIGN METAL TEMPERATURE：MDMT最低金属应力温度35INTERGRANULAR CORROSION TEST：晶间腐蚀试验36IMPACT TEST：冲击试验37IMPACT SPECIMEN：冲击试样38CHARPY IMPACT TEST：夏比冲击试验39MINIMUM IMPACT ENERGY：最小冲击功40V-NOTCH：V型切口9常用技术要求的英文译法1 采用锻件按JB4726 II级为合格： FORGING MATERIAL SHOULD BE APPLIED AND INSPECTED AS II OF JB4726 REQUIREMENTS2 焊接采用电焊，焊条牌号为×××： SMAW SHALL BE APPLIED, AND THE ELECTORDE TYPE IS ×××3 补充技术要求： SUPPLEMENT TECHNICAL REQUIREMENTS4 未注明角焊缝焊角高度按较薄板厚度：UNLESS OTHERWISE SPECIFIED, THE FILLET WELD LEG SIZE SHALL BE EQUAL TO THE THICKNESS OF THE THINNER PLATE TO BE WELDED ON.5 板材以正火状态供货：THE STEEL PLATE (可填具体材料) SHALL BE SUPPLIED AS NORMALIZED CONDITION6 除图中注明外，焊接接头型式及尺寸按HG20583-1998中规定，法兰的焊接按相应法兰标准规定：UNLESS OTHERWISE SPECIFIED IN THIS HEREIN DWG, THE WELD TYPES AND DIMENSIONS SHALL BE AS PER STIPULATED IN HG20583-1998, ANDPIPE(OR NECK) TO FLANGE JOINTS AS PER RELEVANT FLANGE STANDARDS REGULATIONS7 未注圆角为Rx：UNLESS OTHERWISE SPECIFIED, THE ROUND RADIUS IS Rx8 未注倒角为××：UNLESS OTHERWISE SPECIFIED, THE DIMENSION OF CHAMPERIS ××9 “A”与“B”配钻：“A” SHALL BE DRILLED WITH “B” TOGETHER10“A”与“B”对中：SAME AXIES FOR “A” AND “B”11含××半圆孔：×× SEMICIRCLE HOLES COUNTED10 常用介质1 HYDROGEN：氢气2 OXYGEN：氧气3 NITROGEN：氮气4 CARBON OXIDE：一氧化碳5 CARBON DIOXIDE：二氧化碳6 HYDROGEN SULFIDE (H2S)：硫化氢7 AMMONIA (NH3)：氨8 METHANOL：甲醇9 INERT GAS：惰性气10LPG(LIQUEFIED PETROLEUM GAS)：液化石油气11SOUR GAS：酸性12ALKALIZATIONWATER(ALKALIZED WATER)脱盐水：13SYNGAS (OR SYNTHESIS GAS)：合成气14SHIFTED GAS：变换气15RECYCLE GAS：循环气16POLYMETER：聚合物17DIESEL：柴油18METHANE：甲烷19RESIDUE OIL：渣油20CRUDE OIL：原油11 其他1 LIST OF ATT. DOC. NO. ：附表号2 ORIENT. OF NOZ. DOC.NO. ：管口方位文件号3 PROJ. NO. ：项目号4 PROCESS DATA SHEET：工艺数据表5 PERSONNEL PROT：人员保护6 FIRE PROOFING：防火LAHH高高液位报警口LAH高液位报警口NLL正常液位LAL低液位报警LALL 低低液位报警found some errorlike translation, suggested as following will be more suitable.设计图 design施工图 construction drawing , final平面图 plan , arrangement drawing立面图 elevation, side view轴测图、透视图 isometric drawing；详图、大样图、接点图detaildrawing流量 flow volume流速 flow velocity, flow speed一览表 list； breviate；catalogue, detail summary支座 saddle for transform face and foundation for equipments, 支架 support中国的销售商 the sole Chinese distributor能量恢复系统 Energy Recovery Systems工作现场，工地 jobsiteplus:系统原理图P&ID (Piping And Instrument Diagram)大小头 reducer盲板法兰spectacle flange盲板blind flangeand :angle bar, flat bar, round bar, bould plate, bulkplate, ...............。
