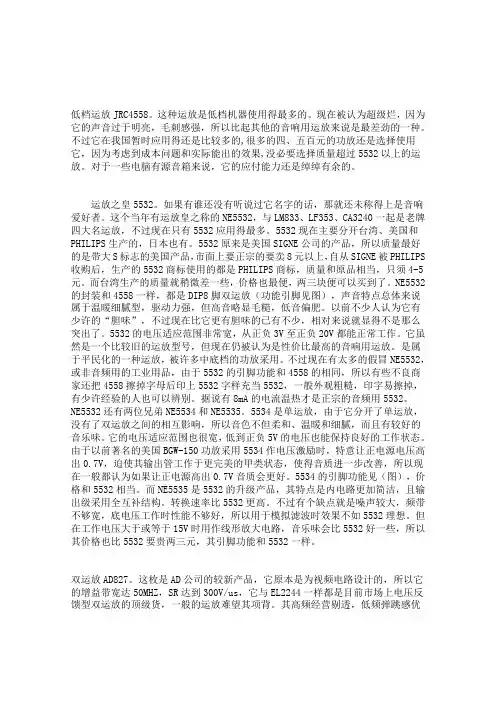

低档运放JRC4558。
这种运放是低档机器使用得最多的。
现在被认为超级烂，因为它的声音过于明亮，毛刺感强，所以比起其他的音响用运放来说是最差劲的一种。
不过它在我国暂时应用得还是比较多的,很多的四、五百元的功放还是选择使用它，因为考虑到成本问题和实际能出的效果,没必要选择质量超过5532以上的运放。
对于一些电脑有源音箱来说，它的应付能力还是绰绰有余的。
运放之皇5532。
如果有谁还没有听说过它名字的话，那就还未称得上是音响爱好者。
这个当年有运放皇之称的NE5532，与LM833、LF353、CA3240一起是老牌四大名运放，不过现在只有5532应用得最多。
5532现在主要分开台湾、美国和PHILIPS生产的，日本也有。
5532原来是美国SIGNE公司的产品，所以质量最好的是带大S标志的美国产品，市面上要正宗的要卖8元以上，自从SIGNE被PHILIPS 收购后，生产的5532商标使用的都是PHILIPS商标，质量和原品相当，只须4-5元。
而台湾生产的质量就稍微差一些，价格也最便，两三块便可以买到了。
NE5532的封装和4558一样，都是DIP8脚双运放（功能引脚见图），声音特点总体来说属于温暖细腻型，驱动力强，但高音略显毛糙，低音偏肥。
以前不少人认为它有少许的“胆味”，不过现在比它更有胆味的已有不少，相对来说就显得不是那么突出了。
5532的电压适应范围非常宽，从正负3V至正负20V都能正常工作。
它虽然是一个比较旧的运放型号，但现在仍被认为是性价比最高的音响用运放。
是属于平民化的一种运放，被许多中底档的功放采用。
不过现在有太多的假冒NE5532，或非音频用的工业用品，由于5532的引脚功能和4558的相同，所以有些不良商家还把4558擦掉字母后印上5532字样充当5532，一般外观粗糙，印字易擦掉，有少许经验的人也可以辨别。
据说有8mA的电流温热才是正宗的音频用5532。
NE5532还有两位兄弟NE5534和NE5535。

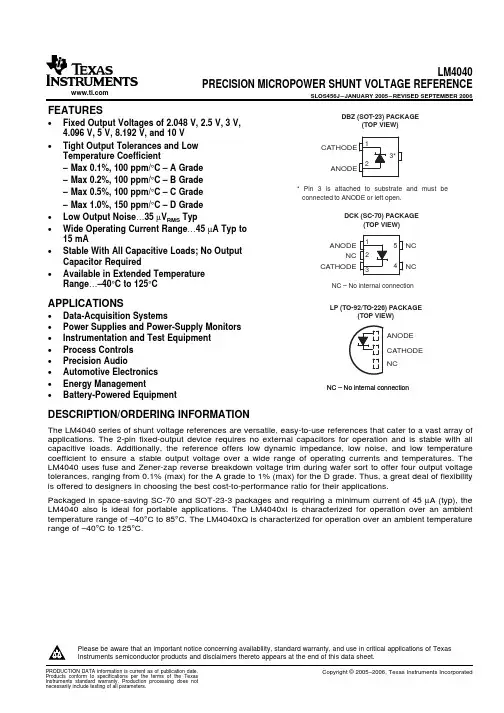

FEATURESAPPLICATIONS* Pin 3 is attached to substrate and must beconnected to ANODE or left open.DBZ (SOT-23) PACKAGE(TOP VIEW)DCK (SC-70) PACKAGE(TOP VIEW)ANODENCCATHODELP (TO-92/TO-226) PACKAGE(TOP VIEW)NC – No internal connectionNC – No internal connection DESCRIPTION/ORDERING INFORMATIONPRECISION MICROPOWER SHUNT VOLTAGE REFERENCESLOS456J–JANUARY2005–REVISED SEPTEMBER2006•Fixed Output Voltages of2.048V,2.5V,3V,4.096V,5V,8.192V,and10V•Tight Output Tolerances and LowTemperature Coefficient–Max0.1%,100ppm/°C–A Grade–Max0.2%,100ppm/°C–B Grade–Max0.5%,100ppm/°C–C Grade–Max1.0%,150ppm/°C–D Grade•Low Output Noise…35µV RMS Typ•Wide Operating Current Range…45µA Typ to15mA•Stable With All Capacitive Loads;No OutputCapacitor Required•Available in Extended TemperatureRange…–40°C to125°C•Data-Acquisition Systems•Power Supplies and Power-Supply Monitors•Instrumentation and Test Equipment•Process Controls•Precision Audio•Automotive Electronics•Energy Management•Battery-Powered EquipmentThe LM4040series of shunt voltage references are versatile,easy-to-use references that cater to a vast array of applications.The2-pin fixed-output device requires no external capacitors for operation and is stable with all capacitive loads.Additionally,the reference offers low dynamic impedance,low noise,and low temperature coefficient to ensure a stable output voltage over a wide range of operating currents and temperatures.The LM4040uses fuse and Zener-zap reverse breakdown voltage trim during wafer sort to offer four output voltage tolerances,ranging from0.1%(max)for the A grade to1%(max)for the D grade.Thus,a great deal of flexibility is offered to designers in choosing the best cost-to-performance ratio for their applications.Packaged in space-saving SC-70and SOT-23-3packages and requiring a minimum current of45µA(typ),the LM4040also is ideal for portable applications.The LM4040xI is characterized for operation over an ambient temperature range of–40°C to85°C.The LM4040xQ is characterized for operation over an ambient temperature range of–40°C to125°C.Please be aware that an important notice concerning availability,standard warranty,and use in critical applications of TexasInstruments semiconductor products and disclaimers thereto appears at the end of this data sheet.PRODUCTION DATA information is current as of publication date.Copyright©2005–2006,Texas Instruments Incorporated Products conform to specifications per the terms of the TexasInstruments standard warranty.Production processing does notnecessarily include testing of all parameters.PRECISION MICROPOWER SHUNT VOLTAGE REFERENCESLOS456J–JANUARY 2005–REVISED SEPTEMBER 2006ORDERING INFORMATIONDEVICE ORDERABLE TOP-SIDE T AV KAPACKAGE (1)GRADEPART NUMBER MARKING (2)SC-70(DCK)Reel of 3000LM4040A20IDCKR MS_Reel of 3000LM4040A20IDBZR SOT-23-3(DBZ)4MC_2.048VReel of 250LM4040A20IDBZT Bulk of 1000LM4040A20ILP TO-92/TO-226(LP)PREVIEW Reel of 2000LM4040A20ILPR SC-70(DCK)Reel of 3000LM4040A25IDCKR P2_Reel of 3000LM4040A25IDBZR SOT-23-3(DBZ)4NG_2.5VReel of 250LM4040A25IDBZT Bulk of 1000LM4040A25ILP TO-92/TO-226(LP)PREVIEW Reel of 2000LM4040A25ILPR SC-70(DCK)Reel of 3000LM4040A30IDCKR P9_Reel of 3000LM4040A30IDBZR SOT-23-3(DBZ)4M6_3VReel of 250LM4040A30IDBZT Bulk of 1000LM4040A30ILP TO-92/TO-226(LP)PREVIEW Reel of 2000LM4040A30ILPR A grade:SC-70(DCK)Reel of 3000LM4040A41IDCKR P4_0.1%initial Reel of 3000LM4040A41IDBZR accuracy SOT-23-3(DBZ)4M2_–40°C to 85°Cand 4.096VReel of 250LM4040A41IDBZT 100ppm/°C Bulk of 1000LM4040A41ILP temperature TO-92/TO-226(LP)PREVIEW Reel of 2000LM4040A41ILPR coefficientSC-70(DCK)Reel of 3000LM4040A50IDCKR N5_Reel of 3000LM4040A50IDBZR SOT-23-3(DBZ)4NA_5VReel of 250LM4040A50IDBZT Bulk of 1000LM4040A50ILP TO-92/TO-226(LP)PREVIEW Reel of 2000LM4040A50ILPR SC-70(DCK)Reel of 3000LM4040A82IDCKR PD_Reel of 3000LM4040A82IDBZR SOT-23-3(DBZ)4NL_8.192VReel of 250LM4040A82IDBZT Bulk of 1000LM4040A82ILP TO-92/TO-226(LP)PREVIEW Reel of 2000LM4040A82ILPR SC-70(DCK)Reel of 3000LM4040A10IDCKR PH_Reel of 3000LM4040A10IDBZR SOT-23-3(DBZ)4NQ_10VReel of 250LM4040A10IDBZT Bulk of 1000LM4040A10ILP TO-92/TO-226(LP)PREVIEWReel of 2000LM4040A10ILPR(1)Package drawings,standard packing quantities,thermal data,symbolization,and PCB design guidelines are available at /sc/package.(2)DBZ/DCK:The actual top-side marking has one additional character that designates the assembly/test site.2Submit Documentation FeedbackPRECISION MICROPOWER SHUNT VOLTAGE REFERENCESLOS456J–JANUARY2005–REVISED SEPTEMBER2006 ORDERING INFORMATION(continued)DEVICE ORDERABLE TOP-SIDET A V KA PACKAGE(1)GRADE PART NUMBER MARKING(2)SC-70(DCK)Reel of3000LM4040B20IDCKR MT_Reel of3000LM4040B20IDBZRSOT-23-3(DBZ)4MD_2.048V Reel of250LM4040B20IDBZTBulk of1000LM4040B20ILPTO-92/TO-226(LP)PREVIEWReel of2000LM4040B20ILPRSC-70(DCK)Reel of3000LM4040B25IDCKR P3_Reel of3000LM4040B25IDBZRSOT-23-3(DBZ)4NH_2.5V Reel of250LM4040B25IDBZTBulk of1000LM4040B25ILPTO-92/TO-226(LP)PREVIEWReel of2000LM4040B25ILPRSC-70(DCK)Reel of3000LM4040B30IDCKR PA_Reel of3000LM4040B30IDBZRSOT-23-3(DBZ)4M7_3V Reel of250LM4040B30IDBZTBulk of1000LM4040B30ILPTO-92/TO-226(LP)PREVIEWReel of2000LM4040B30ILPRB grade:SC-70(DCK)Reel of3000LM4040B41IDCKR P5_0.2%initialReel of3000LM4040B41IDBZRaccuracy SOT-23-3(DBZ)4M3_–40°C to85°C and 4.096V Reel of250LM4040B41IDBZT100ppm/°C Bulk of1000LM4040B41ILPtemperature TO-92/TO-226(LP)PREVIEWReel of2000LM4040B41ILPRcoefficientSC-70(DCK)Reel of3000LM4040B50IDCKR MX_Reel of3000LM4040B50IDBZRSOT-23-3(DBZ)4NB_5V Reel of250LM4040B50IDBZTBulk of1000LM4040B50ILPTO-92/TO-226(LP)PREVIEWReel of2000LM4040B50ILPRSC-70(DCK)Reel of3000LM4040B82IDCKR PE_Reel of3000LM4040B82IDBZRSOT-23-3(DBZ)4NM_8.192V Reel of250LM4040B82IDBZTBulk of1000LM4040B82ILPTO-92/TO-226(LP)PREVIEWReel of2000LM4040B82ILPRSC-70(DCK)Reel of3000LM4040B10IDCKR PJ_Reel of3000LM4040B10IDBZRSOT-23-3(DBZ)4NR_10V Reel of250LM4040B10IDBZTBulk of1000LM4040B10ILPTO-92/TO-226(LP)PREVIEWReel of2000LM4040B10ILPR3Submit Documentation FeedbackPRECISION MICROPOWER SHUNT VOLTAGE REFERENCESLOS456J–JANUARY 2005–REVISED SEPTEMBER 2006ORDERING INFORMATION (continued)DEVICE ORDERABLE TOP-SIDE T AV KAPACKAGE (1)GRADEPART NUMBER MARKING (2)SC-70(DCK)Reel of 3000LM4040C20IDCKR MV_Reel of 3000LM4040C20IDBZR SOT-23-3(DBZ)4MQ_2.048VReel of 250LM4040C20IDBZT Bulk of 1000LM4040C20ILP TO-92/TO-226(LP)PREVIEW Reel of 2000LM4040C20ILPR SC-70(DCK)Reel of 3000LM4040C25IDCKR M4_Reel of 3000LM4040C25IDBZR SOT-23-3(DBZ)4MU_2.5VReel of 250LM4040C25IDBZT Bulk of 1000LM4040C25ILP TO-92/TO-226(LP)NCF25I Reel of 2000LM4040C25ILPR SC-70(DCK)Reel of 3000LM4040C30IDCKR PB_Reel of 3000LM4040C30IDBZR SOT-23-3(DBZ)4M8_3VReel of 250LM4040C30IDBZT Bulk of 1000LM4040C30ILP TO-92/TO-226(LP)PREVIEW Reel of 2000LM4040C30ILPR C grade:SC-70(DCK)Reel of 3000LM4040C41IDCKR P6_0.5%initial Reel of 3000LM4040C41IDBZR accuracy SOT-23-3(DBZ)4M4_–40°C to 85°Cand 4.096VReel of 250LM4040C41IDBZT 100ppm/°C Bulk of 1000LM4040C41ILP temperature TO-92/TO-226(LP)PREVIEW Reel of 2000LM4040C41ILPR coefficientSC-70(DCK)Reel of 3000LM4040C50IDCKR MZ_Reel of 3000LM4040C50IDBZR SOT-23-3(DBZ)4NC_5VReel of 250LM4040C50IDBZT Bulk of 1000LM4040C50ILP TO-92/TO-226(LP)PREVIEW Reel of 2000LM4040C50ILPR SC-70(DCK)Reel of 3000LM4040C82IDCKR PF_Reel of 3000LM4040C82IDBZR SOT-23-3(DBZ)4NN_8.192VReel of 250LM4040C82IDBZT Bulk of 1000LM4040C82ILP TO-92/TO-226(LP)PREVIEW Reel of 2000LM4040C82ILPR SC-70(DCK)Reel of 3000LM4040C10IDCKR PK_Reel of 3000LM4040C10IDBZR SOT-23-3(DBZ)4NS_10VReel of 250LM4040C10IDBZT Bulk of 1000LM4040C10ILP TO-92/TO-226(LP)NFC10IReel of 2000LM4040C10ILPR4Submit Documentation FeedbackPRECISION MICROPOWER SHUNT VOLTAGE REFERENCESLOS456J–JANUARY2005–REVISED SEPTEMBER2006 ORDERING INFORMATION(continued)DEVICE ORDERABLE TOP-SIDET A V KA PACKAGE(1)GRADE PART NUMBER MARKING(2)SC-70(DCK)Reel of3000LM4040D20IDCKR MW_Reel of3000LM4040D20IDBZRSOT-23-3(DBZ)4MV_2.048V Reel of250LM4040D20IDBZTBulk of1000LM4040D20ILPTO-92/TO-226(LP)PREVIEWReel of2000LM4040D20ILPRSC-70(DCK)Reel of3000LM4040D25IDCKR ME_Reel of3000LM4040D25IDBZRSOT-23-3(DBZ)4ME_2.5V Reel of250LM4040D25IDBZTBulk of1000LM4040D25ILPTO-92/TO-226(LP)NFD25IReel of2000LM4040D25ILPRSC-70(DCK)Reel of3000LM4040D30IDCKR PC_Reel of3000LM4040D30IDBZRSOT-23-3(DBZ)4M9_3V Reel of250LM4040D30IDBZTBulk of1000LM4040D30ILPTO-92/TO-226(LP)PREVIEWReel of2000LM4040D30ILPRD grade:SC-70(DCK)Reel of3000LM4040D41IDCKR P7_1.0%initialReel of3000LM4040D41IDBZRaccuracy SOT-23-3(DBZ)4M5_–40°C to85°C and 4.096V Reel of250LM4040D41IDBZT150ppm/°C Bulk of1000LM4040D41ILPtemperature TO-92/TO-226(LP)PREVIEWReel of2000LM4040D41ILPRcoefficientSC-70(DCK)Reel of3000LM4040D50IDCKR M4_Reel of3000LM4040D50IDBZRSOT-23-3(DBZ)4ND_5V Reel of250LM4040D50IDBZTBulk of1000LM4040D50ILPTO-92/TO-226(LP)PREVIEWReel of2000LM4040D50ILPRSC-70(DCK)Reel of3000LM4040D82IDCKR PG_Reel of3000LM4040D82IDBZRSOT-23-3(DBZ)4NP_8.192V Reel of250LM4040D82IDBZTBulk of1000LM4040D82ILPTO-92/TO-226(LP)PREVIEWReel of2000LM4040D82ILPRSC-70(DCK)Reel of3000LM4040D10IDCKR PL_Reel of3000LM4040D10IDBZRSOT-23-3(DBZ)4NT_10V Reel of250LM4040D10IDBZTBulk of1000LM4040D10ILPTO-92/TO-226(LP)NFD10IReel of2000LM4040D10ILPR5Submit Documentation FeedbackPRECISION MICROPOWER SHUNT VOLTAGE REFERENCESLOS456J–JANUARY 2005–REVISED SEPTEMBER 2006ORDERING INFORMATION (continued)DEVICE ORDERABLE TOP-SIDE T AV KA PACKAGE (1)GRADEPART NUMBER MARKING (2)Reel of 3000LM4040C20QDBZR 2.048V4MW_Reel of 250LM4040C20QDBZT C grade:Reel of 3000LM4040C25QDBZR 0.5%initial 2.5V4MA_accuracy Reel of 250LM4040C25QDBZT and SOT-23-3(DBZ)Reel of 3000LM4040C30QDBZR 100ppm/°C 3V 4NJ_temperature Reel of 250LM4040C30QDBZT coefficientReel of 3000LM4040C50QDBZR 5V4NE_Reel of 250LM4040C50QDBZT –40°C to 125°CReel of 3000LM4040D20QDBZR 2.048V4MY_Reel of 250LM4040D20QDBZT D grade:Reel of 3000LM4040D25QDBZR 1.0%initial 2.5V4MB_accuracy Reel of 250LM4040D25QDBZT and SOT-23-3(DBZ)Reel of 3000LM4040D30QDBZR 150ppm/°C 3V 4NK_temperature Reel of 250LM4040D30QDBZT coefficientReel of 3000LM4040D50QDBZR 5V 4NF_Reel of 250LM4040D50QDBZT6Submit Documentation FeedbackAbsolute Maximum Ratings (1)Recommended Operating ConditionsPRECISION MICROPOWER SHUNT VOLTAGE REFERENCESLOS456J–JANUARY 2005–REVISED SEPTEMBER 2006FUNCTIONAL BLOCK DIAGRAMover free-air temperature range (unless otherwise noted)MINMAX UNIT I Z Continuous cathode current–1025mADBZ package206θJA Package thermal impedance (2)(3)DCK package 252°C/W LP package156T J Operating virtual junction temperature 150°C T stg Storage temperature range–65150°C (1)Stresses beyond those listed under "absolute maximum ratings"may cause permanent damage to the device.These are stress ratings only,and functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions"is not implied.Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.(2)Maximum power dissipation is a function of T J (max),θJA ,and T A .The maximum allowable power dissipation at any allowable ambient temperature is P D =(T J (max)–T A )/θJA .Operating at the absolute maximum T J of 150°C can affect reliability.(3)The package thermal impedance is calculated in accordance with JESD 51-7.MINMAX UNIT I Z Cathode current (1)12mA LM4040xxxI –4085T A Free-air temperature °CLM4040xxxQ–40125(1)See parametric tables7Submit Documentation FeedbackLM4040x20I Electrical CharacteristicsPRECISION MICROPOWER SHUNT VOLTAGE REFERENCESLOS456J–JANUARY 2005–REVISED SEPTEMBER 2006at industrial temperature range,full-range T A =–40°C to 85°C (unless otherwise noted)(1)Thermal hysteresis is defined as V Z,25°C (after cycling to –40°C)–V Z,25°C (after cycling to 125°C).8Submit Documentation FeedbackLM4040x20I Electrical CharacteristicsPRECISION MICROPOWER SHUNT VOLTAGE REFERENCESLOS456J–JANUARY 2005–REVISED SEPTEMBER 2006at industrial temperature range,full-range T A =–40°C to 85°C (unless otherwise noted)(1)Thermal hysteresis is defined as V Z,25°C (after cycling to –40°C)–V Z,25°C (after cycling to 125°C).9Submit Documentation FeedbackLM4040x20Q Electrical CharacteristicsPRECISION MICROPOWER SHUNT VOLTAGE REFERENCESLOS456J–JANUARY 2005–REVISED SEPTEMBER 2006at extended temperature range,full-range T A =–40°C to 125°C (unless otherwise noted)(1)Thermal hysteresis is defined as V Z,25°C (after cycling to –40°C)–V Z,25°C (after cycling to 125°C).10Submit Documentation FeedbackLM4040x25I Electrical CharacteristicsPRECISION MICROPOWER SHUNT VOLTAGE REFERENCESLOS456J–JANUARY 2005–REVISED SEPTEMBER 2006at industrial temperature range,full-range T A =–40°C to 85°C (unless otherwise noted)(1)Thermal hysteresis is defined as V Z,25°C (after cycling to –40°C)–V Z,25°C (after cycling to 125°C).LM4040x25I Electrical CharacteristicsPRECISION MICROPOWER SHUNT VOLTAGE REFERENCESLOS456J–JANUARY 2005–REVISED SEPTEMBER 2006at industrial temperature range,full-range T A =–40°C to 85°C (unless otherwise noted)(1)Thermal hysteresis is defined as V Z,25°C (after cycling to –40°C)–V Z,25°C (after cycling to 125°C).LM4040x25Q Electrical CharacteristicsPRECISION MICROPOWER SHUNT VOLTAGE REFERENCESLOS456J–JANUARY 2005–REVISED SEPTEMBER 2006at extended temperature range,full-range T A =–40°C to 125°C (unless otherwise noted)(1)Thermal hysteresis is defined as V Z,25°C (after cycling to –40°C)–V Z,25°C (after cycling to 125°C).LM4040x30I Electrical CharacteristicsPRECISION MICROPOWER SHUNT VOLTAGE REFERENCESLOS456J–JANUARY 2005–REVISED SEPTEMBER 2006at industrial temperature range,full-range T A =–40°C to 85°C (unless otherwise noted)(1)Thermal hysteresis is defined as V Z,25°C (after cycling to –40°C)–V Z,25°C (after cycling to 125°C).LM4040x30I Electrical CharacteristicsPRECISION MICROPOWER SHUNT VOLTAGE REFERENCESLOS456J–JANUARY 2005–REVISED SEPTEMBER 2006at industrial temperature range,full-range T A =–40°C to 85°C (unless otherwise noted)(1)Thermal hysteresis is defined as V Z,25°C (after cycling to –40°C)–V Z,25°C (after cycling to 125°C).LM4040x30Q Electrical CharacteristicsPRECISION MICROPOWER SHUNT VOLTAGE REFERENCESLOS456J–JANUARY 2005–REVISED SEPTEMBER 2006at extended temperature range,full-range T A =–40°C to 125°C (unless otherwise noted)(1)Thermal hysteresis is defined as V Z,25°C (after cycling to –40°C)–V Z,25°C (after cycling to 125°C).LM4040x41I Electrical CharacteristicsPRECISION MICROPOWER SHUNT VOLTAGE REFERENCESLOS456J–JANUARY 2005–REVISED SEPTEMBER 2006at industrial temperature range,full-range T A =–40°C to 85°C (unless otherwise noted)(1)Thermal hysteresis is defined as V Z,25°C (after cycling to –40°C)–V Z,25°C (after cycling to 125°C).LM4040x41I Electrical CharacteristicsPRECISION MICROPOWER SHUNT VOLTAGE REFERENCESLOS456J–JANUARY 2005–REVISED SEPTEMBER 2006at industrial temperature range,full-range T A =–40°C to 85°C (unless otherwise noted)(1)Thermal hysteresis is defined as V Z,25°C (after cycling to –40°C)–V Z,25°C (after cycling to 125°C).LM4040x50I Electrical CharacteristicsPRECISION MICROPOWER SHUNT VOLTAGE REFERENCESLOS456J–JANUARY 2005–REVISED SEPTEMBER 2006at industrial temperature range,full-range T A =–40°C to 85°C (unless otherwise noted)(1)Thermal hysteresis is defined as V Z,25°C (after cycling to –40°C)–V Z,25°C (after cycling to 125°C).LM4040x50I Electrical CharacteristicsPRECISION MICROPOWER SHUNT VOLTAGE REFERENCESLOS456J–JANUARY 2005–REVISED SEPTEMBER 2006at industrial temperature range,full-range T A =–40°C to 85°C (unless otherwise noted)(1)Thermal hysteresis is defined as V Z,25°C (after cycling to –40°C)–V Z,25°C (after cycling to 125°C).LM4040x50Q Electrical CharacteristicsLM4040PRECISION MICROPOWER SHUNT VOLTAGE REFERENCESLOS456J–JANUARY 2005–REVISED SEPTEMBER 2006at extended temperature range,full-range T A =–40°C to 125°C (unless otherwise noted)(1)Thermal hysteresis is defined as V Z,25°C (after cycling to –40°C)–V Z,25°C (after cycling to 125°C).LM4040x82I Electrical CharacteristicsLM4040PRECISION MICROPOWER SHUNT VOLTAGE REFERENCESLOS456J–JANUARY 2005–REVISED SEPTEMBER 2006at industrial temperature range,full-range T A =–40°C to 85°C (unless otherwise noted)(1)Thermal hysteresis is defined as V Z,25°C (after cycling to –40°C)–V Z,25°C (after cycling to 125°C).LM4040x82I Electrical CharacteristicsLM4040PRECISION MICROPOWER SHUNT VOLTAGE REFERENCESLOS456J–JANUARY 2005–REVISED SEPTEMBER 2006at industrial temperature range,full-range T A =–40°C to 85°C (unless otherwise noted)(1)Thermal hysteresis is defined as V Z,25°C (after cycling to –40°C)–V Z,25°C (after cycling to 125°C).LM4040x10I Electrical CharacteristicsLM4040PRECISION MICROPOWER SHUNT VOLTAGE REFERENCESLOS456J–JANUARY 2005–REVISED SEPTEMBER 2006at industrial temperature range,full-range T A =–40°C to 85°C (unless otherwise noted)(1)Thermal hysteresis is defined as V Z,25°C (after cycling to –40°C)–V Z,25°C (after cycling to 125°C).LM4040x10I Electrical CharacteristicsLM4040PRECISION MICROPOWER SHUNT VOLTAGE REFERENCESLOS456J–JANUARY 2005–REVISED SEPTEMBER 2006at industrial temperature range,full-range T A =–40°C to 85°C (unless otherwise noted)(1)Thermal hysteresis is defined as V Z,25°C (after cycling to –40°C)–V Z,25°C (after cycling to 125°C).TYPICAL CHARACTERISTICSTemperature (_C)V Z , C h a n g e (%)1001k1M10k100k Frequency (Hz)Z Z , D y n a m i c O u t p u t I m p e d a n c e(Ω)1001k1M10k100k Frequency (Hz)Z Z , D y n a m i c O u t p u t I m p e d a n ce (Ω)V Z , Reverse Voltage (V)I Z , C a t h o d e C u r r e n t (µA )Frequency (Hz)N o i s e (µV P /H z )1010.1−10123456−10102030405060708090V Z (V )Response Time (µs)V I N (V )6420−2−4−6−8−10−12LM4040PRECISION MICROPOWER SHUNT VOLTAGE REFERENCESLOS456J–JANUARY 2005–REVISED SEPTEMBER 2006Figure 1.Temperature Drift for Different AverageFigure 2.Output Impedance vs FrequencyTemperature CoefficientsFigure 3.Output Impedance vs FrequencyFigure 4.Temperature Drift for Different AverageTemperature CoefficientFigure 5.Noise Voltage vs Frequency Figure 6.Start-Up CharacteristicsAPPLICATION INFORMATIONStart-Up CharacteristicsR V INOutput CapacitorSOT-23ConnectionsUse With ADCs or DACs5-V Analog SupplyLM4040PRECISION MICROPOWER SHUNT VOLTAGE REFERENCESLOS456J–JANUARY 2005–REVISED SEPTEMBER 2006Figure 7.Test CircuitThe LM4040does not require an output capacitor across cathode and anode for stability.However,if an output bypass capacitor is desired,the LM4040is designed to be stable with all capacitive loads.There is a parasitic Schottky diode connected between pins 2and 3of the SOT-23packaged device.Thus,pin 3of the SOT-23package must be left floating or connected to pin 2.The LM4040x-41is designed to be a cost-effective voltage reference as required in 12-bit data-acquisition systems.For 12-bit systems operating from 5-V supplies such as the ADS7842(see Figure 8),the LM4040x-41(4.096V)permits operation with an LSB of 1mV.Figure 8.Data-Acquisition Circuit With LM4040x-41 Cathode and Load CurrentsRS+ǒVS*V ZǓ(IL)I Z)(1)LM4040VV ZR SLM4040PRECISION MICROPOWER SHUNT VOLTAGE REFERENCESLOS456J–JANUARY2005–REVISED SEPTEMBER2006APPLICATION INFORMATION(continued)In a typical shunt-regulator configuration(see Figure9),an external resistor,R S,is connected between the supply and the cathode of the LM4040.R S must be set properly,as it sets the total current available to supply the load(I L)and bias the LM4040(I Z).In all cases,I Z must stay within a specified range for proper operation of the reference.Taking into consideration one extreme in the variation of the load and supply voltage(maximum I L and minimum V S),R S must be small enough to supply the minimum I Z required for operation of the regulator,as given by data-sheet parameters.At the other extreme,maximum V S and minimum I L,R S must be large enough to limit I Z to less than its maximum-rated value of15mA.R S is calculated according to Equation1:Figure9.Shunt RegulatorPACKAGING INFORMATIONOrderableDevice Status (1)Package Type Package Drawing Pins Package Qty Eco Plan (2)Lead/Ball Finish MSL Peak Temp (3)LM4040A10IDBZR ACTIVE SOT-23DBZ 33000Green (RoHS &no Sb/Br)CU NIPDAU Level-1-260C-UNLIM LM4040A10IDBZRG4ACTIVE SOT-23DBZ 33000Green (RoHS &no Sb/Br)CU NIPDAU Level-1-260C-UNLIM LM4040A10IDBZT ACTIVE SOT-23DBZ 3250Green (RoHS &no Sb/Br)CU NIPDAU Level-1-260C-UNLIM LM4040A10IDBZTG4ACTIVE SOT-23DBZ 3250Green (RoHS &no Sb/Br)CU NIPDAU Level-1-260C-UNLIM LM4040A10IDCKR ACTIVE SC70DCK 53000Green (RoHS &no Sb/Br)CU NIPDAU Level-1-260C-UNLIM LM4040A10IDCKRG4ACTIVE SC70DCK 53000Green (RoHS &no Sb/Br)CU NIPDAU Level-1-260C-UNLIM LM4040A10ILP PREVIEW TO-92LP 31000TBD Call TI Call TI LM4040A10ILPR PREVIEW TO-92LP 32000TBDCall TI Call TILM4040A20IDBZR ACTIVE SOT-23DBZ 33000Green (RoHS &no Sb/Br)CU NIPDAU Level-1-260C-UNLIM LM4040A20IDBZRG4ACTIVE SOT-23DBZ 33000Green (RoHS &no Sb/Br)CU NIPDAU Level-1-260C-UNLIM LM4040A20IDBZT ACTIVE SOT-23DBZ 3250Green (RoHS &no Sb/Br)CU NIPDAU Level-1-260C-UNLIM LM4040A20IDBZTG4ACTIVE SOT-23DBZ 3250Green (RoHS &no Sb/Br)CU NIPDAU Level-1-260C-UNLIM LM4040A20IDCKR ACTIVE SC70DCK 53000Green (RoHS &no Sb/Br)CU NIPDAU Level-1-260C-UNLIM LM4040A20IDCKRE4ACTIVE SC70DCK 53000Green (RoHS &no Sb/Br)CU NIPDAU Level-1-260C-UNLIM LM4040A20IDCKRG4ACTIVE SC70DCK 53000Green (RoHS &no Sb/Br)CU NIPDAU Level-1-260C-UNLIM LM4040A25IDBZR ACTIVE SOT-23DBZ 33000Green (RoHS &no Sb/Br)CU NIPDAU Level-1-260C-UNLIM LM4040A25IDBZRG4ACTIVE SOT-23DBZ 33000Green (RoHS &no Sb/Br)CU NIPDAU Level-1-260C-UNLIM LM4040A25IDBZT ACTIVE SOT-23DBZ 3250Green (RoHS &no Sb/Br)CU NIPDAU Level-1-260C-UNLIM LM4040A25IDBZTG4ACTIVE SOT-23DBZ 3250Green (RoHS &no Sb/Br)CU NIPDAU Level-1-260C-UNLIM LM4040A25IDCKR ACTIVE SC70DCK 53000Green (RoHS &no Sb/Br)CU NIPDAU Level-1-260C-UNLIM LM4040A25IDCKRE4ACTIVE SC70DCK 53000Green (RoHS &no Sb/Br)CU NIPDAU Level-1-260C-UNLIM LM4040A25IDCKRG4ACTIVE SC70DCK 53000Green (RoHS &no Sb/Br)CU NIPDAU Level-1-260C-UNLIM LM4040A25ILP PREVIEW TO-92LP 31000TBD Call TI Call TI LM4040A25ILPR PREVIEW TO-92LP 32000TBDCall TI Call TILM4040A30IDBZR ACTIVE SOT-23DBZ 33000Green (RoHS &no Sb/Br)CU NIPDAU Level-1-260C-UNLIM LM4040A30IDBZRG4ACTIVE SOT-23DBZ 33000Green (RoHS &no Sb/Br)CU NIPDAU Level-1-260C-UNLIM LM4040A30IDBZTACTIVESOT-23DBZ3250Green (RoHS &CU NIPDAULevel-1-260C-UNLIM19-Jun-2007OrderableDeviceStatus (1)Package Type Package Drawing Pins Package QtyEco Plan (2)Lead/Ball FinishMSL Peak Temp (3)no Sb/Br)LM4040A30IDBZTG4ACTIVE SOT-23DBZ 3250Green (RoHS &no Sb/Br)CU NIPDAU Level-1-260C-UNLIM LM4040A30IDCKR ACTIVE SC70DCK 53000Green (RoHS &no Sb/Br)CU NIPDAU Level-1-260C-UNLIM LM4040A30IDCKRE4ACTIVE SC70DCK 53000Green (RoHS &no Sb/Br)CU NIPDAU Level-1-260C-UNLIM LM4040A30IDCKRG4ACTIVE SC70DCK 53000Green (RoHS &no Sb/Br)CU NIPDAU Level-1-260C-UNLIM LM4040A30IDCKT PREVIEW SC70DCK 5250TBD Call TI Call TI LM4040A30ILP PREVIEW TO-92LP 31000TBD Call TI Call TI LM4040A30ILPM PREVIEW TO-92LP 32000TBD Call TI Call TI LM4040A30ILPR PREVIEW TO-92LP 32000TBDCall TI Call TILM4040A41IDBZR ACTIVE SOT-23DBZ 33000Green (RoHS &no Sb/Br)CU NIPDAU Level-1-260C-UNLIM LM4040A41IDBZRG4ACTIVE SOT-23DBZ 33000Green (RoHS &no Sb/Br)CU NIPDAU Level-1-260C-UNLIM LM4040A41IDBZT ACTIVE SOT-23DBZ 3250Green (RoHS &no Sb/Br)CU NIPDAU Level-1-260C-UNLIM LM4040A41IDBZTG4ACTIVE SOT-23DBZ 3250Green (RoHS &no Sb/Br)CU NIPDAU Level-1-260C-UNLIM LM4040A41IDCKR ACTIVE SC70DCK 53000Green (RoHS &no Sb/Br)CU NIPDAU Level-1-260C-UNLIM LM4040A41IDCKRE4ACTIVE SC70DCK 53000Green (RoHS &no Sb/Br)CU NIPDAU Level-1-260C-UNLIM LM4040A41IDCKRG4ACTIVE SC70DCK 53000Green (RoHS &no Sb/Br)CU NIPDAU Level-1-260C-UNLIM LM4040A41ILP PREVIEW TO-92LP 31000TBD Call TI Call TI LM4040A41ILPR PREVIEW TO-92LP 32000TBDCall TI Call TILM4040A50IDBZR ACTIVE SOT-23DBZ 33000Green (RoHS &no Sb/Br)CU NIPDAU Level-1-260C-UNLIM LM4040A50IDBZRG4ACTIVE SOT-23DBZ 33000Green (RoHS &no Sb/Br)CU NIPDAU Level-1-260C-UNLIM LM4040A50IDBZT ACTIVE SOT-23DBZ 3250Green (RoHS &no Sb/Br)CU NIPDAU Level-1-260C-UNLIM LM4040A50IDBZTG4ACTIVE SOT-23DBZ 3250Green (RoHS &no Sb/Br)CU NIPDAU Level-1-260C-UNLIM LM4040A50IDCKR ACTIVE SC70DCK 53000Green (RoHS &no Sb/Br)CU NIPDAU Level-1-260C-UNLIM LM4040A50IDCKRE4ACTIVE SC70DCK 53000Green (RoHS &no Sb/Br)CU NIPDAU Level-1-260C-UNLIM LM4040A50IDCKRG4ACTIVE SC70DCK 53000Green (RoHS &no Sb/Br)CU NIPDAU Level-1-260C-UNLIM LM4040A50ILP PREVIEW TO-92LP 31000TBDCall TI Call TILM4040A82IDBZR ACTIVE SOT-23DBZ 33000Green (RoHS &no Sb/Br)CU NIPDAU Level-1-260C-UNLIM LM4040A82IDBZRG4ACTIVE SOT-23DBZ 33000Green (RoHS &no Sb/Br)CU NIPDAU Level-1-260C-UNLIM LM4040A82IDBZTACTIVESOT-23DBZ3250Green (RoHS &no Sb/Br)CU NIPDAULevel-1-260C-UNLIM19-Jun-2007OrderableDevice Status (1)Package Type Package Drawing Pins Package Qty Eco Plan (2)Lead/Ball Finish MSL Peak Temp (3)LM4040A82IDBZTG4ACTIVE SOT-23DBZ 3250Green (RoHS &no Sb/Br)CU NIPDAU Level-1-260C-UNLIM LM4040A82IDCKR ACTIVE SC70DCK 53000Green (RoHS &no Sb/Br)CU NIPDAU Level-1-260C-UNLIM LM4040A82IDCKRG4ACTIVE SC70DCK 53000Green (RoHS &no Sb/Br)CU NIPDAU Level-1-260C-UNLIM LM4040B10IDBZR ACTIVE SOT-23DBZ 33000Green (RoHS &no Sb/Br)CU NIPDAU Level-1-260C-UNLIM LM4040B10IDBZRG4ACTIVE SOT-23DBZ 33000Green (RoHS &no Sb/Br)CU NIPDAU Level-1-260C-UNLIM LM4040B10IDBZT ACTIVE SOT-23DBZ 3250Green (RoHS &no Sb/Br)CU NIPDAU Level-1-260C-UNLIM LM4040B10IDBZTG4ACTIVE SOT-23DBZ 3250Green (RoHS &no Sb/Br)CU NIPDAU Level-1-260C-UNLIM LM4040B10IDCKR ACTIVE SC70DCK 53000Green (RoHS &no Sb/Br)CU NIPDAU Level-1-260C-UNLIM LM4040B10IDCKRG4ACTIVE SC70DCK 53000Green (RoHS &no Sb/Br)CU NIPDAU Level-1-260C-UNLIM LM4040B10ILP PREVIEW TO-92LP 31000TBD Call TI Call TI LM4040B10ILPR PREVIEW TO-92LP 32000TBDCall TI Call TILM4040B20IDBZR ACTIVE SOT-23DBZ 33000Green (RoHS &no Sb/Br)CU NIPDAU Level-1-260C-UNLIM LM4040B20IDBZRG4ACTIVE SOT-23DBZ 33000Green (RoHS &no Sb/Br)CU NIPDAU Level-1-260C-UNLIM LM4040B20IDBZT ACTIVE SOT-23DBZ 3250Green (RoHS &no Sb/Br)CU NIPDAU Level-1-260C-UNLIM LM4040B20IDBZTG4ACTIVE SOT-23DBZ 3250Green (RoHS &no Sb/Br)CU NIPDAU Level-1-260C-UNLIM LM4040B20IDCKR ACTIVE SC70DCK 53000Green (RoHS &no Sb/Br)CU NIPDAU Level-1-260C-UNLIM LM4040B20IDCKRE4ACTIVE SC70DCK 53000Green (RoHS &no Sb/Br)CU NIPDAU Level-1-260C-UNLIM LM4040B20IDCKRG4ACTIVE SC70DCK 53000Green (RoHS &no Sb/Br)CU NIPDAU Level-1-260C-UNLIM LM4040B25IDBZR ACTIVE SOT-23DBZ 33000Green (RoHS &no Sb/Br)CU NIPDAU Level-1-260C-UNLIM LM4040B25IDBZRG4ACTIVE SOT-23DBZ 33000Green (RoHS &no Sb/Br)CU NIPDAU Level-1-260C-UNLIM LM4040B25IDBZT ACTIVE SOT-23DBZ 3250Green (RoHS &no Sb/Br)CU NIPDAU Level-1-260C-UNLIM LM4040B25IDBZTG4ACTIVE SOT-23DBZ 3250Green (RoHS &no Sb/Br)CU NIPDAU Level-1-260C-UNLIM LM4040B25IDCKR ACTIVE SC70DCK 53000Green (RoHS &no Sb/Br)CU NIPDAU Level-1-260C-UNLIM LM4040B25IDCKRE4ACTIVE SC70DCK 53000Green (RoHS &no Sb/Br)CU NIPDAU Level-1-260C-UNLIM LM4040B25IDCKRG4ACTIVE SC70DCK 53000Green (RoHS &no Sb/Br)CU NIPDAU Level-1-260C-UNLIM LM4040B25ILP PREVIEW TO-92LP 31000TBD Call TI Call TI LM4040B25ILPR PREVIEW TO-92LP 32000TBDCall TI Call TILM4040B30IDBZRACTIVESOT-23DBZ33000Green (RoHS &CU NIPDAULevel-1-260C-UNLIM19-Jun-2007。
