1
1.
幕墙国际会议自我介绍：
名字：My English name is Andrew.
公司：I represent JiangHe curtain wall company.
职责（主要负责事物）：I am in charge of structural calculation/design & fabrication drawing/tender
drawing.
2. 我是刚毕业的学生： I am a fresh graduate.
3. 幕墙中常用的变形：deflection, 而不是deformation.
Deflection: the degree to which the moving part on a measuring instrument moves away from zero.
Deformation: the progress of changing the shape of something in a way that spoil its usefulness or
appearance.
D.L dead load 永久荷载
4. 常用的荷载缩写 W.L wind load 风荷载
L.L live load 活荷载
5.表面处理可分为两种：(1). Type of finish
(2). Surface treatment
Natural Anodize 镀银色（本色）
Black Anodize 镀黑色
Bronze Anodize 镀铜色
Hot dipped galvanize 热镀 stick curtain wall system 框架式幕墙
6.
Electrical galvanize 电镀 unitized curtain wall system 单元式幕墙
Tower 主楼 分格 division 方管 square section
7.
Podium 群楼 格栅 lattice 圆管 round pipe
Primary gasket 第一胶条 primary bracket steel primary bracket
8. gasket 转角连接
Secondary gasket 第二胶条 secondary bracket secondary U-shape bracket
1. 镜面：mirror
2. 亚光：satin
3. 拉丝：hair line
nondirectional
1. PVDF /Fluorocarbon coating
2. PC. Powder coating 粉末喷涂
3. Anodize 阳极电镀/氧化 2
Primary bracket (Floor bracket)
Secondary bracket(hooking bracket)
9.
10. 双面贴 double side tape 1. system
美纹纸(玻璃) masking tape fixed glass
保护膜（型材） protection film 2. operable window （固定窗）
中横梁 Mid transom 介绍图纸 spandrel area
中立柱 Mid mullion dummy 3. capping (背板区域)
剖面 section Back-panel
平面 plan （背板）
立面 elevation 4. glass ( the glass is ….. glass)
插芯 mullion sleeve
Smoke seal 防火胶
Extruded mullion
Pressure plate 压板
Capping 扣盖 Thermal break 隔热条 Desiccant 分子筛
I am going to …….
It is a ……..system 3 11.

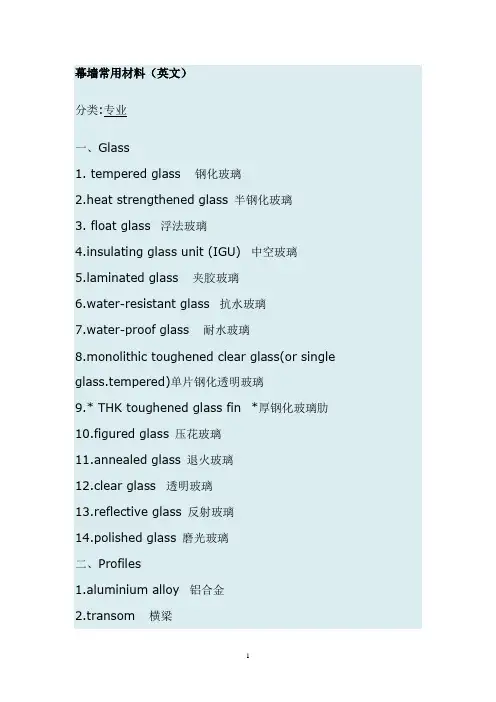

本体绿玻璃
Green tinted glass
D.G.U (double glazed unit)
中空玻璃 insulated glass
Double glass
夹胶玻璃 Laminated glass
浮法玻璃 float glass= anneal glass
钢化玻璃 tempered glass
半钢化玻璃 half strengthened glass
低辐射镀膜玻璃
玻璃 镀膜玻璃 Low-E coated glass
(coated glass) 热反射镀膜玻璃
Heat reflecting glass
Ceramic-fritted glass
彩釉玻璃 frit pattern glass
Silk screen glass
中空夹胶玻璃 Laminated double glass
彩釉夹胶玻璃 laminated glass with ceramic frit
钢化中空透明玻璃Tempered insulated clear glass
12.
Bolt & Nut 螺栓群 Csk self-drilling screw 沉头自攻螺钉
Self-taping screw machine screw Self-drilling screw
自攻自钻螺钉 机丝螺钉 自攻螺钉
CSK countersunk head
沉头/平头
Pan-head / mush-room head
盘头
Hexa-head
六角头 4 13.
14. 铝吊顶 Alum ceiling
铝单板 Aluminum solid panel
铝片 Aluminum sheet
复合铝板 composite aluminum panel
蜂窝铝板 Aluminum honey-comb panel
穿孔铝板 Aluminum perforated panel
铝合金百叶 Aluminum louver
铝 铝合金门窗 Aluminum door & window
铝框 Aluminum frame
铝合金横梁公料 male stack extrusion
铝合金横梁母料 female stack extrusion
铝合金立柱公料 male mullion extrusion
铝合金立柱母料 female mullion extrusion
铝合金转角立柱 Aluminum corner mullion
开启框 operable frame
开启扇 operable sash
T-bolt
T形螺栓 Pop rivet
拉铆钉 Expansion bolt
膨胀螺栓 Chemical bolt
化学螺栓
Plastic plug
尼龙胀栓
Mechanical bolt
机制螺钉 Concrete nail
射钉
Powder nail
Cast in channel
槽式埋件 5 15.
总包：main contractor
组织结构图 organization chart
分包：sub-contractor 总计划(总包发给分包) Master programme
顾问：consultant 施工进度计划图 project schedule
Architectural drawing 建筑图
Structural drawing 结构图
总包给的东西 Wind tunnel test report 风洞试验报告
Specification 技术说明
B.O.Q Bill of quantity 清单
