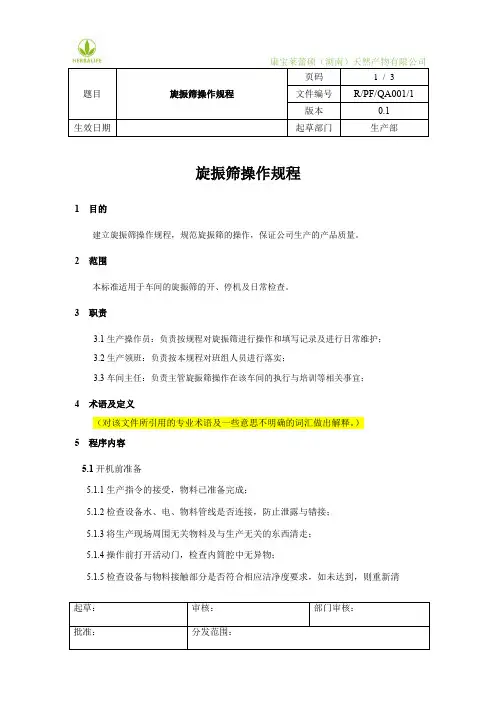

XZS Rotary Vibrating Screen
Introduction
This 3D rotary vibrating screen ,which uses upright motor as the source of
vibration ,is suitable for the quick separation and filter of any powder, particle, liquid
in the foodstuff，chemical pharmaceutical, grinding, ceramic and metals processing，
etc.
Working principle
Its vertical motor, which is installed with eccentric hammers on the top and bottom, is
regarded as a vibratory source. The eccentric hammers change the track of rotation
into horizontal, vertical and inclined movement, and then pass the movement to the
sieving surface. Adjusting the phase angle between the top and bottom eccentric
weight can change trajectories of the materials on the sieve.
Applied field
Many kinds of the materials within 0~400 mesh like dry, wet, refined, coarse, heavy
and light as well as those within 0~600 mesh like liquid and pasty materials can be
screened by the machines. Details are as follows:
1. Chemical industry: resin, pigment, medicine, grease, extinction agent, rubber and
plastic.
2. Abrasive, glass and ceramic professions: silicone sand, aluminum oxide, grinding abrasive,
glass dust and fire-proof material.
3. Foodstuff: sugar, salt, alkali, glutamate, starch, powdered milk, soybean milk, yeast and fruit
juice.
4. Papermaking profession: coated slurry, black and white liquor, padding fluid, waste liquid and
waste water recycling.
5. Iron-smelting and mining industry: quartz sand, ore, titanium oxide and zinc oxide.
6. Mechanical profession: casting sand, powder metallurgy, electromagnetism material, aluminum
powder, metal powder and alloy.
7. Environmental protection: trash, human and animal fecaluria, industrial waste water , food
waste water and waste water processing.
8. Others: carbon black, activated carbon and pearl.
Feature
1. High efficiency, compact design and durability.
2. The unique grid design, shorten the time for net works, easy to operate.
3. Full sealing, and no powder overflow,
4. The material discharged automatically, you can work.continuously.
5. Make use of vertical vibration motor, mechanical drive, the transfer process
without loss of the exciting force, the effective transfer to the screen surface.
6. Small size, take up little space, easy to move.
Parameter
Model
XZS-4 XZS-6 XZS-8 XZS-10 XZS-12 XZS-16 XZS-18 XZS-20 XZS-
25
Nominal diameter
(mm)
400 600 800 1000 1200 1600 1800 2000 2500
Layer 1-3 1-3 1-3 1-3 1-3 1-3 1-3 1-3 1-3
Diameter
(mm)
330 550 750 900 1150 1500 1750 1950 2350
Specification of screen
mesh
(mesh)
2-325
Max feeding size(mm) <20 <30 <30 <30 <30 <50 <50 <50 <60
Vibration time
(Rpm)
3000 1500 1500 1500 1500 1500 1500 1500 1500
Power
(kw)
0.4 0.75 0.75 1.5 1.8 2.2 2.2 3.7 5.5
