XBC型柴油机消防泵组

阳光泵业XBC系列柴油机消防泵组说明书（本文来源阳光泵业）一、概述XBC型柴油机消防泵组是本公司根据国内建筑消防用泵的市场需求和使用特点而自行研制生产的新产品。

该系列产品具有高效率、运转寿命长、高可靠性（不存在较长时间停用后启动咬死的故障），是目前国内适应建筑工程消防，喷淋设施用泵的首选产品。

产品性能符合GB6245-2006《消防泵》性能要求和实验方法，经国家消防装备质量监督检测中心测试，产品达到国内领先水平，获上海市消防局审批认可。

该产品可供输送80℃以下不含固体颗粒的清水或物理化学性质类似与水的液体之用。

在满足消防工况的前提下，兼顾生活、生产给水的工况要求。

产品既可用于独立消防给水系统，又可用于消防、生活共用给水系统，还可用于建筑、市政、工矿、给排水、船舶、野外作业等场合。

XBC柴油机消防泵与电器仪表等设备安装在一起整套组合，具有功能齐全，自动化程度高，结构紧凑，故障自动报警及接受启动信号，自行完成起动程序，能快速投入全负荷运行。

机组可按需求选配减振器、橡胶挠性接头、排气口配波纹管消音器。

在燃料不足、蓄电池电压低、润滑油温度高、超速等，备有报警装置，确保柴油机低温环境起动。

整个系统安全可靠，使用方便。

二、产品特点1. 电泵为主消防泵，可以根据消防情况自动起动；2. 配备稳压泵恒定管网压力；3. 柴油机泵为备用消防泵，消防无电源情况下自动起动；4. 电泵出现故障时柴油机泵起动；三、结构说明XBC型柴油机消防泵组根据GB6245-2006《消防泵》的标准要求，主要由泵体（1）、泵盖（2）、叶轮（3）、轴（4）、密封环（5）、轴套（8）、及悬架轴承部件（12）等所组成的。

XBC型柴油机泵的泵体和泵盖的部分，是从叶轮背面处剖分的，即通常所说的后开门结构形式。

其优点是检修方便，检修时不动泵体，吸入管路，排出管路和电动机，只需拆下（加长）联轴器的中间联接件，即可退出转子部件进行检修。

泵的壳体（即泵体和泵盖）构成泵的工作室。

XBC-Q/K 系列全自动柴油机消防泵组控制箱使用、维修和说明书目录控制原理及概述1、产品概述2、产品用途3、主要技术指标4、产品功能接线说明1、安装与外部接线2、功能按键说明3、注意事项4、维修指南5、技术支持服务控制柜动作说明联络方式单位名称：山东双轮集团股份有限公司单位地址：山东省威海市环翠区省级旅游度假区东鑫路6号邮编：264300电话：0631-5757348售后服务：0631-5759349传真：0631-5757398一、控制原理及概述1、产品概述XBC-Q/K系列柴油机消防泵组控制箱是以单片机为主控元件，对发动机工况自动检测和越限保护的电子仪器，可对各种型号发动机的转速、润滑油压力、润滑油温度、冷却水温和蓄电池电压等参数进行自动测量、数字显示和越限保护，并发出声光报警信号，控制执行机构切断燃油油路，自动控制发动机停车。

控制系统以单片机为核心，由电源、指令操作、仪表、信号指示、驱动、执行机构等部分组成。

其主要功能是当有消防信号、中央控制室发出远程启动信号后，控制系统及按启动程序自动启动柴油机驱动水泵在额定转速下稳定运行。

当消防结束后，控制系统在接到人工手动停机信号后，控制系统自动停机。

在调试及应急手动状态下，可以人工操作柴油机的启停。

柴油机在运行过程中吗，系统始终对柴油机工作状态：转速、冷却水温、油温、油压、电池电压等进行实时监控，从而保证柴油机可靠和安全运行。

随机配备的浮充电装置（AC220V供电）可以在随时对蓄电池进行浮充电，在蓄电池达到最大充电电压后自动停止对蓄电池充电，同时，在电池自然放电过程中出现电压降低时自动进行充电，保证柴油机随时进行启动所需的电力供应。

柴油机启动后，自动改为柴油机自带的充电发电机充电方式。

根据现场情况的不同，可以对柴油机的相关参数进行更改。

机组待机时，系统对蓄电池电压低等参数异常进行报警。

2、产品用途XBC-Q/K系列发动机控制箱产品采用先进的技术在同类产品中具有测量精度高、可靠性好、稳定性好、体积小、高亮数字显示、安装方便、维护方便、产品做到高度互换以及较高的性能/价格比等特点。

神华国能店塔电厂135MW机组消防设施检修规程（试行）前言1、依据《中华人民共和国消防法》、公安部《机关、团体、企业、事业单位消防安全管理规定》、《消防安全责任监督管理办法》等国家、政府相关法律、法规、法令规定，结合公司消防工作特性及实际工作需要，特制定《消防设施检修维护规程》。

2、规范消防设施的定期检修、维护保养工作，保证消防设施可靠投入运行及处于有效预警状态，杜绝和减少火灾事故的发生，为电厂各项工作提供可靠的消防安全基础。

3、本工作标准适用于135MW机组办公场所、值班室、控制室及各生产区域等部位配备的固定式消防设施。

4、本规程确立了2×135MW机组消防设施检修的基本原则及规定，是检修员工在工作中各类检修、调整、试验、事故处理等工作的标准和依据。

检修员工必须严格执行本规程的有关规定，确保机组及设备的安全运行。

5、本工作标准未涵盖的部分，应按照国家现行的有关标准、规范、规定执行。

规程修订控制表目录第一部分电动消防水泵检修 (2)第二部分柴油消防水泵的检修 (7)第三部分消防泵及消防稳压水泵电动机检修 (12)第四部分消防稳压装置检修 (18)第五部分多功能水泵控制阀的检修 (20)第六部分雨淋阀检修 (22)第七部分阀门 (24)第八部分管道检修工艺 (41)第九部分火灾报警系统 (53)第十部分广播紧急警报系统 (70)第一部分电动消防水泵检修1设备概述我公司安装的XBD-SLOW100-320IB泵为单级、双吸、卧式水平中开离心泵。

泵的进出水管均设在下泵体上，位于水泵轴中心线下方并与轴中心线垂直。

泵盖用双头螺栓和定位销紧固于下泵体，所有转动部件通过位于泵体两端的轴承支撑。

打开泵盖即可对泵内的全部零件进行检查维修，无需拆卸进、出水管及电机。

泵的主要零件包括泵盖、泵体、叶轮、密封环、轴套、轴和轴承等。

泵盖、泵体分别整铸而成，二者共同组成泵的通流部分。

叶轮由铸铁制成，结构对称。

水流对称地流进叶轮吸入孔后，均匀排向压水室，因此理论上不存在轴向力,残余轴向力由两个角接触球轴承承担；泵体泵盖压水室内的双流道结构能够掉平衡大部分由液体压力引起的径向力，残余径向力由两个角接触球轴承和承载能力强的圆柱滚子轴承承担。

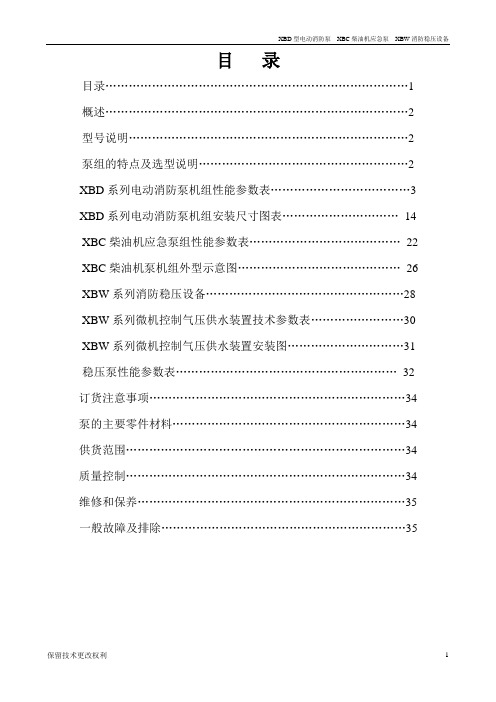

目录目录 (1)概述 (2)型号说明 (2)泵组的特点及选型说明 (2)XBD系列电动消防泵机组性能参数表 (3)XBD系列电动消防泵机组安装尺寸图表 (14)XBC柴油机应急泵组性能参数表 (22)XBC柴油机泵机组外型示意图 (26)XBW系列消防稳压设备 (28)XBW系列微机控制气压供水装置技术参数表 (30)XBW系列微机控制气压供水装置安装图 (31)稳压泵性能参数表 (32)订货注意事项 (34)泵的主要零件材料 (34)供货范围 (34)质量控制 (34)维修和保养 (35)一般故障及排除 (35)概述：XBD型电动消防泵机组、XBC柴油机应急泵机组符合国家标准GB6245-1998《消防泵性能要求和试验方法》、GB/T1147-1987《内燃机通用技术条件》。

它们可以分别配备NPS、KB、IS、ISG、DL、D、DG、LB等泵种。

形成水平中开式、卧式单级悬臂式、管道式、立式多级、卧式多级、立式长轴等多种配套形式以适用各种场所、各个条件要求下（功率不同、转速不同、水源不同等）使用。

XBD、XBC型机组主要适用于工矿企业、宾馆、高层建筑、煤气站、油库、港口等消防工程，XBC机组还特别用于高炉、连铸、转炉等事故应急供水，发电厂停电应急供水，核反应堆安全防护冷却应急供水，以及其它需高可靠性及自动化控制的供水工程。

主要输送不含固体的清水或粘性类似于清水的液体，若用户所输送的介质含酸或碱，应于订货时特别提出。

输送的介质温度为0℃～+80℃，若采用适当的冷却措施，可输送更高温度的介质。

型号说明：例：XBD5/100-250SXB表示消防泵XBD表示电动消防泵机组，XBC表示柴油机应急泵机组。

5表示泵的额定扬程为50m或额定压力为0.5Mpa。

100表示泵的额定流量为100l/s。

250表示泵的进口口径。

S表示为水平中开式（I、G、D、L、C分别表示卧式单级悬臂式、管道式、卧式多级式、立式多级式、立式长轴）。

[P R O D U C T C A T A L O G 2009]Inosculating innovative technologies, interpreting the art of fluid!XBC SERIES DIESEL ENGINE FIRE-FIGHTING/EMERGENCY PUMP GROUP业务手机１３８１７２７４２２６１５２０１９９６５７５Ŀ¼ CONTENTSMaintenance16Star,stop and run of the equipment16Diesel engine fire-fighting pump engine room arrange diagram15Precautions at the equipment installation13Volume of oil tank13Power loss of diesel engine and loss coefficient K value12Cooling mode of generator12Range of supply1111XBC-D Type pump performance10XBC-SLOW Type pump performance9XBC-IS Type pump atlas of style and performance8Purpose8Model meaning4Diesel engine control system4Structural characteristic and functions31group12XBC series diesel engine fire-fighting/emergency pump groupApplicable for water supply for fire service and emergencywater supplyAgricultural diesel engine pump groupAgricultural diesel engine pump unit is generally composedof self-priming pump. The self-priming pump is light moveablewater pump. It has such advantages as small volume, lightweight, excellent performance, convenient operation, reliabl euse, easy maintenance and wide applicable range. It can bewidely used for agricultural irrigation and water supply infactory, mine, construction site and daily life.1. When adopting triangle belt for transmission, the spindleof driving engine shall be parallel with pump shaft and thebelt wheels shall be aligned. The central distance shall notbe lower than twice of the diameter of the two belt wheels.Whe n the water pump is directly connected with th e drivi ngengine, they shall be equip ped with same chassis. Adoptclaw type flexible coupler and check the coupler part withstee l rule to ensure the coaxiality of pump shaft and drivingspindle.2. Before the self-priming pump is started, water must be pouredinto the pump body to avoid influencing the self-primingfunction. It is forbidden to operate without storing wate r toprev ent the sealing parts being burnt. Before the centrifugalpump is started, first add water into the pump and start ituntil the water fills the inlet pipe and pump body.Pushing type moveable pump groupVehicle dragging type moveable pump unitMoveable diesel engine pump groupMoveable diesel engine pump unit is commonly used inthe fire and municipa l water drainage pump unit for agriculturalirrigation, warehouse and dock. For small type unit, manualpushing type can be adopted, and for larger unit, vehicledragging type can be adopted.Outdoor fixed diesel engine pump groupIn case of outdoor fixed inst allation, the diesel enginepump unit shall be assembled with outdoor type protectivecover additionally.ZLBYWNLDiesel engine pump group with vertical axial lineFor deep well pump, ZLB model dry axial flow pump, YW model submersible drainage pump and NL model slurry pump etc. pump units requiring diesel engine as driving power that are vertical to axial line of diesel engine, the right angle steering gear and steering shaft structure researched and developed by our company can be adopted to realize the stable and reliable operation of pump unit, and is especially applicable for pumpuse in field operation.XBCGB6245NEPA20()()XBC-ISXBC-SLOW XBC-Do o 1000m+5C+40CXBC series diesel engine fi r e-fighting pump group is a new-style fire-fighting equipment ("equipment" thereaf-ter) developed by this Co. in accordance with GB6245-98 fir e-f igh ting pumps and NEPA20Installation of cen-trifugal fire-fighting pumps etc.standards and, u pon t he f it-ted fi refigh ting pumps (single-stag e single-suction type ,single-stage dual-suction type and sectional m ultist age t ype), canbe divided into SBC-is, XBC-SLOW a nd X BC-D t he ree sub-series. T he e quipment h as a w ide r ange o f p ressure a nd temperature and can be used for a lmost every occasion nece-ssary for fire-fighting.The diesel engine fitted with the equipment is an exce l lent product domestic or imported, features good starting perf-ormance, strong overload capacity, compact structure, easymaintenance and use and high degree of automation . The eq-uipment is really a fire-fighting one advanced and rel i able in performance.(1)The diesel engine fire-fighting pump group can be formed as an automatic fire-fighting water-supply system (see Fig.1) together with an electric pump one, pressure sta biliz ing pump one etc. and the working process is introduced in "Diesel engine control system". The equipment can be jointly controlled with a fire-fighting center.The mode of water inlet of a fire-fighting pump can be self -pouring and suction-up and, upon the requirement in the fire-fighting standard, the former is generally used. It needs to spec-ially note in case of the need of the latter so as for this Co. to su-pply the automatic vacuum waterleading device, however, the dimensions of the pump group have to be changed somehow.X613512V135410241056102()()()()()o 5CAC220V The equipment takes X6135, 12V135, 4102, 4105, 6102 etc.series diese l engines as the power and these diesel engines (can be fitted with clutches) are combined wit h fire-fighting pumps through high elastic clutches to form the fire-fightingpump group , including diesel tank, radiation water tank, blower, bontrol screen (for the auto group) etc.parts.As the auto-control group, a separate diesel engine aut-ocontrol cabinet (programmable) carries out the system's au-tomatic starting, putting into use, auto-switching ( the motor pump group is switched to the diesel engine pump one or thediesel engine pump group to another group), auto-protection (warning and stopping protection for the diesel engine's over-speed, lower oil pressure, hogh water temperature, three times failures of starting, low voltage of accumulator etc.) etc.fun-ctions and also can be connected to fire-fighting centers of users or the autowarning device of fire to get a remote moni-toring.To ensure the group to normally working anenvironment o of below 5C, it can be fitted with and A C220V cooling-water preheater.XBCFields of applicationApplicable for the XBC series diesel engine fire-fighting pump control made in this Co., and also for the diesel enginefire-fighting pump and diesel generator controls of users.Fig.1Model and meaningpower of diesel engine shaftsemi-auto control fully-auto controlB diesel engine pump control D diesel generator controlcontrol feature of Liancheng diesel engine control cabinet1LEC-BZ(H)1. Control equipment of LEC-BZ(H) series diesel engine pu- mp group.System structure and principleFig.2() ()P1()P2()P1P2P2P1P1P2P1P3PwP3P4Pw Electric fire-fighting water-supply system is generally for-med with a pressure stabilizing pump, electric pump(main pu-mp) and automatic diesel enging pump(spare one) and its pri-nciple of work comes like this: usually the pipe-network's pr-essure keeps in between P1(low one)-P2(high one). The stabi-lizing pump starts once the pressure belows P1 and stops whe-n it rises to P2. It lowers slowly from P2 to P1 due to the leaka-ge of the network, thestabilizing pump starts again to keep it in betw een P1-P2. When the water quantity being used is grea-tly increased, the said pump can not keep the pressure at P1 and it quickly lowers to P3, the electric pump starts and the pressur-e rises to Pw(well) to meet with the demand for fire-fighting w-ater. In case of power-off or a failure with the electric pump, the pressure goes on lowering from P3 to P4, the diesel engine pump automatically starts to have it rise to Pw for water supply. The electric pump or diesel engine one has to be stopped thro-ugh artificial judgement and, if the leakage from the pipe-network is estimated much, it is necessary to increase pressure stabilizing tanks or make the pressure stabilizing pump norma-lly opened so as to avoid frequedt starting.Schematic drawing of auto-control system of diesel engine fire-fighting pump group(1) LEC-BH()110kW(2) LEC-BZ()()()110kW2LEC-DZ(H)230V/400V15s35min(1) LEC-BH series semi-auto fire-fighting diesel engine pu- mp's control equipmentThis electric control cabinet(box) has both manual and se-miauto control function and can display the oil pressure and water temperature of the diesel engine; the charging current of the accumulator; warn at too-low level of the oil tank; autom-atically start the diesel engine pump in case of a failure with the electric pump or power-off under the fire-alarm status and remotely start the diesel engine pump. This control mode is used for such an occasion as the power of the diesel engine is less than 110kW in general.(2) LEC-BZ series fully-auto fire-fighting diesel engine p-ump's control equipmentThis electric control cabinet(box) has both manual and fully-auto control function and can display the diesel engine's oil pr-essure and temperature and water temperature and the accumu-lator's charging current, watrn at an abnormal condition and w-hen the level of the oil tank is too low, as well as at an extra highspeed or low speed for stopping and when three startings are su-ccessively failed, automatically(also remotely) start or stop the diesel e ngine pump and charge the accumulator when its voltage becomes low and be connected to a fire-fighting center or an auto matic fire-alarm device to carry out the remotely linkage control. And in case of a multi-pump unit, can also carry out the switch-ing between the units, the periodical tour-inspection of the fire-fighti ng pumps and the voltage constant of power frequency(but this function needs to be noted by the user in the contract). This contro l mode is generally used for such an occasion as the power of the diesel engine is more than 110kW.2. LEC-DZ(H) series diesel generator's control equipment The control principle of the diesel generator is similar to thediesel engine control fitted for the diesel engine pump and ma-inly used for the self-equipped emergent diesel generator unit of a voltage 280/440V in civil buildings, the unit should be ready for starting at any time and the operation power, the thermody-namic system, fuel oil, lubricating oil, cooling water, indoor ambient temperature etc. should all ensure the unit to be started at any time. When the local power is off, the unit should be sta-rted at once and put into run with a load normally within 15s. the unit should be linkage with the electric power system and dela-yed to be switched to the local power when it is reset and auto-matically stop after 3-5min idle movement.Suitable for the fire-fighting water supply and in storehouse, yard, airport, petroleum and chemical industry, power plant , liquefied gas, textile, ship, oil ship etc.ocxasions.emergency water supplyD )rated flow (L/s) of pump group10 times the rated pressure of pump (MPa)- (1) LEC-DH()(2) LEC-DZ()();(PLC)PLC(1) LEC-DH series semi-a uto diesel generator's controlequipmentThis electric control cabinet(box) has the manual and semiauto control function and can displa y the diesel egine's oil pressure and water temperature, the accumulator's cha-rging current and warn when the l e vel of the oil tank beco-mes too low, when it wo rks at the semi-auto control, the di-esel engine has to be artificiall y started and enhanced with its rotating speed to the rated one. when the elect ricity fr-om the generator gets normal, artificially turn on the break-er to el ectrify the load. The genera tor also needs to be artif-icially stopped.(2) LEC-DZ series fu lly-auto diesel generator's control e- quipmentThis electric control cabinet(box) has both manual and fullyauto control function and can display the diesel engine's oil pressure and temperature and water temperature, and the accumulator's charging current, warn at an abnorm al cond-ition, at a too-low le vel of the oil tank, at an extra high spe ed or low speed and at suc cessive three failures of starting, au-tomatically(also remotely) start or stop the generator and charge the accumulator when its voltage gets low and be con nec ted to the control center to reach the remotel linka-ged control. It is controlled by PLC in the automa t ic mode of work for starting the generator and electrifying the load as well as stopping the generator. The system will automa-tically stop in case of an abnormal failure.(MPa)1.00.70.60.50.40.3(L/s)Note: the installation dimensions of the pump are variable along with the different diesel engines and will therefore be provided by this Co. after signing the contract.Note: the installation dimensions of the pump are variable along with the different diesel engines and will therefore be provided by this Co. after signing the contract.() () The range of supply includes diesel engine(covering oil t-ank and accumulator), fire-fighting pump, high elastic clutch and the foundation for their combination and the electric con-trol cabinet for control, and, if to form an auto fire-fighting water supply system with the electric fire-fighting pump, pr-essure stabilizing pump etc.made in this Co., still includes the electric fire-fighting pump, pres sure sta bilizing pump gr-oup and pressure controller, the cable for the joint between both control cabinet and pump group is excluded.Note: the installation dimensions of the pump are variable along with the different diesel engines and will therefore be provided by this Co. after signing the contract.() The cooling system of the oil engine supplied by this Co is generally in a closed cycl e and functions cooling in such a way as both generator's surface and radiating water take heat exchange with the airflow produced by its blower. Please make a note at order if requiring an opened cycle of cooling(i.e.cooling of the generator is c arried out by way of a heat exchanger between the cooling water transported through a water pump and the cycling water inside of the diesel engine).Ne=KNe(Ne)K.Under non-normal operation condition of the equipment, the power loss of diesel engine is:Ne=KNe(Ne is rated power of diesel engine). Therefore, to guarantee normal operation of diesel engine, when selecting diesel engine, the matching of its power and the pump shall take the power loss under non-normal environmental condition of its operation into consideration so as to guarantee the reasonable matching of power of diesel engine and pump. Refer to K value in the following form.200kW200kW6 The oil tank used for the diesel engine of a power below 200kW can be directly mounted on the unit while the one for the diesel engine of a power over 200kW can be separated from the unit. The following listed oil tank's volumes can ensure t he diesel engine fire -fighting pump groups of diffe rent powers to normally work under the rated working condition for 8 ho-urs.11m3 5m2150200mm400600mm2( 6)1.About 1m passage and space should be left on both side of the unit and in the front of both cooling blower and water tank to be of help for a better radiation, equipment service and main- tenance. The height of the machine room shou ld be depend- ed on the equipment's height and the lifing apparatus, 3-5m as the effective height in general.2. The unit basis uses concrete structure in general and its round dimensions are the four peripheries of the unit feet plus 150- 200mm and depth is 400-600mm. The foot bolt stretches out of the bolt hole by a height about 2 times the diameter of the b- olt and a notc h is set in the middle of the basis and grooves are set round it for dirt oil and water discharge. The concrete fou- ndation must be solid and flat and, when to put the unit on it, place washers in between both unit bottom seat and bas is on both left and right sides of the foot bolt, the washers must be flat. Put a leveller on the pump shaft for correction to ensure the level of the driving shaft. After adjusting both bottom seat and pump, pour cement around the foot bolt, then after the ce- ment gets hardened, evenly tighten the foot bolt, then pour cement on the bottom seat to make sure of the unit stable and solid. finally correct the concentricity between the fire-fighting pump and the diesel engine's drving shafts, and the outer cir- cles of the two clutches must be linear and with an equal int- erval.o340C4305635m3. To ensure a good ventilation inside of the machine room, thetemperature th ere should not be over 40 and enough ventingholes must be set. When natureal ventilation is not sufficientfor the venting and radiating requirement, mount intake ve-ntilators on the venting holes to strengthen the ventilating p-roperty of the room.4. To ensure a fresh air inside of the machine room, it is necess-ary to prevent lots of heat from radiating inside and lowerthe noise. wrap the exhaust pipe of the diesel engine withasbestos, ex tend it outdoor and mount a rain-proof device onit or mount it 30downward and a silenser. The number ofthe elbow on it should be as less as possibe and the bent radiusof the elbow should be over 2.5 times the outer diameter ofthe exhause pipe, take it into consideration for the supportof the pipe to lower vib ration and prevent its weight from lo-ading on the diesel engine.5. When to mount both inlet and outlet pipes of the fire-fightingpump, do not let their weight loading on the pump so as to pr-event it against damage and its performance of running frombeing affected. The inlet pipe should be as short and straightas possible and, when it is as self-pouring, it must be mountedupward tiltedly towards the pump to make sure no air existsinside of the pipe. A filter screen and flexible connector sho-uld be mounted on the inlet and flexible connector, check valveand gate vlave on the outlet.6. It is not allowed to mount the control cabinet in the front of thediesel engine's radiator, otherwise the electric components in-side of the cabinet would be affected and not work normallyand it should be mounted on both sides of the unit or close toit so as to get a convenient operation. The wiring betw eenboth control cabin et and diesel engine should not be over 35m.(Fig. 6)123/o75Co35C31. Start: first make sure of the correct rorating direction of the fire fighting pump and the inlet valve is as N.O and outlet valve N.C. Before the pipe network starts with no water.A fter n o error is found, start the fire-fighting pump and, when the pump gets stable run, gradually open the outlet valve and adjust it to the work condition point for the pump to run. The outlet valve is N.O.when the network is filled with w- ater at usual.2. Run:when the pump gets a normal run, check the shaft seal and the bearing to see how it works. The leakage for the mecha- nical seal should not be over 3 draops/min and for th e stu- ffing seal should be dot drop. The bearing's temperature sh-o oould not be over 75C and its temperature rise not over 95C Stop running for a check ing case of an abnormal sound dur- ing the pump's run.3. To stop, first close the outlet valve, then the diesel engine.1151523451. According to the requirement in the fire-fighting standard, the unit must run once at least every 15-day with time not less than 15minutes so as make sure of it in a good status at any time. 2. Every time to start the fire-fighting opump, it should be done to check if the shaft seal is normal and if it needs to be adjusted or replaced.3. Periodically lubricate the bearing with grease.4. Completely drain the water inside of the pum p out in case ofa long time stop of the opump to prevent the pump casing etc. Parts from being frozen to result in split due to extra low amb- ient temperature.5. according to the provision for the maintenance of the diesel en- gine, daily maintenance should be kept for it by checking if the cooling water quantity, engine oil quaqntity, the accumulator's voltage, oil-pressure meter, th ermometer, speed-ometer and other control devices are normal.上海连成集团简介◇荣获“中国驰名商标”“国家免检产品”◇上海连成(集团)有限公司是一家著名的以研究制造泵、阀等流体输送设备、电气控制系统和环保设备的多元化经营的大型集团企业。

XBC系列柴油机消防泵组产品特点１、动力强劲：柴油机组整体曲轴，刚度大，高强度，传递扭矩效率高。

２、技术先进：采用国际先进技术和龙门式机体，滑动轴承，板翅式机冷器，上置式热交换器，旋装式油滤器及双重冷却系统。

３、性能优越：烟度，噪声指标达到国家优等品，燃油耗低于国标优等品2.1g/kW.h以上。

４、自动化程度高：具有自动、手动及故障自检功能，全过程监控工作状况，可恢复故障启动失败自动重启功能，自动预润滑、预加热，令设备启动更为安全可靠；具有中央控制室遥控及远传控制功能，还可具有现场总线接（可选功能）。

蓄电池采用全自动浮充(恒流、恒压、涓流式充电)电方式，保证蓄电池随时处于备用状态。

５、使用方便：配备可远传仪器仪表，根据需要可接至控制中心，安装使用，维护保养方便。

该系列产品是我公司严格按照GB6245-1998《消防泵性能要求与试验方法》，并参照美国消防协会NFPA20标准，研制开发的新型号消防设备，主要用于石油、化工、天然气、电厂、纺织棉麻、码头、加油站、仓储、高层建筑等行业的消防供水和泡沫灭火系统，亦可用于船舶消防（并提供CCS证书）等场合。

我公司生产的各种型号消防泵组主要有以下特点：性能可靠，结构紧凑，操作维修方便，压力、流量选择范围广，深受广大用户称赞。

同时我公司可根据用户需要配备柴油机冷却水预热、机油预润滑装置，以保证消防泵组时刻处于待命状态，满足消防设备应急灭火之用，提高消防泵组的寿命。

产品依据GB6245-1998《消防泵性能要求与实验方法》。

结构说明按消防规范要求，消防泵组均为自罐引水，故以下型号的消防泵组均不带引水装置。

如客户确实需要，我公司可专门生产，但部分尺寸可能发生变化。

XBC系列柴油机消防泵组原动机为国产优质柴油机，亦可根据用户要求选用中外合资康明斯、曼海姆等知名品牌进口柴油机，但消防泵尺寸可能有所变化。

XBC系列柴油机消防泵组冷却方式一般是通过热交换器来实现，与风冷式相比有噪音低、冷却效果好、工作环境好等优点。
