铝材化学浸镍工艺操作流程

铝件化学镍钯金工艺流程一、铝件的前期处理。

铝件表面可不像我们看到的那么干净哦。

在进行化学镍钯金流程之前，要先把铝件表面的油污啥的去掉。

就像我们洗脸要把脏东西洗掉一样。

一般会用专门的除油剂，把铝件泡在里面，让那些油污自己乖乖地离开铝件的表面。

然后呢，铝件表面还有一层氧化膜，这层氧化膜可有点碍事啦。

得想办法把它去掉，这时候就会用到酸性的溶液。

不过这个酸性溶液的浓度可得控制好，太浓了就像大力水手吃多了菠菜，会把铝件本身也弄坏的。

把铝件放到酸性溶液里，氧化膜就慢慢溶解掉啦，这样铝件就露出了它原本的“小脸蛋”，准备迎接下一个工序。

二、化学镍过程。

接下来就是化学镍啦。

化学镍就像是给铝件穿上一层银色的铠甲。

这个过程呢，是在含有镍离子的溶液里进行的。

溶液里的镍离子就像一个个小士兵，慢慢地在铝件表面集合起来，形成一层镍层。

这时候，溶液的温度、pH值都很关键哦。

如果温度不合适，就像我们人感觉冷或者热的时候没精神一样，镍离子也没那么活跃，就不能很好地在铝件上“安家”。

pH值要是不对，那整个化学镍的过程就像在走歪路，可能会导致镍层不均匀或者长不出来。

三、化学钯过程。

有了镍层之后，就轮到化学钯啦。

化学钯的作用可大了呢。

它就像是在镍层上面又铺了一层精致的“地毯”。

钯离子会在镍层的基础上进行沉积。

这个过程的溶液成分也很讲究，要保证钯离子有足够的量，还得有合适的还原剂。

要是钯离子不够，那这层“地毯”就会薄得可怜，要是还原剂不合适，钯离子就没办法好好地变成金属钯附着在上面。

这一步就像是给铝件的防护又加了一道保险，让它更加耐用和稳定。

四、化学金过程。

最后就是化学金啦。

化学金就像是给铝件戴上了一个金色的皇冠。

金离子在合适的条件下会沉积在钯层上面。

这时候的溶液环境同样需要严格控制。

金层不仅让铝件看起来更加高大上，还在导电性和耐腐蚀性方面有很好的表现。

就像一个人穿了一身漂亮又实用的衣服。

而且这个金层很薄很薄，但是却有着大大的作用。

铝件化学镀镍流程下载温馨提示:该文档是我店铺精心编制而成，希望大家下载以后，能够帮助大家解决实际的问题。

文档下载后可定制随意修改，请根据实际需要进行相应的调整和使用，谢谢!并且，本店铺为大家提供各种各样类型的实用资料，如教育随笔、日记赏析、句子摘抄、古诗大全、经典美文、话题作文、工作总结、词语解析、文案摘录、其他资料等等，如想了解不同资料格式和写法，敬请关注!Download tips: This document is carefully compiled by theeditor. I hope that after you download them,they can help yousolve practical problems. The document can be customized andmodified after downloading,please adjust and use it according toactual needs, thank you!In addition, our shop provides you with various types ofpractical materials,such as educational essays, diaryappreciation,sentence excerpts,ancient poems,classicarticles,topic composition,work summary,word parsing,copy excerpts,other materials and so on,want to know different data formats andwriting methods,please pay attention!铝件化学镀镍是一种常见的表面处理方法，可以提高铝件的耐腐蚀性能和美观度。

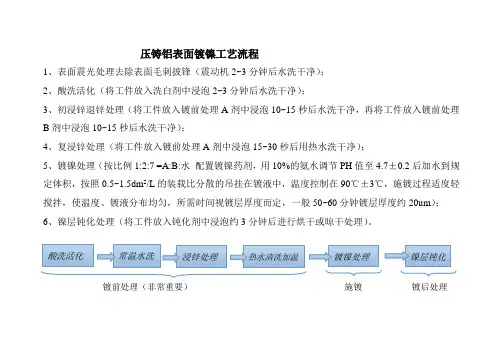

压铸铝表面镀镍工艺流程
1、表面震光处理去除表面毛刺披锋（震动机2~3分钟后水洗干净）；
2、酸洗活化（将工件放入洗白剂中浸泡2~3分钟后水洗干净）；
3、初浸锌退锌处理（将工件放入镀前处理A剂中浸泡10~15秒后水洗干净，再将工件放入镀前处理B剂中浸泡10~15秒后水洗干净）；
4、复浸锌处理（将工件放入镀前处理A剂中浸泡15~30秒后用热水洗干净）；
5、镀镍处理（按比例1:2:7 =A:B:水配置镀镍药剂，用10%的氨水调节PH值至4.7±0.2后加水到规定体积，按照0.5~1.5dm2/L的装载比分散的吊挂在镀液中，温度控制在90℃±3℃，施镀过程适度轻搅拌，使温度、镀液分布均匀，所需时间视镀层厚度而定，一般50~60分钟镀层厚度约20um）；
6、镍层钝化处理（将工件放入钝化剂中浸泡约3分钟后进行烘干或晾干处理）。

酸洗活化常温水洗浸锌处理热水清洗加温镀镍处理镍层钝化。

铝合金高磷化学镀镍工艺流程英文回答：Aluminum alloy high-phosphorus electroless nickel plating is a process used to deposit a layer of nickel-phosphorus alloy onto the surface of aluminum alloy. This process is widely used in industries such as aerospace, automotive, and electronics, as it provides excellent corrosion resistance, wear resistance, and solderability to the aluminum alloy.The process flow of aluminum alloy high-phosphorus electroless nickel plating typically involves the following steps:1. Surface Preparation: The aluminum alloy substrate is thoroughly cleaned to remove any dirt, grease, or oxide layers. This is usually done by using a combination of alkaline cleaners, acid etchants, and deoxidizers. The cleaned substrate is then rinsed with water to remove anyresidual chemicals.2. Activation: The activated aluminum alloy substrate is then immersed in an activation bath, which typically contains a mixture of acid and a proprietary activation agent. This step is crucial to ensure good adhesion between the aluminum alloy and the nickel-phosphorus coating.3. Nickel-Phosphorus Deposition: After activation, the aluminum alloy substrate is immersed in an electroless nickel-phosphorus plating bath. This bath contains a solution of nickel salts, reducing agents, and phosphorus-containing compounds. The plating bath is typically maintained at a specific temperature and pH to control the deposition rate and phosphorus content in the coating. The nickel-phosphorus coating is deposited on the activated aluminum alloy substrate through a chemical reduction process.4. Post-Treatment: After the desired thickness of the nickel-phosphorus coating is achieved, the plated aluminum alloy substrate is rinsed with water to remove any residualplating bath chemicals. It is then subjected to a post-treatment process, which may include heat treatment or passivation, to enhance the properties of the coating and improve its adhesion to the aluminum alloy substrate.5. Quality Control: Throughout the plating process, various quality control measures are implemented to ensure the desired coating properties are achieved. These may include regular monitoring of the plating bath parameters, such as pH, temperature, and concentration of plating chemicals, as well as conducting adhesion tests, corrosion tests, and thickness measurements on the plated samples.中文回答：铝合金高磷化学镀镍是一种将镍磷合金层沉积在铝合金表面的工艺。
