Advances in Simulation of Arbitrary 3D Crack Growth using FRANC3DNG-ppt

COVER SHEETTitle: Simulation of Arbitrary Delamination Growth in Composite Structures Using the Virtual Crack Extension Method Authors: Brett R. DavisPaul A. WawrzynekAnthony R. IngraffeaABSTRACTA finite-element-based toolset has been developed to simulate arbitrary evolution of 3-D, geometrically explicit, interlaminar delaminations in composite structures. A new energy-based growth formulation uses the virtual crack extension (VCE) method to predict point-by-point growth along the delamination front. The VCE method offers an accurate and computationally efficient means to extract both energy release rate, , and rate of change of energy release rate, , from a single finite element analysis. A new VCE implementation is used to decouple and compute 3-D, mixed-mode, fracture parameters, permitting the use of mixed-mode growth criteria. The parameters create an influence matrix that relates an extension at one point to the energy release rate elsewhere along the delamination front. The use of the matrix, in conjunction with an iterative approach that continually updates the delamination configuration by re-meshing, enables the prediction of arbitrary delamination evolution. The numerical techniques and formulations implemented allow a delamination to grow by the rules of mechanics and physics, while reducing computational artifacts, e.g. mesh bias. The evolution of an initial embedded elliptical delamination under central point-loads into a circular configuration is simulated as a proof-of-concept for the new growth formulation.INTRODUCTIONLaminated, fiber-reinforced, composite materials are used in a variety of applications, including the aerospace and marine industries. Although laminated composite structures have been in use for decades, fully understanding and accurately predicting their failure mechanisms remains a significant challenge. The current work seeks to address this challenge for one of the most common modes of failure: delamination. A variety of finite-element-based approaches has been Cornell University, School of Civil and Environmental Engineering638 Frank H.T. Rhodes Hall, Ithaca, NY 14853, U.S.A.developed to handle the problem of progressive delamination growth. These include damage mechanics [1], cohesive crack models [2], nodal release methods via the virtual crack closure technique (VCCT) [3,4] and the extended finite element method (XFEM) [5]. This paper describes the development of a new approach, one that reduces computational limitations, freeing the mechanics and physics to dictate the evolution of the delamination.Perhaps the most widely utilized of the aforementioned are cohesive zone models and nodal release methods. However, these methods limit the characterization of delamination growth by constraining the evolution to the geometry of the predetermined finite element mesh. Cohesive zone elements use traction-displacement curves to govern behavior at the delamination front. When the traction-displacement relationship reaches its limit, i.e. maximum displacement, and zero traction, the cohesive element is eliminated, thus extending the delamination. Alternatively, fracture mechanics methods are used to calculate stress intensity factors or energy release rates at the front, and identify nodes to be released to extend the front. In either case, the delamination path will only follow existing element boundaries, restricting the direction and distance of the predicted advance of the front. These growth prediction approaches have the potential to produce saw-tooth, jagged delamination fronts that do not match physical configurations, as seen in Figure 1.To minimize these limitations, one can use a heavily refined mesh around the front, greatly inflating the computational cost, or one can produce meshes constructed with knowledge of the expected delamination growth pattern. However, this latter technique contradicts the notion of arbitrary evolution by linking a physical feature, delamination shape, with a computational artifact, the mesh. For example, with an initial circular flaw, one might design a mesh that contains an organization of elements in a concentric circular pattern around the initial delamination, Figure 2. However, of interest here is what happens when theFigure 1. Jagged saw-tooth delamination growth via the nodal release method - resulting inmesh biased constrained growth. From [3].initial delamination geometry is complex, and the growth pattern is unknown. Meshes should not provide a predetermined undue bias that obfuscates the physical results of a simulation.This work proposes a new, general approach for the simulation of geometrically explicit delamination evolution. The geometry of the delamination front is continually updated and the finite element model is appropriately re-meshed around the updated front. This procedure of updating the delamination configuration and then re-meshing ensures the arbitrary nature of the evolution. The advance of the delamination and creation of new surface area are governed by a new energy-based formulation.An incremental-iterative procedure utilizes the growth formulation to calculate point-wise advances along the delamination front. The geometry of the delamination drives the finite element simulation; the growth is not dictated by the finite element mesh, but by the mechanics and physics embedded within the energy-based growth formulation.To use effectively the new energy-based growth formulation, fracture mechanics parameters must be accurately and efficiently calculated. A novel contribution of the new energy-based growth formulation is the use of the first order derivative of the energy release rate with respect to the delamination length, the rate of energy release rate, . The parameter, in the 3-D sense, serves as an influence matrix that relates how an extension, , at one point affects the energy release rate, , elsewhere along the front. The virtual crack extension (VCE)Figure 2. Pre-designed finite element mesh that adheres to expectedgrowth pattern – resulting in mesh biased constrained growth.method has been determined to be the most appropriate fracture mechanics tool, since it can extract both energy release rates and rates of energy release rate with a single finite element analysis. Other means of calculating the parameter require a costly and time consuming finite difference approach. Another novelty presented is a VCE implementation that permits the decomposition of the energy fracture parameters, thus allowing the future use of mixed-mode fracture criteria.The simulation technique incorporates three main components: 1) explicitly representing delaminations with re-meshing capabilities, 2) fracture calculations using the VCE method, and 3) prediction of growth using the new energy-based formulation. It should be noted that the techniques developed are independent. The energy-based growth formulation can be implemented using the VCCT (which has been done by the authors), or even be applied within the XFEM environment. The simulation methodology developed aims to achieve arbitrary delamination growth through representing the delamination as a geometric feature while reducing finite element bias.The following sections will introduce the VCE method, providing background and a general framework. The implementation of the new 3-D, mixed-mode decoupling of energy release rates will be discussed. Verification results will be presented showing its effectiveness. The energy-based growth formulation will be introduced, describing the foundation and implementation of the method. Finally, the simulation of an embedded elliptical delamination subject to equal and opposite delamination face point loads is offered as a proof-of-concept for the new growth formulation.THE VIRTUAL CRACK EXTENSION METHODThe virtual crack extension (VCE) method, also known as the stiffness derivative method, is an energy approach first introduced by Dixon and Pook [6] and Watwood [7], and further developed by Hellen [8] and Parks [9]. Early VCE calculations utilized explicit perturbations of the finite element meshes to approximate the method’s required stiffness derivatives. Th e finite difference approach of calculating derivatives often introduces geometric approximation and numerical truncation errors. Haber and Koh [10] developed a variational approach that eliminated the need for perturbations for stiffness derivative calculations. Lin and Abel [11] derived a similar method, rooted in variational principle theory, but generalized and simplified the required integration of [10]. Additionally, and importantly to the energy-based growth formulation herein, the approach of [11] permits the derivation of expressions for higher order derivatives of energy release rates. Hwang utilized the formulation of [11], generalizing the direct-integration approach for 2-D [12], multiply cracked bodies [13], and planar 3-D cracks [14]. The salient features of the VCE method are the accurate calculation of energy release rates and their derivatives, with a single finite element analysis.Virtual Crack Extension FormulationThis section outlines the explicit expressions derived using the variational approach for the 3-D energy release rates and their derivatives. The followingformulation demonstrates the mathematical development of the VCE method. For a more complete mathematical derivation and discussion see [11] and [14].The potential energy, , of a finite element system is given by(1)where , , and are the nodal displacement vector, the global stiffness matrix and the applied nodal force vector, respectively.The energy release rate, , at front position is defined as the negative derivative of the potential energy with respect to an incremental front extension, , at that position.(2)For simplicity, it is assumed that nodal forces are not influenced by the incremental virtual extensions. Therefore, the variational force term, , goes to zero. The necessary parameters for a local energy release rate calculation at position require nodal displacements and the variation in stiffness due to an incremental crack extension. The simplification reduces equation (2) to:(3) It should be noted, however, if crack-face pressures, thermal, and/or body force loadings are considered, the variational force term must be included throughout the expressions and derivations.The expression for the first order derivative of the energy release rate follows from the previous equations, by taking the variation of in equation (3) with respect to another incremental crack extension, , at position .(4) The variation of displacements extends directly from the variation of the global finite element equilibrium equation, , with respect to an incremental crack extension, .(5)Rearranging equation (5) and applying the simplifying assumption of , yields the expression for the variation of nodal displacements:( )(6)The remaining derivations of the expressions for the stiffness derivatives can be found in [14]. These require a ‘strain-like’ matrix created by the virtual extensions applied to th e front elements. The ‘strains’ are created by geometry changes of the finite elements in parametric space. Through the Jacobian and basis functions, variations in the strain-displacement matrices can be formulated, providing the components necessary for the stiffness derivative integrals.Three-Dimensional Mixed-Mode Decomposition of Energy Release Rates Several methods have been proposed to decompose energy release rates using the VCE method. [15] attempted to draw concepts used from the decomposition of the -integral into and . However, inaccuracies were discovered in the term when mode-II was dominant. [10] proposed a general 2-D method using Betti’s reciprocal theorem and Yau’s mutual energy representation. [11] used a similar approach that marries actual displacement fields with analytic solutions for pure mode-I and pure mode-II behavior. This is comparable to methods used in the interaction -integral [16,17]. Ishikawa [18] developed a 2-D approach that first decomposed the displacements into mode-I and mode-II components using symmetry and skew-symmetry about the delamination front. The decomposed displacements were then used in standard VCE equations to calculate the mixed-mode energy release rates. This method was extended to 3-D by Nikishkov and Atluri [19] for the -integral, and identified by [14] as a feasible 3-D approach for mode decomposition within the VCE method. One limitation to the symmetric/skew-symmetric technique is that a symmetric mesh is required around the front. This limitation is overcome through use of a front template that will be discussed later in the implementation section.In the decomposition technique, displacement fields around a straight front can be separated into mode-I, II and III components. For an arbitrary front, the use of a local front coordinate system is required, Figure 3. A point-by-point coordinate transformation scheme is employed to essentially ‘straighten’ the front locally so the symmetric decomposition method can be used.Once the front is in a local orientation, the mode-I, mode-II, and mode-III deformations can be decomposed with respect to the delamination plane along the local axis. Taking advantage of the symmetry of the finite element meshFigure 3. Local delamination front coordinate system.surrounding the front, displacements at point ()and at (), are used to decompose mode-I, mode-II and mode-III displacements at .(7){}(8){}(9){}(10)With the displacements decomposed, and a transformed local stiffness derivative, denoted by the subscript , available, the following equation yields the mixed-mode energy release rates:, where (11) Virtual Crack Extension ImplementationThis section discusses the implementation of the VCE method, and the various numerical schemes employed to improve performance. The core of the VCE method has been implemented as a MATLAB post process. The MATLAB code reads in finite element information that identifies front nodes, elements, etc., and nodal displacements. The front is surrounded by a template comprising three rings of elements whose geometry can be carefully controlled. This satisfies the symmetric requirements of the mode decomposition method discussed previously and facilitates accurate fracture parameter calculations. The elements directly surrounding the front are either 20-noded brick or 15-noded wedge serendipity quarter-point elements,Figure 4.The VCE procedure is applied across the front elements. Non-zero contributions to the stiffness derivatives occur only over elements involved with the virtual extensions. These elements are isolated for stiffness derivative calculations that are summed appropriately for a given virtual extension. Certain considerations must be addressed when dealing with a 3-D delamination. Along a 3-D front, virtual extensions between adjacent positions have an interaction component that must be accounted for in second order stiffness derivative calculations (). Also, the 3-D virtual extensions have an area associated with them depending on the element size that must be used to normalize the energy release rates and their derivatives. Since the formulation utilizes the variational approach, the virtualextension applied can be of unit length; no optimized distance must be determined, thereby simplifying the implementation.To ease the effort of computations, the use of an intermediate global force derivative parameter is employed. For each element involved with a particular front node , first order stiffness derivatives are calculated then multiplied by the element nodal displacements.(12)The force derivative parameter is mapped into a global environment and summed over the elements for the current front position. The global force derivative for each front node is stored in a matrix. This matrix is of size: number of degrees of freedom by number of front nodes, and is utilized in the calculation of the variation in displacements. Significant computational cost lies in the execution of equation(6). Unlike the stiffness derivative, the variation in displacements is a global calculation. The virtual extensions have an influence on all points within the finite element model. Equation (6) requires -number of back solves with the symmetric global stiffness matrix and global force derivative. To accelerate the calculation and alleviate memory issues associated with the back solves, a standalone, parallelizable, sparse direct solver, MUMPS (MU ltifrontal M assively P arallel sparse direct S olver), is utilized.VCE calculations can be conducted at corner or midside nodes along the front. The selection of corner or midside nodes alters the profile of the virtual extension: the former is linear, the latter quadratic. It was determined through a previous numerical investigation that calculations at corner nodes outperformed midside nodes. This observation agrees with results published in the literature for other methods [20].Also incorporated in the implementation is the ability to carry out the numerical integration over one or two rings of elements, Figure 5. The single ring of integration comprises only quarter-point elements. The second ring utilizes the quarter-point elements and the next layer of surrounding brick elements. The theory behind adding the second ring is to improve results by effectivelyshifting Figure 4. 20-noded brick and 15-noded wedge quarter point elements used to surround thedelamination front.X2X1Figure 5. (a) 1-ring and (b) 2-ring elements involved in numerical integration for the VCE method.Top figures show the initial configuration. Bottom figures show the applied virtual extensions. the area of high virtual strain caused by the virtual extensions away from the singular elements, to elements where field gradients are not as severe. The singular elements around the delamination front experience negligible virtual strain, i.e. shape and volume change in the element, and the brunt is moved to the second ring, Figure 6. In the same numerical investigation alluded to earlier, the second ring of integration was shown to provide more accurate results for both energy release rates and rates of energy release rate.Herein, results will be reported only for the simplest, albeit still effective, form of the mixed-mode VCE method that uses quarter-point brick elements and a single ring of numerical integration at corner nodes along the front.Verification Results for 3-D, Mixed-Mode Virtual Crack Extension Method This section presents preliminary verification for the newly implemented 3-D, mixed-mode VCE method. To check the formulation and implementation, analytical displacements [22] from prescribed energy release rates were imposed on a straight front. Four scenarios were analyzed: 1) pure mode-I, 2) pure mode-II, 3) pure mode-III, and 4) mixed-mode I/II/III. In each instance an energy release rate of unity was prescribed.For brevity, the results from the mixed-mode I/II/III scenario are shown in Figure 7. The pure mode-I, II, and III situations yielded similar levels of accuracyfor their respective energy release rates. For each analysis, the decomposed energy release rates were within a fraction of one percent of the prescribed value. The energy release rates also agreed well with the total energy release rate calculations, verifying the known linear relationship.ENERGY-BASED PREDICTION OF DELAMINATION GROWTHThe new energy-based growth formulation and implementation draw inspiration from experiences in plasticity. Both plasticity and delamination growth are characterized by behavioral transitions. These are denoted by a critical limit, for plasticity, the yield stress, and for delamination growth, a critical energy release rate. With this general connection between delamination growth and plasticity, a new formulation is developed for discretized front evolution.Energy-Based Growth FormulationThe formulation extends directly from an expansion of the energy release rate.(13)The current energy release rate, , is expanded into three components: the previous energy release rate prior to the load increment , , a portion due to the change in loading, , and a portion due to extension, . HereFigure 6. 2-ring virtual extension showing area of high virtual strain along the delamination front.Figure 7. Mixed-mode energy release rate results using the 3-D VCE decomposition method.characterizes the change in energy release rate with respect to the loading, is the aforementioned influence matrix, and is the extension increment. The expanded energy release rate forms a general stability equation that can be manipulated to calculate growth increments for an arbitrary front for a given load change.A local front failure criterion must be selected. For simplicity, a local critical energy release rate, , is set as the failure criterion. However, the formulation is not limited to this form of criterion. Effective energy release rates comprised of decomposed modes subject to power laws, etc. can easily be used with the formulation.Two primary assumptions constrain the growth formulation to make results physically meaningful. The first asserts that the front cannot retreat, equation (14). The second restricts the current energy release rate from exceeding the critical criterion value, equation (15). Physically, the current front cannot exist at energy levels above the material’s critical value, thus indicating a necessary change – i.e. the shape of the front.(14)(15)Substituting the local failure criterion, , into the general stability equation (13), yields the general growth condition.(16)This stability equation can be incorporated into an incremental loading schemewhere resulting front extensions are calculated, determining a stable shape for each load increment.Energy-Based Growth ImplementationThe energy-based growth formulation is imbedded within an incremental-iterative procedure. This procedure requires an initially stable configuration. Thedelamination is then incrementally loaded. For each load increment, a growthcondition is checked. If growth is detected, an iterative approach is employed usingthe energy-based growth formulation to achieve a stable configuration for thatgiven load increment. If growth is not detected, the algorithm is allowed to proceedto the next load increment and continue on in the simulation. Figure 8 depicts theiterative scheme of the simulation technique that incorporates finite element modelgeneration, analysis, fracture mechanics calculations, and the growth formulation.As introduced previously, the mixed-mode virtual crack extension (VCE)method is used to calculate energy release rates along the front. Energy release rates need to be extracted for both the stable configuration, { }, and after the load increment, {}. Here {}denotes a vector of quantities, i.e. the energy release rate for each point along a discretized front.At each load level, the VCE results are compared to critical values to determineif a growth condition is reached. The initial load level should be stable, meaning for all points along the front { }{}. After the load increment is applied, the energy release rates are checked again. Positions along the front are separated into mobilized, {}{ }, and stationary points, {}{ }. As the notation implies, the mobilized points are those that are expected to advance, where the stationary points, remain at their current locations. The mobilized points exceed the critical criterion for the given load increment, which is not physically attainable, indicating that an update in the front geometry is required.The stability equation is rearranged and employed to determine the portion of the load increment, , that results in the mobilized positions going from stableFigure 8. Simulation flow chart outlining use of finite element analysis, the VCE method, and the energy-based growth formulation in an iterative scheme.{ } levels to the critical values, {}. To determine , it is assumed that the front geometry is unchanged, i.e. . Herein, the mobilized notation is dropped for clarity.{}{}{ }(17)The {} term is obtained through a finite difference calculation between {} and { }. The value for each of the mobilized positions along the front is subtracted from the total load increment, , to attain the portion of the load increment that contributes energy to the system resulting in extension.{ }{}{}(18) In the next stage of the calculation, it is assumed that operations are centered at the local failure criterion. This sets {}{}. The added energy { } term is inserted back into the reorganized stability equation to calculate the delamination extensions for the mobilized positions, {}.{}{}{}{ }[]{}(19){}{}(20){}[]{}{ }(21) The [] notation signifies a matrix. Equation (21), with the use of the [] influence matrix, makes this method unique and capable of capturing arbitrary delamination growth.Each mobilized position along the front is advanced according to {}in an outward normal direction. The front geometry is updated, and re-meshed. With an updated finite element model, the iterative process is continued. The updated front geometry is loaded at the initial stable level prior to . A new { }is calculated. The load increment is applied to the updated configuration. A new {}is calculated. A new set of mobilized and stationary nodes areidentified. The previously described procedure is repeated with the new mobilized nodes, calculating the next iteration of extensions. The iterations are continued until a stable configuration is reached for the given load increment. The stability of the front geometry is achieved when, for all positions along the front, the energy release rates are below the failure criterion.SIMULATION AND RESULTSTo test the formulation and implementation of the energy-based growth formulation, a proof-of-concept simulation was designed. The finite element re-meshing, front advances, and model generations were carried out by in-house software. The models generated were imported into the ABAQUS finite element software. ABAQUS served as both the finite element environment and solver. The virtual crack extension (VCE) method used the ABAQUS results to calculate the necessary fracture mechanics parameters. The energy-based growth formulation was then employed to calculate point-by-point extensions for a given load increment.An initial, embedded elliptical delamination, aspect ratio 2:1, in an isotropic material subjected to centrally applied point loads to the surfaces was simulated, Figure 9. Simple supports were used to prevent rigid body motion. For this example, a constant local critical energy release rate was chosen as the failure criterion. This configuration was selected because of its inherently stable growth. The elliptical geometry offers an opportunity to view non-uniform growth, rather than simulating a circular delamination that grows concentrically.The load was separated into 25 increments. A stable configuration was reached for each load increment. On average, each increment required four iterations. The initially elliptical delamination evolved along the minor axis, eventually bowing into a circular configuration. Figures 10-15 show a sample of the stable configurations for selected load increments.To assess the quantitative accuracy of the energy-based growth formulation, the simulation was continued to observe the circular growth pattern (Figures 14-15). Five concentric circular growth increments were simulated. An average percent difference of 0.1% was found for the simulated radii when compared to an analytical expression [21].Figure 9. Geometry and boundary conditions for proof-of-concept simulation.。

OBJECTIVESOLIDWORKS® Flow Simulation is a powerful Computational Fluid Dynamics (CFD) solution fully embedded within SOLIDWORKS. It enables designers and engineers to quickly and easily simulate the effect of fluid flow, heat transfer and fluid forces that are critical to the success of their designs.OVERVIEWSOLIDWORKS Flow Simulation enables designers to simulate liquid and gas flow in real-world conditions, run “what if” scenarios and efficiently analyze the effects of fluid flow, heat transfer and related forces on or through components. Design variations can quickly be compared to make better decisions, resulting in products with superior performance. SOL IDWORKS Flow Simulation offers two flow modules that encompass industry specific tools, practices and simulation methodologies—a Heating, Ventilation and Air Conditioning (HVAC) module and an Electronic Cooling module. These modules are add-ons to a SOLIDWORKS Flow Simulation license. BENEFITS• Evaluates product performance while changing multiple variables at a rapid pace.• Reduces time-to-market by quickly determining optimal design solutions and reducing physical prototypes.• Enables better cost control through reduced rework and higher quality.• Delivers more accurate proposals.CAPABILITIESSOLIDWORKS Flow SimulationSOLIDWORKS Flow Simulation is a general-purpose fluid flow and heat transfer simulation tool integrated with SOLIDWORKS 3D CAD. Capable of simulating both low-speed and supersonic flows, this powerful 3D design simulation tool enables true concurrent engineering and brings the critical impact of fluid flow analysis and heat transfer into the hands of every designer. In addition to SOL IDWORKS Flow Simulation, designers can simulate the effects of fans and rotating components on the fluid flow and well as component heating and cooling. HVAC ModuleThis module offers dedicated simulation tools for HVAC designers and engineers who need to simulate advanced radiation phenomena. It enables engineers to tackle the tough challenges of designing efficient cooling systems, lighting systems or contaminant dispersion systems. Electronic Cooling ModuleThis module includes dedicated simulation tools for thermal management studies. It is ideal for companies facing thermal challenges with their products and companies that require very accurate thermal analysis of their PCB and enclosure designs.SOLIDWORKS Flow Simulation can be used to:• Dimension air conditioning and heating ducts with confidence, taking into account materials, isolation and thermal comfort.• Investigate and visualize airflow to optimize systems and air distribution.• Test products in an environment that is as realistic as possible.• Produce Predicted Mean Vote (PMV) and Predicted Percent Dissatisfied (PPD) HVAC results for supplying schools and government institutes.• Design better incubators by keeping specific comfort levels for the infant and simulating where support equipment should be placed.• Design better air conditioning installation kits for medical customers.• Simulate electronic cooling for LED lighting.• Validate and optimize designs using a multi-parametric Department of Energy (DOE) method.SOLIDWORKS FLOW SIMULATIONOur 3D EXPERIENCE® platform powers our brand applications, serving 12 industries, and provides a rich portfolio of industry solution experiences.Dassault Syst èmes, t he 3D EXPERIENCE® Company, provides business and people wit h virt ual universes t o imagine sust ainable innovat ions. It s world-leading solutions transform the way products are designed, produced, and supported. Dassault Systèmes’ collaborative solutions foster social innovation, expanding possibilities for the virtual world to improve the real world. The group brings value to over 220,000 customers of all sizes in all industries in more than 140 countries. For more information, visit .Europe/Middle East/Africa Dassault Systèmes10, rue Marcel Dassault CS 4050178946 Vélizy-Villacoublay Cedex France AmericasDassault Systèmes 175 Wyman StreetWaltham, Massachusetts 02451-1223USA Asia-PacificDassault Systèmes K.K.ThinkPark Tower2-1-1 Osaki, Shinagawa-ku,Tokyo 141-6020Japan©2018 D a s s a u l t S y s t èm e s . A l l r i g h t s r e s e r v e d . 3D E X P E R I E N C E ®, t h e C o m p a s s i c o n , t h e 3D S l o g o , C A T I A , S O L I D W O R K S , E N O V I A , D E L M I A , S I M U L I A , G E O V I A , E X A L E A D , 3D V I A , B I O V I A , N E T V I B E S , I F W E a n d 3D E X C I T E a r e c o m m e r c i a l t r a d e m a r k s o r r e g i s t e r e d t r a d e m a r k s o f D a s s a u l t S y s t èm e s , a F r e n c h “s o c i ét é e u r o p ée n n e ” (V e r s a i l l e s C o m m e r c i a l R e g i s t e r # B 322 306 440), o r i t s s u b s i d i a r i e s i n t h e U n i t e d S t a t e s a n d /o r o t h e r c o u n t r i e s . A l l o t h e r t r a d e m a r k s a r e o w n e d b y t h e i r r e s p e c t i v e o w n e r s . U s e o f a n y D a s s a u l t S y s t èm e s o r i t s s u b s i d i a r i e s t r a d e m a r k s i s s u b j e c t t o t h e i r e x p r e s s w r i t t e n a p p r o v a l .• Free, forced and mixed convection• Fluid flows with boundary layers, including wall roughness effects• Laminar and turbulent fluid flows • Laminar only flow• Multi-species fluids and multi-component solids• Fluid flows in models with moving/rotating surfaces and/or parts• Heat conduction in fluid, solid and porous media with/without conjugate heat transfer and/or contact heat resistance between solids• Heat conduction in solids only • Gravitational effectsAdvanced Capabilities• Noise Prediction (Steady State and Transient)• Free Surface• Radiation Heat Transfer Between Solids • Heat sources due to Peltier effect• Radiant flux on surfaces of semi-transparent bodies• Joule heating due to direct electric current in electrically conducting solids• Various types of thermal conductivity in solid medium • Cavitation in incompressible water flows• Equilibrium volume condensation of water from steam and its influence on fluid flow and heat transfer• Relative humidity in gases and mixtures of gases • Two-phase (fluid + particles) flows • Periodic boundary conditions.• Tracer Study• Comfort Parameters • Heat Pipes • Thermal Joints• Two-resistor Components • PCBs•Thermoelectric Coolers• Test the heat exchange on AC and DC power converters.• Simulate internal temperature control to reduce overheating issues.• Better position fans and optimize air flux inside a design.• Predict noise generated by your designed system.Some capabilities above need the HVAC or Electronic Cooling Module.SOLIDWORK Design Support• Fully embedded in SOLIDWORKS 3D CAD• Support SOLIDWORKS configurations and materials • Help Documentation • Knowledge base• Engineering database• eDrawings ® of SOLIDWORKS Simulation results General Fluid Flow Analysis• 2D flow • 3D flow • Symmetry• Sector Periodicity • Internal fluid flows • External fluid flowsAnalysis Types• Steady state and transient fluid flows • Liquids • Gases• Non-Newtonian liquids • Mixed flows• Compressible gas and incompressible fluid flows •Subsonic, transonic and supersonic gas flowsMesher• Global Mesh Automatic and Manual settings • Local mesh refinementGeneral Capabilities• Fluid flows and heat transfer in porous media • Flows of non-Newtonian liquids • Flows of compressible liquids •Real gases。

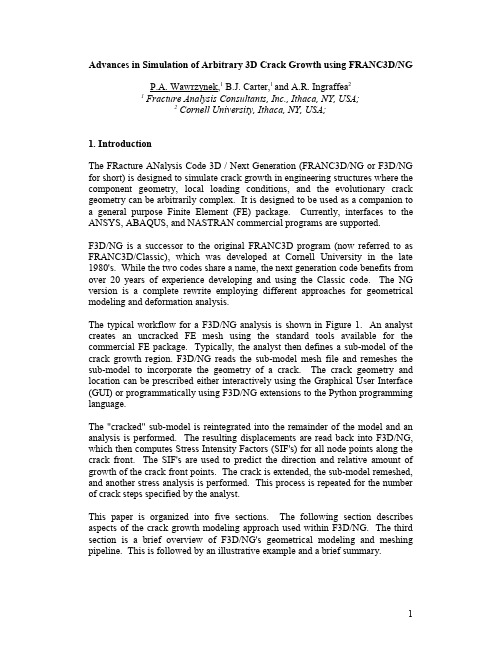

Advances in Simulation of Arbitrary 3D Crack Growth using FRANC3D/NG P.A. Wawrzynek,1 B.J. Carter,1 and A.R. Ingraffea21 Fracture Analysis Consultants, Inc., Ithaca, NY, USA;2 Cornell University, Ithaca, NY, USA;1. IntroductionThe FRacture ANalysis Code 3D / Next Generation (FRANC3D/NG or F3D/NG for short) is designed to simulate crack growth in engineering structures where the component geometry,local loading conditions,and the evolutionary crack geometry can be arbitrarily complex. It is designed to be used as a companion to a general purpose Finite Element(FE) package.Currently,interfaces to the ANSYS, ABAQUS, and NASTRAN commercial programs are supported.F3D/NG is a successor to the original FRANC3D program (now referred to as FRANC3D/Classic),which was developed at Cornell University in the late 1980's. While the two codes share a name, the next generation code benefits from over 20 years of experience developing and using the Classic code. The NG version is a complete rewrite employing different approaches for geometrical modeling and deformation analysis.The typical workflow for a F3D/NG analysis is shown in Figure 1. An analyst creates an uncracked FE mesh using the standard tools available for the commercial FE package. Typically, the analyst then defines a sub-model of the crack growth region. F3D/NG reads the sub-model mesh file and remeshes the sub-model to incorporate the geometry of a crack. The crack geometry and location can be prescribed either interactively using the Graphical User Interface (GUI) or programmatically using F3D/NG extensions to the Python programming language.The "cracked" sub-model is reintegrated into the remainder of the model and an analysis is performed. The resulting displacements are read back into F3D/NG, which then computes Stress Intensity Factors (SIF's) for all node points along the crack front. The SIF's are used to predict the direction and relative amount of growth of the crack front points. The crack is extended, the sub-model remeshed, and another stress analysis is performed. This process is repeated for the number of crack steps specified by the analyst.This paper is organized into five sections.The following section describes aspects of the crack growth modeling approach used within F3D/NG. The third section is a brief overview of F3D/NG's geometrical modeling and meshing pipeline. This is followed by an illustrative example and a brief summary.Figure 1. Typical workflow for a F3D/NG crack growth analysis.2. Modeling ApproachIn this section, key aspects of how F3D/NG operates and interacts with other programs are described.2.1 Sub-modelsF3D/NG supports the notion of a sub-model;remeshing for crack growth is confined to this sub-model. The sub-model approach is illustrated in Figure 2. All the supported FE packages have tools to define a sub-model.In a "real world" analysis, the size of a crack is small relative to the size of the structure. Confining the remeshing for crack growth to the sub-model greatly reduces the amount of data that needs to be transferred to, and processed by, F3D/ NG, thus speeding the crack growth process. It also allows the analyst to leave intact portions of a model with different structural idealizations(e.g.shell elements), complex boundary conditions (e.g., contact), or are just naturally and easily meshed with brick elements(F3D/NG remeshes with predominantly tetrahedral elements, as described below).Sub-modeling is used for mesh modification only; it does not affect the analysis strategy. That is, the remeshed sub-model is "plugged" back into the global model and the stress and deformation analysis is performed for the full composite model.This approach is not a sub-structuring or local/global analysismethodology. The sub-model can be redefined at any step of a crack growthanalysis.FRANC3D/NGFE mesh compatibilitymaintainedFRANC3D/NGremeshes a“sub-model”“global”modelFigure 2. The sub-modeling approached used in F3D/NG.2.2 Mesh File InterfaceThe main form of communication between F3D/NG and FE programs is through ASCII mesh description files. These are human-readable files that define a mesh, node coordinates, materials, and boundary conditions. These files use proprietary formats defined by the FE package vendors (.cdb, .inp, and .bnf formats for ANSYS, ABAQUS, and NASTRAN, respectively). F3D/NG expects a mesh file as input that describes an uncracked model or sub-model. It may also request a file of nodal temperatures in the case of thermal/mechanical loading, and possibly a file of nodal stresses if initial or residual stress fields are to be considered The output from the program is a new file that describes a mesh for a model or sub-model containing a newly inserted or newly extended crack (and possibly a file of interpolated nodal temperatures).Transferring a mesh description of a component between F3D/NG and a FE program is sub-optimal because mesh descriptions encode geometrical information incompletely.For example,if a portion of the surface of a component is curved, then the mesh model will have replaced that surface with a collection of planar or polynomial patches. This means that F3D/NG must use heuristic algorithms to reconstruct a description of the local geometry from the mesh data(a procedure described below).In most cases,the reconstructed geometry will be approximate.In theory,a better approach would be for the FE package to send F3D/NG geometrical data with the mesh data. In practice, however, this would introduce unwanted complexities. The format of mesh files varies among venders, but the main information they contain (node coordinates and element descriptions) is essentially the same among popular FE packages, and they describe a relatively simple data model.True geometrical information, in general,is much more complex and can vary markedly among vendors. Frequently, an analyst tasked with performing a crack growth investigation does not have easy access to a solid model description of a component and can more easily work with a mesh model. On balance,even though exchanging FE data introduces geometrical approximations, doing so makes F3D/NG a more flexible and useful tool than if it were tied to the geometrical information demanded by a specific FE package.2.3 Initial Flaw GeometryF3D/NG can be used to insert both zero volume flaws (cracks) and finite volume flaws (voids) into a model. Both types of flaws are defined as a collection of triangular cubic Bézier spline patches. Using spline patches to describe flaws means that very complex, doubly curved crack surfaces can be modeled. In most cases, however, an analyst will start by inserting an initial flaw with a relatively simple geometry and have it grow into a more complex shape.F3D/NG provides a "wizard" to specify an initial flaw shape, orientation, and location. One first selects from a small library of parameterized flaw shapes (e.g. elliptical crack, part-through crack, center crack, ellipsoidal flaw). Then one specifies translations and rotations to position the flaw.. The wizard provides visual feedback so that one can confirm the flaw is in the proper location. An image crack insertion wizard is shown in Figure 3.Notice in figure 3 that the wizard allows the analyst to work with the full elliptical crack shape, even though only about half the ellipse will ultimately be inserted into the part. The program computes the intersection of the flaw with the (in this case, doubly curved) surface and trims the unused portion of the flaw.. This means the same parameterized elliptical crack model can be used to define a wide range of fully embedded, surface, or corner crack geometries.2.4 Crack Region MeshingA variety of element types is used within F3D/NG for meshing near cracks. As illustrated in figure 4, 15-nodes wedge elements are used adjacent to a crack front. By default, eight wedge elements are used circumferentially around the crack front and these elements have the appropriate side-nodes moved to the quarter points,which allows the element to reproduce the theoretical1/√r stress distribution.The crack-front elements are surrounded by "rings" of 20-noded brick elements (two rings by default). Together, the wedge and brick elements comprise what is referred to as the crack front "template". The template is extruded along the crack front a shown in figure 5. This regular pattern of elements in the template is exploited when computing conservative integrals (e.g., J-integral and M-integral).Figure 3. An image from the flaw insertion wizard showing an elliptically shapedcrack being positioned in a gear tooth.The bulk of the sub-model is meshed with 10-noded tetrahedral elements. The triangular faces of the tetrahedral elements are not compatible with the quadrilateral faces of the brick elements;13-noded pyramid elements are used to transition from the template to the tetrahedra. Not all finite element packages support pyramid elements, so as an option the pyramid elements can be divided into two tetrahedra with the "hanging" node constrained.2.4 Computing Crack-front ParametersF3D/NG computes stress intensity factors using either a displacement correlation approach or an M-integral. It can also compute elastic strain energy release rates by way of a J-integral.In the displacement correlation approach,the finite-element-computed displacements for nodes on the crack faces are substituted into the theoretical expressions for the crack-front displacements fields written as functions of the stress-intensity factors.For a linear-elastic analysis, the J-integral is equivalent the total strain energy release rate. F3D/NG uses an equivalent domain formulation of the J-integral where the conventional contour formulation is replaced with a volume integral, which can be evaluated more accurately in a finite element contextThe M-integral, sometimes called the interaction integral, computes the energy release rates segregated by modes so the modal SIF's (K I,K II, and K III) can be computed.F3D/NG has M-integral formulations for both isotropic andorthotropic materials where the material axes can be oriented arbitrarily relative tothe crack front [1].quarter-point singular wedgecrack-front elements two or more “rings”of brick elementspyramids enforce compatibilitybetween brick and tetrahedral elements tetrahedral elements are used for the bulk of the volume meshFigure 4. Element types used to mesh the crack-front region.crack-front templateFigure 5. A crack-front template2.5 Crack GrowthWithin F3D/NG, crack growth is a five-step process:1.SIF’s are computed for all node points along the crack front.2.At each such point the direction and extent of growth is determined.3. A space curve is fit through the new crack-front points and, for the case of a surface crack, extrapolated, if necessary, to extend outside of the body.4.New Bézier patches are added to the crack surfaces.5.The extended crack is inserted into an uncracked mesh.By default, the Maximum Tensile Stress (MTS) criterion is used to predict the local direction of crack growth. One can also select a transition to a Maximum Shear Stress (MSS) criterion when the ratio of Mode II to Mode I is above a defined threshold.The relative amount of crack growth for points along the front, by default, is a ratio of the corresponding SIF's raised to an analyst specified power. This is analogous to evaluating the Paris crack growth rate equation for two points where both points are subjected to the same number of load cycles. In addition to a Paris type model, the NASGRO or an analyst supplied (piecewise linear in log/log space) crack growth rate equation can be used to determine relative amounts of growth.3. The FRANC3D/NG Geometry/Meshing PipelineThe core of the F3D/NG program is the geometrical modeling and meshing pipeline that adapts a FE mesh to insert a crack. This is a four-step process: surface facets and edge detection,geometry reconstruction,intersection computations, and meshing. These steps are described briefly in the following sections.3.1 Surface Facets and Edge DetectionAs mentioned above, F3D/NG takes as input a mesh description of model. The first step in the pipeline is to determine the FE facets that either make up the outer boundary of the sub-model or fall on a bi-material interface. Depending on the solid element type, the surface facets will have either a triangular or quadrilateral shape. Only element corner nodes are considered Quadrilateral element facets are further divided into two triangular facets yielding a planar- faceted, approximate geometrical description of the sub-model external and bi-material interface surfaces.The next step is to determine collections of the surface facets that can be grouped to form planar or gently curving regions that can be logically seen as a single surface, figure 6. The logical surfaces are bounded by "hard" edges. These are patch boundaries that one would perceive as making up a portion of a "sharp" edge of the model.Hard edges andoriginal FEM mesh triangular facetslogical surfacesFigure 6. Preliminary surface and edge detection.The primary heuristic used to identify sharp edges is to examine the angle between two adjacent surface patches. If the angle is below a threshold, thecommon boundary segment is flagged as a hard edge. Once all edges have been identified, strings of adjacent edges are determined and grouped to form circuits that form boundaries of logical surfaces.Exceptions to the patch grouping procedure are surfaces that fall on the interface between the sub-model and global model. These surfaces are retained as distinct patches so that nodal compatibility can be maintained when the sub-model is reinserted into the global mesh.3.2 Geometry ReconstructionThe FE facets give an approximate description of the surface geometry of the sub-model. A more accurate, but still approximate, geometry description is obtained by replacing the planar triangular facets with triangular cubic Bézier patches, which can represent doubly curved surfaces.These patches have ten control points so ten conditions must be given to define the geometry. Three conditions are given by the coordinates of the corners of the patches. Three more conditions are given by computing normals at all patch corners. Normals are computed as a weighted average of the planar facet normals for facets sharing the corner. The weights are given by the included patch angle at the corner point. If the corner falls on a hard edge, care is taken so that normals are not averaged across the edge. The final control point is selected to maintain quadratic precision of the surface interpolation [2].3.3 Intersection ComputationsAt this stage of the pipeline, both the component and the crack are represented as collections of triangular cubic Bézier patches.To"insert"the crack into a component,a search is made to find all intersections between crack and component patches [3,4]. For intersected crack patches, those parts of the patch inside the component and those outside are determined. The external parts are "trimmed", and the internal parts are added to the component model to form a composite crack/component model. The intersection curves, which are the crack mouth, become additional hard edges in the model.3.3 MeshingThe final stage in the pipeline is generating a FE mesh. Meshing is performed in four steps. First, FE nodes are generated along all hard edges. Second, triangular surface meshes are generated for all logical surfaces. Third, pyramid elements are generated adjacent to all quadrilateral boundary facets.Finally,a tetrahedral volume mesh is generated for the full sub-model.Generating nodes along the hard edges is an iterative process.First, a characteristic element size is determined for the ends of all hard edges. Thecharacteristic size will be the smaller of the shortest of all the adjacent hard edge lengths and the size of the finite element that was at this location before crack insertion. Node distributions along the edges are then determined such that there will be a linear variation in element sizes from one end of the edge to the other. If the rate of change of nodal spacing along any edge is greater than a threshold, then the longer of characteristic lengths at this edge's endpoints is reduced until the spacing is within tolerance. As the edge endpoint will also be an endpoint for other hard edges, the size reduction will require a regeneration of nodes for these edges. This might possibly cause these edges to violate the spacing transition tolerance, and the process is repeated iteratively until the node distributions along all edges fall within the tolerance.An advancing front meshing algorithm is used to generate surfaces meshes. One of two forms of this algorithm is used, depending on the geometry of the surface. If the surface is planar or nearly so, the surface boundary is mapped to a least squares fit plane,a2-D mesh is generated in this plane,and the internally generated node points are mapped back so that they fall on the appropriate Bézier patches. If the surface has significant curvature, then a computationally more expensive advancing front procedure is used where all the computations and intersection checks are performed using the3-D surface geometry[5].An advancing front meshing algorithm is used for volume meshing also. In this case tetrahedral elements are generated [6].4. ExampleFor a simple demonstration analysis,a"half-penny"surface crack has been inserted into a thick-walled cylinder subjected to combined tension and torsion loading. The left image of figure 7 shows the FE mesh with a high concentration of elements near the crack mouth. The center image shows a detail of the mesh on the surface of the crack. The right image shows the crack surface after one step of crack growth. The crack extension is non-planar due to the mixed-mode loading.Figure 7. Crack growth in a thick-walled cylinder: initial mesh (left), initial crack surface mesh (middle), crack surface mesh after one step of growth (right). Figure 8 shows a sequence of "cut-away" images illustrating the evolving crack geometry. The penultimate image shows that the crack front is automatically splitinto two fronts as the crack grows to the inner bore. The final image shows the final trace of the crack mouth on the surface of the cylinder.Figure 8. The geometry of the evolving non-planar crack geometry.5. SummaryF3D/NG is a program designed to simulate crack growth in engineering structures were the component geometry, local loading conditions, and the evolutionary crack geometry can be arbitrarily complex.It is designed to be used as a companion program to a general purpose FE package. Because stress analysis is performed by capable commercial packages, complex mechanics, such as contact and advanced material models, can be included in crack growth analyses.This paper has provided a brief overview of F3D/NG.Because of length restrictions many aspects of the program have been treated very superficially. Little mention has been made of the graphical user interface, which allows an analyst to be productive with a shallow learning curve. The paper does show, however,how geometrical modeling,computational fracture mechanics,and meshing capabilities have been combined to create a tool that provides an analyst with the capability to model realistically shaped cracks in real engineering structures subjected to realistic loads.AcknowledgementsWe gratefully acknowledge that the development of FRANC3D/NG was partially supported byAFRL/RXLMN, contract numbers FA6650-04-C-5212 and FA8650-07-C-5216, Drs. Pat Golden and Reji John technical monitors, and byNAVAIR,contract number N68335-08-C-0011,Mr.Ken Barlow technical monitor.References[1] L. Banks-Sills,P. Wawrzynek, B. Carter, A.Ingraffea, I. Hershkovitz, Methods for computing stress intensity factors in anisotropic geometries: Part II – arbitrary geometry, Eng Fracture Mech74 (8)(2007) 1293-1307[2] G. Farin, Curves and Surfaces for CAGD, Morgan Kaufmann Publishers, San Francisco, 2002[3] G. Müllenheim, On determining start points for a surface/surface intersection algorithm, Comp Aided Geometric Design 8 (1991) 401-408[4] C. Bajaj, C. Hoffmann, R. Lynch, J. Hopcroft, Tracing surface intersections, Comp Aided Geometric Design 5 (1988) 285-307[5] A. Miranda, L. Martha, P. Wawrzynek, A. Ingraffea, Surface mesh regeneration considering curvatures, Eng with Comp, Submitted December, 2007 [6] J. Cavalcante Neto, P. Wawrzynek, M. Carvalho, L. Martha, and A. Ingraffea, An algorithm for three-dimensional mesh generation for arbitrary regions with cracks, Eng with Comp 17 (2001) 75-9111。
