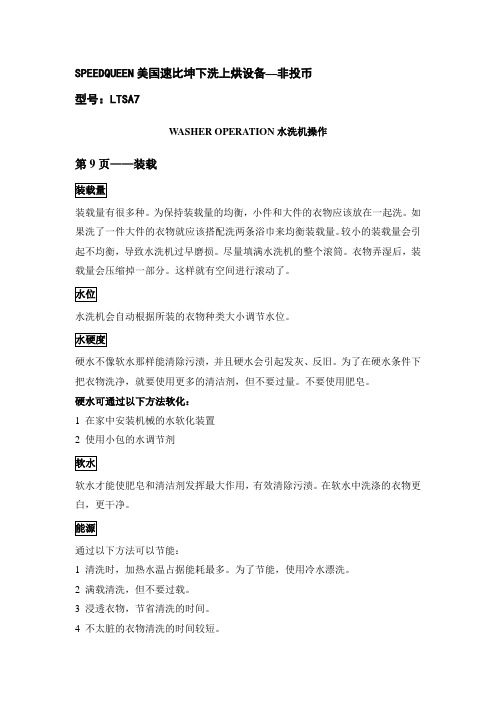

SPEEDQUEEN美国速比坤下洗上烘设备—非投币型号：LTSA7W ASHER OPERATION水洗机操作第9页——装载装载量有很多种。

为保持装载量的均衡，小件和大件的衣物应该放在一起洗。

如果洗了一件大件的衣物就应该搭配洗两条浴巾来均衡装载量。

较小的装载量会引起不均衡，导致水洗机过早磨损。

尽量填满水洗机的整个滚筒。

衣物弄湿后，装载量会压缩掉一部分。

这样就有空间进行滚动了。

水洗机会自动根据所装的衣物种类大小调节水位。

硬水不像软水那样能清除污渍，并且硬水会引起发灰、反旧。

为了在硬水条件下把衣物洗净，就要使用更多的清洁剂，但不要过量。

不要使用肥皂。

硬水可通过以下方法软化：1 在家中安装机械的水软化装置2 使用小包的水调节剂软水才能使肥皂和清洁剂发挥最大作用，有效清除污渍。

在软水中洗涤的衣物更白，更干净。

通过以下方法可以节能：1 清洗时，加热水温占据能耗最多。

为了节能，使用冷水漂洗。

2 满载清洗，但不要过载。

3 浸透衣物，节省清洗的时间。

4 不太脏的衣物清洗的时间较短。

第10页——正常的水洗机的声音第11页——洗熨帖示第12页——选择适合的洗涤程序警告：为减少火灾，电击，致残，致死，在使用水洗机之前，仔细阅读安全说明。

注意：完全按照安全标签指示。

第12页洗涤衣物注意：新的水洗机在使用前要确保水洗机接入了240V的电源，并且电源的接地和极性适当。

确保水洗机的软管和冷、热水龙头已经接好了并且龙头是开着的。

确保排水管没有弯曲纠结，并且插在排水沟里。

参见水洗机安装说明。

注意：第一次使用之前，用多功能清洁剂，清水和湿布擦掉水管里的灰尘。

注意：清洗时把衣物里尖利的东西拿出来，以免磨损刮伤机器。

1 把要洗的衣物拿出来。

淘空衣服裤子的口袋。

分装衣物。

把比较脏的地方先预处理一下。

2 在分配盒里加入低泡沫的洗衣粉，衣物柔顺剂和漂白粉。

第13页3 把衣物装入滚筒（最多可以装入8.1公斤的干衣服）。

参见装载量。

4 把滚筒门关紧。

Spare parts manual4 / 49Frame: drawing nr. 516486A1 513089 Reduction2 102445 Air spring, 70kg / 154lb, 90kg / 198lb, 110kg / 242lb,2 140kg / 308lb2 516901 Air spring, 180kg / 396lb3 516890 Shock absorber4 516886 Shock absorber513293 A Publication date 1 Dec 2008.doc Spare parts manual 5 / 49Spare parts manual6 / 49Drive 1: drawing nr. 516487A1 512190 Motor modification, 70kg / 154lb, 90kg / 198lb1 530891 Motor modification, 110kg / 242lb1 512191 Motor modification, 140kg / 308lb1 512192 Motor modification, 180kg / 396lb2 512195 Ventilator complete, 70kg / 154lb, 90kg / 198lb,2 110kg / 242lb, 140kg / 308lb2 516188 Ventilator complete, 180kg / 396lb3 513120 Motor complete, 90kg / 198lb3 530893 Motor complete, 110kg / 242lb3 513121 Motor complete, 140kg / 308lb3 513122 Motor complete, 180kg / 396lb4 512168 Motor pulley, 70kg / 154lb, 90kg / 198lb4 530892 Motor pulley, 110kg / 242lb4 506933 Motor pulley, 140kg / 308lb4 517239 Motor pulley, 180kg / 396lb5 511924 PulleywasherM16x506 309933001650 Bolt513293 A Publication date 1 Dec 2008.doc Spare parts manual 7 / 49513293 A Publication date 1 Dec 2008.doc ArraySpare parts manual8 / 49Drive 2: drawing nr. 516488A1 508276 Braking disc2 508277 Pulley modification, 70kg / 154lb, 90kg / 198lb,2 110kg / 242lb, 140kg / 308lb2 517237 Pulley modification, 180kg / 396lb3 516700 Taper lock, 70kg / 154lb, 90kg / 198lb, 110kg / 242lb3 512188 Taper lock, 140kg / 308lb3 514188 Taper lock, 180kg / 396lb4 506555 V-Belt, 70kg / 154lb, 90kg / 198lb, 110kg / 242lb4 512189 V-Belt, 180kg / 396lb5 309912121660 Bolt M16x60, 70kg / 154lb, 90kg / 198lb, 110kg / 242lb,5 140kg / 308lb5 309912121680 Bolt M16x80, 180kg / 396lb6 310985000016 Nut M167 311125000017 Washer 178 311127000016 Washer 169 516025 Induktive sensor10 513132 Holder10 513080 Holder11 510542 Sensor12 308726221470 Tongue13 512193 Brake complete left, (110kg / 242lb, 140kg / 308lb) - two brakes13 523779 Brake complete right, (110kg / 242lb, 140kg / 308lb) - one brake13 523776 Brake complete left, (70kg / 154lb, 90kg / 198lb) - two brakes13 523777 Brake complete right, (70kg / 154lb, 90kg / 198lb,13 110kg / 242lb, 140kg / 308lb) - two brakes13 530937 Brake complete right, (70kg / 154lb, 90kg / 198lb) - one brake,13 180kg / 396lb - two brakes14 510964 Brake block15 F01100017714 Washer 16x5, 180kg / 396lb16 530934 Distance washer 16x28x0,317 530935 Distance washer 16x28x0,518 530936 Distance washer 14x26x0,119 530933 Distance washer 16x28x0,120 510804 Brake without modification21 510922 Bolt M8x8022 315235031015 Spring23 310985000008 Nut M824 309933000820 Bolt M8x2025 530932 Holder26 511818 Jaws holder27 508274 Reduction ½“ - G⅛“28 319428330060 Screwing G⅛“513293 A Publication date 1 Dec 2008.doc Spare parts manual 9 / 49513293 A Publication date 1 Dec 2008.doc ArraySpare parts manual10 / 49Drain system: drawing nr. 516489A1 513126 Drain valve 1 assembly, 90kg / 198lb1 519084 Drain valve 1 assembly, electrical heating, 90kg / 198lb1 513127 Drain valve2 assembly, 90kg / 198lb1 519080 Drain valve 3 assembly, applicable for recycling 3“, 90kg / 198lb2 508214 Gasket of side flange3 508373 Blind plate4 309933000825 Bolt M8x255 311125000008 Washer 86 310985000008 Nut M87 506505 Pneumatic cylinder8 319428330060 Screwing G⅛“9 508205 Gasket of drain valves10 508213 Gasket of upper flange11 516633 Wiper12 506521 Slidining bearing13 506517 O-ring14 506519 O-ring15 510837 Drainage hose16 540240120240 Clip17 PRI503000027 Air trap reduction18 223101400414 Elbow19 PRI240000003 Hose clip20 PRI614000047 Thermostat sensor holder21 503839 Temperature sensor22 PRI540001003 Water level switch hose23 PRI505000034 Drain elbow24 510965 Hose25 PRI240000007 Hose clip513293 A Publication date 1 Dec 2008.doc Spare parts manual 11 / 49513293 A Publication date 1 Dec 2008.doc ArraySpare parts manual12 / 49Outer door: drawing nr. 516490A1 519197 Pneumatic cylinder2 519196 Holder3 506596 Position detector4 516898 Door sealing, 70kg / 154lb, 90kg / 198lb, 110kg / 242lb4 516899 Door sealing, 140kg / 308lb, 180kg / 396lb5 530939 Door glass, 70kg / 154lb, 90kg / 198lb, 110kg / 242lb5 530940 Door glass, 140kg / 308lb, 180kg / 396lb6 516892 Pneumatic cylinder7 513103 Cover8 513110 Nut plate9 519147 Key complete10 516677 Safety switch11 525439 Door closing hook12 530871 Gass brace, 70kg / 154lb, 90kg / 198lb, 110kg / 242lb12 516902 Gass brace, 140kg / 308lb, 180kg / 396lb12 527581 Gass brace, side opening, 70kg / 154lb, 90kg / 198lb,12 110kg / 242lb12 532849 Gass brace, side opening, 140kg / 308lb, 180kg / 396lb13 532898 Bolt M16x6014 532842 Bolt M16x100530870 Complete set of parts for adding second gas brace,brace not including, 90kg / 198lb, (not shown)516903 Gass brace 700N, 90kg / 198lb, for machines with 1 gasbrace (till 2006), (not shown)Spare parts manual14 / 49Inner door: drawing nr. 516491A 1 525427 Door crank, 70kg / 154lb, 90kg / 198lb, 110kg / 242lb1 525429 Door crank, 140kg / 308lb1 525431 Door crank, 180kg / 396lb2 525434 Spring3 525433 Spring4 525435 Set of sliding bearings, (70kg / 154lb, 90kg / 198lb,4 110kg / 242lb) - 3 chambers4 525436 Set of sliding bearings, (70kg / 154lb, 90kg / 198lb,4 110kg / 242lb) - 2 chambers4 525437 Set of sliding bearings, (140kg / 308lb, 180kg / 396lb) - 3 chambers4 525438 Set of sliding bearings, (140kg / 308lb, 180kg / 396lb) - 2 chambers5 525428 Safety part, 70kg / 154lb, 90kg / 198lb, 110kg / 242lb5 525430 Safety part, 140kg / 308lb5 525432 Safety part, 180kg / 396lb7 532838 Shaft, 70kg / 154lb, 90kg / 198lb, 110kg / 242lb7 532899 Shaft, 140kg / 308lb7 532900 Shaft, 180kg / 396lb8 532749 Split pin513293 A Publication date 1 Dec 2008.doc ArraySpare parts manual16 / 49Box of electrical components 54kW: drawing nr. 516492A 1 516192 Switch board 54 kW, 70kg / 154lb, 90kg / 198lb1 528068 Switch board 72 kW, 90kg / 198lb1 528069 Switch board 72 kW, 70kg / 154lb, 110kg / 242lb, 140kg / 308lb1 528070 Switch board 96 kW, 140kg / 308lb2 PRI342000032 Heating element, 2x3000W2 530877 Heating element, 8000W3 358503700020 Fuse3 358251503240 Fuse4 PRI345002019 Contactor4 514042 Contactor4 PRI345001019 Contactor5 504589 Main switch 250A (72kW and more than)PRI342001016 Heating element hole plug, (not shown)Spare parts manual18 / 49Steam heating system: drawing nr. 516493A1 506600 Inlet valve2 508251 Steam injector3 273020001010 Hose4 508253 Jet5 405054057008 Filter6 273454900001 Steam hose7 F021******** ReductionSpare parts manual20 / 49Soaphopper: drawing nr. 516494A1 508393 Soaphopper complete2 321848223000 Plastic vessel3 PRI505000087 Hose4 273396307058 Hose5 525416 Hose6 510940 Blind cap ½“7 510720 Screwing G½“, (not part of delivery)8 525526 Ventilation holder513293 A Publication date 1 Dec 2008.doc ArraySpare parts manual22 / 49Water inlet system: drawing nr. 516495A1 506599 Inlet valve2 PRI340020035 2-way valve3 PRI340030038 3-way valve4 223111200016 Filter complete5 PRI505000055 Inlet hose - drum6 PRI520001009 Rubber washer7 520252 Hose8 525417 Screwing with sealing 1 ½“9 - Screwing with sealing10 - Tube11 - T-part12 - Insert pieceSpare parts manual24 / 49Box of electrical components: drawing nr. 516496A 1 525906 Frequency inverter, 70kg / 154lb, 90kg / 198lb1 525907 Frequency inverter, 110kg / 242lb, 140kg / 308lb1 525908 Frequency inverter, 180kg / 396lb2 516746 Brake resistor, 110kg / 242lb, 140kg / 308lb, 180kg / 396lb2 516747 Brake resistor, 70kg / 154lb, 90kg / 198lb3 PRI345002019 Contactor3 PRI345001019 Contactor4 514179 Main switch, 400V, 70kg / 154lb, 90kg / 198lb4 514180 Main switch, 200V, 70kg / 154lb, 90kg / 198lb4 400V, 110kg / 242lb, 140kg / 308lb, 180kg / 396lb4 514181 Main switch, 200V, 110kg / 242lb, 140kg / 308lb4 514182 Main switch, 200V, 180kg / 396lb4 514182 Main switch, electrical heating, 70kg / 154lb, 90kg / 198lb4 514180 Main switch, electrical heating, 110kg / 242lb, 140kg / 308lb5 514183 Isolation cover5 514184 Isolation cover5 514185 Isolation cover6 101643 Transformer7 337503380200 Ventilator8 PRI404000095 Operating device9 520045 Communication cable10 PRI348000113 Change over switch11 514176 White pilot light12 102259 Emergency stop button13 347000002003 Controller14 516064 Operating device15 102255 Contact block16 514177 Neone lamp17 524784 Programmer complete MCG FC, grey17 527540 Programmer complete MCG FC, black18 526008 Programmer board MCG FC19 520681 Keyboard grey19 525909 Keyboard black20 520139 Extension relay board21 513074 Door for switch board22 358251632225 Fuse 2,5 A22 PRI401020021 Fuse 1,6 A22 344000010000 Fuse 1 A23 516725 Autotransformer 200-240V, 70kg / 154lb, 90kg / 198lb,23 110kg / 242lb, 140kg / 308lb, (not shown)23 516724 Autotransformer 200-240V, 180kg / 396lb, (not shown)24 PRI401014021 Protector 32A, 200-240V, 70kg / 154lb, 90kg / 198lb, (not shown)24 524785 Protector 50A, electrical heating, 180kg / 396lb , (not shown)25 525405 Switchboard box26 525404 Switchboard box sealing27 525403 Key28 525402 Lock of switchboard box29 525401 Hinge30 526001 Memory31 514178 ShaftSpare parts manual26 / 49Bearing: drawing nr. 516497A 1 516893 Bearing, 70kg / 154lb, 90kg / 198lb, 110kg / 242lb1 516894 Bearing, 140kg / 308lb, 180kg / 396lb2 516895 Tightening sleeve, 70kg / 154lb, 90kg / 198lb, 110kg / 242lb2 516896 Tightening sleeve, 140kg / 308lb, 180kg / 396lb3 516887 Sealing, 70kg / 154lb, 90kg / 198lb, 110kg / 242lb3 516888 Sealing, 140kg / 308lb, 180kg / 396lb4 532839 Ceramic ring, 70kg / 154lb, 90kg / 198lb, 110kg / 242lb4 532840 Ceramic ring, 140kg / 308lb, 180kg / 396lbSpare parts manual28 / 49Rubber protection, vibration switch: drawing nr. 516498A 1 525418 Side rubber, 70kg / 154lb, 90kg / 198lb, 110kg / 242lb1 525419 Side rubber, 140kg / 308lb1 525420 Side rubber, 180kg / 396lb1 525421 Lower rubber, 70kg / 154lb, 90kg / 198lb, 110kg / 242lb1 525422 Lower rubber, 140kg / 308lb1 525423 Lower rubber, 180kg / 396lb1 525424 Upper rubber, 70kg / 154lb, 90kg / 198lb, 110kg / 242lb1 525425 Upper rubber, 140kg / 308lb1 525426 Upper rubber, 180kg / 396lb2 PRI345000068 Vibration switch3 321000135460 Rubber4 F021******** Side slat5 309595240612 Bolt M6x12513293 A Publication date 1 Dec 2008.doc ArraySpare parts manual30 / 49Pneumatic parts: drawing nr. 516499A1 347600100112 Filter + regulator2 506588 Shut-off valve G¼“3 506589 Solenoid valve 230V AC4 506590 Pressure switch G¼“5 527562 Pressure regulator G¼“6 506591 Solenoid valve7 506592 Solenoid valve8 506593 Solenoid valve9 319428330006 Screwing G⅛“10 319428330006 Screwing G⅛“11 319428330008 Screwing G¼“12 319428330080 Screwing G⅛“13 319428330800 Screwing G¼“14 326346000407 Sound damper15 500982 Screwing ½“ / ¼“16 319300006001 Tube 6x117 523144 Tube 10x1,518 508321 Blind plate19 506053 Connection T8-820 517234 Screwing T8 - G¼“21 517235 Non-return valve 822 503883 Screwing ¼“23 405113000006 Coupling Y24 319428330060 Screwing G⅛“25 527559 Connection T 10-1026 527561 Reduction 8/1027 525528 Screwing G¼“28 525529 Non-return valve 1029 527564 Screwing G¼“, applicable for weighing system30 525527 Pneumatic valve 3/2 G¼“, applicable for weighing system31 319300008125 Tube 8x1,25Spare parts manual32 / 49Outer door securing: drawing nr. 531389 1 530852 Outer door securing, (70kg / 154lb, 90kg / 198lb,1 110kg / 242lb) - set for one-door machine1 530853 Outer door securing, (70kg / 154lb, 90kg / 198lb,1 110kg / 242lb) - set for two-door machine1 530863 Outer door securing, (140kg / 308lb,1 180kg / 396lb)- set for one-door machine1 530862 Outer door securing, (140kg / 308lb,1 180kg / 396lb)- set for two-door machine2 530846 Left stopper of inner door2 530847 Right stopper of inner door3 530851 Holder, 70kg / 154lb, 90kg / 198lb, 110kg / 242lb3 530860 Holder, 140kg / 308lb, 180kg / 396lb4 530848 Stopper complete5 309931008120 Bolt M8x1206 506699 Bolt M8x357 311125240008 Washer 88 530883 Bolt M8x709 530859 Spring10 530854 Latch complete11 530858 Washer12 526792 Nut M8513293 A Publication date 1 Dec 2008.doc ArraySpare parts manual34 / 49End of cycle signalization: drawing nr. 531390 1 525460 End of cycle signalization, two-door machine1 525461 End of cycle signalization, one-door machine2 525473 Holder3 525474 Clip4 514131 Beacon5 514132 Bulb6 347800170099 Cable bushing7 516844 Buzzer513293 A Publication date 1 Dec 2008.doc ArraySpare parts manual36 / 49Wash bath sample: drawing nr. 5313911 525462 Cock for wash bath sample2 525471 Cock holder3 523728 Ball cock ½“4 523729 Reduction ¾“ x ½“5 235134107315 Connection6 PRI540001019 Hose7 PRI240000003 Hose clamp8 523167 PadlockSpare parts manual38 / 49Automatic lubrication system: drawing nr. 531392 1 530873 Automatic lubrication system, 70kg / 154lb, 90kg / 198lb,1 110kg / 242lb1 530874 Automatic lubrication system, 140kg / 308lb, 180kg / 396lb2 530869 Lubricator holder3 500982 Screwing ½“ - ¼“4 500983 Nut ½“5 319300008125 Tube 8x1,256 319428330008 Screwing G¼“7 530872 Screwing G⅛“, 140kg / 308lb, 180kg / 396lb8 PRI521002001 Washer, 70kg / 154lb, 90kg / 198lb, 110kg / 242lb9 530869 Reduction, 70kg / 154lb, 90kg / 198lb, 110kg / 242lb10 530868 Lubricator513293 A Publication date 1 Dec 2008.doc ArraySpare parts manual40 / 49Second display: drawing nr. 5313931 530930 Second display complete2 528074 Serial cable LCD3 530928 Second display holder4 530927 Second display cover5 526798 LCD display6 530926 Sticker7 517232 Sealing513293 A Publication date 1 Dec 2008.doc ArraySpare parts manual42 / 49Weighing system: drawing nr. 5313941 516968 Amplifier2 529101 Load cell3 528061 Weighing connection4 527569 Weighing system mechanical parts516964 Converter, (not shown)516997 Converter shell, (not shown)527558 Weighing system set, (not shown) - complete kitSpare parts manual44 / 49Recycling tanks: drawing nr. 5313951 524676 Water level switch2 273238006077 Hose 60/703 532827 Pump4 532828 Recycling tank valve5 532829 Valve membrane6 532830 O-ring ø60x67 532831 Valve spring8 532832 Tube for level indicator9 532833 Elbow with nut10 525416 Hose11 273396307058 Hose12 506599 Valve13 - Hose14 532836 Hose15 - Connecting hose between drum and pump513293 A Publication date 1 Dec 2008.doc ArraySpare parts manual46 / 491 532750 Front right panel, (box of electrical components),1 90-62102, 70kg / 154lb, 90kg / 198lb1 532751 Front right panel, (box of electrical components), 110kg / 242lb1 532752 Front right panel, (box of electrical components),1 140-62102, 140kg / 308lb1 532753 Front right panel, (box of electrical components),1 180-62102, 180kg / 396lb2 532754 Front left panel, 90-62202, 70kg / 154lb, 90kg / 198lb2 532755 Front left panel, 110kg / 242lb2 532756 Front left panel, 140-62202, 140kg / 308lb2 532757 Front left panel, 180-62202, 180kg / 396lb3 532758 Rear right panel, 90-62302, 70kg / 154lb, 90kg / 198lb3 532759 Rear right panel, 110kg / 242lb3 532760 Rear right panel, 140-62302, 140kg / 308lb3 532761 Rear right panel, 180-62302, 180kg / 396lb3 532809 Rear right panel, one-door machine, 90-62302-1,3 70kg / 154lb, 90kg / 198lb3 532810 Rear right panel, one-door machine, 110kg / 242lb3 532811 Rear right panel, one-door machine, 140kg / 308lb3 532812 Rear right panel, one-door machine, 180-62302-1,3 180kg / 396lb4 532762 Rear left panel, 90-62402, 70kg / 154lb, 90kg / 198lb4 532763 Rear left panel, 110kg / 242lb4 532764 Rear left panel, 140-62402, 140kg / 308lb4 532765 Rear left panel, 180-62402, 180kg / 396lb4 532813 Rear left panel, one-door machine, 90-62402-1,4 70kg / 154lb, 90kg / 198lb4 532814 Rear left panel, one-door machine, 110kg / 242lb4 532815 Rear left panel, one-door machine, 140kg / 308lb4 532816 Rear left panel, one-door machine, 180-62402-1,4 180kg / 396lb5 532766 Middle cover, 70-62452, 70kg / 154lb5 532767 Middle cover, 90-62452, 90kg / 198lb 5 532768 Middle cover, 110kg / 242lb5 532769 Middle cover, 140-62452, 140kg / 308lb5 532770 Middle cover, 180-62452, 180kg / 396lb6 532771 Shelf, 70-62502, 70kg / 154lb6 532772 Shelf, 90-62502, 90kg / 198lb6 532773 Shelf, 110kg / 242lb6 532774 Shelf, 140-62502, 140kg / 308lb6 532775 Shelf, 180-62502, 180kg / 396lb7 532776 Cover above door, 70-62552, 70kg / 154lb7 532777 Cover above door, 90-62552, 90kg / 198lb7 532778 Cover above door, 110kg / 242lb7 532779 Cover above door, 140-62552, 140kg / 308lb7 532780 Cover above door, 180-62552, 180kg / 396lb8 532781 Front and back panel with rubber bumper, 70-62602,8 70kg / 154lb8 532782 Front and back panel with rubber bumper, 90-62602,8 90kg / 198lb8 532783 Front and back panel with rubber bumper, 110kg / 242lb8 532784 Front and back panel with rubber bumper, 140-62602,8 140kg / 308lb8 532785 Front and back panel with rubber bumper, 180-62602,8 180kg / 396lb9 532786 Upper side panel of soaphopper, 90-62702, 70kg / 154lb, 9 90kg / 198lb9 532787 Upper side panel of soaphopper, 110kg / 242lb9 532788 Upper side panel of soaphopper, 140-62702, 140kg / 308lb9 532789 Side panel above soaphopper, 180-62702, 180kg / 396lb9 532790 Side panel under soaphopper, 180-62752, 180kg / 396lb9 532791 Side panel of soaphopper, 180-62762, 180kg / 396lb10 532792 Upper side panel, 90-62702, 70kg / 154lb, 90kg / 198lb10 532793 Upper side panel, 110kg / 242lb10 532794 Upper side panel, 140-62702, 140kg / 308lb10 532795 Upper side left panel, 180-62852, 180kg / 396lb11 532796 Side panel, 90-62802, 70kg / 154lb, 90kg / 198lb11 532797 Side panel, 110kg / 242lb11 532798 Side panel, 140-62802, 140kg / 308lb11 532799 Side panel, 180-62802, 180kg / 396lb12 532800 Upper panel, 70-62902, 70kg / 154lb12 532801 Upper panel, 90-62902, 90kg / 198lb12 532802 Upper panel, 110kg / 242lb12 532803 Upper panel, 140-62902, 140kg / 308lb12 532804 Upper panel, 180-62902, 180kg / 396lb13 532805 Panel above pulley, 90-62962, 70kg / 154lb, 90kg / 198lb13 532806 Panel above pulley, 110kg / 242lb13 532807 Panel above pulley, 140-62962, 140kg / 308lb13 532808 Panel above pulley, 180-62962, 180kg / 396lb14 532817 Rear panel, one-door machine,70-62652-1,14 70kg / 154lb14 532818 Rear panel, one-door machine, 90-62652-1,14 90kg / 198lb14 532819 Rear panel, one-door machine, 110-62652-1,14 110kg / 242lb14 532820 Rear panel, one-door machine, 140-62652-1,14 140kg / 308lb14 532821 Rear panel, one-door machine, 180-62652-1,14 180kg / 396lb15 532822 Rear panel, one-door machine, (without rubber bumper),15 70kg / 154lb15 532823 Rear panel, one-door machine, (without rubber bumper),15 90kg / 198lb15 532824 Rear panel, one-door machine, (without rubber bumper),15 110kg / 242lb15 532825 Rear panel, one-door machine, (without rubber bumper),15 140kg / 308lb15 532826 Rear panel, one-door machine, (without rubber bumper),15 180-62602-1, 180kg / 396lb。

TIVALavadoras de alto desempeño para ladecontaminación de instrumentos complejosMédico2 | La línea de lavadoras-desinfectadoras TIVALa línea de lavadoras-desinfectadoras TIVALas cirugías son el núcleo de los hospitales. El suministro a tiempo de materiales esterilizados es crucial para el funcionamiento de los hospitales. Los instrumentos quirúrgicos deben ser sometidos a procesos de limpieza, desinfección y esterilización estrictos e estandarizados antes de que puedan ser utilizados nuevamente. Estar a ala atura de la alta demanda de los quirófanos, suministrando rápidamente los instrumentos y, al mismo tiempo, garantizar la seguridad de los pacientes exige soluciones avanzadas. Las lavadoras-desinfectadoras Tiva de T uttnauer dan respuesta a estos desafíos al simplificar la misión de los trabajadores y reduciendo el tiempo y los costes del línea Tiva presenta un excelente desempeño que:- Minimiza el consumo y los costes operacionales mientras maximiza la sostenibilidad - Mejora la experiencia del usuario con un sistema de control avanzado y una interfaz de fácil utilización- Utiliza materiales de la más alta calidad, ofreciendo un proceso seguro y eficienteLas lavadoras-desinfectadoras Tiva ofrecen una solución lista flexible para el lavado, desinfección y secado de diversos instrumentos médicos para un ciclo de decontaminación completo.Ciclo de decontaminación:01En el quirófanoContaminantes tenaces y otros residuos son removidos02Con destino al Departamento central de servicios deesterilización, transporte para la unidad de reprocesamientoSon utilizados sistemas autónomos03En el Departamento central de servicios de esterilización - Limpieza manual de la zona sucia:Los productos químicos, con o sin efecto antimicrobiano y con o sin utilización de enzimas04En los procesos automatizados delimpieza y desinfección del Departamento central de servicios de esterilizaciónProceso estandarizado. Limpieza, desinfección, secado a través de lavadora-desinfectadora05En la inspección visual del Departamento central de servicios de esterilizaciónLos instrumentos soninspeccionados visualmente para garantizar una limpieza suficiente.06Esterilización a travésde AutoclaveEfectuada con vapor saturado normalmentea 134 / 132 ºC07AlmacenamientoLos paquetes esterilizados son mantenidos en la sala de Almacenamiento hastasu utilizaciónLa línea de lavadoras-desinfectadoras TIVA | 3Configuraciones disponibles:Armario para almacenamiento de detergentes / Depósito deprecalentamiento para reducción deltiempo del ciclo + Armario de detergentes y conexión de agua desmineralizada- 3 resistencias de calentamiento - U SB / impresora para Cámara de la lavadora fabricada en AISI 316 litros de alta calidad Ciclo de velocidadOpcional- Mediciones de conductividad para verificar la calidad del agua de aclarado antes de la fase de desinfección - Semicaldera de agua (apenas para la versión HS)- Iluminación LED de la cámara: opera durante la carga, descarga y ejecución del programa- Reconocimiento del tipo de carga del carro550550TIVA 10-M PUERTA(A) BATIENTE MANUALTIVA10-1M / TIVA10-2MCámara de 265 litrosDimensiones (AxPxA) 650 x 700 x 1850HASTA 6 niveles de lavado de una capacidad total de 12 cestos DIN, cámara de 265 litrosLa lavadora TIVA 10 está equipada con puerta(s) batiente manual de vidrio y es más adecuada para departamentos quirúrgicos y de esterilización. Puede ser cargada con hasta 6 niveles de lavado de un total de 12 cestos DIN con una gran variedad de carros y accesorios de lavado. Carros disponibles para instrumentos quirúrgicos, tubulares, laparoscopia, ofatlmológicos, recipientes, zapatos, anestesia y más.CaracterísticasPuerta(s) de vidrio manual ámara de la lavadora fabricada en AISI 316 litros de alta calidadPanel táctil con pantalla gráfica de colores n total de 40 programas: predeterminados y programablesPrefiltro de secado de aire + filtro HEPA H14Caldera para agua purificada bombas de dosificación con flujómetro para detergentesLa línea de lavadoras-desinfectadoras TIVA | 7Opcional- M ediciones de conductividad para verificar la calidad del agua de aclarado antes de la fase de desinfección (si la máquina está equipada con conexiones de agua desmineralizada)- Iluminación LED de la cámara: iluminada durante la carga, descarga y ejecución del programa - Reconocimiento del carro de lavado - M onitorización continua del brazo de pulverizado del sistema de agua para garantizar que la carga está actualmente lavada- Cierre de la estructura para configuración del paso - Bomba de drenaje de agua- Conexión del servicio de vapor / calentamiento híbrido: vapor y eléctrico- Conexión de agua para la versión normal: ablandador de agua fría, agua purificada- Conexión de agua para la versión HS: ablandador de agua fría, segunda caldera para agua caliente - Reporte gráfico de las fases de lavado incluyendo el tiempo y la temperaturaA Conexión de agua caliente - 3/4” g (tubo 1/2” g)B Conexión de agua fría - 3/4” g (tubo 1/2” g)C2Drenaje dn 40 - conexión de manguera de 25 mm (en el suelo)D2Drenaje dn 40 - conexión de manguera de 25 mm (en la pared)G Conexión eléctricaOConexión de agua desmineralizada - 1/2” gQ Conexión de vapor 1/2” g (entrada)RConexión de vapor 1/2” g (salida)C2560408553501950D2D2CICLO DE VELOCIDAD DE LA CALDERA (opcional)300900A O BR QGC26358580068067070063585800C2QR2300TIVA10-1M / TIVA10-2M TIVA10-1M / TIVA10-2M Dibujos:Dimensiones (AxPxA) 680 x 700 x 1950Dimensiones (AxPxA) 680 x 700 x 2300 Características- Puerta(s) batiente de vidrio automática- Cámara de la lavadora fabricada en AISI 316 litros de alta calidad- Panel táctil con pantalla gráfica de colores- U n total de 40 programas: predeterminados y programables- Prefiltro de secado de aire + filtro HEPA H14- Caldera para agua purificada- 2 bombas de dosificación con flujómetro para detergentes ácidos y alcalinos (opción de 2 bombas adicionales)- 3 resistencias de calentamiento- USB / impresora para documentos de datos - Condensador de vapor integrado- A rmario de almacenamiento para cuatro detergentes de 5 litrosLa línea de lavadoras-desinfectadoras TIVA | 9- M ediciones de conductividad para verificar la calidad del agua de aclarado antes de la fase de desinfección (si la máquina está equipada con conexiones de agua desmineralizada)- Iluminación LED de la cámara: iluminada durante la carga, descarga y ejecución del programa - Reconocimiento del carro de lavado - M onitorización continua del brazo de pulverizado del sistema de agua para garantizar que la carga está actualmente lavada- Cierre de la estructura para configuración del paso - Bomba de drenaje de agua- Conexión del servicio de vapor / calentamiento híbrido: vapor y eléctrico- Conexión de agua para la versión normal: ablandador de agua fría, agua purificada- Conexión de agua para la versión HS: ablandador de agua fría, segunda caldera para agua caliente - Reporte gráfico de las fases de lavado incluyendo el tiempo y la temperaturaOpcionalC2560408553501950D2D2CICLO DE VELOCIDADDE LA CALDERA (opcional)300900A O BR QGC26358580068067070063585800C2QR2300TIVA10-1V / TIVA10-2V TIVA10-1V-HS / TIVA10-2V-HSA Conexión de agua caliente - 3/4” g (tubo 1/2” g)B Conexión de agua fría - 3/4” g (tubo 1/2” g)C2Drenaje dn 40 - conexión de manguera de 25 mm (en el suelo)D2Drenaje dn 40 - conexión de manguera de 25 mm (en la pared)G Conexión eléctricaOConexión de agua desmineralizada - 1/2” gQ Conexión de vapor 1/2” g (entrada)RSalida de la conexión de vapor 1/2” g (salida)Dibujos:Ciclo develocidadCaracterísticasPuerta(s) de vidrio manualCámara de la lavadora fabricada en AISI 316 litros dealta calidadPaneles táctiles con pantalla gráfica de colores- U n total de 40 programas: predeterminados y programablesPrefiltro de secado de aire + filtro HEPA H14Caldera para agua purificada (apenas para la versión HS)2 bombas de dosificación con flujómetro para detergentesácidos y alcalinos (opción de 3 bombas adicionales paraLa línea de lavadoras-desinfectadoras TIVA | 11Opcional- M ediciones de conductividad para verificar la calidad del agua de aclarado antes de la fase de desinfección (si la máquina está equipada con conexiones de agua desmineralizada)- Iluminación LED de la cámara: iluminada durante la carga, descarga y ejecución del programa - Reconocimiento del carro de lavado- M onitorización continua del brazo de pulverizado del sistema de agua para garantizar que la carga está actualmente lavada- Cierre de la estructura para configuración del paso- Bomba de drenaje de agua- Conexión del servicio de vapor / calentamiento híbrido: vapor y eléctrico- Conexión de agua para la versión normal: ablandador de agua fría, agua purificada- C onexión de agua para la versión HS: ablandador de agua fría, segunda caldera para agua caliente, tercera caldera para agua fría- Reporte gráfico de las fases de lavado incluyendo el tiempo y la temperaturaDibujos:TIVA15-1V / TIVA15-2V TIVA15-1V-HS / TIVA15-2V-HS A Conexión de agua caliente - 3/4” g (tubo 1/2” g)B Conexión de agua fría - 3/4” g (tubo 1/2” g)C2Drenaje dn 40 - conexión de manguera de 25 mm (en el suelo)D2Drenaje dn 40 - conexión de manguera de 25 mm (en la pared)G Conexión eléctrica O Conexión de agua desmineralizada - 1/2” gQ Conexión de vapor 1/2” g (entrada)R Salida de la conexión de vapor 1/2” g (salida)C2680408554001900C2GQR B O A 73090D2D2CICLO DE VELOCIDAD DE LA CALDERA (opcional)300900A OB R Q G C290730100087090081081ElaraAutoclaves de mesa PlazMax Esterilización a baja HSG Prevacío y posvacío - Línea T-Max de grandes。

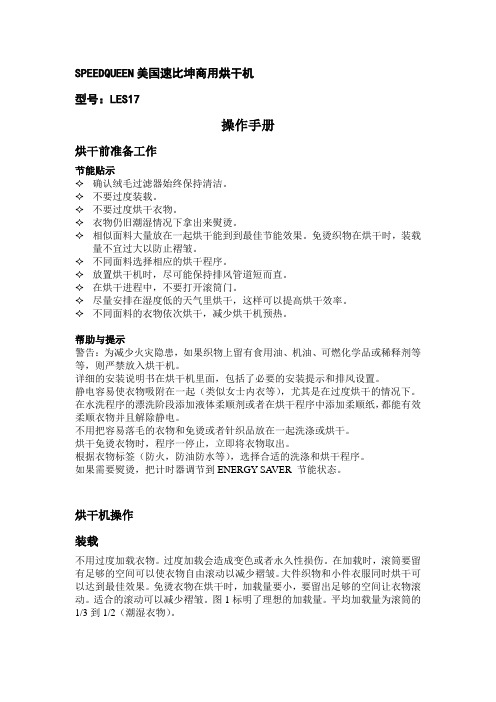

SPEEDQUEEN美国速比坤商用烘干机型号：LES17操作手册烘干前准备工作节能贴示✧确认绒毛过滤器始终保持清洁。

✧不要过度装载。

✧不要过度烘干衣物。

✧衣物仍旧潮湿情况下拿出来熨烫。

✧相似面料大量放在一起烘干能到到最佳节能效果。

免烫织物在烘干时，装载量不宜过大以防止褶皱。

✧不同面料选择相应的烘干程序。

✧放置烘干机时，尽可能保持排风管道短而直。

✧在烘干进程中，不要打开滚筒门。

✧尽量安排在湿度低的天气里烘干，这样可以提高烘干效率。

✧不同面料的衣物依次烘干，减少烘干机预热。

帮助与提示警告：为减少火灾隐患，如果织物上留有食用油、机油、可燃化学品或稀释剂等等，则严禁放入烘干机。

详细的安装说明书在烘干机里面，包括了必要的安装提示和排风设置。

静电容易使衣物吸附在一起（类似女士内衣等），尤其是在过度烘干的情况下。

在水洗程序的漂洗阶段添加液体柔顺剂或者在烘干程序中添加柔顺纸，都能有效柔顺衣物并且解除静电。

不用把容易落毛的衣物和免烫或者针织品放在一起洗涤或烘干。

烘干免烫衣物时，程序一停止，立即将衣物取出。

根据衣物标签（防火，防油防水等），选择合适的洗涤和烘干程序。

如果需要熨烫，把计时器调节到ENERGY SA VER 节能状态。

烘干机操作装载不用过度加载衣物。

过度加载会造成变色或者永久性损伤。

在加载时，滚筒要留有足够的空间可以使衣物自由滚动以减少褶皱。

大件织物和小件衣服同时烘干可以达到最佳效果。

免烫衣物在烘干时，加载量要小，要留出足够的空间让衣物滚动。

适合的滚动可以减少褶皱。

图1标明了理想的加载量。

平均加载量为滚筒的1/3到1/2（潮湿衣物）。

如果加载量过小的话，会引起不均匀滚动。

造成烘干时间长和褶皱多。

如果需要烘干小件衣物，可以在滚筒中添加毛巾或者不易脱毛的物件来增加滚动效果。

烘干程序警告：为减少火灾隐患，在操作前仔细阅读安全说明。

用于烘干小容量的厚衣物，比如兰色牛仔裤。

同样也用于过度烘干薄衣物，比如床单和衬衫。
