DS1000Z-E series is a high-performance and economic digital oscilloscope designed for the designing, debugging and educational requirements of the mainstream digital oscilloscope market. This manual takes DS1202Z-E asan example to introduce DS1000Z-E series.Analog channel bandwidth: 200 MHz (DS1202Z-E): 100 MHz (DS1102Z-E) 2 analog channelsReal-time sample rate up to 1 GSa/s Memory depth up to 24 Mpts(Std.)Up to 30,000 wfms/s waveform capture rateUp to 60,000 frames hardware real-time waveform recording and playback functionsInnovative "UltraVision" technologyVarious trigger and bus decoding functionsLow noise floor, vertical scale range: 500 uV/div to 10 V/div Various interfaces: USB Host&Device, LAN (LXI), AUX Novel and delicate industrial design, easy to use7-inch WVGA (800x480) TFT LCD, intensity graded color display2DS1000Z-E Series Digital OscilloscopeDeep Memory Depth (up to 24 Mpts, std.)Higher Waveform Capture Rate (up to 30,000 wfms/s)Real-time Waveform Recording&Playback (up to 60,000 frames) Intensity Graded Color DisplayInnovative UltraVision Technology(Analog Channel)Product Dimensions: Width×Height×Depth=313.1 mm×160.8 mm×122.4 mm Weight: 2.9 kg ± 0.2 kg(Without Package)7-inch WVGA (800X480) TFT display,intensity graded color display2 analog channelsExternal trigger input channel3UltraVision: deep memory (up to 24 Mpts, std.)UltraVision: up to 30,000 wfms/s waveform capture rateUltraVision: waveform recording and playbackfunctionsUltraVision: intensity graded color displayA variety of trigger functionsSerial bus trigger and decoding functions (RS232/UART, I2C, SPI)450 Ω impedanceadapter (2 W, 1 GHz)RIGOL Passive ProbesRIGOL Active & Current ProbesRIGOLProbes and Accessories Supported by DS1000Z SeriesRP1001CCurrent ProbeBW: DC to 300 kHz Max. input DC: ±100 A,AC P-P: 200 A,AC RMS: 70 ACompatibility: all RIGOL scopes.RP1002CCurrent ProbeBW: DC to 1 MHz Max. input DC: ±70 A,AC P-P: 140 A,AC RMS: 50 ACompatibility: all RIGOL scopes.RP1003CCurrent ProbeBW: DC to 50 MHz Max. inputAC P-P: 50 A (Noncontinuous),AC RMS: 30 ACompatibility: all RIGOL scopes.Must order RP1000P power supply.RP1004CCurrent ProbeBW: DC to 100 MHz Max. inputAC P-P: 50 A (Noncontinuous),AC RMS: 30 ACompatibility: all RIGOL scopes.Must order RP1000P power supply.RP1005CCurrent ProbeBW: DC to 10 MHz Max. inputAC P-P: 300 A (Noncontinuous), 500 A (@pulse width ≤30 us),AC RMS: 150 ACompatibility: all RIGOL scopes.Must order RP1000P power supply.RP1000PPower SupplyPower supply for RP1003C,RP1004C and RP1005C, support 4 channels.RP1025DHighVoltageDifferentialProbeBW: 25 MHzMax. Voltage ≤1400 VppCompatibility: all RIGOL scopes.RP1050DHighVoltageDifferentialProbeBW: 50 MHzMax. Voltage ≤7000 VppCompatibility: all RIGOL scopes.RP1100DHighVoltageDifferentialProbeBW: 100 MHzMax. Voltage ≤7000 VppCompatibility: all RIGOL scopes.High Voltage ProbeDC to 150 MHzDC+AC Peak: 18 kV CAT II AC RMS: 12 kV CAT II Compatibility: all RIGOL scopes.RP1018HRT50JAdapterPVP2150High Z Probe1X: DC to 35 MHz 10X: DC to 150 MHzCompatibility: all RIGOL scopes.PVP3150HighZ Probe1X: DC to 20 MHz 10X: DC to 150 MHzCompatibility: all RIGOL scopes.PVP2350High Z Probe1X: DC to 35 MHz 10X: DC to 350 MHz Compatibility:all RIGOL scopes.RP3500AHigh Z ProbeDC to 500 MHz Compatibility:all RIGOL scopes.RP1300HHigh Voltage Probe DC to 300 MHzCAT I 2000 V (DC+AC), CAT II 1500 V (DC+AC) Compatibility: all RIGOLscopes.RP1010HHighVoltageProbeDC to 40 MHzDC: 0 to 10 kV DC,AC: pulse ≤20 kVp-p,AC: sine wave ≤7 kVrmsCompatibility: all RIGOL scopes.SpecificationsAll the specifications are guaranteed except parameters marked with “Typical” and the oscilloscope needs to operate for more than 30 minutes under the specified operation temperature.SampleSample Mode Real-time sampleReal-time Sample Rate 1 GSa/s (single-channel), 500 MSa/s (dual-channel)Peak Detect 4 nsAveraging After all the channels finish N samples at the same time, N can be 2, 4, 8, 16, 32, 64, 128, 256, 512 or 1024High Resolution12 bits (max.) Interpolation Sin(x)/xMemory Depth 24 Mpts (single-channel), 12 Mpts (dual-channel)InputNumber of Channels 2 analog channelsInput Coupling DC, AC or GNDInput Impedance (1 MΩ±1%) || (15 pF±3 pF) Probe AttenuationCoefficient0.01X to 1000X, in 1-2-5 stepMaximum Input Voltage (1 MΩ)CAT I 300 Vrms, CAT II 100 Vrms, transient overvoltage 1000 VpkHorizontalTimebase Scale 2 ns/div to 50 s/div Maximum RecordLength24 Mpts Timebase Accuracy[1]≤±25 ppmClock Drift≤±5 ppm/yearMaximum Delay Range Negative delay: ≥1/2 screen width Positive delay: 1 s to 500 sTimebase Mode YT, XY, RollNumber of X-Ys1Waveform CaptureRate[2]30,000 wfms/s (dots display) Zero Offset±0.5 div*minimum timebase scale VerticalBandwidth (-3 dB) DS1202Z-E: DC to 200 MHz DS1102Z-E: DC to 100 MHzSingle-shot Bandwidth DS1202Z-E: DC to 200 MHz DS1102Z-E: DC to 100 MHzVertical Resolution8 bitsVertical Scale(Probe ratio is 1X)500 uV/div to 10 V/divOffset Range (Probe ratio is 1X)500 uV/div to 499 mV/div: ±2 V 500 mV/div to 10 V/div: ±100 VBandwidth Limit[1]20 MHzLow FrequencyResponse(AC Coupling, -3 dB)≤5 Hz (on BNC)Calculated Rise Time[1]DS1202Z-E: 1.75 ns DS1102Z-E: 3.5 nsDC Gain Accuracy <10 mV: ±4% full scale ≥10 mV: ±3% full scaleDC Offset Accuracy±0.1 div ± 2 mV ± 1% offset value Channel to ChannelIsolationDC to maximum bandwidth: >40 dB5MeasureCursor ManualmodeVoltage deviation between cursors(△V)Time deviation between cursors(△T)Reciprocal of △T (Hz) (1/△T) TrackmodeVoltage and time values of thewaveform pointAutomodeAllow to display cursors duringauto measurementAuto Measurement Period, Frequency, Rise Time, Fall Time, Positive Pulse Width, Negative Pulse Width, Positive Duty Cycle, Negative Duty Cycle, tVmax, tVmin, Positive Rate, Negative Rate, Delay 1→2, Delay 1→2, Phase 1→2, Phase 1→2, Maximum, Minimum, Peak-Peak Value, Top Value, Bottom Value, Amplitude, Upper Value, Middle Value, Lower Value, Average, Vrms, Overshoot, Pre-shoot, Area, Period Area, Period Vrms, VarianceNumber ofMeasurementsDisplay 5 measurements at the same time. MeasurementRangeScreen or cursorMeasurement Statistic Average, Max, Min, Standard Deviation,Number of MeasurementsCounterHardware 6-digit counter (channels areselectable)Math OperationWaveform OperationA+B, A-B, A×B, A/B, FFT, A&&B, A||B,A^B, !A, Intg, Diff, Sqrt, Lg, Ln, Exp, Abs,FilterFFT WindowRectangle, Hanning, Blackman,Hamming, Flat Top, TriangleFFT Mode Trace, MemoryFFT Display Half, FullFFT Vertical Scale dB/dBm, VrmsFilterLow Pass Filter, High Pass Filter, BandPass Filter, Band Stop FilterNumber of Buses forDecoding2Decoding Type Parallel, RS232/UART, I2C, SPIDisplayScreen Type7.0-inch TFT LCD displayDisplay Resolution800 horizontal × RGB × 480 vertical pixelDisplay Color16 million color (24-bit true color)Persistence TimeMin, 100 ms, 200 ms, 500 ms, 1 s, 5 s, 10s, InfiniteDisplay Type Dots, VectorI/OStandard PortsUSB Host, USB Device, LAN, Aux Output(TrigOut/PassFail)The recommended calibration interval is 18 months.67Note [1]: Typical.Note [2]: Maximum value. 50 ns, single-channel mode, dots display, auto memory depth.Note [3]: Supporting legs and handle folded, knob height included.Note [4]: Standard configuration.WarrantyThree -year warranty, excluding probes and accessories.Standard SoftwareUltra SigmaUltra ScopeReal-time monitoring of waveform and status;supports multi-instrument and multi-window display With virtual panel featureSupports multi-interface remote controlRIGOL general PC software platformMulti-instrument and multi-interface resource management With SCPI remote command toolPCX01100-2020-04RIGOL ® is the trademark of RIGOL TECHNOLOGIES CO., LTD. Product information in this document subject to update without notice. For the latest information about RIGOL 's products, applications and services, please contact local RIGOL Channel Partners or access RIGOL official website: HEADQUARTERRIGOL TECHNOLOGIES CO., LTD.No.8 Keling Road, New District,Suzhou, JiangSu,P .R.China Tel:+86-400620002Email:**************EUROPERIGOL TECHNOLOGIES EU GmbH Lindbergh str. 482178 Puchheim GermanyTel: +49-89/89418950Email:*********************NORTH AMERICARIGOL TECHNOLOGIES, USA INC.8140 SW Nimbus Ave.Beaverton, OR 97008Tel: +1-877-4-RIGOL -1Fax: +1-877-4-RIGOL -1Email:**************JAPANRIGOL TECHNOLOGIES JAPAN, LLC MJ Bldg. 3F, 1-7-4 Minato, Chuou-ku, Tokyo, Japan 104-0043Tel: +81-3-6262-8932Fax: +81-3-6262-8933Email:********************。

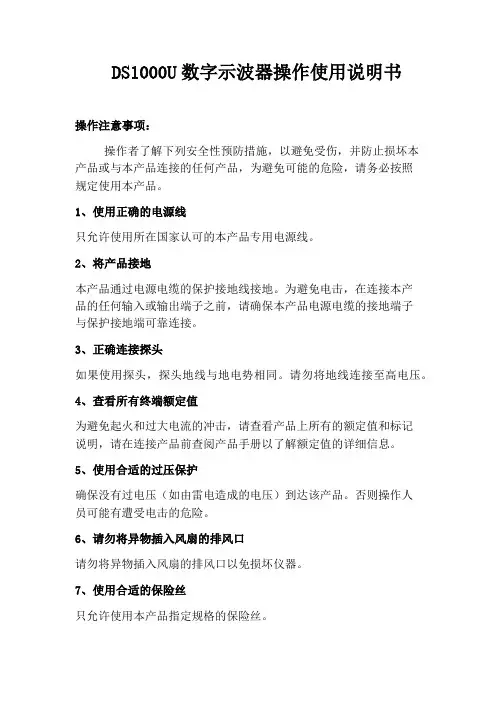

DS1000U数字示波器操作使用说明书操作注意事项：操作者了解下列安全性预防措施，以避免受伤，并防止损坏本产品或与本产品连接的任何产品，为避免可能的危险，请务必按照规定使用本产品。
1、使用正确的电源线只允许使用所在国家认可的本产品专用电源线。
2、将产品接地本产品通过电源电缆的保护接地线接地。
为避免电击，在连接本产品的任何输入或输出端子之前，请确保本产品电源电缆的接地端子与保护接地端可靠连接。
3、正确连接探头如果使用探头，探头地线与地电势相同。
请勿将地线连接至高电压。
4、查看所有终端额定值为避免起火和过大电流的冲击，请查看产品上所有的额定值和标记说明，请在连接产品前查阅产品手册以了解额定值的详细信息。
5、使用合适的过压保护确保没有过电压（如由雷电造成的电压）到达该产品。
否则操作人员可能有遭受电击的危险。
6、请勿将异物插入风扇的排风口请勿将异物插入风扇的排风口以免损坏仪器。
7、使用合适的保险丝只允许使用本产品指定规格的保险丝。
8、避免电路外露电源接通后，请勿接触外露的接头和元件。
9、保持适当的通风通风不良会引起仪器温度升高，进而引起仪器损坏。
使用时应保持良好的通风，定期检查通风口和风扇。
9、请勿在潮湿环境下操作为避免仪器内部电路短路或发生电击的危险，请勿在潮湿环境下操作仪器10、请勿在易燃易爆的环境下操作为避免仪器损坏或人身伤害，请勿在易燃易爆的环境下操作仪器。
请保持产品表面的清洁和干燥。
11、防静电保护静电会造成仪器损坏，应尽可能在防静电区进行测试。
在连接电缆到仪器前，应将其内外导体短暂接地以释放静电12、正确使用电池如果仪器提供电池，严禁将电池暴露于高温或火中。
要让儿童远离电池。
不正确地更换电池可能造成爆炸（警告：锂离子电池）。
必须使用 RIGOL 指定的电池。
注意搬运安全。
为避免仪器在搬运过程中滑落，造成仪器面板上的按键、旋钮或接口等部件损坏，请注意搬运安全。
操作使用说明详见：《DS1000U系列数字示波器使用说明书》编制：质量管理部审核：批准：。
DS1000系列数字示波器简介
数字示波器面板操作说明图：
图1 数字示波器面板操作说明图
一、波形显示自动设置
将被测信号连接到信号输入通道，按下示波器将自动设置垂直、水平和触发控制。
如需要，可手工调整这些控制使波形显示到最佳。
二、初步了解垂直系统
如图2所示，在垂直控制区（VERTICAL）有一系列的按键、旋钮：
1、垂直POZITION旋钮控制信号的垂直显示位置。
当转动该旋钮时，指示
通道地（GROUND）的标识跟随波形而上下移动。
2、转动垂直SCALE旋钮改变“V ol/div（伏/格）”垂直档位，可以发现状态
栏对应通道的档位显示发生了相应的变化。
图2 垂直控制面板
三、初步了解水平系统
如图3所示，在水平控制区（HORIZONTAL）有一个按键、2个旋钮。
图3
1、转动水平SCALE旋钮改变“s/div(秒/格)”水平档位，可以发现状态栏
对应通道的状态显示发生了相应的变化。
水平扫描速度从5ns到50s，以1-2-5的形式步进。
2、转动水平POZITION旋钮时，可以观察到波形随旋钮而水平移动。
