优科无线控制器配置手册

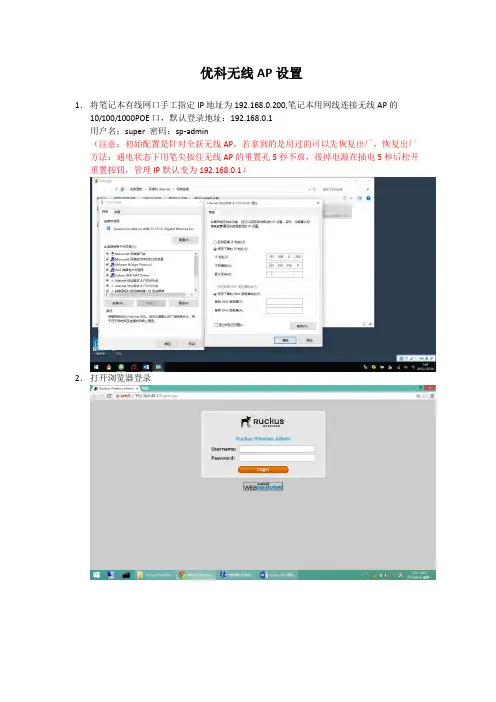

优科无线AP设置1．将笔记本有线网口手工指定IP地址为192.168.0.200,笔记本用网线连接无线AP的10/100/1000POE口，默认登录地址：192.168.0.1用户名：super 密码：sp-admin（注意：初始配置是针对全新无线AP，若拿到的是用过的可以先恢复出厂，恢复出厂方法：通电状态下用笔尖按住无线AP的重置孔5秒不放，拔掉电源在插电5秒后松开重置按钮，管理IP默认变为192.168.0.1）2．打开浏览器登录3．更改默认登录密码：4．指定DNS，此步骤可以默认即可6．开启DHCP功能5．修改列表中2.4G信息注意：若教室周围有较强的2.4G信号，可以在平板上安装“wifi概观360”软件扫描下周围的无线信号所占用的Channel，然后将我们的设备和周围的Channel错开，2.4G信号Channel选择1、6、11相互间干扰最小。

8．添加2.4G学生信号ChangyanSTU，设置ssid及密码9．修改5G 显示信息Channel可以修改为149-169之间的可选频段（注意：畅言智慧课堂对5G无线信号名称要求为ChangyanTCH开头，密码iFlytek1234）下图的标签位置可以查看5G状态，若为UP状态平板搜不到5G信号（不是所有平板和手机都支持5G操作前可以网上查看配置是否支持5G）可以更改Channel153、157、161测试，也可以把上图的Wireless Availability 先Disabled ，保存后，再点击一次Enabled，保存退出，看是否能搜到信号。

10此处按下图配置port1为外网口，port2设置为云服务器连接口。

（注意：靠近电源口的网口为PORT1，若按下图配置后，切勿将外网线插入PORT2，以免造成学校网络中断）常见故障和其它配置其它设置：1.后期可通过无线登录管理界面打开浏览器输入https://192.168.40.1，出现登录画面输入用户名super，密码sp-admin2.指定外网口IP地址上网按下图设置，进入AP管理界面，选择左侧configuration->Internet，输入的IP地址和DNS为现场网管提供。

Ruckus Smart/OS is a software suite and application engine included in every Ruckus ZoneDirector Smart Wireless LAN (WLAN) controller that delivers a myriad of breakthrough WLAN features not found in any other centrally-managed wireless system.Designed for busy networking and IT staff, Ruckus Smart/OS is one of the industry’s most elegant and straightforward WLAN systems available today. Smart/OS leverages a highly- intuitive Web interface that enables everything with a click of a mouse. At the heart of Smart OS is a unique set of advanced capabilities made extremely simple to confi gure and manage. These include adaptive wireless meshing, advanced RF management, robust security capabilities, simple-to-use guest networking, hot spot authentication and traffi c redirection .In addition, Smart OS offers all the traditional WLAN manage-ment tasks – sophisticated authentication, state-of-the-art encryption, fast roaming, guest networking and wireless intru-sion detection – standard in centrally-managed WLAN systems.With Smart/OS, a central dashboard gives IT staff a complete at-a-glance overview of the entire WLAN environment from recent user and system activities to detailed usage summaries, most frequently used access points (APs) to currently active WLANs Smart Wi-Fi Application EngineBENEFITSUltra-simple WLAN confiAn intuitive, graphic-rich Web interface makes WLAN configurationand ongoing administration the easiest it has ever been.Elegant guest networking without the hassleEnabling guest access can be performed in minutes. Customize guest-pass printout pages, generate random or exact passes unique to every user and defi ne the duration of each guest pass.Flexible and scalable WLAN confi gurationCreate up to 32 unique WLAN per controller. Maps WLANs to specifi c APs or VLANs and create WLAN groups to be shared by certain APs .Smart Mesh Networking for fl exible WLAN deploymentA simple checkbox enables Smart Mesh Networking for the entire WLAN. Once enabled, APs require only power source and self-confi gure and self-optimize.Users access policies provide rich WLAN controlAdministrators can easily create and enforce access controls based on specifi c users, traffi c types or TCP ports.Multi-site authentication to scale large deploymentsSupport for WISPr tunneling from each ZoneDirector allows all Smart/OSSmart Wireless LAN software for Ruckus Smart WLAN controllersWLAN confi guration and administrationUltra simple confi guration and managementOne of the easiest to manage WLAN systems on the market,Smart/OS enables administrators to confi gure an entireWLAN in less than 5 minutes using an intuitive, point-and-click wizard. Once confi gured, a robust set of features, suchas user access policies, adding/changing SSIDs, enablingSmart Meshing, is performed by clicking a checkbox.Adaptive Wi-Fi meshingRuckus Smart Mesh Networking enables self-organizingand self-healing wireless meshing. Smart Mesh Networkingeliminates the need to run Ethernet cabling to every SmartWi-Fi AP, allowing administrators to simply plug in ZoneFlexAPs to any power source, then walk away. All confi gurationand management is delivered through Smart/OS on theZoneDirector Smart WLAN platform.Secure authentication, encryption andaccess controlsRuckus Smart/OS provides state-of-the-art encryption andsimplifi ed authentication options along with user accesscontrols for robustWi-Fi security.In addition, Smart/OS supports uniquecapabilities such as Dynamic Pre-Shared Keys (Dynamic PSK) thatautomates the generation and instal-lation of unique encryption keys oneach end device without IT interven-tion. Support for Web-based captiveportal, LDAP support, native ActiveDirectory, 802.1x and RADIUS all comestandard.To protect against unsanctionedlters. This givesng.FlexMasterAPsControllersManagementNorthbound API (XML)ClientsSNMPDelegatedAdministrationSNMP,TR-69Beamforming QoSRF Management Secure Mobility Advanced Wi-Fi Security Guest Networking Adaptive Wi-Fi Meshing Hot Spot Authentication Security Meshingntication SecurMeshienticaturityhingation Smart/OSD A T A F O R W A R D I N GSmart/OS features one of the industry’s most intuitive and easy to use WLAN graphical userinterfaces. This at-a-glance dashboard provides a comphensive view of the entire WLAN, lettingadministrators quickly drill won to diagnose problems and optimized the network.Ruckus Smart Wireless LAN Architecture with Smart/OSFast and seamless mobilityRuckus Smart/OS delivers faster and more secure Wi-Fi roam-ing. Advanced Layer 3 tunneling and key caching techniques eliminate client reauthentication with a remote servers when roaming across APs.By creating a separate and dedicated WLAN that tunnels VoIP clients back to the ZoneDirector WLAN controller roaming clients maintain their IP address when associating with any AP . Smart/OS also supports the caching of Pairwise Master Keys (PMK) as well as opportunistic PMK caching to reduce or elimi-nate delays caused by performing full 802.1X reauthentication.Elegant and easy guest networkingWithin Smart/OS, guest networking is easily enabled through a highly intuitive, browser-based facility that lets any guest-facing staff generate a unique Wi-Fi guest pass in less than 60 seconds with no configuration changes required on any client device. Guest passes can be time-limited in hour, day, and week incre-ments allowing more granularity between different types of guests. Unique pass keys can be dynamically generated by the ZoneDirector for each guest and bound to a specific client MAC address upon successful authentication. A single pass key can also be shared among many users. Unlike other solutions, no additional appliances are needed.Guest pass print outs can be customized and fixed guest passes, that are easy to remember, can be generated and bound to a single users or shared by multiple users.Advanced multi-site authenticationRuckus Smart/OS allows each ZoneDirector to automatically interact with an external Web or authentication server through the use of the Wireless Internet Service Provider (WISPr) pro-Sophisticated quality of serviceAdvanced quality of service mechanisms within RuckusSmart/OS and ZoneFlex APs deliver unmatched support for latency-sensitive VoIP and IP-based streaming video. Smart/OS allows administrators to set traffic thresholds for users on a specific SSID and limit the number of users per APs.Additionally, on each Ruckus AP , four software queues are dedicated for every client while video and voice traffic is automatically classified and prioritzed. And multicast IP traffic is automatically directed to requesting clients and prioritized to ensure picture-perfect video streaming.Robust management for seamless integrationSmart/OS allows for seamless integration with existing SNMP-based management systems. Administrators can gather detailed stats about WLANs, APs and clients. SNMP traps can be generated for events and alarms such as APs joining the ZoneDirector, loss of AP connectivity, rogue AP detection and client authentication failures.RADIUS accounting provides enhanced monitoring, man-agement and compliance, enabling back-end billing.w w w.r u c k u s w i r e l e s s.c o m Copyright © 2009, Ruckus Wireless, Inc. All rights reserved. Ruckus Wireless and Ruckus Wirelessdesign are registered in the U.S. Patent and Trademark Office. All other trademarks are theproperty of their respective owners. Smart/OS3000C/021409.SpecificationsDoS ATTACK PREVENTION Supported•。

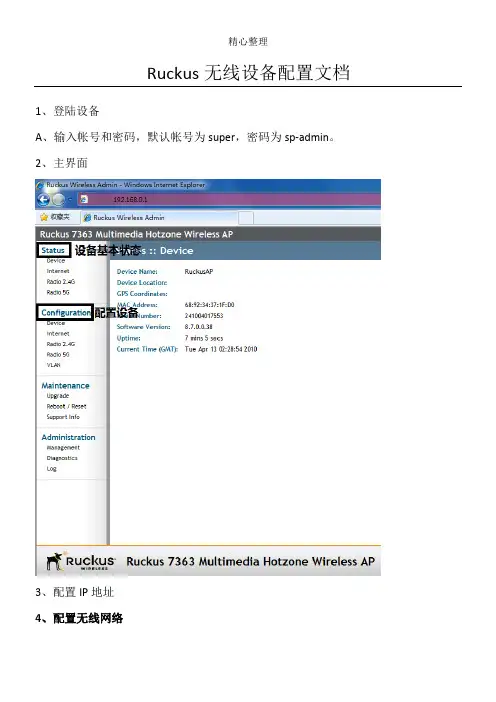

Ruckus无线设备配置文档1、登陆设备A、输入帐号和密码，默认帐号为super，密码为sp-admin。

2、主界面3、4、配置IP地址5、配置无线网络A、点击Radio2.4配置2.4G无线网络，一般802.11b/g/n的网卡只能用2.4G无线网络，市场上99%以上的无线网卡都可以使用。

Radio5G的配置和Radio2.4的配置相同，但只有支持802.11a/n的无线网卡才能使用。

B、ChannelWidth选择为20时设备变为150M，选择40时设备变为300M。

C、其余选项保持默认，完成后保存配置。

6、配置第一个SSIDA、点击Radio2.4G，再单击wireless1，在WirelessNetwork:中填入SSID说明文字，可不做修改。

B、在WirelessAvailability?选项后选择Enabled开启SSID广播。

C、在EncryptionMethod:选择加密方式，一般选择WPA，比较好不容易被破解。

D、在WPAVersion:后选择WPA-Auto。

E、在WPAAuthentication:选择PSK。

F、在WPAAlgorithm:选择Auto。

G、在Passphrase:后面填入无线网络密码。

7、配置第二个SSID按照上面的方法配置第二个SSID。

8、配置VLANA、单击VLAN后进入VLAN配置界面。

B、第一行为管理VLAN，即设备所配地址所在的VLAN。

C、第二行为SSID1的VLAN配置，即为SSID1上网地址所在的VLAN。

D、第三行为SSID2的VLAN配置，即为SSID2上网地址所在的VLAN。

说明：管理Vlan可以和SSID1，SSID2所在的VLAN不同，用户上网的地址也可以和设备地址不再同一个网段中。
