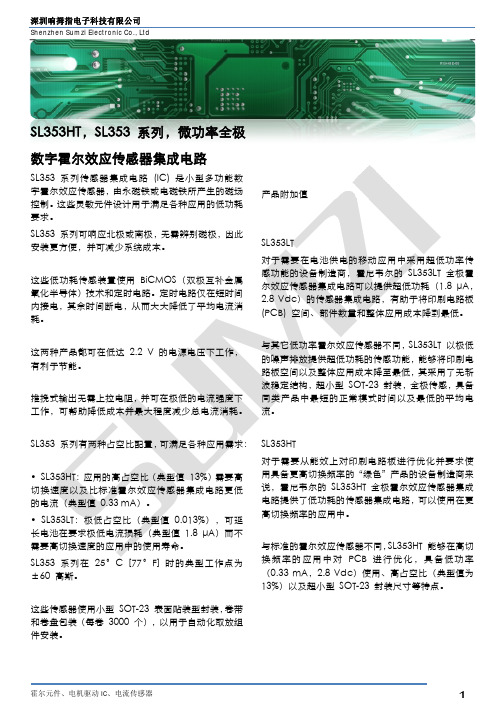

SL353HT，SL353 系列，微功率全极数字霍尔效应传感器集成电路SL353 系列传感器集成电路(IC) 是小型多功能数字霍尔效应传感器，由永磁铁或电磁铁所产生的磁场控制。
这些灵敏元件设计用于满足各种应用的低功耗要求。
SL353 系列可响应北极或南极，无需辨别磁极，因此安装更方便，并可减少系统成本。
这些低功耗传感装置使用BiCMOS（双极互补金属氧化半导体）技术和定时电路。
定时电路仅在短时间内接电，其余时间断电，从而大大降低了平均电流消耗。
这两种产品都可在低达2.2 V 的电源电压下工作，有利于节能。
推挽式输出无需上拉电阻，并可在极低的电流强度下工作，可帮助降低成本并最大程度减少总电流消耗。
SL353 系列有两种占空比配置，可满足各种应用需求：•SL353HT：应用的高占空比（典型值13%）需要高切换速度以及比标准霍尔效应传感器集成电路更低的电流（典型值0.33 mA）。
•SL353LT：极低占空比（典型值0.013%），可延长电池在要求极低电流损耗（典型值1.8 µA）而不需要高切换速度的应用中的使用寿命。
SL353 系列在25°C [77°F] 时的典型工作点为±60 高斯。
这些传感器使用小型SOT-23 表面贴装型封装，卷带和卷盘包装（每卷3000 个），以用于自动化取放组件安装。
产品附加值SL353LT对于需要在电池供电的移动应用中采用超低功率传感功能的设备制造商，霍尼韦尔的SL353LT 全极霍尔效应传感器集成电路可以提供超低功耗（1.8 μA，2.8 Vdc）的传感器集成电路，有助于将印刷电路板(PCB) 空间、部件数量和整体应用成本降到最低。
与其它低功率霍尔效应传感器不同，SL353LT 以极低的噪声排放提供超低功耗的传感功能，能够将印刷电路板空间以及整体应用成本降至最低，其采用了无斩波稳定结构，超小型SOT-23 封装，全极传感，具备同类产品中最短的正常模式时间以及最低的平均电流。
