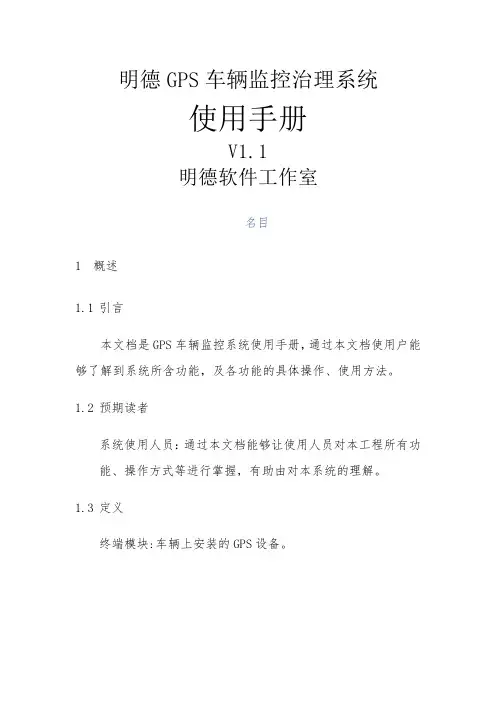

明德GPS车辆监控治理系统使用手册V1.1明德软件工作室名目1概述1.1引言本文档是GPS车辆监控系统使用手册,通过本文档使用户能够了解到系统所含功能,及各功能的具体操作、使用方法。
1.2预期读者系统使用人员:通过本文档能够让使用人员对本工程所有功能、操作方式等进行掌握,有助由对本系统的理解。
1.3定义终端模块:车辆上安装的GPS设备。
2系统界面介绍2.1登录开启系统启动界面,在那个时候会检测运行机器的环境,假设不具备完整的运行环境那么会提示出所差运行环境。
假设环境齐备,那么可进行登录窗口。
2.1.1登录配置点击【选择效劳器】登录窗口将扩展出配制内容,如以以如下面图:点击【设置】,进进配置窗体,如以以如下面图:系统部署后会自带一项默认配置,用户也可自行配置其他效劳器信息。
配置内容讲明如下:➢名称在效劳器地址下拉列表中显示的名称。
➢地址用于支持程序运行的WebService地址,格式如下:://地址:webservice端口号➢端口此端口与地址中的端口不同,此端口是客户端程序向效劳器发送终端操纵指令时所连接的端口。
2.1.2登录系统1、输进用户名和密码2、选择好效劳器地址3、点击【登录】按钮注:当用户完成过一次成功登录后,系统会记录用户此次登录时所用的效劳器地址。
假设以后效劳器地址不发生变化,用户在以后的登录中,只需要输进用户名和密码即可,无需再进行效劳器地址的选择。
2.2主界面主界面分为5大局部:1、菜单栏2、快捷操作栏3、地图区域1 123454、列表区域5、状态栏下面将展开描述。
2.2.1菜单栏系统的菜单区域,包含系统、显示操纵、报表治理、报警治理、消息治理、地图切换、短信设置、区域查车、油耗治理、区域治理。
✧系统该菜单是系统应用设置菜单,包含系统治理、切换用户、密码修改、系统关怀、信息反响、系统退出。
✧显示操纵该功能用于操纵车辆列表的显示与隐躲。
✧报表治理该功能用于查询分析车辆行驶数据,并形成相应报表。
一、本调度软件是在车载机硬件安装完工后,在您的计算机上安装的跟车载机硬件相结合使用的软件(GPS/GSM综合GPS系统用户调度软件),打开调度软件输入GPS运营商提供的有效用户名与密码,登陆到监控系统监控调度车辆界面。
如下图:二、1、调度软件第一个菜单“系统”:a) 登陆与注销:打开菜单栏系统菜单下点击“登陆”,输入用户名跟密码进入监控调度软件正常连接状态界面;(如上图)。
点击“注销”,直接注销登陆账号,退出监控调度软件不连接状态而不退出监控调度软件。
b) 修改密码:打开菜单栏系统菜单下的“修改密码”根据提示输入您要改的密码然后点确定,更改您的登陆密码成功。
(如下图)c) 其他功能菜单一般情况下都不用管它,都采用默认状态。
2、调度软件第二个菜单“监控管理”a)更新设备信息:点击可以更新监控调度软件上的所有车辆的修改显示状态。
b)数据下载:是针对前些时段您没有看车辆的行驶状态的,进行数据下载,下载好数据后可以进行回放前些时段您没看的车辆的行驶状态。
数据下载有三种选择方式:一种是全部数据,包括车辆停车、行走等全部状态的数据,第二种是有状态变化,是车辆有状态变化的数据,第二种是有速度,是车辆行走有速度状态的数据。
如下图:c)历史回放:是针对你前些时段没看车辆的行驶状态而进行数据下载后所作的操作功能,数据下载后进行历史回放您车辆前些时段所行驶的路线轨迹。
历史回放有两种选择方式:一种是有速度变化的数据回放,另外一种是全部数据状态的回放,包括车停止、行走等全部数据回放。
如下图d)客户咨询:一般情况用不到,如果您有什么可以直接联系公司售后客服部。
e)里程查询:针对车辆的里程统计查询。
数据下载后可以里程统计查询您车辆所行驶的里程采集点数和里程公里数,并可以数据导出与打印备份。
如下图:f)车辆停车查询:是对车辆停车状态的查询,数据下载后进行车辆停车查询,可以看到您车辆的停车时间、发动时间、停车详细地址的状态,并可以数据导出与打印备份。
车辆耗油监控平台-管理员账号(用户操作手册)哈尔滨贯中信息技术开发有限公司文档说明发布属性版本控制目录目录............................................................................................................................................... - 3 -第一部分引言................................................................................................................................ - 4 -1.1编写目的 (4)1.2参考资料 (4)第二部分系统功能描述 ................................................................................................................ - 5 -2.1系统登录 (5)2.2系统功能 (5)2.2.1 系统信息管理模块........................................................................................................... - 6 -2.2.2 基础信息管理模块......................................................................................................... - 11 -第一部分引言1.1编写目的软件操作手册是“车辆油耗监控平台”上线实施的一个重要的文档,通过编写此文档,可以指导软件系统操作人员正确使用此软件系统,并且对软件系统有深入的了解,同时可以说明使用此软件系统需要注意的事项。
2017—GPS车辆监控系统平台使用操作手册本监控平台前台支持HTML5的浏览器,请使用如firefox火狐浏览器54.0、chrome 谷歌浏览器59.0,微软IE11,360浏览8.0等。
登录后可见,平台由车辆监控,报表系统和用户设置组成。
一、车辆监控监控页面由左侧的模块列表,右侧的车辆列表,中间的地图和下方的状态栏组成。
模块列表包括:(一)实时监控、(二)轨迹回放和(三)条件查车。
1.1实时监控登录后,选中实时监控,如图:1.1.1车辆选择用户可以选择监控某台车,某几台车、或者所有车辆。
以下选择方式均可:1、选中一个或者几个车辆。
在下面的状态栏或者右侧分组栏对应的车辆名称前的小框内打勾,所勾车辆图标显示在地图上。
2、选中所有车辆:在状态栏的序号两字前方框内打勾,所有车辆显示在地图上。
3、选中某组车辆:在状态栏上方的工具条,点击“选择”,在弹出窗口内选择需要的组,再在状态栏上方序号左边打勾,所选所有车辆显示在地图上。
需要在地图上车辆图标上显示车牌号和当前速度,请在相应的框内打勾,如下图。
在实时监控中,车辆图标有默认的普通车标和圆点车标两种显示方式。
圆点车标的显示方式,主要用于车辆数量大,显示密集,需要了解密集分布程的情况,可以用于出租车辆是否发生无规律突然聚集的判断,同时可以用于表达出租车辆的空载和有客两种状态。
圆点图标显示车辆分布态势1.1.2车标图例1.1.3车辆状态选择根据车辆状态选择:本系统中用户可以根据车辆的状态进行选择,如全部车辆、在线车辆、离线车辆、报警车辆。
状态栏中当前显示的数据,如全部车辆、在线车辆、离线车辆、报警车辆都可以导出成EXCEL格式文件。
1.2车辆查询在系统中查找所关心的车辆,有以车牌号码(包括手机号车机号)查询和区域(包括矩形和多边形)查询两类方式:1.2.1车牌号码查询在状态栏中查询,如果要查询某一台车的数据,如粤CUD896,在查询栏中输入查询内容:再按【回车键】或者点击【查询按钮】,即可查出。

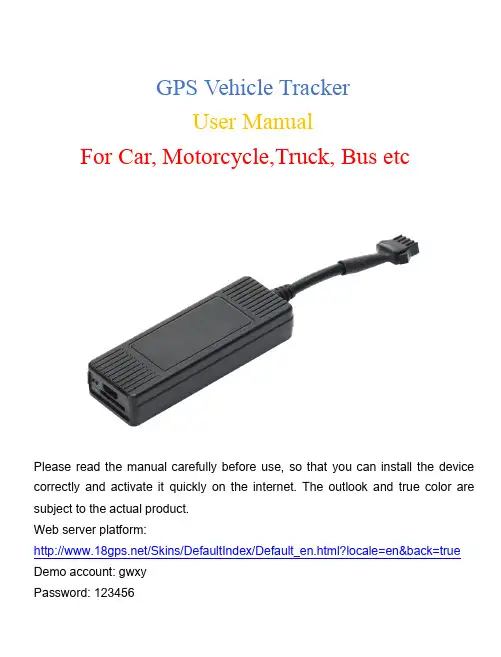

GPS Vehicle TrackerUser ManualFor Car,Motorcycle,Truck,Bus etcPlease read the manual carefully before use,so that you can install the device correctly and activate it quickly on the internet.The outlook and true color are subject to the actual product.Web server platform:/Skins/DefaultIndex/Default_en.html?locale=en&back=true Demo account:gwxyPassword:1234561.Accessories:2.Technical parameter1).GSM:850/900/1800/1900Quad band 2).GPRS:Class12,TCP/IP3).Working Voltage:9-90V DC4).Working current:≈22mA(12vDC) 5).Working current:≈12mA(24vDC)6).GPS locating time:Cold start≈38s(Open sky)Warm start≈32sHot start≈2s(Open sky)7).GPS Precision:10m(2D RM)8).Working temperature:-20℃~+70℃9).Working humidity:20%~80%RH10).Measurement:78(L)×27(W)×15(H)mm3.Out look4.Device status indicators(Save power mode) GPS LED Indicator-YellowSolid yellow Searching GPS signalFlashing GPS working normallyOFF Sleep modeGSM LED Indicator-BlueSolid Blue No GSM signal or SIM card not be recognized Flashing quickly(interval0.1s)GSM data transportingFlashing slowly(interval2s)GSM working normallyPower LED Indicator-RedSolid Red Working power from vehicleFlashing(interval1s)Device low batteryOFF Working power from device built-in battery5.Installation5.1Prepare installation(1)ProductCheck.Open the packing box and check the device‘s model and accessories. If the model is wrong or the accessories not complete,please contact the dealer.(2)Choose SIM card.Please take dealer’s advice as reference before insert SIM card.(3)SIM card installation.Insertthe SIM card(as follows).(4)Putback the front cover and screw it up.(5)Connect the device to the9-24Vpower supply.(the red LED constant glow)(6)Install the device in the hidden place of the car;The SIM card must be with GPRS function and enough credit.If your SIM card need input PIN code when power on,please refer to the mobile phone user manual to cancel it5.2InstallationThe GPS tracker must be installed by professional person:(1)Please install the device in the hidden place as followings:-Under Front windshield;-In the front instrument panel;-Under back windshield;(2)Avoid being placed with signal radiators like reverse sensor;(3)The device has built-in GSM and GPS antenna.Please ensure thereceiving side of the device is face up and without metal cover.Note:The metal cover will lessen the GPS signals receiving.6.Device wiring requirements6.1The device power supply is DC9-100V.The red line is positive pole while the black line is negative pole.6.2The negative pole of power supply connects with ground or the metals.Please do not connect with other ground lines.6.3After finished the power supply wire connection,please plug the power supply wire into the device.7.The Device Working7.1Power on:The device will be powered on when detect the current.Then the three LEDindicators will light on continuously.The device will upload the data to the online platform (The uploading data default interval is 10seconds).When the car is in static state for a long time,the device will switch to energy saving mode.7.2Power off :Pull off the power wire to power off the device.Optional MIC and SOS wiring diagram7.3Feature list:er SMS TEXT Settings(1)Set Admin NumberSMS TextCommandParameter SampleAdd Number 710#number#711#number#710#135****5000#711#138****8000#Delete Number D01#D02#D01#D02#Command Description 1)Admin number can control the oil,power and resume factory settings2)Admin number can receive the alarms call and text of vibration,over speeding,out geo-fence,etc3)SIM must display the income call number to control oil and power.4)Only two number can be set as admin number.5)Resend the command to change admin number.CommandFeedbackSuccessful Setting:Add admin account1OK!(2)Check Admin NumberSMS TextCommandParameter Sample Check901#901# CommandDescriptionView the device admin number directly.Command Feedback Successful Setting:Admin1:135****5000,Admin2:138****8000(3)Set Authorization NumberSMS TextCommandParameter SampleAdd Number101#number#102#number#103#number#101#135****5000# 102#12345678912# 103#12345678913#Delete Number D11#D12#D13#D11#D12#D13#Command Description 1)Authorization Number used to control oil by SMS2)Only three number can be set as authorization Number3)Before change the authorization Number should delete previous number first.CommandFeedbackSuccessful Setting:Add Authorization account1OK!(5)APNTextcommandParameter SampleAPN Setting 802#username#password1:802#internet#123#123#2:802#internet#Command Description APN differs according to the local telecommunication operators.For example:If APN request password,please refer to Sample1,Sample2for no password.Command Feedback Successful Setting:apn setting OK!(4)Check authorized numberSMS TextCommandParameter Sample Check C10#C10# CommandDescriptionCheck the device authorization number directly.Command Feedback Successful Setting:Authorization1:135****5000Authorization2:12345678912Authorization3:12345678913(6)Set/View SERVER HOSTSMS TextCommandParameter SampleSERVERHOSTParameter803#SERVER#port#803#58.61.154.231#7018#ViewSERVERCIP#1)CIP#Command Description Change the IP and port when move to a new server port:10~65535.1is domain and0is IP;Command Feedback SERVER Successful Setting:The setting of HOST NAME is successful! HOST:SERVERPORT:7018CIP#Successful Setting:IP:58.61.154.231Port:7018(7)TIMMER(Set data uploading time interval while car is MOVING) SMS TextCommandParameter Sample TIMEERsetting730#uploading interval#730#20#Command Description Time setting scope:10~3600seconds;20means time interval,the default value is15seconds!CommandFeedbackSuccessful Setting:Set upload move ITV20seconds,OK!(8)Alert on/offSMS TextCommandParameter Sample Alert onCommand911#911# Alert offCommand910#910#Command Description This command is used to set the alert on/off,in case of unknown movement or shake.Command Feedback 911#Successful Setting:Defence setting,OK!910#Successful Setting:Cancel Defence setting,OK!(9)STATIC(Set data uploading time interval while car is STATIC) SMS TextCommandParameter SampleSTATIC SUP#time interval#SUP#5#Command Description Time scope:1~1440minutes;The device has3D transmission and the default time interval is5minutes.CommandFeedbackSuccessful Setting:Set upload still ITV5Mins,OK!(10)Cancel the continuous uploadingSMS TextCommandParameter Sample NUP NUP#NUP#Command Description This command is used to cancel sending data to the platform.If need to restore the uploading,need to reset TIMEER or STATIC ParameterCommandFeedbackSuccessful Setting:Close upload gps information OK!(11)RELAY(Remote cut off fuel/power)SMS TextCommandParameter SampleRELAYParameter1222#222#cut off fuel and power RELAYParameter2333#333#recover fuel and powerCommand Description 1)RELAY control the ON/OFF of the vehicle relay;2)Only admin number can set this parameter.3)Only cut off the oil circuit while vehicle driving speed below20KM/H or in static state.4)When send the command,the vehicle speed is over 20KM/H,device will reply“please waiting”Command Feedback 222#Successful Setting:Oil is cut off! 333#Successful Setting:Oil is restore!(13)VIBRATIONSMS Text Command Parameter SampleVIBRATION Alarm Parameter 123#2#,alarming way#1)123#2#1#2)123#2#2#3)123#2#3#Set the vibration alarmtime intervalV123#1#V123#1# Cancel vibration alarm456#456#Command Description Vibration sensitivity level is from1to5,1is the most sensitive and0is close.Alarming ways:1calling,2:text,3:call and text.Must set the admin number and receiving number.Command Feedback Successful Setting:shock setting,OK!way:1shock interval setting,1Mins,OK! noshock setting,OK!(12)GMTSMS TextCommandParameter SampleGMT 801#location,time#801#E8#Command Description The default time zone is Beijing time.If need change, please operate according to the above command.CommandFeedbackSuccessful Setting:time zone ok!(14)OVER SPEED ALARM SETTINGSMS TextCommandParameter SampleSPEED Parameter SSA#120#alarming way#SSA#120#1#Command Description Speed range:60-220,if not inside this range,the alarm off.Alarming way1:call,2:text,3:call and text. Must set the admin number and receiving number.CommandFeedbackSuccessful Setting:Speeding Alarm setting,OK!(15)RESETSMS TextCommandParameter SampleRESET930#930#CommandDescriptionReset the deviceCommandFeedbackSuccessful Setting:Reset system,ok!(16)FACTORY RESTORESMS TextCommandParameter SampleParameter940#940#CommandDescriptionRestore the factory setting,only admin number can set. CommandFeedbackSuccessful Setting:Factory,OK!(17)LANGUAGE SETTINGSMS TextCommandParameter SampleLANG Parameter LANG1#LANG0#LANG1#LANG0#Command Description Set the language of command feedback,LANG1is Chinese,LANG0is EnglishCommandFeedbackSuccessful Setting:Set language,OK!(18)WHERE(Optional)SMS TextCommandParameter Sample WHERE988#988#Command Description Check the longitude and altitude and other information of the deviceCommandFeedbackReply with longitude and altitude,speed and IMEL.(19)URLSMS TextCommandParameter Sample WHERE666#666# CommandDescriptionCheck the location link of Google mapCommand Feedback GPS!Lat:22.66349long:114.22066,speed:000.0T:04/19/1913:47Location URL:/maps?q=N22.540885,E113.95265(20)PARAM(Device details)SMS TextCommandParameter Sample PARAM886#886#Command Description The command is to check the settings or the default parameter.Command Feedback IMEI:351190012535936 APN:cmnetIP:58.61.154.231 PORT:7018 LANGUAGE:English TIMEZONE:E8 NUMBER INFOR SOS:135****5000 ADMIN1:135****5000 ALARM WAY:1BAT VOL:12.73V(21)STATUSSMS TextCommandParameter SampleSTATUS902#902#CommandDescriptionDesigned for checking the device’s working status.Command Feedback IMEI:353327022096317Basic informationVERSION:61M-Q3_T3-HS-SLW-XY_V2.6_190402 RSSI_LEVEL:83APN:cmnetIP:58.61.154.231PORT:7018PROTOCOL:TCP/IPGPS informationGPS moving report intervals:20secstatic report intervals:5minGPS:UNFIXEDGPS Satellites:0NUMBER INFORSOS:136****5118ADMIN1:136****5118ALARM WAY:3BAT VOL:12.73VOptional functions of one way calling and SOS SMS TextCommandParameter Sample One waycallingSSS#SSS#Command Description Designed for checking the device’s surrounding status. After send the text“SSS#”to the device SIM card number, the device will immediately call back to you.SOS Press the SOS button for more than3s,device will call the admin number immediately in circles until the call will be picked up.Note:Should set the admin number by setting “710#number#”or“711#number#”first.9.Trouble shooting9.1The device is unused or offline on the web server platform9.1.1First,please check the three LED working state.If possible,callthe device’s SIM card number to check:①If the call can not connect to device and feedback the device is notin the GSM service area,please get the GSM signal first.②If reminding the device SIM card is out of fee,please top up the SIM card.③If calling can connect to device,means the SIM card still have fee inside,please check with the SIM card operator that the GPRS function has been opened or not.④If the call can not connect to device and feedback the device waspowered off,please take the device back to analysis as below:a)If the Red LED and blue GSM LED are solid light on,please check theinstallation status of SIM card,if installation no problem,change a new SIM card to retest.b)If the Red LED is off,please check the power terminal wiring isdisconnected or the power line end fuse is blown.Also can use a multimeter to measure the voltage of the main power2P connector.If the voltage is normal,please send the device to the factory for repair.9.1.2Please check there is how many offline devices in the same area,inorder to judge whether its the SIM Card operator’s network problem or not.9.2When GPS cannot receive the signals,please drive to a open skyplace,and ensure there is no metal cover on the device.9.3When the device cannot receive the GSM signal,please check the SIMcard installation.If the GSM signals cannot reach your location(such as the basement),please drive to a open sky place.9.4The red LED can not power on.Check fuse,if its broken,please replace the fuse.。

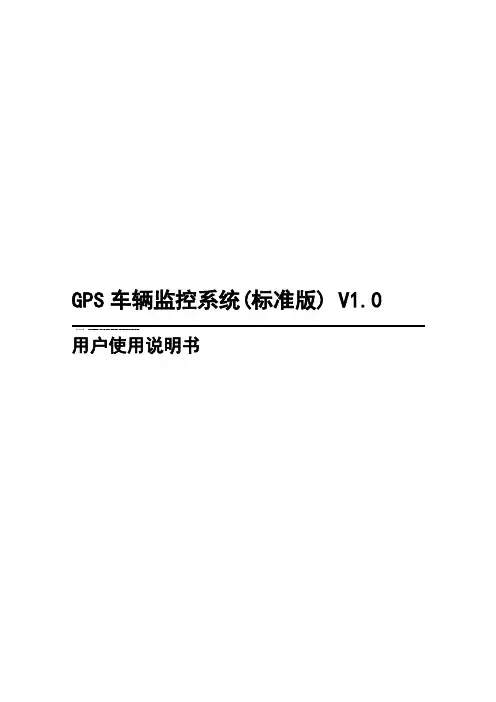

GPS车辆监控系统(标准版) V1.0用户使用说明书目录目录 (2)关于本手册 (5)1.引言 (5)1.1.编写目的 (6)1.2.背景 (6)1.3.术语和缩写 (6)2.系统概述 (6)2.1.系统菜单概述 (6)3.安装 (8)3.1.运行环境 (9)3.1.1.硬件需求 (9)3.1.2.支持软件 (9)3.2.安装过程 (9)4.操作说明 (13)4.1.功能操作说明 (13)4.1.1.系统登录 (13)4.1.2.权限控制 (14)4.1.3.锁定 (14)4.1.4.注销 (15)4.1.5.退出 (15)4.1.6.同步基本资料 (16)4.1.7.连接通讯服务器 (16)4.1.8.系统配置 (16)4.1.9.地图操作 (21)4.1.10.回传设置 (25)4.1.11.断开油路 (27)4.1.12.恢复油路 (27)4.1.13.主动监听 (28)4.1.14.解除报警 (28)4.1.15.终端设置 (29)4.1.16.车辆跟踪 (30)4.1.17.车辆实时状态 (31)4.1.18.指令发送状态 (32)4.1.19.发出短语数据 (32)4.1.20.收到短语数据 (32)4.1.21.车辆报警数据 (32)4.1.23.电子围栏 (33)4.1.24.搜索车辆 (35)4.1.25.范围查车 (36)4.1.26.车辆报警 (37)4.1.27.车辆处警 (38)4.1.28.信息发送 (41)4.1.29.历史信息 (42)4.1.30.车辆信息 (46)4.1.31.轨迹回放 (48)4.1.32.车辆巡检 (50)4.1.33.车辆里程统计 (50)4.1.34.插件管理 (51)4.1.35.单次定位 (52)4.1.36.电子围栏设置查询 (52)4.1.37.计划指令设置 (53)4.1.38.计划运行日志查询 (58)4.1.39.操作日志查询 (59)4.1.40.登录WebGPS (60)4.1.41.报表查看 (60)4.2.贷款功能操作说明............................................................................. 错误!未定义书签。
GPS Vehicle tracker(GPS+GSM+SMS/GPRS)User Manual(Version 5.0N)This user manual has been specially designed to guide you through the functions and features of your GPS vehicle tracker.1. Accessories:▶Device▶Power cord▶Relay▶Microphone▶SOS alarm cable & button▶User Manual2. SpecificationsDimension 106(L) x 54(W) x 16(H) mm Weight 96gBackup Battery 450mAh / 3.7VOperation Temperature-25℃-60℃Humidity 5% - 95%Standby Time 60hoursGSM Frequencies 850/900/1800/1900 MHz GPRS Class 12GPS Channel 20GPS Sensitivity -159dBmAcquisition Sensitivity -144dBmPosition Accuracy 10mTTFF (Open Sky)Cold Start: <38s Warm Start:<15s Hot Start:<2sGSM/GPS Antenna Built-in designLED Indicator GSM-green, GPS-blue, Power-redData Transmit TCP, SMSGeo-fence View any existing Geo-fence in the mapSpeeding Alarm Report when speeds higher than the pre-set value. Low Power Alarm Alarm when backup battery is running outNon-movement Detection Movement alarm based on built-in 3D motion sensor Mileage Report Track by time/distance intervalRemote Control Cut off petrol/electricity3. LED IndicationsGPS LED Indicator - BlueFlashing (interval 0.1s) Searching GPS signalSolid blue GPS fixOFF No GPS fix or initializingGSM LED Indicator - GreenQuick flashing (interval 0.1s) GSM initializingSlow flashing (flash 0.1s every 2s) Receive GSM signal normally Solid green Connected to GSM network OFF No GSM signalPower Status - RedFlashing (interval 0.1s) Low batterySlow flashing (interval 0.2s) Full chargeSlow flashing (flash 0.1s every 2s) Normal operatingSolid Red ChargingOFF Low battery/Power offIgnition detection indication: three LED indicators take turns flashing.4. Getting StartedPlease follow below instructions for ensuring safe and correct use.4.1 Install the SIM cardPlace the SIM card into the device with the gold-colored side facing down.Note: Make sure there is enough credit on the SIM card. If you will be using the GPRS function, you should pay attention to the current SIM card GPRS charge.4.2 Install the deviceYou need to choose somewhere that it won't be found, because the whole point of fitting covert GPS vehicle tracker is the secrecy element.Installation please refers to below picture.NOTE:1. Any high power devices such as reversing radar, anti-theft device or communication equipment would affect the signal of the device.2. All metallic cases of the windshield will attenuate the signal on the tracking device. It’s simply due to the shielding effects of the metal compound of the case.4.3 Wiring configurationLine No. Specification Color Instruction1. 2 Keypod Orange / Orange Connect to SOS button3. 4 MIC-,MIC+ Black / Red Connect to Microphone5 TX Green Sending data (TX) / backup6 RX White Receiving data (RX) / backup7 GND Black Ground wire8 MOTOR Yellow Connect to relay control line9 ACC White Connect to ACC ignition10 V- Black(thick) Negative side of 12V/24Vcar storage battery.11 V+ Red(thick)Notes of the relay wiringThe relay wiring of pump: oil connectors of both ends are a fine white line (85) and a fine yellow line (86). The fine white line (85) is connected to vehicle positive power (+12V). The fine yellow line is connected to the device relay control line.Cut off the positive connection line of the pump; then connect in series to the relay N.C. contact (thick green line 87a) and the other end to relay COM contact (thick green line 30).4.4 Device wiring diagramPlease choose the right relay (12V-standard / 24V-optional) for the proper installation. 4.5 Power/ACC/Tele-cutoff(petrol/electricity) control line (4 pin) 1. Your device comes with a power cord and is designed to use only manufacturer-specified original device. The red line is positive while the black one is negative (the side should not be connect with ground wire).2. The ACC line (white) connects to ACC switch of the vehicle. Please be sure to connect the ACC line; otherwise the device will enter ignition detectionstatus when disconnect the ACC line. If you don’t need to anti-theft temporarily, just connect the ACC line to the positive side in parallel.3. Tele-cutoff (petrol/ electricity) control line (yellow) is connected to pin 86 of the Tele-cutoff (petrol/ electricity) relay (equal to the yellow line of the relay socket).4. USB cable (3 pin)Firmware updating interface/expanded function to reserve space.5. MIC line (2 pin)Externally connect to microphone for voice monitoring function.6. SOS line (2 pin)Externally connect to SOS switch for SOS function.5. Quick Operation InstructionsOperation Tips: To properly use the device, common parameters should be set before initial use. This can be done by using the parameter editor or by sending SMS commands to the device. (“,”should be English comma and no space before and after the comma)5.1 APN settingTo connect default platform , please send the SMS command below:APN command format: APN,APN's Name#E.g: APN,internet# (“internet” is the APN of carrier)The device will reply “OK” if setting successfully.Note: The APN of some countries have user name and password, you may need to send SMS command as following:APN,APN name,user name,password#E.g: APN,internet,CLIENTE,AMENA#5.2 DNS settingTo connect other platform, please send the two SMS commands bleow: Command format:SERVER,1,DNS,Port,0#E.g:SERVER, 1,,8841,0#It will reply “OK” after set successfully.5.3 ON /OFF GPRSWhen you want to disable GPRS, you can SMS command to the SIM card number which used in the device.Command format:GPRS ON:GPRSON,1#GPRS OFF:GPRSON,0#It will reply “OK” after set successfully.5.4 Add specific numberSMS command to the device to set the SOS number.SOS,A,No.1,No.2,No.3#“A” means to add new numbers, for example:SOS,A,135****5991,135****5992,135****5993#If there is only one SOS number, you can appoint a specific number as SOS number. And the null means no adding.For example:SOS,A,135****5991#means to set the first number as SOS number SOS,A,,135****5992#means to set the second number as SOS number SOS,A,,,135****5993#means to set the third number as SOS numberIf set successfully, there is a “success” reply SMS.5.5 Delete specific numberBefore deleting specific number, please check its corresponding code. For the code, please SMS “PARAM#” to the device.SMS command to the device to delete the number.SOS,D,serial NO.1,serial NO.2,serial NO.3#“D” means to delete the number, for example:SOS,D,1# means to delete the first numberSOS,D,3# means to delete the third numberIf you want to delete more than one numbers, you can send this command: SOS,D,1,3# means to delete the first and third numbers.If you forget serial number of the mobile number you want delete, you can send this command:SOS,D,mobile number# means to delete the mobile number directly.For example:SOS,D,135****2360#meanstodeletethe135********directly.After deleting the SOS number, it will receive “Delete number 135XXXXXXXX success! specific number total 2” for successful deleting of the specific number.5.6 Set the center numberIf you want to cut off/restore oil by SMS command, you have to set a centernumber firstly. Only the center number can send the cut off/restore oil command to the device. You can set your own mobile number as center number.The command for setting center number is:CENTER,A,mobile number#Forexample:CENTER,A,159****3401#If set successfully, there is an “OK” reply message.NOTE:Only the SOS number can be used to set center number successfully.5.7 Delete the center numberSMS command to the device to delete the center number.The command is:CENTER,D#For example:CENTER,D#If set successfully, there is an “OK” reply SMS.NOTE:Only the SOS number can be used to delete center number successfully.Only SOS phone number can send this command successfully to set the center number. There is only one center number can be set.5.8 Check parameter settingSend command to the terminal, you can check the parameter setting. Command format: PARAM#e.g.: PARAM# Information replied:IMEI: 353419032348877 ---IMEI number of the device;Timer: 10,10; ---GPS data uploading Interval;SENDS:5; --- the GPS working time when ACC is OFF;SOS:159****3401;---SOSnumbers,maximum3SOSnumberscanbeset and used for alarm and monitoring;CenterNumber:159****3401;---only1centernumbercanbesetandused for cutting off /restoring oil command;Sensorset:10,1,5,180 --- detect 5 vibrations in 10s; the alarm delay is 180s; Defense time: 10; --- the defense delay is 10 minute;TimeZone:E,8,0; --- set time zone; default as E8.The replied information contains IMEI number, GPS data uploading interval, SENDS, SOS, center number, sensor set time interval, defense time and time zone.5.9 Check GPRS parametersSMS command format:GPRSSET#Eg:GPRSSET#Reply message:GPRS:ON //GPRS on/off status// Currently use APN:,,; //APN setting information// Server:1,,8841,0; //platform information// URL:/maps?q=; //preset web link setting information // 5.10 GPS data uploading intervalThe default sending interval is 10,10. It means when ACC ON ,the device will upload positioning data to platform server every 10s.when ACC OFF ,the device will upload positioning data to platform server every 10s.Users can modify sending interval by SMS“TIMER,time1(seconds), time2(seconds)”The time1&time2 ranges from 10-18000sFor example:TIMER,10,20#It means when ACC ON ,the device will upload positioning data to platform server every 10s.when ACC OFF ,the device will upload positioning data to platform server every 20s.5.11 Sensor alarm time settingWhen the vehicle power is off and ACC is in low-level, if ACC is off over 10 minutes, the device will enter sensor alarm state. In this case, if the vehicle vibrates for a few times, it will activate the vibration alarm system. If the vehicle battery is still not on (ACC is in low level) after 3 minutes, the device will start vibration alarm.SMS format: “DEFENSE,TIME(minutes)#” The time ranges from 1 to 60 mins.For example: DEFENSE,15#. It means when ACC is in low level for 15mins, it will enter sensor alarm status (vehicle power is off)NOTE:1. Preset SOS numbers when send SMS alarm messages and calls2. If there is no need for vibration alarm, please SMS SENSOR,0# to close it.5.12 Restore to factory settingSMS command format: “FACTORY#” to set all parameter to default factory value. Once received “OK”, it succeeds.5.13 Reboot deviceWhen there is something wrong with the link of GPRS, e.g., The parameter setting of the device is correct, but you can't track the car on the platform. At this moment you can send a command to the device to reboot the device. The format is: RESET#After receiving this command, the device will reboot after 1mins.6. Operation of device6.1 Power on/ Power offPower on: Once insert a valid SIM card and connect all the wires, turn on the device, then Power LED will flash first, During signal searching process, GSM and GPS LED will flash. Once GPS LED keeps solid light, it means the device has been located and it starts to work.Power off: Just turn off the power switch.The device will begin to upload positioning data to server once inserting a valid SIM card and power on. During the working time, it can upload data to server every 10 seconds.6.2 Check location1. Via SMS1.1 SMS “WHERE#”, to the SIM number of device. The device will send a location message automatically. You can get the coordinates. If the device does not search any information of location, it will send “No data” to the cell phone.Example:Lat:N22.571285,Lon:E113.877115,Course:42.20,Speed:0.0740,DateTime:10-11-23 22:28:511.2 SMS “URL#”, to the SIM number of device. The device will send a location Google Map link. If the device does not search any information of location, it will send “No data” to the cell phone.Example:<Date Time:10-11-23 23:42:51> /maps?q=N22.571490,E113.8771032. Via platformGo to the platform website offered by dealers to check your vehicle location.6.3 SOS alarmIn emergent case, press SOS for 3s to activate SOS alarm. Then the device will send SOS SMS to preset specific numbers and then dial the numbers in circles until the call is picked up. At the meantime, the device will upload SOS alarm data to the server. And it will send:SOS Alarm! <DateTime:11-06-17 14:53:06>,/maps?q=N22576713,E113.916585Note: The specific numbers should be preset, just refer to 6.46.4 Wire cut-off alarmWhen the electricity supply of device is cut off, it will activate cut-off alarm. In this case, the device will send related SMS to the specific numbers and dial the numbers in circles. If nobody answers, the call just keeps 3 loops at most. At the meantime, the device will upload SOS alarm data to the server. And it will send:Cut Power!<Date Time:11-06-17 14:53:06>,/maps?q=N22576713,E113.916585Note: The specific numbers should be preset, just refer to 6.46.5 Low battery alarmWhen the device is only working with battery, once the internal voltage of battery is less than 3.7V, device will send low battery alarm sms to specific number and alarm on platform.Low battery alarm sms content example: “Attentionbattery too low, please charge.” Which means the battery is to low, to inform user charging it i n time. Note: The specific numbers should be preset, just refer to 6.46.6 Vibration alarmThe vibration alarm function is off by default. To activate this function, please send the following command: SENALM, ON#. The alarm will be sent to both the service platform and SOS numbers.When vehicle power is off, ACC status is low, and if the lead time of low ACC is more than 10 minutes (settable), device will activate security alarm. When the security alarm is on, once the vehicle vibrates for several times, the alarm will be activated; in the next 3 minutes, if vehicle power is still off(ACC status is low), device will start alarm. At this time, it will send alarm message to the service platform with the latitude and longitude, while the platform will reply the Chinese address. Then the terminal will send vibration alarm message to SOS numbers with the Chinese address, and call the SOS numbers in cycle. If nobody answers, it will stop calling after 3 loops.If the Chinese address can not be acquired for certain reason, the terminal will send a message with the website link to the SOS numbers.e.g.:Sensor Alarm!<11-23 14:53>,/maps?q=N22576713,E113.916585Note:1.The SOS numbers should be preset.2.Send “SEN ALM, OFF#” to turn off the vibration alarm.6.7 Voice monitoringWhen the special number cell phone dial device, ringing for 10 seconds, it will enter voice monitoring status. At this time, caller can monitoring the sound in vehicle. Incoming call from non special number will not activate voice monitoring function.Note:To realize this function, please set special number beforehand.The SIM card put into the device should be equipped with caller identification.6.8 Oil cut-off1. Via platformSend oil cut-off command on platform. To make sure the security of vehicle, tracker can only indicate to cut off oil when GPS is in valid position status, and the speed is less than 20KM/H or in static. Platform account password is needed when sending oil cut off command.2. Via SMSFirstly, you should set a center number. Please refer to 6.6.Only center number can send the command to the device to cut off and restore oil.The format is: RELAY,1#After the command is carried out, it will reply “Cut off the fuel supply: Success! Speed:0 Km/h”. If the command didn't carry out, it will reply the reason about fail to carry out.Note: To ensure the safety of the driver and the car, this command is valid only under two conditions: the GPS is located; the speed is less than 20km/h 6.9 Restoring Oil1. Via platformWhen the alarm is off, sending recover oil commands manually. Device will restore oil supplying, and vehicle will work normally again.Platform account password is needed when sending oil cut off command.2. Via SMSOnly center number can send the command to the device to restore oil.The format is: RELAY,0#After the command is carried out, it will receive “Restore fuel supply:Success!”6.10 Over speed AlarmWhen the car is moving over a limited speed in average in a limited time period, then the device will send over speed alarm SMS to user.To turn on the over speed function, please send below SMS command: SPEED,ON/OFF,Time,Limited speed,uploading mode#Speed alarm switch:ON/OFF default:OFFTime range (seconds):5-600s(default as 20s)Limited speed range(km/h):1-255km/h. default:100Mode:0/1. default:1 way of alarming,0 means GPRS only,1 meansSMS+GPRSExample:SPEED,ON,20,100,1#Means when the car is moving over 100km/h in average in 20 seconds,the device will send over speed alarm to user7.Web based tracking online activationThe GPRS web based tracking platform allows real time tracking with the latest Google maps. There is also a playback feature that allows you to view where the vehicle has been for up to 30 days in the past making it ideal for fleet management.8.Trouble shootingIf you are having trouble with your device, try these troubleshooting procedures before contacting a service professional.Problems Causes SolutionsFail to connect platform The fuse blows Replace the fuse ACC ignition disconnected Turn on ACC with keyFail to connect network Wrong installation of SIMcardCheck SIM card installation(Refer to 4.1 Install SIM card) Filth on the SIM card ironsurface.Clean itUseless SIM Contact internet serviceproviderImproper installation Check installation of device(Refer to 4.2 Install the device) Beyond GSM service area Use it in effective GSM serviceoffer areaBad signal Try again in a better signalareaFail to charge The voltage is unsuitable Connect with power withsuitable voltage Improper connection Check connection withcharger1. The warranty is valid only when the warranty card is properly completed, and upon presentation of the proof of purchase consisting of original invoice indicating the date of purchase, model and serial No.of the product. Wereserve the right to refuse warranty if this information has been removed or changed after the original purchase of the product from the dealer.2. Our obligations are limited to repair of the defect or replacement the defective part or at its discretion replacement of the product itself.3. Warranty repairs must be carried out by our Authorized Service Centre. Warranty cover will be void, even if a repair has been attempted by any unauthorized service centre.4. Repair or replacement under the terms of this warranty does not provide right to extension or renewal of the warranty period.5. The warranty is not applicable to cases other than defects in material, design and workmanship.Maintenance RecordShenZhen Concox Information Technology CO.,LtdTel: +86 755 2912 1200Fax: +86 755 2912 1290E-mail:**************.Add: 4/F, Building B, Gaoxinqi Industrial Park,Liuxian 1st Road, No.67 Bao'an District, Shenzhen DateServiced by Product ModelIMEI NumberFaultDescriptionsCommentsWarranty instructions and service。

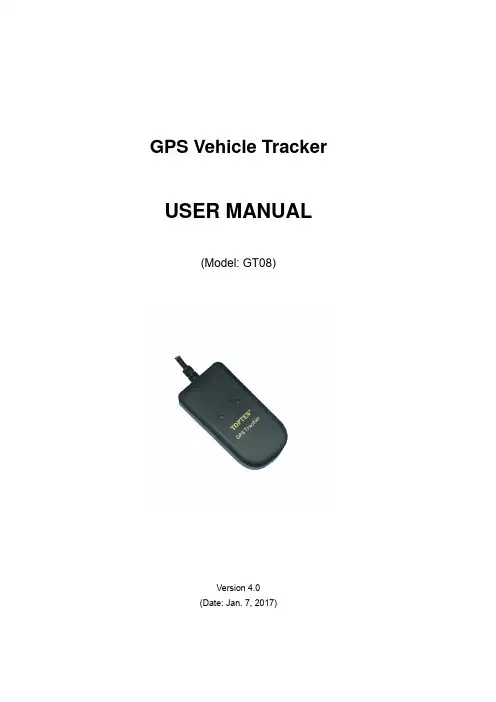

GPS Vehicle Tracker USER MANUAL(Model:GT08)Version4.0(Date:Jan.7,2017)CONTENT Preface (2)I.Features&Functions (3)II.How to Operate it (4)Authorize the Alarm-received Phone No (4)Arm/Disarm by Phone Calling (4)Check the Vehicle’s Status (5)Arm/Disarm the System by SMS (5)Check the location by Google Map’s URL (5)Check the Real Physical Address (6)Check the Real Physical Address Directly without Server (6)Check the Location by GSM Base Station Code (6)Change User Password (6)Stop the Car by SMS (6)Restore Car from Being Stopped (7)Monitor the V oice around the Car (7)Two-way Talking (7)Over-speed Alert (7)Speed Limiter (8)Power Save Mode (8)Fatigue Driving Alarm (8)Show the SMS Content in Languages (9)Define the SMS Content in other languages (9)Other SMS Command List (10)III.The Setting for GPRS Connection (13)IV.Snap Photo&Monitor via MMS/Email/Platform (14)V.Alarm Types (16)VI.Installation (17)VII.Specifications (19)VIII.FAQs&Troubleshooting (19)IX.Maintenance (20)PrefaceGT08GPS Vehicle tracker is the most advanced&cost-effective solution for vehicle security,real-time tracking&fleet management.It has the following unique functions:✧Support wireless immobilizer;✧Fuel leaking alarm,speed limiter&fatigue driving alarm;✧It is integration with GPS tracker+Car alarmRead it Firstly:Please read this manual thoroughly before you use the device;please keep it for future reference.Attention:(1)Please keep the device away from heavy water,high temperature,heavy dust or strong magnetism.(2)Please prepare a valid GSM SIM card in advance.(3)For safety,please keep the SIM number of your tracker in secretWarning:We strongly suggest user let the professional car electrician to install the system.I.Features&Functions1.Industrial design with high performance ARM7process2.Track on command or by time interval or by distance;3.Arm/disarm by SMS,phone call;4.Check the car’s real physical address(such as city name,street name..);5.Track by mobile SMS to get the latitude,longitude,speed,direction&odometer etc.6.Check the location directly by the Google map’s URL;7.Over-speed alert,Geo-fence alert,movement alarm;8.Snap photo and send out via MMS&Email when there is SOS alarm,ACCOn alarm or door open alarm,snap the photo via platform(optional);9.Speed limiter,when the speed is over limitation,the siren will sound to warndriver&relay will response to slow down the car automatically;10.Crash alarm,when there is crash&it can detect it automatically;(optional)11.Fatigue driving alarm,if continuous driving time is over the limitation,thealert will be triggered;12.Check the coordinates via LBS,even there is no any GPS signal..13.Support voice monitoring&2-way talking;14.Cut off engine to stop the car safely by SMS/GPRS;15.Trace optimization when vehicles turns a corner;16.Built-in shock sensor for power saving&triggering alarm17.Power failure alarm,with built-in rechargeable backup battery;18.SOS alarm(optional);19.Support analog input for fuel/temperature monitoring,fuel loss alarm;20.I/O:4digital inputs,1analog inputs&1digital outputs;21.There are3types of working mode for power saving flexibly.22.8M-bit offline data logger,it can store up to9,090waypoints.23.SMS content in multi-languages(English,Arabic,Spanish,Portuguese).II.How to Operate itThe default user password is111111.If the user password is changed,user should send the SMS command withXXX is the control code,all the letters must be capital letters or in small letters,command with mixed capital letter&small letter is not recognized by systemAuthorize the Alarm-received Phone No.SMS command:111111*10Mobile#1*20Mobile#2*In case of alarm,if user wants to get the alarm SMS from the tracker,he/she needs send the following SMS to program the tracker firstly,otherwise,the alert information can't be received correctly.Example:User sends the SMS111111*1013922713571*2013711189059*to the tracker’s SIM card number,if there is any alarm,system will send SMS to both of these two mobiles.In case of SOS alarm,the system will only send alarm to the mobile#2Arm/Disarm by Phone CallingUser could also use the1st alarm-received mobile phone to call the tracker’s SIM card number,so as to arm/disarm the system.Arm:After hearing several ring tones,if the systems hang up the call automatically,and call back you,it means that the system is armed.Disarm:After hearing several ring tones,if the system hangs up the call automatically,and don’t call back you,it means that the system is disarmed.Note:(1)There is no communication fee for this operation,it is a very convenient way to arm&disarm the system.(2)The SIM card inside the device must have the function of Caller ID Display.(3)Only the1st alarm-received mobile phone can realize this function.Check the Vehicle’s StatusSMS command:111111CHK(or111111chk)This instruction is used to inquiry the vehicle’s location&system’s status.The system will send back the SMS,includes the similar information,such as“Armed……”User could also use the2nd alarm-received mobile phone to call the tracker’s SIM card number,the tracker will hand up the calling&send back the location directly.Arm/Disarm the System by SMSSMS command:111111ARM(or111111arm)This SMS instruction is used to arm the systemSMS command:111111DSM(or111111dsm)This command is used to disarm the system&stop sending alert SMS.Check the location by Google Map’s URLSMS command:111111MAP(or111111map)Upon receiving the SMS command,the tracker will automatically send back the SMS including the Google map’s URL,user can use smart phone(GPRS data service is enabled)to open the URL link,the car’s location will be showed on the Google map.Check the Real Physical AddressSMS command:111111ADD(or111111add)When user sends this SMS command to the tracker,the tracker will automatically send back the car’s real physical address(such as city name,street name)to your mobile by SMS.(it need server's support for address translation).Check the Real Physical Address Directly without ServerSMS command:111111DDD(or111111ddd)When user sends this SMS command to the tracker,the tracker will automatically send back the car’s real physical address(such as city name,street name)to your mobile by SMS.(Note:this function might not work with some operator's SIM card.it is just for test).Check the Location by GSM Base Station CodeSMS command:111111LOC(or111111loc)This instruction is used to check the location by GSM base station code. The tracker will send back the relative GPS coordinates which is translated by the GSM base station code.Change User PasswordSMS command:111111PSWnnnnnn(or111111pswnnnnnn)This instruction is used to change the user password.The length of the user’s password is3~ers are suggested to change to the new password in use.Example:User sends the SMS“111111PSW12345”to the system SIM card number,and gets the confirmed SMS“111111PSW12345”in3seconds.It means that the user password has been changed to12345.Remark:Please keep the password deep in mind if it is changed.Stop the Car by SMSSMS command:111111STP(or111111stp)This instruction is used to stop the car in safe condition.If the car's speed is higher than30KM/h,the car is stopped gradually by impulse control,if the car's speed is lower than30Km/h,the car is stopped immediately.Attention:It is very dangerous to stop the car when the vehicle is running at high speed.We do not take any responsibility to the consequence caused by this action.Restore Car from Being StoppedSMS command:111111RES(or111111res)It is used to restore the car to normal status after being stopped.Monitor the Voice around the CarSMS command:111111MONThis instruction is used to monitor the voice around the car.The SIM card inside the system pays for the communication fee.SMS command:111111MON!This instruction is used to monitor the voice around the car.The user’s telephone pays for the communication fee.Example:User uses the mobile137****2345to send111111MON!to the system, then use the mobile137****2345to call the tracker,it will be connected automatically,and user can monitor the voice around.Two-way TalkingSMS command:111111MON:P1*This instruction is used to program the phone number which is used for carrying out direct monitoring or talking always.P1is suggested as center phone number for easy communication with drivers.Example:111111MON:139****3571*Over-speed Alert111111SPD:X x is the speed in KM/H,maximum value is255M/H(For example:111111SPD:120,if the car speed is over120KM/H,it will send out warning alert by SMS/platform).111111SPD:0to disable the over-speed alert.It is the default setting.111111SPD:to check the setting of over-speed alert.Remark:this function is just for reference,because there might be some time delay or error in detecting the running car’s real speed by GPS.Default speed limitation is120KM/H.Speed LimiterAfter user sets the speed limitation by command111111SPD:X,if car is over speed,the car will be slowed down gradually.111111BUZ:3:X,(X=1,activate siren;X=0:deactivate siren;default=1)111111RLY:3:X,(X=1,activate relay;X=0:deactivate relay;default=1)Power Save ModeSMS command:111111PWR:XValue of X Actions Power consumption 0(default)Disable power save mode60mA 1Close GPRS connection48mA2Close GPRS connection,GPS module13mA After setting111111PWR:1(or2),if there is no vibration&SOS alarm, integration line is not triggered,and ACC is OFF,the tracker will go into power save mode after5minutes.Once there is vibration or SOS alarm,or integration line is triggered,or ACC is ON,the tracker will wake up from the power save mode immediately.Fatigue Driving AlarmWhen this function is activated,if the engine is turned on for a certain time, the siren will sound to warn the driver.The SMS command:111111TIR:1:X,(with,at the end)X:is time in minutes(default:X=180minutes,maximum:65535minutes) Example:111111TIR:1:120,Show the SMS Content in Languages.SMS command:111111LNG:Xit is used to define the SMS content in different languages.X=0,English;X=1,Chinese;X=2,Arabic;X=3,Portuguese;X=4,Spanish;(Default setting:X=0,English) Define the SMS Content in other languagesStep1:choose the language mode such as:111111LNG:4to change to Spanish language firstly.Step2:Define your own text by the following command:111111TXT:nn:str!nn:str!nn:str!nn:str!nn:str!nn:str!Remarks:(1)6pieces of strings can be defined in one command.(2)nn:2bits,range:01~18(3)the number of letters in each str.can't be more than8(4)the character(.),(.),(!)can't be showed in str.Example:111111TXT:09:vibración!is to define the alarm text in Spanish when the shock sensor is triggerednn Meaning of Str.01Arm02Disarm03Power failure alert04SOS alert(in1)05Engine ON alert(in4)06Vibration alert07Stop the car(out1)08Restore the car(out1)09Over-speed alert10Original alarm's triggering(in5)11Geo-fence alert12Movement alert13The vehicle can't be stopped14Crash alert15Car door open alert(in3)16Broken line alert(in2)17Fuel loss alert18Un-defineOther SMS Command ListNote:******is user’s password and the default password is111111.The tracker will only accept commands with the correct password.III.The Setting for GPRS ConnectionThe GPRS setting is necessary for using the following2functions:(1)Check the car’s real physical address by send111111ADD(2)Online tracking service by web-based tracking platformSMS format:111111WWW:IPN:X;COM:X;APN:apn,user,password;RPT:X;SLP:X;RUN:X;⏹IDN:The tracker’s ID,it is the last14digits of IMEI which can't bechanged.⏹IPN:The IP address or domain name of the GPRS server⏹COM:The communication port for the GPRS server⏹APN:The Access Point Name for the GSM SIM card.⏹RPT:The interval for the uploading GPRS packet(Unit:sec.)⏹SLP:The interval for uploading GPRS packet when car is parked(Engine is OFF and no vibration).(unit:sec.);⏹RUN:GPRS connection setting.0=close,1=TCP,2=UDP.⏹IDN:The tracker’s ID,it is the last14digits of IMEI which can't bechanged.Example,if server is:,TCP port is8500,APN is web.gprs,,apn user:web,apn password:web,time interval is60 seconds,Then the command is:111111WWW:IPN:;COM:8500;APN:, web,web;RPT:60;RUN:1;User can send one or more options at the same SMS commands,such as:✧111111WWW:IPN:X;COM:X;This is to set the server’s address and port separately.Example:111111WWW:IPN:;COM:8500;✧111111WWW:APN:X;This is to set the APN(access point name).Please use“,”to separate the APN,APN username&APN password.Example:111111WWW:APN:,web,web;✧111111WWW:RPT:X;This is to set the upload time interval.The unit is second,the minimum value is10seconds.The default setting is60Example:111111WWW:RPT:60;(Upload time interval is every60s)✧111111WWW:RUN:X;X=0;is to close down the GPRS;X=1;is to open the GPRS via TCPX=2;is to open the GPRS via UDPEg:111111WWW:RUN:1;(Open the TCP connection)✧111111WWW:You can send111111WWW:to check the GPRS settings.Default GPRS SettingThe default GPRS setting is:✧IPN:,COM:8500✧APN:cmnet RPT:30seconds✧SLP:0RUN:1IV.Snap Photo&Monitor via MMS/Email/Platform It is the optional function for3G version,the extra serial camera is needed.✧Snap the Photo via MMS111111MMS:to get the Photo via MMSTo realize this function,user must do the correct MMS settings firstly.✧MMS Setting for SnappingThe MMS setting is different from GPRS setting,the SMS command is as following:✧X:MMSC server URL;✧Y:The IP of MMS proxy✧Z:MMS_APN,user,Password.✧N:The Port of MMS proxyFor more information about the MMS settingparameters of worldwide GSM operators,please searchby Google or refer to this link:/mobile-operator.mmsc-settingsExample:(for Nigeria MTN SIM card)The correct setting SMS command is:111111MMS:SVR:http://10.199.212.8/servlets/mms;PRX:10.199.212.2;APN:web.g,web,web;COM:8080;✧Set the Way of Sending PhotoSMS command:111111PIC:1:X,2:X,3:X,4:X,5:X,6:X,7:X,8:X,9:X,(with,at the end)X=0,means Disable;X=1,means Enable1:X,engine on(input4);2:X,car door open(input3);3:X,over-speed;4:X, vibration;5:X,movement alarm;6:X,fatigue driving alarm;7:X,broken line alarm(Input2);8:X;original alarm's triggering(input5);9:X;SOS(Example:111111pic:1:1,2:1,9:1,)default setting as1.SMS command:111111SEE:6:X,7:Y,8:Z,(with,at the end)6:X,X=1,send photo via MMS to1st alarm-received no.;X=0,disable.7:Y,Y=1,send photo via MMS to2nd alarm-received no;Y=0,disable.8:Z,Z=1,send photo to email box;Z=0,disable.(Example:111111SEE:6:1,7:1:8:1,)✧Set the Email to Receive the PhotoSMS command:111111BOX:Email(Example:111111BOX:*******************)V.Alarm TypesVibration AlarmIn arming status,if the car is vibrated,it will send out alarm SMS.Power Failure AlarmIn arming status,if the battery is cut off,it will send out alarm SMS.Engine ON AlarmIn arming status,if the car’s engine is ON,it will send out alarm SMS and call the preset phone.Movement AlarmIn arming status,the movement alert is enabled automatically.Once the car moves away from the parking point for100meters,it will it will send out alarm SMS and call the preset phone.Geo-Fence AlarmOnce the Geo-fence is activated,if the car oversteps the boundary,it will send out alarm SMS.Over-speed AlarmIf the car runs over the speed limitation continuously for3minutes,it will send out alarm SMS.SOS AlarmIn any condition,if the SOS button is pressed,it will trigger the SOS alarm.(NOTE:the SOS alarm will only be sent to the2nd phone,the3rd phone number&the GPRS tracking center,the other alarms will send to all the preset phones&GPRS tracking center.)Crash Alarm(optional)If there is crash,the crash sensor will detect it and send out alarm.Fatigue AlarmIf the accumulated time of engine on is over the setting,the sire will sound to warn the driver.Fuel loss Alarm(optional)When the engine is OFF,if the fuel level is down,it will trigger the alarm.VI.InstallationInstallation Steps:(1)Please read the manual carefully before installation.Please prepare a validGSM SIM card with Caller ID Display&GPRS function;(2)Please push the front cover according to the direction;(3)Insert the valid GSM SIM card,then turn on the backup battery switch;(4)Close the cover,and fix the main unit tightly with the wiring harness at thecorrect place,please make sure that the side with GPS antenna is placed upside to sky,please make sure to install the main unit at broad place so that it can receive GPS signal well.For motorcycle,it is better to install inside the head bulb light where there is power supply and water proof.For vehicle,it is better to install inside the upper rim of the driving room or inside the dashboard.The recommend installation place is showed in the following picture:For motorcycle For vehicle(5)Do the wring connection according to the diagram;(6)Call the SIM card,to check if rings,if not,then check the power supply andthe change the place of installation;(7)If it rings when calling the SIM card,then send SMS to the tracker to checkthe GPS coordinate,if the GPS location is not correct,then fix the main unit to other place so that it can receive better GPS signal.(8)IMPORTANT:The side with GPSantenna must be placed upside to thesky and kept away from the metalmaterials,otherwise,it can’t get GPSsignal well.VII.SpecificationsVIII.FAQs&Troubleshooting(2)Low power,please use outside power supply to power on the unit to testI can not get the alarm message (1)The SIM card inside the device has no credit;(2)The Alert-received mobile number is not programmed correctly,or the SMS command is not in correct format;(3)The mailbox of the user’s mobile is full;I can not get the correct GPS coordinates or the location is wrong (1)Please make sure there is no metal obstacles above the tracker.Please place the side with GPS antenna upside to the sky;(2)Please check it at broad place;(3)Please check if the GPS LED flash once every3seconds;place the tracker to other place, so as to make sure that it can receive the GPS siganl well(4)In cloudy condition,it is a little hard to get the GPS signal,and the GPS coordinate might have some errors.Tracker fails to connect to server by GPRS (1)The SIM card must be activated with GPRSfunction;(2)Do the correct setting for GPRS connectionIX.Maintenance✧The installation must be done by the professionals.Illegal disassemblywithout permission might cause invalidity of warranty.✧Please keep the device in dry place✧When the car is inside buildings,cave,tunnel,or very close to tall buildings,the GPS/GSM signal may not work well and the system may fail to work at that moment.✧Please check the balance of the tracker’s SIM card periodically.✧The backup battery can only work for a certain time once power-off.FCC Information and CopyrightThis equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part15of the FCC Rules.These limits are designed to provide reasonable protection against harmful interference in a residential installation.This equipment generates,uses and can radiate radio frequency energy and,if not installed and used in accordance with the instructions,may cause harmful interferenceto radio communications.However,there is no guarantee that interference will not occur in a particular installation.If this equipment doescause harmful interference to radio or television reception,which can be determined by turning the equipment off and on,the user isencouraged to try to correct the interference by one or more of the following measures:—Reorient or relocate the receiving antenna.—Increase the separation between the equipment and receiver.—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.—Consult the dealer or an experienced radio/TV technician for help.This device complies with part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interferencechanges or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.This equipment should be installed and operated with minimum distance20cm between the radiator&your body.This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.。
2017—GPS车辆监控系统平台使用操作手册本监控平台前台支持HTML5的浏览器,请使用如firefox火狐浏览器54.0、chrome 谷歌浏览器59.0,微软IE11,360浏览8.0等。
登录后可见,平台由车辆监控,报表系统和用户设置组成。
一、车辆监控监控页面由左侧的模块列表,右侧的车辆列表,中间的地图和下方的状态栏组成。
模块列表包括:(一)实时监控、(二)轨迹回放和(三)条件查车。
1.1实时监控登录后,选中实时监控,如图:1.1.1车辆选择用户可以选择监控某台车,某几台车、或者所有车辆。
以下选择方式均可:1、选中一个或者几个车辆。
在下面的状态栏或者右侧分组栏对应的车辆名称前的小框内打勾,所勾车辆图标显示在地图上。
2、选中所有车辆:在状态栏的序号两字前方框内打勾,所有车辆显示在地图上。
3、选中某组车辆:在状态栏上方的工具条,点击“选择”,在弹出窗口内选择需要的组,再在状态栏上方序号左边打勾,所选所有车辆显示在地图上。
需要在地图上车辆图标上显示车牌号和当前速度,请在相应的框内打勾,如下图。
在实时监控中,车辆图标有默认的普通车标和圆点车标两种显示方式。
圆点车标的显示方式,主要用于车辆数量大,显示密集,需要了解密集分布程的情况,可以用于出租车辆是否发生无规律突然聚集的判断,同时可以用于表达出租车辆的空载和有客两种状态。
圆点图标显示车辆分布态势1.1.2车标图例1.1.3车辆状态选择根据车辆状态选择:本系统中用户可以根据车辆的状态进行选择,如全部车辆、在线车辆、离线车辆、报警车辆。
状态栏中当前显示的数据,如全部车辆、在线车辆、离线车辆、报警车辆都可以导出成EXCEL格式文件。
1.2车辆查询在系统中查找所关心的车辆,有以车牌号码(包括手机号车机号)查询和区域(包括矩形和多边形)查询两类方式:1.2.1车牌号码查询在状态栏中查询,如果要查询某一台车的数据,如粤CUD896,在查询栏中输入查询内容:再按【回车键】或者点击【查询按钮】,即可查出。

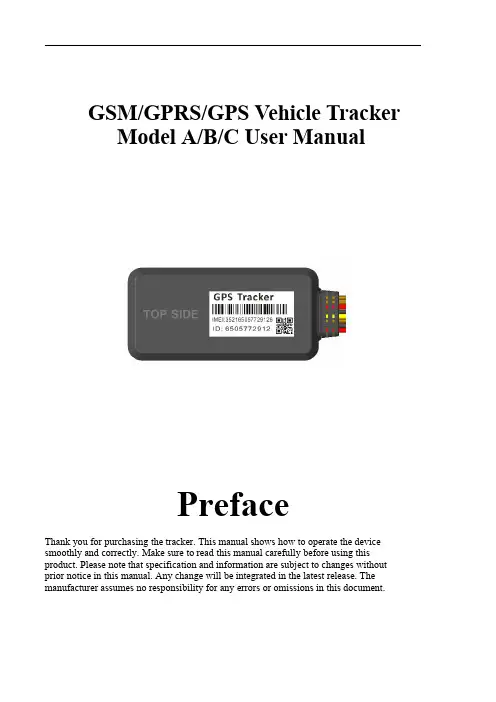

GSM/GPRS/GPS Vehicle TrackerModel A/B/C User ManualPrefaceThank you for purchasing the tracker.This manual shows how to operate the device smoothly and correctly.Make sure to read this manual carefully before using this product.Please note that specification and information are subject to changes without prior notice in this manual.Any change will be integrated in the latest release.The manufacturer assumes no responsibility for any errors or omissions in this document.Contents1.Function Introduction (3)2.Applications (3)3.Hardware Description (3)4.Accessories.......................................................................................错误!未定义书签。
5.Specifications (5)6.Operating Instructions (5)6.1Terminal Installation (5)6.2SIM CARD Installations (6)6.3Turn on the Tracker Device (7)6.4GSM/GPS LED Indicator (7)6.5Change Password (7)6.6Authorization (8)6.7Single Locating (8)6.8Exact street address (9)6.9Location based service(LBS)/Cell-ID Locating (9)6.10Change Work Mode (10)6.11Monitor....................................................................................................................10.6.12.Location Data Logging and Loading (10)6.13Armed by ACC (11)6.14Cut off the Oil and Power System (11)6.15Armed Setting (11)6.16Disarmed Setting (11)6.17Alarms (12)6.17.1Power off alarm (12)6.17.2SOS Alarm (12)6.17.3Movement alarm (12)6.17.4Over speed alarm (12)6.17.5ACC Alarm (12)6.18Check the Vehicle State (13)6.19Check IMEI (14)6.20Terminal(local)Time Setting (14)6.21Reset Hardware (14)6.22GPRS Setting (14)6.23Less GPRS traffic (15)6.24Instructions for web platform and mobile APP (15)7.Cautions (19)8.Faults&the Solutions (20)1.Function Introduction1.1.This tracker is a new product based on the GSM/GPRS network and GPS satellitepositioning system,which set multiple functions of security,positioning,monitoring surveillance,emergency alarms and tracking in its entirety.It can track and monitor remote target by SMS or internet.1.2.Features1.2.1Support both GPS&LBS(Location based service).1.2.2Support SMS/GPRS/Internet Network data transmission1.2.1Support GPRS on-line and GPRS re-connected automatically if GPRS drops1.2.3Support SMS/GPRS dual-mode switching1.2.4Support configuration by remote terminal.1.2.5Support for point-to-point,point to group,group-to-group monitoring.1.2.6Set multiple functions of security,positioning,monitoring surveillance, emergency alarms and tracking in its entirety.2.ApplicationsUsed widely for vehicle and other moving objects tracking.3.Hardware Description4.AccessoriesNo.Photoes NAME Note1Harness(Default)4PIN2Microphone 1.5meters3Relay 12VDC/40A to24VDC/40A according to vehicles4SOS Key SOS Key/Cable for HelpCall5.SpecificationsContent specificationsDIM68.0X33.0X10.5mmWeight35gNetwork GSM/GPRSBand850/900/1800/1900MhzGPS Sensitivity-159dBmGPS Accuracy5mGPS Start time Cold status45s Warm status35s Hot status1sV oltage9V~40VBackup battery Chargeable3.7V70mAh Polymer Li-Battery Storage Temp.-40°C to+85°COperation Temp.-20°C to+65°CHumidity5%--95%non-condensing6.Operating Instructions6.1Terminal Installation6.1.1Please ask the qualified engineers to install it.6.1.2Do not install it in an environment which is over GSM performance index,andplease pay attention to fix the antennas in an appropriate position with good signals.6.1.3Pay attention to make installation location preventing water and dust.6.1.4Find the4PIN harness and insert it into the corresponding holes of the products,andconnect the wires with the original car circuit showing below:Wiring diagramNote:The orange wire can be connected to the original car horn6.1.5Please put SOS button at the place driver can touch.6.1.6Insert the external monitor Microphone into the monitor jack.6.1.7Please let the TOP SIDE of Tracker upwards the sky,make sure it receivesGPS signals well.6.2Micro SIM CARD Installations6.2.1Take out the SIM card Slot and put Micro SIM card in it.And then put the SIM cardslot back to its original position after confirm the Micro SIM card in the right place.6.2.2Please make sure the Micro SIM card is for GSM network and able to execute thefunction of incoming calls display,no calls can be diverted and the PIN code is locked.The SMS format must be TXT format,and can’t recognize the PDU format.6.3Turn on the Tracker DeviceConnect the positive and negative wire,red and black ones,with12V or24V car power system,It will be powered on after20seconds.6.4GSM/GPS LED IndicatorLED Indicator TypeBehavior Meaning Red LED On(Not Flash)SIM not Ready Flash quicklyGSM search Network(1time per second)GPRS uploading data(3time per second)Flash slowlyGPRS Normal or in Sleep mode (1time per 5seconds)Off(Optional)After bootup 5minutes Blue LEDFlash SlowlyFix to satellites (1time per 5seconds)Flash quicklyLost fix to satellites (1time per second)Off(Optional)After bootup 5minutes 6.5Change Password6.5.1Send SMS“Password,CURRENT PASSWORD,NEW PASSWORD”to the unit to change the password.For Example:Send SMS “Password,123456,888888”to the tracker.If succeeded,“Password setting ok!”will reply to your cell phone from the tracker.Note:the default Password is 123456,seperator is comma.6.5.2Be sure to keep the new password in mind,you have to upload the software to restore the original setting in case of losing the new password.6.5.3Attention:Make sure the new password is in 6digits Arabic numbers,or else the tracker cannot recognize the password.6.5.4When reading this user manual,you will notice that we have used English format ","between some words;6.6Authorization6.6.1You should setup the authorized phone number before using SOS,Movement,Over Speed alarm,etc.Up to3numbers can be authorized.6.6.2Authorization:Send SMS“Admin,password,index,cell phone number”to set up anauthorized number,if the number is successfully authorized,the unit will reply “Admin phone number setting ok!”by SMS.6.6.3Delete authorization:Send SMS“Admin,password,index,d”to delete the authorizednumber.6.6.4If you want to track the target when it enters into another country,you must add thecountry code before the cell phone number.You should authorize your number in international format as follows:“admin,123456,1,0086134****2519”to tracker to set 134****2519as an authorized number.Note:the value of index is from1~36.7Single Locating6.7.1Send SMS“Url,password”to the tracker to get the location report.If there aren’t any authorized number set-up,it will reply all SMS from all the mobile number;if there are authorized numbers set-up,then it only reply the authorized numbersFor example:6.8Exact street address6.8.1You must set up the APN of your local GSM network for the SIM card intracker first before using this function.(APN set Up refer6.22GPRS Setting)6.8.2Send SMS"Loc,password"to get the real street/address name,After configure theAPN.Reply example:No.118,Chuangyue2nd Rd,Bao An district,Huizhou,Guangdong, china.6.9Location based service(LBS)/Cell-ID LocatingIf the tracker cannot establish a solid GPS Fix,it will calculate its location using Cell-ID GSM locating,Location reports will include the GPS coordinates of the last known positions as well as a LAC code,Entering the LAC code to the web tracking platform will enable you to see the tracker’s current location.You can also send command“Loc,password”to the tracker to request exact address,track will automatically switch to tracking by LBS in GPRS mode.Accuracy of LBS depends on the distance to the nearest GSM Network Cell Tower or Base Station.Note:This feature can be used normally in most areas according to the signal of GSM network.It may not be available in some areas.6.10Change Work ModeSend command“Mode,password,value”to tracker to set up the work mode.If successful it will reply“Work mode setting ok!”.Note:value:0~50–Sleep Mode(GPS/GPRS OFF,GSM ON),No Time parameter.Example:mode,123456,01–Normal Mode(GPS/GSM/GPRS ON).No Time parameter.Example:mode,123456,12–LBS Mode(GPS/GSM/GPRS ON).No Time parameter.Example:mode,123456,23–Air Mode(GPS/GSM/GPRS OFF,it will change to Normal Mode after some minutes).Example:mode,123456,3,30(enter air mode30minutes)4–Deep Sleep Mode(GPS/GSM/GPRS OFF,it will wake up once very day).Example:mode,123456,4,2300(wake up and upload location to serverwhen23:00very day)5--Location Logging Mode(GPRS off,GPS On).The location info will be save to the internal memory of tracker.They will be uploaded when back to normal mode.Example:mode,123456,56–Tracking Mode(GSM/GPRS ON,GPS no Sleep).No Time parameter.Example:mode,123456,6Note:the default Mode is1(Normal Mode).6.11Monitor6.11.1Send SMS“Monitor,password,monitor phone number”to the unit,and it will call back the phone number,if you accept the call it willenter the monitor mode.Example:Monitor,123456,134****25196.11.2It will be switched to“track”mode after ending the call.6.11.3It will accept the call if the monitor phone number is the incoming call.6.12Location Data Logging and Loading6.12.1Auto logging:When the tracker device lost GSM signals or fall offline from GPRS,tracker will log the tracking position and alerts automatically in the memory ofdevice,when GSM signals get back,the logged tracking data should be loaded to theweb platform automatically.6.12.2Current location data logging:Send SMS:“Mode,password,5”to tracker device,itwill reply:“Work mode setting ok!”and the tracker will stop upload location info togprs server,and logging them into the memory of tracker.6.12.3Loading save data to the gprs server:Send SMS:“Mode,password,1”to trackerdevice,it will reply:“Work mode setting ok!”and loading the tracking data to theweb server platform.6.13Armed by ACC6.13.1Alarm will be disarmed when ACC on,if in auto Armed mode.(which Setting bySMS:armed,password,3)6.13.1Alarm will be armed when ACC off,if in auto Armed mode.(which Setting bySMS:armed,password,3)6.14Cut off the Oil and Power System6.14.1Send SMS command“Relay,password,1”to tracker,tracker will execute it andreply“Stop engine will be executed!”.And it will remain immobile state until nextcommand to resume.It will be executed after speed less than20KM/H.Example:Relay,123456,16.14.1Resume the Oil and Power SystemSend SMS command“Relay,password,0"to tracker,it will reply"Resume enginesucceed!",it means the oil supply is resumed.Note:This function can be executed by the administrator only.So we must use SMS Admin command to set the Authorization before using this command.6.15Armed Setting6.15.1Set up arm by SMS“armed,password,value”to the tracker device in the vehicle.It will reply“Armed!”。

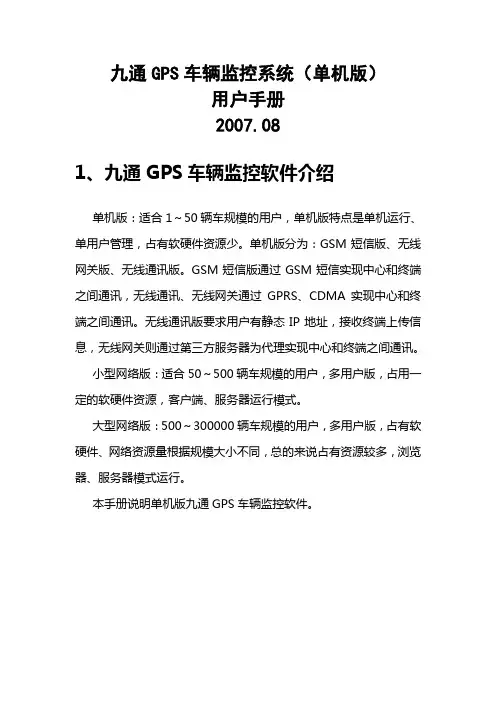

九通GPS车辆监控系统(单机版)用户手册2007.081、九通GPS车辆监控软件介绍单机版:适合1~50辆车规模的用户,单机版特点是单机运行、单用户管理,占有软硬件资源少。
单机版分为:GSM短信版、无线网关版、无线通讯版。
GSM短信版通过GSM短信实现中心和终端之间通讯,无线通讯、无线网关通过GPRS、CDMA实现中心和终端之间通讯。
无线通讯版要求用户有静态IP地址,接收终端上传信息,无线网关则通过第三方服务器为代理实现中心和终端之间通讯。
小型网络版:适合50~500辆车规模的用户,多用户版,占用一定的软硬件资源,客户端、服务器运行模式。
大型网络版:500~300000辆车规模的用户,多用户版,占有软硬件、网络资源量根据规模大小不同,总的来说占有资源较多,浏览器、服务器模式运行。
本手册说明单机版九通GPS车辆监控软件。
2、软件安装、卸载2.1软件安装1、双击“mnt.exe”,运行结果如下:2、选择安装路径,如下所示安装到“C:\Program Files”,建议选择容量比较大的逻辑分区,内嵌数据库,长期运行需要较大的容量。
3、安装过程4、安装完毕,直接启动九通GPS车辆监控程序(闪屏如下)。
安装程序将创建快捷方式“九通GPS车辆监控”(开始->程序->九通GPS车辆监控),以后即可通过该快捷方式启动程序。
5、启动后程序界面如下,标题栏公司名称为该软件授权使用公司的名称。
2.2软件卸载所有软件相关的资源、数据、文件都存储在选定的安装目录下的mntapp目录中,仅创建快捷方式九通GPS车辆监控,没有修改注册表信息,也没有在其他地方安装任何东西。
卸载程序只用手工删除mntapp目录和快捷方式即可。
3、软件使用介绍系统分为两个应用视角,分别围绕不同的中心目的,完成不同的任务,监控视角完成车辆的监控调度任务,管理视角则完成系统的配置与管理,包括终端配置。
不同视角需要不同的管理权限,监控视角需要操作员权限,管理视图需要管理员权限,如果系统配置设为自动登录,则系统不再进行权限校验。
GPS监控系统使用说明序号功能功能说明使用方法1 定位功能全天候、全国范围内实时跟踪定位GPS终端安装成功即可实现此功能详见第二页2 轨迹回放可以累计每台车每一天的行车轨迹并分类储存以便随时调阅详见第二页3 里程统计可以统计出车辆在某一时间段内的行驶里程详见第二页4 车辆定界设置电子围栏的最大/最小经纬度,形成一个方形的电子围栏。
详见第三页5 紧急报警出现意外情况时,司机可按下紧急呼叫按钮向监控中心求助6 断电报警GPS被切断电源后上传断电报警详见第三页详见第三页7 超速报警设定一定的速度值,车辆行驶速度超过此范围则中心报警详见第四页8 偏离报警划定一条路线,车辆偏离此路线则中心显示偏离报警详见第四页9 越界报警预先设定一块区域,当车辆超出此区域则显示越界报警信息详见第四页10 停车超时设定车辆停车时长,如车辆停止时间超过设定的时间,则中心报警提示详见第四页11 模糊查询监控中心可以随时选定某一区域进行区域车辆运行状况查询;模糊输入查询便捷操作详见第四页12 网上查车进入公司网站输入用户名和密码即可查看车辆限制的位置。
2轨迹回放在客户端软件里选择目标车辆----点击历史数据----在下图中选择查询条件----完成后点击播放按钮播放轨迹。
3里程统计在客户端软件里选择远程设置按钮----选择目标车辆(必须目标车辆发动的情况下才可下发指令)----在配置参数里选择里程参数设置----里程信息选项里选择不清零----选择保存设置----确定----对目标车辆下发指令。
4 车辆界定在客户端软件里选择报警区域-----点击确定----选择工具对目标区域进行选定5 紧急报警在GPS终端上有个红色按钮,即紧急报警按钮。
6 断电报警在客户端软件里选择报警数据按钮----里面对各种报警都做了详细的分析。
7 超速报警在客户端软件里选择远程设置(注:需要在车辆发动的前提下才可以下发指令),设置好速度以后选择保存设置----点击确定。
GPS车辆监控系统使用说明一、运行和登录1、在系统桌面双击鼠标左键运行‘运通GPS监控系统’图标;2、在系统对话框的左上角点之后,再输入指定的服务器IP和账号密码信息,点击下方的‘登陆’按钮。
二、系统界面分布三、查看定位车辆1、点击右上方按钮,展开车队列表,再点击车队名称前方的‘+’号展开车辆列表;2、依次点击车辆车牌号前方的‘口’图标,使其打上勾,从而获取该车辆的位置信息,或直接点击车队名称前方的‘口’图标,获取该车队全部车辆的位置信息。
车辆定位信息将在‘全国地图’和地图下方的‘监控车辆列表’里显示;3、点击车辆车牌号前方的图标里的勾,可取消对该车辆的定位监控。
四、全国地图操作1、全国地图功能栏2、常用功能使用方法在地图功能栏里点击想要使用的功能按钮,再把鼠标移到‘全国地图’画面的某个位置后,点击鼠标左键,即可对‘全国地图’画面进行相应的功能操作。
3、各项功能说明:恢复默认鼠标指针;:放大地图某个位置,从而可获取详细的地理信息;:缩小地图某个位置,缩小后可查看更多地理信息;:使地图上某个位置居中到地图画面中间;:使用后,在地图上按住鼠标左键(不放手)后移动鼠标,可拖动地图画面来寻找地理信息或监控的车辆;:恢复全国地图原始视图;:清空地图上所有监控车辆和车辆历史轨迹播放残留图示。
五、车辆历史轨迹1、点击系统界面右上方按钮,展开历史轨迹功能菜单;2、依次点击选择历史轨迹功能菜单里面的‘选择车队’、‘选择车辆’和车辆以往历史轨迹回放‘开始时间’及‘结束时间’。
选择完毕点击‘确定’按钮确认;3、确认以上信息后,点击‘轨迹列表’下方的‘开始回放’进行车辆历史轨迹播放,回放完毕后点击‘全国地图功能栏’上的按钮,可清除车辆历史轨迹播放残留图示。
巡逻鹰 GPS客户端使用操作说明视频操作网址:一、简述系统操作1.启动巡逻鹰 GPS软件应用系统,输入用户名和密码,以下列图所示2.系统界面中间是地图,界面左上面分别是菜单栏和工具栏,界面右边是控制栏(车辆目录、历史回放、报表管理等),界面下面是列表栏(及时监控、历史轨迹、停靠报表),以下列图所示3.举个列子,若想对此中某些车辆进行监控,能够在右边相对应的框里对其进行打钩选择,能够对用户所要监控的车辆进行单项选择、多项选择、全选的操作。
以下列图所示4. 系统会将用户所选择的车辆列入到及时监控目录,及时监控会详尽的列出车辆的信息,比如车牌号、驾驶员、地点、发动机的状态等等,以下列图所示。
5.若想定位查察某台车,能够在及时监控中单击你要定位查察的车,车就会被定位在地图中,为了更为直观清楚的看到车所在的详细地点,能够单击工具栏中的放大镜放大地图,在对地图的操作中,车一直在地图中,以下列图所示6. 系统供给了模糊选择的功能,假如知道此中某台车牌号部分数据,也能够对车辆进行模糊搜寻,而且系统会将模糊搜素出的车辆列入到及时监控栏中,以下列图所示7.选中某台车,右击鼠标,选择设为主车,设为主车的功能,作用在于设为主车此后,系统会将今日车辆行驶的轨迹简单的绘制出来。
8.多窗口操作,菜单栏“窗口” 新建几个窗口,而后选择“窗口平铺” 或许其余的平铺方式,以下列图8.系统界面右边控制栏的下面选择历史回放,在车牌输入框输入完好的车牌号或许复制粘贴进一个车牌号,选择好时间段,点击播放按钮,就能够查该车在这段时间的GPS数据,如下9.在历史数据上右击鼠标,选择导出数据,选好保留地点,点击“保留”即可。
在历史数据上右击鼠标,选择曲线统计图,即会显示该车的行驶速度和参照油量图表,如图回放完历史数据会有停靠报表,停靠报表会显示车辆停靠的开始时间、停靠的结束时间、停靠的总时间、停靠的详细地点及方向并显示能否有报警信息等等10.地区查车:在地图上找到大概的地区,而后选中工具栏中的“地区查车”,在地图上画地区,该地区若有有关的车的话就会在地图上显示出车辆图标,在及时监控栏显示出地点信息,此操作能够方便调动人员进行车辆调动等工作11.报表查问:全部的报表种类都在报表管理能够查问到,而且能够导出。
User Manual(Version 2.1)1.AccessoriesThis user manual has been specially designed to guide you throughCharging cable (Standard)2.Specification3. Quick Operation InstructionsChange APN parameter by sending SMS “APN,666666,APN name#” and “SERVER,666666,1,,8821,0# ”to the device.3.1 Locate current position by GPRS/SMS3.2 GPS tracking platform:3.3 Track by time interval via GPRSSend SMS “TIMER,666666,,time(second)#” to device. 10s in minimum while 18000s(5 hours) in maximum.3.4 Change passwordThe default password is 666666. Send SMS “PASSWORD,old password (6 numbers),new password (6 numbers)#” to the device.3.5 Real-time Location Tracking via SMS3.5.1 Send SMS “WHERE,666666#” to the device, you will get the current location of the device.3.5.2 Send SMS “URL,666666#” to the device, you will get the URL of the current location by .4.My Device5. LED Indications6.Method of installation6.1 Preparation before installation1)Open the packing box to check whether the type of device is correct and whether the accessories are included.2)This product is a high-tech electronic device, installation should be undertaken by a professional.3)Please follow the following procedures to install your GT02A.During installation, there should be no power to the device.6.2 Installing SIM card: each GT02A need to insert a GSM SIM card. The SIM card used should be enabled for GPRS.1)Testing SIM card: to test SIM card, please install it into a normalGSM mobile and ensure it can send and receive SMS, and enables for GPRS.2)Installing SIM card:Remove the upper cover of device,insert SIM cardas shown then replace cover,lock the Shell With 3 bolts.6.3 Selecting installation place and fixing it.There are twokinds of installation: covert and non covert.If you need the covert installation, please refer installation to an auto electrical contractor.Note:1)To prevent theft of the GT02A,the device should be installed ascovertly as possible.2)Avoid placing the GT02A close to higher power electrical devices,such as reversing radar, anti-theft device or other vehiclecommunication equipment.3)The GT02A should be fixed into position with cable ties or widedouble-side tape.4)Your device has built-in GSM antenna and GPS antenna. During installation, please make sure the receiving side face is up, with no metal object above the device to interfere with GPS reception. The following places are suggested for installation:- Under the dash board below the front windshield;- In the parcel shelf in the rear;- In the front bumper( non-material face), please ensure the device cannot get wet;- Under the wiper version (non-metal), please ensure the device cannot get wet;Notice: If the windshield is pasted with metal thermal-protective coating, it may affect the performance of the device. In this case, please change the installation place after consulting the professional.5)Non Covert Installation,Firstly fix the device on the dash board below windshield.7. Cautions of device wiring7.1 The standard voltage is 9V-36V, the red wire is the positive, the black wire is the negative.7.2 Please connect the black wire to ground.7.3 After connecting the power cord, run the power cord plug to the device. After installation, supply power to device.7.4 Covert installation: car battery cord is standard, with 2A FUSE for short-circuit over current protection.7.5 Non covert installation: cigar lighter cord is optional, with 2A FUSE for short-circuit over current protection. Please contact your dealer if this mode is needed.8. Power on/ off8.1 The device will power on automatically when connected to power. During normal operation, red power LED flashes, while blue GPS LED and green GSM LED keep lighting. During signal searching process, GPS or GSM LED will flash. If there is no light presenting on LEDs, the device is not working normally.installation, please make sure the receiving side face is up, with no metal object above the device to interfere with GPS reception. The following places are suggested for installation:8.2 The device will power off after power is disconnected.9. Side key functionAt normal-work indication status, press the side key, all the three LEDs will extinguish and then the device will enter covert working mode. Press the key again, the three LEDs will go back to normal-work indication status.10. Troubleshooting10.1 If GPS can not receive the signals normally, please drive to the open areas for positioning. Generally, it needs 1-2 minutes to receive the first coordinates. If the data can not be received after 2-3 minutes, pleasecheck the installation position of the device, making sure it is not being shielded by any metal.10.2 If GSM can not receive the signals normally, please check whether SIM card is installed correctly or there is no GSM signal at the current location , such as a basement parking, please drive to a place covered by GSM signal.10.3 If the red LED does not work when power is connected, check whether the fuse is blown. If so, please replace the fuse.10.4 If the three LEDs do not turn on when power up, press the down side key, if the three LEDs recover normally, the device is working normally.10.5 If you have enabled the web based tracking application, and the device displays off-line on the platform, please check 3 LEDs status indicators first. You can check the status of the SIM card when you are in an inconvenient situation. Please refer to the following steps:1)Call the device to check whether you can get through.2)Check whether the SIM card supports GPRS and a local APN.3)Check the GSM/GPS reception area.4)Check whether there is enough credit on the SIM card.5)Check if the connector and terminal is loose or the fuse has blown out.11.SMS command。

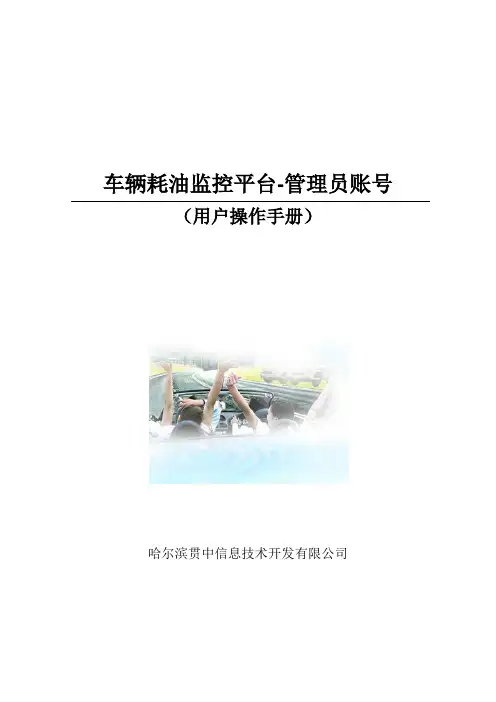

车辆耗油监控平台-管理员账号(用户操作手册)哈尔滨贯中信息技术开发有限公司ﻬﻬﻬﻬ文档说明发布属性文档名称《车辆油耗监控平台用户操作手册》版本发布日期2013-06-07项目名称《车辆油耗监控平台》编制人马艳秋审核人崔艳红编制日期2013-06-05版本控制版本日期备注V1.02013.06.05V2.0 2013.06.06目录目录ﻩ-3-第一部分引言.......................................................................................................................... -4-1.1编写目的 (4)1.2参考资料ﻩ-4-第二部分系统功能描述....................................................................................................... - 5-2.1系统登录......................................................................................................................... -5-2.2系统功能.......................................................................................................................... -5-2.2.1 系统信息管理模块...................................................................................................... - 6-2.2.2基础信息管理模块..................................................................................................... - 11 -第一部分引言1.1编写目的软件操作手册是“车辆油耗监控平台”上线实施的一个重要的文档,通过编写此文档,可以指导软件系统操作人员正确使用此软件系统,并且对软件系统有深入的了解,同时可以说明使用此软件系统需要注意的事项。
因此,按照系统的实际情况和软件的相关要求,特制定《车辆油耗监控平台用户操作手册》。
1.2参考资料(1)《计算机软件产品开发文件编制指南》GB8567-88;(2)《计算机软件工程规范国家标准汇编2000》中国标准出版社,2000.1;第二部分系统功能描述2.1 系统登录打开浏览器输入网址,进入“车辆油耗监控平台”登录页面。
以超级管理员账号登录系统,系统根据登录账号和登录密码进行验证,登录信息准确无误,点击【登录】按钮即可进入“车辆油耗监控平台”的主界面。
登录界面如图2-1所示。
图2-1 登录界面2.2系统功能登录系统后进入系统主界面如图2-2所示。
图2-2主界面“车辆油耗监控平台”功能导航包括:系统信息管理、基础信息管理。
工作区中模块包括:物流调度管理、运行信息管理、数据统计分析。
图2-2所示工作区中的功能模块仅在指定企业帐号下方可有详细内容,故其操作说明见企业账号分册。
2.2.1系统信息管理模块“系统信息管理”功能是指管理车辆油耗监控平台的系统的基础性信息等。
在图2-2界面点击“系统信息管理”链接,界面显示“系统信息管理”子功能模块包括:系统用户管理、系统日志管理、系统告警管理、系统群组维护、非法终端信息。
2.2.1.1 系统用户管理点击“系统用户管理”链接,界面显示系统用户管理列表,如图2-3所示。
图2-3 系统用户管理界面➢查询在图2-3界面,查询方式有两种:一是在用户姓名项中输入相关数据,选择公司名称和创建时间后,点击【查询】按钮,则界面下方列表中显示符合查询条件的系统用户的基本信息;二是所有查询项为空时点击【查询】按钮,则界面下方列表显示全部系统用户的信息。
➢重置在图2-3界面中,在用户姓名、公司名称、创建时间等查询项中输入了相关数据后,想要重新输入查询信息,可点击【重置】按钮,此时三个输入项都被清空,可以重新输入查询信息。
➢新增在图2-3界面中,点击【新增】即可进入2-4所示的新增界面,填写相关的数据(其中“用户群组”、“用户帐号”、“用户密码”、“确认密码”、“用户姓名”等带星号项不能为空),确认填写的数据无误后点击【确定】按钮,完成新增操作。
图2-4新增界面➢详细在图2-3界面中,点击【详细】,即可进入图2-5所示的详细界面。
可查看公司名称、用户帐号、用户姓名、用户角色、用户群组、用户状态、创建人、创建时间、首次登陆时间、最后登录时间等信息。
图2-5详细界面➢修改在图2-5界面中,点击【修改】按钮,即可进入图2-6所示界面,修改相关项(其中“公司名称”、“用户姓名”、“用户角色”、“用户群组”、“用户状态”等带星号不能为空),修改完成后,点击【确定】按钮,即可完成修改操作。
图2-6修改界面➢删除在图2-3界面中,点击【删除】按钮,即可删除所选中的系统用户信息。
➢停用在图2-3界面中,点击【停用】按钮,即可停用选中的系统用户帐号。
2.2.1.2 系统日志管理点击“系统日志管理”链接,即可进入如图2-7所示的系统日志管理界面。
图2-7 系统日志管理界面➢查询在图2-7界面,查询方式有两种:一是选择日志类型、操作人员、日志时间后,点击【查询】按钮,则界面下方列表中显示符合查询条件的系统日志的信息;二是所有查询项为空时点击【查询】按钮,则界面下方列表显示全部系统日志的信息。
➢重置在图2-7界面中,如果用户已选择查询项,想要重新输入查询信息,可点击【重置】按钮,此时三个查询项项都被清空,可以重新选择查询信息。
2.2.1.3系统告警管理点击“系统告警管理”链接,即可进入如图2-8所示的系统告警管理界面。
图2-8系统告警管理界面➢查询在图2-8界面,查询方式有两种:一是选择告警级别、告警内容、告警时间后,点击【查询】按钮,则界面下方列表中显示符合查询条件的系统告警的信息;二是所有查询项为空时点击【查询】按钮,则界面下方列表显示全部系统告警的信息。
➢重置在图2-8界面中,如果用户已选择查询项,想要重新输入查询信息,可点击【重置】按钮,此时三个查询项项都被清空,可以重新选择查询信息。
2.2.1.4 系统群组维护点击“系统群组维护”链接,即可进入如图2-9所示的系统群组维护界面。
图2-9 系统群组维护界面➢新增群组在图2-9界面中,点击【新增群组】按钮,即可进入2-10所示的新增群组界面,填写相关的数据(其中“群组名称”等带星号项不能为空),确认填写的数据无误后点击【确定】按钮,完成新增群组操作。
图2-10新增群组界面➢编辑在图2-9界面中,点击【编辑】按钮,即可进入图2-11所示界面,进行填写相关项(其中“群组名称”等带星号项不能为空),填写完成后,点击【确定】按钮,即可完成编辑操作。
图2-11编辑界面➢删除在图2-9界面中,点击【删除】按钮,即可删除选中的群组信息。
2.2.1.5非法终端信息点击“非法终端信息”链接,即可进入如图2-12所示的非法终端信息界面。
图2-12非法终端信息界面➢查询在图2-12界面,查询方式有两种:一是选择设备号和时间后,点击【查询】按钮,则界面下方列表中显示符合查询条件的非法终端信息;二是所有查询项为空时点击【查询】按钮,则界面下方列表显示全部非法终端信息。
➢重置在图2-12界面中,如果用户已选择查询项,想要重新输入查询信息时,可点击【重置】按钮,此时三个查询项项都被清空,此时可以重新选择查询信息。
2.2.2基础信息管理模块“基础信息管理模块”功能是指管理车辆油耗监控平台的基本信息,点击“基础信息管理”链接,界面显示其子功能模块包括:企业信息管理、设备指令管理。
2.2.2.1企业信息管理点击“企业信息管理”链接,即可进入如图2-13所示的企业信息管理界面。
图2-13企业信息管理界面➢查询在图2-13界面,查询方式有两种:一是输入企业名称,首先点击【所属省】按钮,选择省后点击【确定】按钮,其次点击【所属市】按钮,选择市后点击【确定】按钮后,查询项选择完毕点击【查询】按钮,则界面下方列表中显示符合查询条件的企业的基本信息;二是所有查询项为空时点击【查询】按钮,则界面下方列表显示全部企业的基本信息。
➢重置在图2-13界面中,如果用户已选择查询项,想要重新输入查询信息时,可点击【重置】按钮,此时三个查询项项都被清空,此时可以重新选择查询信息。
➢开户在图2-13界面,点击【开户】按钮,即可进入如图2-14开户界面。
填写相关输入项(其中“企业名称”等带星号项不能为空),填写确认无误后,点击【确定】按钮,即可完成开户操作。
图2-14 开户界面➢详细在图2-13界面中,点击【详细】按钮,即可进入图2-15所示的详细界面。
可查看企业ID、创建用户、创建时间、企业名称、企业性质、所属省份、所属城市、企业地址、企业邮编、企业传真、企业法人、法人电话、法人邮箱、联系人姓名、联系人电话、联系人邮箱等信息。
图2-15详细界面➢修改在图2-15界面中,点击【修改】按钮,即可进入图2-16所示界面,进行修改相关项(其中“企业名称”等带星号项不能为空),修改完成后,点击【确定】,即可完成修改操作。
图2-16修改界面2.2.2.2设备指令管理点击“设备指令管理”链接,即可进入如图2-17所示的设备指令管理界面。
图2-17设备指令管理界面➢查询在图2-17界面,查询方式有两种:一是选择指令类型,在车牌号、终端编号、指令结果等三个查询项中分别输入相关数据,点击【查询】按钮,则界面下方列表中显示符合查询条件的设备指令信息;二是所有查询项为空时点击【查询】按钮,则界面下方列表显示全部设备指令的信息。
➢下发在图2-17界面中的【下发】按钮,是实现对设备下发一些基础设定的指令。
