1 管道组成件Piping component1.1 管子Pipe管子(按照配管标准规格制造的) pipe管子(不按配管标准规格制造的其他用管) tube钢管steel pipe铸铁管cast iron pipe衬里管lined pipe复合管clad pipe碳钢管carbon steel pipe合金钢管alloy steel pipe不锈钢stainless steel pipe奥氏体不锈钢管austenitic stainless steel pipe铁合金钢管ferritic alloy steel pipe轧制钢管wrought-steel pipe锻铁管wrought-iron pipe无缝钢管seamless (SMLS) steel pipe焊接钢管welded steel pipe电阻焊钢管electric-resistance welded steel pipe电熔（弧）焊钢板卷管electric-fusion (arc)-welded steel-plate pipe螺旋焊接钢管spiral welded steel pipe镀锌钢管galvanized steel pipe热轧无缝钢管hot-rolling seamless pipe冷拔无缝钢管cold-drawing seamless pipe水煤气钢管water-gas steel pipe塑料管plastic pipe玻璃管glass tube橡胶管rubber tube直管run pipe; straight pipe1.2 管件Fitting弯头elbow异径弯头reducing elbow带支座弯头base elbowk半径弯头long radius elbow短半径弯头short radius elbow长半径180°弯头long radius return短半径180°弯头short radius return带侧向口的弯头（右向或左向）side outlet elbow (right hand or left hand) 双支管弯头（形）double branch elbow三通tee异径三通reducing tee等径三通straight tee带侧向口的三通（右向或左向）side outlet tee (right hand or 1eft hand)异径三通（分支口为异径）reducing tee (reducing on outlet)异径三通（一个直通口为异径）reducing tee (reducing on one run)带支座三通base tee异径三通（一个直通口及分支口为异径）reducing tee (reducing on one run and outlet) 异径三通（两个直通口为异径，双头式）reducing tee (reducing on both runs, bull head) 45°斜三通45° lateral45°斜三通（支管为异径）45° lateral (reducing on branch)45°斜三通(一个直通口为异径) 45° lateral (reducing on one run)45°斜三通(一个直通口及支管为异径) 45° lateral (reducing on one run and branch)Y型三通（俗称裤衩）true “Y”四通cross等径四通straight cross异径四通reducing cross异径四通（一个分支口为异径）reducing cross (reducing on one outlet)异径四通（一个直通口及分支口为异径）reducing cross (reducing on one run and outlet) 异径四通（两个分支口为异径）reducing cross (reducing on both outlet)异径四通（一个直通口及两个分支口为异径）reducing cross (reducing on one run and both outlet)异径管reducer同心异径管concentric reducer偏心异径管eccentric reducer锻制异径管reducing swage螺纹支管台threadolet焊接支管台weldolet承插支管台sockolet弯头支管台elbolet斜接支管台latrolet镶入式支管嘴sweepolet短管支管台nipolet支管台，插入式支管台boss管接头coupling, full coupling半管接头half coupling异径管接头reducing coupling活接头union内外螺纹缩接（俗称补芯）bushing管帽cap (C)堵头plug短节nipple异径短节reducing nipple; swage nipple1.3 弯管Bend预制弯管fabricated pipe bend跨越弯管（^ 形）cross-over bend偏置弯管（~ 形）offset bend90°弯管quarter bend环形弯管cirele bend单侧偏置90°弯管（? 形）single offset quarter bendS形弯管“S” bend单侧偏置U形膨胀弯管（| ?形）single offset “U” bendU形弯管“U” bend双偏置U膨胀弯管double offset expansion “U” bend斜接弯管mitre bend三节斜接弯管3-piece mitre bend折皱弯管corrugated bend圆度roundness1.4 法兰Flange (FLG）整体管法兰integral pipe flange钢管法兰steel pipe flange螺纹法兰threaded flange滑套法兰（包括平焊法兰）slip-on flange (SO); slip-on welding flange 承插焊法兰socket welding flange松套法兰lap joint flange (LJF)对焊法兰welding neckflange (WNF)法兰盖blind flange, blind孔板法兰orifice flange异径法兰reducing flange盘座式法兰pad type flange松套带颈法兰loose hubbed flange焊接板式法兰welding plate flange对焊环welding neck collar （与stub end相似）平焊环welding-on collar突缘短节stub end, lap翻边端lapped pipe end松套板式法兰loose plate flange压力级pressure rating, pressure rating class压力—温度等级pressure-temperature rating法兰密封面，法兰面flange facing突面raised face (RF)凸面male face (MF)凹面female face (FMF)榫面tongue face槽面groove face环连接面ring joint face全平面；满平面flat face; full face (FF)光滑突面smooth raised face (SRF)法兰面加工facing finish粗糙度roughness光滑的smooth齿形serrated均方根root mean square (RMS)算术平均粗糙高度arithmetical average roughness height (AARH)配对法兰companion-flange螺栓圆bolt circle (B.C.)1.5 垫片Gasket (GSKT)垫片的型式type of gasket平垫片flat gasket环形平垫片flat ring gasket平金属垫片flat metal gasket夹棉织物的橡胶elastomer with cotton fabric insertion夹石棉织物的橡胶elastomer with asbestos fabric insertion夹石棉织物及金属丝加强的橡胶elastomer with asbestos fabric insertion and with wire reinforcement无石墨压缩白石棉垫片non graphited compressed white asbestos gasket天然白橡胶垫片natural white rubber gasket压缩石棉垫片compressed asbestos class gasket浸聚四氟乙烯的石棉垫片PTFE impregnated asbestos gasket夹石棉的缠绕金属垫片spiral-wound metal gasket with asbestos filler内环inner ring外环，外定位环outer ring波纹金属垫片corrugated metal gasket波纹金属包嵌石棉垫片corrugated metal gasket with asbestos inserted双夹套波纹金属包石棉垫片corrugated metal double jacketed asbestos filled gasket 双夹套垫片double jacketed gasket金属包石棉平垫片flat metal jacketed asbestos filled gasket整体金属齿形垫片solid metal serrated gasket槽形金属垫片grooved metal gasket环形连接金属垫片ring joint metal gasket八角环形垫片octagonal ring gasket椭圆环形垫片oval ring gasket透镜式垫片lens gasket非金属垫片non-metallic gasket1.6 阀门Valve1.6.1 阀门结构、零件阀轭yoke外螺纹阀杆及阀轭outside screw and yoke (OS & Y) 阀杆stem内螺纹inside screw (IS)阀轭套yoke sleeve阀杆环stem ring阀座valve seat (body seat)阀座环、密封圈seat ring整体（阀）座integral seat堆焊（阀）座deposited seat阀芯（包括密封圈、杆等内件）trim阀盘disc阀盘密封圈disc seat阀体body阀盖bonnet阀盖衬套bonnet bush螺纹阀帽screw cap螺纹阀盖screw bonnet螺栓连接的阀盖bolted bonnet (BB)活接阀盖（帽）union bonnet (cap)螺栓连接的阀帽bolted cap (BC)焊接阀盖welded bonnet (WB)本体阀杆密封body stem seal石棉安全密封asbestos emenen seal倒密封back seal压力密封的阀盖pressure-tight bonnet动力操纵器powered operator电动操纵器electric motor operator气动操纵器pneumatic operator液压操纵器hydraulic operator快速操纵器quick-acting operator滑动阀杆sliding stem正齿轮传动spur gear operated伞齿轮传动bevel gear operated扳手操作wrench operated链轮chain wheel手轮hand wheel手柄hand lever (handle)气缸（或液压缸）操纵的cylinder operated链条操纵的chain operated等径孔道full bore; full port异径孔道reducing bore, reduced port,venturi port短型short pattern紧凑型（小型）compact type笼式环lantern ring压盖gland阀杆填料stem packing阀盖垫片bonnet gasket升杆式（明杆）rising stem (RS)非升杆式（暗杆）non-rising stem (NRS)指示器/限位器indicator/stopper注油器grease injector可更换的阀座环renewable seat ring1.6.2 常用阀(1）闸阀gate valve平行双闸板double disc parallel seat开口楔形闸板split wedge挠性整体楔形闸扳flexible solid wedge整体楔形闸板solid wedge塞型闸阀plug gate valve直通型闸阀through conduit gate valve(2) 截止阀globe valve球心型阀盘globe type disc塞型阀盘plug type disc可转动的阀盘swivel disc(3) 节流闪阀throttle valve针阀needle valve(4) 角阀angle valve(5) Y型阀（Y 型阀体截止阀）Y-valve (Y-body globe valve)(6) 球阀ball valve三通球阀3-way ball valve装有底轴的trunnion mounted耐火型fire safe type浮动球型floating ball type防脱出阀杆blowout proof stem(7) 蝶阀butterfly valve对夹式（薄片型）wafer type凸耳式lug type偏心阀板蝶阀offset disc burerfly valve; eccentric butterfly valve 斜阀盘蝶阀canted disc butterfly valve连杆式蝶阀link butterfly valve8) 柱塞阀piston type valve(9) 旋塞阀plug valve三通旋塞阀three-way plug valve四通旋塞阀four-way plug valve旋塞cock衬套旋塞sleeve cock(10) 隔膜阀diaphragm valve橡胶衬里隔膜阀rubber lined diaphragm valve直通式隔膜阀straight way diaphragm valve堰式隔膜阀weir diaphragm valve(11) 夹紧式胶管阀pinch valve（用于泥浆、粉尘等）(12) 止回阀check valve升降式止回阀lift check valve旋启式止回阀swing check valve, flap check valve落球式止回阀ball check valve弹簧球式止回阀spring ball check valve双板对夹式止回阀dual plate wafer type check valve无撞击声止回阀non-slam cheek valve底阀foot valve切断式止回阀stop check valve; non-return valve活塞式止回阀piston check valve斜翻盘止回阀tilting disc check valve蝶式止回阀butterfly check valve1.6.3 其它用途的阀安全泄气阀safety valve (SV)安全泄液阀relief valve (RV)安全泄压阀safety relief valve杠杆重锤式lever and weight type引导阀操纵的安全泄气阀pilot operated safety valve复式安全泄气阀twin type safety valve罐底排污阀flush-bottom tank valve电磁阀solenoid valve, solenoid operated valve电动阀electrically operated valve, electric-motor operated valve气动阀pneumatic operated valve低温用阀cryogenic service valve蒸汽疏水阀steam trap机械式疏水阎mechanical trap浮桶式疏水阀open bucket trap, open top bucket trap浮球式疏水阀float trap倒吊桶式疏水阀inverted bucket trap自由浮球式疏水阀loose float trap恒温式疏水阀thermostatic trap金属膨胀式蒸汽疏水阀metal expansion steam trap液体膨胀式蒸汽疏水阀liquid expansion steam trap双金属膨胀式蒸汽疏水阀bimetallic expansion steam trap压力平衡式恒温疏水阀balanced pressure thermostatic trap热动力式疏水阀thermodynamic trap脉冲式蒸汽疏水阀impulse steam trap放气阀（自动放气阀）air vent valve (automatic air vent valve) （疏水阀用）平板式滑动闸阀slab type sliding gate valve盖阀flat valve换向阀diverting valve, reversing valve热膨胀阀thermo expansion valve自动关闭阀self-closing gate valve自动排液阀self-draining valve管道盲板阀line-blind valve挤压阀squeeze valve（用于泥浆及粉尘等）呼吸阀breather valve风门、挡板damper减压阀pressure reducing valve, reducing valve控制阀control valve膜式控制阀diaphragm operated control valve执行机构actuator背压调节阀back pressure regulating valve差压调节阀differential pressure regulating valve压力比例调节阀pressure ratio regulating valve1.6.4 未指明结构（或阀型）的阀切断阀block valve; shut-off valve; stop valve调节阀regulating valve快开阀quick opening valve快闭阀quick closing valve隔断阀isolating valve三通阀three way valve夹套阔jacketed valve非旋转式阀non-rotary valve排污阀blowdown valve集液排放阀drip valve排液阀drain valve放空阀vent valve卸载阀unloading valve排出阀discharge valve吸入阀suction valve多通路阀multiport valve取样阀sampling valve手动阀hand-operated valve; manually operated valve 锻造阀forged valve铸造阀cast valve（水）龙头bibb; bib; faucet抽出液阀（小阀）bleed valve旁路阀by-pass valve软管阀hose valve混合阀mixing valve破真空阀vacuum breaker冲洗阀flush valve第一道阀；根部阀primary valve根部阀root valve总管阀header valve事故切断阀emergency valve1.7 管道特殊件Piping Specialty1.7.1 管道特殊件（组件）粗滤器strainer过滤器filter临时粗滤器（锥型）temporary strainer (cone type)y 型粗滤器y-type strainerT型粗滤器T-type strainer永久过滤器permanent filter丝网粗滤器gauze strainer洗眼器及淋浴器eye washer and shower视镜sight glass阻火器flame arrester喷嘴；喷头spray nozzle取样冷却器sample cooler消声器silencer膨胀节expansion joint波纹膨胀节bellow expansion joint单波single bellow双波double bellow多波multiple bellow压力平衡式膨胀节pressure balanced expansion带铰链膨胀节hinged expansion joint轴向位移型膨胀节axial movement type expansion joint 自均衡膨胀节（外加强环）self-equalizing expansion joint 带接杆膨胀节tied expansion joint万向型膨胀节universal type expansion joint球形补偿器ball type expansion joint填函式补偿器slip type (packed type) expansion joint单向滑动填料函补偿器single actionpacked slip joint1.7.2 管道特殊元件Piping Special Element软管接头hose connection (HC)快速接头quick coupling金属软管metal hose橡胶管rubber hose挠性管flexible tube鞍形补强板reinforcing saddles补强板reinforcement pad特殊法兰special flange漏斗funnel排液环drip ring排液漏斗drain funnel插板blank垫环spacer8字盲板spectacle blind; figure 8 blind限流孔板restriction orifice爆破片rupture disk法兰盖贴面protective disc费托立克接头victaulic coupling1.8 端部连接End Connection法兰端flanged end坡口端beveled end (BE)对焊端butt welded end平端plain end (PE)承插焊端socket welding end螺纹端threaded end (TE)承口bell end焊接端welding end法兰连接（接头）flanged joint对焊连接（接头）butt welded joint螺纹连接，管螺纹连接threaded joint, pipe threaded joint 锥管螺纹密封焊连接seal-welded taper pipe threaded joint 承插焊连接（接头）socket welded joint承插连接（接头）bell and spigot joint环垫接头ring joint (RJ)万向接头universal joint软钎焊连接（接头）soldered joint搭接接头，松套连接lapped joint外侧厚度切斜角bevel for outside thickncss内侧厚度切斜角bevel for inside thickness内外侧厚度切斜角bevel for combined thickness法兰式的flanged (FLGD)对焊的butt welded (BW)螺纹的threaded (THD)承插焊的socket welded (SW)小端为平的small end plain (SEP)大端为平的large end plain (LEP)两端平both ends plain (BEP)小端带螺纹small end thread (SET)大端带螺纹large end thread (LET)两端带螺纹both end thread (BET)一端带螺纹one end thread (OET)支管连接branch connection焊接支管branch pipe welded directly to the run pipe。
中英文对应（大全）1 管道组成件 Piping component1.1 管子 Pipe管子(按照配管标准规格制造的) pipe管子(不按配管标准规格制造的其他用管) tube钢管 steel pipe铸铁管 cast iron pipe衬里管 lined pipe复合管 clad pipe碳钢管 carbon steel pipe合金钢管 alloy steel pipe不锈钢 stainless steel pipe奥氏体不锈钢管 austenitic stainless steel pipe铁合金钢管 ferritic alloy steel pipe轧制钢管 wrought-steel pipe锻铁管 wrought-iron pipe无缝钢管 seamless (SMLS) steel pipe焊接钢管 welded steel pipe电阻焊钢管 electric-resistance welded steel pipe电熔（弧）焊钢板卷管 electric-fusion (arc)-welded steel-plate pipe螺旋焊接钢管 spiral welded steel pipe镀锌钢管 galvanized steel pipe热轧无缝钢管 hot-rolling seamless pipe冷拔无缝钢管 cold-drawing seamless pipe水煤气钢管 water-gas steel pipe塑料管 plastic pipe玻璃管 glass tube橡胶管 rubber tube直管 run pipe; straight pipe1.2 管件 Fitting弯头 elbow异径弯头 reducing elbow带支座弯头 base elbowk半径弯头 long radius elbow短半径弯头 short radius elbow长半径180°弯头 long radius return短半径180°弯头 short radius return带侧向口的弯头（右向或左向） side outlet elbow (right hand or left hand)双支管弯头（形） double branch elbow三通 tee异径三通 reducing tee等径三通 straight tee带侧向口的三通（右向或左向） side outlet tee (right hand or 1eft hand) 异径三通（分支口为异径） reducing tee (reducing on outlet)异径三通（一个直通口为异径）reducing tee (reducing on one run)带支座三通 base tee异径三通（一个直通口及分支口为异径） reducing tee (reducing on one run and outlet)异径三通（两个直通口为异径，双头式） reducing tee (reducing on both runs, bull head)45°斜三通45° lateral45°斜三通（支管为异径）45° lateral (reducing on branch)45°斜三通(一个直通口为异径) 45° lateral (reducing on one run)45°斜三通(一个直通口及支管为异径) 45° lateral (reducing on one run and branch)Y型三通（俗称裤衩）true “Y”四通 cross等径四通 straight cross异径四通 reducing cross异径四通（一个分支口为异径）reducing cross (reducing on one outlet) 异径四通（一个直通口及分支口为异径） reducing cross (reducing on one run and outlet)异径四通（两个分支口为异径） reducing cross (reducing on both outlet) 异径四通（一个直通口及两个分支口为异径） reducing cross (reducing on one run and both outlet)异径管 reducer同心异径管 concentric reducer偏心异径管 eccentric reducer锻制异径管 reducing swage螺纹支管台 threadolet焊接支管台 weldolet承插支管台 sockolet弯头支管台 elbolet斜接支管台 latrolet镶入式支管嘴 sweepolet短管支管台 nipolet支管台，插入式支管台 boss管接头 coupling, full coupling半管接头 half coupling异径管接头 reducing coupling活接头 union内外螺纹缩接（俗称补芯） bushing管帽 cap (C)堵头 plug短节 nipple异径短节 reducing nipple; swage nipple1.3 弯管 Bend预制弯管 fabricated pipe bend跨越弯管（^ 形） cross-over bend偏置弯管（~ 形） offset bend90°弯管 quarter bend环形弯管 circle bend单侧偏置90°弯管（? 形） single offset quarter bendS形弯管“S” bend单侧偏置U形膨胀弯管（| ?形）single offset “U” bendU形弯管“U” bend双偏置U膨胀弯管double offset expansion “U” bend斜接弯管 mitre bend三节斜接弯管 3-piece mitre bend折皱弯管 corrugated bend圆度 roundness1.4 法兰 Flange (FLG）整体管法兰 integral pipe flange钢管法兰 steel pipe flange螺纹法兰 threaded flange滑套法兰（包括平焊法兰） slip-on flange (SO); slip-on welding flange 承插焊法兰 socket welding flange松套法兰 lap joint flange (LJF)对焊法兰 welding neckflange (WNF)法兰盖 blind flange, blind孔板法兰 orifice flange异径法兰 reducing flange盘座式法兰 pad type flange松套带颈法兰 loose hubbed flange焊接板式法兰 welding plate flange对焊环 welding neck collar （与stub end相似）平焊环 welding-on collar突缘短节 stub end, lap翻边端 lapped pipe end松套板式法兰 loose plate flange压力级 pressure rating, pressure rating class压力—温度等级 pressure-temperature rating法兰密封面，法兰面 flange facing突面 raised face (RF)凸面 male face (MF)凹面 female face (FMF)榫面 tongue face槽面 groove face环连接面 ring joint face全平面；满平面 flat face; full face (FF)光滑突面 smooth raised face (SRF)法兰面加工 facing finish粗糙度 roughness光滑的 smooth齿形 serrated均方根 root mean square (RMS)算术平均粗糙高度 arithmetical average roughness height (AARH)配对法兰 companion-flange螺栓圆 bolt circle (B.C.)1.5 垫片 Gasket (GSKT)垫片的型式 type of gasket平垫片 flat gasket环形平垫片 flat ring gasket平金属垫片 flat metal gasket夹棉织物的橡胶 elastomer with cotton fabric insertion夹石棉织物的橡胶 elastomer with asbestos fabric insertion夹石棉织物及金属丝加强的橡胶 elastomer with asbestos fabric insertion and with wire reinforcement无石墨压缩白石棉垫片 non graphited compressed white asbestos gasket 天然白橡胶垫片 natural white rubber gasket压缩石棉垫片 compressed asbestos class gasket浸聚四氟乙烯的石棉垫片 PTFE impregnated asbestos gasket夹石棉的缠绕金属垫片 spiral-wound metal gasket with asbestos filler 内环 inner ring外环，外定位环 outer ring波纹金属垫片 corrugated metal gasket波纹金属包嵌石棉垫片 corrugated metal gasket with asbestos inserted 双夹套波纹金属包石棉垫片 corrugated metal double jacketed asbestos filled gasket双夹套垫片 double jacketed gasket金属包石棉平垫片 flat metal jacketed asbestos filled gasket整体金属齿形垫片 solid metal serrated gasket槽形金属垫片 grooved metal gasket环形连接金属垫片 ring joint metal gasket八角环形垫片 octagonal ring gasket椭圆环形垫片 oval ring gasket透镜式垫片 lens gasket非金属垫片 non-metallic gasket1.6 阀门 Valve1.6.1 阀门结构、零件阀轭 yoke外螺纹阀杆及阀轭 outside screw and yoke (OS & Y) 阀杆 stem内螺纹 inside screw (IS)阀轭套 yoke sleeve阀杆环 stem ring阀座 valve seat (body seat)阀座环、密封圈 seat ring整体（阀）座 integral seat堆焊（阀）座 deposited seat阀芯（包括密封圈、杆等内件） trim阀盘 disc阀盘密封圈 disc seat阀体 body阀盖 bonnet阀盖衬套 bonnet bush螺纹阀帽 screw cap螺纹阀盖 screw bonnet螺栓连接的阀盖 bolted bonnet (BB)活接阀盖（帽） union bonnet (cap)螺栓连接的阀帽 bolted cap (BC)焊接阀盖 welded bonnet (WB)本体阀杆密封 body stem seal石棉安全密封 asbestos emenen seal倒密封 back seal压力密封的阀盖 pressure-tight bonnet动力操纵器 powered operator电动操纵器 electric motor operator气动操纵器 pneumatic operator液压操纵器 hydraulic operator快速操纵器 quick-acting operator滑动阀杆 sliding stem正齿轮传动 spur gear operated伞齿轮传动 bevel gear operated扳手操作 wrench operated链轮 chain wheel手轮 hand wheel手柄 hand lever (handle)气缸（或液压缸）操纵的 cylinder operated链条操纵的 chain operated等径孔道 full bore; full port异径孔道 reducing bore, reduced port,venturi port短型 short pattern紧凑型（小型） compact type笼式环 lantern ring压盖 gland阀杆填料 stem packing阀盖垫片 bonnet gasket升杆式（明杆） rising stem (RS)非升杆式（暗杆） non-rising stem (NRS)指示器/限位器 indicator/stopper注油器 grease injector可更换的阀座环 renewable seat ring1.6.2 常用阀(1）闸阀 gate valve平行双闸板 double disc parallel seat开口楔形闸板 split wedge挠性整体楔形闸扳 flexible solid wedge整体楔形闸板 solid wedge塞型闸阀 plug gate valve直通型闸阀 through conduit gate valve(2) 截止阀 globe valve球心型阀盘 globe type disc塞型阀盘 plug type disc可转动的阀盘 swivel disc(3) 节流闪阀 throttle valve针阀 needle valve(4) 角阀 angle valve(5) Y型阀（Y 型阀体截止阀） Y-valve (Y-body globe valve)(6) 球阀 ball valve三通球阀 3-way ball valve装有底轴的 trunnion mounted耐火型 fire safe type浮动球型 floating ball type防脱出阀杆 blowout proof stem(7) 蝶阀 butterfly valve对夹式（薄片型） wafer type凸耳式 lug type偏心阀板蝶阀 offset disc burerfly valve; eccentric butterfly valve 斜阀盘蝶阀 canted disc butterfly valve连杆式蝶阀 link butterfly valve8) 柱塞阀 piston type valve(9) 旋塞阀 plug valve三通旋塞阀 three-way plug valve四通旋塞阀 four-way plug valve旋塞 cock衬套旋塞 sleeve cock(10) 隔膜阀 diaphragm valve橡胶衬里隔膜阀 rubber lined diaphragm valve直通式隔膜阀 straight way diaphragm valve堰式隔膜阀 weir diaphragm valve(11) 夹紧式胶管阀 pinch valve（用于泥浆、粉尘等）(12) 止回阀 check valve升降式止回阀 lift check valve旋启式止回阀 swing check valve, flap check valve落球式止回阀 ball check valve弹簧球式止回阀 spring ball check valve双板对夹式止回阀 dual plate wafer type check valve无撞击声止回阀 non-slam cheek valve底阀 foot valve切断式止回阀 stop check valve; non-return valve活塞式止回阀 piston check valve斜翻盘止回阀 tilting disc check valve蝶式止回阀 butterfly check valve1.6.3 其它用途的阀安全泄气阀 safety valve (SV)安全泄液阀 relief valve (RV)安全泄压阀 safety relief valve杠杆重锤式 lever and weight type引导阀操纵的安全泄气阀 pilot operated safety valve复式安全泄气阀 twin type safety valve罐底排污阀 flush-bottom tank valve电磁阀 solenoid valve, solenoid operated valve电动阀 electrically operated valve, electric-motor operated valve 气动阀 pneumatic operated valve低温用阀 cryogenic service valve蒸汽疏水阀 steam trap机械式疏水阎 mechanical trap浮桶式疏水阀 open bucket trap, open top bucket trap浮球式疏水阀 float trap倒吊桶式疏水阀 inverted bucket trap自由浮球式疏水阀 loose float trap恒温式疏水阀 thermostatic trap金属膨胀式蒸汽疏水阀 metal expansion steam trap液体膨胀式蒸汽疏水阀 liquid expansion steam trap双金属膨胀式蒸汽疏水阀 bimetallic expansion steam trap压力平衡式恒温疏水阀 balanced pressure thermostatic trap热动力式疏水阀 thermodynamic trap脉冲式蒸汽疏水阀 impulse steam trap放气阀（自动放气阀） air vent valve (automatic air vent valve) （疏水阀用）平板式滑动闸阀 slab type sliding gate valve盖阀 flat valve换向阀 diverting valve, reversing valve热膨胀阀 thermo expansion valve自动关闭阀 self-closing gate valve自动排液阀 self-draining valve管道盲板阀 line-blind valve挤压阀 squeeze valve（用于泥浆及粉尘等）呼吸阀 breather valve风门、挡板 damper减压阀 pressure reducing valve, reducing valve控制阀 control valve膜式控制阀 diaphragm operated control valve执行机构 actuator背压调节阀 back pressure regulating valve差压调节阀 differential pressure regulating valve压力比例调节阀 pressure ratio regulating valve1.6.4 未指明结构（或阀型）的阀切断阀 block valve; shut-off valve; stop valve调节阀 regulating valve快开阀 quick opening valve快闭阀 quick closing valve隔断阀 isolating valve三通阀 three way valve夹套阔 jacketed valve非旋转式阀 non-rotary valve排污阀 blowdown valve集液排放阀 drip valve排液阀 drain valve放空阀 vent valve卸载阀 unloading valve排出阀 discharge valve吸入阀 suction valve多通路阀 multiport valve取样阀 sampling valve手动阀 hand-operated valve; manually operated valve 锻造阀 forged valve铸造阀 cast valve（水）龙头 bibb; bib; faucet抽出液阀（小阀） bleed valve旁路阀 by-pass valve软管阀 hose valve混合阀 mixing valve破真空阀 vacuum breaker冲洗阀 flush valve第一道阀；根部阀 primary valve根部阀 root valve总管阀 header valve事故切断阀 emergency valve1.7 管道特殊件 Piping Specialty1.7.1 管道特殊件（组件）粗滤器 strainer过滤器 filter临时粗滤器（锥型） temporary strainer (cone type) y 型粗滤器 y-type strainerT型粗滤器 T-type strainer永久过滤器 permanent filter丝网粗滤器 gauze strainer洗眼器及淋浴器 eye washer and shower视镜 sight glass阻火器 flame arrester喷嘴；喷头 spray nozzle取样冷却器 sample cooler消声器 silencer膨胀节 expansion joint波纹膨胀节 bellow expansion joint单波 single bellow双波 double bellow多波 multiple bellow压力平衡式膨胀节 pressure balanced expansion带铰链膨胀节 hinged expansion joint轴向位移型膨胀节 axial movement type expansion joint自均衡膨胀节（外加强环）self-equalizing expansion joint 带接杆膨胀节 tied expansion joint万向型膨胀节 universal type expansion joint球形补偿器 ball type expansion joint填函式补偿器 slip type (packed type) expansion joint单向滑动填料函补偿器 single actionpacked slip joint1.7.2 管道特殊元件Piping Special Element软管接头 hose connection (HC)快速接头 quick coupling金属软管 metal hose橡胶管 rubber hose挠性管 flexible tube鞍形补强板 reinforcing saddles补强板 reinforcement pad特殊法兰 special flange漏斗 funnel排液环 drip ring排液漏斗 drain funnel插板 blank垫环 spacer8字盲板 spectacle blind; figure 8 blind限流孔板 restriction orifice爆破片 rupture disk法兰盖贴面 protective disc费托立克接头 victaulic coupling1.8 端部连接 End Connection法兰端 flanged end坡口端 beveled end (BE)对焊端 butt welded end平端 plain end (PE)承插焊端 socket welding end螺纹端 threaded end (TE)承口 bell end焊接端 welding end法兰连接（接头） flanged joint对焊连接（接头） butt welded joint螺纹连接，管螺纹连接 threaded joint, pipe threaded joint 锥管螺纹密封焊连接 seal-welded taper pipe threaded joint 承插焊连接（接头） socket welded joint承插连接（接头） bell and spigot joint环垫接头 ring joint (RJ)万向接头 universal joint软钎焊连接（接头） soldered joint搭接接头，松套连接 lapped joint外侧厚度切斜角 bevel for outside thickncss内侧厚度切斜角 bevel for inside thickness内外侧厚度切斜角 bevel for combined thickness法兰式的 flanged (FLGD)对焊的 butt welded (BW)螺纹的 threaded (THD)承插焊的 socket welded (SW)小端为平的 small end plain (SEP)大端为平的 large end plain (LEP)两端平 both ends plain (BEP)小端带螺纹 small end thread (SET)大端带螺纹 large end thread (LET)两端带螺纹 both end thread (BET)一端带螺纹 one end thread (OET)支管连接 branch connection焊接支管 branch pipe welded directly to the run pipe2007-3-5 23:45 admin2 管道用紧固件及螺纹2.1 紧固件螺栓 bolt六角头螺栓 hexagonal head bolt方头螺栓 square head bolt螺柱，双头螺栓 stud bolt环头螺检 eye bolt沉头螺栓 countersunk (head) screw地脚螺栓 anchor bolt; foundation bolt松紧螺旋扣（花篮螺丝） turnbuckleU形螺栓 U-boltT形螺栓 T-bolt圆头螺钉 round head bolt机螺栓，机螺钉 maehine bolt顶开螺栓，顶起螺栓 Jack screw自攻螺钉 self tapping screw膨胀螺栓 expansion bolt粗制的 coarse精制的 finished, fine螺母 nut六角螺母 hexagonal nut方螺母 square nut蝶形螺母 wing nut扁螺母 flat nut锁紧螺母 lock nut垫圈 washer平垫圈 plain washer球面垫圈 spherical washer弹簧垫圈 spring washer方垫圈 square washer斜垫圈 slant washer销轴 pinned shan销 pin开口销 cotter pin定位销 dowel pin带孔销 pin with hole圆锥销 taper pin铆钉 rivet键 key2.2 螺纹左螺纹left hand thread右螺纹 right hand thread管螺纹 pipe thread锥管螺纹 taper pipe thread直管螺纹straight pipe thread梯形螺纹 trapezoid thread螺距pitch of thread粗牙螺纹coarse thread细牙螺纹 fine thread特细牙螺纹extra fine thread通长螺纹full thread惠氏螺纹whitworth thread公制螺纹 metric ibread美国标准锥管螺纹 American standard taper pipe thread (NPT) 螺孔 tap3 材料、型钢及填料3.1 金属材料3.1.1 黑色金属 Ferrous Metal碳素钢 carbon steel (CS)低碳钢 low-carbon steel中碳钢 medium-carbon steel高碳钢 high-carbon steel普通碳素钢 general carbon steel优质碳素钢 high-quality carbon steel普通低合金结构钢 general structure low-alloy steel 合金结构钢 structural alloy steel合金钢 alloy steel低合金钢 low alloy steel中合金钢 medium alloy steel高合金钢 high alloy steel耐热钢 heat resisting steel高强度钢 high strength steel复合钢 clad steel工具钢 tool steel弹簧钢 spring steel钼钢 molybdenum steel镍钢 nickel steel铬钢 chromium steel铬钼钢 chrome-molybdenum steel铬镍钢 chromium-nickel steel,chrome-nickel steel 不锈钢 stainless steel (S.S.)奥氏体不锈钢 Austenitic stainless steel马氏体不锈钢 Martensitic stainless steel司特来合金（钨铬钴台金） Stellite耐蚀耐热镍基合金 Hastelloy铬镍铁合金 inconel耐热铬镍铁合金 incoloy20合金 20 alloy平炉钢（马丁钢） Martin steel镇静钢 killed steel半镇静钢 semi-killed steel沸腾钢 rimmed steel; rimming steel; open-steel锻钢 forged steel铸钢 cast steel铸铁 cast iron (C.I.)灰铸铁 grey cast iron可锻铸铁 malleable iron (MI)球墨铸铁 nodular cast iron; nodular graphite iron 生铁 pig iron熟铁，锻铁 wrought iron铸件 casting高硅铸铁 high silicon cast iron3.1.2 镀层及制造方法渗铬钢，镀铬钢 chromized steel镀铬的 chromium-plated, chrome-plated 镀层 plating锻造，型钢 swage锻造的，锻造 forging轧制 rolling热轧 hot rolling冷轧 cold rolling挤压 extruding冷加工 cold working热加工 hot working拔制 drawing3.1.3 有色金属Non-ferrous Metal铝 aluminum铜，紫铜 copper黄铜 brass青铜 bronze铝青铜 aluminum bronze磷青铜 phosphor bronze铝镁合金 aluminum magnesium锰青铜 manganese bronze蒙乃尔（注：镍及铜合金） Monel镍铜台金 nickel copper alloy非铁合金 nonferrous alloy钛 titanium铅 lead硬铅 hard lead3.1.4 材料性能极限强度 ultimate strength抗拉强度 tensile strength屈服极限 yield limit屈服点 yield point延伸率 percentage elongation抗压强度 compressive strength抗弯强度 bending strength弹性极限 elastic limit冲击值 impact value疲劳极限 fatigue limit蠕变极限 creep limit持久极限 endurance limit布氏硬度 Brinell hardness洛氏硬度 Rockwell hardness维氏硬度 Vickers diamond hardness, diamond penetrator hardness 蠕变断裂强度 creep rupture strength断面收缩率 reduction of area韧性 toughess脆性 brittleness延性 ductility冷脆 cold shortness冷流 cold flow3.2 非金属材料 Non-metallic Material塑料 plastic丙烯腈—丁二烯—苯乙烯 acrylonitrile-butadiene-styrene (ABS) 聚乙烯 polyethylene (PE)聚氯乙烯 polyvinyl chloride (PVC)苯乙烯橡胶 styrene-rubber (SR)聚丁烯 polybutylene (PB)聚丙烯 polypropylene (PP)聚苯乙烯 polystyrene (PS)氯化聚醚 chlorinated polyether (CPE)聚酰胺 polyamide (PA)聚碳酸酯 polycarbonate (PC)聚甲基丙烯酸甲酯 polymethyl methacrylate (PMMA)醋酸丁酸纤维素cellulose acetate butyrate (CAB)氯化聚氯乙烯 chlorinated polyvinyl chloride (CPVC)聚偏二氟乙烯 polyvinylidene fluoride (PVDF)缩醛塑料 acetal plastic尼龙塑料 nylon plastic聚烯烃 polyolefin (PO)石墨酚醛塑料 graphite phenolic plastics聚四氟乙烯 polytetrafluoroethylene (PTFE)纤维增强热塑性塑料 fiber reinforced thermoplastics热塑性塑料 thermoplastic热固性塑料 thermosetting plastics胶粘剂 adhesive溶剂胶接剂 solvent cement树脂 resin环氧树脂 epoxy, epoxy resin聚酯树脂 polyester resin聚酯纤维 polyester fibers氟塑料 fluoroplastics聚氨基甲酸酯 polyurethane丙烯酸树脂 acrylic resin脲醛树脂 urea resin呋哺树脂 furan resin乙烯丙烯二烃单体 ethylene propylene diene monomer (EPDM) 合成橡胶 synthetic rubber橡胶 rubber丁腈橡胶 nitrile butadiene rubber氯丁橡胶 neoprene天然橡胶 natural rubber乙丙橡胶 ethylene propylene rubber (EPR)玻璃 glass硼硅玻璃 borosilicate glass耐火砖 fire brick陶瓷 ceramic搪瓷 porcelain enamel木材 wood3.3 型材型钢 shaped steel, section steel, swage角钢 angle steel槽钢 channel工字钢 I-beam宽缘工字钢或H钢 wide flanged beamT型钢 T-bar方钢 square bar扁钢 flat bar角钢 hexagonal steel bar圆钢 round steel; rod钢带 strap steel钢板 plate网纹钢板 checkered plate腹板（指型钢的立板） web翼缘（指型钢的缘） wing3.4 填料及填料函填料 packing石棉绳 asbestos rope, asbestos cord．O形环 O-ring自密封 self-sealing四氟带 Teflon tap带铬镍合金丝的石棉绳 asbestos rope with inconel wire, inconel wire asbestos浸聚四氟乙烯的石棉填料 Teflon impregnated asbestos packing金属填料 metallic stuffing填料箱，填料函 packing box, stuffing box填料函压盖 stuffing box gland2007-3-5 23:45 admin4 管道等级及材料统计4.1 管道材料规定 Piping Material Specification管道等级 piping class; piping classification管道等级号 class designation公称直径 nominal diameter (DN); nominal (pipe) size公称压力 nominal pressure (PN)压力级，等级，类别 class (CL)低压 low pressure (L.P.)中压 medium pressure (M.P.)高压 high pressure (H.P.)大气压 atmosphere (ATM)真空 vacuum工作压力 operating pressure; working pressure设计压力 design pressure工作温度 operating temperature设计温度 design temperature环境温度 ambient temperature腐蚀裕量 corrosion allowance管道附件 piping attachment管道元件 piping element壁厚 wall thickness (WT)壁厚系列号 schedule number (SCH. No.)加厚的，加强的 extra heavy, extra strong双倍加厚的，双倍加强的 double extra heavy, double extra strong通用连接组 typieal installation分组（类）形式（如管道等级表） block form数据库 data base文件 file4.2 材料统计 Material Take-off (MTO)汇总表 summary sheet材料表 bill of material (BM)综合管道材料表 consolidated piping material summary sheet (CPMSS) 统计材料准确度 accuracy of take-off材料情况报告 material status report (MSR)散装材料 bulk material编位号的 itemized代码 code number短代码 short code数量 quantity (QTY)重力 weight净重 net weight毛重 gross weight2007-3-5 23:46 admin5 设备布置及管道布置Plot Plan and Piping Layout,Equipment and Piping Arrangement5.1 设备名称 Equipment Name5.1.1 容器 Vessel(1) 塔 tower, column洗涤塔 scrubber吸收塔 absorber冷却塔 cooling tower精馏塔 fractionating tower蒸馏塔 distillation tower再生塔 regenering tower造粒塔 prflling tower汽提塔 stripper脱气塔 degasifier合成塔 synthesis tower(2) 反应器 reactor聚台釜 polymerizer转化器，变换器 converter脱硫反应器 desulphurization reactor甲烷化器 methanator(3) 气柜 gas-holder螺旋式气柜 helical gas-holder湿式气柜 wet gas-holder干式气柜 dry gas-holder(4) 槽罐贮罐 tank; storage tank缓冲罐 knock out drum球罐 spheroid, spherical tank罐 drum接受槽 receiver计量槽 measuring tank加料槽 feed tank排污罐 blow down tank闪蒸罐 flash drum汽包 steam drum溶液贮槽 solution storage tank地下槽 sloptank(5) 其它设备分离器 separator旋风分离器 cyclone分子筛 molecular sieve脱氧器 deaerator搅拌器 agitator干燥器 dryer混合器 mixer萃取器 extractor结晶器 crystallizer澄清器 gravity settler净化器 purifier气化器 vaporizer吸附器 adsorber融解槽 melter减温器 desuperheater升压器 booster喷射器 ejector喷头 sprayer火炬 flare消声器 silencer(6) 换热器、加热器、冷却器换热器 heat exchanger空冷器 air cooler水冷却器 water cooler冷凝器 condenser螺旋板式换热器 spiral plate heat exchanger 蒸发器 evaporator再沸器 reboiler急冷器 quencher深冷器 chiller预热器 preheater再热器 reheater加热器 heater电加热器 electric heater过热器 super heater给水加热器 feed water heater中间冷却器 inter cooler后冷却器 after cooler5.1.2 工业炉及锅炉炉子 furnace烧嘴 burner锅炉 boiler烟囱 stack废热锅炉 waste heat boiler辅助锅炉 auxiliary boiler省煤器 economizer回热炉 direct-fired heater辐射段 radiant section对流段 convection section裂化炉 reformer焚烧炉 incinerator回转窑 rotary kiln炉管 furnace tube吹灰器 soot blower观察孔 observation door, peep door防爆门 explosion door5.2 辅助用房名称5.2.1 生产用房分析室 analyzer room变压器室 transformer room配电室，变电所 substation, switch room 蓄电池室 battery room控制室 control room通风室 ventilating room贮藏室 storage room维修间 maintenance room办公室 office5.2.2 生活用房更农室 locker room盥洗室，厕所 closet, lavatory, toilet5.3 图名管道布置平面 piping arrangement plan (PAP)管道布置 piping layout轴测图 isometric drawing分区索引图 key plan初版设备布置图（“A”版）preliminary plot plan ( “A” issue)内部审查版设备布置图（“B”版）inrernal approval plot plan ( “B” issue)用户审查版设备布置图（“C”版) owner approval plot plan ( “C” issue)确认版设备布置图（“D”版）confirm plot plan ( “D” issue)研究版设备布置图（“e”版）planning plot plan ( “E” issue)设计版设备布置图（“F”）designing plot plan ( “F” issue)施工版设备布置图（“G”版）construction plot plan ( “G” issue)5.4 厂房、站、单元压缩机房 compressor house (room)泵房 pump house (room)洗眼站 eye washer station泡沫站 foam station软管站，公用工程站 hose station (HS), utility station成套设备 package unit设施 facilities罐区 tank yard空分装置 air separation facility5.5 设备布置设备位号 equipment item number工厂 plant工厂区界 plant limit项目区界内侧 inside battery limit (I.S.B.L.)项目区界 batterylimit (BL)区界 area limit区域边界 zone iimit界外 off site东 east (E)西 west (W)南 south (S)北 north (N)上 up下 down工厂北向 plant north真实北向 true north道路 road小过道 cat walk, cat way走道，过道 walk way, gangway, access way 污水坑（井） sump pit集水池 catch basin沟槽 through预留区 trough场地 future area铺砌区 paving area非铺砌区 unpaved area碎石铺面 gravel paving橡皮铺面 rubber paving面积，区域 area体积，容积 volume (VOL)5.6 管道布置管道设计 piping design管道研究 piping study走向研究 routing study重要管道 critical piping地上管道 above ground piping地下管道 under ground piping管网 network of pipes管廊 pipe rack管沟 piping trench管间距 line spacing管道跨距 line span总管 header, manifold旁路 by pass排液 drain放空 vent上升管，垂直管 riser导管 canduit裸管 bare iine管件直接 fitting to fitting (FTF)管段，接口 spool piece, spool取样接口 sampling connection集液包 drip leg伴热管 tracing pipe蒸汽伴热 steam tracing热水伴热 hot-water tracing电伴热 electrical tracing夹套管 jacketed line, jacketed piping全夹套的 full jacketed平面 plan详图 detail“ ”视图X view “X”“ ”剖视A-A section “A-A”连接图 hook up drawing接续图 continue on drawing (COD)接续线 match line (M.L.)比例 scale图例 legend符号 symbol管口表 list of nozzles方位 orientation管口方位 nozzle orientation定位 location相交 intersection水平的 horizontal垂直的，立式的 vertical垂直，正交，垂直的 perpendicular平行，平行的 parallel水平安装 horizontal installation垂直安装 vertical installafion对称的 symmetric相反（的），对面（的） opposite顺时针方向 clock wise逆时针方向 counter clock wise计算机辅助设计 computer aided design (CAD) 5.7 图面标注绝对标高 abselute elevation海平面标高 over-sea mean level (OSL)标高，立面 elevation (EL)混凝土顶面 top of concrete架顶面 top of support (TOS)钢结构顶面 top of steel梁项面 top of beam (TOB)支撑点 point of suppon (POS)管顶 top of pipe (TOP)管底 bouom of pipe (BOP)沟底 boaom of trench管子内底 invert (inside bottom of pipe) 底平 flat on bottom (FOB)顶平 flat on top (FOT)工作点 working point (W.P.)面至面 face to face (F-F)中心至端面 center to end (C-E)中心至面 center to face (C-F)中心至中心，中至中 center to center (C-C) 坐标 coordinate坐标原点 origin of coordinate出口中心线 center line of discharge入口中心线 center line of suction中心线 centerline (CL)入口 inlet, suction出口 outlet, discharge排出口 exhaust距离 distance5.8 相关专业的专业词汇5.8.1 工艺(1) 图及表流程图 flow diagram工艺流程图 process flow diagram (PFD)管道及仪表流程图 piping andinstrument flow diagram (PID)公用工程流程图 utility flow diagram (UFD) 管线表 line list; line schedule命名表；管道表 nomenclature设备表 equipment list (schedule)(2) 流体 fluid空气 air仪表空气 instrument air工艺空气 process air低压蒸汽 low pressure steam中压蒸汽 medium pressure steam高压蒸汽 high pressure steam伴热蒸汽 tracing steam饱和蒸汽 saturated steam过热蒸汽 superheated steam氧气 oxygen氢气 hydrogen氮气 nitrogen燃料气 fuel gas天然气 natural gas火炬气 flare gas酸性气 sour gas液化石油气 liquefired petroleum gas (LPG) 氨气 ammonia gas冷却水 cooling循环水 circulating water锅炉给水 boiler feed water热水 hot water蒸汽冷凝水 steam condensate盐水 brine工艺水 process water化学污水 chemical sewage防腐剂 corrosion inhibitor重油 heavy oil石脑油 naphtha燃料油 fuel oil润滑油 lubricating oil密封油 sealing oil冷冻剂 refrigerant载热体 heating medium溶剂 solvent溶液 solution母液 mother liquor单体 monomer聚合物 polymer均聚物 homopolymer共聚物 copolymer工艺液体 process liquid工艺气体 process gas硫酸 sulphuric acid盐酸 chlorhydric acid硝酸 nitric acid烧碱 caustic soda(3) 流体特性 fluid characteristics蒸汽压 vapor pressure临界温度 critical temperature临界点 critical point临界压力 critical pressure比热 specific heat湿度 humidity密度 density比重 specific gravity粘度 viscosity闪点 flash point融点 melting point凝固点 freezing point浓度 concentration爆炸极限 limit of explosion有毒的 toxic可燃的；易燃的 flammable(4) 其它回收 recovery再生 regeneration循环 cireulatlon再循环；再生 recycle补充 make-up制备 preparation蒸汽吹扫 steaming out吹扫 purge抽空；排空 evacuation吹出 blow-off排污 blow down破真空 vacuum breaker大气腿 barometric leg备用 stand-by化学清洗 chemical cleaning净正吸入压头 net positive suction head (NPSH) 进料 feed成品 product污染 contamination大气污染 atmospheric pollution环境温度 ambient temperature5.8.2 建筑、结构建筑物 building钢结构 steel structure已有钢结构 existing steel structure钢筋混凝土结构 reinforced concrete construction 楼面 floor平台 platform (PF)地面 ground level栏杆 handrail楼梯 stair; stair way直梯 ladder柱 column; post; stanchion基础 foundation; footing粱 beam斜撑；支撑 bracing桁架；主粱 girder构件 member隔墙 partition wall墙 wall篦子板 grate; grating吊装孔 erection opening吊梁 hoisting beam棚 shelter窗 window天窗 skylight门 door防火门 fire door地漏 floor drain防火层 fire-proofing总图 general plot plan路肩 shoulder桩 pile灌浆 grouting风荷载 wind load雪荷载 snow load动力荷载 dynamic load静荷载 dead load活荷载 live load风速 wind velocity主导风向 most frequent wind direction5.8.3 仪表盘（操作盘） panel就地盘 local panel仪表盘 instrument panel常开 normally open常闭 normally closed电缆槽（架） cable tray (channel); cable rack 仪表电缆槽（架） instrument cable tray (duct) 压力计 manometer; pressure gauge热电偶 thermocouple温度计 thermometer液位计 level gauge玻璃液位计 gage glass温度计保护管 thermowell流量计 flow meter孔板 orifice变送器 transmitter联锁 interlock仪器；设备 apparatus仪器分析 instrumental analysis自动分析 automatic analysis气体分析 gas analysis化学分析 chemical analysis气相色谱仪 gas chromatograph液相色谱仪 liquid chromatograph质谱分析 mass spectrometric analysis5.8.4 电气危险区划分 hazardous area classification 危险区平面图 hazardous area plan电气盘 electrical panel配电盘 switch board电缆沟 cable trench电流 current直流 direct current交流 alternating current频率 frequency相位 phase功率因数 power factor电压 voltage电阻 resistance电容 capacitance静电 static electricity接地 grounding; easthing照明 lighting; illumination避雷针 lightning preventer电话 telephone电线 wire接线箱（盒） junction box导线管 conduit tube5.8.5 设备。
一、调节阀系列First、series regulating valve1、型号编制说明The model description：P普通型M密闭型P Normal type M Airtight typeD电动Q气动S手动D Motor-driven Q Pneumatic S Manual风阀高度H Air valve height H风阀宽度W Air valve widthW1 工作温度为－40℃~95℃2工作温度为－55℃~205℃1 the operating temperature -40℃~95℃2 theoperating temperature55℃~205℃D对开式P平行式D Vis-a-vis type P Parallel type创元风量调节阀chuangyuan air volume regulating valve 1.1、型号示例model sample1：CYTD2－1000×500SP 表示创元普通型对开式多叶调节阀，工作温度为－55℃~205℃，宽1000mm，高500mmCYTD2－1000×500SP is Chuangyuan normal vis-a-vis multi-blade regulating valve, the working temperature is -55℃~ 205℃, width is 1000mm, the height is 500mm2、风量调节阀技术参数Air volume regulating valve technical parameters：2.1、风量调节阀框体和叶片采用镀锌钢板制成，无焊点，表面无需涂装；Air volume regulating valve frame and blade made by galvanized steel plates, no weld, the surface doesn’t need paint.2.2、风阀轴承材料为烧结青铜含油轴承，可以耐300℃的高温；The regulating valve bearing material is sintered bronze oiled bearings, can resist high temperature 300℃;2.3、叶片由10×10方形轴连接，轴的材料为45#镀锌钢；Blades are connected by 10×10 square shaft, the material of the bearing is 45# galvanized steel plates 2.4、根据需要可选配可调节风量的执行机构；We can provide implement facility which can regulating the air volume by need.2.5、普通型阀体厚度标准尺寸L=210mm，密闭型阀体厚度标准尺寸L=180mm，也可根据客户需要生产各种特型尺寸；The standard thickness of the normal valve dimension is L=210, the standard thickness of the airtight valve dimension is L=180, customers may also choose a variety of special type size;2.6、风量调节阀的法兰宽度为30mm、40mm，客户可以根据需要选择；The width of the air regulating valve flange is 30mm、40mm,the user can make choice.2.7、密闭阀密封材料为橡胶。
闸阀Gate valve平行双闸板Double disc parallel seat楔形双闸板Split wedge挠性楔形闸板Flexible solid wedge楔形单闸板Solid wedge塞型闸阀Plug gate valve疏通型闸阀Through conduit gate valve截止阀Globe valve球心型阀盘Globe type disc塞型阀盘Plug type disc可转动的阀盘Swivel disc节流阀Throttle valve针阀Needle valve角阀（角式截止阀）Angle valveY 型阀(Y型阀体截止阀）Y—valve （Y—body globe valve)球阀Ball valve三通球阀3-way ball valve装有底轴的Thunnion mounted耐火型Fire safe type浮动球型Floating ball type防脱出阀杆Blowout Proof stem蝶阀Butterfly valve对夹式(薄片型）Wafer type凸耳式Lug type偏心阀板蝶阀Offset disc butterfly valve；Eccentric butterfly valve斜阀盘蝶阀Canted disc butterfly valve连杆式蝶阀Link butterfly valve止回式蝶阀Combined non-return butterfly valve柱塞阀Piston type valve旋塞阀Plug valve三通旋塞阀Three-way plug valve四通旋塞阀Four-way plug valve旋塞Cock衬套旋塞Sleeve cock隔膜阀Diaphragm valve橡胶衬里隔膜阀Rubber lined diaphragm valve直通式隔膜阀Straight way diaphragm valve堰式隔膜阀Weir diaphragm valve夹紧式胶管阀Pinch valve （用于泥浆、粉尘等）止回阀Check valve升降式止回阀Lift check valve旋启式止回阀Swing check valve落球式止回阀Ball check valve弹簧球式止回阀Spring ball check valve双板对夹式止回阀Dual plate wafer type check valve无撞击声止回阀Non—slam check valve底阀Foot valve切断式止回阀Stop check valve ；Non—return valve 活塞式止回阀Pistonche check valve翻板式止回阀Flap check valve翻转盘止回阀Tilting disc check valve蝶式止回阀Butterfly check valve安全泄气阀Safety valve安全泄液阀Relief valve安全泄压阀Safety relief valve杠杆重锤式Lever and weight type引导阀操纵的安全泄气阀Pilot operated safety valve复式安全泄气阀Twin type safety valve罐底排污阀Flush—bottom tank valve波纹管密封阀Bellow sealed valve电磁阀Solenoid valve；solenoid operated valve电动阀Electrically operated valve；Electr—motor operated valve气动阀Pneumatic operated valve低温用阀Cryogenic service valve蒸汽疏止阀Steam trap机械式疏水阀Mechanical trap浮桶式疏水阀Open bucket trap；Open top bucket trap浮球式疏水阀Float trap倒吊桶式疏水阀Inverted bucket trap自由浮球式疏水阀Loose float trap恒温式疏水阀Thermostatic trap金属膨胀式蒸汽疏水阀Metal expansion steam trap液体膨胀式蒸汽疏水阀Liquid expansion steam trap双金属膨胀式蒸汽疏水阀Bimetallic expansion steam trap压力平衡式恒温疏水阀Balanced pressure thermostatic trap热动力式疏水阀Thermodynamic trap脉冲式蒸汽疏水阀Impulse steam trap放汽阀(自动放汽阀）Air vent valve；（Automatic air vent valve）平板式滑动闸阀Slab type sliding gate valve盖阀Flat valve换向阀Diverting valve；Reversing valve热膨胀阀Thermo expansion valve自动关闭阀Self-closing valve自动排液阀Self-draining valve管道肓板阀Line—blind valve挤压阀Sgueeze valve呼吸阀Breather valve 风门Damper减压阀Pressure reducing valve; Reducing valve控制阀Control valve膜式控制阀Diaphrated operated control valve执行机构Actuator背压调节阀Back pressure regulating valve 差压调节阀Differential pressure regulating valve压力比例调节阀Pressure ratio regulating valve 切断阀Block valve; shut-off valve；stop valve调节阀Regulating valve快开阀Quick opening valve快闭阀Quick closing valve隔断阀Isolating valve三通阀Three way valve夹套阀Jacketed valve非旋转式阀Non-rotary valve排污阀Blowdown valve集液排放阀Drip valve排液阀Drain valve放空阀Vent valve卸载阀Unloading valve排出阀Discharge valve吸入阀Suction valve 多通路阀Multiport valve取样阀Sampling valve手动阀Hand operated valve; manually operated valve锻造阀Forged valve铸造阀Cast valve实心本体的阀Barstock valve（水）龙头Bibb; Bib; Faucet抽出液阀（水阀）Bleed valve旁路阀By—pass valve软管阀Hose valve混合阀Mixing valve破真空阀Vacuum breaker冲洗阀Flush valve根部阀Root valve; Primary valve; Header valve法兰Flange整体管法兰Integral pipe flange钢管法兰Steel pipe flange螺纹法兰Threaded flange滑套法兰（平焊法兰）Slip—on—welding flange承插焊法兰Socket welding flange松套法兰Lap joint flange对焊法兰Weld neck flange法兰盖Blind flange; Blind孔板法兰Orifice flange异径法兰Reducing flange盘座式法兰Pad type flange松套带颈法兰Loose hubbed flange板式平焊法兰Welding plate flange对焊环Welding neck collar平焊环Welding on collar管端突缘Stub end翻边端Lapped pipe end松套板式法兰Loose plate flange压力级Pressure rating; Pressure rating class压力-温度等级Pressure-temperature rating法兰密封面；法兰面Flange facing突面Raised face凸面Male face凹面Female face榫面Tongue face槽面Groove face环连接面Ring joint face全平面;满平面Flat face; Full face 光滑突面Smooth raised face法兰面加工Facing finish粗糙度Roughness光滑的Smooth齿形的Serrated均方根Root mean square算术平均粗糙高度Arithmetical average roughness height管道特殊件Piping speciality粗滤器Strainer过滤器Filter临时粗滤器（锥型）Temporary strainer （cone type）Y型粗滤器Y—type strainerT型粗滤器T—type strainer永久过滤器Permanent filter网状粗滤器Gauze strainer洗眼器及淋浴器Eye washer and shower视镜Sight glass阻火器Flame arrester喷嘴；喷头Spray nozzle喷射器Ejector取样冷却器Sample cooler消音器Silencer膨胀节Expansion joint波纹膨胀节Bellow expansion joint单波Single bellow双波Double bellow多波Multiple bellow压力平衡式膨胀节Pressure balanced expension joint带铰链膨胀节Hinged expansion joint轴向位移型膨胀节Axial movement type expansion joint自均衡膨胀节(带外加强环）Self—equalizing expansion joint带拉杆膨胀节Tied expansion joint万向型膨胀节Universal type expansion joint球型补偿器Ball type expansion joint; Flexible ball joint填函式补偿器Slip type （packed type) expansion joint单向滑动填料函补偿器Single action packed slip joint软管接头Piping special element快速接头Hose connection金属软管Metal hose橡胶管Rubber hose挠性管Flexible tube鞍形补强板Reinforcing saddles；Reinforcement pad特殊法兰Special flange漏斗Funnel排液环Drip ring排液漏斗Drain funnel 插板Blank垫环Spacer8字肓板Spectacle blind；Figure 8 blind限流孔板Restriction orifice 爆破板Rupture disk法兰盖贴面Protective disc碳素钢Carbon steel低碳钢Low—carbon steel中碳钢Medium—carbon steel高碳钢High-carbon steel普通碳素钢General carbon steel优质碳素钢High—quality carbon steel普通低合金结构钢General structure low alloy steel合金结构钢Structural alloy steel合金钢Alloy steel工具钢Tool steel弹簧钢Spring steel钼钢Molybdenum steel镍钢Nickel steel铬钢Chromium steel铬钼钢Chrome-molybdenum steel铬镍钢Chrmium-nickel steel；Chrome—nickel steel渗铬钢;镀铬钢Chromized steel镀铬的Chromium—plated; chrome—plated不锈钢Stainless steel奥氏体不锈钢Austenitic stainless steel马氏体不锈钢Martensitic stainless steel司特来合金（钨铬钴合金)Stellite耐蚀耐热镍基合金Hastelloy平炉钢(马丁钢）Martin steel镇静钢Killed steel 半镇静钢Semi—killed steel沸腾钢Rimmed steel；Rimming steel；Open steel锻钢Forged steel铸钢Cast steel铸铁Cast iron灰铸铁Grey cast iron可锻铸铁Malleable iron [M.I。

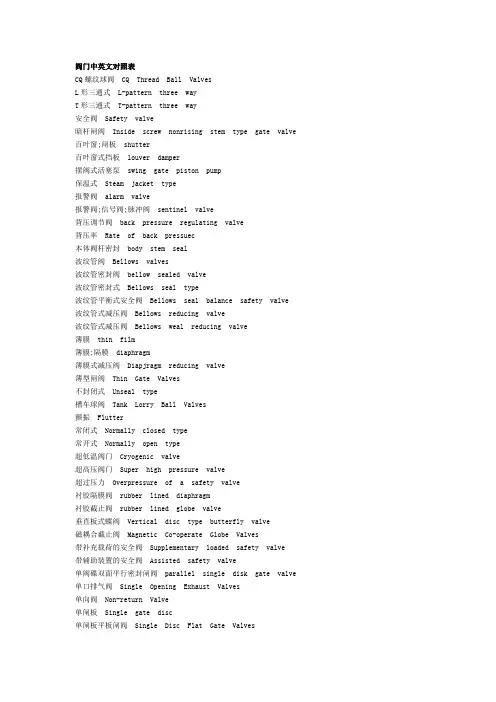

各种阀门的中英文对照阀 valve阀板 valve deck plate阀板 valve plate阀板式活塞泵valve deck plate type piston pump 阀板式活塞泵valve plate type piston pump阀瓣Disc阀操纵杆valve operating rod阀痤槽valve seat recess阀挡valve grid阀挡valve positioner阀挡valve stop阀导杆valve tail rod阀导向器valve guide阀盖bonnet阀盖衬套bonnet bush阀盖垫片bonnet gasket阀杆stem阀杆valve rod阀杆valve spindle阀杆端部尺寸Dimmension of valve stem end阀杆环stem ring阀杆螺母Yoke bushing Yoke nut阀杆填料stem packing阀杆头部尺寸Dimension of valve stem head阀簧valve spring阀簧压板valve spring plate阀控水锤泵valve—controlled hydraulic ram阀框架valve yoke阀门Valve阀门传动装置valve bandle set阀门和管件Valves and Fittings阀门盘根valve packing阀门手柄valve handle阀盘disc阀盘valve disc阀片Disc阀球valve ball阀驱动臂valve driving arm阀驱动臂valve motion arm阀式活塞valve type piston阀式活塞valve type bucket阀室式活塞泵valve box type piston pump阀室式活塞泵（美) valve pot type piston pump阀抬起装置valve lifting device阀体body阀体valve body阀箱valve box阀箱valve cage阀箱valve chest阀箱；阀限位器valve guard阀箱盖cover for valve box阀箱盖valve box cover阀箱式活塞泵（美）turret type piston pump阀形活塞泵valve type piston pump阀座Seat ring阀座valve carrier阀座valve seat（body seat）阀座；阀盘valve seat阀座环seat ring阀座密封嵌条sealing strip for valve seat法兰flange法兰堵头blind flange法兰端flange end法兰接头flange joint法兰连接紧固件（双头螺栓和螺帽）flange bolting 法兰密封面，法兰面flange facing法兰面加工flange facing finish法兰球阀Flange Ball Valves翻板阀Flap反冲盘Disc holder反向作用式减压阀Reverse acting reducing valve反向作用式减压阀Reverse acting reducing valve放空阀emptying valve放气阀air vent valve；vent valve放气阀；排气阀air evacuation valve放泄阀escape valve分置阀室式活塞泵separate valve box type piston pump 分置阀室式活塞泵（美) side pot type piston pump封闭式Seal type浮动式球阀Float ball valve浮球Ball float浮球阀Float Valve浮球式疏水阀Ball float steam trap浮球式疏水阀Free Float Type Steam Trap浮桶Bucket float浮桶式疏水阀Open bucket steam trap辅助（副）阀Auxiliary valves负荷率Rate of load condensate附加背压力Superimposed back pressure复位弹簧Returnning spring杠杆式Lever type杠杆式安全阀Lever and weight loaded safety valve杠杆式减压阀Lever reducing valve高温阀门High temperature valve高压阀门High pressure valve格兰密封gland隔离阀isolating valve隔膜Diaphragm隔膜阀diaphragm valve隔膜式控制阀diaphragm operated comtrol valve工作背压Operating back pressure工作温度Operating temperature工作温度Working temperature工作压差Operting differential pressure工作压力Operating pressure工作压力Working pressure公称通径Nominal diameter公称压力Nominal pressure固定式球阀Fixed ball valve关闭压力Lockup pressure关阀过冷度Subcooled temperature of close valve关阀温度Closing valve temperature管道安全阀Piping Safety Valves过冷度Subcoold temperature过流阀（或节流阀) Restrictor Valves喉径Throat diameter滑阀slide valve滑阀式回转活塞泵rotary piston pump with slide gate 滑阀型转子泵eccentric rotary pump with sliding sleeve 环形阀annular valve环形阀double beat valve换向阀selector valve换向阀shuttle valve回转滑阀活塞泵piston pump with rotary gate回座压力Re-seating pressure of a safety valve活塞昵减压阀Piston reducing valve活塞式阀piston valve活塞式阀；柱塞式阀plunger valve活塞式减压阀Piston reducing valve减速阀Deceleration valves减压比Pressure reducing ratio减压阀pressure reducing valve浆液阀Parallel Slide Valves角阀Angle Valve角阀isolation valve angle configuration角式Angie type角式节流阀Angle Throttle Valves角式截止阀Angle Stop valves铰链阀；片状阀flapper valve节流阀throttle valve节流阀choke valve节流阀；节流throttle结构长度Face—to—face dimension ；End—to-end dimension; Face-to-centre dimension 结构形式Type of construction截止阀Globe valve截止阀Shut-off Valve截止阀；关断阀shut-off valve截止式隔膜阀Globe diaphragm valve紧急切断阀Emergeny Cut-off Valves进气阀air intake valve进水阀；进口阀门inlet valve静态特性Static characteristics静态特性偏差Static characteristics derivation开阀过冷度Subcooled temperature of open valve开阀温度Opening valve temperature开启高度Lift壳体试验Shell test壳体试验压力Seal test pressure空气阀门Air valves快速排污阀Quick Draining Valves类型Type冷凝结水排量Cold condensate capacity冷态试验差压力Cold differential test pressure理论排量Theoretical flowing capacity连接槽尺寸Dimension of connecting channel连接尺寸Conncetion cimension连接形式Type of connection帘面积Curtain area流道面积Flow area流道直径Flow diameter流量孔板flow orifice plate流量控制阀flow control valve流量特性Flow characteristics流量特性偏差Flow characteristics derivation漏汽量Steam loss脉冲式疏水阀Impulse steam trap密封面Sealing face密封试验Seal test密封试验压力Seal test pressure明杆平行式双闸板闸板Double Disk Parallel Gate V alves明杆闸阀Outside screw stem rising through handwheel type gate valve 膜片Diaphragm内压自封Pressure seat逆止阀；止回阀check valve逆止阀;止回阀non—return valve逆止阀;止回阀；单向阀check valve排放背压力Brilt—up back pressure排放压力Relieving pressure排灰阀Ash valves排量系数Coefficient of discharge排气阀air release valve排气阀Exhaust valves排气阀Vent Valve排水阀Drainage valves排水温度Temperature at discharging condensate排污阀blowdown valve排污箱（阀) Waste Valves排渣闸阀Scum Gate Valves盘阀moushroom valve盘状阀plate valve旁路阀by pass valve配汽活塞阀缸套piston valve line喷射阀injection valve喷射阀sprayer valve喷水阀spray water valve频跳Chatter平衡阀Balance valves平衡式Balance type平行式闸阀Parallel gate valve Parallel slide valve启闭件Disc启闭压差Blowdown of a safety valve起始升程Commencement of lift气动装置Pneumatic actuator气阀摇臂valve arm气－液动装置Pneumatic-hydraulic actuator潜水电泵（排污泵) Submerged Motor Pumps切断阀；截止阀block valve;shut—off valve；stop valve 切断式止回阀stop check valve切换阀；多向阀changeover valve球、球芯Ball球阀Ball valve球阀globe valve球体Ball全启式安全阀Fall lift safety valve热凝结水排量Hot condensate capacity入口隔离门suction isolating valve塞子Plug三通阀three-way isolating valve三通阀three-way valve三通式Three way type上密封Back seat上密封试验Back seal test渗漏量Leckage升降立式止回阀Vertical lift check valve升降式止回阀Lift check valve适用介质Suitable medium适用温度Suitable temperature手摇油泵（阀）Manual Oil Pumps Valves疏水阀drain valve双金属片式疏水阀Bimetal elements steam trap双口排气球Double Opening Exhaust Valves双联弹簧式安全阀Duplex safety valve双闸板Double gate disc双闸板平板闸阀Double Disc Flat Gate Valves水封闸阀Water Seal Gate Valves水力喷射器(真空泵）Vacuum Pumps伺服阀servovalve填料Packing填料垫Packing seat填料函Stuffing填料式旋塞阀Gland packing plug valve填料箱Stuffing box填料压盖Gland通气阀breather valve通气阀；呼吸器breather通用阀门General valve吐出阀;排出阀discharge valve吐出阀限位器delivery valve guard微启式安全阀Low lift safety valve微阻缓闭止回阀Tiny Drag Slow Shut Check Valves吻合度Percent of contact area蜗轮传动蝶阀Butterfly Valves with Gear Actuator蜗轮传动装置Wormgear actuator屋脊式隔膜阀Weir diaphragm valve无阀泵valveless pump无阀隔膜泵valveless diaphragm pump无阀振动泵valveless vibration pump无负荷漏汽量No-load steam loss无负荷漏汽率Rate of no-load steam loss吸（抽）气阀Aspirating valves吸入阀suction valve吸入阀限位器suction valve guard先导式安全阀Pilot operated safety valve先导式液压阀Pilot—operated reducing valve相对静偏差Relative static characteristics derivation相对流量特性偏差Relative flow characteristics derivation相对压力特性偏差Relative pressure characteristics derivation 销轴Hinge pin楔式闸阀Wedge gate valve斜板式蝶阀Indined disc butterfly valve泄料(放空,排污）阀Blowdown valves泄压阀Decompression valves泄压阀pressure release valve泄压阀;安全阀relief valve卸荷式减压阀Balanced reducing valve型号Type Model旋启多瓣式止回阀Multi—disc swing foot valve旋启式止回阀Swing check valve旋启双瓣式底阀Double disc swing foot valve旋塞阀Cock旋塞阀plug valve压力（増压）阀Pressure valve压力调节阀；压力控制阀pressure controlled valve压力特性Pressure characteristics压力特性偏差Pressure characteristics derivation压力增长系数Pressure increasing ratio摇杆Arm液动装置Hydraulic actuator液化气管件LPG Pipe Fitting液下泵Under Water Pumps液压执行器hydraulic actuator仪表针形截止阀Meter Needle Type Globe Valves 溢流阀overflow valve翼形阀；锥形阀wing valve油封式旋塞阀Lubricated plug valve有阀翼板double acting wing有阀翼板wing with valve有负荷漏汽量Load steam loss有负荷漏汽率Rate of load steam loss圆板阀；圆盘阀disc valve圆盘式疏水阀Shemostatic team trap圆柱齿轮传动装置Cylindrical gear actuator圆锥齿轮传动装置Conical gear actuator闸板Wedge disc闸板式隔膜阀Wedge diaphragm valve闸阀gate valve闸阀sluice valve针形阀Pintle valve ；Needle valve真空破坏阀vacuum breaker valve蒸汽疏水阀Automatic steam trap Trap整定压力Set pressure正向作用式减压阀Direct acting reducing valve 支架Yoke直接载荷式安全阀Direct loaded safety valve直接作用式减压阀Direct—acting reducing valve 直流式Y-globe type直流式截止阀Oblique Stop Valve直通单向阀inline check valve直通单向阀straightway check valve直通阀Throughway Valve止回阀Check Valve止回阀；回流阀reflux valve制动阀Brake valves中压阀门Middle pressure valve钟形浮子式疏水阀Inverted bucket steam trap钟形罩Inverted bucket轴套Axis Guide主阀Main valve主要外形尺寸Prime out—form dimensions主要性能参数Specifeca tion speeification注液漏斗阀Priming Tundish Valve柱塞阀Plunger valve柱塞截止阀Plunger Globe Valve柱塞型摆动阀rocking plunger valve撞击手轮Impact handwheel锥形阀；翼形阀conical valve自动循环阀Automatic Recirculation Valve组合阀Combination valves最大过冷度Maximum subcoold temperature最大流量Maximum flow rate最大压差Maximum differential pressure最低工作压力Minimum operating pressure最高背压率Maximum rate of back pressure最高工作背压Maximum operating back pressure最高工作温度Maximum operating temperature最高工作压力Maximum operating pressure最高排水温度Maximum temperature at discharging 最高允许温度Maximum allwable temperature最高允许压力Maximum allowable pressure最小过冷度Minimum subcooled temperature最小压差Minimum differntial pressure。
气动薄膜调节阀一、总体介绍ZVP、ZXP系列气动薄膜精小型单座调节阀采用顶导向结构, 配用多弹簧薄膜执行机构。
具有结构紧凑、重量轻、动作灵敏、流体通道呈～流线型、压降损失少、阀容量大、流量特性精确、拆装方便等优点。
广泛应用于精确控制气体、液体、蒸汽等介质, 工艺参数如压力、流量、温度、液位保持在给定值。
特别适用于允许泄漏量小阀前后压差不大的工作场合。
本系列产品的公称压力等级有PN10、 16、 25、 40, 口径范围DN15～150。
适用流体温度为-25C。
～+180C。
泄漏量标准为Ⅳ级。
流量特性为线性和等百分比的组合。
设计单位及用户可根据具体工况进行选择。
本厂产品可与国产ZMAP、 ZMBP、 ZJHP(精小型)、 ZHAP、 ZHBP、 VP、 HTS、ZHTS、 HLS、 HTS型等单座调节阀等效。
单座调节阀在自控阀中代号为P。
二、工作原理图1 气动薄膜阀工作原理简图图1表示电－气阀门定位器的工作原理。
气动薄膜阀正常工作时, 电-气阀门定位器从控制器或控制系统中接受4～20mA电流信号, 转换成空气压力, 压力输入气动薄膜执行机构的气室中产生推力, 经过阀杆件推动阀芯, 产生相对位移, 阀芯的位移变化使阀的流通面积变化, 从而达到调节介质流量之目的。
三、基本结构1、膜盖2、膜片3、弹簧4、推杆5、支架图2 气动薄膜阀基本结构图四、主要技术参数表1 主要技术参数公称通径DN(mm) 15 25 40 50额定行程L( mm) 280 400膜片有效面积Ae(cm2) 20公称通径DN(mm) 65 80 100 125 150额定行程L( mm) 20～40 40膜片有效面积Ae(cm2) 600 1000公称压力PN (Bar) 10、 16、 25、 40固有流量特性等百分比调节和线性调节特性的组合固有可调比(R) 50弹簧(信号)范围Pr(KPa) 20～100、 40～200、 80～240气源压力Ps(MPa) 0.14～0.4五、主要零件材料表2 主要零件材料六、型号编制说明具体型号命名规则为ZaPb-cd-e-fa—阀体类型: V或X,分别代表阀体为二通阀或三通阀b—原产阀体系列号, 如31、 41、 45、 52等c—压力等级(MPa): 10、 16、 25、 40d—作用方式:K为气开式, B为气关式D15、 25、 40、 50等e—公称通径Nf—流量系数(水介质)例如: ZVP31-10K-DN65-5具体指代公称压力等级为PN10,阀体采用SIEMENS的m h的气开型气动薄膜二通调节阀。

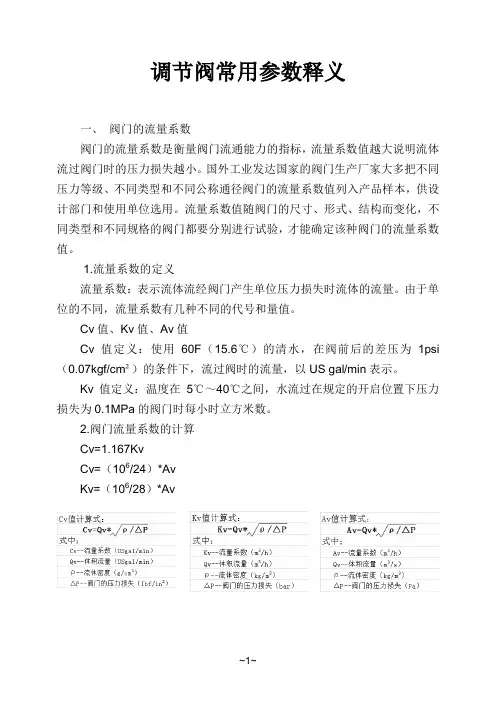

调节阀常用参数释义一、阀门的流量系数阀门的流量系数是衡量阀门流通能力的指标，流量系数值越大说明流体流过阀门时的压力损失越小。
国外工业发达国家的阀门生产厂家大多把不同压力等级、不同类型和不同公称通径阀门的流量系数值列入产品样本，供设计部门和使用单位选用。
流量系数值随阀门的尺寸、形式、结构而变化，不同类型和不同规格的阀门都要分别进行试验，才能确定该种阀门的流量系数值。
1.流量系数的定义流量系数：表示流体流经阀门产生单位压力损失时流体的流量。
由于单位的不同，流量系数有几种不同的代号和量值。
Cv值、Kv值、Av值Cv值定义：使用60F（15.6℃）的清水，在阀前后的差压为1psi （0.07kgf/cm²）的条件下，流过阀时的流量，以US gal/min表示。
Kv值定义：温度在5℃～40℃之间，水流过在规定的开启位置下压力损失为0.1MPa的阀门时每小时立方米数。
2.阀门流量系数的计算Cv=1.167KvCv=（106/24）*AvKv=（106/28）*Av3.流量系数的典型数据及影响流量系数的因素公称通径DN50mm的各种型式阀门的典型流量系数见表。
流量系数值随阀门的尺寸、形式、结构而变。
对于同样结构的阀门，流体流过阀门的方向不同。
流量系数值也有变化。
这种变化一般是由于压力恢复不同而造成的。
如果流体流过阀门使阀瓣趋于打开，那么阀瓣和阀体形成的环形扩散通道能使压力有所恢复。
当流体流过阀门使阀瓣趋于关闭时，阀座对压力恢复的影响很大。
当阀瓣开度为&#+ 或更小时，阀瓣下游的扩散角使得在两个流动方向上都会有一些压力恢复。
对于高压角阀，当流体的流动使阀门趋于关闭时流量系数较高，因为此时阀座的扩散锥体使流体的压力恢复。
阀门内部的几何形状不同，流量系数的曲线也不同。
阀门内部压力恢复的机理，与文丘里管的收缩和扩散造成的压力损失机理一样。
当阀门内部的压降相同时，若阀门内压可以恢复，流量系数值就会较大，流量也就会大些。
