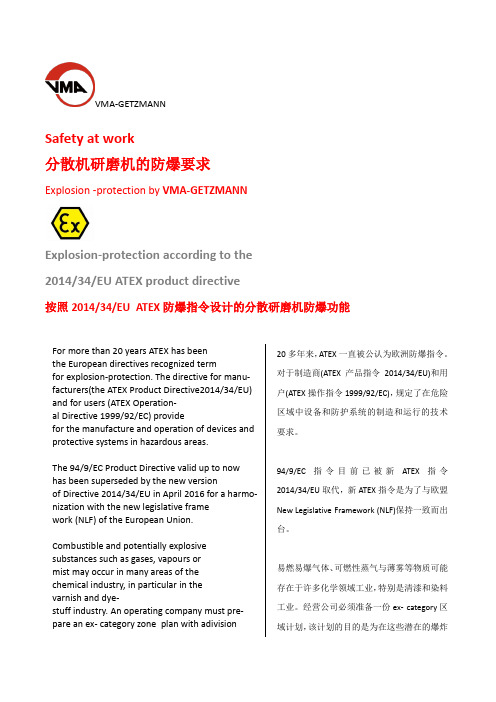

VMA-GETZMANNSafety at work分散机研磨机的防爆要求Explosion -protection by VMA-GETZMANNExplosion-protection according to the2014/34/EU ATEX product directive按照2014/34/EU ATEX 防爆指令设计的分散研磨机防爆功能For more than 20 years ATEX has beenthe European directives recognized termfor explosion-protection. The directive for manu-facturers(the ATEX Product Directive2014/34/EU) and for users (ATEX Operation-al Directive 1999/92/EC) providefor the manufacture and operation of devices and protective systems in hazardous areas.The 94/9/EC Product Directive valid up to now has been superseded by the new versionof Directive 2014/34/EU in April 2016 for a harmo-nization with the new legislative framework (NLF) of the European Union. Combustible and potentially explosive substances such as gases, vapours ormist may occur in many areas of thechemical industry, in particular in thevarnish and dye-stuff industry. An operating company must pre-pare an ex- category zone plan with adivision 20多年来，ATEX一直被公认为欧洲防爆指令。

欧洲指令ATEX 工厂条件审查培训资料汇总（一）ATEX94/9/EC指令欧洲议会和欧盟理事会关于各成员国对用于潜在爆炸性环境的设备和防护系统的法律趋于一致的94/9/EC指令欧洲联盟的欧洲议会和理事会：考虑到成立欧洲共同体的《条约》，特别是其中第100a条，考虑到委员会的建议，考虑到经济和社会委员会的意见，按照成立欧洲共同体《条约》第189b条提到的程序开展工作，鉴于各成员国的责任是在其领土上保护人们的安全和健康，以及在一定情况下保护家畜的健康和财产安全，特别是要格外保护工人免遭潜在爆炸性环境使用的设备和系统所产生的危害；鉴于各成员国的强制性规定决定了拟用于潜在爆炸性环境的防护设备和系统所能达到的安全水平；鉴于这些规定一般是对可用于潜在爆炸性环境的设备的设计和结构有影响的电气的和非电气的规范；鉴于某一成员国与其他成员国此类设备满足要求的程度和检验程序有所不同；鉴于很可能由于这些不同而给欧共体内的贸易设置壁垒；鉴于国家立法的协调是消除这些壁垒、实现自由贸易的唯一途径；鉴于单个成员国不能完满地达到这一目标；鉴于本指令仅只规定了对适用于本指令的设备的自由流通至关重要的各项要求；鉴于旨在消除贸易技术壁垒的各项法规要遵循1985年5月7日理事会决议规定的新方法，新方法要求在不降低各成员国现行的、正当的防护水平情况下，对安全方面的基本要求和其他社会性要求给出一个定义；鉴于该决议要求将大量产品纳入一项单一指令以避免频繁修改和指令的泛滥；鉴于使各成员国为用于潜在爆炸性环境的电气设备的法律趋于一致的各项现行指令，通过与本问题有关设备的结构相关联的措施，在防止爆炸方面已取得了积极进展，并且这些现行指令已有助于消除这一领域内的贸易壁垒；鉴于平行而论，在一部全面完整的条文中，特别应该有针对此类设备引起的潜在危害的防护措施，因而有必要对各项现行指令进行修订和扩充；这特别意味着，旨在担保对用户和第三方提供有效防护的各项措施，在设计和制造阶段就必须已被关注；鉴于不论对矿用设备还是对地面设备而言，发生的危害形式、防护措施和测试方法，即使不完全相同，通常也是相似的；鉴于将两类防护设备和系统纳入一个单一指令，因此也是绝对必要的；鉴于上述两类设备在大量工商业部门得以使用且具有可观的经济重要性；鉴于为保证防护设备和系统的安全性，遵守基本的安全和健康要求是必不可少的；鉴于这些要求已细分为防护设备和系统必须满足的总体要求和附加要求；特别是鉴于附加要求旨在重视固有的或潜在的危害；鉴于防护设备和系统因而至少体现这些要求之一，这对于它们的正常功能或用于指定用途是必需的；鉴于指定用途的概念对于防护设备和系统的防爆性是极其重要的；鉴于制造商提供充分的资料是基本的；鉴于对所述设备而言，用具体清晰的标志指明其在潜在爆炸性环境下的应用也是必要的；鉴于在欧共体成立《条约》118a条的基础上，意在为潜在爆炸性环境下的操作拟出一项指令；鉴于该附加指令将特别针对由指定用途和/或安装形式和方法而衍生出的爆炸危害；鉴于即使设备的安全性可以得到保证，遵守基本的健康和安全要求也是绝对必要的；鉴于在那些要求的执行中将不得不做出判断，使之同时考虑到生产中达到的技术和压倒一切的技术和经济要求；鉴于本指令因此只规定了基本要求；鉴于为有助于证实符合基本要求的任务，经过协调的欧洲标准是必需的，尤其是要进一步考虑与设备的设计、制造和测试有关的非电气方面的防爆标准，某一产品符合这些标准即可被推定满足了有关基本要求；鉴于协调的欧洲标准系由非官方机构制订的，必须保持其非强制性地位；鉴于为此目的，根据1984年11月13日委员会与欧洲标准化委员会（CEN）和欧洲电工标准化委员会（CENELEC）之间签署的相互合作的总导则，这两个机构已被认可作为有权制订协调协标准的主管机构；鉴于就本指令的应用而言，一项协调标准是由两机构之一、或两者共同按照1983年3月28日的83/189/EEC理事会指令规定的管理技术标准和法规的信息传送程序，并遵守上述的总导则正式制定的技术规范（欧洲标准或协调文件）；鉴于立法框架应予改进，以确保雇主和工人们在标准化的进程中做出有效和适宜的贡献；鉴于这项工作当在执行本指令之时完成；鉴于考虑到用于潜在爆炸性环境的这些设备所包含的危险特性，建立一些程序用以评定对本指令基本要求的符合性是必要的；鉴于这些程序的设计必须以设备本身固有的危险程度为依据和/或针对防护系统必须予以防护的直接环境；鉴于每类设备的合格性，因此，必须由一恰当程序或由数个等效程序择一予以补充；鉴于采用的程序完全符合1993年7月22日93/465/EEC理事会决定中所述的用于技术协调指令程序不同阶段合格评定的各种模式；鉴于理事会已规定由制造商或其在欧共体内的授权代表加附CE标志；鉴于该标志明示一产品符合适用于它的欧共体法律所规定的全部基本要求和评定程序；鉴于当设备和防护系统对人员安全表现出特别的危险，以及在一定情况下对家畜和财产的安全表现出特别的危害时，各成员国可按照《条约》第100a条规定，采取临时性措施，以限制或禁止这些设备及防护系统投放市场和使用，只要这些措施符合欧共体的管理程序，这种做法便是恰当的；鉴于作为本指令组成部分的任一决定的接受者们必须知晓做出决定的各种理由，并有给予他们的公开申诉方式；鉴于理事会1985年12月18日就用于潜在爆炸性环境的电气设备通过的框架指令（76/117/EEC）和1982年2月15日通过的涉及在易受沼气影响的矿井中潜在爆炸性环境使用设备的指令（82/130/EEC）；鉴于自协调工作开始，人们便一直仔细考虑将作为这些指令基础的非强制性和部分的协调转化为全面的协调；鉴于本指令完全包括了上述各项指令的范围；鉴于必须因而废除这些指令；鉴于内部市场组合成一片没有内部边界的区域，在此区域中，商品、人员；服务和资本的自由流通得以保证；鉴于为使按照本指令通过之日仍然有效的国家法规制造的设备能够投放市场并进入服务，提供一项过渡性安排是必要的。

防爆ATEX认证简介-欧盟CE的防爆指令ATEX是法语“Atmospheres EXplosible”的缩写，意思是“爆炸性环境”。

从2003年7月1日起，所有进入欧洲经济区(EEA)并用于爆炸性环境中的设备和保护系统，必须符合ATEX(94/9/ EC)指令。

防爆电气设备是一种安全电气设备，尤其在石油、海洋石油、石油化工、化学工业、制药和军工等行业的危险化学品作业场所的具有爆炸危险的环境中使用。

1994年3月23日，欧洲委员会采用了“潜在爆炸环境用的设备及保护系统”（94/9/EC）这个指令覆盖了矿井及非矿井设备，与以前的指令不同，它包括了机械设备及电气设备，其中包括各种防爆电气设备、保护系统、安全仪器、控制仪器和调节装置等，把潜在爆炸危险环境扩展到空气中的粉尘、可燃性气体、可燃性蒸气与薄雾。

它规定了拟用于潜在爆炸性环境设备的应用技术要求、基本健康、安全要求和设备在其使用范围内投放到欧洲市场前必须采用的合格评定程序。

ATEX防爆认证的范围和分类该指令适用的设备范围特别大，大致上包括固定的海上平台、石化厂、面粉磨坊以及其他可能存在潜在爆炸性环境的场所适用的设备。

概括的说，应用该指令有三个前提条件：1. 设备一定自身带有点燃源；2. 预期被用于潜在爆炸性环境（空气混合物）；并且3. 是正常的大气条件下。

该指令也适用于安全使用必需的部件，以及在适用范围内直接对设备安全使用有利的安全装置。

这些装置可以在潜在爆炸性环境外部。

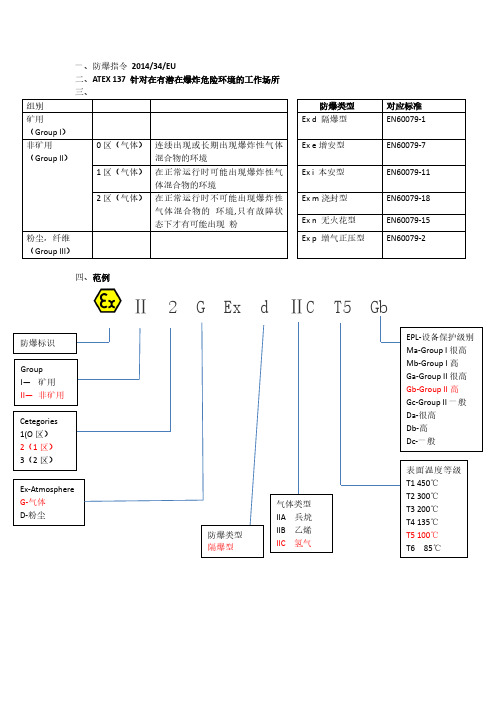

ATEX(94/9/EC)指令根据安装设备的保护水平将设备划分为三个类别：1. 1类（Category 1）—非常高的防护水平2. 2类（Category 2）—高防护水平3. 3类（Category 3）—正常的防护水平如果设备被用于0、1或2区，则类目数字后跟一字母G（气体、蒸气／薄雾）如果设备被用于20、21或22区，则类目数字后跟一字母D（粉尘）ATEX与IECEx的区别ATEX是欧盟强制性认证，所有在欧盟市场流通的防爆设备都必须通过ATEX防爆指令2014/34/EU认证，才可以销售。

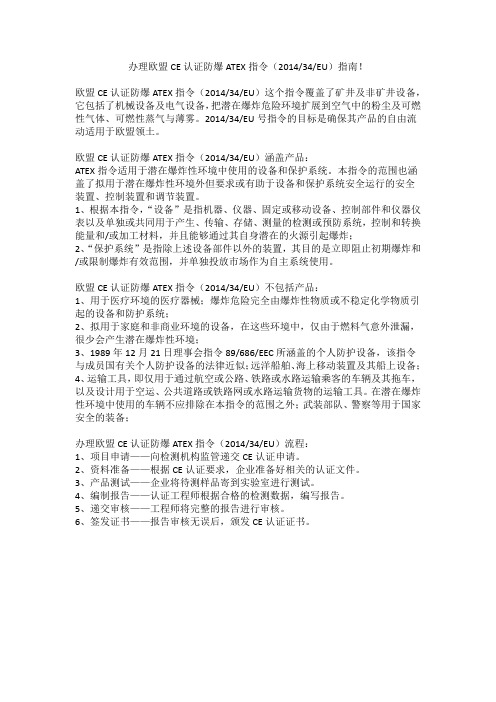

办理欧盟CE认证防爆ATEX指令（2014/34/EU）指南！欧盟CE认证防爆ATEX指令（2014/34/EU）这个指令覆盖了矿井及非矿井设备，它包括了机械设备及电气设备，把潜在爆炸危险环境扩展到空气中的粉尘及可燃性气体、可燃性蒸气与薄雾。

2014/34/EU号指令的目标是确保其产品的自由流动适用于欧盟领土。

欧盟CE认证防爆ATEX指令（2014/34/EU）涵盖产品：ATEX指令适用于潜在爆炸性环境中使用的设备和保护系统。

本指令的范围也涵盖了拟用于潜在爆炸性环境外但要求或有助于设备和保护系统安全运行的安全装置、控制装置和调节装置。

1、根据本指令，“设备”是指机器、仪器、固定或移动设备、控制部件和仪器仪表以及单独或共同用于产生、传输、存储、测量的检测或预防系统，控制和转换能量和/或加工材料，并且能够通过其自身潜在的火源引起爆炸；2、“保护系统”是指除上述设备部件以外的装置，其目的是立即阻止初期爆炸和/或限制爆炸有效范围，并单独投放市场作为自主系统使用。

欧盟CE认证防爆ATEX指令（2014/34/EU）不包括产品：1、用于医疗环境的医疗器械；爆炸危险完全由爆炸性物质或不稳定化学物质引起的设备和防护系统；2、拟用于家庭和非商业环境的设备，在这些环境中，仅由于燃料气意外泄漏，很少会产生潜在爆炸性环境；3、1989年12月21日理事会指令89/686/EEC所涵盖的个人防护设备，该指令与成员国有关个人防护设备的法律近似；远洋船舶、海上移动装置及其船上设备；4、运输工具，即仅用于通过航空或公路、铁路或水路运输乘客的车辆及其拖车，以及设计用于空运、公共道路或铁路网或水路运输货物的运输工具。

在潜在爆炸性环境中使用的车辆不应排除在本指令的范围之外；武装部队、警察等用于国家安全的装备；办理欧盟CE认证防爆ATEX指令（2014/34/EU）流程：1、项目申请——向检测机构监管递交CE认证申请。

2、资料准备——根据CE认证要求，企业准备好相关的认证文件。
