天正建筑图层颜色

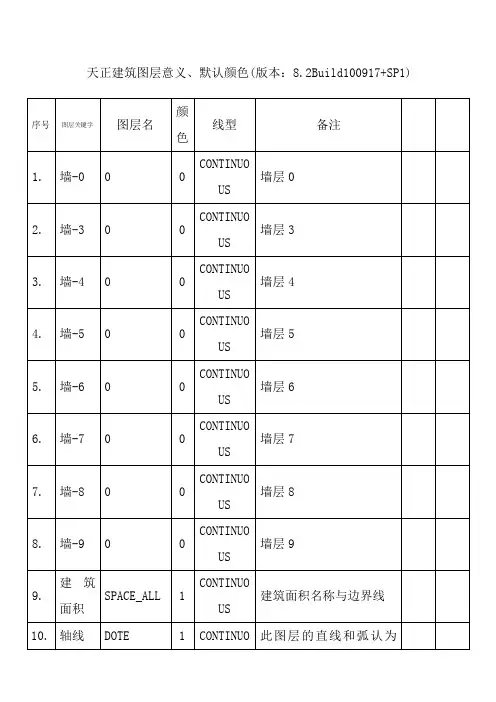

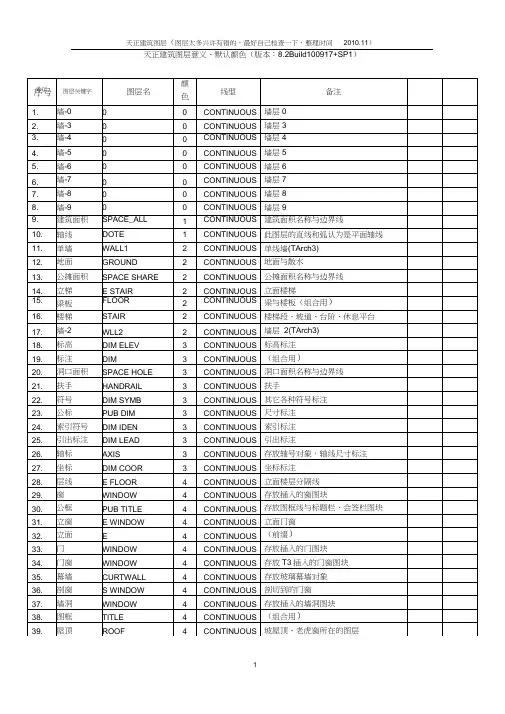

天正建筑图层英文字母各代表什么图层图层图层名颜色线型内容轴线 DOTE 1 CONTINUOUS 此图层的直线和弧认为是平面轴线阳台 BALCONY 6 CONTINUOUS 存放阳台对象，利用阳台做的雨蓬柱子 COLUMN 9 CONTINUOUS 存放各种材质构成的柱子对象石柱 COLUMN 9 CONTINUOUS 存放石材构成的柱子对象砖柱 COLUMN 9 CONTINUOUS 存放砖砌筑成的柱子对象钢柱 COLUMN 9 CONTINUOUS 存放钢材构成的柱子对象砼柱 COLUMN 9 CONTINUOUS 存放砼材料构成的柱子对象门 WINDOW 4 CONTINUOUS 存放插入的门图块窗 WINDOW 4 CONTINUOUS 存放插入的窗图块墙洞 WINDOW 4 CONTINUOUS 存放插入的墙洞图块轴标 AXIS 3 CONTINUOUS 存放轴号对象，轴线尺寸标注地面 GROUND 2 CONTINUOUS 地面与散水墙线 WALL 9 CONTINUOUS 存放各种材质的墙对象石墙 WALL 9 CONTINUOUS 存放石材砌筑的墙对象砖墙 WALL 9 CONTINUOUS 存放砖砌筑的墙对象充墙 WALL 9 CONTINUOUS 存放各种材质的填充墙对象砼墙 WALL 9 CONTINUOUS 存放砼材料构成的墙对象幕墙 CURTWALL 4 CONTINUOUS 存放玻璃幕墙对象隔墙 WALL-MOVE 6 CONTINUOUS 存放轻质材料的墙对象矮墙 WALL-PARAPET 6 CONTINUOUS 用于表示檐口、女儿墙、侧墩等半高墙对象梁 BEAM 9 CONTINUOUS 转结构条件图时使用面层 SURFACE 6 CONTINUOUS 粉刷层、保温层、详图饰面层屋顶 ROOF 4 CONTINUOUS 坡屋顶、老虎窗所在的图层楼梯 STAIR 2 CONTINUOUS 楼梯段、坡道、台阶、休息平台洁具 LVTRY 6 CONTINUOUS 洁具卫生隔断 LATRINE 6 CONTINUOUS 卫生隔断栏杆 RAIL 163 CONTINUOUS 栏杆扶手 HANDRAIL 3 CONTINUOUS 扶手房间 SPACE 7 CONTINUOUS 房间名称、编号与边界线套内面积 SPACE_HOUSE 5 CONTINUOUS 套内面积名称与边界线建筑面积 SPACE_ALL 1 CONTINUOUS 建筑面积名称与边界线公摊面积 SPACE_SHARE 2 CONTINUOUS 公摊面积名称与边界线洞口面积 SPACE_HOLE 3 CONTINUOUS 洞口面积名称与边界线阳台面积 SPACE_BALCONY 6 CONTINUOUS 套内阳台面积名称与边界线房间填充 SPACE_HATCH 8 CONTINUOUS 房间面积填充图案相机 CAMERA 6 CONTINUOUS 相机轴文 AXIS_TEXT 7 CONTINUOUS 轴号对象的轴号文字公标 PUB_DIM 3 CONTINUOUS 尺寸标注标高 DIM_ELEV 3 CONTINUOUS 标高标注坐标 DIM_COOR 3 CONTINUOUS 坐标标注索引符号 DIM_IDEN 3 CONTINUOUS 索引标注引出标注 DIM_LEAD 3 CONTINUOUS 引出标注符号 DIM_SYMB 3 CONTINUOUS 其它各种符号标注公文 PUB_TEXT 7 CONTINUOUS 各种说明文字表格 PUB_TAB 7 CONTINUOUS 表格公窗 PUB_WINDW 7 CONTINUOUS 图纸空间的布局视口公填 PUB_HATCH 8 CONTINUOUS 填充图案公框 PUB_TITLE 4 CONTINUOUS 存放图框线与标题栏、会签栏图块窗名 WINDOW_TEXT 7 CONTINUOUS 门窗编号剖线 S_WALL 9 CONTINUOUS 剖切到的墙线剖窗 S_WINDOW 4 CONTINUOUS 剖切到的门窗剖块 S_BLOCK 7 CONTINUOUS剖梯 S_STAIR 9 CONTINUOUS 剖切到的楼梯层线 E_FLOOR 4 CONTINUOUS 立面楼层分隔线立线 E_LINE 7 CONTINUOUS 立面可见线立窗 E_WINDOW 4 CONTINUOUS 立面门窗立块 E_BLOCK 7 CONTINUOUS立梯 E_STAIR 2 CONTINUOUS 立面楼梯建筑 TG_SUNBUILD 41 CONTINUOUS 日照分析建筑模型日窗 TG_SUNVIS 6 CONTINUOUS 日照分析的窗模型日影 TG_SUNTESTE 7 CONTINUOUS 日照分析的输出结果基线 BASE 5 CONTINUOUS 基线单墙 WALL1 2 CONTINUOUS 单线墙(TArch3)墙-1 WLL1 7 CONTINUOUS 墙层1(TArch3)_墙-2 WLL2 2 CONTINUOUS 墙层2(TArch3)_墙-3 0 0 CONTINUOUS 墙层3墙-4 0 0 CONTINUOUS 墙层4墙-5 0 0 CONTINUOUS 墙层5墙-6 0 0 CONTINUOUS 墙层6墙-7 0 0 CONTINUOUS 墙层7墙-8 0 0 CONTINUOUS 墙层8墙-9 0 0 CONTINUOUS 墙层9墙-0 0 0 CONTINUOUS 墙层0门窗 WINDOW 4 CONTINUOUS 存放T3插入的门窗图块梁板 FLOOR 2 CONTINUOUS 梁与楼板(组合用)檐口 EAVES 7 CONTINUOUS 屋面檐口(组合用)玻璃 GLASS 6 CONTINUOUS 门窗玻璃(组合用)图框 TITLE 4 CONTINUOUS (组合用)标注 DIM 3 CONTINUOUS (组合用)制图时分清各层便于调整图纸，节省时间。

提问者采纳图层图层名颜色线型内容轴线DOTE 1 CONTINUOUS 此图层的直线和弧认为是平面轴线阳台BALCONY 6 CONTINUOUS 存放阳台对象，利用阳台做的雨蓬柱子COLUMN 9 CONTINUOUS 存放各种材质构成的柱子对象石柱COLUMN 9 CONTINUOUS 存放石材构成的柱子对象砖柱COLUMN 9 CONTINUOUS 存放砖砌筑成的柱子对象钢柱COLUMN 9 CONTINUOUS 存放钢材构成的柱子对象砼柱COLUMN 9 CONTINUOUS 存放砼材料构成的柱子对象门WINDOW 4 CONTINUOUS 存放插入的门图块窗WINDOW 4 CONTINUOUS 存放插入的窗图块墙洞WINDOW 4 CONTINUOUS 存放插入的墙洞图块轴标AXIS 3 CONTINUOUS 存放轴号对象，轴线尺寸标注地面GROUND 2 CONTINUOUS 地面与散水墙线WALL 9 CONTINUOUS 存放各种材质的墙对象石墙WALL 9 CONTINUOUS 存放石材砌筑的墙对象砖墙WALL 9 CONTINUOUS 存放砖砌筑的墙对象充墙WALL 9 CONTINUOUS 存放各种材质的填充墙对象砼墙WALL 9 CONTINUOUS 存放砼材料构成的墙对象幕墙CURTWALL 4 CONTINUOUS 存放玻璃幕墙对象隔墙WALL-MOVE 6 CONTINUOUS 存放轻质材料的墙对象矮墙WALL-PARAPET 6 CONTINUOUS 用于表示檐口、女儿墙、侧墩等半高墙对象梁BEAM 9 CONTINUOUS 转结构条件图时使用面层SURFACE 6 CONTINUOUS 粉刷层、保温层、详图饰面层屋顶ROOF 4 CONTINUOUS 坡屋顶、老虎窗所在的图层楼梯STAIR 2 CONTINUOUS 楼梯段、坡道、台阶、休息平台洁具LVTRY 6 CONTINUOUS 洁具卫生隔断LATRINE 6 CONTINUOUS 卫生隔断栏杆RAIL 163 CONTINUOUS 栏杆扶手HANDRAIL 3 CONTINUOUS 扶手房间SPACE 7 CONTINUOUS 房间名称、编号与边界线套内面积SPACE_HOUSE 5 CONTINUOUS 套内面积名称与边界线建筑面积SPACE_ALL 1 CONTINUOUS 建筑面积名称与边界线公摊面积SPACE_SHARE 2 CONTINUOUS 公摊面积名称与边界线洞口面积SPACE_HOLE 3 CONTINUOUS 洞口面积名称与边界线阳台面积SPACE_BALCONY 6 CONTINUOUS 套内阳台面积名称与边界线房间填充SPACE_HATCH 8 CONTINUOUS 房间面积填充图案相机CAMERA 6 CONTINUOUS 相机轴文AXIS_TEXT 7 CONTINUOUS 轴号对象的轴号文字公标PUB_DIM 3 CONTINUOUS 尺寸标注标高DIM_ELEV 3 CONTINUOUS 标高标注坐标DIM_COOR 3 CONTINUOUS 坐标标注索引符号DIM_IDEN 3 CONTINUOUS 索引标注引出标注DIM_LEAD 3 CONTINUOUS 引出标注符号DIM_SYMB 3 CONTINUOUS 其它各种符号标注公文PUB_TEXT 7 CONTINUOUS 各种说明文字表格PUB_TAB 7 CONTINUOUS 表格公窗PUB_WINDW 7 CONTINUOUS 图纸空间的布局视口公填PUB_HATCH 8 CONTINUOUS 填充图案公框PUB_TITLE 4 CONTINUOUS 存放图框线与标题栏、会签栏图块窗名WINDOW_TEXT 7 CONTINUOUS 门窗编号剖线S_WALL 9 CONTINUOUS 剖切到的墙线剖窗S_WINDOW 4 CONTINUOUS 剖切到的门窗剖块S_BLOCK 7 CONTINUOUS剖梯S_STAIR 9 CONTINUOUS 剖切到的楼梯层线E_FLOOR 4 CONTINUOUS 立面楼层分隔线立线E_LINE 7 CONTINUOUS 立面可见线立窗E_WINDOW 4 CONTINUOUS 立面门窗立块E_BLOCK 7 CONTINUOUS立梯E_STAIR 2 CONTINUOUS 立面楼梯建筑TG_SUNBUILD 41 CONTINUOUS 日照分析建筑模型日窗TG_SUNVIS 6 CONTINUOUS 日照分析的窗模型日影TG_SUNTESTE 7 CONTINUOUS 日照分析的输出结果基线BASE 5 CONTINUOUS 基线单墙WALL1 2 CONTINUOUS 单线墙(TArch3)墙-1 WLL1 7 CONTINUOUS 墙层1(TArch3)_墙-2 WLL2 2 CONTINUOUS 墙层2(TArch3)_墙-3 0 0 CONTINUOUS 墙层3墙-4 0 0 CONTINUOUS 墙层4墙-5 0 0 CONTINUOUS 墙层5墙-6 0 0 CONTINUOUS 墙层6墙-7 0 0 CONTINUOUS 墙层7墙-8 0 0 CONTINUOUS 墙层8墙-9 0 0 CONTINUOUS 墙层9墙-0 0 0 CONTINUOUS 墙层0门窗WINDOW 4 CONTINUOUS 存放T3插入的门窗图块梁板FLOOR 2 CONTINUOUS 梁与楼板(组合用)檐口EAVES 7 CONTINUOUS 屋面檐口(组合用)玻璃GLASS 6 CONTINUOUS 门窗玻璃(组合用)图框TITLE 4 CONTINUOUS (组合用)标注DIM 3 CONTINUOUS (组合用)。
