天正建筑图层英文字母各代表什么图层

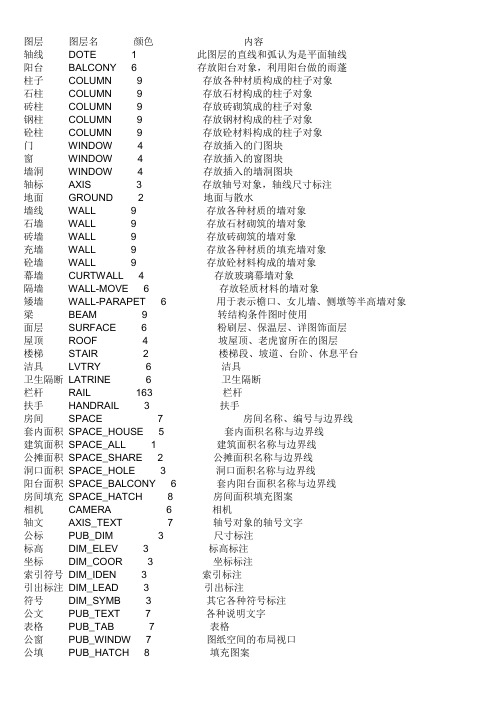

图层图层名颜色线型内容
轴线DOTE 1 CONTINUOUS 此图层的直线和弧认为是平面轴线
阳台BALCONY 6 CONTINUOUS 存放阳台对象，利用阳台做的雨蓬
柱子COLUMN 9 CONTINUOUS 存放各种材质构成的柱子对象
石柱COLUMN 9 CONTINUOUS 存放石材构成的柱子对象
砖柱COLUMN 9 CONTINUOUS 存放砖砌筑成的柱子对象
钢柱COLUMN 9 CONTINUOUS 存放钢材构成的柱子对象
砼柱COLUMN 9 CONTINUOUS 存放砼材料构成的柱子对象
门WINDOW 4 CONTINUOUS 存放插入的门图块
窗WINDOW 4 CONTINUOUS 存放插入的窗图块
墙洞WINDOW 4 CONTINUOUS 存放插入的墙洞图块
轴标AXIS 3 CONTINUOUS 存放轴号对象，轴线尺寸标注
地面GROUND 2 CONTINUOUS 地面与散水
墙线WALL 9 CONTINUOUS 存放各种材质的墙对象
石墙WALL 9 CONTINUOUS 存放石材砌筑的墙对象
砖墙WALL 9 CONTINUOUS 存放砖砌筑的墙对象
充墙WALL 9 CONTINUOUS 存放各种材质的填充墙对象
砼墙WALL 9 CONTINUOUS 存放砼材料构成的墙对象
幕墙CURTWALL 4 CONTINUOUS 存放玻璃幕墙对象
隔墙WALL-MOVE 6 CONTINUOUS 存放轻质材料的墙对象
矮墙WALL-PARAPET 6 CONTINUOUS 用于表示檐口、女儿墙、侧墩等半高墙对象
梁BEAM 9 CONTINUOUS 转结构条件图时使用
面层SURFACE 6 CONTINUOUS 粉刷层、保温层、详图饰面层
屋顶ROOF 4 CONTINUOUS 坡屋顶、老虎窗所在的图层
楼梯STAIR 2 CONTINUOUS 楼梯段、坡道、台阶、休息平台
洁具LVTRY 6 CONTINUOUS 洁具
卫生隔断LATRINE 6 CONTINUOUS 卫生隔断
栏杆RAIL 163 CONTINUOUS 栏杆
扶手HANDRAIL 3 CONTINUOUS 扶手
房间SPACE 7 CONTINUOUS 房间名称、编号与边界线
套内面积SPACE_HOUSE 5 CONTINUOUS 套内面积名称与边界线
建筑面积SPACE_ALL 1 CONTINUOUS 建筑面积名称与边界线
公摊面积SPACE_SHARE 2 CONTINUOUS 公摊面积名称与边界线
洞口面积SPACE_HOLE 3 CONTINUOUS 洞口面积名称与边界线
阳台面积SPACE_BALCONY 6 CONTINUOUS 套内阳台面积名称与边界线
房间填充SPACE_HATCH 8 CONTINUOUS 房间面积填充图案
相机CAMERA 6 CONTINUOUS 相机
轴文AXIS_TEXT 7 CONTINUOUS 轴号对象的轴号文字
公标PUB_DIM 3 CONTINUOUS 尺寸标注
标高DIM_ELEV 3 CONTINUOUS 标高标注
坐标DIM_COOR 3 CONTINUOUS 坐标标注
索引符号DIM_IDEN 3 CONTINUOUS 索引标注
引出标注DIM_LEAD 3 CONTINUOUS 引出标注
符号DIM_SYMB 3 CONTINUOUS 其它各种符号标注
公文PUB_TEXT 7 CONTINUOUS 各种说明文字
表格PUB_TAB 7 CONTINUOUS 表格
公窗PUB_WINDW 7 CONTINUOUS 图纸空间的布局视口
公填PUB_HATCH 8 CONTINUOUS 填充图案
公框PUB_TITLE 4 CONTINUOUS 存放图框线与标题栏、会签栏图块窗名WINDOW_TEXT 7 CONTINUOUS 门窗编号
剖线S_WALL 9 CONTINUOUS 剖切到的墙线
剖窗S_WINDOW 4 CONTINUOUS 剖切到的门窗
剖块S_BLOCK 7 CONTINUOUS
剖梯S_STAIR 9 CONTINUOUS 剖切到的楼梯
层线E_FLOOR 4 CONTINUOUS 立面楼层分隔线
立线E_LINE 7 CONTINUOUS 立面可见线
立窗E_WINDOW 4 CONTINUOUS 立面门窗
立块E_BLOCK 7 CONTINUOUS
立梯E_STAIR 2 CONTINUOUS 立面楼梯
建筑TG_SUNBUILD 41 CONTINUOUS 日照分析建筑模型
日窗TG_SUNVIS 6 CONTINUOUS 日照分析的窗模型
日影TG_SUNTESTE 7 CONTINUOUS 日照分析的输出结果
基线BASE 5 CONTINUOUS 基线
单墙WALL1 2 CONTINUOUS 单线墙(TArch3)
墙-1 WLL1 7 CONTINUOUS 墙层1(TArch3)_
墙-2 WLL2 2 CONTINUOUS 墙层2(TArch3)_
墙-3 0 0 CONTINUOUS 墙层3
墙-4 0 0 CONTINUOUS 墙层4
墙-5 0 0 CONTINUOUS 墙层5
墙-6 0 0 CONTINUOUS 墙层6
墙-7 0 0 CONTINUOUS 墙层7
墙-8 0 0 CONTINUOUS 墙层8
墙-9 0 0 CONTINUOUS 墙层9
墙-0 0 0 CONTINUOUS 墙层0
门窗WINDOW 4 CONTINUOUS 存放T3插入的门窗图块
梁板FLOOR 2 CONTINUOUS 梁与楼板(组合用)
檐口EA VES 7 CONTINUOUS 屋面檐口(组合用)
玻璃GLASS 6 CONTINUOUS 门窗玻璃(组合用)
图框TITLE 4 CONTINUOUS (组合用)
标注DIM 3 CONTINUOUS (组合用)
制图时分清各层便于调整图纸，节省时间。
一般制图分层
A.墙体层(WALL)
B.家具层(FURNITURE)
C.填充层
D.窗层(WINDOW)
E.布置层
F.尺寸层(DIM)
G.文字层(TEXT)
H.轴线层(DOTE)
I.轴线标注层(AXIS)
J.分格层
DOTE层就是轴线层。
