This series controller characteristics
Microcomputer control system, the operation is easy, humanization, intelligent, fully functional.
But also according to customer's unique features of the proposed change, to meet customer demand.
Controller can be stored 40 don't product (material), single shaft type 10 section (step) of each product data, biaxial models each product 5 period of winding data (step), can also according to customer requirements to extension.
This series controller with inverter, ac motor, brushless dc motor, brushless dc motor with types of semi-automatic, automatic winding machine (CNC) controller.
High quality machine please placed in ventilated good place, is conducive to work long hours cooling machine.
Please check prior to power supply voltage, be sure to pick up good ground, prevent to get an electric shock.
Are strictly prohibited in the corrosive gas, wet space is engaged in the coiling machine operation, lest cause circuit failure, damage to the machine.
Prohibit any object fall into the machine, easy to cause short circuit.
Any part of the maintenance, can only be conducted by professional maintenance personnel.

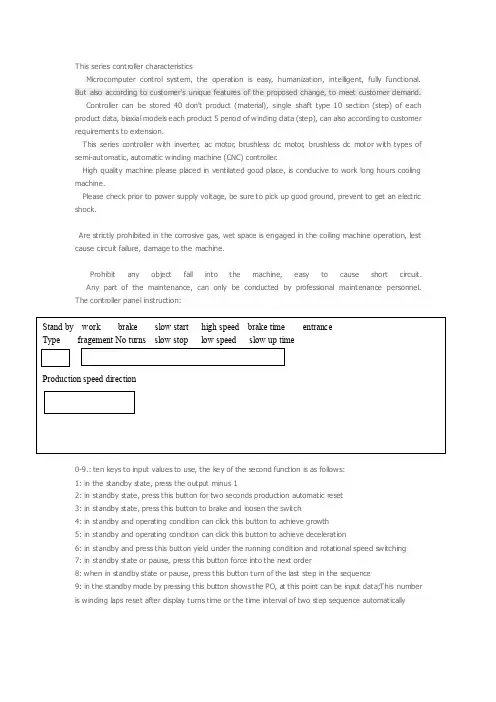

The controller panel instruction:
Stand by work brake slow start high speed brake time entrance
Type fragement No turns slow stop low speed slow up time
Production speed direction
0-9.: ten keys to input values to use, the key of the second function is as follows:
1: in the standby state, press the output minus 1
2: in standby state, press this button for two seconds production automatic reset
3: in standby state, press this button to brake and loosen the switch
4: in standby and operating condition can click this button to achieve growth
5: in standby and operating condition can click this button to achieve deceleration
6: in standby and press this button yield under the running condition and rotational speed switching
7: in standby state or pause, press this button force into the next order
8: when in standby state or pause, press this button turn of the last step in the sequence
9: in the standby mode by pressing this button shows the PO, at this point can be input data;This number is winding laps reset after display turns time or the time interval of two step sequence automatically
Function keys:
Settings: used to enter or exit the data set
Direction: in the condition of setting used to switch motors is reflection
Biaxial machine in standby state, press this button and the two shaft according to the switch
Clear: when setting data into the current data or to the next item data editor
A: under the set state press this button to return on a data editing
Data display lamp:
Type don't: relative to the serial number of a certain type of product, the range is 0 to 40
Dan: for what a certain type will divide the step sequence, range of 1 to 10
Laps: the winding circle Lou, range of 0.0-99999
Slow rev: rev. After the first with slow winding circle number, range of 0.0-25.5 times
Slow stop: before the arrival of the total number of laps, down to a slow circle numerical ahead of time, range of 0.0-25.5 times
Low: rev around slow and stop the slow speed value, range of 0-99%
Braking time: winding is complete brake work time, range of 0.0 to 0.0 seconds
Gently laps: from running at low speed to high speed running laps, the larger the value, accelerated the longer range of 0-99
Status display lamp:
Standby: the light is on standby, dawn said coiling, or in the editor, flash pause
Operation: the light is said is winding, bright for coiling not stop
Brake: the light is working for brakes, not bright for the brake didn't work
Production: the light is currently "production/velocity" display window for production
Speed: the light of current "production/velocity" display window for the rotational speed (RPM) Direction: motor to reverse the light is bright, don't light motor for clockwise rotation
LED digital display:
Dan model panel: display Dan coiling step or edit the order at present.
Information display: displaying the value of all information, input the actual winding turns.
Production/speed display: display complete production or the current winding speed (RPM).
Internal data set
Operation mode selection: in standby mode press the "a" key for more than 2 seconds to press the "set key," Dan is type screen and data display shows seven digits set data, the model of operation set if you want to change, please press "a", let the decimal point lights up, this time from right to left can be divided into the press 1 to 7 numeric keys to modify its Settings, modify complete press "enter" button, can return to the standby state.
Continuous activation: The open is set to 1, 0 closed. In addition to the first step after each step of the same type will automatically start in a row, the setting of time interval for the PO, if PO to 0 or single step sequence and doesn't work.
2. Automatically to the number of turns, is set to 1, start button at any time can run to the set number of turns. This feature is especially suitable for quantity has reached setting and then back in a few laps, and then to start running laps. If use this feature is best slow stop ring number and low speed, so as not to run too fast positioning is not allowed.
3: the standby
4: start point move: this is set to 1 stop button can also start winding: when coiling machine idle, press the
