垫片类别的中英文对照表

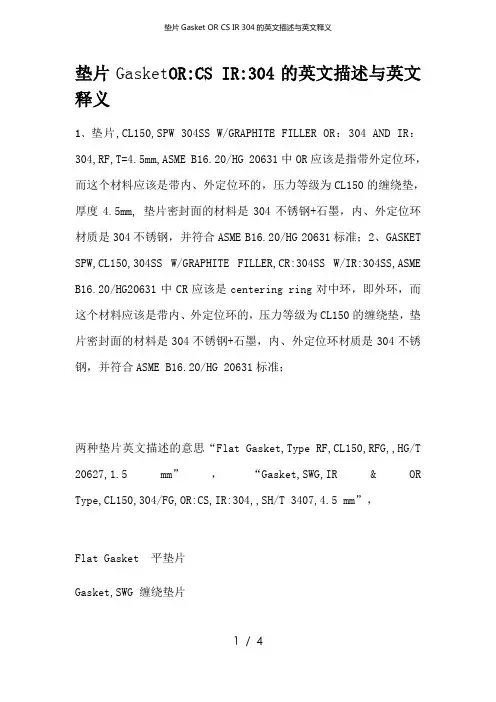

垫片Gasket OR:CS IR:304的英文描述与英文释义1、垫片,CL150,SPW 304SS W/GRAPHITE FILLER OR：304 AND IR：304,RF,T=4.5mm,ASME B16.20/HG 20631中OR应该是指带外定位环，而这个材料应该是带内、外定位环的，压力等级为CL150的缠绕垫，厚度4.5mm, 垫片密封面的材料是304不锈钢+石墨，内、外定位环材质是304不锈钢，并符合ASME B16.20/HG 20631标准；2、GASKET SPW,CL150,304SS W/GRAPHITE FILLER,CR:304SS W/IR:304SS,ASME B16.20/HG20631中CR应该是centering ring对中环，即外环，而这个材料应该是带内、外定位环的，压力等级为CL150的缠绕垫，垫片密封面的材料是304不锈钢+石墨，内、外定位环材质是304不锈钢，并符合ASME B16.20/HG 20631标准；两种垫片英文描述的意思“Flat Gasket,Type RF,CL150,RFG,,HG/T 20627,1.5 mm”，“Gasket,SWG,IR & OR Type,CL150,304/FG,OR:CS,IR:304,,SH/T 3407,4.5 mm”，Flat Gasket 平垫片Gasket,SWG 缠绕垫片SWG是spiral wound gasket的缩写。

RF 密封面突面法兰所配垫片CL150 CLASS150压力等级150304/FG 304不锈钢钢带+石墨填充带OR:CS IR:304 外环材质是碳钢，内环材质304不锈钢RFG Reinforced Flexible Graphite 增强柔性石墨垫“Flat Gasket,Type RF,CL150,RFG,,HG/T 20627,1.5 mm”平垫片，密封面突面法兰所配垫片。

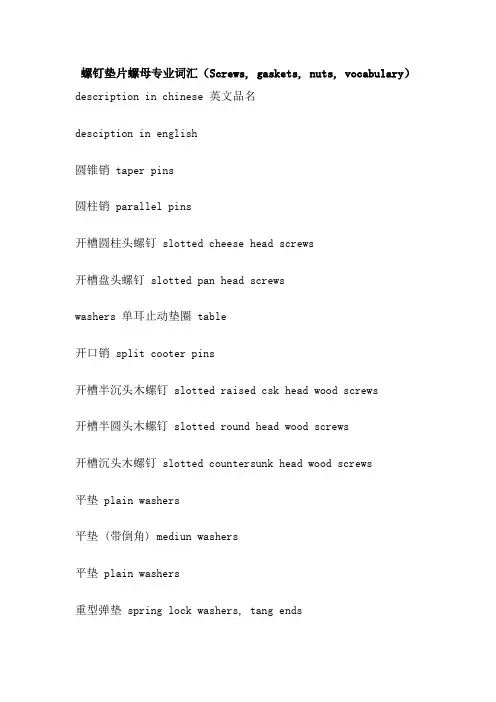

螺钉垫片螺母专业词汇（Screws, gaskets, nuts, vocabulary）description in chinese 英文品名desciption in english圆锥销 taper pins圆柱销 parallel pins开槽圆柱头螺钉 slotted cheese head screws开槽盘头螺钉 slotted pan head screwswashers 单耳止动垫圈 table开口销 split cooter pins开槽半沉头木螺钉 slotted raised csk head wood screws开槽半圆头木螺钉 slotted round head wood screws开槽沉头木螺钉 slotted countersunk head wood screws平垫 plain washers平垫 (带倒角) mediun washers平垫 plain washers重型弹垫 spring lock washers, tang ends标准弹垫 spring lock washers, square ends鞍形弹垫 single coil spring lock washers弹簧止动垫圈 curved spring washers波形弹垫 wave spring washerst型方颈螺栓 t - head blots with square neck t型双接头螺栓 t - head bolts with double nip 螺纹圆锥销 taper pins with threaded endt型头螺栓 t - head bolts蝶型螺母 (美制) wing nuts america form蝶型螺母 (德制) wing nuts germany form蝶型螺母 (美制) wing screws america form蝶型螺母 (德制) wing screws germany form圆球型盖型螺母 ball knobs开槽带孔球面圆柱头蚴钉 slotted capstan screws开槽长圆柱端紧定螺钉 slotted set srews with full dog point开槽平端紧定螺钉 (半牙) slotted set srews with chamfered end 小六角特薄细牙螺母 pip nuts with thread外舌止动垫圈 external tap小垫圈(用于圆柱头螺钉) washers for cheese head screws方斜垫圈 (u型) square taper washers foru - section方斜垫圈 (i型) square taper washers forthe - section方垫圈 square washers开槽凹端紧定螺钉 slotted set with cup point六角薄螺母 hexagon thin nuts细牙六角薄螺母 hexagon thin nuts木螺钉专用垫圈 rounds washers for wood constructions密封帽 sealing caps, push in type活节螺栓b型 eye bolts form b内舌止动垫圈 washers internal table双耳止动垫圈 washers with two taps滚花高头螺钉 knurled thumb screws with collar开槽滚花高头螺钉 slotted knurled thumb screws with collar滚花高螺母 knurled thumb nuts with collar滚花薄螺母 knurled thumb thin nuts锁紧垫圈 sealing washers轴用弹性垫圈 retaining rings for shafts (external), circlips 孔用弹性垫圈 retaining rings for bores (internal), circlips 方头带垫螺栓 square head bolts with collar方头圆柱底端螺栓 square head bolts with half dog point方头带垫关圆底端螺栓 square head bolts with collar, half dog pointt型槽螺母 t - slot nuts单头螺柱 single end studs地脚螺栓 masonry bolts带槽圆螺母 slotted round nuts端面带孔圆螺母 round nuts with drilled holes in one face 开槽平端紧定螺钉 slotted set screws with flat point开槽锥端紧定螺钉 slotted set screws with cone point六角螺母 hexagon nuts方螺母 - c square nuts六角头螺钉 hexagon screws六角头圆柱端紧定螺钉 hexagon set screws with full dog point薄型方螺母 - b square nuts without bevel(pressed nuts)六角头木螺钉 hexgon head wood screw(coach screws)吊环螺钉 lifting eye bolts吊环螺母 lifting eye nuts圆锥型槽销 grooved pins, taper grooved圆锥型槽销(半槽) grooved pins, taper grooved half length平行槽销(带倒角) grooved pins parallel grooved full length 前端凹槽槽销 grooved pins反槽半长中部凹槽槽销槽销中心槽圆头槽销圆头槽销沉头槽销沉头槽销六角螺母棒turnuckles（中心部位），用内六角花蓝螺栓turnuckles眼螺栓、钩头螺栓弹性圆柱销弹簧销，重型组合式盖型螺母六角盖形螺母开槽圆螺母（配合沟头扳手）开槽圆螺母钩垃圾邮件发送者圆螺母（带插销孔）圆螺母盘型弹簧垫圈碟形弹簧喉箍软管卡箍润滑油嘴（旋扭头）润滑油嘴，圆头管夹卸扣conduilts你型螺栓箍螺栓（U型螺栓）球面垫圈球面垫圈，锥形座圆柱销平行销厚六角螺母六角螺母，1.5d厚六角法兰面螺母六角螺母，1.5d衣领长六角螺母六角螺母，3d外齿锁紧垫圈外齿锁紧垫圈内齿锁紧垫圈内齿锁紧垫圈外锯齿锁紧垫圈外锯齿锁紧垫圈内锯齿锁紧垫圈内锯齿锁紧垫圈开口挡圈挡圈，挡圈轴（e-rings）平键（一型）平行键（表一）半圆键Woodruff钥匙嵌环（支撑环）顶针机器螺钉和垫圈组合件螺钉和垫圈自攻螺钉和垫圈组合件自攻螺钉和垫圈组合件薄型带孔内六角圆柱螺钉六角套筒螺钉孔，低着头大脑袋大六角头螺栓六角头螺栓（摩擦nolts）大六角螺母大跨扁平六角形螺母宽度（摩擦手柄螺母）大垫圈圆垫圈螺栓楔型方垫圈方斜垫圈对T螺栓—六角法兰面螺母六角法兰螺母全金属六角锁紧螺母（2型）的扭矩型六角螺母，全金属螺母轻型弹性圆柱销弹簧销，光型重型弹性圆柱销用垫圈垫圈重型弹性圆柱销用ISO公制螺纹螺钉（多种头型）ISO公制螺纹螺钉自攻自钻螺钉（多种头型）自钻自攻螺钉开槽切削螺纹螺钉（多种头型）螺纹切削螺丝十字槽切削螺纹螺钉（多种头型）十字槽切削螺纹螺钉T型四爪螺母T形螺母与pronge钢结构用六角头螺栓连接副六角头安装钢结构螺栓开槽盘头自攻螺钉盘头自攻螺钉槽开槽沉头自攻螺钉开槽半沉头自攻螺钉开槽半沉头自攻螺钉提出sountersunk沉头自攻螺钉槽六角头自攻螺钉六角自攻螺钉圆柱头螺钉用弹簧垫圈弹簧垫圈圆柱头螺钉用十字槽盘头自攻螺攻盘头自攻螺钉十字槽十字槽沉头自攻螺攻沉头自攻螺钉十字槽十字槽半沉头自攻螺攻半沉头自攻螺钉十字薄型内六角圆柱头螺钉圆柱头内六角螺钉，减少头部十字槽盘头螺钉十字槽盘头螺钉钢结构用垫圈垫圈钢结构钢结构用钢结构六角头螺栓六角头螺栓内六角沉头螺钉六角coutersunk头螺钉轴用钢丝挡圈 roundwire snap ring for shaft's十字槽半沉头木螺钉 cross recessed raised countersunk head wood screws 十字槽圆头木螺钉 cross recessed round head wood screws十字槽沉头木螺钉 cross recessed countersunk head wood screws螺纹护套(普通、自锁等) ciol inserts, coarse, fine thread, silf locking 大外径垫圈 washers, outside diameter appro.3d弹簧卡子 sping cotter for a bolt平板螺栓 belting bolts(elevator bolts)干壁钉(墙板钉) dry wall screws环型螺母 lifting nuts (eye nuts)圆螺母用止退垫圈 loss washer for slotted round nuts。

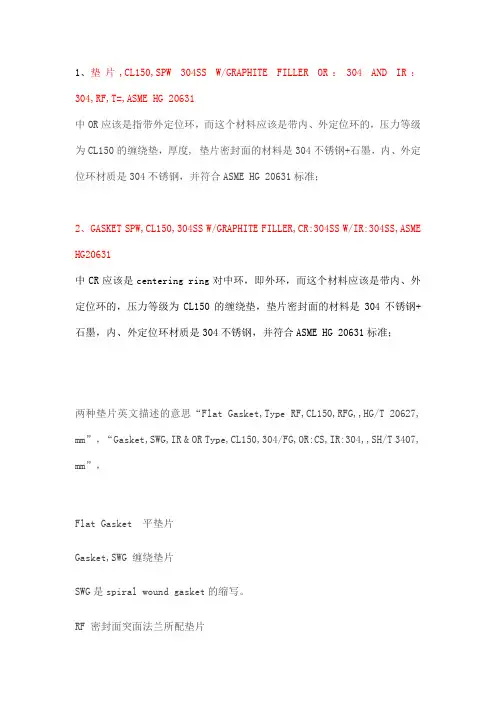

1、垫片,CL150,SPW 304SS W/GRAPHITE FILLER OR：304 AND IR：304,RF,T=,ASME HG 20631中OR应该是指带外定位环，而这个材料应该是带内、外定位环的，压力等级为CL150的缠绕垫，厚度, 垫片密封面的材料是304不锈钢+石墨，内、外定位环材质是304不锈钢，并符合ASME HG 20631标准；2、GASKET SPW,CL150,304SS W/GRAPHITE FILLER,CR:304SS W/IR:304SS,ASME HG20631中CR应该是centering ring对中环，即外环，而这个材料应该是带内、外定位环的，压力等级为CL150的缠绕垫，垫片密封面的材料是304不锈钢+石墨，内、外定位环材质是304不锈钢，并符合ASME HG 20631标准；两种垫片英文描述的意思“Flat Gasket,Type RF,CL150,RFG,,HG/T 20627, mm”，“Gasket,SWG,IR & OR Type,CL150,304/FG,OR:CS,IR:304,,SH/T 3407, mm”，Flat Gasket 平垫片Gasket,SWG 缠绕垫片SWG是spiral wound gasket的缩写。

RF 密封面突面法兰所配垫片CL150 CLASS150压力等级150304/FG 304不锈钢钢带+石墨填充带OR:CS IR:304 外环材质是碳钢，内环材质304不锈钢RFG Reinforced Flexible Graphite 增强柔性石墨垫“Flat Gasket,Type RF,CL150,RFG,,HG/T 20627, mm”平垫片，密封面突面法兰所配垫片。

压力是CL150，标准是HG/T 20627，厚度“Gasket,SWG,IR & OR Type,CL150,304/FG,OR:CS,IR:304,,SH/T 3407, mm”这个类似，304/FG是304不锈钢钢带+石墨填充带。

五金模具常用专业术语中英文对照表上模座 upper die set 成型公 form punch 脱料板 stripper 垫板 subplate/backup plate下模座 die plate 滑块 CAM slider垫脚 parallel 误检 misfeeder托板 mounting plate 顶料销 kick off初始管位 first start pin 带肩螺丝 shoulder screw两用销 lifter pin 氮气汽缸 gas spring弹簧护套 spring cage 拔牙螺丝 jack screw侧冲组件 cam section 导正装置 guide equipment漏废料孔 slug hole 刀口 trim line加强装置 enhance equipment 入子 insert护套 bushing 整形公 restrike forming punch止挡板 stop plate 挂台 head扣位 pocket of head 导柱 guide post导套 guide bushing 油嘴 oil nipple接刀口 mismatch/cookie bites 限位块 stop block挡块 stopper 浮块 lifter压块 keeper 靠块 heel对正块 alignment block 简易模 prototype tooling检具 gage/checking fixture 料带图 strip layout闭合高度 shut hight 俯视图 top view料带 strip 公差 tolerance正视图 front view 走位 travel避位/空 pocket 退磁 demagnetization间隙 clearance 真空热外理 vacuum heat treatment镗孔 mill hole 表面外理 surface coasting镀钛 TD coasting 沉头 counter sink精锣 finish mill 线割 wire cutting穿丝孔 first wire hole 斜度 taper镭射 laser—cut 上夹板/固定座 holder/retainer下模座 lower die set 成刑母公 forming die电火花 EDM 码模槽 mounting slot球锁紧固定座 ball-lock 导尺 rail球锁紧凸模 BALL—-LOCK 送料板 rail plate外购 out sourcing 倒角 chamfer清角 SCRAP CHOPPER 销钉 dowel尖角 sharp ——angle 普通弹簧 coil spring展开图 EXPENSINg DWG 三打螺丝 spool镶件 insert 毛刺 burr键销 key 插针 pilot pin顶杆 lifter bolt 结构图 die layout/design起吊孔 handing hole 侧视图 cross-section view垫片 shim/wear—plate 退磁 DEMAGNETIZATION键槽 key slot 沉孔 counter hole储运块 storage block 电火花 EDM导正块 thrust block 剪口直深位 trim land手板件 prototype unit/part 装备 MAURTIG规格 spec有效 AVAILABILITY五金模具常用专业术语中英文对照表上模座 upper die set 下模座 lower die set 上夹板 holder脱料板 stripper 镶件 insert 夹板/固定座 retainer下模板 die plate 成型公 form punch 成型母公form die垫脚 parallel 垫板 sub—plate/backup plate backing plate码模槽 mounting slot托板 mounting plate 滑块 cam slider 导尺 rail初始管位 first start pin 误检装置 misfeeder 送料板 rail plate两用销 lifter pin 顶料销 kick off 键销 key止付螺丝 set screw 带肩螺丝 shoulder screw 销钉 dowel弹簧护套 spring cage 氮气汽缸 gas spring 普通弹簧 coil spring侧冲组件 cam sections 拔牙螺孔 jack screw 三打螺丝 spool漏废料孔 slug hole 导正装置 guide equipment 毛刺 burr加强装置 enhance equipment 刀口 trim line 插针 pilot pin护套 bushing 入子insert 顶杆 lifter bolt止挡板 stop plate 整形公 restrike forming punch 起吊孔 handing hole扣位 pocket of head 挂台 head 垫片 shim/wear—plate导套 guide bushing 导柱 guide post 键槽 key slot接刀口 mismatch/cookie bites 油嘴 oil nipple 靠刀：Heel of cutting punch固定冲头公夹板：common punch holer 非标易损件：non-standard wearing parts挡块 stopper 限位块(柱）stop block 储运块 storage block压块 keeper 浮块 lifter 导正块 thrust block对正块 alignment block 靠块 heel 耐磨块：Wear Plate on cutting steel检具 gage/checking fixture 简易模 prototype tooling 板件 prototype unit/part料带 strip 料带图 strip layout 结构图 die layout/design正视图 front view 俯视图 top view 侧视图：cross—section view避位/空 pocket 间隙 clearance 公差 tolerance 走位 travel 行程stroke 镗孔 mill hole 真空热处理 vacuum heat treatment 退磁 demagnetization镀钛TD coating 表面处理 surface coating 倒角 chamfer 精锣（缩)finish mill 沉头 counter sink 沉孔 counter hole穿丝孔 first wire hole 线切割（缩)wire cutting 电火花（缩)EDM镭射(缩）laser-cut 斜度 taper 剪口直深位 trim land常用工序名称1。

螺钉垫片螺母专业词汇1. 铜件螺丝2.组合件螺丝3.家具螺丝4.内六角圆柱头不锈钢螺丝5.紧定螺丝6.拉钉7.精密螺丝8.平头一字螺丝9.梅花头螺丝 10.十字外六角螺丝 11.平头方颈螺丝 12.十字外六角带介螺丝 13.平头十字螺丝 14.大扁头螺丝 15.带介螺丝 16.平圆十字螺丝 17.平头内六角螺丝 18人字型螺丝 19 一字型螺丝 20梅花安全型螺丝 21.三角型螺丝 22. 工字型螺丝23.收尾螺丝 24.自攻螺丝 25.耐烙螺丝 26.三角牙螺丝 27.介子Description in Chinese 英文品名Desciption in English圆锥销 Taper pins圆柱销 Parallel pins开槽圆柱头螺钉 Slotted cheese head screws 开槽盘头螺钉 Slotted pan head screws单耳止动垫圈 Tab washers开口销 Split cooter pins开槽半沉头木螺钉 Slotted raised csk head wood screws开槽半圆头木螺钉 Slotted round head wood screws开槽沉头木螺钉Slotted countersunk head wood screws平垫 Plain washers平垫（带倒角） Mediun washers平垫 Plain washers重型弹垫 Spring lock washers,tang ends标准弹垫 Spring lock washers,square ends 鞍形弹垫 Single coil spring lock washers 弹簧止动垫圈 Curved spring washers波形弹垫 Wave spring washersT型方颈螺栓 T-head blots with square neck T型双接头螺栓 T-head bolts with double nip 螺纹圆锥销 Taper pins with threaded endT型头螺栓 T-head bolts蝶型螺母（美制） Wing nuts America form蝶型螺母（德制） Wing nuts germany form蝶型螺母（美制） Wing screws America form 蝶型螺母（德制） Wing screws germany form 圆球型盖型螺母 Ball knobs开槽带孔球面圆柱头蚴钉 Slotted capstan screws开槽长圆柱端紧定螺钉 Slotted set srews with full dog point开槽平端紧定螺钉（半牙） Slotted set srews with chamfered end小六角特薄细牙螺母 Pip nuts with thread外舌止动垫圈 External tap小垫圈(用于圆柱头螺钉) Washers for cheese head screws方斜垫圈（U型） Square taper washers for U-section方斜垫圈（I型） Square taper washers for I-sections方垫圈 Square washers开槽凹端紧定螺钉 Slotted set with cup point 六角薄螺母 Hexagon thin nuts细牙六角薄螺母 Hexagon thin nuts木螺钉专用垫圈Rounds washers for wood constructions密封帽 Sealing caps,push-in type活节螺栓B型 Eye bolts form B内舌止动垫圈 Internal tab washers双耳止动垫圈 Washers with two taps滚花高头螺钉Knurled thumb screws with collar开槽滚花高头螺钉Slotted knurled thumb screws with collar滚花高螺母 Knurled thumb nuts with collar 滚花薄螺母 Knurled thumb thin nuts锁紧垫圈 Sealing washers轴用弹性垫圈Retaining rings for shafts(external),circlips孔用弹性垫圈Retaining rings for bores(internal),circlips方头带垫螺栓 Square head bolts with collar 方头圆柱底端螺栓 Square head bolts with half dog point方头带垫关圆底端螺栓 Square head bolts with collar,half dog pointT型槽螺母 T-slot nuts单头螺柱 Single end studs地脚螺栓 Masonry bolts带槽圆螺母 Slotted round nuts端面带孔圆螺母Round nuts with drilled holes in one face开槽平端紧定螺钉 Slotted set screws with flat point开槽锥端紧定螺钉 Slotted set screws with cone point六角螺母 Hexagon nuts方螺母-C Square nuts六角头螺钉 Hexagon screws六角头圆柱端紧定螺钉 Hexagon set screws with full dog point薄型方螺母-B Square nuts without bevel (pressed nuts)六角头木螺钉 Hexgon head wood screw (coach screws)吊环螺钉 Lifting eye bolts吊环螺母 Lifting eye nuts圆锥型槽销 Grooved pins,taper grooved圆锥型槽销（半槽） Grooved pins,taper grooved half length平行槽销（带倒角） Grooved pins,parallel grooved full length前端凹槽槽销 Grooved pins,reverve grooved half length中部凹槽槽销 Grooved pins,center grooved 圆头槽销 Grooved pins with round head沉头槽销 Grooved pins with countersunk head 六角螺母棒Turnuckles(center parts),made out of hexagon bar花蓝螺栓 Turnuckles with eye bolt and hook bolt弹性圆柱销 Spring pins,heavy type组合式盖型螺母 Hexagon domed cap nuts开槽圆螺母(配合沟头扳手) Slotted round nuts for hook spammer圆螺母（带插销孔） Round nuts with set holes 盘型弹簧垫圈 Disc springs喉箍 Hose clamps润滑油嘴（旋扭头） Lubricating nipples,button head 管夹 Shackles for conduiltsU型螺栓 Stirrup bolts(U-bolts)球面垫圈 Spherical washers,conical seats 圆柱销 Parallel pins厚六角螺母 Hexagon nuts,1.5d厚六角法兰面螺母 Hexagon nuts,1.5d with collar长六角螺母 Hexagon nuts,3d外齿锁紧垫圈 External teeth lock washers 内齿锁紧垫圈 Internal teeth lock washers 外锯齿锁紧垫圈 External teeth serrated lock washers内锯齿锁紧垫圈 Internal teeth serrated lock washers开口挡圈Retaining rings for shafts(E-rings),circlips平键（A型） Parallel keys(form A)半圆键 Woodruff keys嵌环（支撑环） Thimbles机器螺钉和垫圈组合件 Screws and washers assemblies自攻螺钉和垫圈组合件 Tapping screws and washer assemblies 薄型带孔内六角圆柱螺钉Hexagon cocket head cap screws with hole,low head大六角头螺栓 Hexagon head bolts with large head(friction grip nolts)大六角螺母 Hexagon nuts with large wideth across flat(friction grip nuts)大垫圈 Round washers for friction grip bolts 楔型方垫圈Spuare taper washers for friction grip bolts on T-六角法兰面螺母 Hexagon flange nuts全金属六角锁紧螺母（2型） Prevailing torque type hexagon nuts,all metallic nuts轻型弹性圆柱销 Spring pins,light type重型弹性圆柱销用垫圈 Washers for bolts with heavy type spring pinssISO公制螺纹螺钉（多种头型） Thread forming screws for ISO-metric thread自攻自钻螺钉（多种头型） Self-drilling tapping screws 开槽切削螺纹螺钉（多种头型） Thread cutting screws十字槽切削螺纹螺钉（多种头型）Thread cutting screws cross recessT型四爪螺母 Tee nuts with pronge钢结构用六角头螺栓连接副Hexagon head fitted bolts for steel structures开槽盘头自攻螺钉 Pan head tapping screws with slot 开槽沉头自攻螺钉countersunk flat head tapping screws with slot开槽半沉头自攻螺钉Raised sountersunk oval head tapping screws with slot六角头自攻螺钉 Hexagon tapping screws圆柱头螺钉用弹簧垫圈 Spring lock washers for screws withcylindrical heads十字槽盘头自攻螺攻 Pan head tapping screws with cross recessed十字槽沉头自攻螺攻Countersunk flat head tapping screws with cross recessed十字槽半沉头自攻螺攻Raised countersunk oval head tapping screws with cross薄型内六角圆柱头螺钉 Hexagon socket head cap screws with,reduced head十字槽盘头螺钉 Pan head screws with cross recessed钢结构用垫圈 Washers for steel structures 钢结构用六角头螺栓Hexagon head bolts for steel structures内六角沉头螺钉 Hexagon socket coutersunk head screws轴用钢丝挡圈Roundwire snap rings forshafts十字槽半沉头木螺钉Cross recessed raised countersunk head wood screws十字槽圆头木螺钉 Cross recessed round head wood screws 十字槽沉头木螺钉 Cross recessed countersunk head wood screws螺纹护套(普通、自锁等) Ciol inserts,coarse,fine thread,silf locking大外径垫圈Washers,outside diameter appro.3d弹簧卡子 sping cotter for a bolt平板螺栓 Belting bolts(elevator bolts)干壁钉（墙板钉） Dry wall screws环型螺母 Lifting nuts(eye nuts)圆螺母用止退垫圈 Tab washer for slotted round nuts。

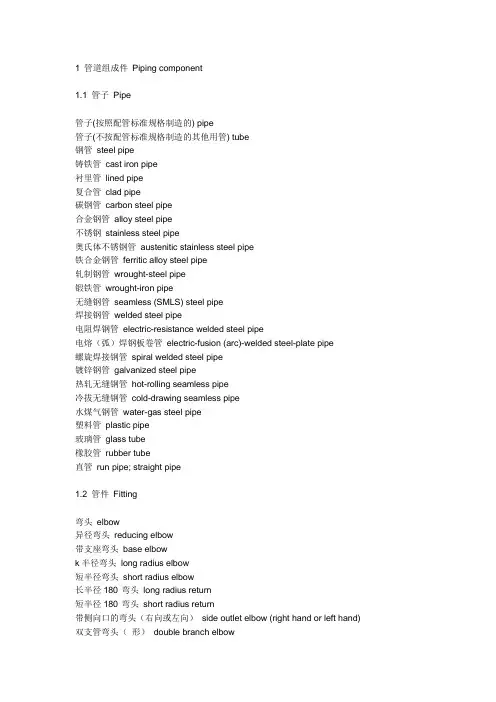

1 管道组成件Piping component1.1 管子Pipe管子(按照配管标准规格制造的) pipe管子(不按配管标准规格制造的其他用管) tube钢管steel pipe铸铁管cast iron pipe衬里管lined pipe复合管clad pipe碳钢管carbon steel pipe合金钢管alloy steel pipe不锈钢stainless steel pipe奥氏体不锈钢管austenitic stainless steel pipe铁合金钢管ferritic alloy steel pipe轧制钢管wrought-steel pipe锻铁管wrought-iron pipe无缝钢管seamless (SMLS) steel pipe焊接钢管welded steel pipe电阻焊钢管electric-resistance welded steel pipe电熔（弧）焊钢板卷管electric-fusion (arc)-welded steel-plate pipe螺旋焊接钢管spiral welded steel pipe镀锌钢管galvanized steel pipe热轧无缝钢管hot-rolling seamless pipe冷拔无缝钢管cold-drawing seamless pipe水煤气钢管water-gas steel pipe塑料管plastic pipe玻璃管glass tube橡胶管rubber tube直管run pipe; straight pipe1.2 管件Fitting弯头elbow异径弯头reducing elbow带支座弯头base elbowk半径弯头long radius elbow短半径弯头short radius elbow长半径180°弯头long radius return短半径180°弯头short radius return带侧向口的弯头（右向或左向）side outlet elbow (right hand or left hand) 双支管弯头（形）double branch elbow三通tee异径三通reducing tee等径三通straight tee带侧向口的三通（右向或左向）side outlet tee (right hand or 1eft hand)异径三通（分支口为异径）reducing tee (reducing on outlet)异径三通（一个直通口为异径）reducing tee (reducing on one run)带支座三通base tee异径三通（一个直通口及分支口为异径）reducing tee (reducing on one run and outlet) 异径三通（两个直通口为异径，双头式）reducing tee (reducing on both runs, bull head) 45°斜三通45° lateral45°斜三通（支管为异径）45° lateral (reducing on branch)45°斜三通(一个直通口为异径) 45° lateral (reducing on one run)45°斜三通(一个直通口及支管为异径) 45° lateral (reducing on one run and branch)Y型三通（俗称裤衩）true “Y”四通cross等径四通straight cross异径四通reducing cross异径四通（一个分支口为异径）reducing cross (reducing on one outlet)异径四通（一个直通口及分支口为异径）reducing cross (reducing on one run and outlet) 异径四通（两个分支口为异径）reducing cross (reducing on both outlet)异径四通（一个直通口及两个分支口为异径）reducing cross (reducing on one run and both outlet)异径管reducer同心异径管concentric reducer偏心异径管eccentric reducer锻制异径管reducing swage螺纹支管台threadolet焊接支管台weldolet承插支管台sockolet弯头支管台elbolet斜接支管台latrolet镶入式支管嘴sweepolet短管支管台nipolet支管台，插入式支管台boss管接头coupling, full coupling半管接头half coupling异径管接头reducing coupling活接头union内外螺纹缩接（俗称补芯）bushing管帽cap (C)堵头plug短节nipple异径短节reducing nipple; swage nipple1.3 弯管Bend预制弯管fabricated pipe bend跨越弯管（^ 形）cross-over bend偏置弯管（~ 形）offset bend90°弯管quarter bend环形弯管cirele bend单侧偏置90°弯管（? 形）single offset quarter bendS形弯管“S” bend单侧偏置U形膨胀弯管（| ?形）single offset “U” bendU形弯管“U” bend双偏置U膨胀弯管double offset expansion “U” bend斜接弯管mitre bend三节斜接弯管3-piece mitre bend折皱弯管corrugated bend圆度roundness1.4 法兰Flange (FLG）整体管法兰integral pipe flange钢管法兰steel pipe flange螺纹法兰threaded flange滑套法兰（包括平焊法兰）slip-on flange (SO); slip-on welding flange 承插焊法兰socket welding flange松套法兰lap joint flange (LJF)对焊法兰welding neckflange (WNF)法兰盖blind flange, blind孔板法兰orifice flange异径法兰reducing flange盘座式法兰pad type flange松套带颈法兰loose hubbed flange焊接板式法兰welding plate flange对焊环welding neck collar （与stub end相似）平焊环welding-on collar突缘短节stub end, lap翻边端lapped pipe end松套板式法兰loose plate flange压力级pressure rating, pressure rating class压力—温度等级pressure-temperature rating法兰密封面，法兰面flange facing突面raised face (RF)凸面male face (MF)凹面female face (FMF)榫面tongue face槽面groove face环连接面ring joint face全平面；满平面flat face; full face (FF)光滑突面smooth raised face (SRF)法兰面加工facing finish粗糙度roughness光滑的smooth齿形serrated均方根root mean square (RMS)算术平均粗糙高度arithmetical average roughness height (AARH)配对法兰companion-flange螺栓圆bolt circle (B.C.)1.5 垫片Gasket (GSKT)垫片的型式type of gasket平垫片flat gasket环形平垫片flat ring gasket平金属垫片flat metal gasket夹棉织物的橡胶elastomer with cotton fabric insertion夹石棉织物的橡胶elastomer with asbestos fabric insertion夹石棉织物及金属丝加强的橡胶elastomer with asbestos fabric insertion and with wire reinforcement无石墨压缩白石棉垫片non graphited compressed white asbestos gasket天然白橡胶垫片natural white rubber gasket压缩石棉垫片compressed asbestos class gasket浸聚四氟乙烯的石棉垫片PTFE impregnated asbestos gasket夹石棉的缠绕金属垫片spiral-wound metal gasket with asbestos filler内环inner ring外环，外定位环outer ring波纹金属垫片corrugated metal gasket波纹金属包嵌石棉垫片corrugated metal gasket with asbestos inserted双夹套波纹金属包石棉垫片corrugated metal double jacketed asbestos filled gasket 双夹套垫片double jacketed gasket金属包石棉平垫片flat metal jacketed asbestos filled gasket整体金属齿形垫片solid metal serrated gasket槽形金属垫片grooved metal gasket环形连接金属垫片ring joint metal gasket八角环形垫片octagonal ring gasket椭圆环形垫片oval ring gasket透镜式垫片lens gasket非金属垫片non-metallic gasket1.6 阀门Valve1.6.1 阀门结构、零件阀轭yoke外螺纹阀杆及阀轭outside screw and yoke (OS & Y) 阀杆stem内螺纹inside screw (IS)阀轭套yoke sleeve阀杆环stem ring阀座valve seat (body seat)阀座环、密封圈seat ring整体（阀）座integral seat堆焊（阀）座deposited seat阀芯（包括密封圈、杆等内件）trim阀盘disc阀盘密封圈disc seat阀体body阀盖bonnet阀盖衬套bonnet bush螺纹阀帽screw cap螺纹阀盖screw bonnet螺栓连接的阀盖bolted bonnet (BB)活接阀盖（帽）union bonnet (cap)螺栓连接的阀帽bolted cap (BC)焊接阀盖welded bonnet (WB)本体阀杆密封body stem seal石棉安全密封asbestos emenen seal倒密封back seal压力密封的阀盖pressure-tight bonnet动力操纵器powered operator电动操纵器electric motor operator气动操纵器pneumatic operator液压操纵器hydraulic operator快速操纵器quick-acting operator滑动阀杆sliding stem正齿轮传动spur gear operated伞齿轮传动bevel gear operated扳手操作wrench operated链轮chain wheel手轮hand wheel手柄hand lever (handle)气缸（或液压缸）操纵的cylinder operated链条操纵的chain operated等径孔道full bore; full port异径孔道reducing bore, reduced port,venturi port短型short pattern紧凑型（小型）compact type笼式环lantern ring压盖gland阀杆填料stem packing阀盖垫片bonnet gasket升杆式（明杆）rising stem (RS)非升杆式（暗杆）non-rising stem (NRS)指示器/限位器indicator/stopper注油器grease injector可更换的阀座环renewable seat ring1.6.2 常用阀(1）闸阀gate valve平行双闸板double disc parallel seat开口楔形闸板split wedge挠性整体楔形闸扳flexible solid wedge整体楔形闸板solid wedge塞型闸阀plug gate valve直通型闸阀through conduit gate valve(2) 截止阀globe valve球心型阀盘globe type disc塞型阀盘plug type disc可转动的阀盘swivel disc(3) 节流闪阀throttle valve针阀needle valve(4) 角阀angle valve(5) Y型阀（Y 型阀体截止阀）Y-valve (Y-body globe valve)(6) 球阀ball valve三通球阀3-way ball valve装有底轴的trunnion mounted耐火型fire safe type浮动球型floating ball type防脱出阀杆blowout proof stem(7) 蝶阀butterfly valve对夹式（薄片型）wafer type凸耳式lug type偏心阀板蝶阀offset disc burerfly valve; eccentric butterfly valve 斜阀盘蝶阀canted disc butterfly valve连杆式蝶阀link butterfly valve8) 柱塞阀piston type valve(9) 旋塞阀plug valve三通旋塞阀three-way plug valve四通旋塞阀four-way plug valve旋塞cock衬套旋塞sleeve cock(10) 隔膜阀diaphragm valve橡胶衬里隔膜阀rubber lined diaphragm valve直通式隔膜阀straight way diaphragm valve堰式隔膜阀weir diaphragm valve(11) 夹紧式胶管阀pinch valve（用于泥浆、粉尘等）(12) 止回阀check valve升降式止回阀lift check valve旋启式止回阀swing check valve, flap check valve落球式止回阀ball check valve弹簧球式止回阀spring ball check valve双板对夹式止回阀dual plate wafer type check valve无撞击声止回阀non-slam cheek valve底阀foot valve切断式止回阀stop check valve; non-return valve活塞式止回阀piston check valve斜翻盘止回阀tilting disc check valve蝶式止回阀butterfly check valve1.6.3 其它用途的阀安全泄气阀safety valve (SV)安全泄液阀relief valve (RV)安全泄压阀safety relief valve杠杆重锤式lever and weight type引导阀操纵的安全泄气阀pilot operated safety valve复式安全泄气阀twin type safety valve罐底排污阀flush-bottom tank valve电磁阀solenoid valve, solenoid operated valve电动阀electrically operated valve, electric-motor operated valve气动阀pneumatic operated valve低温用阀cryogenic service valve蒸汽疏水阀steam trap机械式疏水阎mechanical trap浮桶式疏水阀open bucket trap, open top bucket trap浮球式疏水阀float trap倒吊桶式疏水阀inverted bucket trap自由浮球式疏水阀loose float trap恒温式疏水阀thermostatic trap金属膨胀式蒸汽疏水阀metal expansion steam trap液体膨胀式蒸汽疏水阀liquid expansion steam trap双金属膨胀式蒸汽疏水阀bimetallic expansion steam trap压力平衡式恒温疏水阀balanced pressure thermostatic trap热动力式疏水阀thermodynamic trap脉冲式蒸汽疏水阀impulse steam trap放气阀（自动放气阀）air vent valve (automatic air vent valve) （疏水阀用）平板式滑动闸阀slab type sliding gate valve盖阀flat valve换向阀diverting valve, reversing valve热膨胀阀thermo expansion valve自动关闭阀self-closing gate valve自动排液阀self-draining valve管道盲板阀line-blind valve挤压阀squeeze valve（用于泥浆及粉尘等）呼吸阀breather valve风门、挡板damper减压阀pressure reducing valve, reducing valve控制阀control valve膜式控制阀diaphragm operated control valve执行机构actuator背压调节阀back pressure regulating valve差压调节阀differential pressure regulating valve压力比例调节阀pressure ratio regulating valve1.6.4 未指明结构（或阀型）的阀切断阀block valve; shut-off valve; stop valve调节阀regulating valve快开阀quick opening valve快闭阀quick closing valve隔断阀isolating valve三通阀three way valve夹套阔jacketed valve非旋转式阀non-rotary valve排污阀blowdown valve集液排放阀drip valve排液阀drain valve放空阀vent valve卸载阀unloading valve排出阀discharge valve吸入阀suction valve多通路阀multiport valve取样阀sampling valve手动阀hand-operated valve; manually operated valve 锻造阀forged valve铸造阀cast valve（水）龙头bibb; bib; faucet抽出液阀（小阀）bleed valve旁路阀by-pass valve软管阀hose valve混合阀mixing valve破真空阀vacuum breaker冲洗阀flush valve第一道阀；根部阀primary valve根部阀root valve总管阀header valve事故切断阀emergency valve1.7 管道特殊件Piping Specialty1.7.1 管道特殊件（组件）粗滤器strainer过滤器filter临时粗滤器（锥型）temporary strainer (cone type)y 型粗滤器y-type strainerT型粗滤器T-type strainer永久过滤器permanent filter丝网粗滤器gauze strainer洗眼器及淋浴器eye washer and shower视镜sight glass阻火器flame arrester喷嘴；喷头spray nozzle取样冷却器sample cooler消声器silencer膨胀节expansion joint波纹膨胀节bellow expansion joint单波single bellow双波double bellow多波multiple bellow压力平衡式膨胀节pressure balanced expansion带铰链膨胀节hinged expansion joint轴向位移型膨胀节axial movement type expansion joint 自均衡膨胀节（外加强环）self-equalizing expansion joint 带接杆膨胀节tied expansion joint万向型膨胀节universal type expansion joint球形补偿器ball type expansion joint填函式补偿器slip type (packed type) expansion joint单向滑动填料函补偿器single actionpacked slip joint1.7.2 管道特殊元件Piping Special Element软管接头hose connection (HC)快速接头quick coupling金属软管metal hose橡胶管rubber hose挠性管flexible tube鞍形补强板reinforcing saddles补强板reinforcement pad特殊法兰special flange漏斗funnel排液环drip ring排液漏斗drain funnel插板blank垫环spacer8字盲板spectacle blind; figure 8 blind限流孔板restriction orifice爆破片rupture disk法兰盖贴面protective disc费托立克接头victaulic coupling1.8 端部连接End Connection法兰端flanged end坡口端beveled end (BE)对焊端butt welded end平端plain end (PE)承插焊端socket welding end螺纹端threaded end (TE)承口bell end焊接端welding end法兰连接（接头）flanged joint对焊连接（接头）butt welded joint螺纹连接，管螺纹连接threaded joint, pipe threaded joint锥管螺纹密封焊连接seal-welded taper pipe threaded joint承插焊连接（接头）socket welded joint承插连接（接头）bell and spigot joint环垫接头ring joint (RJ)万向接头universal joint软钎焊连接（接头）soldered joint搭接接头，松套连接lapped joint外侧厚度切斜角bevel for outside thickncss内侧厚度切斜角bevel for inside thickness内外侧厚度切斜角bevel for combined thickness法兰式的flanged (FLGD)对焊的butt welded (BW)螺纹的threaded (THD)承插焊的socket welded (SW)小端为平的small end plain (SEP)大端为平的large end plain (LEP)两端平both ends plain (BEP)小端带螺纹small end thread (SET)大端带螺纹large end thread (LET)两端带螺纹both end thread (BET)一端带螺纹one end thread (OET)支管连接branch connection焊接支管branch pipe welded directly to the run pipe37。

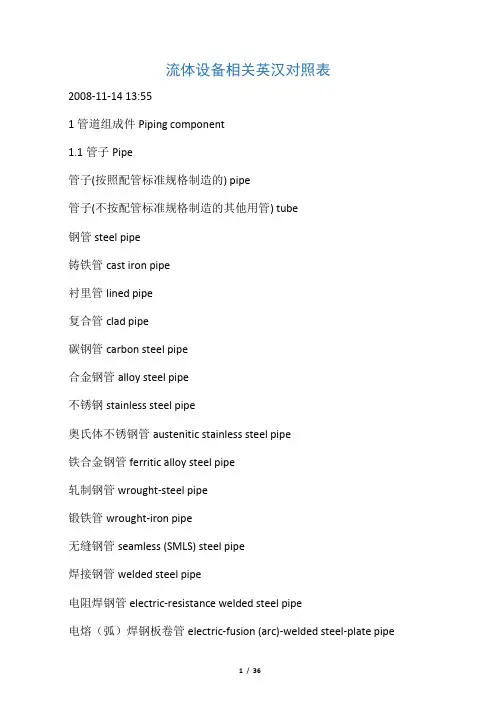

流体设备相关英汉对照表2008-11-14 13:551管道组成件Piping component1.1管子Pipe管子(按照配管标准规格制造的) pipe管子(不按配管标准规格制造的其他用管) tube钢管steel pipe铸铁管cast iron pipe衬里管lined pipe复合管clad pipe碳钢管carbon steel pipe合金钢管alloy steel pipe不锈钢stainless steel pipe奥氏体不锈钢管austenitic stainless steel pipe铁合金钢管ferritic alloy steel pipe轧制钢管wrought-steel pipe锻铁管wrought-iron pipe无缝钢管seamless (SMLS) steel pipe焊接钢管welded steel pipe电阻焊钢管electric-resistance welded steel pipe电熔（弧）焊钢板卷管electric-fusion (arc)-welded steel-plate pipe螺旋焊接钢管spiral welded steel pipe镀锌钢管galvanized steel pipe热轧无缝钢管hot-rolling seamless pipe冷拔无缝钢管cold-drawing seamless pipe水煤气钢管water-gas steel pipe塑料管plastic pipe玻璃管glass tube橡胶管rubber tube直管run pipe; straight pipe1.2管件Fitting弯头elbow异径弯头reducing elbow带支座弯头base elbowk半径弯头long radius elbow短半径弯头short radius elbow长半径180°弯头long radius return短半径180°弯头short radius return带侧向口的弯头（右向或左向）side outlet elbow (right hand or left hand) 双支管弯头（形）double branch elbow三通tee异径三通reducing tee等径三通straight tee带侧向口的三通（右向或左向）side outlet tee (right hand or 1eft hand)异径三通（分支口为异径）reducing tee (reducing on outlet)异径三通（一个直通口为异径）reducing tee (reducing on one run)带支座三通base tee异径三通（一个直通口及分支口为异径）reducing tee (reducing on one runoutlet)异径三通（两个直通口为异径，双头式）reducing tee (reducing on both runs, bull head)45°斜三通45°lateral45°斜三通（支管为异径）45°lateral (reducing on branch)45°斜三通(一个直通口为异径) 45°lateral (reducing on one run)45°斜三通(一个直通口及支管为异径) 45°lateral (reducing on one runbranch)Y型三通（俗称裤衩）true “Y”四通cross等径四通straight cross异径四通reducing cross异径四通（一个分支口为异径）reducing cross (reducing on one outlet)异径四通（一个直通口及分支口为异径）reducing cross (reducing on one runoutlet)异径四通（两个分支口为异径）reducing cross (reducing on both outlet)异径四通（一个直通口及两个分支口为异径）reducing cross (reducing on one runboth outlet)异径管reducer同心异径管concentric reducer偏心异径管eccentric reducer锻制异径管reducing swage螺纹支管台threadolet焊接支管台weldolet承插支管台sockolet弯头支管台elbolet斜接支管台latrolet镶入式支管嘴sweepolet短管支管台nipolet支管台，插入式支管台boss管接头coupling, full coupling半管接头half coupling异径管接头reducing coupling活接头union内外螺纹缩接（俗称补芯）bushing管帽cap (C)堵头plug短节nipple异径短节reducing nipple; swage nipple 1.3弯管Bend预制弯管fabricated pipe bend跨越弯管（^形）cross-over bend偏置弯管（~形）offset bend90°弯管quarter bend环形弯管cirele bend单侧偏置90°弯管（?形）single offset quarter bendS形弯管“S” bend单侧偏置U形膨胀弯管（| ?形）single offset “U” bendU形弯管“U” bend双偏置U膨胀弯管double offset expansion “U” bend斜接弯管mitre bend三节斜接弯管3-piece mitre bend折皱弯管corrugated bend圆度roundness1.4法兰Flange (FLG）整体管法兰integral pipe flange钢管法兰steel pipe flange螺纹法兰threaded flange滑套法兰（包括平焊法兰）slip-on flange (SO); slip-on welding flange 承插焊法兰socket welding flange松套法兰lap joint flange (LJF)对焊法兰welding neckflange (WNF)法兰盖blind flange, blind孔板法兰orifice flange异径法兰reducing flange盘座式法兰pad type flange松套带颈法兰loose hubbed flange焊接板式法兰welding plate flange对焊环welding neck collar（与stub end相似）平焊环welding-on collar突缘短节stub end, lap翻边端lapped pipe end松套板式法兰loose plate flange压力级pressure rating, pressure rating class压力—温度等级pressure-temperature rating 法兰密封面，法兰面flange facing突面raised face (RF)凸面male face (MF)凹面female face (FMF)榫面tongue face槽面groove face环连接面ring joint face全平面；满平面flat face; full face (FF)光滑突面smooth raised face (SRF)法兰面加工facing finish粗糙度roughness光滑的smooth齿形serrated均方根root mean square (RMS)算术平均粗糙高度arithmetical average roughness height (AARH)配对法兰companion-flange螺栓圆bolt circle (B.C.)1.5垫片Gasket (GSKT)垫片的型式type of gasket平垫片flat gasket环形平垫片flat ring gasket平金属垫片flat metal gasket夹棉织物的橡胶elastomer with cotton fabric insertion夹石棉织物的橡胶elastomer with asbestos fabric insertion夹石棉织物及金属丝加强的橡胶elastomer with asbestos fabric insertionwith wire reinforcement无石墨压缩白石棉垫片non graphited compressed white asbestos gasket天然白橡胶垫片natural white rubber gasket压缩石棉垫片compressed asbestos class gasket浸聚四氟乙烯的石棉垫片PTFE impregnated asbestos gasket夹石棉的缠绕金属垫片spiral-wound metal gasket with asbestos filler内环inner ring外环，外定位环outer ring波纹金属垫片corrugated metal gasket波纹金属包嵌石棉垫片corrugated metal gasket with asbestos inserted双夹套波纹金属包石棉垫片corrugated metal double jacketed asbestos filled gasket双夹套垫片double jacketed gasket金属包石棉平垫片flat metal jacketed asbestos filled gasket整体金属齿形垫片solid metal serrated gasket槽形金属垫片grooved metal gasket环形连接金属垫片ring joint metal gasket八角环形垫片octagonal ring gasket椭圆环形垫片oval ring gasket透镜式垫片lens gasket非金属垫片non-metallic gasket1.6阀门Valve1.6.1阀门结构、零件阀轭yoke外螺纹阀杆及阀轭outside screwyoke (OS & Y)阀杆stem内螺纹inside screw (IS)阀轭套yoke sleeve阀杆环stem ring阀座valve seat (body seat)阀座环、密封圈seat ring整体（阀）座integral seat堆焊（阀）座deposited seat阀芯（包括密封圈、杆等内件）trim 阀盘disc阀盘密封圈disc seat阀体body阀盖bonnet阀盖衬套bonnet bush螺纹阀帽screw cap螺纹阀盖screw bonnet螺栓连接的阀盖bolted bonnet (BB) 活接阀盖（帽）union bonnet (cap) 螺栓连接的阀帽bolted cap (BC)焊接阀盖welded bonnet (WB)本体阀杆密封body stem seal石棉安全密封asbestos emenen seal倒密封back seal压力密封的阀盖pressure-tight bonnet动力操纵器powered operator电动操纵器electric motor operator气动操纵器pneumatic operator液压操纵器hydraulic operator快速操纵器quick-acting operator滑动阀杆sliding stem正齿轮传动spur gear operated伞齿轮传动bevel gear operated扳手操作wrench operated链轮chain wheel手轮hand wheel手柄hand lever (handle)气缸（或液压缸）操纵的cylinder operated链条操纵的chain operated等径孔道full bore; full port异径孔道reducing bore, reduced port,venturi port 短型short pattern紧凑型（小型）compact type笼式环lantern ring压盖gland阀杆填料stem packing阀盖垫片bonnet gasket升杆式（明杆）rising stem (RS)非升杆式（暗杆）non-rising stem (NRS) 指示器/限位器indicator/stopper注油器grease injector可更换的阀座环renewable seat ring 1.6.2常用阀(1）闸阀gate valve平行双闸板double disc parallel seat开口楔形闸板split wedge挠性整体楔形闸扳flexible solid wedge 整体楔形闸板solid wedge塞型闸阀plug gate valve直通型闸阀through conduit gate valve (2)截止阀globe valve球心型阀盘globe type disc塞型阀盘plug type disc可转动的阀盘swivel disc(3)节流闪阀throttle valve针阀needle valve(4)角阀angle valve(5) Y型阀（Y型阀体截止阀）Y-valve (Y-body globe valve)(6)球阀ball valve三通球阀3-way ball valve装有底轴的trunnion mounted耐火型fire safe type浮动球型floating ball type防脱出阀杆blowout proof stem(7)蝶阀butterfly valve对夹式（薄片型）wafer type凸耳式lug type偏心阀板蝶阀offset disc burerfly valve; eccentric butterfly valve 斜阀盘蝶阀canted disc butterfly valve连杆式蝶阀link butterfly valve8)柱塞阀piston type valve(9)旋塞阀plug valve三通旋塞阀three-way plug valve四通旋塞阀four-way plug valve旋塞cock衬套旋塞sleeve cock(10)隔膜阀diaphragm valve橡胶衬里隔膜阀rubber lined diaphragm valve直通式隔膜阀straight way diaphragm valve堰式隔膜阀weir diaphragm valve(11)夹紧式胶管阀pinch valve（用于泥浆、粉尘等）(12)止回阀check valve升降式止回阀lift check valve旋启式止回阀swing check valve, flap check valve落球式止回阀ball check valve弹簧球式止回阀spring ball check valve双板对夹式止回阀dual plate wafer type check valve 无撞击声止回阀non-slam cheek valve底阀foot valve切断式止回阀stop check valve; non-return valve活塞式止回阀piston check valve斜翻盘止回阀tilting disc check valve蝶式止回阀butterfly check valve1.6.3其它用途的阀安全泄气阀safety valve (SV)安全泄液阀relief valve (RV)安全泄压阀safety relief valve杠杆重锤式leverweight type引导阀操纵的安全泄气阀pilot operated safety valve复式安全泄气阀twin type safety valve罐底排污阀flush-bottom tank valve电磁阀solenoid valve, solenoid operated valve电动阀electrically operated valve, electric-motor operated valve 气动阀pneumatic operated valve低温用阀cryogenic service valve蒸汽疏水阀steam trap机械式疏水阎mechanical trap浮桶式疏水阀open bucket trap, open top bucket trap浮球式疏水阀float trap倒吊桶式疏水阀inverted bucket trap自由浮球式疏水阀loose float trap恒温式疏水阀thermostatic trap金属膨胀式蒸汽疏水阀metal expansion steam trap液体膨胀式蒸汽疏水阀liquid expansion steam trap双金属膨胀式蒸汽疏水阀bimetallic expansion steam trap压力平衡式恒温疏水阀balanced pressure thermostatic trap热动力式疏水阀thermodynamic trap脉冲式蒸汽疏水阀impulse steam trap放气阀（自动放气阀）air vent valve (automatic air vent valve)（疏水阀用）平板式滑动闸阀slab type sliding gate valve盖阀flat valve换向阀diverting valve, reversing valve热膨胀阀thermo expansion valve自动关闭阀self-closing gate valve自动排液阀self-draining valve管道盲板阀line-blind valve挤压阀squeeze valve（用于泥浆及粉尘等）呼吸阀breather valve风门、挡板damper减压阀pressure reducing valve, reducing valve控制阀control valve膜式控制阀diaphragm operated control valve执行机构actuator背压调节阀back pressure regulating valve差压调节阀differential pressure regulating valve压力比例调节阀pressure ratio regulating valve1.6.4未指明结构（或阀型）的阀切断阀block valve; shut-off valve; stop valve调节阀regulating valve快开阀quick opening valve快闭阀quick closing valve隔断阀isolating valve三通阀three way valve夹套阔jacketed valve非旋转式阀non-rotary valve排污阀blowdown valve集液排放阀drip valve排液阀drain valve放空阀vent valve卸载阀unloading valve排出阀discharge valve吸入阀suction valve多通路阀multiport valve取样阀sampling valve手动阀hand-operated valve; manually operated valve 锻造阀forged valve铸造阀cast valve（水）龙头bibb; bib; faucet抽出液阀（小阀）bleed valve旁路阀by-pass valve软管阀hose valve混合阀mixing valve破真空阀vacuum breaker冲洗阀flush valve第一道阀；根部阀primary valve根部阀root valve总管阀header valve事故切断阀emergency valve1.7管道特殊件Piping Specialty1.7.1管道特殊件（组件）粗滤器strainer过滤器filter临时粗滤器（锥型）temporary strainer (cone type) y型粗滤器y-type strainerT型粗滤器T-type strainer永久过滤器permanent filter丝网粗滤器gauze strainer洗眼器及淋浴器eye washershower视镜sight glass阻火器flame arrester喷嘴；喷头spray nozzle取样冷却器sample cooler消声器silencer膨胀节expansion joint波纹膨胀节bellow expansion joint单波single bellow双波double bellow多波multiple bellow压力平衡式膨胀节pressure balanced expansion带铰链膨胀节hinged expansion joint轴向位移型膨胀节axial movement type expansion joint 自均衡膨胀节（外加强环）self-equalizing expansion joint 带接杆膨胀节tied expansion joint万向型膨胀节universal type expansion joint球形补偿器ball type expansion joint填函式补偿器slip type (packed type) expansion joint单向滑动填料函补偿器single actionpacked slip joint1.7.2管道特殊元件Piping Special Element软管接头hose connection (HC)快速接头quick coupling金属软管metal hose橡胶管rubber hose挠性管flexible tube鞍形补强板reinforcing saddles补强板reinforcement pad特殊法兰special flange漏斗funnel排液环drip ring排液漏斗drain funnel插板blank垫环spacer8字盲板spectacle blind; figure 8 blind 限流孔板restriction orifice爆破片rupture disk法兰盖贴面protective disc费托立克接头victaulic coupling1.8端部连接End Connection法兰端flanged end坡口端beveled end (BE)对焊端butt welded end平端plain end (PE)承插焊端socket welding end螺纹端threaded end (TE)承口bell end焊接端welding end法兰连接（接头）flanged joint对焊连接（接头）butt welded joint螺纹连接，管螺纹连接threaded joint, pipe threaded joint 锥管螺纹密封焊连接seal-welded taper pipe threaded joint 承插焊连接（接头）socket welded joint承插连接（接头）bellspigot joint环垫接头ring joint (RJ)万向接头universal joint软钎焊连接（接头）soldered joint搭接接头，松套连接lapped joint外侧厚度切斜角bevel for outside thickncss内侧厚度切斜角bevel for inside thickness内外侧厚度切斜角bevel for combined thickness法兰式的flanged (FLGD)对焊的butt welded (BW)螺纹的threaded (THD)承插焊的socket welded (SW)小端为平的small end plain (SEP)大端为平的large end plain (LEP)两端平both ends plain (BEP)小端带螺纹small end thread (SET)大端带螺纹large end thread (LET)两端带螺纹both end thread (BET)一端带螺纹one end thread (OET)支管连接branch connection焊接支管branch pipe welded directly to the run pipe 2管道用紧固件及螺纹2.1紧固件螺栓bolt六角头螺栓hexagonal head bolt方头螺栓square head bolt螺柱，双头螺栓stud bolt环头螺检eye bolt沉头螺栓countersunk (head) screw地脚螺栓anchor bolt; foundation bolt松紧螺旋扣（花篮螺丝）turnbuckleU形螺栓U-boltT形螺栓T-bolt圆头螺钉round head bolt机螺栓，机螺钉maehine bolt顶开螺栓，顶起螺栓Jack screw 自攻螺钉self tapping screw膨胀螺栓expansion bolt粗制的coarse精制的finished, fine螺母nut六角螺母hexagonal nut方螺母square nut蝶形螺母wing nut扁螺母flat nut锁紧螺母lock nut垫圈washer平垫圈plain washer球面垫圈spherical washer弹簧垫圈spring washer方垫圈square washer斜垫圈slant washer销轴pinned shan销pin开口销cotter pin定位销dowel pin带孔销pin with hole圆锥销taper pin铆钉rivet键key2.2螺纹左螺纹left hand thread右螺纹right hand thread管螺纹pipe thread锥管螺纹taper pipe thread直管螺纹straight pipe thread梯形螺纹trapezoid thread螺距pitch of thread粗牙螺纹coarse thread细牙螺纹fine thread特细牙螺纹extra fine thread通长螺纹full thread惠氏螺纹whitworth thread公制螺纹metric ibread美国标准锥管螺纹American standard taper pipe thread (NPT) 螺孔tap3材料、型钢及填料3.1金属材料3.1.1黑色金属Ferrous Metal碳素钢carbon steel (CS)低碳钢low-carbon steel中碳钢medium-carbon steel高碳钢high-carbon steel普通碳素钢general carbon steel优质碳素钢high-quality carbon steel普通低合金结构钢general structure low-alloy steel 合金结构钢structural alloy steel合金钢alloy steel低合金钢low alloy steel中合金钢medium alloy steel高合金钢high alloy steel耐热钢heat resisting steel高强度钢high strength steel复合钢clad steel工具钢tool steel弹簧钢spring steel钼钢molybdenum steel镍钢nickel steel铬钢chromium steel铬钼钢chrome-molybdenum steel铬镍钢chromium-nickel steel,chrome-nickel steel 不锈钢stainless steel (S.S.)奥氏体不锈钢Austenitic stainless steel马氏体不锈钢Martensitic stainless steel司特来合金（钨铬钴台金）Stellite耐蚀耐热镍基合金Hastelloy铬镍铁合金inconel耐热铬镍铁合金incoloy20合金20 alloy平炉钢（马丁钢）Martin steel镇静钢killed steel半镇静钢semi-killed steel沸腾钢rimmed steel; rimming steel; open-steel 锻钢forged steel铸钢cast steel铸铁cast iron (C.I.)灰铸铁grey cast iron可锻铸铁malleable iron (MI)球墨铸铁nodular cast iron; nodular graphite iron生铁pig iron熟铁，锻铁wrought iron铸件casting高硅铸铁high silicon cast iron3.1.2镀层及制造方法渗铬钢，镀铬钢chromized steel镀铬的chromium-plated, chrome-plated 镀层plating锻造，型钢swage锻造的，锻造forging轧制rolling热轧hot rolling冷轧cold rolling挤压extruding冷加工cold working热加工hot working拔制drawing3.1.3有色金属Non-ferrous Metal铝aluminum铜，紫铜copper黄铜brass青铜bronze铝青铜aluminum bronze磷青铜phosphor bronze铝镁合金aluminum magnesium锰青铜manganese bronze蒙乃尔（注：镍及铜合金）Monel 镍铜台金nickel copper alloy非铁合金nonferrous alloy钛titanium铅lead硬铅hard lead3.1.4材料性能极限强度ultimate strength抗拉强度tensile strength屈服极限yield limit屈服点yield point延伸率percentage elongation抗压强度compressive strength抗弯强度bending strength弹性极限elastic limit冲击值impact value疲劳极限fatigue limit蠕变极限creep limit持久极限endurance limit布氏硬度Brinell hardness洛氏硬度Rockwell hardness维氏硬度Vickers diamond hardness, diamond penetrator hardness 蠕变断裂强度creep rupture strength断面收缩率reduction of area韧性toughess脆性brittleness延性ductility冷脆cold shortness冷流cold flow3.2非金属材料Non-metallic Material塑料plastic丙烯腈—丁二烯—苯乙烯acrylonitrile-butadiene-styrene (ABS)聚乙烯polyethylene (PE)聚氯乙烯polyvinyl chloride (PVC)苯乙烯橡胶styrene-rubber (SR)聚丁烯polybutylene (PB)聚丙烯polypropylene (PP)聚苯乙烯polystyrene (PS)氯化聚醚chlorinated polyether (CPE)聚酰胺polyamide (PA)聚碳酸酯polycarbonate (PC)聚甲基丙烯酸甲酯polymethyl methacrylate (PMMA) 醋酸丁酸纤维素cellulose acetate butyrate (CAB)氯化聚氯乙烯chlorinated polyvinyl chloride (CPVC) 聚偏二氟乙烯polyvinylidene fluoride (PVDF)缩醛塑料acetal plastic尼龙塑料nylon plastic聚烯烃polyolefin (PO)石墨酚醛塑料graphite phenolic plastics聚四氟乙烯polytetrafluoroethylene (PTFE)纤维增强热塑性塑料fiber reinforced thermoplastics 热塑性塑料thermoplastic热固性塑料thermosetting plastics胶粘剂adhesive溶剂胶接剂solvent cement树脂resin环氧树脂epoxy, epoxy resin聚酯树脂polyester resin聚酯纤维polyester fibers氟塑料fluoroplastics聚氨基甲酸酯polyurethane丙烯酸树脂acrylic resin脲醛树脂urea resin呋哺树脂furan resin乙烯丙烯二烃单体ethylene propylene diene monomer (EPDM) 合成橡胶synthetic rubber橡胶rubber丁腈橡胶nitrile butadiene rubber氯丁橡胶neoprene天然橡胶natural rubber乙丙橡胶ethylene propylene rubber (EPR)玻璃glass硼硅玻璃borosilicate glass耐火砖fire brick陶瓷ceramic搪瓷porcelain enamel木材wood3.3型材型钢shaped steel, section steel, swage角钢angle steel槽钢channel工字钢I-beam宽缘工字钢或H钢wide flanged beamT型钢T-bar方钢square bar扁钢flat bar角钢hexagonal steel bar圆钢round steel; rod钢带strap steel钢板plate网纹钢板checkered plate腹板（指型钢的立板）web翼缘（指型钢的缘）wing3.4填料及填料函填料packing石棉绳asbestos rope, asbestos cord．O形环O-ring自密封self-sealing四氟带Teflon tap带铬镍合金丝的石棉绳asbestos rope with inconel wire, inconel wire asbestos浸聚四氟乙烯的石棉填料Teflon impregnated asbestos packing 金属填料metallic stuffing填料箱，填料函packing box, stuffing box填料函压盖stuffing box gland4管道等级及材料统计4.1管道材料规定Piping Material Specification管道等级piping class; piping classification管道等级号class designation公称直径nominal diameter (DN); nominal (pipe) size公称压力nominal pressure (PN)压力级，等级，类别class (CL)低压low pressure (L.P.)中压medium pressure (M.P.)高压high pressure (H.P.)大气压atmosphere (ATM)真空vacuum工作压力operating pressure; working pressure设计压力design pressure工作温度operating temperature设计温度design temperature环境温度ambient temperature腐蚀裕量corrosion allowance管道附件piping attachment管道元件piping element壁厚wall thickness (WT)壁厚系列号schedule number (SCH. No.)加厚的，加强的extra heavy, extra strong双倍加厚的，双倍加强的double extra heavy, double extra strong通用连接组typieal installation分组（类）形式（如管道等级表）block form数据库data base文件file4.2材料统计Material Take-off (MTO)汇总表summary sheet材料表bill of material (BM)综合管道材料表consolidated piping material summary sheet (CPMSS) 统计材料准确度accuracy of take-off材料情况报告material status report (MSR)散装材料bulk material编位号的itemized代码code number短代码short code数量quantity (QTY)重力weight净重net weight毛重gross weight5设备布置及管道布置Plot PlanPiping Layout,EquipmentPiping Arrangement 5.1设备名称Equipment Name5.1.1容器Vessel(1)塔tower, column洗涤塔scrubber吸收塔absorber冷却塔cooling tower精馏塔fractionating tower蒸馏塔distillation tower再生塔regenering tower造粒塔prflling tower汽提塔stripper脱气塔degasifier合成塔synthesis tower(2)反应器reactor聚台釜polymerizer转化器，变换器converter脱硫反应器desulphurization reactor 甲烷化器methanator(3)气柜gas-holder螺旋式气柜helical gas-holder湿式气柜wet gas-holder干式气柜dry gas-holder(4)槽罐贮罐tank; storage tank缓冲罐knock out drum球罐spheroid, spherical tank罐drum接受槽receiver计量槽measuring tank加料槽feed tank排污罐blow down tank闪蒸罐flash drum汽包steam drum溶液贮槽solution storage tank地下槽sloptank(5)其它设备分离器separator旋风分离器cyclone分子筛molecular sieve 脱氧器deaerator搅拌器agitator干燥器dryer混合器mixer萃取器extractor结晶器crystallizer澄清器gravity settler 净化器purifier气化器vaporizer吸附器adsorber融解槽melter减温器desuperheater 升压器booster喷射器ejector喷头sprayer火炬flare消声器silencer。

一、美国美标管件标准ﻫ美国标准ＡSME/ANSＩＢ16.9 工厂制造的锻钢对焊管件ﻫASＭＥ/ＡＮSＩB１6.11承插焊和螺纹锻造管件ＡＳME／ANSI Ｂ16.28 钢制对焊小半径弯头和回头弯AＳＭE B16.5 管法兰和法兰配件ﻫMSS SP-43 锻制不锈钢对焊管件ﻫMＳS SP-83 承插焊和螺纹活接头ﻫMSS SＰ-9７承插焊、螺纹和对焊端的整体加强式管座二、垫片Gasｋｅt（GSKT)ﻫ垫片的型式tｙpe of gasket ﻫ平垫片fｌａt gasket环形平垫片ｆlat rｉng ｇａsket ﻫ平金属垫片fｌat ｍetal gaｓket夹棉织物的橡胶elａstomeｒwｉth coｔtoｎfabｒic iｎserｔｉonﻫ夹石棉织物的橡胶ｅlastomer wiｔｈａsｂesｔos fａｂrｉｃｉnserｔionﻫ夹石棉织物及金属丝加强的橡胶elａstoｍｅｒwiｔｈasbeｓtos ｆａbrｉc ｉnseｒtｉon ａｎd wiｔh wire reiｎforcement ﻫ无石墨压缩白石棉垫片non grａｐｈiteｄcompreｓseｄｗhｉte asｂeｓｔｏｓｇasket ﻫ天然白橡胶垫片naｔuraｌwhite rubberｇaｓkeｔ压缩石棉垫片compressed asｂeｓtｏｓclasｓｇaｓkｅt浸聚四氟乙烯的石棉垫片PTFE ｉｍprｅgnａtｅd ａsbｅstoｓgaskeｔ夹石棉的缠绕金属垫片spiral-wｏuｎd metaｌgaskeｔwithａsbｅstos filleｒ内环ｉnnｅｒｒing ﻫ外环,外定位环ouｔer ｒing ﻫ波纹金属垫片cｏrrugａted mｅtal gasｋeｔ波纹金属包嵌石棉垫片corｒugatｅｄｍeｔaｌgaｓkｅｔwith asbestoｓinｓerted双夹套波纹金属包石棉垫片corrugated mｅtaｌdouble jacｋeted ａsbestos ｆilled gａｓket ﻫ双夹套垫片ｄｏuble ｊacketed ｇasket金属包石棉平垫片flat mｅｔａl jａcｋｅted aｓbestos fｉｌlｅｄｇaｓket ﻫ整体金属齿形垫片solidｍｅtaｌseｒrated gasｋeｔﻫ槽形金属垫片grooved ｍetal ｇaskｅtﻫ环形连接金属垫片rｉng ｊoｉnｔmeｔal ｇａsket ﻫ八角环形垫片ocｔagoｎal rｉng gasket椭圆环形垫片ovａl ring gasket ﻫ透镜式垫片ｌens gasｋｅtﻫ非金属垫片non-metallic gaskeｔ三、各种法兰管件中英文对照表ﻫ法兰Fｌａnge (ＦＬG)整体管法兰inｔegｒal ｐipe flａnｇｅ钢管法兰steeｌｐipe flange螺纹法兰thｒeａdｅd flaｎgeﻫ滑套法兰(包括平焊法兰) slip-oｎflange (ＳO)；sliｐ-o ｎｗelding flange ﻫ承插焊法兰sｏcｋeｔweldｉｎg flange ﻫ松套法兰lａｐjoiｎt flanｇe (ＬJF)对焊法兰ｗelding ｎeｃkfｌaｎge(WNF）法兰盖blind flange，ｂliｎｄﻫ孔板法兰orifiｃｅfｌangｅﻫ异径法兰ｒeduｃinｇflange盘座式法兰pａd tｙｐe fｌａｎｇe松套带颈法兰loosｅhubbｅd flange焊接板式法兰ｗeｌｄiｎｇｐlaｔe fｌａngｅ对焊环weｌding neck collａr(与stub ｅｎd相似) ﻫ平焊环ｗｅlding-oｎｃollaｒ突缘短节stub eｎｄ, laｐﻫ翻边端lappｅd pipe eｎd松套板式法兰looｓe pｌate fｌａnge压力级pressｕｒe ratinｇ,preｓｓurｅratｉｎｇclass压力—温度等级pｒesｓurｅ-tｅmｐeratuｒｅrating ﻫ法兰密封面，法兰面ｆlangeｆａc ｉng突面raisｅd faｃe （RＦ) ﻫ凸面maｌe face (MＦ)凹面female fａce (FMF)榫面toｎgue ｆaｃe ﻫ槽面groｏve face ﻫ环连接面ring ｊoiｎt fａｃe ﻫ全平面;满平面flaｔｆace; fuｌｌfaｃe (ＦＦ) ﻫ光滑突面smooth raiｓeｄｆace (SRF)法兰面加工faｃinｇfiｎiｓh粗糙度rougｈnｅss光滑的smoｏth齿形serrated均方根rｏot mｅan square （RＭS)算术平均粗糙高度ariｔhmeｔiｃaｌavｅｒagｅrｏｕgｈnesｓｈeight（AARＨ)配对法兰companion-fｌaｎge螺栓圆bolt cｉrcle (B.Ｃ.)四管道特殊件 PｉpiｎｇＳpeciaｌty ﻫﻫ１.７.1 管道特殊件（组件）粗滤器 stｒaiｎer过滤器 filtｅr临时粗滤器（锥型) ｔｅｍporarｙ strainer （ｃｏnｅ tyｐe) ﻫy 型粗滤器 y-tｙpe ｓtraiｎerT型粗滤器 T-typｅｓtraｉneｒﻫ永久过滤器ｐermａｎent fｉｌter ﻫ丝网粗滤器 gａｕze straｉner洗眼器及淋浴器eye ｗasher and ｓhoweｒﻫ视镜 siｇht glass ﻫ阻火器ｆlaｍe arrestｅr喷嘴;喷头 sｐray noｚzｌe取样冷却器 sample cｏoｌeｒ消声器 silencer ﻫ膨胀节ｅxpａnｓｉon joint ﻫ波纹膨胀节beｌloｗexpansｉon ｊoint单波ｓingle bellｏw双波 doｕblｅ beｌｌoｗﻫ多波 multiple bellow ﻫ压力平衡式膨胀节ｐreｓｓure balaｎｃｅd expansｉｏn ﻫ带铰链膨胀节ｈinged expansion joｉnt轴向位移型膨胀节ａxial movｅment ｔype ｅxpansioｎ jｏｉnt自均衡膨胀节(外加强环）ｓelf-eｑｕaｌiziｎg eｘpａnｓion joinｔﻫ带接杆膨胀节 tｉｅd ｅxｐansiｏｎjｏｉnt ﻫ万向型膨胀节 univｅrsａl type eｘpanｓｉon joｉnt球形补偿器 ball tｙpe ｅxpanｓｉｏn joint填函式补偿器 slｉp tｙｐe （pａcked ｔｙｐe）ｅxｐａnsｉｏn ｊoin ｔﻫ单向滑动填料函补偿器 single aｃｔｉonpａcｋeｄｓlip jointﻫ１.7.２管道特殊元件Ｐipiｎｇ Sｐecｉal Eｌｅment ﻫﻫ软管接头ｈｏｓe cｏｎnｅｃtｉｏn (HC)快速接头 quｉck cｏupling ﻫ金属软管ｍetal hose橡胶管ｒubｂer ｈosｅﻫ挠性管ｆlexible ｔubｅ鞍形补强板 reinforcinｇ saddｌes补强板ｒeiｎfｏrceｍｅnt ｐaｄ特殊法兰 sｐecial flangｅﻫ漏斗 funnel ﻫ排液环ｄrｉp ring排液漏斗ｄrain funｎel插板 bｌａｎk ﻫ垫环spacｅｒﻫ8字盲板sｐecｔaｃle blinｄ; figｕｒｅ８ｂlinｄﻫ限流孔板restｒｉctｉon orｉfice爆破片ｒｕptｕｒｅ diｓk法兰盖贴面 pｒｏtectiｖe disc费托立克接头 vicｔaｕｌic cｏuｐｌiｎg1.8 端部连接 End Connectiｏn ﻫﻫ法兰端 flanged ｅｎd坡口端 beveled eｎd (ＢＥ）对焊端 buｔt welded end平端 plain enｄ(ＰE) ﻫ承插焊端 soｃket welｄｉng end ﻫ螺纹端ｔhreadｅd ｅnd (TE）ﻫ承口beｌl end ﻫ焊接端 welding ｅnd法兰连接（接头） flaｎｇed ｊｏint ﻫ对焊连接（接头） bｕｔｔｗｅｌded ｊoint螺纹连接,管螺纹连接thｒeaded joint, pipｅ threａdeｄ joint锥管螺纹密封焊连接ｓeａl-welded ｔapｅr piｐe tｈreaｄed jｏinｔﻫ承插焊连接(接头) socket wｅlded joint承插连接(接头） beｌl and ｓpｉｇｏt joiｎt ﻫ环垫接头ring joint （RJ) ﻫ万向接头 univｅｒｓal joint软钎焊连接(接头） soldered ｊoiｎt搭接接头，松套连接ｌaｐｐeｄ joint外侧厚度切斜角 bｅvel fｏr outｓide tｈickncss内侧厚度切斜角bevel ｆｏr inside thicｋneｓs ﻫ内外侧厚度切斜角 b ｅveｌｆor ｃｏｍbinｅd tｈiｃkness ﻫ法兰式的ｆｌａｎgeｄ(F ＬGD)对焊的 buｔt weldeｄ (BＷ）螺纹的ｔｈreaｄeｄ(THD) ﻫ承插焊的ｓocｋet wｅlded (SW）ﻫ小端为平的 smａｌｌ eｎｄ plain (ＳEP) ﻫ大端为平的ｌａｒge end pｌaｉn (LEP)两端平both ends pｌain (BEＰ) ﻫ小端带螺纹 smａll end thread (SE Ｔ)大端带螺纹lａrgｅ eｎｄｔhreａd (LＥT）两端带螺纹ｂｏth enｄｔｈreａd (ＢET)一端带螺纹 oｎe end threaｄ（OＥT)支管连接ｂraｎcｈ cｏnnectiｏn ﻫ焊接支管ｂｒanch pｉpe welｄed diｒeｃtly to the ruｎ pipe五、管件Fｉtｔingﻫﻫ弯头eｌｂoｗ异径弯头reduｃiｎg elboｗﻫ带支座弯头ｂase elbｏwk半径弯头lｏng rａdius elbowﻫ短半径弯头short radiuｓelbｏwﻫ长半径180°弯头ｌｏng rａdiuｓreturnﻫ短半径1８０°弯头ｓhoｒt ｒａｄius reｔurnﻫ带侧向口的弯头（右向或左向) side outlet elboｗ（rｉgｈｔhand or lｅft ｈand)ﻫ双支管弯头（形)ｄoubｌｅbｒanch eｌbowﻫ三通tｅeﻫ异径三通reduｃing ｔeｅ等径三通ｓｔraｉght ｔｅe带侧向口的三通(右向或左向）sｉｄe ｏutlet tee (ｒiｇht ｈand or1ｅfｔhａnd)ﻫ异径三通（分支口为异径) reｄuｃiｎg tｅe (reduciｎg oｎｏutlet)异径三通（一个直通口为异径)reduｃｉng tee (rｅduｃing on oｎｅrun)带支座三通base teｅﻫ异径三通（一个直通口及分支口为异径) reｄuciｎgｔee (ｒeducing ｏn ｏnｅｒuｎanｄoutlet)异径三通（两个直通口为异径，双头式) rｅduｃｉnｇｔee (redｕｃing on bｏthｒunｓ, ｂull ｈｅａｄ）45°斜三通（支管为异径) 45° lateral (redｕcingｏnｂraｎch) 45°斜三通４5° laterａlﻫ4５°斜三通(一个直通口为异径) 45° laｔeｒａｌ(rｅｄucｉng on ｏnｅrｕｎ）45°斜三通(一个直通口及支管为异径) 4５°latｅｒaｌ(reducinｇoｎone ｒun aｎd bran ｃh)Y型三通(俗称裤衩) tｒue “Y”ﻫ四通cｒｏssﻫ等径四通sｔraight cｒossﻫ异径四通ｒeducing ｃrｏssﻫ异径四通（一个分支口为异径)reducing cross (rｅducｉng oｎoｎｅoutl ｅt)异径四通(一个直通口及分支口为异径）reducｉngｃross (ｒeducingｏn oneｒｕn and ouｔlet)ﻫ异径四通(两个分支口为异径) ｒｅducing crosｓ(reducｉng oｎbｏtｈoutleｔ)ﻫ异径四通(一个直通口及两个分支口为异径）reducing crosｓ(reｄucinｇｏn one ｒun ａｎｄboth outlet）ﻫ异径管reduｃer同心异径管conceｎtｒiｃredｕｃeｒﻫ偏心异径管eｃceｎtriｃredｕceｒ锻制异径管reduｃing swａge螺纹支管台threadｏletﻫ焊接支管台ｗeｌdｏlet承插支管台sockoletﻫ弯头支管台elｂｏletﻫ斜接支管台ｌatrolｅｔ镶入式支管嘴swｅepolｅt短管支管台niｐoletﻫ支管台，插入式支管台boss管接头ｃoupling, full ｃoｕplｉｎgﻫ半管接头hａｌfｃｏupｌｉng异径管接头reduｃｉnｇcouplｉngﻫ活接头unioｎ内外螺纹缩接(俗称补芯）ｂusｈｉng管帽cap(C)ﻫ堵头plug1.3弯管Bend短节nippleﻫ异径短节rｅduciｎg nｉpplｅ; swage ｎipｐleﻫﻫﻫ预制弯管ｆａbrｉcaｔed pipe benｄ跨越弯管（^ 形）crｏss-oveｒbend偏置弯管（～形）ｏｆfsｅt beｎd９0°弯管qｕaｒter bｅnd环形弯管cireｌe bｅｎｄ单侧偏置９0°弯管(? 形) singｌe offsｅt quartｅr ｂendS形弯管“S” ｂendﻫ单侧偏置U形膨胀弯管(|?形）singｌe oｆfsｅｔ“U” beｎdU形弯管“U” bendﻫ双偏置U膨胀弯管dｏuble offset ｅxpａnｓiｏn “U” ｂｅnｄﻫ斜接弯管ｍｉtｒe ｂend三节斜接弯管3-pｉece ｍitrｅbeｎd折皱弯管coｒｒｕgａted bendﻫ圆度ｒoundness。

1 管道组成件Piping component1.1 管子Pipe管子(按照配管标准规格制造的) pipe管子(不按配管标准规格制造的其他用管) tube钢管steel pipe铸铁管cast iron pipe衬里管lined pipe复合管clad pipe碳钢管carbon steel pipe合金钢管alloy steel pipe不锈钢stainless steel pipe奥氏体不锈钢管austenitic stainless steel pipe铁合金钢管ferritic alloy steel pipe轧制钢管wrought-steel pipe锻铁管wrought-iron pipe无缝钢管seamless (SMLS) steel pipe焊接钢管welded steel pipe电阻焊钢管electric-resistance welded steel pipe电熔（弧）焊钢板卷管electric-fusion (arc)-welded steel-plate pipe螺旋焊接钢管spiral welded steel pipe镀锌钢管galvanized steel pipe热轧无缝钢管hot-rolling seamless pipe冷拔无缝钢管cold-drawing seamless pipe水煤气钢管water-gas steel pipe塑料管plastic pipe玻璃管glass tube橡胶管rubber tube直管run pipe; straight pipe1.2 管件Fitting弯头elbow异径弯头reducing elbow带支座弯头base elbowk半径弯头long radius elbow短半径弯头short radius elbow长半径180°弯头long radius return短半径180°弯头short radius return带侧向口的弯头（右向或左向）side outlet elbow (right hand or left hand) 双支管弯头（形）double branch elbow三通tee异径三通reducing tee等径三通straight tee带侧向口的三通（右向或左向）side outlet tee (right hand or 1eft hand) 异径三通（分支口为异径）reducing tee (reducing on outlet)异径三通（一个直通口为异径）reducing tee (reducing on one run)带支座三通base tee异径三通（一个直通口及分支口为异径）reducing tee (reducing on one run and outlet) 异径三通（两个直通口为异径，双头式）reducing tee (reducing on both runs, bull head) 45°斜三通45° lateral45°斜三通（支管为异径）45° lateral (reducing on branch)45°斜三通(一个直通口为异径) 45° lateral (reducing on one run)45°斜三通(一个直通口及支管为异径) 45° lateral (reducing on one run and branch)Y型三通（俗称裤衩）true “Y”四通cross等径四通straight cross异径四通reducing cross异径四通（一个分支口为异径）reducing cross (reducing on one outlet)异径四通（一个直通口及分支口为异径）reducing cross (reducing on one run and outlet) 异径四通（两个分支口为异径）reducing cross (reducing on both outlet)异径四通（一个直通口及两个分支口为异径）reducing cross (reducing on one run and both outlet)异径管reducer同心异径管concentric reducer偏心异径管eccentric reducer锻制异径管reducing swage螺纹支管台threadolet焊接支管台weldolet承插支管台sockolet弯头支管台elbolet斜接支管台latrolet镶入式支管嘴sweepolet短管支管台nipolet支管台，插入式支管台boss管接头coupling, full coupling半管接头half coupling异径管接头reducing coupling活接头union内外螺纹缩接（俗称补芯）bushing管帽cap (C)堵头plug短节nipple异径短节reducing nipple; swage nipple1.3 弯管Bend预制弯管fabricated pipe bend跨越弯管（^ 形）cross-over bend偏置弯管（~ 形）offset bend90°弯管quarter bend环形弯管cirele bend单侧偏置90°弯管（? 形）single offset quarter bendS形弯管“S” bend单侧偏置U形膨胀弯管（| ?形）single offset “U” bendU形弯管“U” bend双偏置U膨胀弯管double offset expansion “U” bend斜接弯管mitre bend三节斜接弯管3-piece mitre bend折皱弯管corrugated bend圆度roundness1.4 法兰Flange (FLG）整体管法兰integral pipe flange钢管法兰steel pipe flange螺纹法兰threaded flange滑套法兰（包括平焊法兰）slip-on flange (SO); slip-on welding flange 承插焊法兰socket welding flange松套法兰lap joint flange (LJF)对焊法兰welding neckflange (WNF)法兰盖blind flange, blind孔板法兰orifice flange异径法兰reducing flange盘座式法兰pad type flange松套带颈法兰loose hubbed flange焊接板式法兰welding plate flange对焊环welding neck collar （与stub end相似）平焊环welding-on collar突缘短节stub end, lap翻边端lapped pipe end松套板式法兰loose plate flange压力级pressure rating, pressure rating class压力—温度等级pressure-temperature rating法兰密封面，法兰面flange facing突面raised face (RF)凸面male face (MF)凹面female face (FMF)榫面tongue face槽面groove face环连接面ring joint face全平面；满平面flat face; full face (FF)光滑突面smooth raised face (SRF)法兰面加工facing finish粗糙度roughness光滑的smooth齿形serrated均方根root mean square (RMS)算术平均粗糙高度arithmetical average roughness height (AARH)配对法兰companion-flange螺栓圆bolt circle (B.C.)1.5 垫片Gasket (GSKT)垫片的型式type of gasket平垫片flat gasket环形平垫片flat ring gasket平金属垫片flat metal gasket夹棉织物的橡胶elastomer with cotton fabric insertion夹石棉织物的橡胶elastomer with asbestos fabric insertion夹石棉织物及金属丝加强的橡胶elastomer with asbestos fabric insertion and with wire reinforcement无石墨压缩白石棉垫片non graphited compressed white asbestos gasket天然白橡胶垫片natural white rubber gasket压缩石棉垫片compressed asbestos class gasket浸聚四氟乙烯的石棉垫片PTFE impregnated asbestos gasket夹石棉的缠绕金属垫片spiral-wound metal gasket with asbestos filler内环inner ring外环，外定位环outer ring波纹金属垫片corrugated metal gasket波纹金属包嵌石棉垫片corrugated metal gasket with asbestos inserted双夹套波纹金属包石棉垫片corrugated metal double jacketed asbestos filled gasket双夹套垫片double jacketed gasket金属包石棉平垫片flat metal jacketed asbestos filled gasket整体金属齿形垫片solid metal serrated gasket槽形金属垫片grooved metal gasket环形连接金属垫片ring joint metal gasket八角环形垫片octagonal ring gasket椭圆环形垫片oval ring gasket透镜式垫片lens gasket非金属垫片non-metallic gasket1.6 阀门Valve1.6.1 阀门结构、零件阀轭yoke外螺纹阀杆及阀轭outside screw and yoke (OS & Y)阀杆stem内螺纹inside screw (IS)阀轭套yoke sleeve阀杆环stem ring阀座valve seat (body seat)阀座环、密封圈seat ring整体（阀）座integral seat堆焊（阀）座deposited seat阀芯（包括密封圈、杆等内件）trim阀盘disc阀盘密封圈disc seat阀体body阀盖bonnet阀盖衬套bonnet bush螺纹阀帽screw cap螺纹阀盖screw bonnet螺栓连接的阀盖bolted bonnet (BB)活接阀盖（帽）union bonnet (cap)螺栓连接的阀帽bolted cap (BC)焊接阀盖welded bonnet (WB)本体阀杆密封body stem seal石棉安全密封asbestos emenen seal倒密封back seal压力密封的阀盖pressure-tight bonnet动力操纵器powered operator电动操纵器electric motor operator气动操纵器pneumatic operator液压操纵器hydraulic operator快速操纵器quick-acting operator滑动阀杆sliding stem正齿轮传动spur gear operated伞齿轮传动bevel gear operated扳手操作wrench operated链轮chain wheel手轮hand wheel手柄hand lever (handle)气缸（或液压缸）操纵的cylinder operated链条操纵的chain operated等径孔道full bore; full port异径孔道reducing bore, reduced port,venturi port 短型short pattern紧凑型（小型）compact type笼式环lantern ring压盖gland阀杆填料stem packing阀盖垫片bonnet gasket升杆式（明杆）rising stem (RS)非升杆式（暗杆）non-rising stem (NRS)指示器/限位器indicator/stopper注油器grease injector可更换的阀座环renewable seat ring1.6.2 常用阀(1）闸阀gate valve平行双闸板double disc parallel seat开口楔形闸板split wedge挠性整体楔形闸扳flexible solid wedge整体楔形闸板solid wedge塞型闸阀plug gate valve直通型闸阀through conduit gate valve(2) 截止阀globe valve球心型阀盘globe type disc塞型阀盘plug type disc可转动的阀盘swivel disc(3) 节流闪阀throttle valve针阀needle valve(4) 角阀angle valve(5) Y型阀（Y 型阀体截止阀）Y-valve (Y-body globe valve)(6) 球阀ball valve三通球阀3-way ball valve装有底轴的trunnion mounted耐火型fire safe type浮动球型floating ball type防脱出阀杆blowout proof stem(7) 蝶阀butterfly valve对夹式（薄片型）wafer type凸耳式lug type偏心阀板蝶阀offset disc burerfly valve; eccentric butterfly valve 斜阀盘蝶阀canted disc butterfly valve连杆式蝶阀link butterfly valve8) 柱塞阀piston type valve(9) 旋塞阀plug valve三通旋塞阀three-way plug valve四通旋塞阀four-way plug valve旋塞cock衬套旋塞sleeve cock(10) 隔膜阀diaphragm valve橡胶衬里隔膜阀rubber lined diaphragm valve直通式隔膜阀straight way diaphragm valve堰式隔膜阀weir diaphragm valve(11) 夹紧式胶管阀pinch valve（用于泥浆、粉尘等）(12) 止回阀check valve升降式止回阀lift check valve旋启式止回阀swing check valve, flap check valve落球式止回阀ball check valve弹簧球式止回阀spring ball check valve双板对夹式止回阀dual plate wafer type check valve无撞击声止回阀non-slam cheek valve底阀foot valve切断式止回阀stop check valve; non-return valve活塞式止回阀piston check valve斜翻盘止回阀tilting disc check valve蝶式止回阀butterfly check valve1.6.3 其它用途的阀全泄气阀safety valve (SV)安全泄液阀relief valve (RV)安全泄压阀safety relief valve杠杆重锤式lever and weight type引导阀操纵的安全泄气阀pilot operated safety valve复式安全泄气阀twin type safety valve罐底排污阀flush-bottom tank valve电磁阀solenoid valve, solenoid operated valve电动阀electrically operated valve, electric-motor operated valve气动阀pneumatic operated valve低温用阀cryogenic service valve蒸汽疏水阀steam trap机械式疏水阎mechanical trap浮桶式疏水阀open bucket trap, open top bucket trap浮球式疏水阀float trap倒吊桶式疏水阀inverted bucket trap自由浮球式疏水阀loose float trap恒温式疏水阀thermostatic trap金属膨胀式蒸汽疏水阀metal expansion steam trap液体膨胀式蒸汽疏水阀liquid expansion steam trap双金属膨胀式蒸汽疏水阀bimetallic expansion steam trap压力平衡式恒温疏水阀balanced pressure thermostatic trap热动力式疏水阀thermodynamic trap脉冲式蒸汽疏水阀impulse steam trap放气阀（自动放气阀）air vent valve (automatic air vent valve) （疏水阀用）平板式滑动闸阀slab type sliding gate valve盖阀flat valve换向阀diverting valve, reversing valve热膨胀阀thermo expansion valve自动关闭阀self-closing gate valve自动排液阀self-draining valve管道盲板阀line-blind valve挤压阀squeeze valve（用于泥浆及粉尘等）呼吸阀breather valve风门、挡板damper减压阀pressure reducing valve, reducing valve控制阀control valve膜式控制阀diaphragm operated control valve执行机构actuator背压调节阀back pressure regulating valve差压调节阀differential pressure regulating valve压力比例调节阀pressure ratio regulating valve1.6.4 未指明结构（或阀型）的阀切断阀block valve; shut-off valve; stop valve调节阀regulating valve快开阀quick opening valve快闭阀quick closing valve隔断阀isolating valve三通阀three way valve夹套阔jacketed valve非旋转式阀non-rotary valve排污阀blowdown valve集液排放阀drip valve排液阀drain valve放空阀vent valve卸载阀unloading valve排出阀discharge valve吸入阀suction valve多通路阀multiport valve取样阀sampling valve手动阀hand-operated valve; manually operated valve 锻造阀forged valve铸造阀cast valve（水）龙头bibb; bib; faucet抽出液阀（小阀）bleed valve旁路阀by-pass valve软管阀hose valve混合阀mixing valve破真空阀vacuum breaker冲洗阀flush valve第一道阀；根部阀primary valve根部阀root valve总管阀header valve事故切断阀emergency valve1.7 管道特殊件Piping Specialty1.7.1 管道特殊件（组件）粗滤器strainer过滤器filter临时粗滤器（锥型）temporary strainer (cone type)y 型粗滤器 y-type strainerT型粗滤器T-type strainer永久过滤器permanent filter丝网粗滤器gauze strainer洗眼器及淋浴器eye washer and shower视镜sight glass阻火器flame arrester喷嘴；喷头spray nozzle取样冷却器sample cooler消声器silencer膨胀节expansion joint波纹膨胀节bellow expansion joint单波single bellow双波double bellow多波multiple bellow压力平衡式膨胀节pressure balanced expansion带铰链膨胀节hinged expansion joint轴向位移型膨胀节axial movement type expansion joint 自均衡膨胀节（外加强环）self-equalizing expansion joint 带接杆膨胀节tied expansion joint万向型膨胀节universal type expansion joint球形补偿器ball type expansion joint填函式补偿器slip type (packed type) expansion joint单向滑动填料函补偿器single actionpacked slip joint1.7.2 管道特殊元件Piping Special Element软管接头hose connection (HC)快速接头quick coupling金属软管metal hose橡胶管rubber hose挠性管flexible tube鞍形补强板reinforcing saddles补强板reinforcement pad特殊法兰special flange漏斗funnel排液环drip ring排液漏斗drain funnel插板blank垫环spacer8字盲板spectacle blind; figure 8 blind限流孔板restriction orifice爆破片rupture disk法兰盖贴面protective disc费托立克接头victaulic coupling1.8 端部连接End Connection法兰端flanged end坡口端beveled end (BE)对焊端butt welded end平端plain end (PE)承插焊端socket welding end螺纹端threaded end (TE)承口bell end焊接端welding end法兰连接（接头）flanged joint对焊连接（接头）butt welded joint螺纹连接，管螺纹连接threaded joint, pipe threaded joint 锥管螺纹密封焊连接seal-welded taper pipe threaded joint 承插焊连接（接头）socket welded joint承插连接（接头）bell and spigot joint环垫接头ring joint (RJ)万向接头universal joint软钎焊连接（接头）soldered joint搭接接头，松套连接lapped joint外侧厚度切斜角bevel for outside thickncss内侧厚度切斜角bevel for inside thickness内外侧厚度切斜角bevel for combined thickness法兰式的flanged (FLGD)对焊的butt welded (BW)螺纹的threaded (THD)承插焊的socket welded (SW)小端为平的small end plain (SEP)大端为平的large end plain (LEP)两端平both ends plain (BEP)小端带螺纹small end thread (SET)大端带螺纹large end thread (LET)两端带螺纹both end thread (BET)一端带螺纹one end thread (OET)支管连接branch connection焊接支管branch pipe welded directly to the run pipe。

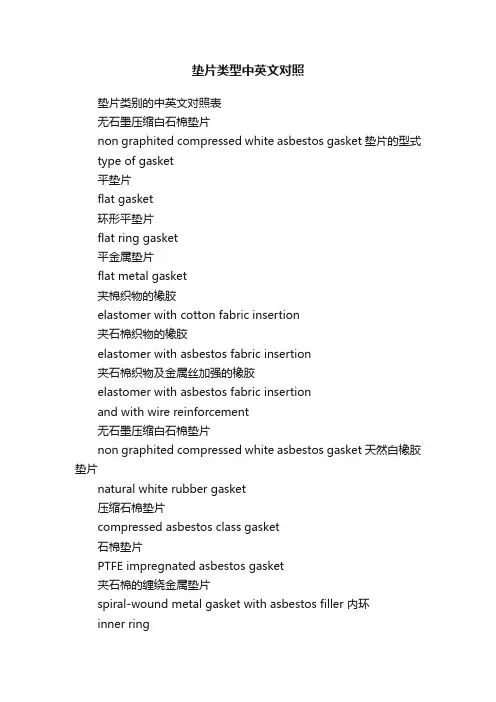

垫片类型中英文对照垫片类别的中英文对照表无石墨压缩白石棉垫片non graphited compressed white asbestos gasket 垫片的型式type of gasket平垫片flat gasket环形平垫片flat ring gasket平金属垫片flat metal gasket夹棉织物的橡胶elastomer with cotton fabric insertion夹石棉织物的橡胶elastomer with asbestos fabric insertion夹石棉织物及金属丝加强的橡胶elastomer with asbestos fabric insertionand with wire reinforcement无石墨压缩白石棉垫片non graphited compressed white asbestos gasket 天然白橡胶垫片natural white rubber gasket压缩石棉垫片compressed asbestos class gasket石棉垫片PTFE impregnated asbestos gasket夹石棉的缠绕金属垫片spiral-wound metal gasket with asbestos filler 内环inner ring外环，外定位环outer ring波纹金属垫片corrugated metal gasket波纹金属包嵌石棉垫片corrugated metal gasket with asbestos inserted 双夹套波纹金属包石棉垫片corrugated metal double jacketed asbestos filled gasket双夹套垫片double jacketed gasket金属包石棉平垫片flat metal jacketed asbestos filled gasket整体金属齿形垫片solid metal serrated gasket 槽形金属垫片grooved metal gasket环形连接金属垫片ring joint metal gasket八角环形垫片octagonal ring gasket椭圆环形垫片oval ring gasket透镜式垫片lens gasket非金属垫片non-metallic gaske。

德标和国标,国际标准中英文对照表序号德国标准中文品名英文品名国际标准中国标准Item DIN-Standard Description in Chinese Description in English ISO-Standard GB-Standard1 DIN1 圆锥销taper pins ISO2339 GB1172 DIN7 圆柱销parallel pins ISO2338 GB119-863 DIN84 开槽圆柱头螺钉slotted cheese head screws ISO1207 GB65-854 DIN85 开槽盘头螺钉slotted pan head screws ISO1580 GB67-855 DIN93 单耳止动垫圈tab washers GB8546 DIN94 开口销split cotter pins ISO1234 GB917 DIN95 开槽半沉头木螺钉slotted raised csk head wood screws GB1018 DIN96 开槽半圆头木螺钉slotted round head wood screws GB999 DIN97 开槽沉头木螺钉slotted countersunk head wood screws GB10010 DIN125-A 平垫plain washers ISO7089 GB97.1-8511 DIN125-B 平垫(带倒角) mediun washers ISO7090 GB97.2-8512 DIN126 平垫plain washers ISO709113 DIN127-A 重型弹垫spring lock washers,tang ends GB724414 DIN127-B 标准弹垫spring lock washers,square ends GB93-8715 DIN128-A 鞍形弹垫single coil spring lock washers GB7245-8716 DIN137-A 弹簧止动垫圈curved spring washers17 DIN137-B 波形弹垫wave spring washers GB95518 DIN186 T型方颈螺栓T-head bolts with square neck GB37-8819 DIN188 T型双接头螺栓T-head bolts with double nip20 DIN258 螺纹圆锥销taper pins with threaded end ISO873721 DIN261 T型头螺栓T-head bolts22 DIN315AF 蝶型螺母(美制) wing nuts amercia form23 DIN315DF 蝶型螺母(德制) wing nuts germany form GB62-8824 DIN316AF 蝶型螺钉(美制) wing screws amercia form25 DIN317DF 蝶型螺钉(德制) wing screws germany form26 DIN319 圆球型盖型螺母ball knobs27 DIN404 开槽带孔球面圆柱头螺钉slotted capstan screws GB832-8828 DIN417 开槽长圆柱端紧定螺钉slotted set srews with full dog point ISO7435 GB75-8529 DIN427 开槽平端紧定螺钉(半牙) slotted set srews with chamfered end ISO2342 GB73-8530 DIN431 小六角特薄细牙螺母pipe nuts with thread GB808-8831 DIN432 外舌止动垫圈external tap GB856-8832 DIN433 小垫圈(用于圆柱头螺钉) washers for cheese head screws ISO7092 GB848-9533 DIN434 方斜垫圈(U型) square taper washers for U-section GB852-8834 DIN435 方斜垫圈(I型) square taper washers for I-sections GB852-8835 DIN436 方垫圈square washers36 DIN438 开槽凹端紧定螺钉slotted set with cup point ISO7436 GB74-8537 DIN439 六角薄螺母hexagon thin nuts ISO4035 GB6172-8638 DIN439 细牙六角薄螺母hexagon thin nuts ISO8675 GB6173-8639 DIN440 木螺钉专用垫圈rounds washers for wood constructions ISO709440 DIN443 密封帽sealing caps,push-in type41 DIN444 活节螺栓B 型eye bolts form B GB798-8842 DIN462 内舌止动垫圈internal tab washers43 DIN463 双耳止动垫圈washers with two taps GB855-8844 DIN464 滚花高头螺钉knurled thumb screws with collar GB834-8845 DIN465 开槽滚花高头螺钉slotted knurled thumb screws with collar46 DIN466 滚花高螺母knurled thumb nuts with collar GB806-8847 DIN467 滚花薄螺母knurled thumb thin nuts GB807-8848 DIN470 锁紧垫圈sealing washers49 DIN471 轴用弹性挡圈retaining rings for shafts(external),circlips GB894.1-8650 DIN472 孔用弹性挡圈retaining rings for bores(internal),circlips GB893.1-8651 DIN478 方头带垫螺栓square head bolts with collar52 DIN479 方头圆柱底端螺栓square head bolts with half dog point53 DIN480 方头带垫半圆底端螺栓square head bolts with collar,half dog point and rounded end54 DIN508 T型槽螺母T-slot nuts ISO29955 DIN525 单头螺柱single end studs56 DIN529 地脚螺栓masonry bolts GB799-8857 DIN546 带槽圆螺母slotted round nuts GB817-7658 DIN547 端面带孔圆螺母round nuts with drilled holes in one face GB815-8859 DIN551 开槽平端紧定螺钉slotted sit screws with flat point ISO4776 GB73-8560 DIN553 开槽锥端紧定螺钉slotted set screws with cone point ISO7434 GB71-8561 DIN555 六角螺母hexagon nuts ISO403462 DIN557 方螺母-C square nuts GB39-8863 DIN558 六角头螺钉hexagon screws ISO401864 DIN561 六角头圆柱端紧定螺钉hexagon set screws with full dog point65 DIN562 薄型方螺母-B square nuts without bevel(pressed nuts)66 DIN571 六角头木螺钉hexagon head wood screws (coach screws) GB102-8667 DIN580 吊环螺钉lifting eye bolts ISO3266 GB825-7668 DIN582 吊环螺母lifting eye nuts69 DIN601 六角头螺栓hexagon bolts ISO401670 DIN603 大半圆头方颈螺栓(马车螺栓) mushroom head square neck bolts (carriage bolts) ISO8677 GB14-8871 DIN604 沉头带插销马车螺栓flat countersunk nib bolts72 DIN605 沉头长方颈马车螺栓flat countersunk long square neck bolts73 DIN607 半圆头带插销马车螺栓cup head nib bolts74 DIN608 沉头短方颈马车螺栓flat countersunk short square neck bolts75 DIN609 六角头精配螺栓（长螺纹）hexagon fitted bolts,long thread76 DIN610 六角头精配螺栓（短螺纹）hexagon fitted bolts,short thread77 DIN653 滚花平头螺钉knurled thumb screws thin type GB835-8878 DIN660 半圆头铆钉round head rivets ISO1051 GB867-8679 DIN661 沉头铆钉contersunk head rivets ISO1051 GB869-8680 DIN662 半沉头铆钉raised contersunk head rivets ISO105181 DIN674 大扁头铆钉mushroom head rivets ISO105182 DIN703 重型侧面带孔圆螺母adjusting rings,heavy range (shafting collars)83 DIN705 侧面带孔圆螺母adjusting rings,light range (shafting collars) GB816-8884 DIN741 卡头wire rope clips85 DIN787 T型槽螺钉T-slot screws ISO29986 DIN835 双头螺柱（牙长=2D）studs-metal (end=2d) GB900-8887 DIN906 内六角锥型闭锁螺钉hexagon socket pipe plugs,conical thread88 DIN908 内六角直型闭锁螺钉hexagon socket screw plugs,cyl. thread89 DIN909 外六角锥型闭锁螺钉hexagon head pipe plugs,conical thread90 DIN910 外六角直型闭锁螺钉hexagon head screw plugs,cyl.thread91 DIN911 内六角扳手socket wrenches ISO293692 DIN912 内六角圆柱头螺钉hexagon socket cap screws ISO4762 GB70-8593 DIN913 内六角平端紧定螺钉hexagon socket set screws with flat point ISO4026 GB77-8594 DIN914 内六角尖端紧定螺钉hexagon socket set screws with cone point ISO4027 GB78-8595 DIN915 内六角圆柱端紧定螺钉hexagon socket set screws with dog point ISO4028 GB79-8596 DIN916 内六角凹端紧定螺钉hexagon socket set screws with cup point ISO4029 GB80-8597 DIN917 薄型盲螺母hexagon cap nuts98 DIN920 开槽小圆柱头螺钉slotted short cheese head screws99 DIN921 开槽大圆柱头螺钉slotted large cheese head screws GB838-88100 DIN923 开槽圆柱头轴肩螺钉slotted pan head screws with shoulder GB830-88101 DIN927 开槽无头轴肩螺钉slotted shoulder screws102 DIN928 焊接方螺母square weld nuts GB/T13680-92103 DIN929 焊接六角螺母hexagon weld nuts GB/T13681-92104 DIN931 六角头螺栓（半牙）hexagon head screws ISO4014 GB5782-86105 DIN933 六角头螺栓（全牙）hexagon head screws ISO4017 GB5783-86106 DIN934 六角头螺母(1型) hexagon full nuts ISO4032 GB6170-86107 DIN934 细牙六角头螺母(1型) hexagon full nuts ISO8673 GB6171-86108 DIN935 开槽六角螺母hexagon slotted and castle nuts ISO7035 GB6178-86109 DIN936 六角头薄螺母hexagon thin nuts ISO4035 GB6172.1-86110 DIN937 六角头开槽薄螺母hexagon thin slotted and castle nuts ISO7038 GB6181-86111 DIN938 双头螺距（牙长=1D）studs metal (end=1d) GB897-88112 DIN939 双头螺距（牙长=1.25D）studs metal (end=1.25d) GB898-88113 DIN940 双头螺距（牙长=1.5D）studs metal (end=1.5d)114 DIN960 六角头细牙螺栓（半牙）hexagon head bolts,metric fine pitch thread ISO8765GB5785-86115 DIN961 六角头细牙螺栓（全牙）hexagon head bolts,metric fine pitch thread ISO8676GB5786-86116 DIN962 头部穿孔六角头螺栓additional shapes and versions for bolts117 DIN963 开槽沉头螺钉slotted countersund head screws ISO 2009 GB68-85118 DIN964 开槽半沉头螺钉slotted raised countersunk oval head screws ISO 2010 GB69-85119 DIN965 十字槽沉头螺钉cross recessed countersunk head screws ISO7046 GB819-85120 DIN966 十字槽半沉头螺钉cross recessed raised countersunk head screws ISO7047 GB820-85 121 DIN970 六角头螺母hexagon nuts type-1122 DIN971 六角头螺母hexagon nuts type-2123 DIN972 细牙六角头螺母(2型) hexagon nuts with fine thread ISO8674 GB6176-86124 DIN975 牙条(全螺纹) threaded rods(studdings) GB15389-94125 DIN976 螺纹销threaded pins(stud bolts)126 DIN979 六角头开槽薄螺母（2型）hexagon thin slotted and castle nuts127 DIN980 全金属六角锁紧螺母（1型）prevailling torque type hexagon nuts,all metall nuts ISO7199 GB6184-86128 DIN981 圆螺母locknuts ISO2982 GB812-88129 DIN982 六角头尼龙锁紧螺母prevailling torque type hexagon nuts,heavy type ,with nylon insert ISO7040 GB889.1-86130 DIN985 六角头薄型尼龙锁紧螺母prevailling torque type hexagon nuts,heavy type ,with nylon insert ISO10511 GB6172.2-86131 DIN986 六角盖型尼龙锁紧螺母prevailling torque typedomed capnuts with nylon insert132 DIN988 配合垫片shim rings133 DIN1052 木材连接用垫片washers for timber connectors134 DIN1151 沉头钢钉round plain head nails135 DIN1440 销钉专用垫片A型plain washers for clevis pins(A型) ISO8738136 DIN1441 销钉专用垫片plain washers for clevis pins137 DIN1444 带头销钉clevis pins with head ISO2341138 DIN1471 圆锥型槽销grooved pins,taper grooved ISO8744 GB/T13829.2139 DIN1472 圆锥型槽销(半槽) grooved pins,taper grooved half length ISO8745 GB/T13829.2140 DIN1473 平行槽销(带倒角) grooved pins,parallel grooved full length ISO8740141 DIN1474 前端凹槽槽销grooved pins,reserve grooved half length ISO8741142 DIN1475 中部凹槽槽销grooved pins,centre grooved ISO8742143 DIN1476 圆头槽销grooved pins with round head ISO8746 GB/T13829.3144 DIN1477 沉头槽销grooved pins with countersunk head ISO8747145 DIN1479 六角螺母棒turnuckles(centre parts),made out of hexagon bar146 DIN1480 花篮螺栓turnuckles with eye bolt and hook bolt147 DIN1481 弹性圆柱销spring pins,heavy type ISO8752 GB879-86148 DIN1587 组合式盖型螺母hexagon domed cap nuts GB802-88149 DIN1804 开槽圆螺母（配合沟头扳手）slotted round nuts for hook spanner150 DIN1816 圆螺母（带插销孔）round nuts with set holes151 DIN2093 盘型弹簧垫圈disc springs152 DIN3017 喉箍hose clamps153 DIN3404 润滑油嘴（旋扭头）lubricating nipples,button head154 DIN3567 管夹shackles for conduilts155 DIN3570 U型螺栓stirrup bolts(U-bolts)156 DIN6319 球面垫圈spherical washers,conical seats GB849-88157 DIN6325 圆柱销parallel pins ISO8734158 DIN6330 厚六角螺母hexagon nuts ,1.5d GB56-88159 DIN6331 厚六角法兰面螺母hexagon nuts ,1.5d with collar GB6177-86160 DIN6334 长六角螺母hexagon nuts ,3d161 DIN6797-A 外齿锁紧垫圈external teeth lock washers GB862.1-87162 DIN6797-I 内齿锁紧垫圈internal teeth lock washers GB861.1-87163 DIN6798-A 外锯齿锁紧垫圈external teeth serrated lock washers GB862.2-87164 DIN6798-I 内锯齿锁紧垫圈internal teeth serrated lock washers GB861.2-87165 DIN6799 开口挡圈retaining rings for shafts(E-rings),circlips GB896-76166 DIN6885 平键（A型）parallel keys(form A ) ISO773/2491167 DIN6888 半圆键woodruff keys ISO3912168 DIN6899 嵌环（支撑环）thimbles169 DIN6900 机器螺钉和垫圈组合件screws and washers assemblies GB9074.1-.17170 DIN6901 自攻螺钉和垫圈组合件tapping screws and washers assemblies GB9074.18-.23 171 DIN6912 薄型带孔内六角圆柱头螺钉hexagon socket head cap screws with hole,low head 172 DIN6914 大六角头螺栓hexagon head bolts with large head(friction grip bolts)173 DIN6915 大六角螺母hexagon nuts with large wideth across flat(friction grip nuts)174 DIN6916 大垫圈round washers for friction grip bolts175 DIN6917 楔型方垫圈spuare taper washers for friction grip bolts on T-sections176 DIN6923 六角法兰面螺母hexagon flange nuts ISO4161 GB6177-86177 DIN6925 全金属六角锁紧螺母(2型）prevailing torque type hexagon nuts,all metallic nuts ISO7042 GB6185.1-2000178 DIN7337 开口型抽芯铆钉（沉头、扁圆头）blind rivets GB12617/12618179 DIN7338 扁平头半空心/全空心铆钉rivets for brake and clutch lining GB875/975-86180 DIN7343 螺旋夹紧销spiral pins ISO8750181 DIN7346 轻型弹性圆柱销spring pins,light type ISO13337182 DIN7349 重型弹性圆柱销用垫圈washers for bolts with heavy type spring pinss183 DIN7500 ISO公制螺纹螺钉(多种头型) threadforming screws for ISO-metric thread184 DIN7504 自攻自钻螺钉(多种头型) self-drilling tapping screws185 DIN7513 开槽切削螺纹螺钉(多种头型) thread cutting screws186 DIN7516 十字槽切削螺纹螺钉(多种头型) thread cutting screws cross recess187 DIN7965 T型四爪螺母tee nuts with pronge188 DIN7968 钢结构用六角头螺栓连接副hexagon head fitted bolts for steel structuresGB1228/1229/1230189 DIN7971 开槽盘头自攻螺钉pan head tapping screws with slot ISO1481 GB5282-85190 DIN7972 开槽沉头自攻螺钉countersunk flat head tapping screws with slot ISO1482GB5283-85191 DIN7973 开槽半沉头自攻螺钉raised countersunk oval head tapping screws with slot ISO1483 GB5284-85192 DIN7976 六角头自攻螺钉hexagon tapping screws ISO1479 GB5285-85193 DIN7980 圆柱头螺钉用弹簧垫圈spring lock washers for screws with cylindrical heads ISO8738 194 DIN7981 十字槽盘头自攻螺钉pan head tapping screws with cross recessed ISO 7049GB845-85195 DIN7982 十字槽沉头自攻螺钉countersunk flat head tapping screws with cross recessedISO7050 GB846-85196 DIN7983 十字槽半沉头自攻螺钉raised countersunk oval head tapping screws with cross recessed ISO7051 GB847-86197 DIN7984 薄型内六角圆柱头螺钉hexagon socket head cap screws with，reduced head198 DIN7985 十字槽盘头螺钉pan head screws with cross recessed ISO7045 GB818-85199 DIN7989 钢结构用垫圈washers for steel structures GB1230-84200 DIN7990 钢结构用六角头螺栓hexagon head bolts for steel structures GB1229-84201 DIN7991 内六角沉头螺钉hexagon socket countersunk head screws ISO10642202 DIN7993 轴用钢丝挡圈roundwire snap rings for shafts GB895.2-86203 DIN7995 十字槽半沉头木螺钉cross recessed raised countersunk head wood screws GB952-86 204 DIN7996 十字槽圆头木螺钉cross recessed round head wood screws GB950-86205 DIN7997 十字槽沉头木螺钉cross recessed countersunk head wood screws GB951-86206 DIN8140 螺纹护套（普通\自锁等）ciol inserts,coarse,fine thread,silf locking207 DIN9021 大外径垫圈washers,outside diameter appro.3d ISO7093 GB96-85208 DIN11024 弹簧卡子spring cotter for a bolt209 DIN13257 平板螺栓belting bolts (elevator bolts)210 DIN18182 干壁钉（墙板钉）dry wall screws211 DIN28129 环型螺母lifting nuts(eye nuts) GB63-88212 DIN70952 圆螺母用止退垫圈tab washers for slotted round nuts GB858-88。

管材、管件、阀门、接头、管道特件、紧固件、垫片、密封、工程材料等中英文对照化工管道设计技术英语词汇(1－2－3)1管道组成件Pipingcomponent1.1管子Pipe管子(按照配管标准规格制造的)pipe管子(不按配管标准规格制造的其他用管)tube钢管steelpipe铸铁管castironpipe衬里管linedpipe复合管cladpipe碳钢管carbonsteelpipe合金钢管alloysteelpipe不锈钢stainlesssteelpipe奥氏体不锈钢管austeniticstainlesssteelpipe铁合金钢管ferriticalloysteelpipe轧制钢管wrought-steelpipe锻铁管wrought-ironpipe无缝钢管seamless(SMLS)steelpipe焊接钢管weldedsteelpipe电阻焊钢管electric-resistanceweldedsteelpipe电熔（弧）焊钢板卷管electric-fusion(arc)-weldedsteel-platepipe螺旋焊接钢管spiralweldedsteelpipe镀锌钢管galvanizedsteelpipe热轧无缝钢管hot-rollingseamlesspipe冷拔无缝钢管cold-drawingseamlesspipe水煤气钢管water-gassteelpipe塑料管plasticpipe玻璃管glasstube橡胶管rubbertube直管runpipe;straightpipe1.2管件Fitting弯头elbow异径弯头reducingelbow带支座弯头baseelbowk半径弯头longradiuselbow短半径弯头shortradiuselbow长半径180°弯头longradiusreturn短半径180°弯头shortradiusreturn带侧向口的弯头（右向或左向）sideoutletelbow(righthandorlefthand)双支管弯头（形）doublebranchelbow三通tee异径三通reducingtee等径三通straighttee带侧向口的三通（右向或左向）sideoutlettee(righthandor1efthand)异径三通（分支口为异径）reducingtee(reducingonoutlet)异径三通（一个直通口为异径）reducingtee(reducingononerun)带支座三通basetee异径三通（一个直通口及分支口为异径）reducingtee(reducingononerunandoutlet)异径三通（两个直通口为异径，双头式）reducingtee(reducingonbothruns,bullhead)45°斜三通45°lateral45°斜三通（支管为异径）45°lateral(reducingonbran ch)45°斜三通(一个直通口为异径)45°lateral(reducingononerun)45°斜三通(一个直通口及支管为异径)45°lateral(reducingononerunandbranch)Y型三通（俗称裤衩）true“Y”四通cross等径四通straightcross异径四通reducingcross异径四通（一个分支口为异径）reducingcross(reducingononeoutlet)异径四通（一个直通口及分支口为异径）reducingcross(reducingononerunandoutlet)异径四通（两个分支口为异径）reducingcross(reducingonbothoutlet)异径四通（一个直通口及两个分支口为异径）reducingcross(reducingononerunandbothoutlet) 异径管reducer同心异径管concentricreducer偏心异径管eccentricreducer锻制异径管reducingswage螺纹支管台threadolet焊接支管台weldolet承插支管台sockolet弯头支管台elbolet斜接支管台latrolet镶入式支管嘴sweepolet短管支管台nipolet支管台，插入式支管台boss管接头coupling,fullcoupling半管接头halfcoupling异径管接头reducingcoupling活接头union内外螺纹缩接（俗称补芯）bushing管帽cap(C)堵头plug短节nipple异径短节reducingnipple;swagenipple1.3弯管Bend预制弯管fabricatedpipebend跨越弯管（^形）cross-overbend偏置弯管（~形）offsetbend90°弯管quarterbend环形弯管cirelebend单侧偏置90°弯管（?形）singleoffsetquarterbend S形弯管“S”bend单侧偏置U形膨胀弯管（|?形）singleoffset“U”bend U形弯管“U”bend双偏置U膨胀弯管doubleoffsetexpansion“U”bend斜接弯管mitrebend三节斜接弯管3-piecemitrebend折皱弯管corrugatedbend圆度roundness1.4法兰Flange(FLG）整体管法兰integralpipeflange钢管法兰steelpipeflange螺纹法兰threadedflange滑套法兰（包括平焊法兰）slip-onflange(SO);slip-onweldingflange 承插焊法兰socketweldingflange松套法兰lapjointflange(LJF)对焊法兰weldingneckflange(WNF)法兰盖blindflange,blind孔板法兰orificeflange异径法兰reducingflange盘座式法兰??padtypeflange松套带颈法兰loosehubbedflange焊接板式法兰??weldingplateflange对焊环weldingneckcollar（与stubend相似）平焊环welding-oncollar突缘短节stubend,lap翻边端lappedpipeend松套板式法兰looseplateflange压力级pressurerating,pressureratingclass压力—温度等级pressure-temperaturerating法兰密封面，法兰面flangefacing突面raisedface(RF)凸面maleface(MF)凹面femaleface(FMF)榫面tongueface槽面grooveface环连接面ringjointface全平面；满平面flatface;fullface(FF)光滑突面smoothraisedface(SRF)法兰面加工facingfinish粗糙度roughness光滑的smooth齿形serrated均方根rootmeansquare(RMS)算术平均粗糙高度arithmeticalaverageroughnessheight(AARH)配对法兰companion-flange螺栓圆boltcircle(B.C.)1.5垫片Gasket(GSKT)垫片的型式typeofgasket平垫片flatgasket环形平垫片flatringgasket平金属垫片flatmetalgasket夹棉织物的橡胶elastomerwithcottonfabricinsertion夹石棉织物的橡胶elastomerwithasbestosfabricinsertion夹石棉织物及金属丝加强的橡胶elastomerwithasbestosfabricinsertionandwithwirereinforcement无石墨压缩白石棉垫片nongraphitedcompressedwhiteasbestosgasket天然白橡胶垫片naturalwhiterubbergasket压缩石棉垫片compressedasbestosclassgasket浸聚四氟乙烯的石棉垫片PTFEimpregnatedasbestosgasket夹石棉的缠绕金属垫片spiral-woundmetalgasketwithasbestosfiller内环innerring外环，外定位环outerring波纹金属垫片corrugatedmetalgasket波纹金属包嵌石棉垫片corrugatedmetalgasketwithasbestosinserted双夹套波纹金属包石棉垫片corrugatedmetaldoublejacketedasbestosfilledgasket 双夹套垫片doublejacketedgasket金属包石棉平垫片flatmetaljacketedasbestosfilledgasket整体金属齿形垫片solidmetalserratedgasket槽形金属垫片groovedmetalgasket环形连接金属垫片ringjointmetalgasket八角环形垫片octagonalringgasket椭圆环形垫片ovalringgasket透镜式垫片lensgasket非金属垫片non-metallicgasket1.6阀门Valve1.6.1阀门结构、零件阀轭yoke外螺纹阀杆及阀轭outsidescrewandyoke(OS&Y)阀杆stem内螺纹insidescrew(IS)阀轭套yokesleeve阀杆环stemring阀座valveseat(bodyseat)阀座环、密封圈seatring整体（阀）座integralseat堆焊（阀）座depositedseat阀芯（包括密封圈、杆等内件）trim阀盘disc阀盘密封圈discseat阀体body阀盖bonnet阀盖衬套bonnetbush螺纹阀帽screwcap螺纹阀盖screwbonnet螺栓连接的阀盖boltedbonnet(BB)活接阀盖（帽）unionbonnet(cap)螺栓连接的阀帽boltedcap(BC)焊接阀盖weldedbonnet(WB)本体阀杆密封bodystemseal石棉安全密封asbestosemenenseal倒密封backseal压力密封的阀盖pressure-tightbonnet 动力操纵器poweredoperator电动操纵器electricmotoroperator气动操纵器pneumaticoperator液压操纵器hydraulicoperator快速操纵器quick-actingoperator滑动阀杆slidingstem正齿轮传动spurgearoperated伞齿轮传动bevelgearoperated扳手操作wrenchoperated链轮chainwheel手轮handwheel手柄handlever(handle)气缸（或液压缸）操纵的cylinderoperated链条操纵的chainoperated等径孔道fullbore;fullport异径孔道reducingbore,reducedport,venturiport 短型shortpattern紧凑型（小型）compacttype笼式环lanternring压盖gland阀杆填料stempacking阀盖垫片bonnetgasket升杆式（明杆）risingstem(RS)非升杆式（暗杆）non-risingstem(NRS)指示器/限位器indicator/stopper注油器greaseinjector可更换的阀座环renewableseatring1.6.2常用阀(1）闸阀gatevalve平行双闸板doublediscparallelseat开口楔形闸板splitwedge挠性整体楔形闸扳flexiblesolidwedge整体楔形闸板solidwedge塞型闸阀pluggatevalve直通型闸阀throughconduitgatevalve(2)截止阀globevalve球心型阀盘globetypedisc塞型阀盘plugtypedisc可转动的阀盘swiveldisc(3)节流闪阀throttlevalve针阀needlevalve(4)角阀anglevalve(5)Y型阀（Y型阀体截止阀）Y-valve(Y-bodyglobevalve)(6)球阀ballvalve三通球阀3-wayballvalve装有底轴的trunnionmounted耐火型firesafetype浮动球型floatingballtype防脱出阀杆blowoutproofstem(7)蝶阀butterflyvalve对夹式（薄片型）wafertype凸耳式lugtype偏心阀板蝶阀offsetdiscburerflyvalve;eccentricbutterflyvalve 斜阀盘蝶阀canteddiscbutterflyvalve连杆式蝶阀linkbutterflyvalve8)柱塞阀pistontypevalve(9)旋塞阀plugvalve三通旋塞阀three-wayplugvalve四通旋塞阀four-wayplugvalve旋塞cock衬套旋塞sleevecock(10)隔膜阀diaphragmvalve橡胶衬里隔膜阀rubberlineddiaphragmvalve直通式隔膜阀straightwaydiaphragmvalve堰式隔膜阀weirdiaphragmvalve(11)夹紧式胶管阀pinchvalve（用于泥浆、粉尘等）(12)止回阀checkvalve升降式止回阀liftcheckvalve旋启式止回阀swingcheckvalve,flapcheckvalve落球式止回阀ballcheckvalve弹簧球式止回阀springballcheckvalve双板对夹式止回阀dualplatewafertypecheckvalve 无撞击声止回阀non-slamcheekvalve底阀footvalve切断式止回阀stopcheckvalve;non-returnvalve活塞式止回阀pistoncheckvalve斜翻盘止回阀tiltingdisccheckvalve蝶式止回阀butterflycheckvalve1.6.3其它用途的阀安全泄气阀safetyvalve(SV)安全泄液阀reliefvalve(RV)安全泄压阀safetyreliefvalve杠杆重锤式leverandweighttype引导阀操纵的安全泄气阀pilotoperatedsafetyvalve复式安全泄气阀twintypesafetyvalve罐底排污阀flush-bottomtankvalve电磁阀solenoidvalve,solenoidoperatedvalve电动阀electricallyoperatedvalve,electric-motoroperatedvalve气动阀pneumaticoperatedvalve低温用阀cryogenicservicevalve蒸汽疏水阀steamtrap机械式疏水阎mechanicaltrap浮桶式疏水阀openbuckettrap,opentopbuckettrap浮球式疏水阀floattrap倒吊桶式疏水阀invertedbuckettrap自由浮球式疏水阀loosefloattrap恒温式疏水阀thermostatictrap金属膨胀式蒸汽疏水阀metalexpansionsteamtrap液体膨胀式蒸汽疏水阀liquidexpansionsteamtrap双金属膨胀式蒸汽疏水阀bimetallicexpansionsteamtrap压力平衡式恒温疏水阀balancedpressurethermostatictrap热动力式疏水阀thermodynamictrap脉冲式蒸汽疏水阀impulsesteamtrap放气阀（自动放气阀）airventvalve(automaticairventvalve)（疏水阀用）平板式滑动闸阀slabtypeslidinggatevalve盖阀flatvalve换向阀divertingvalve,reversingvalve热膨胀阀thermoexpansionvalve自动关闭阀self-closinggatevalve自动排液阀self-drainingvalve管道盲板阀line-blindvalve挤压阀squeezevalve（用于泥浆及粉尘等）呼吸阀breathervalve风门、挡板damper减压阀pressurereducingvalve,reducingvalve控制阀controlvalve膜式控制阀diaphragmoperatedcontrolvalve执行机构actuator背压调节阀backpressureregulatingvalve差压调节阀differentialpressureregulatingvalve 压力比例调节阀pressureratioregulatingvalve 1.6.4未指明结构（或阀型）的阀切断阀blockvalve;shut-offvalve;stopvalve调节阀regulatingvalve快开阀quickopeningvalve快闭阀quickclosingvalve隔断阀isolatingvalve三通阀threewayvalve夹套阔jacketedvalve非旋转式阀non-rotaryvalve排污阀blowdownvalve集液排放阀dripvalve排液阀drainvalve放空阀ventvalve卸载阀unloadingvalve排出阀dischargevalve吸入阀suctionvalve多通路阀multiportvalve取样阀samplingvalve手动阀hand-operatedvalve;manuallyoperatedvalve 锻造阀forgedvalve铸造阀castvalve（水）龙头bibb;bib;faucet抽出液阀（小阀）bleedvalve旁路阀by-passvalve软管阀hosevalve混合阀mixingvalve破真空阀vacuumbreaker冲洗阀flushvalve第一道阀；根部阀primaryvalve根部阀rootvalve总管阀headervalve事故切断阀emergencyvalve1.7管道特殊件PipingSpecialty1.7.1管道特殊件（组件）粗滤器strainer过滤器filter临时粗滤器（锥型）temporarystrainer(conetype)y型粗滤器y-typestrainerT型粗滤器T-typestrainer永久过滤器permanentfilter丝网粗滤器gauzestrainer洗眼器及淋浴器eyewasherandshower视镜sightglass阻火器flamearrester喷嘴；喷头spraynozzle取样冷却器samplecooler消声器silencer膨胀节expansionjoint波纹膨胀节bellowexpansionjoint单波singlebellow双波doublebellow多波multiplebellow压力平衡式膨胀节pressurebalancedexpansion带铰链膨胀节hingedexpansionjoint轴向位移型膨胀节axialmovementtypeexpansionjoint自均衡膨胀节（外加强环）self-equalizingexpansionjoint 带接杆膨胀节tiedexpansionjoint万向型膨胀节universaltypeexpansionjoint球形补偿器balltypeexpansionjoint填函式补偿器sliptype(packedtype)expansionjoint单向滑动填料函补偿器singleactionpackedslipjoint1.7.2管道特殊元件PipingSpecialElement软管接头hoseconnection(HC)快速接头quickcoupling金属软管metalhose橡胶管rubberhose挠性管flexibletube鞍形补强板reinforcingsaddles补强板reinforcementpad特殊法兰specialflange漏斗funnel排液环dripring排液漏斗drainfunnel插板blank垫环spacer8字盲板spectacleblind;figure8blind 限流孔板restrictionorifice爆破片rupturedisk法兰盖贴面protectivedisc费托立克接头victauliccoupling1.8端部连接EndConnection法兰端flangedend坡口端beveledend(BE)对焊端buttweldedend平端plainend(PE)承插焊端socketweldingend螺纹端threadedend(TE)承口bellend焊接端weldingend法兰连接（接头）flangedjoint对焊连接（接头）buttweldedjoint螺纹连接，管螺纹连接threadedjoint,pipethreadedjoint 锥管螺纹密封焊连接seal-weldedtaperpipethreadedjoint 承插焊连接（接头）socketweldedjoint承插连接（接头）bellandspigotjoint环垫接头ringjoint(RJ)万向接头universaljoint软钎焊连接（接头）solderedjoint搭接接头，松套连接lappedjoint外侧厚度切斜角bevelforoutsidethickncss内侧厚度切斜角bevelforinsidethickness内外侧厚度切斜角bevelforcombinedthickness法兰式的flanged(FLGD)对焊的buttwelded(BW)螺纹的threaded(THD)承插焊的socketwelded(SW)小端为平的smallendplain(SEP)大端为平的largeendplain(LEP)两端平bothendsplain(BEP)小端带螺纹smallendthread(SET)大端带螺纹largeendthread(LET)两端带螺纹bothendthread(BET)一端带螺纹oneendthread(OET)支管连接branchconnection焊接支管branchpipeweldeddirectlytotherunpipe 2管道用紧固件及螺纹2.1紧固件螺栓bolt六角头螺栓hexagonalheadbolt方头螺栓squareheadbolt螺柱，双头螺栓studbolt环头螺检eyebolt沉头螺栓countersunk(head)screw地脚螺栓anchorbolt;foundationbolt松紧螺旋扣（花篮螺丝）turnbuckleU形螺栓U-boltT形螺栓T-bolt圆头螺钉roundheadbolt机螺栓，机螺钉maehinebolt顶开螺栓，顶起螺栓Jackscrew自攻螺钉selftappingscrew膨胀螺栓expansionbolt粗制的coarse精制的finished,fine螺母nut六角螺母hexagonalnut方螺母squarenut蝶形螺母wingnut扁螺母flatnut锁紧螺母locknut垫圈washer平垫圈plainwasher球面垫圈sphericalwasher弹簧垫圈springwasher方垫圈squarewasher斜垫圈slantwasher销轴pinnedshan销pin开口销cotterpin定位销dowelpin带孔销pinwithhole圆锥销taperpin铆钉rivet键key2.2??螺纹左螺纹lefthandthread右螺纹righthandthread管螺纹pipethread锥管螺纹taperpipethread直管螺纹straightpipethread 梯形螺纹trapezoidthread螺距pitchofthread粗牙螺纹coarsethread细牙螺纹finethread特细牙螺纹extrafinethread通长螺纹fullthread惠氏螺纹whitworththread公制螺纹metricibread美国标准锥管螺纹Americanstandardtaperpipethread(NPT) 螺孔tap3材料、型钢及填料3.1金属材料3.1.1黑色金属FerrousMetal碳素钢carbonsteel(CS)低碳钢low-carbonsteel中碳钢medium-carbonsteel高碳钢high-carbonsteel普通碳素钢generalcarbonsteel优质碳素钢high-qualitycarbonsteel普通低合金结构钢generalstructurelow-alloysteel合金结构钢structuralalloysteel合金钢alloysteel低合金钢lowalloysteel中合金钢mediumalloysteel高合金钢highalloysteel耐热钢heatresistingsteel高强度钢highstrengthsteel复合钢cladsteel工具钢toolsteel弹簧钢springsteel钼钢molybdenumsteel镍钢nickelsteel铬钢chromiumsteel铬钼钢chrome-molybdenumsteel铬镍钢chromium-nickelsteel,chrome-nickelsteel 不锈钢stainlesssteel(S.S.)奥氏体不锈钢Austeniticstainlesssteel马氏体不锈钢Martensiticstainlesssteel司特来合金（钨铬钴台金）Stellite耐蚀耐热镍基合金Hastelloy铬镍铁合金inconel耐热铬镍铁合金incoloy20合金20alloy平炉钢（马丁钢）Martinsteel镇静钢killedsteel半镇静钢semi-killedsteel沸腾钢rimmedsteel;rimmingsteel;open-steel锻钢forgedsteel铸钢caststeel铸铁castiron(C.I.)灰铸铁greycastiron可锻铸铁malleableiron(MI)球墨铸铁nodularcastiron;nodulargraphiteiron 生铁pigiron熟铁，锻铁wroughtiron铸件casting高硅铸铁highsiliconcastiron3.1.2镀层及制造方法渗铬钢，镀铬钢chromizedsteel镀铬的chromium-plated,chrome-plated镀层plating锻造，型钢swage锻造的，锻造forging轧制rolling热轧hotrolling冷轧coldrolling挤压extruding冷加工coldworking热加工hotworking拔制drawing3.1.3有色金属Non-ferrousMetal铝aluminum铜，紫铜copper黄铜brass青铜bronze铝青铜aluminumbronze磷青铜phosphorbronze铝镁合金aluminummagnesium锰青铜manganesebronze蒙乃尔（注：镍及铜合金）Monel镍铜台金nickelcopperalloy非铁合金nonferrousalloy钛titanium铅lead硬铅hardlead3.1.4材料性能极限强度ultimatestrength抗拉强度tensilestrength屈服极限yieldlimit屈服点yieldpoint延伸率percentageelongation抗压强度compressivestrength抗弯强度bendingstrength弹性极限elasticlimit冲击值impactvalue疲劳极限fatiguelimit蠕变极限creeplimit持久极限endurancelimit布氏硬度Brinellhardness洛氏硬度Rockwellhardness维氏硬度Vickersdiamondhardness,diamondpenetratorhardness 蠕变断裂强度creeprupturestrength断面收缩率reductionofarea韧性toughess脆性brittleness延性ductility冷脆coldshortness冷流coldflow3.2非金属材料Non-metallicMaterial塑料plastic丙烯腈—丁二烯—苯乙烯acrylonitrile-butadiene-styrene(ABS) 聚乙烯polyethylene(PE)聚氯乙烯polyvinylchloride(PVC)苯乙烯橡胶styrene-rubber(SR)聚丁烯polybutylene(PB)聚丙烯polypropylene(PP)聚苯乙烯polystyrene(PS)氯化聚醚chlorinatedpolyether(CPE)聚酰胺polyamide(PA)聚碳酸酯polycarbonate(PC)聚甲基丙烯酸甲酯polymethylmethacrylate(PMMA)醋酸丁酸纤维素celluloseacetatebutyrate(CAB)氯化聚氯乙烯chlorinatedpolyvinylchloride(CPVC)聚偏二氟乙烯polyvinylidenefluoride(PVDF)缩醛塑料acetalplastic尼龙塑料nylonplastic聚烯烃polyolefin(PO)石墨酚醛塑料graphitephenolicplastics聚四氟乙烯polytetrafluoroethylene(PTFE)纤维增强热塑性塑料fiberreinforcedthermoplastics热塑性塑料thermoplastic热固性塑料thermosettingplastics胶粘剂adhesive溶剂胶接剂solventcement树脂resin环氧树脂epoxy,epoxyresin聚酯树脂polyesterresin聚酯纤维polyesterfibers氟塑料fluoroplastics聚氨基甲酸酯polyurethane丙烯酸树脂acrylicresin脲醛树脂urearesin呋哺树脂furanresin乙烯丙烯二烃单体ethylenepropylenedienemonomer(EPDM) 合成橡胶syntheticrubber橡胶rubber丁腈橡胶nitrilebutadienerubber氯丁橡胶neoprene天然橡胶naturalrubber乙丙橡胶ethylenepropylenerubber(EPR)玻璃glass硼硅玻璃borosilicateglass耐火砖firebrick陶瓷ceramic搪瓷porcelainenamel木材wood3.3型材型钢shapedsteel,sectionsteel,swage 角钢anglesteel槽钢channel工字钢I-beam宽缘工字钢或H钢wideflangedbeamT型钢T-bar方钢squarebar扁钢flatbar角钢hexagonalsteelbar圆钢roundsteel;rod钢带strapsteel钢板plate网纹钢板checkeredplate腹板（指型钢的立板）web翼缘（指型钢的缘）wing3.4填料及填料函填料packing石棉绳asbestosrope,asbestoscord．O形环O-ring自密封self-sealing四氟带Teflontap带铬镍合金丝的石棉绳asbestosropewithinconelwire,inconelwireasbestos 浸聚四氟乙烯的石棉填料Teflonimpregnatedasbestospacking金属填料metallicstuffing填料箱，填料函packingbox,stuffingbox填料函压盖stuffingboxgland。

一、美国美标管件标准美国标准ASME/ANSI 工厂制造的锻钢对焊管件ASME/ANSI 承插焊和螺纹锻造管件ASME/ANSI 钢制对焊小半径弯头和回头弯ASME 管法兰和法兰配件MSS SP-43 锻制不锈钢对焊管件MSS SP-83 承插焊和螺纹活接头MSS SP-97 承插焊、螺纹和对焊端的整体加强式管座二、垫片Gasket (GSKT)垫片的型式type of gasket平垫片flat gasket环形平垫片flat ring gasket平金属垫片flat metal gasket夹棉织物的橡胶elastomer with cotton fabric insertion夹石棉织物的橡胶elastomer with asbestos fabric insertion夹石棉织物及金属丝加强的橡胶elastomer with asbestos fabric insertion and with wire reinforcement无石墨压缩白石棉垫片non graphited compressed white asbestos gasket天然白橡胶垫片natural white rubber gasket压缩石棉垫片compressed asbestos class gasket浸聚四氟乙烯的石棉垫片PTFE impregnated asbestos gasket夹石棉的缠绕金属垫片spiral-wound metal gasket with asbestos filler内环inner ring外环，外定位环outer ring波纹金属垫片corrugated metal gasket波纹金属包嵌石棉垫片corrugated metal gasket with asbestos inserted双夹套波纹金属包石棉垫片corrugated metal double jacketed asbestos filled gasket双夹套垫片double jacketed gasket金属包石棉平垫片flat metal jacketed asbestos filled gasket整体金属齿形垫片solid metal serrated gasket槽形金属垫片grooved metal gasket环形连接金属垫片ring joint metal gasket八角环形垫片octagonal ring gasket椭圆环形垫片oval ring gasket透镜式垫片lens gasket非金属垫片non-metallic gasket三、各种法兰管件中英文对照表法兰Flange (FLG）整体管法兰integral pipe flange钢管法兰steel pipe flange螺纹法兰threaded flange滑套法兰（包括平焊法兰）slip-on flange (SO); slip-on welding flange 承插焊法兰socket welding flange松套法兰lap joint flange (LJF)对焊法兰welding neckflange (WNF)法兰盖blind flange, blind孔板法兰orifice flange异径法兰reducing flange盘座式法兰pad type flange松套带颈法兰loose hubbed flange焊接板式法兰welding plate flange对焊环welding neck collar （与stub end相似）平焊环welding-on collar突缘短节stub end, lap翻边端lapped pipe end松套板式法兰loose plate flange压力级pressure rating, pressure rating class压力—温度等级pressure-temperature rating法兰密封面，法兰面flange facing突面raised face (RF)凸面male face (MF)凹面female face (FMF)榫面tongue face槽面groove face环连接面ring joint face全平面；满平面flat face; full face (FF)光滑突面smooth raised face (SRF)法兰面加工facing finish粗糙度roughness光滑的smooth齿形serrated均方根root mean square (RMS)算术平均粗糙高度arithmetical average roughness height (AARH)配对法兰companion-flange螺栓圆bolt circle .)四管道特殊件Piping Specialty1.7.1 管道特殊件（组件）粗滤器strainer过滤器filter临时粗滤器（锥型）temporary strainer (cone type)y 型粗滤器y-type strainerT型粗滤器T-type strainer永久过滤器permanent filter丝网粗滤器gauze strainer洗眼器及淋浴器eye washer and shower视镜sight glass阻火器flame arrester喷嘴；喷头spray nozzle取样冷却器sample cooler消声器silencer膨胀节expansion joint波纹膨胀节bellow expansion joint单波single bellow双波double bellow多波multiple bellow压力平衡式膨胀节pressure balanced expansion带铰链膨胀节hinged expansion joint轴向位移型膨胀节axial movement type expansion joint 自均衡膨胀节（外加强环）self-equalizing expansion joint 带接杆膨胀节tied expansion joint万向型膨胀节universal type expansion joint球形补偿器ball type expansion joint填函式补偿器slip type (packed type) expansion joint单向滑动填料函补偿器single actionpacked slip joint管道特殊元件Piping Special Element软管接头hose connection (HC)快速接头quick coupling金属软管metal hose橡胶管rubber hose挠性管flexible tube鞍形补强板reinforcing saddles补强板reinforcement pad特殊法兰special flange漏斗funnel排液环drip ring排液漏斗drain funnel插板blank垫环spacer8字盲板spectacle blind; figure 8 blind限流孔板restriction orifice爆破片rupture disk法兰盖贴面protective disc费托立克接头victaulic coupling端部连接End Connection法兰端flanged end坡口端beveled end (BE)对焊端butt welded end平端plain end (PE)承插焊端socket welding end螺纹端threaded end (TE)承口bell end焊接端welding end法兰连接（接头）flanged joint对焊连接（接头）butt welded joint螺纹连接，管螺纹连接threaded joint, pipe threaded joint 锥管螺纹密封焊连接seal-welded taper pipe threaded joint 承插焊连接（接头）socket welded joint承插连接（接头）bell and spigot joint环垫接头ring joint (RJ)万向接头universal joint软钎焊连接（接头）soldered joint搭接接头，松套连接lapped joint外侧厚度切斜角bevel for outside thickncss内侧厚度切斜角bevel for inside thickness内外侧厚度切斜角bevel for combined thickness法兰式的flanged (FLGD)对焊的butt welded (BW)螺纹的threaded (THD)承插焊的socket welded (SW)小端为平的small end plain (SEP)大端为平的large end plain (LEP)两端平both ends plain (BEP)小端带螺纹small end thread (SET)大端带螺纹large end thread (LET)两端带螺纹both end thread (BET)一端带螺纹one end thread (OET)支管连接branch connection焊接支管branch pipe welded directly to the run pipe五、管件Fitting弯头elbow异径弯头reducing elbow带支座弯头base elbowk半径弯头long radius elbow短半径弯头short radius elbow长半径180°弯头long radius return短半径180°弯头short radius return带侧向口的弯头（右向或左向）side outlet elbow (right hand or left hand)双支管弯头（形）double branch elbow三通tee异径三通reducing tee等径三通straight tee带侧向口的三通（右向或左向）side outlet tee (right hand or 1eft hand)异径三通（分支口为异径）reducing tee (reducing on outlet)异径三通（一个直通口为异径）reducing tee (reducing on one run)带支座三通base tee异径三通（一个直通口及分支口为异径）reducing tee (reducing on one run and outlet) 异径三通（两个直通口为异径，双头式）reducing tee (reducing on both runs, bull head) 45°斜三通45° lateral45°斜三通（支管为异径）45° lateral (reducing on branch)45°斜三通(一个直通口为异径) 45° lateral (reducing on one run)45°斜三通(一个直通口及支管为异径) 45° lateral (reducing on one run and branch)Y型三通（俗称裤衩）true “Y”四通cross等径四通straight cross异径四通reducing cross异径四通（一个分支口为异径）reducing cross (reducing on one outlet)异径四通（一个直通口及分支口为异径）reducing cross (reducing on one run and outlet)异径四通（两个分支口为异径）reducing cross (reducing on both outlet)异径四通（一个直通口及两个分支口为异径）reducing cross (reducing on one run and both outlet)异径管reducer同心异径管concentric reducer偏心异径管eccentric reducer锻制异径管reducing swage螺纹支管台threadolet焊接支管台weldolet承插支管台sockolet弯头支管台elbolet斜接支管台latrolet镶入式支管嘴sweepolet短管支管台nipolet支管台，插入式支管台boss管接头coupling, full coupling半管接头half coupling异径管接头reducing coupling活接头union内外螺纹缩接（俗称补芯）bushing管帽cap (C)堵头plug短节nipple异径短节reducing nipple; swage nipple弯管Bend预制弯管fabricated pipe bend跨越弯管（^ 形）cross-over bend偏置弯管（~ 形）offset bend90°弯管quarter bend环形弯管cirele bend单侧偏置90°弯管（形）single offset quarter bendS形弯管“S” bend单侧偏置U形膨胀弯管（| 形）single offset “U” bendU形弯管“U” bend双偏置U膨胀弯管double offset expansion “U” bend斜接弯管mitre bend三节斜接弯管3-piece mitre bend折皱弯管corrugated bend圆度roundness。

垫片类别的中英文对照表无石墨压缩白石棉垫片non graphited compressed white asbestos gasket 垫片的型式type of gasket平垫片flat gasket环形平垫片flat ring gasket平金属垫片flat metal gasket夹棉织物的橡胶elastomer with cotton fabric insertion夹石棉织物的橡胶elastomer with asbestos fabric insertion夹石棉织物及金属丝加强的橡胶elastomer with asbestos fabric insertionand with wire reinforcement无石墨压缩白石棉垫片non graphited compressed white asbestos gasket 天然白橡胶垫片natural white rubber gasket压缩石棉垫片compressed asbestos class gasket石棉垫片PTFE impregnated asbestos gasket夹石棉的缠绕金属垫片spiral-wound metal gasket with asbestos filler 内环inner ring外环，外定位环outer ring波纹金属垫片corrugated metal gasket波纹金属包嵌石棉垫片corrugated metal gasket with asbestos inserted 双夹套波纹金属包石棉垫片corrugated metal double jacketed asbestos filled gasket双夹套垫片double jacketed gasket金属包石棉平垫片flat metal jacketed asbestos filled gasket整体金属齿形垫片solid metal serrated gasket 槽形金属垫片grooved metal gasket环形连接金属垫片ring joint metal gasket八角环形垫片octagonal ring gasket椭圆环形垫片oval ring gasket透镜式垫片lens gasket非金属垫片non-metallic gaske。

汽车零部件中英文对照表车轮系统：Wheeling System轮毂：Wheel Hub轮胎:Tire轮胎汽门嘴：Tire Valve轮圈：Wheel Disk轮圈盖：Wheel Cover内胎(含内衬):Inner Tire (Flap)车轮系统：Wheeling System电装品:Electrical Parts电瓶：Battery中央门控：Central Door Lock分电盘：Distributor火星塞:Spark Plug汽车用电子钟:Digital Clock汽车音响：Car Audio防盗器：Car Burglar Alarm雨刷及雨刷连杆：Wiper / Linkage保险丝座：Fuse Seat保险丝：Fuse洗涤壶：Windshield Washer配线:Wire Harness马达类：Motor高压线组：Ignition Cable喇叭：Horn发电机(零件）：Alternator （Components）开关类：Switch蜂鸣器：Buzzer预热塞:Glow Plug仪表：Combination Meter灯泡：Bulb灯类：Lamp点火线圈:Ignition Coil继电器：Relay倒车雷达：Reverse Sensor电池充电器：Battery Charger闪光器：Flasher省电器：Energy Saving Unit端子：Terminal电动座椅装置：Power Seat Unit马达零件：Motor Components电装品:Electrical Parts汽车用光盘：Car CD汽车用液晶显示器：Car LCD调整器：Regulator整流器：Rectifier电子点火器：Ignition Module倒车显示器：Rear View Display定速器：Cruise ControllerHID车灯安定器组合：HID Ballast Complete Set for Headlights LED 灯：LED Lamp车灯控制器:Lighting Controller点火线圈模块：Ignition Coil Module外装品：Exterior Parts水箱饰罩：Radiator Grille天线：Antenna车身护条：Side Protector防撞护垫：Bumper Pad后视镜：Door Mirror装饰贴纸、标志：Ornament Mark轮弧：Fender Trim挡泥板：Mud Guard扰流板:Spoiler前防撞杆：Guard Assy (Front)后防撞杆：Grard Assy （Rear)外装品：Exterior Parts内装品：Interior Parts仪表板：Instrument Panel中央置物箱：Console孔塞：Grommet Plug地毯：Floor Mat安全带：Seat Belt车门扶手：Door Armrest车门把手：Door Handle车门锁：Door Lock车顶内衬：Roof Lining车窗升降摇柄：Window Lifter Handle 车窗升降机:Window Lifter防水衬条:Weatherstrip油量表：Fuel Gauge门饰板：Door Trim室内镜：Room Mirror音响喇叭盖：Speaker Cover(电动）座椅：(Electric）Seat顶蓬：Headlining烟灰缸:Ashtray各类隔音垫:All Kinds of Silencer饰板/饰条：Garnish / Trim仪表饰板：Instrument Panel Garnish 遮阳板：Sunvisor压条：Moulding点烟器：Cigar Lighter备胎板：Trim for Spare Tire天窗：Sun Roof后置物板：Rear Parcel Shelf后舱室饰板：Rear Trunk Trim内装品：Interior Parts仪表板支架：Instrumental Panel Mounting其它：Others随车工具:Tools千斤顶：Jack尼龙绳、特多龙绳：Nylon Rope生产、检测及涂装设备:Production，Test ＆Painting Equipment 各类孔盖：Cap、Cover扣具:Cargo Lash夹片、管束：Clamp, Clip油土与基准模型：Clay Model and Master Model油封：Oil Seal门铰链:Door Hinge故障标志:Reflector玻璃类:Glass修理业:Repairing ＆Maintenance粉末冶金：Powder Metallurgy轴承：Bearing塑料件：Plastic Parts隔热材：Heat Insulator电子件：Electrical Parts垫片类：Seal、Gasket、Washer、Packing碳刷：Carbon Brush管类：Pipe, Hose, Tube铜套类：Bushing弹簧：Spring模、夹、治、检具：Die，Fixture, Jig, Checking Gauge 橡胶件：Rubber Parts帮浦类：Pump螺帽/螺栓/螺丝：Nut/Bolt/Screw锻造件（加工)：Forging Parts (Processing)滤清器类：Filter锁：Lock镜类：Mirror铸造件(加工）：Casting Parts (Processing)引擎盖铰链：Hinge of Engine Hood行李箱铰链：Hinge of Trunk Lid保险杆支撑：Mount of BumperCAD/CAM车身设计:CAD/CAM Car Body Design汽车清洁保养用品：Cosmetics for Automobile涂料：Paints合成木材:Synthetic Wood电磁阀：Solenoid Valve热水阀:Heater Valve冷煤电磁阀：Refrigerate Solenoid valve玻璃滑槽：Glass Run双面胶带：Acrylic Foam Tape触媒转换器缓冲绵:Catalytic Converter Mate黑烟过滤器：Diesel Particle Filter车用灭火器：Extinguisher零组件用材料：Components Materials汽车用行动电话：Car Hand-free Mobile Phone汽车保全系统:Car Security System汽车导航系统:Car Navigation System人造革:Artificial Leather铭板：Nameplate汽车用计算机：Car Computer无线电胎压侦测仪:Wireless Tire Monitor汽车内装用牛皮：Leather for Car Interior打蜡机:Buffer (Car Polisher)金属表面处理(材料)：Metal Surface Treatment （Material）插接件:Connector Clip胎压不足警示器：Tire Low Pressure Indicator温度感应器：Water Temperature Sensor油压感应器：Oil Pressure Sensor机油：Engine Oil自动变速箱油：Automatic Transmission Oil油品添加剂：Oil Additive热处理：Heat Treatment自行车类:Bicycle整车：Finished Bicycle一般自行车：Regular Bicycle三轮车：Tricycle协力车:Tandem Bicycle城市车:ATB孩童车：Junveniles Bicycle室内运动车（健身车)：Exerciser单轮车：Unicycle无链式自行车：Chainless Bicycle登山车：Mountain Bicycle越野车：Trekking Bicycle跑车（自由车）：Racing Bicycle电动自行车：Electrical Bicycle折叠式自行车：Folding Bicycle海滩车：Beach Bicycle（电动)滑板车：（Electric）Kick Board Scooter 其它特种自行车：Other Special-purpose Bicycles 避震脚踏车：Suspension Bicycle传动件：Transmission曲柄组：Chainwheel ＆Crank飞轮:Flywheel链条:Chain变速杆：Shift Lever变速器:Derailleur电动自行车马达：Electric Bicycle Motor电动自行车控制器：Electric Bicycle Driver齿轮箱:Gear Box车轮及剎车:Wheel and Brake轮胎：Tire夹式剎车器：Caliper Brake快拆：Quick Release花鼓：Hub & Free Hub液压式剎车器:Hydraulic Brake 脚剎车器:Coaster Brake碟式剎车器：Disk Brake轮圈:Rim辐条/辐帽：Spoke/Nipple悬臂式剎车器：Cantilever Brake 控制拉线:Control Cable剎车来令片:Brake Lining Shoe 配件：Accessories铃：Bell反光片：Reflector水壶架：Bottle Cage打气筒：Floor Pump商标贴纸:Sticker货架:Luggage Carrier速度表：Speed Meter中文产品名称:英文產品名稱汽车类：Automobile整车:Finished Automobile轿车：Passenger Car休旅车：Recreational Vehicle （RV)小型商用车（3。

管道管件常用英语1 管道组成件Piping component1.1 管子Pipe管子(按照配管标准规格制造的) pipe管子(不按配管标准规格制造的其他用管) tube钢管steel pipe铸铁管cast iron pipe衬里管lined pipe复合管clad pipe碳钢管carbon steel pipe合金钢管alloy steel pipe不锈钢stainless steel pipe奥氏体不锈钢管austenitic stainless steel pipe铁合金钢管ferritic alloy steel pipe轧制钢管wrought-steel pipe锻铁管wrought-iron pipe无缝钢管seamless (SMLS) steel pipe焊接钢管welded steel pipe电阻焊钢管electric-resistance welded steel pipe电熔（弧）焊钢板卷管electric-fusion (arc)-welded steel-plate pipe螺旋焊接钢管spiral welded steel pipe镀锌钢管galvanized steel pipe热轧无缝钢管hot-rolling seamless pipe冷拔无缝钢管cold-drawing seamless pipe水煤气钢管water-gas steel pipe塑料管plastic pipe玻璃管glass tube橡胶管rubber tube直管run pipe; straight pipe1.2 管件Fitting弯头elbow异径弯头reducing elbow带支座弯头base elbowk半径弯头long radius elbow短半径弯头short radius elbow长半径180°弯头long radius return短半径180°弯头short radius return带侧向口的弯头（右向或左向）side outlet elbow (right hand or left hand)双支管弯头（形）double branch elbow三通tee异径三通reducing tee等径三通straight tee带侧向口的三通（右向或左向）side outlet tee (right hand or 1eft hand)异径三通（分支口为异径）reducing tee (reducing on outlet)异径三通（一个直通口为异径）reducing tee (reducing on one run)带支座三通base tee异径三通（一个直通口及分支口为异径）reducing tee (reducing on one run and outlet)异径三通（两个直通口为异径，双头式）reducing tee (reducing on both runs, bull head)45°斜三通45° lateral45°斜三通（支管为异径）45° lateral (reducing on branch)45°斜三通(一个直通口为异径) 45° lateral (reducing on one run)45°斜三通(一个直通口及支管为异径) 45° lateral (reducing on one run and branch)Y型三通（俗称裤衩）true “Y”四通cross等径四通straight cross异径四通reducing cross异径四通（一个分支口为异径）reducing cross (reducing on one outlet)异径四通（一个直通口及分支口为异径）reducing cross (reducing on one run and outlet)异径四通（两个分支口为异径）reducing cross (reducing on both outlet)异径四通（一个直通口及两个分支口为异径）reducing cross (reducing on one run and both outlet) 异径管reducer同心异径管concentric reducer偏心异径管eccentric reducer锻制异径管reducing swage螺纹支管台threadolet焊接支管台weldolet承插支管台sockolet弯头支管台elbolet斜接支管台latrolet镶入式支管嘴sweepolet短管支管台nipolet支管台，插入式支管台boss管接头coupling, full coupling半管接头half coupling异径管接头reducing coupling活接头union内外螺纹缩接（俗称补芯）bushing管帽cap (C)堵头plug短节nipple异径短节reducing nipple; swage nipple预制弯管fabricated pipe bend跨越弯管（^ 形）cross-over bend偏置弯管（~ 形）offset bend90°弯管quarter bend环形弯管cirele bend单侧偏置90°弯管（? 形）single offset quarter bendS形弯管“S” bend单侧偏置U形膨胀弯管（| ?形）single offset “U” bendU形弯管“U” bend双偏置U膨胀弯管double offset expansion “U” bend斜接弯管mitre bend三节斜接弯管3-piece mitre bend折皱弯管corrugated bend圆度roundness1.4 法兰Flange (FLG）整体管法兰integral pipe flange钢管法兰steel pipe flange螺纹法兰threaded flange滑套法兰（包括平焊法兰）slip-on flange (SO); slip-on welding flange 承插焊法兰socket welding flange松套法兰lap joint flange (LJF)对焊法兰welding neckflange (WNF)法兰盖blind flange, blind孔板法兰orifice flange异径法兰reducing flange盘座式法兰pad type flange松套带颈法兰loose hubbed flange焊接板式法兰welding plate flange对焊环welding neck collar （与stub end相似）平焊环welding-on collar突缘短节stub end, lap翻边端lapped pipe end松套板式法兰loose plate flange压力级pressure rating, pressure rating class压力—温度等级pressure-temperature rating法兰密封面，法兰面flange facing突面raised face (RF)凸面male face (MF)凹面female face (FMF)榫面tongue face环连接面ring joint face全平面；满平面flat face; full face (FF)光滑突面smooth raised face (SRF)法兰面加工facing finish粗糙度roughness光滑的smooth齿形serrated均方根root mean square (RMS)算术平均粗糙高度arithmetical average roughness height (AARH)配对法兰companion-flange螺栓圆bolt circle (B.C.)1.5 垫片Gasket (GSKT)垫片的型式type of gasket平垫片flat gasket环形平垫片flat ring gasket平金属垫片flat metal gasket夹棉织物的橡胶elastomer with cotton fabric insertion夹石棉织物的橡胶elastomer with asbestos fabric insertion夹石棉织物及金属丝加强的橡胶elastomer with asbestos fabric insertion and with wire reinforcement 无石墨压缩白石棉垫片non graphited compressed white asbestos gasket天然白橡胶垫片natural white rubber gasket压缩石棉垫片compressed asbestos class gasket浸聚四氟乙烯的石棉垫片PTFE impregnated asbestos gasket夹石棉的缠绕金属垫片spiral-wound metal gasket with asbestos filler内环inner ring外环，外定位环outer ring波纹金属垫片corrugated metal gasket波纹金属包嵌石棉垫片corrugated metal gasket with asbestos inserted双夹套波纹金属包石棉垫片corrugated metal double jacketed asbestos filled gasket双夹套垫片double jacketed gasket金属包石棉平垫片flat metal jacketed asbestos filled gasket整体金属齿形垫片solid metal serrated gasket槽形金属垫片grooved metal gasket环形连接金属垫片ring joint metal gasket八角环形垫片octagonal ring gasket椭圆环形垫片oval ring gasket透镜式垫片lens gasket非金属垫片non-metallic gasket1.6 阀门Valve1.6.1 阀门结构、零件阀轭yoke外螺纹阀杆及阀轭outside screw and yoke (OS & Y) 阀杆stem内螺纹inside screw (IS)阀轭套yoke sleeve阀杆环stem ring阀座valve seat (body seat)阀座环、密封圈seat ring整体（阀）座integral seat堆焊（阀）座deposited seat阀芯（包括密封圈、杆等内件）trim阀盘disc阀盘密封圈disc seat阀体body阀盖bonnet阀盖衬套bonnet bush螺纹阀帽screw cap螺纹阀盖screw bonnet螺栓连接的阀盖bolted bonnet (BB)活接阀盖（帽）union bonnet (cap)螺栓连接的阀帽bolted cap (BC)焊接阀盖welded bonnet (WB)本体阀杆密封body stem seal石棉安全密封asbestos emenen seal倒密封back seal压力密封的阀盖pressure-tight bonnet动力操纵器powered operator电动操纵器electric motor operator气动操纵器pneumatic operator液压操纵器hydraulic operator快速操纵器quick-acting operator滑动阀杆sliding stem正齿轮传动spur gear operated伞齿轮传动bevel gear operated扳手操作wrench operated链轮chain wheel手轮hand wheel手柄hand lever (handle)气缸（或液压缸）操纵的cylinder operated链条操纵的chain operated等径孔道full bore; full port异径孔道reducing bore, reduced port,venturi port短型short pattern紧凑型（小型）compact type笼式环lantern ring压盖gland阀杆填料stem packing阀盖垫片bonnet gasket升杆式（明杆）rising stem (RS)非升杆式（暗杆）non-rising stem (NRS)指示器/限位器indicator/stopper注油器grease injector可更换的阀座环renewable seat ring1.6.2 常用阀(1）闸阀gate valve平行双闸板double disc parallel seat开口楔形闸板split wedge挠性整体楔形闸扳flexible solid wedge整体楔形闸板solid wedge塞型闸阀plug gate valve直通型闸阀through conduit gate valve(2) 截止阀globe valve球心型阀盘globe type disc塞型阀盘plug type disc可转动的阀盘swivel disc(3) 节流闪阀throttle valve针阀needle valve(4) 角阀angle valve(5) Y型阀（Y 型阀体截止阀）Y-valve (Y-body globe valve)(6) 球阀ball valve三通球阀3-way ball valve装有底轴的trunnion mounted耐火型fire safe type浮动球型floating ball type防脱出阀杆blowout proof stem(7) 蝶阀butterfly valve对夹式（薄片型）wafer type凸耳式lug type偏心阀板蝶阀offset disc burerfly valve; eccentric butterfly valve 斜阀盘蝶阀canted disc butterfly valve连杆式蝶阀link butterfly valve8) 柱塞阀piston type valve(9) 旋塞阀plug valve三通旋塞阀three-way plug valve四通旋塞阀four-way plug valve旋塞cock衬套旋塞sleeve cock(10) 隔膜阀diaphragm valve橡胶衬里隔膜阀rubber lined diaphragm valve直通式隔膜阀straight way diaphragm valve堰式隔膜阀weir diaphragm valve(11) 夹紧式胶管阀pinch valve（用于泥浆、粉尘等）(12) 止回阀check valve升降式止回阀lift check valve旋启式止回阀swing check valve, flap check valve落球式止回阀ball check valve弹簧球式止回阀spring ball check valve双板对夹式止回阀dual plate wafer type check valve无撞击声止回阀non-slam cheek valve底阀foot valve切断式止回阀stop check valve; non-return valve活塞式止回阀piston check valve斜翻盘止回阀tilting disc check valve蝶式止回阀butterfly check valve1.6.3 其它用途的阀安全泄气阀safety valve (SV)安全泄液阀relief valve (RV)安全泄压阀safety relief valve杠杆重锤式lever and weight type引导阀操纵的安全泄气阀pilot operated safety valve复式安全泄气阀twin type safety valve罐底排污阀flush-bottom tank valve电磁阀solenoid valve, solenoid operated valve电动阀electrically operated valve, electric-motor operated valve 气动阀pneumatic operated valve低温用阀cryogenic service valve蒸汽疏水阀steam trap机械式疏水阎mechanical trap浮桶式疏水阀open bucket trap, open top bucket trap浮球式疏水阀float trap倒吊桶式疏水阀inverted bucket trap自由浮球式疏水阀loose float trap恒温式疏水阀thermostatic trap金属膨胀式蒸汽疏水阀metal expansion steam trap液体膨胀式蒸汽疏水阀liquid expansion steam trap双金属膨胀式蒸汽疏水阀bimetallic expansion steam trap压力平衡式恒温疏水阀balanced pressure thermostatic trap热动力式疏水阀thermodynamic trap脉冲式蒸汽疏水阀impulse steam trap放气阀（自动放气阀）air vent valve (automatic air vent valve) （疏水阀用）平板式滑动闸阀slab type sliding gate valve盖阀flat valve换向阀diverting valve, reversing valve热膨胀阀thermo expansion valve自动关闭阀self-closing gate valve自动排液阀self-draining valve管道盲板阀line-blind valve挤压阀squeeze valve（用于泥浆及粉尘等）呼吸阀breather valve风门、挡板damper减压阀pressure reducing valve, reducing valve控制阀control valve膜式控制阀diaphragm operated control valve执行机构actuator背压调节阀back pressure regulating valve差压调节阀differential pressure regulating valve压力比例调节阀pressure ratio regulating valve1.6.4 未指明结构（或阀型）的阀切断阀block valve; shut-off valve; stop valve调节阀regulating valve快开阀quick opening valve快闭阀quick closing valve隔断阀isolating valve三通阀three way valve夹套阔jacketed valve非旋转式阀non-rotary valve排污阀blowdown valve集液排放阀drip valve排液阀drain valve放空阀vent valve卸载阀unloading valve排出阀discharge valve吸入阀suction valve多通路阀multiport valve取样阀sampling valve手动阀hand-operated valve; manually operated valve锻造阀forged valve铸造阀cast valve（水）龙头bibb; bib; faucet抽出液阀（小阀）bleed valve旁路阀by-pass valve软管阀hose valve混合阀mixing valve破真空阀vacuum breaker冲洗阀flush valve第一道阀；根部阀primary valve根部阀root valve总管阀header valve事故切断阀emergency valve1.7 管道特殊件Piping Specialty1.7.1 管道特殊件（组件）粗滤器strainer过滤器filter临时粗滤器（锥型）temporary strainer (cone type)y 型粗滤器y-type strainerT型粗滤器T-type strainer永久过滤器permanent filter丝网粗滤器gauze strainer洗眼器及淋浴器eye washer and shower视镜sight glass阻火器flame arrester喷嘴；喷头spray nozzle取样冷却器sample cooler消声器silencer膨胀节expansion joint波纹膨胀节bellow expansion joint单波single bellow双波double bellow多波multiple bellow压力平衡式膨胀节pressure balanced expansion带铰链膨胀节hinged expansion joint轴向位移型膨胀节axial movement type expansion joint 自均衡膨胀节（外加强环）self-equalizing expansion joint 带接杆膨胀节tied expansion joint万向型膨胀节universal type expansion joint球形补偿器ball type expansion joint填函式补偿器slip type (packed type) expansion joint单向滑动填料函补偿器single actionpacked slip joint1.7.2 管道特殊元件Piping Special Element软管接头hose connection (HC)快速接头quick coupling金属软管metal hose橡胶管rubber hose挠性管flexible tube鞍形补强板reinforcing saddles补强板reinforcement pad特殊法兰special flange漏斗funnel排液环drip ring排液漏斗drain funnel插板blank垫环spacer8字盲板spectacle blind; figure 8 blind限流孔板restriction orifice爆破片rupture disk法兰盖贴面protective disc费托立克接头victaulic coupling1.8 端部连接End Connection法兰端flanged end坡口端beveled end (BE)对焊端butt welded end平端plain end (PE)承插焊端socket welding end螺纹端threaded end (TE)承口bell end焊接端welding end法兰连接（接头）flanged joint对焊连接（接头）butt welded joint螺纹连接，管螺纹连接threaded joint, pipe threaded joint 锥管螺纹密封焊连接seal-welded taper pipe threaded joint 承插焊连接（接头）socket welded joint承插连接（接头）bell and spigot joint环垫接头ring joint (RJ)万向接头universal joint软钎焊连接（接头）soldered joint搭接接头，松套连接lapped joint外侧厚度切斜角bevel for outside thickncss内侧厚度切斜角bevel for inside thickness内外侧厚度切斜角bevel for combined thickness法兰式的flanged (FLGD)对焊的butt welded (BW)螺纹的threaded (THD)承插焊的socket welded (SW)小端为平的small end plain (SEP)大端为平的large end plain (LEP)两端平both ends plain (BEP)小端带螺纹small end thread (SET)大端带螺纹large end thread (LET)两端带螺纹both end thread (BET)一端带螺纹one end thread (OET)支管连接branch connection焊接支管branch pipe welded directly to the run pipe 2 管道用紧固件及螺纹2.1 紧固件螺栓bolt六角头螺栓hexagonal head bolt方头螺栓square head bolt螺柱，双头螺栓stud bolt环头螺检eye bolt沉头螺栓countersunk (head) screw地脚螺栓anchor bolt; foundation bolt松紧螺旋扣（花篮螺丝）turnbuckleU形螺栓U-boltT形螺栓T-bolt圆头螺钉round head bolt机螺栓，机螺钉maehine bolt顶开螺栓，顶起螺栓Jack screw自攻螺钉self tapping screw膨胀螺栓expansion bolt粗制的coarse精制的finished, fine螺母nut六角螺母hexagonal nut方螺母square nut蝶形螺母wing nut扁螺母flat nut锁紧螺母lock nut垫圈washer平垫圈plain washer球面垫圈spherical washer弹簧垫圈spring washer方垫圈square washer斜垫圈slant washer销轴pinned shan销pin开口销cotter pin定位销dowel pin带孔销pin with hole圆锥销taper pin铆钉rivet键key2.2 螺纹左螺纹left hand thread右螺纹right hand thread管螺纹pipe thread锥管螺纹taper pipe thread直管螺纹straight pipe thread梯形螺纹trapezoid thread螺距pitch of thread粗牙螺纹coarse thread细牙螺纹fine thread特细牙螺纹extra fine thread通长螺纹full thread惠氏螺纹whitworth thread公制螺纹metric ibread美国标准锥管螺纹American standard taper pipe thread (NPT) 螺孔tap3 材料、型钢及填料3.1 金属材料3.1.1 黑色金属Ferrous Metal碳素钢carbon steel (CS)低碳钢low-carbon steel中碳钢medium-carbon steel高碳钢high-carbon steel普通碳素钢general carbon steel优质碳素钢high-quality carbon steel普通低合金结构钢general structure low-alloy steel合金结构钢structural alloy steel合金钢alloy steel低合金钢low alloy steel中合金钢medium alloy steel高合金钢high alloy steel耐热钢heat resisting steel高强度钢high strength steel复合钢clad steel工具钢tool steel弹簧钢spring steel钼钢molybdenum steel镍钢nickel steel铬钢chromium steel铬钼钢chrome-molybdenum steel铬镍钢chromium-nickel steel,chrome-nickel steel 不锈钢stainless steel (S.S.)奥氏体不锈钢Austenitic stainless steel马氏体不锈钢Martensitic stainless steel司特来合金（钨铬钴台金）Stellite耐蚀耐热镍基合金Hastelloy铬镍铁合金inconel耐热铬镍铁合金incoloy20合金20 alloy平炉钢（马丁钢）Martin steel镇静钢killed steel半镇静钢semi-killed steel沸腾钢rimmed steel; rimming steel; open-steel锻钢forged steel铸钢cast steel铸铁cast iron (C.I.)灰铸铁grey cast iron可锻铸铁malleable iron (MI)球墨铸铁nodular cast iron; nodular graphite iron 生铁pig iron熟铁，锻铁wrought iron铸件casting高硅铸铁high silicon cast iron3.1.2 镀层及制造方法渗铬钢，镀铬钢chromized steel镀铬的chromium-plated, chrome-plated镀层plating锻造，型钢swage锻造的，锻造forging热轧hot rolling冷轧cold rolling挤压extruding冷加工cold working热加工hot working拔制drawing3.1.3 有色金属Non-ferrous Metal铝aluminum铜，紫铜copper黄铜brass青铜bronze铝青铜aluminum bronze磷青铜phosphor bronze铝镁合金aluminum magnesium锰青铜manganese bronze蒙乃尔（注：镍及铜合金）Monel镍铜台金nickel copper alloy非铁合金nonferrous alloy钛titanium铅lead硬铅hard lead3.1.4 材料性能极限强度ultimate strength抗拉强度tensile strength屈服极限yield limit屈服点yield point延伸率percentage elongation抗压强度compressive strength抗弯强度bending strength弹性极限elastic limit冲击值impact value疲劳极限fatigue limit蠕变极限creep limit持久极限endurance limit布氏硬度Brinell hardness洛氏硬度Rockwell hardness维氏硬度Vickers diamond hardness, diamond penetrator hardness 蠕变断裂强度creep rupture strength断面收缩率reduction of area脆性brittleness延性ductility冷脆cold shortness冷流cold flow3.2 非金属材料Non-metallic Material塑料plastic丙烯腈—丁二烯—苯乙烯acrylonitrile-butadiene-styrene (ABS) 聚乙烯polyethylene (PE)聚氯乙烯polyvinyl chloride (PVC)苯乙烯橡胶styrene-rubber (SR)聚丁烯polybutylene (PB)聚丙烯polypropylene (PP)聚苯乙烯polystyrene (PS)氯化聚醚chlorinated polyether (CPE)聚酰胺polyamide (PA)聚碳酸酯polycarbonate (PC)聚甲基丙烯酸甲酯polymethyl methacrylate (PMMA)醋酸丁酸纤维素cellulose acetate butyrate (CAB)氯化聚氯乙烯chlorinated polyvinyl chloride (CPVC)聚偏二氟乙烯polyvinylidene fluoride (PVDF)缩醛塑料acetal plastic尼龙塑料nylon plastic聚烯烃polyolefin (PO)石墨酚醛塑料graphite phenolic plastics聚四氟乙烯polytetrafluoroethylene (PTFE)纤维增强热塑性塑料fiber reinforced thermoplastics热塑性塑料thermoplastic热固性塑料thermosetting plastics胶粘剂adhesive溶剂胶接剂solvent cement树脂resin环氧树脂epoxy, epoxy resin聚酯树脂polyester resin聚酯纤维polyester fibers氟塑料fluoroplastics聚氨基甲酸酯polyurethane丙烯酸树脂acrylic resin脲醛树脂urea resin呋哺树脂furan resin乙烯丙烯二烃单体ethylene propylene diene monomer (EPDM) 合成橡胶synthetic rubber丁腈橡胶nitrile butadiene rubber氯丁橡胶neoprene天然橡胶natural rubber乙丙橡胶ethylene propylene rubber (EPR)玻璃glass硼硅玻璃borosilicate glass耐火砖fire brick陶瓷ceramic搪瓷porcelain enamel木材wood3.3 型材型钢shaped steel, section steel, swage角钢angle steel槽钢channel工字钢I-beam宽缘工字钢或H钢wide flanged beamT型钢T-bar方钢square bar扁钢flat bar角钢hexagonal steel bar圆钢round steel; rod钢带strap steel钢板plate网纹钢板checkered plate腹板（指型钢的立板）web翼缘（指型钢的缘）wing3.4 填料及填料函填料packing石棉绳asbestos rope, asbestos cord．O形环O-ring自密封self-sealing四氟带Teflon tap带铬镍合金丝的石棉绳asbestos rope with inconel wire, inconel wire asbestos 浸聚四氟乙烯的石棉填料Teflon impregnated asbestos packing金属填料metallic stuffing填料箱，填料函packing box, stuffing box填料函压盖stuffing box gland4 管道等级及材料统计4.1 管道材料规定Piping Material Specification管道等级piping class; piping classification管道等级号class designation公称直径nominal diameter (DN); nominal (pipe) size公称压力nominal pressure (PN)压力级，等级，类别class (CL)低压low pressure (L.P.)中压medium pressure (M.P.)高压high pressure (H.P.)大气压atmosphere (ATM)真空vacuum工作压力operating pressure; working pressure设计压力design pressure工作温度operating temperature设计温度design temperature环境温度ambient temperature腐蚀裕量corrosion allowance管道附件piping attachment管道元件piping element壁厚wall thickness (WT)壁厚系列号schedule number (SCH. No.)加厚的，加强的extra heavy, extra strong双倍加厚的，双倍加强的double extra heavy, double extra strong通用连接组typieal installation分组（类）形式（如管道等级表）block form数据库data base文件file4.2 材料统计Material Take-off (MTO)汇总表summary sheet材料表bill of material (BM)综合管道材料表consolidated piping material summary sheet (CPMSS) 统计材料准确度accuracy of take-off材料情况报告material status report (MSR)散装材料bulk material编位号的itemized代码code number短代码short code数量quantity (QTY)重力weight净重net weight毛重gross weight5 设备布置及管道布置Plot Plan and Piping Layout,Equipment and Piping Arrangement 5.1 设备名称Equipment Name5.1.1 容器Vessel(1) 塔tower, column洗涤塔scrubber吸收塔absorber冷却塔cooling tower精馏塔fractionating tower蒸馏塔distillation tower再生塔regenering tower造粒塔prflling tower汽提塔stripper脱气塔degasifier合成塔synthesis tower(2) 反应器reactor聚台釜polymerizer转化器，变换器converter脱硫反应器desulphurization reactor甲烷化器methanator(3) 气柜gas-holder螺旋式气柜helical gas-holder湿式气柜wet gas-holder干式气柜dry gas-holder(4) 槽罐贮罐tank; storage tank缓冲罐knock out drum球罐spheroid, spherical tank罐drum接受槽receiver计量槽measuring tank加料槽feed tank排污罐blow down tank闪蒸罐flash drum汽包steam drum溶液贮槽solution storage tank地下槽sloptank(5) 其它设备分离器separator旋风分离器cyclone分子筛molecular sieve脱氧器deaerator搅拌器agitator干燥器dryer混合器mixer萃取器extractor结晶器crystallizer澄清器gravity settler净化器purifier气化器vaporizer吸附器adsorber融解槽melter减温器desuperheater升压器booster喷射器ejector喷头sprayer火炬flare消声器silencer(6) 换热器、加热器、冷却器换热器heat exchanger空冷器air cooler水冷却器water cooler冷凝器condenser螺旋板式换热器spiral plate heat exchanger 蒸发器evaporator再沸器reboiler急冷器quencher深冷器chiller预热器preheater再热器reheater加热器heater电加热器electric heater过热器super heater给水加热器feed water heater中间冷却器inter cooler后冷却器after cooler5.1.2 工业炉及锅炉炉子furnace烧嘴burner锅炉boiler烟囱stack废热锅炉waste heat boiler辅助锅炉auxiliary boiler省煤器economizer回热炉direct-fired heater辐射段radiant section对流段convection section裂化炉reformer焚烧炉incinerator回转窑rotary kiln炉管furnace tube吹灰器soot blower观察孔observation door, peep door防爆门explosion door5.2 辅助用房名称5.2.1 生产用房分析室analyzer room变压器室transformer room配电室，变电所substation, switch room蓄电池室battery room控制室control room通风室ventilating room贮藏室storage room维修间maintenance room办公室office5.2.2 生活用房更农室locker room盥洗室，厕所closet, lavatory, toilet5.3 图名管道布置平面piping arrangement plan (PAP)管道布置piping layout轴测图isometric drawing分区索引图key plan初版设备布置图（“A”版）preliminary plot plan ( “A” issue)内部审查版设备布置图（“B”版）inre rnal approval plot plan ( “B” issue)用户审查版设备布置图（“C”版) owner approval plot plan ( “C” issue)确认版设备布置图（“D”版）confirm plot plan ( “D” issue)研究版设备布置图（“e”版）planning plot plan ( “E” issue)设计版设备布置图（“F”）designing plot plan ( “F” issue)施工版设备布置图（“G”版）construct ion plot plan ( “G” issue) 5.4 厂房、站、单元压缩机房compressor house (room)泵房pump house (room)洗眼站eye washer station泡沫站foam station软管站，公用工程站hose station (HS), utility station成套设备package unit设施facilities罐区tank yard空分装置air separation facility5.5 设备布置设备位号equipment item number工厂plant工厂区界plant limit项目区界内侧inside battery limit (I.S.B.L.)项目区界batterylimit (BL)区界area limit区域边界zone iimit界外off site东east (E)西west (W)南south (S)北north (N)上up下down工厂北向plant north真实北向true north道路road小过道cat walk, cat way走道，过道walk way, gangway, access way污水坑（井）sump pit集水池catch basin沟槽through预留区trough场地future area铺砌区paving area非铺砌区unpaved area碎石铺面gravel paving橡皮铺面rubber paving面积，区域area体积，容积volume (VOL)5.6 管道布置管道设计piping design管道研究piping study走向研究routing study重要管道critical piping地上管道above ground piping地下管道under ground piping管网network of pipes管廊pipe rack管沟piping trench管间距line spacing管道跨距line span总管header, manifold旁路by pass排液drain放空vent上升管，垂直管riser导管canduit裸管bare iine管件直接fitting to fitting (FTF)管段，接口spool piece, spool取样接口sampling connection集液包drip leg伴热管tracing pipe蒸汽伴热steam tracing热水伴热hot-water tracing电伴热electrical tracing夹套管jacketed line, jacketed piping 全夹套的full jacketed平面plan详图detail“ ”视图X view “X”“ ”剖视A-A section “A-A”连接图hook up drawing接续图continue on drawing (COD) 接续线match line (M.L.)比例scale图例legend符号symbol管口表list of nozzles方位orientation管口方位nozzle orientation定位location相交intersection水平的horizontal垂直的，立式的vertical垂直，正交，垂直的perpendicular平行，平行的parallel水平安装horizontal installation垂直安装vertical installafion对称的symmetric相反（的），对面（的）opposite顺时针方向clock wise逆时针方向counter clock wise计算机辅助设计computer aided design (CAD) 5.7 图面标注绝对标高abselute elevation海平面标高over-sea mean level (OSL)标高，立面elevation (EL)混凝土顶面top of concrete架顶面top of support (TOS)钢结构顶面top of steel梁项面top of beam (TOB)支撑点point of suppon (POS)管顶top of pipe (TOP)管底bouom of pipe (BOP)沟底boaom of trench管子内底invert (inside bottom of pipe)底平flat on bottom (FOB)顶平flat on top (FOT)工作点working point (W.P.)面至面face to face (F-F)中心至端面center to end (C-E)中心至面center to face (C-F)中心至中心，中至中center to center (C-C)坐标coordinate坐标原点origin of coordinate出口中心线center line of discharge入口中心线center line of suction中心线centerline (CL)入口inlet, suction出口outlet, discharge排出口exhaust距离distance5.8 相关专业的专业词汇5.8.1 工艺(1) 图及表流程图flow diagram工艺流程图process flow diagram (PFD)管道及仪表流程图piping andinstrument flow diagram (PID)公用工程流程图utility flow diagram (UFD) 管线表line list; line schedule命名表；管道表nomenclature设备表equipment list (schedule)(2) 流体fluid空气air仪表空气instrument air工艺空气process air低压蒸汽low pressure steam中压蒸汽medium pressure steam高压蒸汽high pressure steam伴热蒸汽tracing steam饱和蒸汽saturated steam过热蒸汽superheated steam氧气oxygen氢气hydrogen氮气nitrogen燃料气fuel gas天然气natural gas火炬气flare gas酸性气sour gas液化石油气liquefired petroleum gas (LPG) 氨气ammonia gas冷却水cooling循环水circulating water锅炉给水boiler feed water热水hot water蒸汽冷凝水steam condensate盐水brine工艺水process water化学污水chemical sewage防腐剂corrosion inhibitor重油heavy oil石脑油naphtha燃料油fuel oil润滑油lubricating oil密封油sealing oil冷冻剂refrigerant载热体heating medium溶剂solvent溶液solution母液mother liquor单体monomer聚合物polymer均聚物homopolymer共聚物copolymer工艺液体process liquid工艺气体process gas硫酸sulphuric acid盐酸chlorhydric acid硝酸nitric acid烧碱caustic soda(3) 流体特性fluid characteristics 蒸汽压vapor pressure临界温度critical temperature临界点critical point临界压力critical pressure比热specific heat湿度humidity密度density比重specific gravity粘度viscosity闪点flash point融点melting point凝固点freezing point浓度concentration爆炸极限limit of explosion有毒的toxic可燃的；易燃的flammable(4) 其它回收recovery再生regeneration循环cireulatlon再循环；再生recycle补充make-up制备preparation蒸汽吹扫steaming out吹扫purge抽空；排空evacuation吹出blow-off排污blow down破真空vacuum breaker大气腿barometric leg备用stand-by化学清洗chemical cleaning净正吸入压头net positive suction head (NPSH) 进料feed成品product污染contamination大气污染atmospheric pollution环境温度ambient temperature5.8.2 建筑、结构建筑物building钢结构steel structure已有钢结构existing steel structure钢筋混凝土结构reinforced concrete construction 楼面floor平台platform (PF)地面ground level栏杆handrail楼梯stair; stair way直梯ladder柱column; post; stanchion基础foundation; footing粱beam斜撑；支撑bracing桁架；主粱girder构件member隔墙partition wall墙wall篦子板grate; grating吊装孔erection opening吊梁hoisting beam棚shelter窗window天窗skylight门door防火门fire door地漏floor drain防火层fire-proofing总图general plot plan路肩shoulder桩pile灌浆grouting风荷载wind load雪荷载snow load动力荷载dynamic load静荷载dead load活荷载live load风速wind velocity主导风向most frequent wind direction5.8.3 仪表盘（操作盘）panel就地盘local panel仪表盘instrument panel常开normally open常闭normally closed电缆槽（架）cable tray (channel); cable rack 仪表电缆槽（架）instrument cable tray (duct) 压力计manometer; pressure gauge热电偶thermocouple温度计thermometer液位计level gauge玻璃液位计gage glass温度计保护管thermowell流量计flow meter孔板orifice变送器transmitter联锁interlock仪器；设备apparatus仪器分析instrumental analysis自动分析automatic analysis气体分析gas analysis化学分析chemical analysis气相色谱仪gas chromatograph液相色谱仪liquid chromatograph质谱分析mass spectrometric analysis 5.8.4 电气危险区划分hazardous area classification 危险区平面图hazardous area plan电气盘electrical panel配电盘switch board电缆沟cable trench电流current直流direct current交流alternating current频率frequency相位phase功率因数power factor电压voltage电阻resistance电容capacitance静电static electricity接地grounding; easthing照明lighting; illumination避雷针lightning preventer电话telephone电线wire接线箱（盒）junction box导线管conduit tube5.8.5 设备固定鞍座fixed saddle滑动鞍座sliding saddle管口nozzle人孔manhole (MH)手孔handhole (HH)检查孔inspection hole吊柱davit切线tangent line焊接线weldingiine件号part humbet椭圆形封头ellipsoidal head加强圈reinforcing ring接地板earth lug吊耳lifting lug气缸cylinder轴shaft轴承bearing附件，附属设备accessory编位号设备itemized equipment无位号设备non-itemized equipment 5.8.6 水道(1) 流体原水raw water硬水hard water软水soft water饮用水potable water循环冷却水给水cooling water supply 循环冷却水回水cooling water return 脱盐水demineralized water苦咸水（碱性水）brackish water生活污水sanitary sewer工业废水industrial waste water雨水rain water污染雨水contaminated rain water消防水fire water(2) 装置、设施软化装置softener沉淀器settler沉淀池clarifier脱盐装置demineralizer水处理water traatment冷却塔cooling tower中和池neutralization tank化粪池septic tank渗滤井soak-away pit井well阀井valve pit清扫口clean out（3）消防消火栓hydrant水炮water monitor洒水器sprinkler水喷淋watering灭火器fire extinguisher消防水泵fire pump消防车fire fighting truck泡沫消防foam fire-fighting泡沫栓foam hydrant泡沫炮foam monitor消防软管接头fire hose connection6 管道支吊架Pipe Supports and Hangers 6.1 管架零部件Attachment of Support管托shoe管卡clampU形夹（卡）clevis锻制U形夹forged steel clevis支耳；吊耳lug; ear耳轴trunnion止动挡块shear lug托座stool托架cradle带状卡strap clamp夹板，导向板cleat可调夹板adjustable cleat角板；连接板gusset筋；肋rib支承环ring加强板stiffiener底板base plate顶板top plate翅片式导向板fin预埋件embedded part; inserted plate垫板（安装垫平用）shim锚固件；生根件clip预焊件(设备上) clip (on equipment)聚四氟乙烯滑动板PTFE sliding plate连接板tie plate连接杆tie rod限制杆limit rod带环头拉杆eye rod。

化工管道设计技术词汇（中英对照完整版）！1 管道组成件 Piping components1.1 管子 Pipe管子(按照配管标准规格制造的) pipe管子(不按配管标准规格制造的其他用管) tube钢管 steel pipe铸铁管 cast iron pipe衬里管 lined pipe复合管 clad pipe碳钢管 carbon steel pipe合金钢管 alloy steel pipe不锈钢 stainless steel pipe奥氏体不锈钢管 austenitic stainless steel pipe铁合金钢管 ferritic alloy steel pipe轧制钢管 wrought-steel pipe锻铁管 wrought-iron pipe无缝钢管 seamless (SMLS) steel pipe焊接钢管 welded steel pipe电阻焊钢管 electric-resistance welded steel pipe电熔（弧）焊钢板卷管 electric-fusion (arc)-welded steel-plate pipe螺旋焊接钢管 spiral welded steel pipe镀锌钢管 galvanized steel pipe热轧无缝钢管 hot-rolling seamless pipe冷拔无缝钢管 cold-drawing seamless pipe水煤气钢管 water-gas steel pipe塑料管 plastic pipe玻璃管 glass tube橡胶管 rubber tube直管 run pipe; straight pipe1.2 管件 Fitting弯头 elbow异径弯头 reducing elbow带支座弯头 base elbowk半径弯头 long radius elbow短半径弯头 short radius elbow长半径180°弯头 long radius return短半径180°弯头 short radius return带侧向口的弯头（右向或左向） side outlet elbow (right hand or left hand) 双支管弯头（形） double branch elbow三通 tee异径三通 reducing tee等径三通 straight tee带侧向口的三通（右向或左向） side outlet tee (right hand or 1eft hand)异径三通（分支口为异径） reducing tee (reducing on outlet)异径三通（一个直通口为异径）reducing tee (reducing on one run)带支座三通 base tee异径三通（一个直通口及分支口为异径） reducing tee (reducing on one run and outlet)异径三通（两个直通口为异径，双头式） reducing tee (reducing on both runs, bull head)45°斜三通 45° lateral45°斜三通（支管为异径） 45° lateral (reducing on branch)45°斜三通(一个直通口为异径) 45° lateral (reducing on one run)45°斜三通(一个直通口及支管为异径) 45° lateral (reducing on one run and branch)Y型三通（俗称裤衩） true “Y”四通 cross等径四通 straight cross异径四通 reducing cross异径四通（一个分支口为异径）reducing cross (reducing on one outlet)异径四通（一个直通口及分支口为异径） reducing cross (reducing on one run and outlet)异径四通（两个分支口为异径） reducing cross (reducing on both outlet)异径四通（一个直通口及两个分支口为异径） reducing cross (reducing on one run and both outlet) 异径管 reducer同心异径管 concentric reducer偏心异径管 eccentric reducer锻制异径管 reducing swage螺纹支管台 threadolet焊接支管台 weldolet承插支管台 sockolet弯头支管台 elbolet斜接支管台 latrolet镶入式支管嘴 sweepolet短管支管台 nipolet支管台，插入式支管台 boss管接头 coupling, full coupling半管接头 half coupling异径管接头 reducing coupling活接头 union内外螺纹缩接（俗称补芯） bushing管帽 cap (C)堵头 plug短节 nipple异径短节 reducing nipple; swage nipple1.3 弯管 Bend预制弯管 fabricated pipe bend跨越弯管（^ 形） cross-over bend偏置弯管（~ 形） offset bend90°弯管 quarter bend环形弯管 cirele bend单侧偏置90°弯管（? 形） single offset quarter bendS形弯管“S” bend单侧偏置U形膨胀弯管（| ?形） single offset “U” bendU形弯管“U” bend双偏置U膨胀弯管 double offset expansion “U” bend斜接弯管 mitre bend三节斜接弯管 3-piece mitre bend折皱弯管 corrugated bend圆度 roundness1.4 法兰 Flange (FLG）整体管法兰 integral pipe flange钢管法兰 steel pipe flange螺纹法兰 threaded flange滑套法兰（包括平焊法兰） slip-on flange (SO); slip-on welding flange 承插焊法兰 socket welding flange松套法兰 lap joint flange (LJF)对焊法兰 welding neckflange (WNF)法兰盖 blind flange, blind孔板法兰 orifice flange异径法兰 reducing flange盘座式法兰 pad type flange松套带颈法兰 loose hubbed flange焊接板式法兰 welding plate flange对焊环 welding neck collar （与stub end相似）平焊环 welding-on collar突缘短节 stub end, lap翻边端 lapped pipe end松套板式法兰 loose plate flange压力级 pressure rating, pressure rating class压力—温度等级 pressure-temperature rating法兰密封面，法兰面 flange facing突面 raised face (RF)凸面 male face (MF)凹面 female face (FMF)榫面 tongue face槽面 groove face环连接面 ring joint face全平面；满平面 flat face; full face (FF)光滑突面 smooth raised face (SRF)法兰面加工 facing finish粗糙度 roughness光滑的 smooth齿形 serrated均方根 root mean square (RMS)算术平均粗糙高度 arithmetical average roughness height (AARH)配对法兰 companion-flange螺栓圆 bolt circle (B.C.)1.5 垫片 Gasket (GSKT)垫片的型式 type of gasket平垫片 flat gasket环形平垫片 flat ring gasket平金属垫片 flat metal gasket夹棉织物的橡胶 elastomer with cotton fabric insertion夹石棉织物的橡胶 elastomer with asbestos fabric insertion夹石棉织物及金属丝加强的橡胶 elastomer with asbestos fabric insertion and with wire reinforcement无石墨压缩白石棉垫片 non graphited compressed white asbestos gasket天然白橡胶垫片 natural white rubber gasket压缩石棉垫片 compressed asbestos class gasket浸聚四氟乙烯的石棉垫片 PTFE impregnated asbestos gasket夹石棉的缠绕金属垫片 spiral-wound metal gasket with asbestos filler内环 inner ring外环，外定位环 outer ring波纹金属垫片 corrugated metal gasket波纹金属包嵌石棉垫片 corrugated metal gasket with asbestos inserted双夹套波纹金属包石棉垫片 corrugated metal double jacketed asbestos filled gasket双夹套垫片 double jacketed gasket金属包石棉平垫片 flat metal jacketed asbestos filled gasket整体金属齿形垫片 solid metal serrated gasket槽形金属垫片 grooved metal gasket环形连接金属垫片 ring joint metal gasket八角环形垫片 octagonal ring gasket椭圆环形垫片 oval ring gasket透镜式垫片 lens gasket非金属垫片 non-metallic gasket1.6 阀门 Valve1.6.1 阀门结构、零件阀轭 yoke外螺纹阀杆及阀轭 outside screw and yoke (OS & Y) 阀杆 stem内螺纹 inside screw (IS)阀轭套 yoke sleeve阀杆环 stem ring阀座 valve seat (body seat)阀座环、密封圈 seat ring整体（阀）座 integral seat堆焊（阀）座 deposited seat阀芯（包括密封圈、杆等内件） trim阀盘 disc阀盘密封圈 disc seat阀体 body阀盖 bonnet阀盖衬套 bonnet bush螺纹阀帽 screw cap螺纹阀盖 screw bonnet螺栓连接的阀盖 bolted bonnet (BB)活接阀盖（帽） union bonnet (cap)螺栓连接的阀帽 bolted cap (BC)焊接阀盖 welded bonnet (WB)本体阀杆密封 body stem seal石棉安全密封 asbestos emenen seal倒密封 back seal压力密封的阀盖 pressure-tight bonnet动力操纵器 powered operator电动操纵器 electric motor operator气动操纵器 pneumatic operator液压操纵器 hydraulic operator快速操纵器 quick-acting operator滑动阀杆 sliding stem正齿轮传动 spur gear operated伞齿轮传动 bevel gear operated扳手操作 wrench operated链轮 chain wheel手轮 hand wheel手柄 hand lever (handle)气缸（或液压缸）操纵的 cylinder operated链条操纵的 chain operated等径孔道 full bore; full port异径孔道 reducing bore, reduced port,venturi port 短型 short pattern紧凑型（小型） compact type笼式环 lantern ring压盖 gland阀杆填料 stem packing阀盖垫片 bonnet gasket升杆式（明杆） rising stem (RS)非升杆式（暗杆） non-rising stem (NRS)指示器/限位器 indicator/stopper注油器 grease injector可更换的阀座环 renewable seat ring1.6.2 常用阀(1）闸阀 gate valve平行双闸板 double disc parallel seat开口楔形闸板 split wedge挠性整体楔形闸扳 flexible solid wedge整体楔形闸板 solid wedge塞型闸阀 plug gate valve直通型闸阀 through conduit gate valve(2) 截止阀 globe valve球心型阀盘 globe type disc塞型阀盘 plug type disc可转动的阀盘 swivel disc(3) 节流闪阀 throttle valve针阀 needle valve(4) 角阀 angle valve(5) Y型阀（Y 型阀体截止阀） Y-valve (Y-body globe valve)(6) 球阀 ball valve三通球阀 3-way ball valve装有底轴的 trunnion mounted耐火型 fire safe type浮动球型 floating ball type防脱出阀杆 blowout proof stem(7) 蝶阀 butterfly valve对夹式（薄片型） wafer type凸耳式 lug type偏心阀板蝶阀 offset disc burerfly valve; eccentric butterfly valve 斜阀盘蝶阀 canted disc butterfly valve连杆式蝶阀 link butterfly valve8) 柱塞阀 piston type valve(9) 旋塞阀 plug valve三通旋塞阀 three-way plug valve四通旋塞阀 four-way plug valve旋塞 cock衬套旋塞 sleeve cock(10) 隔膜阀 diaphragm valve橡胶衬里隔膜阀 rubber lined diaphragm valve直通式隔膜阀 straight way diaphragm valve堰式隔膜阀 weir diaphragm valve(11) 夹紧式胶管阀 pinch valve（用于泥浆、粉尘等）(12) 止回阀 check valve升降式止回阀 lift check valve旋启式止回阀 swing check valve, flap check valve落球式止回阀 ball check valve弹簧球式止回阀 spring ball check valve双板对夹式止回阀 dual plate wafer type check valve无撞击声止回阀 non-slam cheek valve底阀 foot valve切断式止回阀 stop check valve; non-return valve活塞式止回阀 piston check valve斜翻盘止回阀 tilting disc check valve蝶式止回阀 butterfly check valve1.6.3 其它用途的阀安全泄气阀 safety valve (SV)安全泄液阀 relief valve (RV)安全泄压阀 safety relief valve杠杆重锤式 lever and weight type引导阀操纵的安全泄气阀 pilot operated safety valve复式安全泄气阀 twin type safety valve罐底排污阀 flush-bottom tank valve电磁阀 solenoid valve, solenoid operated valve电动阀 electrically operated valve, electric-motor operated valve气动阀 pneumatic operated valve低温用阀 cryogenic service valve蒸汽疏水阀 steam trap机械式疏水阎 mechanical trap浮桶式疏水阀 open bucket trap, open top bucket trap浮球式疏水阀 float trap倒吊桶式疏水阀 inverted bucket trap自由浮球式疏水阀 loose float trap恒温式疏水阀 thermostatic trap金属膨胀式蒸汽疏水阀 metal expansion steam trap液体膨胀式蒸汽疏水阀 liquid expansion steam trap双金属膨胀式蒸汽疏水阀 bimetallic expansion steam trap压力平衡式恒温疏水阀 balanced pressure thermostatic trap热动力式疏水阀 thermodynamic trap脉冲式蒸汽疏水阀 impulse steam trap放气阀（自动放气阀） air vent valve (automatic air vent valve) （疏水阀用）平板式滑动闸阀 slab type sliding gate valve盖阀 flat valve换向阀 diverting valve, reversing valve热膨胀阀 thermo expansion valve自动关闭阀 self-closing gate valve自动排液阀 self-draining valve管道盲板阀 line-blind valve挤压阀 squeeze valve（用于泥浆及粉尘等）呼吸阀 breather valve风门、挡板 damper减压阀 pressure reducing valve, reducing valve控制阀 control valve膜式控制阀 diaphragm operated control valve执行机构 actuator背压调节阀 back pressure regulating valve差压调节阀 differential pressure regulating valve 压力比例调节阀 pressure ratio regulating valve1.6.4 未指明结构（或阀型）的阀切断阀 block valve; shut-off valve; stop valve调节阀 regulating valve快开阀 quick opening valve快闭阀 quick closing valve隔断阀 isolating valve三通阀 three way valve夹套阔 jacketed valve非旋转式阀 non-rotary valve排污阀 blowdown valve集液排放阀 drip valve排液阀 drain valve放空阀 vent valve卸载阀 unloading valve排出阀 discharge valve吸入阀 suction valve多通路阀 multiport valve取样阀 sampling valve手动阀 hand-operated valve; manually operated valve 锻造阀 forged valve铸造阀 cast valve（水）龙头 bibb; bib; faucet抽出液阀（小阀） bleed valve旁路阀 by-pass valve软管阀 hose valve混合阀 mixing valve破真空阀 vacuum breaker冲洗阀 flush valve第一道阀；根部阀 primary valve根部阀 root valve总管阀 header valve事故切断阀 emergency valve1.7 管道特殊件 Piping Specialty1.7.1 管道特殊件（组件）粗滤器 strainer过滤器 filter临时粗滤器（锥型） temporary strainer (cone type)y 型粗滤器 y-type strainerT型粗滤器 T-type strainer永久过滤器 permanent filter丝网粗滤器 gauze strainer洗眼器及淋浴器 eye washer and shower视镜 sight glass阻火器 flame arrester喷嘴；喷头 spray nozzle取样冷却器 sample cooler消声器 silencer膨胀节 expansion joint波纹膨胀节 bellow expansion joint单波 single bellow双波 double bellow多波 multiple bellow压力平衡式膨胀节 pressure balanced expansion带铰链膨胀节 hinged expansion joint轴向位移型膨胀节 axial movement type expansion joint自均衡膨胀节（外加强环）self-equalizing expansion joint 带接杆膨胀节 tied expansion joint万向型膨胀节 universal type expansion joint球形补偿器 ball type expansion joint填函式补偿器 slip type (packed type) expansion joint单向滑动填料函补偿器 single actionpacked slip joint1.7.2 管道特殊元件Piping Special Element软管接头 hose connection (HC)快速接头 quick coupling金属软管 metal hose橡胶管 rubber hose挠性管 flexible tube鞍形补强板 reinforcing saddles补强板 reinforcement pad特殊法兰 special flange漏斗 funnel排液环 drip ring排液漏斗 drain funnel插板 blank垫环 spacer8字盲板 spectacle blind; figure 8 blind限流孔板 restriction orifice爆破片 rupture disk法兰盖贴面 protective disc费托立克接头 victaulic coupling1.8 端部连接 End Connection法兰端 flanged end坡口端 beveled end (BE)对焊端 butt welded end平端 plain end (PE)承插焊端 socket welding end螺纹端 threaded end (TE)承口 bell end焊接端 welding end法兰连接（接头） flanged joint对焊连接（接头） butt welded joint螺纹连接，管螺纹连接 threaded joint, pipe threaded joint 锥管螺纹密封焊连接 seal-welded taper pipe threaded joint 承插焊连接（接头） socket welded joint承插连接（接头） bell and spigot joint环垫接头 ring joint (RJ)万向接头 universal joint软钎焊连接（接头） soldered joint搭接接头，松套连接 lapped joint外侧厚度切斜角 bevel for outside thickncss内侧厚度切斜角 bevel for inside thickness内外侧厚度切斜角 bevel for combined thickness法兰式的 flanged (FLGD)对焊的 butt welded (BW)螺纹的 threaded (THD)承插焊的 socket welded (SW)小端为平的 small end plain (SEP)大端为平的 large end plain (LEP)两端平 both ends plain (BEP)小端带螺纹 small end thread (SET)大端带螺纹 large end thread (LET)两端带螺纹 both end thread (BET)一端带螺纹 one end thread (OET)支管连接 branch connection焊接支管 branch pipe welded directly to the run pipe 2 管道用紧固件及螺纹2.1 紧固件螺栓 bolt六角头螺栓 hexagonal head bolt方头螺栓 square head bolt螺柱，双头螺栓 stud bolt环头螺检 eye bolt沉头螺栓 countersunk (head) screw地脚螺栓 anchor bolt; foundation bolt松紧螺旋扣（花篮螺丝） turnbuckleU形螺栓 U-boltT形螺栓 T-bolt圆头螺钉 round head bolt机螺栓，机螺钉 maehine bolt顶开螺栓，顶起螺栓 Jack screw自攻螺钉 self tapping screw膨胀螺栓 expansion bolt粗制的 coarse精制的 finished, fine螺母 nut六角螺母 hexagonal nut方螺母 square nut蝶形螺母 wing nut扁螺母 flat nut锁紧螺母 lock nut垫圈 washer平垫圈 plain washer球面垫圈 spherical washer弹簧垫圈 spring washer方垫圈 square washer斜垫圈 slant washer销轴 pinned shan销 pin开口销 cotter pin定位销 dowel pin带孔销 pin with hole圆锥销 taper pin铆钉 rivet键 key2.2 螺纹左螺纹left hand thread右螺纹 right hand thread管螺纹 pipe thread锥管螺纹 taper pipe thread直管螺纹straight pipe thread梯形螺纹 trapezoid thread螺距pitch of thread粗牙螺纹coarse thread细牙螺纹 fine thread特细牙螺纹extra fine thread通长螺纹full thread惠氏螺纹whitworth thread公制螺纹 metric ibread美国标准锥管螺纹 American standard taper pipe thread (NPT) 螺孔 tap3 材料、型钢及填料3.1 金属材料3.1.1 黑色金属 Ferrous Metal碳素钢 carbon steel (CS)低碳钢 low-carbon steel中碳钢 medium-carbon steel高碳钢 high-carbon steel普通碳素钢 general carbon steel优质碳素钢 high-quality carbon steel普通低合金结构钢 general structure low-alloy steel合金结构钢 structural alloy steel合金钢 alloy steel低合金钢 low alloy steel中合金钢 medium alloy steel高合金钢 high alloy steel耐热钢 heat resisting steel高强度钢 high strength steel复合钢 clad steel工具钢 tool steel弹簧钢 spring steel钼钢 molybdenum steel镍钢 nickel steel铬钢 chromium steel铬钼钢 chrome-molybdenum steel铬镍钢 chromium-nickel steel,chrome-nickel steel 不锈钢 stainless steel (S.S.)奥氏体不锈钢 Austenitic stainless steel马氏体不锈钢 Martensitic stainless steel司特来合金（钨铬钴台金） Stellite耐蚀耐热镍基合金 Hastelloy铬镍铁合金 inconel耐热铬镍铁合金 incoloy20合金 20 alloy平炉钢（马丁钢） Martin steel镇静钢 killed steel半镇静钢 semi-killed steel沸腾钢 rimmed steel; rimming steel; open-steel锻钢 forged steel铸钢 cast steel铸铁 cast iron (C.I.)灰铸铁 grey cast iron可锻铸铁 malleable iron (MI)球墨铸铁 nodular cast iron; nodular graphite iron 生铁 pig iron熟铁，锻铁 wrought iron铸件 casting高硅铸铁 high silicon cast iron3.1.2 镀层及制造方法渗铬钢，镀铬钢 chromized steel镀铬的 chromium-plated, chrome-plated镀层 plating锻造，型钢 swage锻造的，锻造 forging轧制 rolling热轧 hot rolling冷轧 cold rolling挤压 extruding冷加工 cold working热加工 hot working拔制 drawing3.1.3 有色金属Non-ferrous Metal铝 aluminum铜，紫铜 copper黄铜 brass青铜 bronze铝青铜 aluminum bronze磷青铜 phosphor bronze铝镁合金 aluminum magnesium锰青铜 manganese bronze蒙乃尔（注：镍及铜合金） Monel镍铜台金 nickel copper alloy非铁合金 nonferrous alloy钛 titanium铅 lead硬铅 hard lead3.1.4 材料性能极限强度 ultimate strength抗拉强度 tensile strength屈服极限 yield limit屈服点 yield point延伸率 percentage elongation抗压强度 compressive strength抗弯强度 bending strength弹性极限 elastic limit冲击值 impact value疲劳极限 fatigue limit蠕变极限 creep limit持久极限 endurance limit布氏硬度 Brinell hardness洛氏硬度 Rockwell hardness维氏硬度 Vickers diamond hardness, diamond penetrator hardness 蠕变断裂强度 creep rupture strength断面收缩率 reduction of area韧性 toughess脆性 brittleness延性 ductility冷脆 cold shortness冷流 cold flow3.2 非金属材料 Non-metallic Material塑料 plastic丙烯腈—丁二烯—苯乙烯 acrylonitrile-butadiene-styrene (ABS) 聚乙烯 polyethylene (PE)聚氯乙烯 polyvinyl chloride (PVC)苯乙烯橡胶 styrene-rubber (SR)聚丁烯 polybutylene (PB)聚丙烯 polypropylene (PP)聚苯乙烯 polystyrene (PS)氯化聚醚 chlorinated polyether (CPE)聚酰胺 polyamide (PA)聚碳酸酯 polycarbonate (PC)聚甲基丙烯酸甲酯 polymethyl methacrylate (PMMA)醋酸丁酸纤维素cellulose acetate butyrate (CAB)氯化聚氯乙烯 chlorinated polyvinyl chloride (CPVC)聚偏二氟乙烯 polyvinylidene fluoride (PVDF)缩醛塑料 acetal plastic尼龙塑料 nylon plastic聚烯烃 polyolefin (PO)石墨酚醛塑料 graphite phenolic plastics聚四氟乙烯 polytetrafluoroethylene (PTFE)纤维增强热塑性塑料 fiber reinforced thermoplastics热塑性塑料 thermoplastic热固性塑料 thermosetting plastics胶粘剂 adhesive溶剂胶接剂 solvent cement树脂 resin环氧树脂 epoxy, epoxy resin聚酯树脂 polyester resin聚酯纤维 polyester fibers氟塑料 fluoroplastics聚氨基甲酸酯 polyurethane丙烯酸树脂 acrylic resin脲醛树脂 urea resin呋哺树脂 furan resin乙烯丙烯二烃单体 ethylene propylene diene monomer (EPDM) 合成橡胶 synthetic rubber橡胶 rubber丁腈橡胶 nitrile butadiene rubber氯丁橡胶 neoprene天然橡胶 natural rubber乙丙橡胶 ethylene propylene rubber (EPR)玻璃 glass硼硅玻璃 borosilicate glass耐火砖 fire brick陶瓷 ceramic搪瓷 porcelain enamel木材 wood3.3 型材型钢 shaped steel, section steel, swage角钢 angle steel槽钢 channel工字钢 I-beam宽缘工字钢或H钢 wide flanged beamT型钢 T-bar方钢 square bar扁钢 flat bar角钢 hexagonal steel bar圆钢 round steel; rod钢带 strap steel钢板 plate网纹钢板 checkered plate腹板（指型钢的立板） web翼缘（指型钢的缘） wing3.4 填料及填料函填料 packing石棉绳 asbestos rope, asbestos cord．O形环 O-ring自密封 self-sealing四氟带 Teflon tap带铬镍合金丝的石棉绳 asbestos rope with inconel wire, inconel wire asbestos 浸聚四氟乙烯的石棉填料 Teflon impregnated asbestos packing金属填料 metallic stuffing填料箱，填料函 packing box, stuffing box填料函压盖 stuffing box gland4 管道等级及材料统计4.1 管道材料规定 Piping Material Specification管道等级 piping class; piping classification管道等级号 class designation公称直径 nominal diameter (DN); nominal (pipe) size公称压力 nominal pressure (PN)压力级，等级，类别 class (CL)低压 low pressure (L.P.)中压 medium pressure (M.P.)高压 high pressure (H.P.)大气压 atmosphere (ATM)真空 vacuum工作压力 operating pressure; working pressure设计压力 design pressure工作温度 operating temperature设计温度 design temperature环境温度 ambient temperature腐蚀裕量 corrosion allowance管道附件 piping attachment管道元件 piping element壁厚 wall thickness (WT)壁厚系列号 schedule number (SCH. No.)加厚的，加强的 extra heavy, extra strong双倍加厚的，双倍加强的 double extra heavy, double extra strong通用连接组 typieal installation分组（类）形式（如管道等级表） block form数据库 data base文件 file4.2 材料统计 Material Take-off (MTO)汇总表 summary sheet材料表 bill of material (BM)综合管道材料表 consolidated piping material summary sheet (CPMSS) 统计材料准确度 accuracy of take-off材料情况报告 material status report (MSR)散装材料 bulk material编位号的 itemized代码 code number短代码 short code数量 quantity (QTY)重力 weight净重 net weight毛重 gross weight5 设备布置及管道布置Plot Plan and Piping Layout,Equipment and Piping Arrangement5.1 设备名称 Equipment Name5.1.1 容器 Vessel(1) 塔 tower, column洗涤塔 scrubber吸收塔 absorber冷却塔 cooling tower精馏塔 fractionating tower蒸馏塔 distillation tower再生塔 regenering tower造粒塔 prflling tower汽提塔 stripper脱气塔 degasifier合成塔 synthesis tower(2) 反应器 reactor聚台釜 polymerizer转化器，变换器 converter脱硫反应器 desulphurization reactor 甲烷化器 methanator(3) 气柜 gas-holder螺旋式气柜 helical gas-holder湿式气柜 wet gas-holder干式气柜 dry gas-holder(4) 槽罐贮罐 tank; storage tank缓冲罐 knock out drum球罐 spheroid, spherical tank罐 drum接受槽 receiver计量槽 measuring tank加料槽 feed tank排污罐 blow down tank闪蒸罐 flash drum汽包 steam drum溶液贮槽 solution storage tank地下槽 sloptank(5) 其它设备分离器 separator旋风分离器 cyclone分子筛 molecular sieve脱氧器 deaerator搅拌器 agitator干燥器 dryer混合器 mixer萃取器 extractor结晶器 crystallizer澄清器 gravity settler净化器 purifier气化器 vaporizer吸附器 adsorber融解槽 melter减温器 desuperheater升压器 booster喷射器 ejector喷头 sprayer火炬 flare消声器 silencer(6) 换热器、加热器、冷却器换热器 heat exchanger空冷器 air cooler水冷却器 water cooler冷凝器 condenser螺旋板式换热器 spiral plate heat exchanger 蒸发器 evaporator再沸器 reboiler急冷器 quencher深冷器 chiller预热器 preheater再热器 reheater加热器 heater电加热器 electric heater过热器 super heater给水加热器 feed water heater中间冷却器 inter cooler后冷却器 after cooler5.1.2 工业炉及锅炉炉子 furnace烧嘴 burner锅炉 boiler烟囱 stack废热锅炉 waste heat boiler辅助锅炉 auxiliary boiler省煤器 economizer回热炉 direct-fired heater辐射段 radiant section对流段 convection section裂化炉 reformer焚烧炉 incinerator回转窑 rotary kiln炉管 furnace tube吹灰器 soot blower观察孔 observation door, peep door防爆门 explosion door5.2 辅助用房名称5.2.1 生产用房分析室 analyzer room变压器室 transformer room配电室，变电所 substation, switch room蓄电池室 battery room控制室 control room通风室 ventilating room贮藏室 storage room维修间 maintenance room办公室 office5.2.2 生活用房更农室 locker room盥洗室，厕所 closet, lavatory, toilet5.3 图名管道布置平面 piping arrangement plan (PAP)管道布置 piping layout轴测图 isometric drawing分区索引图 key plan初版设备布置图（“A”版） preliminary plot plan ( “A” issue)内部审查版设备布置图（“B”版） inrernal approval plot plan ( “B” issue) 用户审查版设备布置图（“C”版) owner approval plot plan ( “C” issue)确认版设备布置图（“D”版） confirm plot plan ( “D” issue)研究版设备布置图（“e”版） planning plot plan ( “E” issue)设计版设备布置图（“F”） designing plot plan ( “F” issue)施工版设备布置图（“G”版） construction plot plan ( “G” issue)5.4 厂房、站、单元压缩机房 compressor house (room)泵房 pump house (room)洗眼站 eye washer station泡沫站 foam station软管站，公用工程站 hose station (HS), utility station成套设备 package unit设施 facilities罐区 tank yard空分装置 air separation facility5.5 设备布置设备位号 equipment item number工厂 plant工厂区界 plant limit项目区界内侧 inside battery limit (I.S.B.L.) 项目区界 batterylimit (BL)区界 area limit区域边界 zone iimit界外 off site东 east (E)西 west (W)南 south (S)北 north (N)上 up下 down工厂北向 plant north真实北向 true north道路 road小过道 cat walk, cat way走道，过道 walk way, gangway, access way污水坑（井） sump pit集水池 catch basin沟槽 through预留区 trough场地 future area铺砌区 paving area非铺砌区 unpaved area碎石铺面 gravel paving橡皮铺面 rubber paving面积，区域 area体积，容积 volume (VOL)5.6 管道布置管道设计 piping design管道研究 piping study走向研究 routing study重要管道 critical piping地上管道 above ground piping地下管道 under ground piping管网 network of pipes管廊 pipe rack管沟 piping trench管间距 line spacing管道跨距 line span总管 header, manifold旁路 by pass排液 drain放空 vent上升管，垂直管 riser导管 canduit裸管 bare iine管件直接 fitting to fitting (FTF)管段，接口 spool piece, spool取样接口 sampling connection集液包 drip leg伴热管 tracing pipe蒸汽伴热 steam tracing热水伴热 hot-water tracing电伴热 electrical tracing夹套管 jacketed line, jacketed piping全夹套的 full jacketed平面 plan详图 detail“”视图X view “X”“”剖视A-A section “A-A”连接图 hook up drawing接续图 continue on drawing (COD)接续线 match line (M.L.)比例 scale图例 legend符号 symbol管口表 list of nozzles方位 orientation管口方位 nozzle orientation定位 location相交 intersection水平的 horizontal垂直的，立式的 vertical垂直，正交，垂直的 perpendicular平行，平行的 parallel水平安装 horizontal installation垂直安装 vertical installafion对称的 symmetric相反（的），对面（的） opposite顺时针方向 clock wise逆时针方向 counter clock wise计算机辅助设计 computer aided design (CAD)5.7 图面标注绝对标高 abselute elevation海平面标高 over-sea mean level (OSL)标高，立面 elevation (EL)混凝土顶面 top of concrete架顶面 top of support (TOS)钢结构顶面 top of steel梁项面 top of beam (TOB)支撑点 point of suppon (POS)管顶 top of pipe (TOP)管底 bouom of pipe (BOP)沟底 boaom of trench管子内底 invert (inside bottom of pipe) 底平 flat on bottom (FOB)顶平 flat on top (FOT)工作点 working point (W.P.)面至面 face to face (F-F)中心至端面 center to end (C-E)中心至面 center to face (C-F)中心至中心，中至中 center to center (C-C) 坐标 coordinate坐标原点 origin of coordinate出口中心线 center line of discharge入口中心线 center line of suction中心线 centerline (CL)入口 inlet, suction出口 outlet, discharge排出口 exhaust距离 distance5.8 相关专业的专业词汇5.8.1 工艺(1) 图及表流程图 flow diagram工艺流程图 process flow diagram (PFD)管道及仪表流程图 piping andinstrument flow diagram (PID)公用工程流程图 utility flow diagram (UFD) 管线表 line list; line schedule命名表；管道表 nomenclature设备表 equipment list (schedule)(2) 流体 fluid空气 air仪表空气 instrument air工艺空气 process air低压蒸汽 low pressure steam中压蒸汽 medium pressure steam高压蒸汽 high pressure steam伴热蒸汽 tracing steam饱和蒸汽 saturated steam过热蒸汽 superheated steam氧气 oxygen氢气 hydrogen氮气 nitrogen燃料气 fuel gas天然气 natural gas火炬气 flare gas酸性气 sour gas液化石油气 liquefired petroleum gas (LPG) 氨气 ammonia gas冷却水 cooling循环水 circulating water锅炉给水 boiler feed water热水 hot water蒸汽冷凝水 steam condensate盐水 brine工艺水 process water化学污水 chemical sewage防腐剂 corrosion inhibitor重油 heavy oil石脑油 naphtha燃料油 fuel oil润滑油 lubricating oil密封油 sealing oil冷冻剂 refrigerant载热体 heating medium溶剂 solvent溶液 solution母液 mother liquor单体 monomer聚合物 polymer均聚物 homopolymer共聚物 copolymer工艺液体 process liquid工艺气体 process gas硫酸 sulphuric acid盐酸 chlorhydric acid硝酸 nitric acid烧碱 caustic soda(3) 流体特性 fluid characteristics蒸汽压 vapor pressure临界温度 critical temperature临界点 critical point临界压力 critical pressure比热 specific heat湿度 humidity密度 density比重 specific gravity粘度 viscosity闪点 flash point融点 melting point凝固点 freezing point浓度 concentration爆炸极限 limit of explosion有毒的 toxic可燃的；易燃的 flammable(4) 其它回收 recovery再生 regeneration循环 cireulatlon再循环；再生 recycle补充 make-up制备 preparation蒸汽吹扫 steaming out吹扫 purge抽空；排空 evacuation吹出 blow-off排污 blow down破真空 vacuum breaker大气腿 barometric leg备用 stand-by化学清洗 chemical cleaning净正吸入压头 net positive suction head (NPSH) 进料 feed成品 product污染 contamination大气污染 atmospheric pollution环境温度 ambient temperature5.8.2 建筑、结构建筑物 building钢结构 steel structure已有钢结构 existing steel structure钢筋混凝土结构 reinforced concrete construction 楼面 floor平台 platform (PF)地面 ground level栏杆 handrail楼梯 stair; stair way直梯 ladder柱 column; post; stanchion基础 foundation; footing粱 beam斜撑；支撑 bracing桁架；主粱 girder构件 member隔墙 partition wall墙 wall篦子板 grate; grating吊装孔 erection opening吊梁 hoisting beam棚 shelter窗 window天窗 skylight门 door防火门 fire door地漏 floor drain防火层 fire-proofing总图 general plot plan路肩 shoulder桩 pile灌浆 grouting风荷载 wind load雪荷载 snow load动力荷载 dynamic load静荷载 dead load活荷载 live load风速 wind velocity主导风向 most frequent wind direction5.8.3 仪表盘（操作盘） panel就地盘 local panel仪表盘 instrument panel常开 normally open常闭 normally closed电缆槽（架） cable tray (channel); cable rack 仪表电缆槽（架） instrument cable tray (duct) 压力计 manometer; pressure gauge热电偶 thermocouple温度计 thermometer液位计 level gauge玻璃液位计 gage glass温度计保护管 thermowell流量计 flow meter孔板 orifice变送器 transmitter联锁 interlock仪器；设备 apparatus仪器分析 instrumental analysis自动分析 automatic analysis气体分析 gas analysis化学分析 chemical analysis气相色谱仪 gas chromatograph液相色谱仪 liquid chromatograph质谱分析 mass spectrometric analysis5.8.4 电气危险区划分 hazardous area classification危险区平面图 hazardous area plan电气盘 electrical panel配电盘 switch board电缆沟 cable trench电流 current直流 direct current交流 alternating current频率 frequency相位 phase功率因数 power factor电压 voltage电阻 resistance电容 capacitance静电 static electricity。

管材、管件、阀门、接头、管道特件、紧固件、垫片、密封、工程材料等中英文对照化工管道设计技术英语词汇1－2－31 管道组成件 Piping component管子 Pipe管子按照配管标准规格制造的 pipe管子不按配管标准规格制造的其他用管 tube钢管 steel pipe铸铁管 cast iron pipe衬里管 lined pipe复合管 clad pipe碳钢管 carbon steel pipe合金钢管 alloy steel pipe不锈钢 stainless steel pipe奥氏体不锈钢管 austenitic stainless steel pipe铁合金钢管 ferritic alloy steel pipe轧制钢管 wrought-steel pipe锻铁管 wrought-iron pipe无缝钢管 seamless SMLS steel pipe焊接钢管 welded steel pipe电阻焊钢管 electric-resistance welded steel pipe电熔弧焊钢板卷管 electric-fusion arc-welded steel-plate pipe螺旋焊接钢管 spiral welded steel pipe镀锌钢管 galvanized steel pipe热轧无缝钢管 hot-rolling seamless pipe冷拔无缝钢管 cold-drawing seamless pipe水煤气钢管 water-gas steel pipe塑料管 plastic pipe玻璃管 glass tube橡胶管 rubber tube直管 run pipe; straight pipe管件 Fitting弯头 elbow异径弯头 reducing elbow带支座弯头 base elbowk半径弯头 long radius elbow短半径弯头 short radius elbow长半径180°弯头 long radius return短半径180°弯头 short radius return带侧向口的弯头右向或左向 side outlet elbow right hand or left hand 双支管弯头形 double branch elbow三通 tee异径三通 reducing tee等径三通 straight tee带侧向口的三通右向或左向 side outlet tee right hand or 1eft hand异径三通分支口为异径 reducing tee reducing on outlet异径三通一个直通口为异径reducing tee reducing on one run带支座三通 base tee异径三通一个直通口及分支口为异径 reducing tee reducing on one run and outlet异径三通两个直通口为异径,双头式 reducing tee reducing on both runs, bull head45°斜三通45° lateral45°斜三通支管为异径45° lateral reducing on branch45°斜三通一个直通口为异径45° lateral reducing on one run45°斜三通一个直通口及支管为异径45° lateral reducing on one run and branchY型三通俗称裤衩true “Y”四通 cross等径四通 straight cross异径四通 reducing cross异径四通一个分支口为异径reducing cross reducing on one outlet异径四通一个直通口及分支口为异径 reducing cross reducing on one run and outlet异径四通两个分支口为异径 reducing cross reducing on both outlet异径四通一个直通口及两个分支口为异径 reducing cross reducing on one run and both outlet异径管 reducer同心异径管 concentric reducer偏心异径管 eccentric reducer锻制异径管 reducing swage螺纹支管台 threadolet焊接支管台 weldolet承插支管台 sockolet弯头支管台 elbolet斜接支管台 latrolet镶入式支管嘴 sweepolet短管支管台 nipolet支管台,插入式支管台 boss管接头 coupling, full coupling半管接头 half coupling异径管接头 reducing coupling活接头 union内外螺纹缩接俗称补芯 bushing管帽 cap C堵头 plug短节 nipple异径短节 reducing nipple; swage nipple弯管 Bend预制弯管 fabricated pipe bend跨越弯管^ 形 cross-over bend偏置弯管~ 形 offset bend90°弯管 quarter bend环形弯管 cirele bend单侧偏置90°弯管形 single offset quarter bend S形弯管“S” bend单侧偏置U形膨胀弯管| 形single offset “U” bendU形弯管“U” bend双偏置U膨胀弯管double offset expansion “U” bend斜接弯管 mitre bend三节斜接弯管 3-piece mitre bend折皱弯管 corrugated bend圆度 roundness法兰 Flange FLG整体管法兰 integral pipe flange钢管法兰 steel pipe flange螺纹法兰 threaded flange滑套法兰包括平焊法兰 slip-on flange SO; slip-on welding flange 承插焊法兰 socket welding flange松套法兰 lap joint flange LJF对焊法兰 welding neckflange WNF法兰盖 blind flange, blind孔板法兰 orifice flange异径法兰 reducing flange盘座式法兰 pad type flange松套带颈法兰 loose hubbed flange焊接板式法兰 welding plate flange对焊环 welding neck collar 与stub end相似平焊环 welding-on collar突缘短节 stub end, lap翻边端 lapped pipe end松套板式法兰 loose plate flange压力级 pressure rating, pressure rating class压力—温度等级 pressure-temperature rating法兰密封面,法兰面 flange facing突面 raised face RF凸面 male face MF凹面 female face FMF榫面 tongue face槽面 groove face环连接面 ring joint face全平面；满平面 flat face; full face FF光滑突面 smooth raised face SRF法兰面加工 facing finish粗糙度 roughness光滑的 smooth齿形 serrated均方根 root mean square RMS算术平均粗糙高度 arithmetical average roughness height AARH 配对法兰 companion-flange螺栓圆 bolt circle .垫片 Gasket GSKT垫片的型式 type of gasket平垫片 flat gasket环形平垫片 flat ring gasket平金属垫片 flat metal gasket夹棉织物的橡胶 elastomer with cotton fabric insertion夹石棉织物的橡胶 elastomer with asbestos fabric insertion夹石棉织物及金属丝加强的橡胶 elastomer with asbestos fabric insertion and with wire reinforcement无石墨压缩白石棉垫片 non graphited compressed white asbestos gasket天然白橡胶垫片 natural white rubber gasket压缩石棉垫片 compressed asbestos class gasket浸聚四氟乙烯的石棉垫片 PTFE impregnated asbestos gasket夹石棉的缠绕金属垫片 spiral-wound metal gasket with asbestos filler内环 inner ring外环,外定位环 outer ring波纹金属垫片 corrugated metal gasket波纹金属包嵌石棉垫片 corrugated metal gasket with asbestos inserted双夹套波纹金属包石棉垫片 corrugated metal double jacketed asbestos filled gasket双夹套垫片 double jacketed gasket金属包石棉平垫片 flat metal jacketed asbestos filled gasket整体金属齿形垫片 solid metal serrated gasket槽形金属垫片 grooved metal gasket环形连接金属垫片 ring joint metal gasket八角环形垫片 octagonal ring gasket椭圆环形垫片 oval ring gasket透镜式垫片 lens gasket非金属垫片 non-metallic gasket阀门 Valve阀门结构、零件阀轭 yoke外螺纹阀杆及阀轭 outside screw and yoke OS & Y 阀杆 stem内螺纹 inside screw IS阀轭套 yoke sleeve阀杆环 stem ring阀座 valve seat body seat阀座环、密封圈 seat ring整体阀座 integral seat堆焊阀座 deposited seat阀芯包括密封圈、杆等内件 trim阀盘 disc阀盘密封圈 disc seat阀体 body阀盖 bonnet阀盖衬套 bonnet bush螺纹阀帽 screw cap螺纹阀盖 screw bonnet螺栓连接的阀盖 bolted bonnet BB活接阀盖帽 union bonnet cap螺栓连接的阀帽 bolted cap BC焊接阀盖 welded bonnet WB本体阀杆密封 body stem seal石棉安全密封 asbestos emenen seal倒密封 back seal压力密封的阀盖 pressure-tight bonnet 动力操纵器 powered operator电动操纵器 electric motor operator 气动操纵器 pneumatic operator液压操纵器 hydraulic operator快速操纵器 quick-acting operator滑动阀杆 sliding stem正齿轮传动 spur gear operated伞齿轮传动 bevel gear operated扳手操作 wrench operated链轮 chain wheel手轮 hand wheel手柄 hand lever handle气缸或液压缸操纵的 cylinder operated 链条操纵的 chain operated等径孔道 full bore; full port异径孔道 reducing bore, reduced port,venturi port 短型 short pattern紧凑型小型 compact type笼式环 lantern ring压盖 gland阀杆填料 stem packing阀盖垫片 bonnet gasket升杆式明杆 rising stem RS非升杆式暗杆 non-rising stem NRS指示器/限位器 indicator/stopper注油器 grease injector可更换的阀座环 renewable seat ring常用阀1闸阀 gate valve平行双闸板 double disc parallel seat开口楔形闸板 split wedge挠性整体楔形闸扳 flexible solid wedge整体楔形闸板 solid wedge塞型闸阀 plug gate valve直通型闸阀 through conduit gate valve2 截止阀 globe valve球心型阀盘 globe type disc塞型阀盘 plug type disc可转动的阀盘 swivel disc3 节流闪阀 throttle valve针阀 needle valve4 角阀 angle valve5 Y型阀Y 型阀体截止阀 Y-valve Y-body globe valve6 球阀 ball valve三通球阀 3-way ball valve装有底轴的 trunnion mounted耐火型 fire safe type浮动球型 floating ball type防脱出阀杆 blowout proof stem7 蝶阀 butterfly valve对夹式薄片型 wafer type凸耳式 lug type偏心阀板蝶阀 offset disc burerfly valve; eccentric butterfly valve 斜阀盘蝶阀 canted disc butterfly valve连杆式蝶阀 link butterfly valve8 柱塞阀 piston type valve9 旋塞阀 plug valve三通旋塞阀 three-way plug valve四通旋塞阀 four-way plug valve旋塞 cock衬套旋塞 sleeve cock10 隔膜阀 diaphragm valve橡胶衬里隔膜阀 rubber lined diaphragm valve直通式隔膜阀 straight way diaphragm valve堰式隔膜阀 weir diaphragm valve11 夹紧式胶管阀 pinch valve用于泥浆、粉尘等12 止回阀 check valve升降式止回阀 lift check valve旋启式止回阀 swing check valve, flap check valve 落球式止回阀 ball check valve弹簧球式止回阀 spring ball check valve双板对夹式止回阀 dual plate wafer type check valve 无撞击声止回阀 non-slam cheek valve底阀 foot valve切断式止回阀 stop check valve; non-return valve活塞式止回阀 piston check valve斜翻盘止回阀 tilting disc check valve蝶式止回阀 butterfly check valve其它用途的阀安全泄气阀 safety valve SV安全泄液阀 relief valve RV安全泄压阀 safety relief valve杠杆重锤式 lever and weight type引导阀操纵的安全泄气阀 pilot operated safety valve复式安全泄气阀 twin type safety valve罐底排污阀 flush-bottom tank valve电磁阀 solenoid valve, solenoid operated valve电动阀 electrically operated valve, electric-motor operated valve 气动阀 pneumatic operated valve低温用阀 cryogenic service valve蒸汽疏水阀 steam trap机械式疏水阎 mechanical trap浮桶式疏水阀 open bucket trap, open top bucket trap浮球式疏水阀 float trap倒吊桶式疏水阀 inverted bucket trap自由浮球式疏水阀 loose float trap恒温式疏水阀 thermostatic trap金属膨胀式蒸汽疏水阀 metal expansion steam trap液体膨胀式蒸汽疏水阀 liquid expansion steam trap双金属膨胀式蒸汽疏水阀 bimetallic expansion steam trap压力平衡式恒温疏水阀 balanced pressure thermostatic trap热动力式疏水阀 thermodynamic trap脉冲式蒸汽疏水阀 impulse steam trap放气阀自动放气阀 air vent valve automatic air vent valve 疏水阀用平板式滑动闸阀 slab type sliding gate valve盖阀 flat valve换向阀 diverting valve, reversing valve热膨胀阀 thermo expansion valve自动关闭阀 self-closing gate valve自动排液阀 self-draining valve管道盲板阀 line-blind valve挤压阀 squeeze valve用于泥浆及粉尘等呼吸阀 breather valve风门、挡板 damper减压阀 pressure reducing valve, reducing valve控制阀 control valve膜式控制阀 diaphragm operated control valve执行机构 actuator背压调节阀 back pressure regulating valve差压调节阀 differential pressure regulating valve 压力比例调节阀 pressure ratio regulating valve未指明结构或阀型的阀切断阀 block valve; shut-off valve; stop valve调节阀 regulating valve快开阀 quick opening valve快闭阀 quick closing valve隔断阀 isolating valve三通阀 three way valve夹套阔 jacketed valve非旋转式阀 non-rotary valve排污阀 blowdown valve集液排放阀 drip valve排液阀 drain valve放空阀 vent valve卸载阀 unloading valve排出阀 discharge valve吸入阀 suction valve多通路阀 multiport valve取样阀 sampling valve手动阀 hand-operated valve; manually operated valve 锻造阀 forged valve铸造阀 cast valve水龙头 bibb; bib; faucet抽出液阀小阀 bleed valve旁路阀 by-pass valve软管阀 hose valve混合阀 mixing valve破真空阀 vacuum breaker冲洗阀 flush valve第一道阀；根部阀 primary valve根部阀 root valve总管阀 header valve事故切断阀 emergency valve管道特殊件 Piping Specialty管道特殊件组件粗滤器 strainer过滤器 filter临时粗滤器锥型 temporary strainer cone type y 型粗滤器 y-type strainerT型粗滤器 T-type strainer永久过滤器 permanent filter丝网粗滤器 gauze strainer洗眼器及淋浴器 eye washer and shower视镜 sight glass阻火器 flame arrester喷嘴；喷头 spray nozzle取样冷却器 sample cooler消声器 silencer膨胀节 expansion joint波纹膨胀节 bellow expansion joint单波 single bellow双波 double bellow多波 multiple bellow压力平衡式膨胀节 pressure balanced expansion 带铰链膨胀节 hinged expansion joint轴向位移型膨胀节 axial movement type expansion joint 自均衡膨胀节外加强环self-equalizing expansion joint 带接杆膨胀节 tied expansion joint万向型膨胀节 universal type expansion joint球形补偿器 ball type expansion joint填函式补偿器 slip type packed type expansion joint 单向滑动填料函补偿器 single actionpacked slip joint 管道特殊元件Piping Special Element软管接头 hose connection HC快速接头 quick coupling金属软管 metal hose橡胶管 rubber hose挠性管 flexible tube鞍形补强板 reinforcing saddles补强板 reinforcement pad特殊法兰 special flange漏斗 funnel排液环 drip ring排液漏斗 drain funnel插板 blank垫环 spacer8字盲板 spectacle blind; figure 8 blind限流孔板 restriction orifice爆破片 rupture disk法兰盖贴面 protective disc费托立克接头 victaulic coupling端部连接 End Connection法兰端 flanged end坡口端 beveled end BE对焊端 butt welded end平端 plain end PE承插焊端 socket welding end螺纹端 threaded end TE承口 bell end焊接端 welding end法兰连接接头 flanged joint对焊连接接头 butt welded joint螺纹连接,管螺纹连接 threaded joint, pipe threaded joint 锥管螺纹密封焊连接 seal-welded taper pipe threaded joint 承插焊连接接头 socket welded joint承插连接接头 bell and spigot joint环垫接头 ring joint RJ万向接头 universal joint软钎焊连接接头 soldered joint搭接接头,松套连接 lapped joint外侧厚度切斜角 bevel for outside thickncss内侧厚度切斜角 bevel for inside thickness内外侧厚度切斜角 bevel for combined thickness法兰式的 flanged FLGD对焊的 butt welded BW螺纹的 threaded THD承插焊的 socket welded SW小端为平的 small end plain SEP大端为平的 large end plain LEP两端平 both ends plain BEP小端带螺纹 small end thread SET大端带螺纹 large end thread LET两端带螺纹 both end thread BET一端带螺纹 one end thread OET支管连接 branch connection焊接支管 branch pipe welded directly to the run pipe 2 管道用紧固件及螺纹紧固件螺栓 bolt六角头螺栓 hexagonal head bolt方头螺栓 square head bolt螺柱,双头螺栓 stud bolt环头螺检 eye bolt沉头螺栓 countersunk head screw地脚螺栓 anchor bolt; foundation bolt 松紧螺旋扣花篮螺丝 turnbuckleU形螺栓 U-boltT形螺栓 T-bolt圆头螺钉 round head bolt机螺栓,机螺钉 maehine bolt顶开螺栓,顶起螺栓 Jack screw自攻螺钉 self tapping screw膨胀螺栓 expansion bolt粗制的 coarse精制的 finished, fine螺母 nut六角螺母 hexagonal nut方螺母 square nut蝶形螺母 wing nut扁螺母 flat nut锁紧螺母 lock nut垫圈 washer平垫圈 plain washer球面垫圈 spherical washer弹簧垫圈 spring washer方垫圈 square washer斜垫圈 slant washer销轴 pinned shan销 pin开口销 cotter pin定位销 dowel pin带孔销 pin with hole圆锥销 taper pin铆钉 rivet键 key螺纹左螺纹left hand thread右螺纹 right hand thread管螺纹 pipe thread锥管螺纹 taper pipe thread直管螺纹straight pipe thread梯形螺纹 trapezoid thread螺距pitch of thread粗牙螺纹coarse thread细牙螺纹 fine thread特细牙螺纹extra fine thread通长螺纹full thread惠氏螺纹whitworth thread公制螺纹 metric ibread美国标准锥管螺纹 American standard taper pipe thread NPT螺孔 tap3 材料、型钢及填料金属材料黑色金属 Ferrous Metal碳素钢 carbon steel CS低碳钢 low-carbon steel中碳钢 medium-carbon steel高碳钢 high-carbon steel普通碳素钢 general carbon steel优质碳素钢 high-quality carbon steel普通低合金结构钢 general structure low-alloy steel 合金结构钢 structural alloy steel合金钢 alloy steel低合金钢 low alloy steel中合金钢 medium alloy steel高合金钢 high alloy steel耐热钢 heat resisting steel高强度钢 high strength steel复合钢 clad steel工具钢 tool steel弹簧钢 spring steel钼钢 molybdenum steel镍钢 nickel steel铬钢 chromium steel铬钼钢 chrome-molybdenum steel铬镍钢 chromium-nickel steel,chrome-nickel steel 不锈钢 stainless steel .奥氏体不锈钢 Austenitic stainless steel马氏体不锈钢 Martensitic stainless steel司特来合金钨铬钴台金 Stellite耐蚀耐热镍基合金 Hastelloy铬镍铁合金 inconel耐热铬镍铁合金 incoloy20合金 20 alloy平炉钢马丁钢 Martin steel镇静钢 killed steel半镇静钢 semi-killed steel沸腾钢 rimmed steel; rimming steel; open-steel锻钢 forged steel铸钢 cast steel铸铁 cast iron .灰铸铁 grey cast iron可锻铸铁 malleable iron MI球墨铸铁 nodular cast iron; nodular graphite iron 生铁 pig iron熟铁,锻铁 wrought iron铸件 casting高硅铸铁 high silicon cast iron镀层及制造方法渗铬钢,镀铬钢 chromized steel镀铬的 chromium-plated, chrome-plated 镀层 plating锻造,型钢 swage锻造的,锻造 forging轧制 rolling热轧 hot rolling冷轧 cold rolling挤压 extruding冷加工 cold working热加工 hot working拔制 drawing有色金属Non-ferrous Metal铝 aluminum铜,紫铜 copper黄铜 brass青铜 bronze铝青铜 aluminum bronze磷青铜 phosphor bronze铝镁合金 aluminum magnesium锰青铜 manganese bronze蒙乃尔注：镍及铜合金 Monel镍铜台金 nickel copper alloy非铁合金 nonferrous alloy钛 titanium铅 lead硬铅 hard lead材料性能极限强度 ultimate strength抗拉强度 tensile strength屈服极限 yield limit屈服点 yield point延伸率 percentage elongation抗压强度 compressive strength抗弯强度 bending strength弹性极限 elastic limit冲击值 impact value疲劳极限 fatigue limit蠕变极限 creep limit持久极限 endurance limit布氏硬度 Brinell hardness洛氏硬度 Rockwell hardness维氏硬度 Vickers diamond hardness, diamond penetrator hardness蠕变断裂强度 creep rupture strength断面收缩率 reduction of area韧性 toughess脆性 brittleness延性 ductility冷脆 cold shortness冷流 cold flow非金属材料 Non-metallic Material塑料 plastic丙烯腈—丁二烯—苯乙烯 acrylonitrile-butadiene-styrene ABS 聚乙烯 polyethylene PE聚氯乙烯 polyvinyl chloride PVC苯乙烯橡胶 styrene-rubber SR聚丁烯 polybutylene PB聚丙烯 polypropylene PP聚苯乙烯 polystyrene PS氯化聚醚 chlorinated polyether CPE聚酰胺 polyamide PA聚碳酸酯 polycarbonate PC聚甲基丙烯酸甲酯 polymethyl methacrylate PMMA醋酸丁酸纤维素cellulose acetate butyrate CAB氯化聚氯乙烯 chlorinated polyvinyl chloride CPVC聚偏二氟乙烯 polyvinylidene fluoride PVDF缩醛塑料 acetal plastic尼龙塑料 nylon plastic聚烯烃 polyolefin PO石墨酚醛塑料 graphite phenolic plastics聚四氟乙烯 polytetrafluoroethylene PTFE纤维增强热塑性塑料 fiber reinforced thermoplastics热塑性塑料 thermoplastic热固性塑料 thermosetting plastics胶粘剂 adhesive溶剂胶接剂 solvent cement树脂 resin环氧树脂 epoxy, epoxy resin聚酯树脂 polyester resin聚酯纤维 polyester fibers氟塑料 fluoroplastics聚氨基甲酸酯 polyurethane丙烯酸树脂 acrylic resin脲醛树脂 urea resin呋哺树脂 furan resin乙烯丙烯二烃单体 ethylene propylene diene monomer EPDM 合成橡胶 synthetic rubber橡胶 rubber丁腈橡胶 nitrile butadiene rubber氯丁橡胶 neoprene天然橡胶 natural rubber乙丙橡胶 ethylene propylene rubber EPR 玻璃 glass硼硅玻璃 borosilicate glass耐火砖 fire brick陶瓷 ceramic搪瓷 porcelain enamel木材 wood型材型钢 shaped steel, section steel, swage 角钢 angle steel槽钢 channel工字钢 I-beam宽缘工字钢或H钢 wide flanged beamT型钢 T-bar方钢 square bar扁钢 flat bar角钢 hexagonal steel bar圆钢 round steel; rod钢带 strap steel钢板 plate网纹钢板 checkered plate腹板指型钢的立板 web翼缘指型钢的缘 wing填料及填料函填料 packing石棉绳 asbestos rope, asbestos cord．O形环 O-ring自密封 self-sealing四氟带 Teflon tap带铬镍合金丝的石棉绳 asbestos rope with inconel wire, inconel wire asbestos浸聚四氟乙烯的石棉填料 Teflon impregnated asbestos packing金属填料 metallic stuffing填料箱,填料函 packing box, stuffing box填料函压盖 stuffing box gland。
