ESD静电防护手册(中英文)

ESD防静电作业实施手册(全面解析)英文版ESD Prevention Operations Manual (Comprehensive Analysis)In order to effectively prevent electrostatic discharge (ESD) in the workplace, it is essential to have a thorough understanding of ESD prevention measures and techniques. This manual serves as a comprehensive guide to implementing ESD prevention operations in various work environments.Table of Contents1. Introduction to ESD2. Risks of ESD3. ESD Prevention Measures4. ESD Control Procedures5. ESD Protective Equipment6. Training and AwarenessIntroduction to ESDESD is the sudden flow of electricity between two electrically charged objects caused by contact, an electrical short, or dielectric breakdown. It can damage electronic components and devices, leading to costly repairs and downtime.Risks of ESDThe risks of ESD include damage to sensitive electronic components, data loss, and reduced product reliability. ESD can occur in any environment where electronic devices are present, making it crucial to implement effective prevention measures.ESD Prevention MeasuresESD prevention measures include grounding, shielding, and controlling humidity levels. By properly grounding workstations and using ESD-safe tools and materials, the risk of ESD can be significantly reduced.ESD Control ProceduresESD control procedures involve establishing ESD-safe workstations, implementing proper handling and storage practices for electronic components, and regularly inspecting and testing ESD control equipment.ESD Protective EquipmentESD protective equipment, such as wrist straps, heel grounders, and ESD mats, are essential for preventing ESD incidents. These items help to safely discharge static electricity and protect electronic devices from damage.Training and AwarenessTraining employees on ESD prevention techniques and raising awareness about the risks of ESD are key components of a successful ESD prevention program. Regular training sessions and workshops can help reinforce safe practices and promote a culture of ESD awareness in the workplace.By following the guidelines outlined in this manual, organizations can effectively mitigate the risks of ESD and ensure the reliability and longevity of their electronic devices and equipment.。

全面的ESD防静电检测作业手册英文版Comprehensive ESD Anti-static Testing Operation ManualWelcome to the Comprehensive ESD Anti-static Testing Operation Manual. This manual aims to provide detailed instructions on how to effectively conduct ESD anti-static testing to ensure the safety and reliability of electronic devices.1. Introduction to ESD:ESD (Electrostatic Discharge) can cause damage to electronic components and devices, leading to malfunctions and failures. It is crucial to implement proper ESD prevention measures to protect sensitive equipment.2. Importance of ESD Testing:ESD testing is essential to identify potential risks and vulnerabilities in electronic systems. By conducting regular testing, youcan mitigate the impact of electrostatic discharge and prevent costly damages.3. ESD Prevention Measures:- Grounding: Ensuring proper grounding of equipment and personnel is crucial to prevent static electricity buildup.- ESD Protective Equipment: Using ESD protective equipment such as wrist straps, mats, and clothing can help minimize the risk of static discharge.- ESD Control Procedures: Implementing strict ESD control procedures in the workplace can reduce the likelihood of ESD incidents.4. ESD Testing Procedures:- Pre-Testing Preparation: Before conducting ESD testing, ensure that all equipment is properly grounded and that ESD protective measures are in place.- Testing Methods: There are various testing methods available, including air discharge, contact discharge, and direct discharge testing. Choose the appropriate method based on the equipment being tested.- Data Collection: Record all testing results accurately and maintain detailed documentation for future reference.5. ESD Testing Equipment:- ESD Testers: Use specialized ESD testers to accurately measure electrostatic discharge levels and identify potential risks.- Grounding Devices: Ensure that all grounding devices are functioning correctly and are properly connected to prevent static electricity buildup.- Protective Gear: Provide personnel with adequate protective gear, including wrist straps, mats, and clothing, to minimize the risk of ESD incidents.6. Conclusion:Effective ESD anti-static testing is essential for maintaining the integrity and reliability of electronic devices. By following the guidelines outlined in this manual, you can ensure that your equipment is protected from the damaging effects of electrostatic discharge.Remember to prioritize safety and follow best practices when conducting ESD testing. Thank you for using the Comprehensive ESD Anti-static Testing Operation Manual.。

ESD防静电作业实施手册(全面解析) ESD防静电作业实施手册（全面解析）1. 引言1.1 编写目的本手册旨在提供一套完整的ESD（Electrostatic Discharge，静电放电）防护作业指导，确保在整个生产和物流过程中对静电敏感元器件的安全，防止因静电放电造成的损害。

1.2 适用范围本手册适用于所有涉及静电敏感元器件的制造、加工、包装、储存和运输环节。

1.3 引用标准- 国际电工委员会(IEC) 61340系列标准：电子设备防静电通用要求和测试。

- 国家标准GB/T 18159-2000《电子元器件防静电包装》。

2. 定义和缩略语2.1 定义- ESD：Electrostatic Discharge，静电放电。

- ESDS：Electrostatic Discharge Sensitive Device，静电放电敏感器件。

2.2 缩略语- ESD：Electrostatic Discharge- SJ/T 10596：信息产业部电子行业推荐性标准，电子元器件防静电包装- ESDA：Electrostatic Discharge Association3. ESD基础知识3.1 静电的产生与释放静电是由电荷的转移产生的，通常在两种不同材料接触并分开时发生。

静电放电（ESD）是指静电积累到一定电位时，通过空气或介质向大地或其他电位物体放电的现象。

3.2 静电的损害机理静电放电可导致电子元器件中的电路损坏，其损害机理包括：- 电击穿：高电位导致的绝缘层击穿。

- 热效应：放电过程中产生的高温破坏元器件结构或使其性能下降。

- 化学效应：放电产生的等离子体可能引起化学反应，损害材料结构。

4. ESD防护措施4.1 人员防护- 穿着防静电工作服、手套、鞋套等。

- 使用防静电手环，确保人员与工作台面或设备的电位连接。

4.2 材料和包装- 使用防静电材料包装元器件。

- 选择适当的防静电容器和包装材料，如防静电泡沫、防静电袋等。

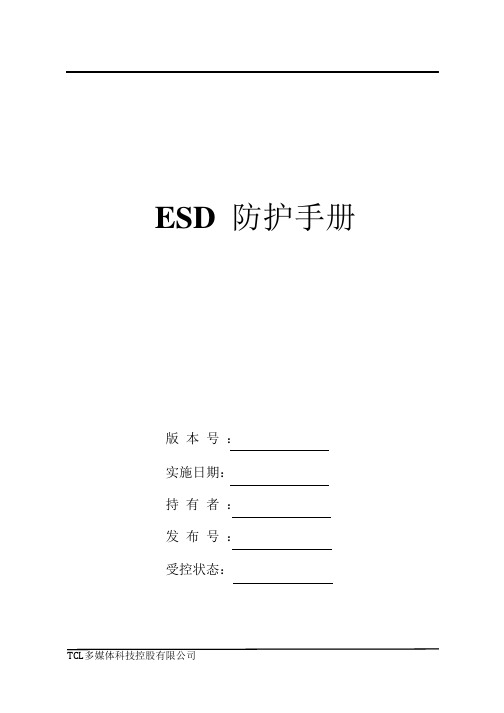

ESD防护手册版本号：实施日期：持有者：发布号：受控状态：0 修改记录1 目的本文件明确定义了用于保护虹信公司的产品、设备免于静电损坏的防护措施，这些措施将在所有存放、生产、检查、测试、返修及运输静电敏感材料、零件、半成品及成品的区域内实施。

2 范围本手册适用于保护静电击穿电压大于或等于100V（人体放电模式）的零件。

对于耐击穿电压小于100V（HBM）的零件必须增加其他特殊的防护措施来防护。

3 定义及缩写a) ESD：Electro-Static Discharge 静电放电b) ESDS：Electrostatic Discharge Susceptibility 静电敏感度c) HBM：Human Body Model 人体模型d) MM：Machine Model 机器模型e) CDM：Charged Device Model 带电器件模型f) EPA：Electrostatic Protected Area 静电防护区g) UPA：Unprotected Area 非静电防护区h) ESD control committee：静电防护委员会，包括但不局限：产品工程部工程师、品质保证部工程师、生产制造部工程师、研发工程师、测试工程师、供应商管理部工程师、综合管理部工程师等。

i) ESDA: Electrostatic Discharge Association 防静电委员会。

4 职责与权限4.1 ESD 经理a) 负责导入该文件并在公司内推广和实行，确保所有员工理解和执行该文件；b) 批准新采购的ESD 材料和设备。

4.2 ESD 工程师a) 确保ESD 防护满足ESD 20.20 和客户的要求，持续不断地利用最新的标准和技术更新ESD防护体系；b) 持续改善ESD 防护水平，满足甚至超出客户的要求和期望；c) 评估和新采购的ESD 材料和设备，同时协助HR 准备ESD 培训材料并批准；d) 计划、组织及开展ESD 现场稽核、ESD 体系稽核，并定期向管理者汇报；e) 负责培训和考核各部门的ESD 协调员。

ESD防静电检测操作指南(全方位)英文版ESD Prevention and Detection Operation Guide (Comprehensive)Introduction:This document provides a comprehensive guide for ESD prevention and detection operations in various settings.1. Importance of ESD Prevention:ESD (Electrostatic Discharge) can cause damage to electronic components, leading to costly repairs or replacements. It is crucial to prevent ESD incidents to ensure the proper functioning of electronic devices.2. ESD Prevention Measures:- Use ESD protective equipment such as wrist straps, mats, and clothing.- Keep work areas clean and uncluttered to minimize the risk of ESD.- Ground all electronic equipment and components to prevent static buildup.3. ESD Detection Equipment:- Use ESD testers to check the effectiveness of ESD prevention measures.- Conduct regular audits and inspections to ensure compliance with ESD prevention protocols.- Train employees on proper ESD detection procedures to maintain a safe working environment.4. Best Practices for ESD Prevention:- Implement ESD control programs and policies to standardize prevention measures.- Encourage employees to report any ESD incidents or potential risks to prevent future occurrences.- Continuously monitor and evaluate the effectiveness of ESD prevention measures to improve overall safety.Conclusion:By following the guidelines outlined in this document, organizations can effectively prevent and detect ESD incidents, ensuring the longevity and reliability of electronic equipment.。

ESD静电防护策略英文版Document Title: ESD Electrostatic Protection StrategyIn order to prevent damage to electronic components from electrostatic discharge (ESD), it is crucial to implement a comprehensive ESD protection strategy. This document outlines key guidelines and best practices for ESD protection in the workplace.ESD Risk AssessmentBefore implementing any ESD protection measures, it is essential to conduct a thorough risk assessment to identify potential ESD hazards in the environment. This assessment will help determine the level of protection required for different areas and equipment.ESD Protective Measures1. Use ESD protective equipment such as wrist straps, heel straps, and ESD smocks to ground workers and prevent the buildup of static charges.2. Implement ESD control measures in work areas, such as ESD mats on work surfaces and ESD bags for storing sensitive components.3. Regularly test and maintain ESD protective equipment to ensure their effectiveness in preventing ESD events.ESD Training and Awareness1. Provide ESD training to all employees who handle electronic components to educate them on the risks of ESD and proper handling procedures.2. Display ESD warning signs in areas where ESD protection is required to remind employees of the importance of ESD prevention.ESD Compliance1. Ensure compliance with industry standards and regulations related to ESD protection, such as ANSI/ESD S20.20 and IEC 61340.2. Conduct regular audits and inspections to verify that ESD protection measures are being properly implemented and maintained.ESD Emergency Response1. Develop an ESD emergency response plan to address potential ESD incidents and minimize the impact of ESD damage.2. Train employees on the proper procedures to follow in the event of an ESD event to quickly resolve the situation and prevent further damage.By following these ESD protection strategies, organizations can minimize the risk of ESD damage to electronic components and ensure the reliability and longevity of their equipment.。

Guangdong Whirlpool Electrical Appliances Co.,Ltd.ESD Manual 静电控制手册TABLE OF CONTENTS1. Purpose 目的2. Scope 范围3. Definition 定义4. Responsibility 职责5. Operation Content 作业内容5.1 ESD Control Program ESD 管制方案5.2 ESD Control Program Mgr or Coordinator ESD 管制方案经理或协调员5.3 Update 文件修改与更新5.4 ESD Control Operation ESD 管制作业5.4.1 ESD Protected Area ESD 保护区5.4.2 Training Requirement 培训要求5.4.3 ESD Test requirements ESD 测试要求5.4.4 ESD Grounding System ESD 接地系统5.4.5 ESD Floor Control ESD 地板管制5.4.6 ESD Garment & ESD Cap Control 静电衣服&静电帽管制5.4.7 ESD Shoe Control 静电鞋管制5.4.8 ESD Gloves& Finger Cots Control 静电手套&指套管制5.4.9 ESD wrist strap Control 静电手环管制5.4.10 Equipment ESD Control 设备ESD 管制5.4.11 Fixture& Tools Control 工治具管制5.4.12 Work Surface control 工作台管制5.4.13 ESD Marking ESD 标示5.4.14 ESD Packaging Material ESD 包装材料管制5.4.15 ESD Seating 静电座椅5.4.16 Soldering Iron Control 铬铁静电管制5.4.17 Air Ionizer Control 离子风机管制5.5 Sub-contractor control 外包商管制6.Reference 参考文件1. Purpose 目的To prevent ESDS objects in manufacture, assembly, install, package, test,inspection,preservation, transport or other operation activities from damage, and protect electrical or electronic parts, assemblies and equipment so as toguarantee the product quality, so ESD protection.为防止静电敏感元器件在生产、组装,安装,包装,测试,检验、保存、運送及其他活动中受到静电之损害,保护电子器件,组件和设备,从而保证产品品质,特制订此手册,以提供本公司静电防护之最高指引.2. Scope 范围Applicable to all the related activities from ESD objects in Guangdong Whirlpool Electrical Appliances Co.,Ltd.适用于广东惠而浦家电制品有限公司所有ESD 敏感物件之相关活动作业3. Definition 定义3.1 ESD-E lectro S tatic D ischarge, the transfer or movement of charge betweenobjects that are at different electrical potentials by direct contact or induced by electrostatic field.ESD-静电释放，是指通过直接接触或静电场感应的方式，在不同电势差物体间的电荷转移或移动。
