C8051F340单片机开发板的设计(免费)

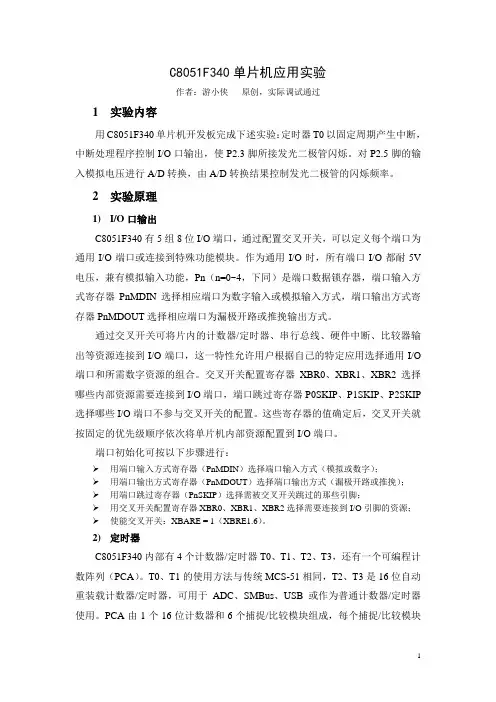

C8051F340单片机应用实验作者：游小侠原创，实际调试通过1实验内容用C8051F340单片机开发板完成下述实验：定时器T0以固定周期产生中断，中断处理程序控制I/O口输出，使P2.3脚所接发光二极管闪烁。

对P2.5脚的输入模拟电压进行A/D转换，由A/D转换结果控制发光二极管的闪烁频率。

2实验原理1)I/O口输出C8051F340有5组8位I/O端口，通过配置交叉开关，可以定义每个端口为通用I/O端口或连接到特殊功能模块。

作为通用I/O时，所有端口I/O都耐5V 电压，兼有模拟输入功能，Pn（n=0~4，下同）是端口数据锁存器，端口输入方式寄存器PnMDIN选择相应端口为数字输入或模拟输入方式，端口输出方式寄存器PnMDOUT选择相应端口为漏极开路或推挽输出方式。

通过交叉开关可将片内的计数器/定时器、串行总线、硬件中断、比较器输出等资源连接到I/O端口，这一特性允许用户根据自己的特定应用选择通用I/O 端口和所需数字资源的组合。

交叉开关配置寄存器XBR0、XBR1、XBR2选择哪些内部资源需要连接到I/O端口，端口跳过寄存器P0SKIP、P1SKIP、P2SKIP 选择哪些I/O端口不参与交叉开关的配置。

这些寄存器的值确定后，交叉开关就按固定的优先级顺序依次将单片机内部资源配置到I/O端口。

端口初始化可按以下步骤进行：用端口输入方式寄存器（PnMDIN）选择端口输入方式（模拟或数字）；用端口输出方式寄存器（PnMDOUT）选择端口输出方式（漏极开路或推挽）；用端口跳过寄存器（PnSKIP）选择需被交叉开关跳过的那些引脚；用交叉开关配置寄存器XBR0、XBR1、XBR2选择需要连接到I/O引脚的资源；使能交叉开关：XBARE = 1（XBRE1.6）。

2)定时器C8051F340内部有4个计数器/定时器T0、T1、T2、T3，还有一个可编程计数阵列（PCA）。

T0、T1的使用方法与传统MCS-51相同，T2、T3是16位自动重装载计数器/定时器，可用于ADC、SMBus、USB或作为普通计数器/定时器使用。

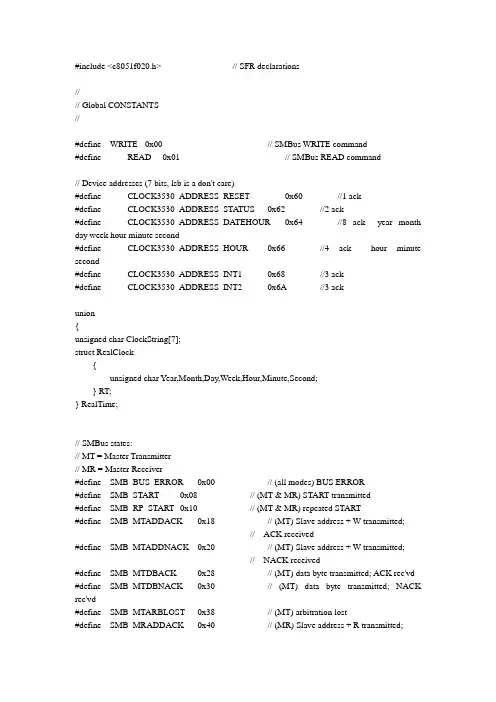

#include <c8051f020.h> // SFR declarations//------------------------------------------------------------------------------------// Global CONSTANTS//------------------------------------------------------------------------------------#define WRITE 0x00 // SMBus WRITE command#define READ 0x01 // SMBus READ command// Device addresses (7 bits, lsb is a don't care)#define CLOCK3530_ADDRESS_RESET 0x60 //1 ack#define CLOCK3530_ADDRESS_STATUS 0x62 //2 ack#define CLOCK3530_ADDRESS_DATEHOUR 0x64 //8 ack year month day week hour minute second#define CLOCK3530_ADDRESS_HOUR 0x66 //4 ack hour minute second#define CLOCK3530_ADDRESS_INT1 0x68 //3 ack#define CLOCK3530_ADDRESS_INT2 0x6A //3 ackunion{unsigned char ClockString[7];struct RealClock{unsigned char Year,Month,Day,Week,Hour,Minute,Second;} RT;} RealTime;// SMBus states:// MT = Master Transmitter// MR = Master Receiver#define SMB_BUS_ERROR 0x00 // (all modes) BUS ERROR#define SMB_START 0x08 // (MT & MR) START transmitted#define SMB_RP_START 0x10 // (MT & MR) repeated START#define SMB_MTADDACK 0x18 // (MT) Slave address + W transmitted;// ACK received#define SMB_MTADDNACK 0x20 // (MT) Slave address + W transmitted;// NACK received#define SMB_MTDBACK 0x28 // (MT) data byte transmitted; ACK rec'vd #define SMB_MTDBNACK 0x30 // (MT) data byte transmitted; NACK rec'vd#define SMB_MTARBLOST 0x38 // (MT) arbitration lost#define SMB_MRADDACK 0x40 // (MR) Slave address + R transmitted;// ACK received#define SMB_MRADDNACK 0x48 // (MR) Slave address + R transmitted;// NACK received#define SMB_MRDBACK 0x50 // (MR) data byte rec'vd; ACK transmitted #define SMB_MRDBNACK 0x58 // (MR) data byte rec'vd; NACK transmitted//-----------------------------------------------------------------------------------//Global V ARIABLES//-----------------------------------------------------------------------------------char COMMAND; // Holds the slave address + R/W bit for use in the SMBus ISR. unsigned char *I2CDataBuff;char BYTE_NUMBER; // Used by ISR to check what data has just been// sent - High address byte, Low byte, or data byteunsigned char HIGH_ADD, LOW_ADD; // High & Low byte for EEPROM memory addressbit SM_BUSY; // This bit is set when a send or receive// is started. It is cleared by the// ISR when the operation is finished.//------------------------------------------------------------------------------------// Function PROTOTYPES//------------------------------------------------------------------------------------void SMBus_ISR (void);//------------------------------------------------------------------------------------// MAIN Routine//------------------------------------------------------------------------------------//// Main routine configures the crossbar and SMBus, and tests// the SMBus interface between the three EEPROMsvoid ResetRealClock(void){while (SM_BUSY); // Wait for SMBus to be free.SM_BUSY = 1; // Occupy SMBus (set to busy)SMB0CN = 0x44; // SMBus enabled, ACK on acknowledge cycleBYTE_NUMBER = 0; // 2 address bytes.COMMAND = (CLOCK3530_ADDRESS_RESET | READ); // Chip select + READ STA = 1; // Start transferwhile (SM_BUSY); // Wait for transfer to finish }//======================写S-3530A内部实时数据寄存器程序=====================//功能：将设定年、月、日、星期、时、分、秒数据写入S-3530A |//入口：发送数据放在年、月、日、星期、时、分、秒各寄存器|//出口：NONE |//===================================================================== =====void SetRealClock(void){while (SM_BUSY); // Wait for SMBus to be free.SM_BUSY = 1; // Occupy SMBus (set to busy)SMB0CN = 0x44; // SMBus enabled, ACK on acknowledge cycleBYTE_NUMBER = 7; // 2 address bytes.COMMAND = (CLOCK3530_ADDRESS_DATEHOUR | WRITE); // Chip select + WRITEI2CDataBuff = &RealTime.ClockString[0]; // Data to be writenSTA = 1; // Start transfer}//==================读S-3530A实时数据寄存器子程序===========================//功能：从S-3530A读入当前时间数据|//入口：NONE |//出口：接收数据放在年、月、日、星期、时、分、秒各寄存器|//===================================================================== =====void GetRealClock(void){while (SM_BUSY); // Wait for SMBus to befree.SM_BUSY = 1; // Occupy SMBus (set to busy)SMB0CN = 0x44; // SMBus enabled, ACK on acknowledge cycleBYTE_NUMBER = 7; // 2 address bytes.COMMAND = (CLOCK3530_ADDRESS_DATEHOUR | READ); // Chip select + READI2CDataBuff = &RealTime.ClockString[0]; // Data to be writenSTA = 1; // Start transferwhile (SM_BUSY); // Wait for transfer to finish }//============================写状态寄存器程序==============================//功能：读/写S-3530A状态寄存器，对S-3530A进行设置|//入口：NONE 出口：NONE | //===================================================================== =====unsigned char GetRealClockStatus(void){unsigned char result;while (SM_BUSY); // Wait for SMBus to be free.SM_BUSY = 1; // Occupy SMBus (set to busy)SMB0CN = 0x44; // SMBus enabled, ACK on acknowledge cycleBYTE_NUMBER = 1;COMMAND = (CLOCK3530_ADDRESS_STATUS | READ);I2CDataBuff = &result;STA = 1; // Start transferwhile (SM_BUSY); // Wait for transfer to finish return result;}void SetRealClockStatus(unsigned char status){while (SM_BUSY); // Wait for SMBus to be free.SM_BUSY = 1; // Occupy SMBus (set to busy)SMB0CN = 0x44; // SMBus enabled, ACK on acknowledge cycleBYTE_NUMBER = 1;COMMAND = (CLOCK3530_ADDRESS_STA TUS | WRITE);I2CDataBuff = &status;STA = 1; // Start transfer}/*void SetRealClockINT1(unsigned int Int1){while (SM_BUSY); // Wait for SMBus to be free.SM_BUSY = 1; // Occupy SMBus (set to busy)SMB0CN = 0x44; // SMBus enabled, ACK on acknowledge cycleBYTE_NUMBER = 2;COMMAND = (CLOCK3530_ADDRESS_INT1 | WRITE);I2CDataBuff = (unsigned char*)&Int1;STA = 1; // Start transfer}*/#include "INTRINS.H"unsigned char revolve(unsigned char val){char i;unsigned char val1=0;for (i=0;i<8;i++){if (val&0x1)val1++;val1=_crol_(val1,1);val=_cror_(val,1);}val1=_cror_(val1,1);return val1;}/*-- 文字: 时--*/char code Shi[]={0x00,0x00,0xFC,0x44,0x44,0xFC,0x00,0x08,0x48,0x88,0x08,0xFF,0x08,0x08,0x08,0x00, 0x00,0x00,0x1F,0x04,0x04,0x0F,0x00,0x00,0x00,0x11,0x20,0x1F,0x00,0x00,0x00,0x00, };/*-- 文字: 钟--*/char code Zhong[]={0x00,0x60,0x38,0xE7,0x24,0x24,0x04,0x00,0xF8,0x88,0x88,0xFF,0x88,0x88,0xF8,0x00, 0x00,0x01,0x01,0x3F,0x11,0x09,0x01,0x00,0x01,0x00,0x00,0x3F,0x00,0x00,0x01,0x00, };void LCD_WriteHZ(char x,char y,char *Dot);void LCD_DispChar(char x,char y,char ch); //128*64 取值x=0-128 y=0-8void InitLCD(void);void Delay1ms(unsigned char T);void TestI2C (void){unsigned char var ;WDTCN = 0xde; // disable watchdog timerWDTCN = 0xad;OSCICN |= 0x03; // Set internal oscillator to highest setting// (16 MHz)XBR0 |= 0x07; // Route SMBus to GPIO pins through crossbarXBR2 |= 0x44; // Enable crossbar and weak pull-upsP0MDOUT |= 0x1D;P1MDOUT |= 0x01;SMB0CN = 0x44; // Enable SMBus with ACKs on acknowledge cycleSMB0CR = -80; // SMBus clock rate = 100kHz.EIE1 |= 2; // SMBus interrupt enableEA = 1; // Global interrupt enableSM_BUSY = 0; // Free SMBus for first transfer.// SetRealClockINT1(0x8000);var = GetRealClockStatus();ResetRealClock();var = GetRealClockStatus();SetRealClockStatus(0xc2);var = GetRealClockStatus();GetRealClock();RealTime.RT.Year=0x02;RealTime.RT.Month=0x12;RealTime.RT.Day=0x010;RealTime.RT.Week=0x05;RealTime.RT.Hour=0x11;RealTime.RT.Minute=0x59;RealTime.RT.Second=0x57;SetRealClock();GetRealClock();InitLCD();LCD_WriteHZ(0,0,Shi);LCD_WriteHZ(16,0,Zhong);//在0，2处显示00:00:00LCD_DispChar(0,2,0); //128*64 取值x=0-128 y=0-8LCD_DispChar(8,2,0);LCD_DispChar(16,2,10);LCD_DispChar(24,2,0);LCD_DispChar(32,2,0);LCD_DispChar(40,2,0xa);LCD_DispChar(48,2,0);LCD_DispChar(56,2,0);//在0，4处显示02/01/01LCD_DispChar(0,4,0); //128*64 取值x=0-128 y=0-8LCD_DispChar(8,4,2);LCD_DispChar(16,4,0xb);LCD_DispChar(24,4,0);LCD_DispChar(32,4,1);LCD_DispChar(40,4,0xb);LCD_DispChar(48,4,0);LCD_DispChar(56,4,1);for (;;){GetRealClock();LCD_DispChar(0,2,(RealTime.RT.Hour>>4)&0x03);//(RealTime.RT.Hour>>4)&0x0f); //128*64 取值x=0-128 y=0-8LCD_DispChar(8,2,RealTime.RT.Hour&0x0f);LCD_DispChar(24,2,(RealTime.RT.Minute>>4)&0x0f);LCD_DispChar(32,2,RealTime.RT.Minute&0x0f);LCD_DispChar(48,2,(RealTime.RT.Second>>4)&0x0f);LCD_DispChar(56,2,RealTime.RT.Second&0x0f);//在0，4处显示02/01/01LCD_DispChar(0,4,(RealTime.RT.Year>>4)&0x0f);LCD_DispChar(8,4,RealTime.RT.Year&0x0f);LCD_DispChar(24,4,(RealTime.RT.Month>>4)&0x0f);LCD_DispChar(32,4,RealTime.RT.Month&0x0f);LCD_DispChar(48,4,(RealTime.RT.Day>>4)&0x0f);LCD_DispChar(56,4,RealTime.RT.Day&0x0f);Delay1ms(100);}}//------------------------------------------------------------------------------------// Interrupt Service Routine//------------------------------------------------------------------------------------void SMBUS_ISR (void) interrupt 7{switch (SMB0STA){ // SMBus 状态码SMB0STA 寄存器// 主发送器/接收器起始条件已发送case SMB_START:SMB0DAT = COMMAND ; // 装入要访问的从器件的地址STA = 0; // 手动清除START 位break;//主发送器/接收器重复起始条件已发送// 该状态只应在读操作期间出现在存储器地址已发送并得到确认之后?case SMB_RP_START:SMB0DAT = COMMAND; // COMMAND 中应保持从地址+ R.STA = 0;break;// 主发送器从地址+ WRITE 已发送收到ACKcase SMB_MTADDACK:// 主发送器数据字节已发送收到ACKcase SMB_MTDBACK:if (BYTE_NUMBER){SMB0DAT = revolve(*I2CDataBuff); // If R/W=WRITE, load byte to write.I2CDataBuff++;BYTE_NUMBER--;}else{STO = 1; SM_BUSY = 0; // Free SMBus}break;// 主发送器从地址+ WRITE 已发送收到NACK// 从器件不应答发送STOP + START 重试case SMB_MTADDNACK:STO = 1; STA = 1;break;// 主发送器数据字节已发送收到NACK// 从器件不应答发送STOP + START 重试case SMB_MTDBNACK:STO = 1; STA = 1;break;// 主发送器竞争失败// 不应出现如果出现重新开始传输过程case SMB_MTARBLOST:STO = 1; STA = 1;break;// 主接收器从地址+ READ 已发送,收到ACKcase SMB_MRADDACK:AA = 1; // 在应答周期ACKif (!BYTE_NUMBER){STO = 1; SM_BUSY = 0; // 释放SMBus}break;// 主接收器从地址+ READ 已发送收到NACK// 从器件不应答发送重复起始条件重试case SMB_MRADDNACK:STA = 1;break;// 收到数据字节ACK 已发送// 该状态不应出现因为AA 已在前一状态被清0 如果出现发送停止条件case SMB_MRDBACK:if (BYTE_NUMBER){*I2CDataBuff=revolve(SMB0DA T);I2CDataBuff++;BYTE_NUMBER--;}if (!BYTE_NUMBER) AA= 0;break;// 收到数据字节NACK 已发送// 读操作已完成读数据寄存器后发送停止条件case SMB_MRDBNACK:STO = 1;SM_BUSY = 0; // 释放SMBusbreak;// 在本应用中所有其它状态码没有意义通信复位default:STO = 1; // 通信复位SM_BUSY = 0;break;}SI=0; // 清除中断标志}/*{switch (SMB0STA){ // Status code for the SMBus (SMB0STA register) case SMB_START:SMB0DAT = COMMAND; // COMMAND should hold slave address + R.break;case SMB_MTADDNACK:STO = 1;STA = 1;break;case SMB_RP_START:// SMB0DAT = COMMAND; // COMMAND should hold slave address + R.// STA = 0;// break;case SMB_MTADDACK:case SMB_MTDBACK:if (BYTE_NUMBER){if (COMMAND & 0x01) // If R/W=READ,{STA = 1;}else{SMB0DAT = *I2CDataBuff; // If R/W=WRITE, load byte to write.I2CDataBuff++;BYTE_NUMBER--;}}else{STO = 1;SM_BUSY = 0; // Free SMBus}break;// Master Transmitter: Data byte transmitted. NACK received.// Slave not responding. Send STOP followed by START to try again.case SMB_MTDBNACK:STO = 1;STA = 1;break;// Master Transmitter: Arbitration lost.// Should not occur. If so, restart transfer.case SMB_MTARBLOST:STO = 1;STA = 1;break;// Master Receiver: Slave address + READ transmitted. NACK received.// Slave not responding. Send repeated start to try again.case SMB_MRADDNACK:STA = 1;break;// Data byte received. ACK transmitted.// State should not occur because AA is set to zero in previous state.// Send STOP if state does occur.case SMB_MRDBACK:STO = 1;SM_BUSY = 0;break;// Master Receiver: Slave address + READ transmitted. ACK received.// Set to transmit NACK after next transfer since it will be the last (only) byte.case SMB_MRADDACK:// AA = 0; // NACK sent on acknowledge cycle.// break;// Data byte received. NACK transmitted.// Read operation has completed. Read data register and send STOP.case SMB_MRDBNACK:if (BYTE_NUMBER){if (COMMAND & 0x01) // If R/W=READ,{*I2CDataBuff=SMB0DA T;I2CDataBuff++;}BYTE_NUMBER--;}else{STO = 1;SM_BUSY = 0; // Free SMBus}break;// All other status codes meaningless in this application. Reset communication.default:STO = 1; // Reset communication.SM_BUSY = 0;break;}SI=0; // clear interrupt flag }*/。

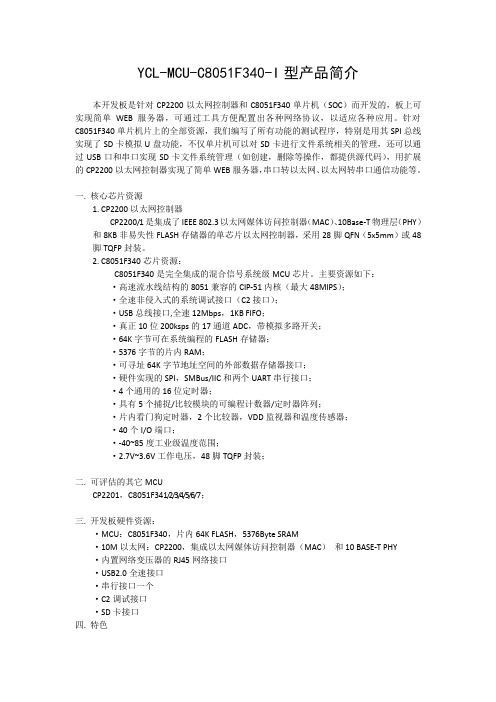

YCL-MCU-C8051F340-I型产品简介本开发板是针对CP2200以太网控制器和C8051F340单片机（SOC）而开发的，板上可实现简单WEB服务器，可通过工具方便配置出各种网络协议，以适应各种应用。

针对C8051F340单片机片上的全部资源，我们编写了所有功能的测试程序，特别是用其SPI总线实现了SD卡模拟U盘功能，不仅单片机可以对SD卡进行文件系统相关的管理，还可以通过USB口和串口实现SD卡文件系统管理（如创建，删除等操作，都提供源代码），用扩展的CP2200以太网控制器实现了简单WEB服务器，串口转以太网、以太网转串口通信功能等。

一. 核心芯片资源1. CP2200以太网控制器CP2200/1是集成了IEEE 802.3以太网媒体访问控制器（MAC）、10Base-T物理层（PHY）和8KB非易失性FLASH存储器的单芯片以太网控制器，采用28脚QFN（5x5mm）或48脚TQFP封装。

2. C8051F340芯片资源：C8051F340是完全集成的混合信号系统级MCU芯片。

主要资源如下：·高速流水线结构的8051兼容的CIP-51内核（最大48MIPS）；·全速非侵入式的系统调试接口（C2接口）；·USB总线接口,全速12Mbps，1KB FIFO；·真正10位200ksps的17通道ADC，带模拟多路开关；·64K字节可在系统编程的FLASH存储器；·5376字节的片内RAM；·可寻址64K字节地址空间的外部数据存储器接口；·硬件实现的SPI，SMBus/IIC和两个UART串行接口；·4个通用的16位定时器；·具有5个捕捉/比较模块的可编程计数器/定时器阵列；·片内看门狗定时器，2个比较器，VDD监视器和温度传感器；·40个I/O端口；·-40~85度工业级温度范围；·2.7V~3.6V工作电压，48脚TQFP封装；二. 可评估的其它MCUCP2201，C8051F341/2/3/4/5/6/7；三. 开发板硬件资源：·MCU：C8051F340，片内64K FLASH，5376Byte SRAM·10M以太网：CP2200，集成以太网媒体访问控制器（MAC）和10 BASE-T PHY·内置网络变压器的RJ45网络接口·USB2.0全速接口·串行接口一个·C2调试接口·SD卡接口四. 特色1. 支持通过USB口下载应用软件（更新固件）,并提供全套源代码；2. 提供ARP，IP，ICMP，TCP协议的源代码，ARP中实现了缓存的学习、更新、老化、轮转替换。

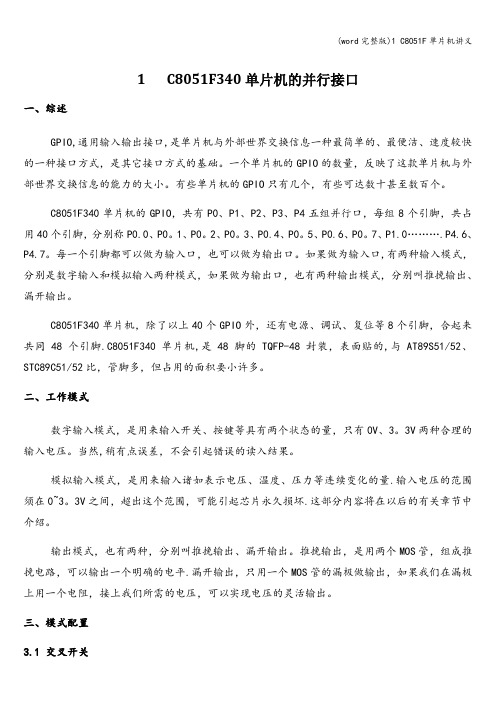

1 C8051F340单片机的并行接口一、综述GPIO,通用输入输出接口,是单片机与外部世界交换信息一种最简单的、最便洁、速度较快的一种接口方式，是其它接口方式的基础。

一个单片机的GPIO的数量，反映了这款单片机与外部世界交换信息的能力的大小。

有些单片机的GPIO只有几个，有些可达数十甚至数百个。

C8051F340单片机的GPIO，共有P0、P1、P2、P3、P4五组并行口，每组8个引脚，共占用40个引脚，分别称P0.0、P0。

1、P0。

2、P0。

3、P0.4、P0。

5、P0.6、P0。

7、P1.0……….P4.6、P4.7。

每一个引脚都可以做为输入口，也可以做为输出口。

如果做为输入口,有两种输入模式，分别是数字输入和模拟输入两种模式，如果做为输出口，也有两种输出模式，分别叫推挽输出、漏开输出。

C8051F340单片机，除了以上40个GPIO外，还有电源、调试、复位等8个引脚，合起来共同48个引脚.C8051F340单片机,是48脚的TQFP-48封装，表面贴的,与AT89S51/52、STC89C51/52比，管脚多，但占用的面积要小许多。

二、工作模式数字输入模式，是用来输入开关、按键等具有两个状态的量，只有0V、3。

3V两种合理的输入电压。

当然,稍有点误差，不会引起错误的读入结果。

模拟输入模式，是用来输入诸如表示电压、温度、压力等连续变化的量.输入电压的范围须在0~3。

3V之间，超出这个范围，可能引起芯片永久损坏.这部分内容将在以后的有关章节中介绍。

输出模式，也有两种，分别叫推挽输出、漏开输出。

推挽输出，是用两个MOS管，组成推挽电路，可以输出一个明确的电平.漏开输出，只用一个MOS管的漏极做输出，如果我们在漏极上用一个电阻，接上我们所需的电压，可以实现电压的灵活输出。

三、模式配置3.1 交叉开关如果使用C8051F340单片机的并行口,必须对寄存器XBR1的第六位置“1”,寄存器XBR1,叫交叉开关寄存器1，该寄存器的第六位，称XBARE，为交叉开关使能位。

西南科技大学专业方向设计报告西南科技大学信息工程学院制方向设计任务书方向设计学生日志方向设计评语表基于C8051F340的FLASH读写设计摘要:在电子技术研究和应用中，单片机始终是一个核心部件，单片机的应用也越来越广泛。

C8051F单片机是Silicon Labs 公司研发的一系列增强型51 单片机，广泛用于工业及民用电子、消费电子。

它继承了经典的传统51 的所有精华并在此基础上有重大发展。

W25X80FLASH存储器具有“PCB板占用空间少”、“引脚数量少”、“功耗低“等特点。

与普通串行FLASH相比，使用更灵活、性能更出色。

本设计要求使用C语言完成编程设计，并实现FLASH数据回读，且要求通过串口调试助手显示。

设计通过编程分步完成功能，最终达到设计要求。

详细设计步骤如下：系统时钟配置、端口配置、SPI通讯的初始化、初始化UART波特率、FLASH存储的初始化FLASH的擦除、FLASH写、从FLASH中读一个数组的数据。

完成程序设计后经过调试，实验结果表明该设计能够实现FLASH的读写并通过串口助手成功显示。

关键词：C8051F340；SPI；UART；FLASHAbstract: In the electronic technology research and application, single chip microcontroller is always a core components, the application of single chip microcontroller is also more and more widely. C8051F single chip microcontroller is a series of enhanced 51 single chip microcontroller which is researched by Silicon Labs company, it used widely in industry and civil electronics, consumer electronics. It inherits all essence from the classic tradition of 51 single chip microcontroller and has great development on this basis. The distinguishing feature of W25X80FLASH memory is "PCB board takes up less space", "pin the quantity is less", and "low power consumption" etc. Compared with ordinary serial FLASH, it uses more neatly and has more outstanding performance. This design needs C language, achieve the Flash data back to read, and display through the serial debugging assistant. Design is completed through the programming step by step, and finally reach the design requirements. The detailed design procedure is as follows: System clock configuration, port configuration, SPI communication initialization, initialization UART baud rate, Flash memory initialization, wipe out the FLASH, write on the Flash, read an array of data from the Flash. Complete the program design and put it through a test, the experimental results show that this design can realize FLASH literacy and show successful through the CommAssistant.Key W ords: C8051F340; SPI; UART; FLASH一、设计目的和意义FLASH存储器又称闪存，应为其具有快速读写，可编程擦除等性能在电子领域中被广泛使用。

C8051F340DK单片机开发板使用手册版本：V0.9C8051F网络完成日期:2009-3-23目录第一章．C8051F340DK开发板功能简介・・・・・・・・・・・・3第二章．C8051F340DK硬件接口详细说明・・・・・・・・・・・5第三章．C8051F340DK软件例程详细说明・・・・・・・・・・・8第四章．开发工具及开发软件KeilC安装配置・・・・・・・・・10 第五章．C8051F340DK常见问题・・・・・・・・・・・・・・・15 附录A：特别声明・・・・・・・・・・・・・・・・・・・・・15附录B：版本修定・・・・・・・・・・・・・・・・・・・・・15第一章．C8051F340DK开发板功能简介1．概述C8051F340DK是为技术研发人员和单片机爱好者开发的一款单片机开发板。

本开发板采用美国Silabs公司的C8051F340作为核心控制器,在搭配该公司的CP2200以太网控制芯片可完成工业以太网产品开发。

我们针对C8051F340单片机片上的全部资源，编写了所有功能的测试程序，对该单片机的性能做了全面的测试评估，使用方便。

使用该开发板能使开发者迅速掌握CP2200以太网控制器和C8051F340单片机的软硬件设计，大大缩短了产品开发周期。

2. C8051F340单片机主要特性（1）高速流水线结构的8051兼容的CIP-51内核，最高48MIPS执行速度；（2）全速非侵入式的系统调试接口（片内，C2接口）；（3）真正10位200ksps的多通道单端/差分ADC，带模拟多路器；（4）高精度可编程的12MHz内部震荡器；（5）64KB字节可在系统编程的FLASH存储器；（6）4352（4096+256）字节的片内RAM；（7）USB 2.0通信接口，支持全速12Mbps通信和低速1.5Mbps通信（8）硬件实现的SPI，SMBus/IIC和2个UART串行接口；（9）4个通用的16位定时器；（10）具有5个捕捉/比较模块的可编程计数器/定时器阵列；（11）片内上电复位，看门狗定时器，2个电压比较器，VDD监视器和温度传感器；（12）40个I/O端口；（13）-40~85度工业级温度范围；（14）2.7V~3.6V工作电压，TQFP48封装；3.板上资源（1）MCU为美国Silabs公司C8051F340，64KB FLASH、(4096+256)B RAM、最高48MIPS执行速度；（2）外扩32KB SRAM(选用IS62LV256,速度70ns)，外扩64KB串行FLASH (选用AT25F512,，也可以选用更大的FLASH）；（3）2路10位AD输入，AIN1到AIN2输入信号量程0～+24.4V；（4）2路标准RS232通讯接口；（5）IIC接口的EEPROM AT24C02(可选更大容量的EEPROM)；（6）IIC接口的RTC时钟，选用PCF8563, 带停电保护功能；（7）4*1 轻触键盘，蜂鸣器，LED指示；（8）JTAG（C2）调试接口；（9）两个LCD接口，支持多种厂家LCD，最高支持320×240；（10）USB从机通信；（11）10M以太网通讯接口,选用CP2200以太网通讯专用控制芯片；（12）外接P0/P1/P2/P3/P4 5个8位IO接口；（13）外扩总线接口；（14）C8051F340上的所有资源对用户开放；（15）USB供电；4．开发板软件例程（1）Delay: 软件延时程序，利用软件进行延时操作；（2）Key IO: 键盘读取及 IO信号输出控制程序；（3）EEPROM: IIC接口EEPROM(AT24C02A, 容量256字节)读写程序；（4）RTC: IIC接口实时时钟(PCF8563)读写程序；（5）RS232: 2路RS232串行数据通信程序；（6）ADC: 2路10 位AD采集示例程序；（7）LCD:1602字符型LCD显示驱动软件；（8）Timer: Timer0、Timer2、Timer3计时程序；（9）FLASH:外扩SPI串行Flash(AT25F512)擦除读写软件；（10）USB: USB通信示例程序；（11）WEB: TCP/IP协议栈及其应用通信程序；5．开发板配置：(1) C8051F340DK开发板1块；(2) 交叉串口线1条；(3) 交叉网线1条；(4) USB(电源)线1条；(5) 资料光盘1张；光盘内容：1) C8051F340DK使用手册；2）C8051F340DK原理图(PDF文件)；3）实验程序源码（C语言）；4）C8051F340DK主要元器件资料；5）KEIL C51 V8.02开发软件（2K代码限制）；6）其它相关资料；6．开发板图片：第二章．C8051F340DK硬件接口说明1. ML-F020DK+硬件地址分配表接口或器件标识分配的地址说明IS62LV256 U6 0x0000-0x7FFF 外部扩展RAM地址CP2200 U9 0x8000-0x80FF 以太网芯片地址LCD1接口 JP10 0x9000-0x900F LCD1操作地址，接1602字符型液晶LCD2接口 JP11 0x8800-0x8803 LCD2操作地址, 支持T6963和SED1335控制芯片外扩总线 JP1 0xB800-0xBFFF 外部设备地址2．开发板接口列表标号功能说明连接对象JP1 外部总线扩展接口用户自定义JP2/3/4/5 C8051F340外接引脚用户自定义JP6 模拟信号输入接口（输入量程0～24.4V）外部设备（电压信号）JP7 RS232-2通信接口 RS232通信设备JP8 RS232-1通信接口 RS232通信设备JP10 液晶显示（LCD1）的接口接1602字符型液晶JP11 液晶显示（LCD2）的接口接以T6963和SED1335为控制芯片的各种型号液晶JP12 USB从机接口（也是电源接口）接PC机等USB主机设备外部USB供电，＋5V JP13 JTAG接口,调试下载程序 C8051网络EC3仿真器JP14 10M以太网接口以太网设备3．JP1 总线扩展接口1 3 5 7 9 11 13 15 17 19 21 23 25A0 A2 A4 A6 A8 A10 nWR D0 D2 D4 D6 +3.3V+5V2 4 6 8 10 12 14 16 18 20 22 24 26A1 A3 A5 A7 A9 nRD nEX_CS D1 D3 D5 D7 GND GND说明：(1)地址总线(A0-A10)、数据总线(D0-D7)和控制总线(nRD 、nWR、nEX_CS)电平为3.3V；(2)地址范围：0xB800-0xBFFF；4． JP2、JP3、JP4、JP5为C8051F340单片机所有管脚引出接口，可由客户自由使用，但要注意在板子的原有电路的影响。
