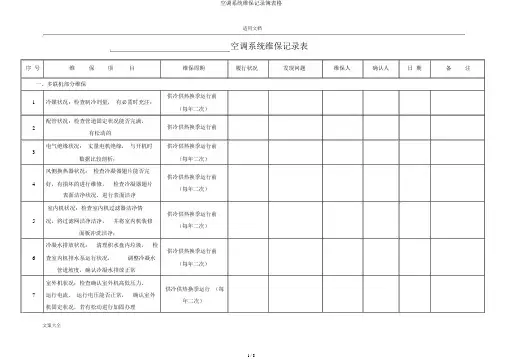

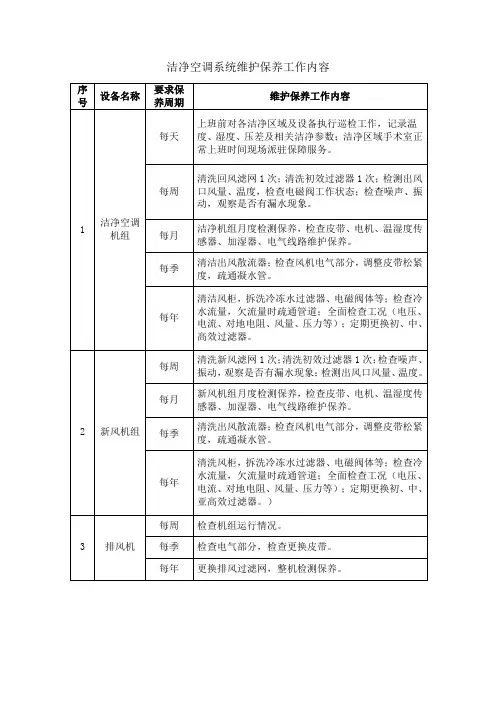

适用文档空调系统维保记录表序号维保项目维保周期履行状况发现问题维保人确认人日期备注一、多联机部分维保1冷媒状况：检查制冷剂量，有必需时充注；供冷供热换季运行前（每年二次）2配管状况：检查管道固定状况能否完满，供冷供热换季运行前有松动的3电气绝缘状况：丈量电机绝缘，与开机时供冷供热换季运行前数据比较剖析；（每年二次）风侧换热器状况：检查冷凝器翅片能否完供冷供热换季运行前4好，有损坏的进行维修，检查冷凝器翅片（每年二次）表面洁净状况，进行表面洁净室内机状况：检查室内机过滤器洁净情供冷供热换季运行前5况，将过滤网洁净洁净，并将室内机装修（每年二次）面板冲洗洁净；冷凝水排放状况：清理积水盘内垃圾，检供冷供热换季运行前6查室内机排水泵运行状况，调整冷凝水（每年二次）管道坡度，确认冷凝水排放正常室外机状况：检查确认室外机高低压力、供冷供热换季运行（每7运行电流、运行电压能否正常，确认室外年二次）机固定状况，若有松动进行加固办理空调系统维保记录表序号维保项目维保周期履行状况发现问题维保人确认人日期备注二 (1)、螺杆式水源热泵机组平时保护1机组的表面洁净供冷供热换季运行前2检查制冷剂和油位，油位不超出上镜供冷供热换1/2季运行前3检查电源三相电压能否正常在380v 供冷供热换季运行前4检查油加热器通电下能否正常工作（待供冷供热换机时油温保证在25~30℃）季运行前5检查机体各部有无漏水、渗油现象使用时巡检6检查温控探头能否正常使用时巡检7检查机组运行中各参数能否在标准值使用时巡检（详细参数详见主机说明书）检查机组运行中能量调理机构的动作8能否灵巧（即加载、卸载电磁阀、滑阀使用时巡检机构）检查机组正常运行时的声音检查机组9正常运行时的温度能否正常（包含主电使用时巡检机、压缩机、排气温度、油温等）空调系统维保记录表序号维保项目维保周期履行状况发现问题维保人确认人日期备注二 (2)、螺杆式水源热泵机组一级养护1履行平时保护每年一次2丈量主电机绝缘电阻，检查其能否切合机组规定的数值每年一次3检查主电机与压缩机间密封能否正常每年一次4检查各安全保护装置的整定位能否符每年一次合规定要求5检查水流保护开关动作能否正常，动作失灵要实时维修或改换每年一次6检查蒸发器部分保温层的状况，损坏要实时维修或改换每年一次二 (3)、螺杆式水源热泵机组二级养护1履行平时保护、一级养护的内容每二年一次2冲洗蒸发器、冷凝器的管道和盖板水垢（水质办理部分）每二年一次3依据使用状况改换油过滤芯每二年一次4依据使用状况改换干燥过滤器每二年一次5依据油质状况改换新冷冻油每二年一次6主电机轴承加注润滑脂每二年一次7机组表面除锈刷漆每二年一次空调系统维保记录表序号维保项目维保周期履行状况发现问题维保人确认人日期备注8校订压力传感器每二年一次9增添或改换电控冷冻液每二年一次三、风机盘管维保1清理积水盘垃圾，调整冷水管坡度，确供冷供热换认冷凝水排水正常季运行前2清理回风口过滤网，洁净送回风口百叶供冷供热换季运行前3清理盘管翅片尘埃，检查盘管能否变供冷供热换形、脏堵，按期冲洗季运行前4检查连结帆布能否损坏、固定螺丝能否供冷供热换松动季运行前5检查温控开关和电磁阀运行状况，如执供冷供热换行器未动作的，查明原由，改换配件季运行前6检查风机运行能否正常供冷供热换季运行前四、空调箱维保送风风机转动轴承加注润滑油，检查电供冷供热换1动机传动件能否敏捷，润滑能否充分。

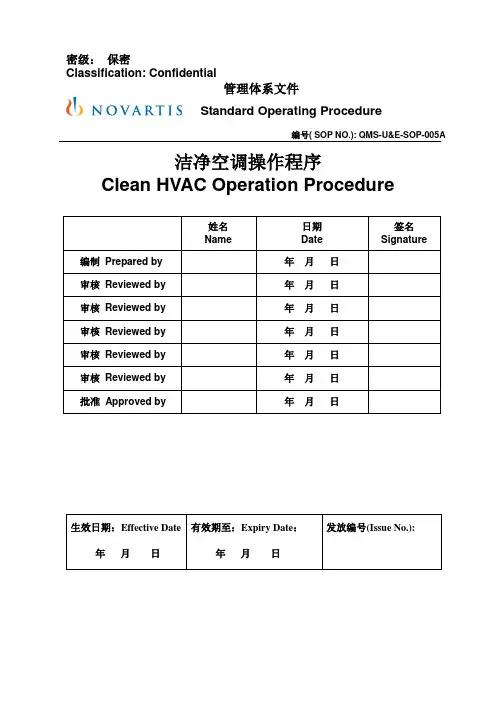

密级：保密Classification: Confidential管理体系文件Standard Operating Procedure编号( SOP NO.): QMS-U&E-SOP-005A洁净空调操作程序Clean HVAC Operation Procedure姓名Name 日期Date签名Signature编制Prepared by 年月日审核Reviewed by 年月日审核Reviewed by 年月日审核Reviewed by 年月日审核Reviewed by 年月日审核Reviewed by 年月日批准Approved by 年月日生效日期：Effective Date 年月日有效期至：Expiry Date：年月日发放编号(Issue No.):1. 目的Purpose规定空调机组启动和停止的顺序，保证气流方向正确，避免交叉污染；规定空调机组的操作，保证房间对外界的正压，避免污染物的进入。

To specify the general sequence of HVAC system starting up and shut down. To guarantee the airflow direction right, to avoid cross-contamination；To specify the general instruction on how to operate the HVAC system. To maintain positive pressure relative to the outside, to limit the ingress of contaminants.2. 范围Scope本SOP适用于下列的与生产相关的洁净空调机组。

这些空调机组位于怀柔区的奥星北京制造中心的PCM1，PCM2，RSM和BWM2。

This SOP is valid for all the following production related HVAC systems located in PCM1，PCM2，RSM and BWM2 in BJMC of Austar, HuaiRou.编号No.设备名称Function Name服务区域Servicing areas洁净等级Cleaning ZonePCM1-U-AHU011#空调机组1# Air Handling UnitPCM1操作间1，辅助房间Operation Room1, Auxiliary Room操作间1万级，辅助房间10万级Operation Room1 ISO Level 7,Auxiliary Room ISO Level 8PCM1-U-AHU022#空调机组2# Air Handling UnitPCM1操作间1，Operation Room11万级，ISO Level 7PCM1-U-AHU033#空调机组3# Air Handling UnitPCM1操作间2, Operation Room21万级，ISO Level 7PCM2-U-AHU044#空调机组4# Air Handling UnitPCM2操作间，物流通道Operation Room，Material Entrance操作间1万级，物流通道10万级Operation Room ISO Level 7，Material Entrance ISO Level 8PCM2-U-AHU055#空调机组5# Air Handling UnitPCM2操作间，Operation Room1万级，ISO Level 7PCM2-U-AHU066#空调机组6# Air Handling UnitPCM2男女一更，洗衣房等，First Change, Washing House10万级，ISO Level 8BW2-U-AHU077#空调机组7# Air Handling UnitBWM2收卷间，分切间，物流通道，辅助房间等，Rolling Room, Cutting Room, MaterialEntrance, Auxiliary RoomRolling Room, Cutting Room1万级，ISO Level 7;Material Entrance, Auxiliary Room10万级，ISO Level 8BW2-U-AHU088#空调机组8# Air Handling UnitBWM2挤出间Extraction Room1万级，ISO Level 7BW2_U_AHU09 9#空调机组软管车间1万级，ISO Level 7编号No.设备名称Function Name服务区域Servicing areas洁净等级Cleaning Zone 9# Air Handling Unit Soft tube workshopBW2_U_AHU1010#空调机组10# Air Handling Unit制袋车间Bag-Making Workshop1万级，ISO Level 7BW2_U_AHU1111#空调机组11# Air Handling UnitBWM2收卷间，分切间，物流通道，辅助房间等，Rolling Room, Cutting Room, MaterialEntrance, Auxiliary Room1万级，ISO Level 7;BW2_U_AHU1212#空调机组12# Air Handling UnitBWM2挤出间Extraction Room1万级，ISO Level 7 陈惠忠加上森星的3. 职责和权限Responsibility➢动力设备部经理负责本SOP的修订和培训；➢空调系统操作工必须培训合格；➢动力设备部运行操作必须按本SOP操作；➢动力设备部运行班长检查本SOP被正确执行，正确记录；➢动力设备部有计划的停机组必须提前3天与服务的部门主管协商一致；➢空调系统启动停止的指令只能由动力设备经理下达，其他任何人无权指示机组的操作；➢操作工在授权的范围内进行操作；➢系统参数的设定只能由动力设备经理和运行班长进行；➢机组异常停机时，操作工要马上汇报给服务部门主管和动力设备经理；➢动力设备部无权擅自改动空调系统配置，例如擅自取消加湿器等；➢如果需要改变空调系统的配置，按变更程序执行；➢Manager of Utility and Equipment Department revise and training this SOP;➢The HVAC system must be operated by trained and qualified operator.➢Operator must follow the instruction in this SOP;➢Utility foreman ensure that the work is correctly carried out. And all the activities are properly documented;➢Utility must notice the head of service function section before three days when the HVAC need planed shut-down, and get agreement.➢Only the manager of utility and equipment department can give the work order to shut-down or start-up HVAC. Nobody can give any instruction to HVAC operation;➢Operator only act in his permit;➢Only the manager of utility and equipment department or the foreman can set up the parameter.➢The manager of utility and equipment department and the head of service function section must be noticed immediately when the HVAC unexpected shut-down.➢Utility and equipment department has no power to change the HVAC system without permit, e.g. erase the humidifier.➢The change request procedure must be followed when change is necessary.4. 工作程序Procedure4.1. 空调系统的开机顺序Sequence of HVAC Systems Start-up为了避免因房间负压，保证空气流向的正确，避免交叉污染，空调机组的开机顺序必须被考虑。

Replaces No.: SOP-000217 version 02Reason for Change:1. All EPCP AHUs added and are in service as shown to the table of chapter 31 Regulatory Basis and Reference DocumentsThe Group Quality Manual:QM N 6.1: Facility and Equipment - Qualification and CommissioningQM N 6.2: Cleanliness ZoningIGs N6.2.2: Cleanliness Zoning Policy for The Manufacture of Non-Sterile Drug Products and the Respective Drug SubstanceBNP SOPs:SOP-000052: Work Order Management ProcessSOP-000066: Filter Replacement for HVAC InstallationSOP-000074: Cleaning of HVAC installation semi solid dosage form AHU 2.2, 2.3SOP-000117: Safety GuidelinesSOP-000124: Safety Lock Off ProcedureSOP-000214: Cleaning of HVAC Installation for Room-airSOP-000309: HVAC System Operational ProcedureSOP-000328: General Operating Procedures in case of HVAC Shut DownSOP-000390: Cleanliness ZoningSOP-000407: Replacement, Cleaning and Maintenance Return Air Filter in ProductionNB. Upon approval of the RMS SOP these SOPs will be referenced to this SOP.2 PurposeThis SOP describes the procedures for the preventive maintenance on HVAC units.The preventive maintenance program has to be established in accordance with Novartis Quality Module 6.1.This maintenance program is implemented to ensure that the equipment remains in a qualified or commissioned state after handover to the User.3 ScopeThis SOP covers the preventive maintenance of all HVAC units. The following table gives an overview of the current status of HVAC units which are operational at the moment.No. Function Servicing areas Cleaning Zone1.1 Production areaDispensing A-308, Day storage Room A-310, Blending Room A-313,Intermediate Storage A-504, Granulation Room A-506, Compressing Rooms A-508.1, Compressing ante-room A-510, Capsule filling room A-508.2,Coating Room A-514, Coating drying room A-516, Corridors 300 and 500etc.Zone 22.1 Capsule filling Encapsulating A-511, Printing A-509 and locker 507 Zone 22.2 Emugel filling Cream/Ointments Filling A-505 and Personnel Lockers 505.1, 505.2, 505.3,501.1Zone 22.3EmugelprocessingCream/Ointments Processing A-503 and locker 501, Storage room 503.1 Zone 23.0 Packaging Secondary packaging A-405,Air locker 405.1 etc. Zone 24.0 N/A N/A Zone 35.0 Lockers Offices and Production Lockers Zone 26.0 QC QC Laboratories Zone 48.0 Alu-Alu packaging Alu-Alu Blister Packing A-302, Compressing Room A-304 Zone 29.0 Sampling Sampling Cabin A-907 with Personnel Lockers 905, 906 Zone 210.0 Material lockMaterial Entry A-910Material Air-Lock A-306Zone 4Zone 313.0 Washing Washing Area A-314.1, Equipment storage room A-314, PW Plant Room A-316Zone 220 New Warehouse Receiving/Dispatch Area A-804, High Rack Storage Area A-806 Zone 421New ConditionedStorage AreaNew Conditioned Storage Area 932 Zone 4PCU1 Inlet to AHU Central fresh-air pre-conditioning unit N/A AIC 1 Air Inlet Fresh-air Inlet Chamber 1 N/A PCU2 Inlet to AHU Central fresh-air pre-conditioning unit N/A AIC 2 Air Inlet Fresh-air Inlet Chamber 2 N/A ------ Canteen Canteen N/AAHU11 Dispensary A-320 Airlock, A-322 Clean store, ,A-324 Dirty Equipment,A-326 Washing,A-328 Drying,A-330 Breached material store, A-332 Emergency Shower,A-334Change room, A-918 Dispensed batch store, A-921 Dispensing room 1, A-922 Dispensing room 2,A-924 Dispensary material store,A-928 Pallettransfer.Zone 2AHU12 Clean corridor New HVAC system is used for production area step by step Zone 2AHU14 Granulation Suite A-602 Blending room,A-604Storage,Zone 2AHU15 Compression suite Covers Corridor A-612 Compression corridor,A-608 Compression room 1,A-610 Compression room A-616 , Compression room A-618Zone 2AHU16 Coating, Covers A-628 Coating, A-628.1 PersonalAirlock, A-630 Control room, A-632Printing, A-634 Bulk storage.Zone 2 Clean Stair1 A-238, Clean Stair 2 A-240 : operated zone 2Shoe Change A-238 : operated zone 2Clean Change A-232 : operated zone 4*Rooms A-230, A-234 : operated zone 4*Rooms A-222, A-226 : operated none zone**Rooms A-224, A-228, A-228.1 : operated none zoneNote:*: AHU17 is designed for Zone 2(A-232, A-234, A-230), the operation mode of the rooms are defined as listed above.**: AHU17 is designed for Zone 3(A-222, A-226), the operation mode of the rooms are defined as listed above.Clean Stair1 A-140 : operated zone 2Shoe Change A-136 : operated zone 2AHU17 Clean ChangeClean Change A-132 : operated zone 4*Zone 2No. Function Servicing areas Cleaning Zone1.1 Production areaDispensing A-308, Day storage Room A-310, Blending Room A-313,Intermediate Storage A-504, Granulation Room A-506, Compressing Rooms A-508.1, Compressing ante-room A-510, Capsule filling room A-508.2,Coating Room A-514, Coating drying room A-516, Corridors 300 and 500etc.Zone 22.1 Capsule filling Encapsulating A-511, Printing A-509 and locker 507 Zone 22.2 Emugel filling Cream/Ointments Filling A-505 and Personnel Lockers 505.1, 505.2, 505.3,501.1Zone 22.3EmugelprocessingCream/Ointments Processing A-503 and locker 501, Storage room 503.1 Zone 23.0 Packaging Secondary packaging A-405,Air locker 405.1 etc. Zone 24.0 N/A N/A Zone 35.0 Lockers Offices and Production Lockers Zone 26.0 QC QC Laboratories Zone 48.0 Alu-Alu packaging Alu-Alu Blister Packing A-302, Compressing Room A-304 Zone 29.0 Sampling Sampling Cabin A-907 with Personnel Lockers 905, 906 Zone 210.0 Material lockMaterial Entry A-910Material Air-Lock A-306Zone 4Zone 313.0 Washing Washing Area A-314.1, Equipment storage room A-314, PW Plant Room A-316Zone 220 New Warehouse Receiving/Dispatch Area A-804, High Rack Storage Area A-806 Zone 421New ConditionedStorage AreaNew Conditioned Storage Area 932 Zone 4PCU1 Inlet to AHU Central fresh-air pre-conditioning unit N/A AIC 1 Air Inlet Fresh-air Inlet Chamber 1 N/A PCU2 Inlet to AHU Central fresh-air pre-conditioning unit N/A AIC 2 Air Inlet Fresh-air Inlet Chamber 2 N/A ------ Canteen Canteen N/AAHU11 Dispensary A-320 Airlock, A-322 Clean store, ,A-324 Dirty Equipment,A-326 Washing,A-328 Drying,A-330 Breached material store, A-332 Emergency Shower,A-334Change room, A-918 Dispensed batch store, A-921 Dispensing room 1, A-922 Dispensing room 2,A-924 Dispensary material store,A-928 Pallettransfer.Zone 2AHU12 Clean corridor New HVAC system is used for production area step by step Zone 2AHU14 Granulation Suite A-602 Blending room,A-604Storage,Zone 2AHU15 Compression suite Covers Corridor A-612 Compression corridor,A-608 Compression room 1,A-610 Compression room A-616 , Compression room A-618Zone 2AHU16 Coating, Covers A-628 Coating, A-628.1 PersonalAirlock, A-630 Control room, A-632Printing, A-634 Bulk storage.Zone 2 Rooms A-130, A-134 : operated zone 4*Rooms A-122, A-126 : operated none zone**Rooms A-124, A-128, A-128.1 : operated none zoneNote:*: AHU17 is designed for Zone 2(A-132, A-134, A-130), the operation mode of the rooms are defined as listed above.**: AHU17 is designed for Zone 3(A-122, A-126), the operation mode of the rooms are defined as listed above.AHU18Primarypackaging areaPrimary packaging room A-710, A-720, A-730, A-740. Zone 2AHU19Secondarypackaging areaPackaging Area, A-407, Packaging Waste Air Lock, A-409. Zone 3AHU20WarehouseWarehouse Receiving Area, A-804 and the High Rack Storage Area, A-806.Zone 4AHU21Warehouse Conditioned Storage, A-932. Zone 4AHU22Process area New wash bay, Rooms A-624 Equipment drying room, A-620 Dirtyequipment room. Zone 2No. Function Servicing areas Cleaning Zone1.1 Production areaDispensing A-308, Day storage Room A-310, Blending Room A-313, Intermediate Storage A-504, Granulation Room A-506, Compressing Rooms A-508.1, Compressing ante-room A-510, Capsule filling room A-508.2,Coating Room A-514, Coating drying room A-516, Corridors 300 and 500etc.Zone 22.1 Capsule filling Encapsulating A-511, Printing A-509 and locker 507 Zone 22.2 Emugel fillingCream/Ointments Filling A-505 and Personnel Lockers 505.1, 505.2, 505.3,501.1Zone 22.3EmugelprocessingCream/Ointments Processing A-503 and locker 501, Storage room 503.1 Zone 23.0 Packaging Secondary packaging A-405,Air locker 405.1 etc. Zone 24.0 N/A N/A Zone 35.0 Lockers Offices and Production Lockers Zone 26.0 QC QC Laboratories Zone 48.0 Alu-Alu packaging Alu-Alu Blister Packing A-302, Compressing Room A-304 Zone 29.0 Sampling Sampling Cabin A-907 with Personnel Lockers 905, 906 Zone 210.0 Material lockMaterial Entry A-910Material Air-Lock A-306Zone 4Zone 3 13.0 WashingWashing Area A-314.1, Equipment storage room A-314, PW Plant Room A-316Zone 220 New Warehouse Receiving/Dispatch Area A-804, High Rack Storage Area A-806 Zone 421New ConditionedStorage AreaNew Conditioned Storage Area 932 Zone 4 PCU1 Inlet to AHU Central fresh-air pre-conditioning unit N/AAIC 1 Air Inlet Fresh-air Inlet Chamber 1 N/APCU2 Inlet to AHU Central fresh-air pre-conditioning unit N/AAIC 2 Air Inlet Fresh-air Inlet Chamber 2 N/A------ Canteen Canteen N/AAHU11 DispensaryA-320 Airlock, A-322 Clean store, ,A-324 Dirty Equipment,A-326 Washing,A-328 Drying,A-330 Breached material store, A-332 Emergency Shower,A-334Change room, A-918 Dispensed batch store, A-921 Dispensing room 1, A-922 Dispensing room 2,A-924 Dispensary material store,A-928 Pallettransfer.Zone 2 AHU12 Clean corridor New HVAC system is used for production area step by step Zone 2 AHU14 Granulation SuiteA-602 Blending room,A-604Storage,Zone 2 AHU15 Compression suiteCovers Corridor A-612 Compression corridor,A-608 Compression room 1,A-610 Compression room A-616 , Compression room A-618Zone 2 AHU16 Coating,Covers A-628 Coating, A-628.1 PersonalAirlock, A-630 Control room, A-632Printing, A-634 Bulk storage.Zone 2AHU24Process areaGranulation, Covers A-638 Material Airlock, A-640 Personal Airlock, A-636 Granulation room, A-642 Emergency Shower. Zone 2 AHU 25 Sampling Rooms A 820, A 821, A 822, A823, A 8244 Procedures4.1 GeneralAll maintenance activities in Production, Packaging and warehouse areas can only be performed after fulfillment of the cleanliness Zone conditions required. If it is necessary to shut down the HVAC during the preventive maintenance, the steps described in the SOP-000328 must be followed strictly.Preventive Maintenance on HVAC units will be performed on all HVAC units which are in operation and usage. For each HVAC unit, a unique maintenance manual (activity list) must be available, to ensure that specific preventive maintenance activities (e.g. measurements) are carried out appropriately. The PM works (Tasks) are stated in FRM-000363 / FRM-000386 / FRM-000387 / FRM-000388 / FRM-000392 (Related FRM to this SOP) and manufacturer recommendations.4.2 Start preventive maintenanceThe PM (Head of Utilities) Engineering Department informs the Head ofProduction and/or Production Supervisors, if possible 3 working days in advance (only AHU need to be shut down), about the preventive maintenance activities currently managed on a excel base task tracking. The schedule and work orders of HVAC AHUs maintenance is followed by SAP-PM system (SOP-000052: Work Order Management Process).In case of full or partial shut-down of HVAC system, please refer to SOP-000328in its current revision.Production notifies PM (Head of Utilities) in writing (e.g. e-mail) about "ProductionReadiness" for HVAC preventive maintenance.PM engineering starts PM works as soon as the written release for PM works fromproduction is received based on the specific maintenance manual for each unit. 4.3 Execution of preventive maintenancePM Engineering personnel or external vendor’s personnel execute the preventive maintenance based on the specific maintenance manual (activity lists) for each unit or a specific SOP and following the work order (SOP-000052: Work Order Management Process).The maintenance personnel (internal or external) must be well trained, skilled andexperienced in terms of execution of preventive maintenance and cGMP.If the maintenance personnel observe abnormalities on HVAC units, theresponsible HVAC Engineer has to be informed in order to define suitable remedies or repair work. The abnormalities have to be documented in the logbook FRM-000289 and assessed in view of GMP impact by the HVAC Engineer.PM Engineering HVAC Engineer is responsible for evaluating the preventive maintenance results. If a part of equipment is requiring repair or servicing, an assessment will be made as to whether the needed repair is minor or major. The assessment needs to be documented in the logbook FRM-000289 and corresponding maintenance work orders will be initiated to purchase the required spare parts. The assessment also includes a statement whether GMP compliant HVAC operations can be continued before having carried out the repair. In case the assessment result reveals that a continued operation might impact a GMP compliant operation of the HVAC unit, the Production Head and QA Head have to be informed in writing (e.g. e-mail).Minor repairs (e.g. belts, dumper, actuator, sensors) will be performed during the preventive maintenance. Major repairs (e.g. fans, coils) will be planned separately depending on the availability of the spare parts.4.4 Completion of preventive maintenanceAll preventive maintenance activities (e.g. measurements, etc.), after finishing,have to be recorded in the specific HVAC logbook FRM-000289 for each HVAC unit.PM Engineering notifies Production in writing (e.g. e-mail) about "Finishingpreventive maintenance” for HVAC units.After completion of all activities, including deficiencies, a scheduling for the next execution of preventive maintenance is to be defined in accordance to the periodicity recommended on FRM-000363 / FRM-000386 / FRM-000387 / FRM-000388 / FRM-000392, separately for each HVAC unit. Re: SOP-000052: Work Order Management Process (SAP-PM)The preventive maintenance activities and records have to be documentedproperly (i.e. log-books). The Preventive Maintenance activities must be periodically reviewed by the engineering management.5 ResponsibilitiesPreventive Maintenance is performed by PM Engineering or by external vendors based on written procedures within the valid BNP SOPs and supervised by BNP personnel.The evaluation of the results has to be done by the Head of Utility and engineering management based on agreed written procedures as indicated in previous chapters.The production Head has to provide a maintenance slot for the HVAC unit for execution of preventive maintenance after request by the Site Engineering.6 Additional Instructions6.1 Safety instructionsDuring the maintenance of any air system, the supply air and exhaust air fans must be switched off and applied as regulated by the SOP-000117 and SOP-000124. Steam heated units also require the steam supply to be shut off and the Safety Lock off Procedure applied during any cleaning procedure.7 Definitions & AbbreviationsBNP Beijing Novartis PlantHVAC Heating Ventilation Air ConditioningPM Preventive MaintenanceQA Quality Assurance8 Annexes/Related FormsFRM-000363: Preventive Maintenance Record for HVAC System (Three Months)FRM-000386: Preventive Maintenance Record for HVAC System (Six Months)FRM-000387: Preventive Maintenance Record for HVAC System (Annually)FRM-000388: Preventive Maintenance Record for HVAC System (When AHU shut down)FRM-000392: Working Activities Preventive Maintenance for HVAC System (Daily)。

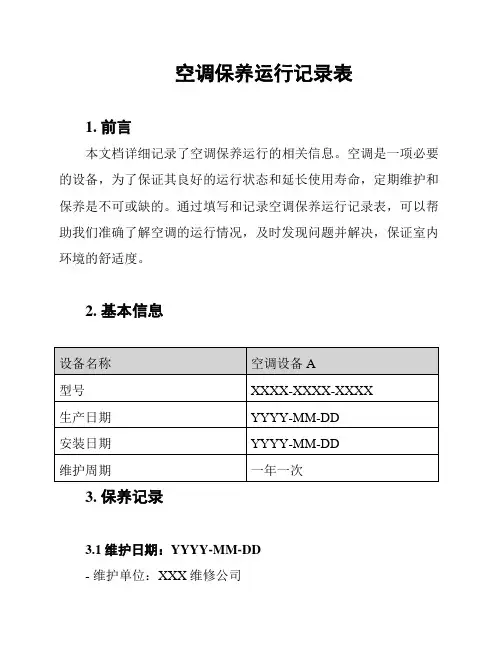

空调保养运行记录表1. 前言本文档详细记录了空调保养运行的相关信息。

空调是一项必要的设备，为了保证其良好的运行状态和延长使用寿命，定期维护和保养是不可或缺的。

通过填写和记录空调保养运行记录表，可以帮助我们准确了解空调的运行情况，及时发现问题并解决，保证室内环境的舒适度。

2. 基本信息3. 保养记录3.1 维护日期：YYYY-MM-DD- 维护单位：XXX维修公司- 维护人员：XXX工程师- 维护内容：- 清洁空调的滤网，并更换损坏的滤网。

- 检查空调的电线是否老化，如有老化现象，及时更换。

- 检查空调的管路有无漏水的现象，如有漏水，进行修复。

- 清洁空调外壳和散热器，并清除堵塞物。

- 维护情况：- 滤网清洁良好，并更换了损坏的滤网。

- 电线未发现老化现象，无需更换。

- 管路未发现漏水现象。

- 清洁了空调的外壳和散热器，无堵塞物。

3.2 维护日期：YYYY-MM-DD- 维护单位：XXX维修公司- 维护人员：XXX工程师- 维护内容：- 清洁空调的滤网，并更换损坏的滤网。

- 检查空调的电线是否老化，如有老化现象，及时更换。

- 检查空调的管路有无漏水的现象，如有漏水，进行修复。

- 清洁空调外壳和散热器，并清除堵塞物。

- 维护情况：- 滤网清洁良好，并更换了损坏的滤网。

- 电线未发现老化现象，无需更换。

- 管路未发现漏水现象。

- 清洁了空调的外壳和散热器，无堵塞物。

4. 问题记录4.1 维护日期：YYYY-MM-DD- 维护单位：XXX维修公司- 维护人员：XXX工程师- 问题描述：空调制冷效果变差，制冷速度变慢。

- 处理方法：清洗空调内部的冷凝器和蒸发器，并添加制冷剂。

- 处理结果：制冷效果恢复正常，制冷速度加快。

4.2 维护日期：YYYY-MM-DD- 维护单位：XXX维修公司- 维护人员：XXX工程师- 问题描述：空调制热效果变差，制热速度变慢。

- 处理方法：清洗空调内部的换热器和空气过滤器，并检查加热元件。

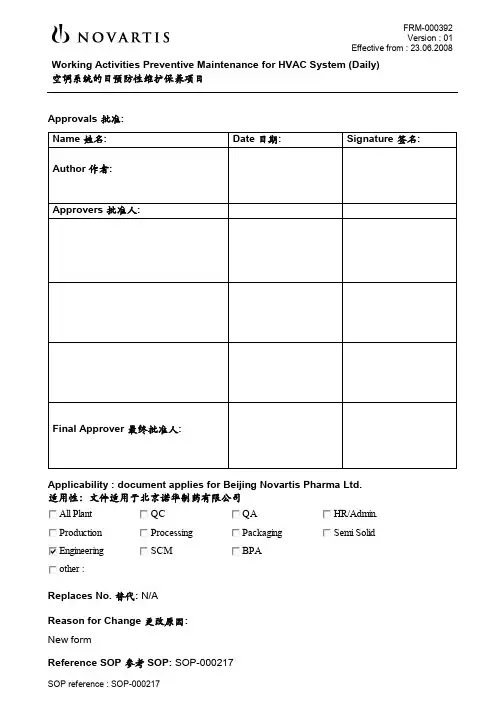

FRM-000392 Version : 01Effective from : 23.06.2008SOP reference : SOP-000217Working Activities Preventive Maintenance for HVAC System (Daily)空调系统的日预防性维护保养项目Approvals 批准: Name 姓名: Date 日期: Signature 签名:Author 作者:Approvers 批准人:Final Approver 最终批准人:Applicability : document applies for Beijing Novartis Pharma Ltd. 适用性：文件适用于北京诺华制药有限公司All Plant QC QA HR/Admin. Production Processing Packaging Semi SolidEngineering SCMBPAother :Replaces No. 替代: N/A Reason for Change 更改原因: New formReference SOP 参考SOP: SOP-000217SOP reference : SOP-000217 Page:1/1空调系统的日预防性维护保养项目 ItemContent 内容Acceptance Criteria接受标准Performed by执行人000 Normally check 常规检查010 Daily record of temperature, relative humidity, pressure drop of filters and fans, room pressure difference; 日记录温度,相对湿度,压差Reference: FRM-000222, FRM-000346 完成表格: FRM-000222, FRM-000346Morning and Evening Shift 大夜, 小夜011 Check if leakage from hot water and chilled water; 检查热水,冷冻水是否漏水No leakage 无泄漏 Day Shift 白班 012Check temperature of hot water and chilled water; 检查热水,冷冻水的温度The temperature of supply hot water is 60℃.The temperature of supply chilled water is 7℃. 热水温度为60℃,冷冻水温度为7℃Day Shift 白班 013 Check if abnormal noise from equipment; 检查所有设备是否有杂音There is no abnormal noise from equipment,check the supply air fan, return air fan. pump.检查送风机,回风机,水泵，没有异常声音. Morning and Evening Shift大夜, 小夜各一次014 Check status of each equipment; 检查所有设备运行状态Running 运行正常 Morning and Evening Shift 大夜, 小夜各一次 020 Check the four chillers on the roof 检查屋顶的4台制冷机021 Check the compressor, hear the noise. 检查压缩机,听声音 There is no abnormal noise from compressor 无奇怪声音 Day Shift 白班 022 Check the Fan 检查风扇Running 全部运行Day Shift 白班 023 Check the Condenser 检查冷凝器Clean, otherwise Clean them using dust collector on Thursday干净,否则安排星期四小夜清洁，使用吸尘器。

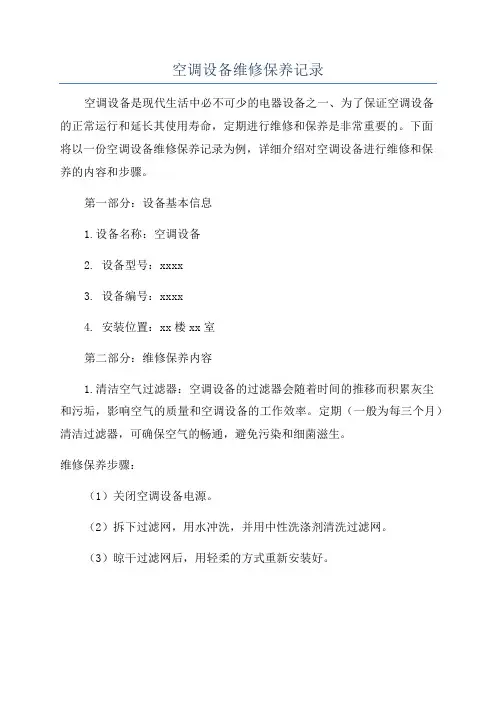

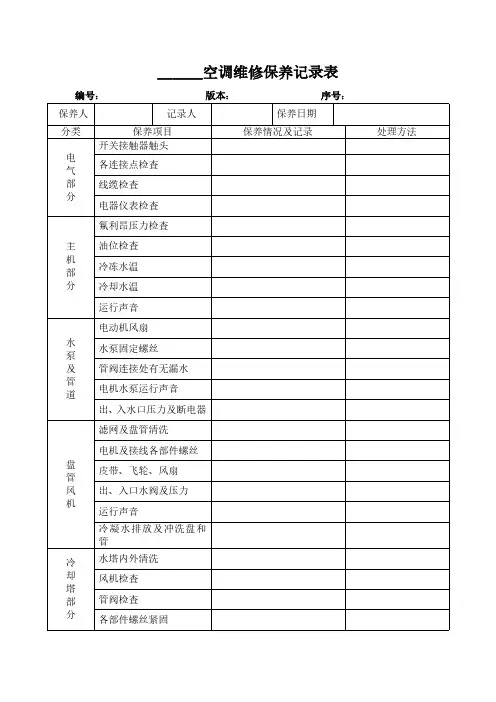

空调设备维修保养记录空调设备是现代生活中必不可少的电器设备之一、为了保证空调设备的正常运行和延长其使用寿命，定期进行维修和保养是非常重要的。
