可编辑修改精选全文完整版壁挂炉完整维修以及售后步骤目前在集中使用壁挂炉的小区会发现墙上、电线杆上贴了不少维修壁挂炉的小广告。
试着打了几个广告上的电话,对方有的是家电维修部,有的号称是能修各种家电的工人,资质实在难以让人信服。
壁挂炉维修并没有统一的价格标准,一旦出现纠纷,消费者也难于保护自身权益,因此,前锋壁挂炉总结出最靠谱的方法,还是找原品牌的售后服务。
前锋总结壁挂炉维护的四大步骤第一:信任官网,不要擅自拨打不明维修电话许多消费者家的壁挂炉都是入户时的配套设施,或者年头太长,不少人都没有留存保修单或者是售后说明书,那怎么找官方客服呢?您可以登录品牌官网,拨打官网上的全国服务热线电话查询当地维修点的电话或直接报修。
此外,中国家用电器服务维修协会的官方网站上也公布了大部分壁挂炉品牌的官方客服电话,消费者可以查询。
第二:若遇纠纷需留好票据不论是有的消费者联系的非正规维修点,发现他们提供维修报价来看,价格便宜,有的还不收取上门费,这与正牌客服动辄上百的维修费相比起来,确实比较诱人。
但前锋提醒,贪小便宜可能吃大亏。
具体理由:壁挂炉系统是集合了水、电、气和采暖系统的一个复合系统,有较高的技术含量,只有生产厂家最了解自家设备的各项性能。
壁挂炉的服务还牵扯到零配件的问题,非原厂的配件可能会造成设备更大的损坏,导致不必要的损失,而且维修之后的保障也会存在问题。
鉴于此,倘若壁挂炉出现问题,还是尽量选择设备生产厂商比较好。
若品牌客服处不能很好地解决问题,投诉热线建议消费者将每次维修时工人所开具的盖有维修单位公章的维修单(上面一般记录故障原因以及相关维修保修承诺的证明以及收费票据留存好,以备维权使用。
第三:更换新机不如找好售后不少业主家因为维修费用高昂准备直接更换新机,但费用太贵,前锋并不建议大家太过频繁更换壁挂炉。
至于家中原有的管道和散热器,如果比较完好可继续使用。
前锋建议,壁挂炉涉及到燃气以及电路方面的施工,更换、安装时一定要让厂家专业安装人员到家中考察安装条件,并且由专业人员进行安装。
万家乐壁挂炉11l使用说明书1.产品概述万家乐壁挂炉11l是一款高效、环保的暖气设备，其结构紧凑，重量轻，便于安装和维护。
该产品采用燃气（天然气/液化气）作为燃料，具有节能、安全、舒适等优点。
2.安装方法(1)准备安装工具，包括螺丝刀、电钻、锤子、水平仪等。
(2)确定壁挂炉的安装位置，应该选择通风良好、空气流通的地方，不要在阴暗潮湿的地方安装。
(3)在安装位置上打入钩子和膨胀螺丝，并用水平仪检测是否水平。
(4)将壁挂炉放在安装位置上，固定。
(5)连接燃气管，然后连接排烟管，确保排烟畅通。
(6)接通电源，调试好温度和燃气流量即可。
3.使用操作(1)开机前：首先检查燃气管道是否连接牢固，排烟是否畅通。
(2)开机方式：按下开机按钮，启动点火器，然后调节温度和燃气流量。
(3)温度调节：通过旋钮调节温度，温度范围在20-60度之间。
(4)使用时注意事项：①不要在壁挂炉旁边放置易燃或易爆物品。
②使用壁挂炉时不要长时间离开，以免出现安全事故。
③定期清洁壁挂炉和排烟管道。
(5)关机方式：按下关机按钮，关闭气源。
4.维护保养(1)定期清洁：定期清理壁挂炉和排烟管道，保持排烟畅通。
(2)保养防护：对壁挂炉表面进行防腐处理，防止生锈。
(3)及时修理：出现故障必须及时联系厂家或售后服务进行维修。
(4)注意安全：不要私自进行拆卸或维修，以免出现安全事故。
5.总结万家乐壁挂炉11l具有安全、高效、环保等优点，采用现代化技术生产，非常适合现代家庭的使用。
在安装和使用过程中，务必遵照说明书进行操作，保证使用安全、正常。

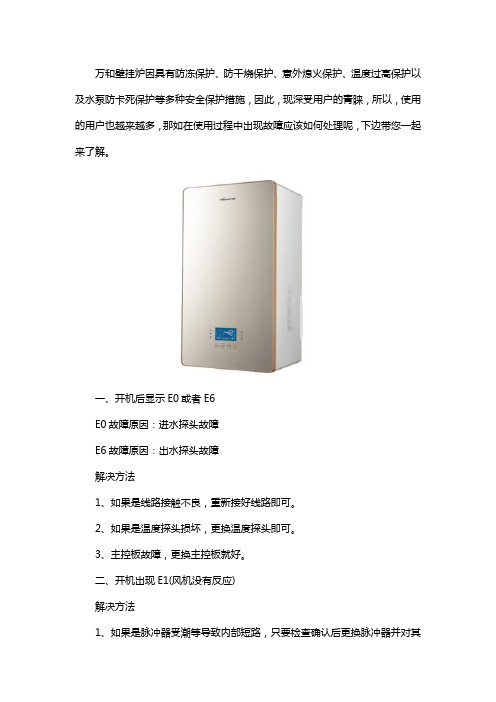

万和壁挂炉因具有防冻保护、防干烧保护、意外熄火保护、温度过高保护以及水泵防卡死保护等多种安全保护措施，因此，现深受用户的青睐，所以，使用的用户也越来越多，那如在使用过程中出现故障应该如何处理呢，下边带您一起来了解。
一、开机后显示E0或者E6E0故障原因：进水探头故障E6故障原因：出水探头故障解决方法1、如果是线路接触不良，重新接好线路即可。
2、如果是温度探头损坏，更换温度探头即可。
3、主控板故障，更换主控板就好。
二、开机出现E1(风机没有反应)解决方法1、如果是脉冲器受潮等导致内部短路，只要检查确认后更换脉冲器并对其作防水等处理。
2、如果是主控板反馈电路故障，使用二极管反馈信号模拟确认后，重新布置点火线及点火距离，之后更换主控板。
3、反馈针表面有异物出现单向导电特性，在检查确认后，清洁反馈针，前移反馈针安装位置三、点火过程时出现E1解决方法1、如果是反馈针受潮等原因绝缘性能下降，反馈针或线路对地，找出故障点后对其进行调整或更换。
比如更换塑料座反馈针并前移安装位置。
2、如果是脉冲器故障的话，更换脉冲器。
3、点火距离不正确，或者不见破损导致串火，只要查出故障点后进行调整和更换就可以。
4、假如是因为没有燃气，可能是电磁阀故障、气源没有打开、温控器或者水箱温度高温保护熔断器损坏等原因，只要更换对应部件即可。
5、主控板故障，使用二极管反馈信号模拟确认后，重新布置点火线及点火距离，之后更换主控板。
6、长时间不用管道内燃气不纯不能快速的点火，只需要用户多次重复的开关，把管道内不纯的燃气排掉即可。
四、工作过程中出现E1解决方法1、一般是因为没有火焰，比如燃气不足，烟气回流，进风不够，烟管排气不畅等原因，找出问题点解决。
2、如果是工作时冷凝水滴到反馈针导致反馈信号短路，只要排除冷凝水产生的故障后，更换反馈针并且改动安装位置。
以上就是万和壁挂炉故障如何解决的内容介绍，希望对大家在遇到以上故障时有所帮助，同时，如有不清楚的可咨询成就家修，该公司是以提供上门服务为核心业务的到家服务平台，服务内容主要涵盖：家庭维修（水电维修、管道疏通、沙发翻新、家具门窗）、家电维修、家政等众多领域，不仅可为用户提供高品质、便捷、安心的上门生活服务，且收费合理，因此，现深受客户的好评。
中国太阳能热利用产业联盟网坚守变革———万和采暖炉业务团队2015上半年总结会暨集训会圆满结束华扬再次斩获万达合肥项目万达集团作为全球商业地产行业的龙头企业，对相关配套产品品质要求相当严格，合作的品牌必须是全国排在前列，其工程供应商皆需通过严格的资格审核标准。
投标的企业都是经过严格、公开、公平的考察、考核、评估，层层筛选后才可以进入万达集团供应商采购名录。
江苏省华扬太阳能有限公司（以下简称“华扬”）于2015年1月在合肥万达文化旅游城一期住宅太阳能热水器供应及安装工程项目中顺利中标，一举拿下一期4794套阳台壁挂式太阳能热水器的工程项目。
这么大规模的单个项目不仅在万达集团史无前例，在整个太阳能热水器行业与房地产配套项目上来讲也是名列前茅。
此次华扬为何能拿下这么大的工程项目呢？与华扬在万达文化旅游城一期住宅太阳能热水器供应及安装工程项目成功中标不无关系。
主要有两方面的原因：一方面是基于前面的良好合作基础。
从南京、无锡、常州、芜湖等一个个项目，无论是从产品、品质还是售后服务，万达都对华扬产生了绝对的信任。
华扬是一家放心的企业，提供放心的产品，放心的服务，遇到任何问题都及时解决，所以选择华扬，无后顾之忧。
另一方面就是华扬的招标书中商务标和技术标都远远高于其它竞争品牌。
特别是技术标，无论是从方案设计、产品、施工设计、售后服务承诺、太阳能与建筑相结合等都获得了万达集团评审团的最高分。
所以，华扬以绝对优势，毫无悬念的获得了合肥万达文化旅游城一、二期工程的招标项目。
华扬人诚信为先，言出必行，再一次以实力见证了华扬在太阳能热水器“航母”工程项目的传奇！珠海兴业研发大楼“GREEN YES/新叶”封顶又拿奖近日，珠海兴业金鼎园区研发大楼“GREEN YES/新叶”全面封顶。
本研发楼于2014年1月开始动工，目前主体框架已完成，在后期的建设中将充分融入前沿绿色建筑理念。
“Green Yes ”研发大楼建成后，珠海金鼎园区可尽收眼底。
万和壁挂炉nb4l功能说明万和壁挂炉NB4L是一款高效、节能的壁挂式燃气锅炉，具有多种功能和特点。
下面将对其功能进行详细说明。
一、外观与结构特点1. 外观：万和壁挂炉NB4L采用简约而时尚的设计，外观美观大方，适合各种家居装修风格。
2. 结构：该壁挂炉采用紧凑的结构设计，占地面积小，安装方便，适用于各种户型。
二、高效能与节能特点1. 高效能：NB4L采用先进的燃烧技术和优化的传热结构，有效提高了能量利用率，使得供暖效果更好。
2. 节能：该壁挂炉具备智能控制系统，在供暖过程中可以根据室内温度自动调整供暖功率，避免能源浪费。
三、智能控制与操作便捷特点1. 智能控制：NB4L配备了智能温控系统，可以通过手机APP远程控制壁挂炉的开关、温度调节等功能。
2. 操作便捷：该壁挂炉采用触摸屏设计，操作简单直观，用户可以轻松设置温度、定时开关机等功能。
四、安全保护与故障自诊断特点1. 安全保护：NB4L具备多种安全保护措施，如过热保护、漏电保护等，确保使用过程中的安全性。
2. 故障自诊断：壁挂炉配备了智能故障自诊断系统，可以及时发现和报告故障，并提供相应的解决方案。
五、多种工作模式与功能特点1. 多种工作模式：NB4L支持多种工作模式选择，如供暖模式、热水模式等，满足不同使用需求。
2. 多种功能：该壁挂炉具备定时开关机功能、室温设定功能、恒温控制功能等，提供更加个性化的使用体验。
六、环保与低噪音特点1. 环保：NB4L采用低氮燃烧技术，减少了对环境的污染物排放。
2. 低噪音：壁挂炉采用静音设计和优化的降噪措施，工作时噪音低，不会对生活造成干扰。
七、维护与保养特点1. 维护简便：NB4L壁挂炉采用模块化设计，各个部件可以独立拆卸和更换，方便日常维护。
2. 保养提醒：壁挂炉配备了保养提醒功能，可以根据使用时间提醒用户进行定期的清洁和维护。
总结：万和壁挂炉NB4L具有外观美观、高效能、节能环保、智能控制等多种功能特点。
Owner’s ManualNOTE TO INSTALLER:THIS MANUAL MUST BE LEFT WITH THE EQUIPMENT USER.USER: PLEASE READ ALL INSTRUCTIONS IN THE MANUAL AND RETAIN ALL MANUALS FOR FUTURE REFERENCE.Our products are designed, tested and built in accordance with Department of Energy (DOE) standardized procedures; however, actual operating results and efficiencies may vary based on manufacturing and supplier tolerances, equipment configuration,operating conditions and installation practices.A10257D ES I G NC E R TI F I EDREGISTEREDISO 9001:2000Always Ask ForUse of the AHRI Certified TM Mark indicates amanufacturer’s participation in the program. Forverification of certification for individual products,go to .WELCOME TO TODAY’S GENERATIONOF COMFORT Congratulations! Your new, higher efficiency gas furnace is a sound investment which will reward you and your family with years of warm memories winter after winter.Not only is your new furnace energy efficient, it is also extremely reliable. Spend just a few minutes with this booklet to learn about the operation of your new furnace—and the small amount of maintenance it takes to keep it operating at peak efficiency. Years went into the development of your new furnace. Take a little time now to assure its most efficient operation for years to come.TABLE OF CONTENTS WELCOME TO TODAY’S GENERATION OF COMFORT2.. FURNACE COMPONENTS2........................... GENERAL FURNACE SAFETY2....................... IMPORTANT FACTS2................................ SAFETY CONSIDERATIONS3......................... BEFORE STARTING YOUR FURNACE3................. STARTING YOUR FURNACE3......................... Steps for Starting Your Furnace4........................ SHUTTING DOWN YOUR FURNACE5.................. PERFORMING ROUTINE MAINTENANCE5............. Filtering Out Trouble5................................ COMBUSTION AREA AND VENT SYSTEM7............ BEFORE YOU REQUEST A SERVICE CALL8............ REGULAR DEALER MAINTENANCE9................. INSTALLATION DATA9..............................GENERAL FURNACE SAFETYFIRE OR EXPLOSION HAZARD WARNING1............. CARBON MONOXIDE WARNING 1.................... FLOOD DAMAGE WARNING 2........................ COMBUSTIBLE MATERIALS, GASOLINE WARNING3.... FURNACE MUST BE KEPT FREE AND CLEAR OF INSULATING MATERIAL WARNING3.................. PROPER FURNACE SHUTDOWN PROCEDURES5........ SERVICE AND MAINTENANCE ELECTRICAL HAZARD WARNING 5 ........................................ SHARP EDGES CAUTION 5........................... NO FILTER CAUTION 5.............................. FILTER ROD MODIFICATION CAUTION 7.............. IMPROPER VENT WARNING7......................... DIRT, RUST, OR ACCUMULATION CAUTION 7.......... FURNACE NEEDS AIR FOR COMBUSTION AND VENTILATION WARNING 7.......................... DRAFT SAFEGUARD SWITCH CAUTION 8.............FURNACE COMPONENTS (Furnace shown in upflow position; may be used in downflow or horizontal orientation or applications. Vent Elbow may be turned to a different position, depending on type of installation)INDUCER MOTORASSEMBLYPRESSURESWITCHFLUEGASHOT SURFACEIGNITORBLOWERDOOR SAFETYSWITCHFURNACECONTROLBOARDVENTELBOWMAIN LIMIT SWITCH(BEHIND GAS VALVE)BLOCKED VENTSWITCHFLAMESENSORGAS MANIFOLDGAS BURNERBLOWER ANDMOTOR MANUAL RESETLIMIT SWITCHESCAPACITOR/POWER CHOKEA10259 Fig. 1 −80% AFUE Single Stage Furnace ComponentsIMPORTANT FACTS (DO’S AND DON’TS) S DO: READ AND UNDERSTAND THIS MANUAL.S DO: Have your furnace and vent system inspected annually by a qualified service technician.S DO: Inspect your filter monthly and clean or replace when needed.S DO: Provide adequate airflow to the furnace for efficient combustion and safe ventilation.S DO: Keep your furnace free and clear of insulating material. Some materials may be combustible. Examine the furnace area when the furnace is installed or when insulation is added.S DO NOT: Enclose your furnace in an airtight room or seal it behind solid doors.S DO NOT: Keep combustible materials, gasoline, and other flammable liquids or vapors around your furnace.S DO NOT: Cover your furnace in any manner.S DO NOT: Store anything (including trash or debris) near your furnace.S DO NOT: In any way block or restrict airflow around your furnace.S DO NOT: In any way block or restrict airflow to your supply air and return air grills.S DO NOT: Use your furnace room as a broom closet or a place to store any kind of chemical or cleaner.S DO NOT: Contaminate the air used for combustion of your furnace with any kind of chemical or fumes. This could also cause heat exchangers, metal vent systems or components to deteriorate.NOTE : These chemicals or fumes are present in many products around the home, such as: water softener salts, any type of household cleaning product, any type of laundry product,adhesives, paints, varnishes, paint strippers, waxes and plastics, etc.During remodeling be sure the combustion air is fresh and uncontaminated. If these compounds are burned in your furnace,the heat exchangers and metal vent system may deteriorate.NOTE : The qualified installer or agency must use only factory −authorized replacement parts, kits, and accessories when modifying this product.This furnace contains safety devices which must be manually reset.If the furnace is left unattended for an extended period of time,have it checked periodically for proper operation. This precaution will prevent problems associated with no heat, such as frozen water pipes, etc. See “Before You Request a Service Call” section in this manual.SAFETY CONSIDERATIONSInstalling and servicing heating equipment can be hazardous due to gas and electrical components. Only trained and qualifiedpersonnel should install, repair, or service heating equipment.Untrained personnel can perform basic maintenance functions such as cleaning or replacing air filters. All other operations must be performed by trained service personnel. Observe safety precautions in this manual, on tags, and on labels attached to the furnace, and other safety precautions that may apply.Recognize safety information. This is the safety −alert symbol .When you see this symbol on the furnace and in instructions or manuals, be alert to the potential for personal injury.Understand the signal words DANGER, WARNING, and CAUTION. These words are used with the safety −alert symbol.DANGER identifies the most serious hazards which will result in severe personal injury or death. WARNING signifies hazards which could result in personal injury or death. CAUTION is used to identify unsafe practices which would result in minor personal injury or product and property damage. NOTE is used to highlight suggestions which will result in enhanced installation, reliability or operation.BEFORE STARTING YOUR FURNACEExamine the furnace installation to determine that:1.All flue gas carrying areas external to the furnace (i.e.chimney, vent connector) are clear and free of obstructions.2.The vent connector is in place, slopes upward and is physically sound without holes or excessive corrosion.3.The return −air duct connection(s) is physically sound, is sealed to the furnace casing, and terminates outside the space containing the furnace.4.The physical support of the furnace is sound without sagging cracks, gaps, etc. around the base.5.There are no obvious signs of deterioration of the furnace.STARTING YOUR FURNACEYour furnace uses an automatic, hot surface ignition system to light the burners each time the thermostat signals the furnace to start.Follow these important safeguards:S Never attempt to manually light the burners with a matchor other source of flame.A92319Fig. 2 − Do Not Light Burner with MatchSRead and follow the operating instructions on inside of main furnace door, especially the item that reads as follows:“Wait 5 minutes to clear out any gas. Then smell for gas,including near the floor. If you smell gas, STOP!Follow “B” in the safety information above on thisfurnace label. If you don’t smell gas, go to the next step.”SIf a suspected malfunction occurs with your gas control system, such as the burners do not light when they should, refer to the shutdown procedures on inside of main furnace door, or in the “Shutting Down YourFurnace” section and call your dealer as soon as possible.SShould the gas supply fail to shut off or if overheating occurs, shut off the gas valve to the furnace before shut-ting off electrical supply.SCHECK AIR FILTER: Before attempting to start your furnace, be sure the furnace filter is clean and in place.See “Performing Routine Maintenance” section in this manual. Do not run the furnace without a filter in place.Then proceed as follows:STEPS FOR STARTING YOUR FURNACE 1.Set your room thermostat to the lowest temperature setting.See Fig. 3.A08175 Fig. 3 −Lowest Temperature Setting2.Close the external manual gas valve. See Fig. 4.C LOSEA06188Fig. 4 −Close Valve3.Turn OFF electrical supply to the furnace. See Fig. 5.A92185 Fig. 5 −Turn Off Electrical Supply4.Remove the outer door by loosening the thumbscrew andpulling the door forward. See Fig. 6.Fig. 6 −Remove Furnace Door5.Turn the control switch on the gas control to the OFF positionand wait 5 minutes. See Fig. 7. Then smell for gas, including near the floor. If you smell gas, STOP! Follow “B” on furnace6.After waiting 5 minutes, if you still smell gas, STOP! Followthe safety information on the cover of this manual. If you do not smell gas, go to the next step.A02267 Fig. 8 −Control Switch to ON8.Replace the outer door and tighten the thumbscrew. See Fig.9.A10303 Fig. 9 −Furnace Door Replaced9.Turn ON the electrical supply to the furnace. See Fig. 10.A92359 Fig. 10 −Turn On Electrical Supply10.Open the external manual gas valve. See Fig. 11.O PENA06189Fig. 11 −Open Valve11.Set the room thermostat to a temperature slightly above theroom temperature. This will automatically signal the furnaceto start. The inducer motor will start and the hot surface igniterwill energize. When hot, the igniter will have an orange glow.12.After about 17 seconds, the gas valve permits gas to flow to themain burners where it is ignited. Hot flames begin to warmthe furnace’s heat exchanger. After a time delay of approxim-ately 25−45 seconds the furnace blower is switched on. NOTE: If the main burners fail to ignite, the furnace control system will go through three more ignition cycles. Then if burners fail to ignite, the system will lockout. If lockout occurs or the blower does not come on, shut down your furnace and call your dealer for service.13.Set your thermostat to the temperature that satisfies yourcomfort requirements. SUGGESTION: Setting thethermostat back a few degrees—and compensating for thedifference with warmer clothing—can make a big differencein your fuel consumption on extremely cold days. The fewdegrees at the top of your thermostat “comfort level” are themost costly degrees to obtain.When the room temperature drops below the temperature selected on the thermostat, the furnace will switch on automatically. When the room temperature reaches the setting selected on the thermostat, the furnace will be automatically switched off.Continuous Fan Operation−Some thermostats have a “FAN”switch with 2 selections: AUTO and ON. When thermostat is set on AUTO, the furnace blower cycles on and off, controlled by the thermostat. In ON position, the furnace blower runs continuously except for a 42−62 sec delay at the “call for heat.” Continuous fan keeps the temperature level in your home more evenly balanced. It also continuously filters the indoor air.On all but the PG8MAA or PG8JAA, the continuous fan blower speed can be increased or decreased if desired due to change of seasons, large gatherings in your home, etc. Simply change your “FAN” switch from “on” to “off” (or “auto” depending on your thermostat), and then return to “on”, within 1 to 3 seconds. The blower will switch to the next highest speed. There are at least 3 speeds to choose from. If the blower is running on its highest speed, a request to change will direct the blower to return to its lowest speed.SHUTTING DOWN YOUR FURNACE Should you ever suspect a malfunction in your furnace, you will need to turn the furnace off. The following procedures must be followed:1.Set your room thermostat to the lowest temperature setting.(See Fig. 3.)2.Close the external manual gas valve (See Fig. 4).3.Turn off electrical supply to the furnace. (See Fig. 5.)4.Remove outer furnace door. (See Fig. 6.)5.Turn the switch on the gas control to the OFF position. (SeeFig. 7.)6.Replace the outer furnace door. (See Fig. 9.)7.If the furnace is being shut down because of a malfunction, callyour dealer as soon as possible. PERFORMING ROUTINE MAINTENANCE With proper maintenance and care, your furnace will operate economically and dependably. Instructions for basic maintenance are found on this and the following pages. However, before beginning maintenance, follow these safety precautions:FILTERING OUT TROUBLEA dirty filter will cause excessive stress on the furnace, heat exchanger, and blower motor and can cause it to overheat and automatically shut down. The furnace filter should be checked every 4 weeks and cleaned or replaced if necessary.If installed with factory specified disposable media filter, check or replace filter before each heating and cooling season. Replace disposable media filter at least twice a year.If your furnace filter needs replacing, be sure to use the same size and type of filter that was originally specified.The air filter for the furnace may be located in a filter cabinet/rack attached to the side or bottom of the furnace. If air filter has been installed in another location, contact your dealer for instructions. To inspect, clean and/or replace the air filter(s), follow these steps: 1.Turn off the electrical supply to the furnace. See Fig. 12.A92185 Fig. 12 −Turn Off Electrical Supply2.Remove filter cabinet door/rack.3.Remove filter cabinet door (See Fig. 13 and 14.)NOTE: It may be necessary to remove 1 thumbscrew.Representative drawing only, some model may vary.A06190 Fig. 13 −Removing Side Filter Cabinet DoorRepresentative drawing only, some model may vary.A06191 Fig. 14 −Removing Bottom Filter Cabinet Door4.Slide air filter out of filter cabinet. Keep dirty side up (ifdirty) to avoid spilling dirt. (See Fig. 15 and 16.)Representative drawing only, some model may vary.A00227 Fig. 15 −Slide Side Filter Out of FurnaceRepresentative drawing only, some model may vary.A00228 Fig. 16 −Slide Bottom Filter Out of Furnace5.Inspect the filter. If torn, replace it.NOTE: If a washable filter has been replaced with:a.Factory specified disposable media filter — Do notclean. If dirty, replace only with media filter having thesame part number and size. Install with airflow directionarrow pointing towards blower (some models mayvary).b.Electronic Air Cleaner (EAC) — Refer to EACOwner’s Manual for maintenance information (somemodels may vary).6.Wash filter (if dirty) in sink, bathtub, or outside with agarden hose. Always use cold tap water. A mild liquid de-tergent may be used if necessary. Spray water through filterin the opposite direction of airflow. Allow filter to dry.7.Reinstall clean air filter.8.Replace filter cabinet door. (See Fig. 17 and 18.)9.Turn on electrical supply to furnace (See Fig. 10).10.Reinstall clean air filter.11.Replace filter cabinet door.12.Turn on electrical supply to furnace (See Fig. 10). NOTE: If side return ducts are used, two (2) filters may be required in some models. The procedure listed above may be usedto remove side filters.Representative drawing only, some model may vary.A06192 Fig. 17 −Replace Side Filter Cabinet DoorRepresentative drawing only, some model may vary.A06193Fig. 18 − Replace Bottom Filter Cabinet DoorNOTE : If side return ducts are used, 2 filters may be required in some models. The procedure listed above may be used to remove side filters.Filters may be field modified by cutting filter material and support rods three (3) in filters. Alternate sizes and additional filters may be ordered from your dealer.**Some furnaces may have 2 filtersCOMBUSTION AREA AND VENT SYSTEMInspect the combustion area and vent system before each heating season. An accumulation of dirt, soot, or rust can mean a loss of efficiency and improper performance. Buildups on the main burners can cause faulty firing. This “delayed ignition” is characterized by an alarmingly loud sound.NOTE : If your furnace makes a loud noise when the main burners are ignited, shut down the furnace and call your servicing dealer.Use your flashlight and follow these steps for inspecting the combustion area and vent system of your furnace:1.Turn off electrical supply to the furnace and remove the access door. (See Fig. 5 and 6.)2.Carefully inspect the gas burner for dirt, rust, or scale.Inspect the elbow, flue connection area, and the vent pipe for rust.A92330Fig. 19 − Burner Flame3.Inspect the vent pipe for a sag, holes, or a disconnection. A horizontal vent pipe must slope upward away from furnace.If rusty joints or seams, or signs of water leakages are found, call your dealer for service.4.Restore electrical power to the furnace. (See Fig. 10.)5.Start the furnace and observe its operation. If possible, watch the burner flames. Are they burning bright blue? If not or if you suspect some other malfunction, call your servicing dealer.6.Replace the access door. (See Fig. 9.)BEFORE YOU REQUEST A“SERVICE CALL”Before you call for service, check for several easily solved problems:S Check for sufficient airflow. Check the air filter for dirt. Check for blocked return−air or supply−air grilles. Be sure they are open and unobstructed. If this isn’t the cause of the problem, call your servicing dealer. If your furnace isn’t operating at all, check the following list for easily solved problems:S Is your thermostat set above room temperature? Is the HEAT mode selected?S Is the electrical power supply switch on? Is the blower access door firmly in place? Are any fuses blown? (There is a fuse on the furnace control.) Has a circuit breaker tripped?S Is the manual shut−off valve in the gas supply pipe leading to the furnace open? Does the lever point in the same direction that the pipe runs (open)? Or is it at a right angle to the pipe (closed)? NOTE: Before proceeding with the next checks, turn off the electrical power supply to the furnace. Remove access door.S Is the switch on the gas valve turned to the ON position? If this or the preceding check shows an interruption in the gas supply, make sure the gas has not been shut off for safety reasons. If nothing else seems to be wrong, follow the start−up procedures found on pages 4 and 5 of this booklet.S Check the manual reset limit switches located on the ends of the burner enclosure (see Fig. 1 and 2). If the furnace has experienced a high−temperature condition due to inadequate combustion air, these switches will shut off the furnace. Reset the switches by pushing the button on the switch. If the switch trips a second time, turn off the furnace and call for service.S If your furnace still fails to operate, call your servicing dealer for troubleshooting and repairs. Tell your dealer the model and serial numbers for your furnace. (You should have them recorded on page 9 of this booklet.) By knowing exactly which furnace you have, the dealer may be able to offer suggestions over the phone or save valuable time through knowledgeable preparation for the service call.In addition to the type of routine maintenance you might be willing to perform, your furnace should be inspected regularly by a properly trained service technician. You should work with your dealer or service technician to assure your inspection includes the following at a minimum.MAINTENANCE CHECKLISTThis list may not include all maintenance items, and inspection interval times may vary depending on operational conditions of the furnace. Ask your servicing dealer for further details about an economical service contract that covers seasonal inspections.NOTE TO EQUIPMENT OWNER:For your convenience, please record the model and serial numbers of your new equipment in the spaces provided. This information, along with the installation data and dealer contact information will be helpful should your system require maintenance or service.FURNACEModel # _____________________________________ Serial # ______________________________________ AIR CONDITIONER OR HEAT PUMPModel # _____________________________________ Serial # _____________________________________ INDOOR COIL (Furnace Coil or Fan Coil)Model # _____________________________________ Serial # _____________________________________INSTALLATION INFORMATION:Date Installed ________________________________ DEALERSHIP CONTACT INFORMATION: Company Name_______________________________ Address______________________________________ _____________________________________________ Phone Number _______________________________ Technician Name _____________________________ _____________________________________________ _____________________________________________NOTE TO INSTALLER:This manual must be left with the equipment owner.E2018 Payne Heating & Cooling Systems D 7310 W. Morris St. D Indianapolis, IN 46231 Printed in U.S.A. Edition Date: 05/18 Manufacturer reserves the right to change, at any time, specifications and designs without notice and without obligations.Catalog No: OG-PG8M-07 Replaces: OG-PG8M-06TO OBTAIN INFORMATION ON PARTS: Consult your installing dealer or classified section of your local telephone directory under the “Heating Equipment” or “Air Conditioning Contractors & Systems” heading for dealer listing by brand name.Have available the Model No., Series Letter, & Serial No. of your equipment to ensure correct replacement part.。
万家乐壁挂炉11l使用说明书随着现代生活水平的不断提升，高效、节能的家电产品得到了越来越多人的青睐，万家乐壁挂炉11l便是其中之一。
1. 产品简介万家乐壁挂炉11l是一款超薄壁挂炉，适用于家庭和商业场所的供暖和热水。
其超薄外观设计，让它在安装后不影响美观，占据空间少，便于布局。
而且，它还采用了国家级高效节能标准，能够有效降低使用成本，减少对环境的影响。
此外，该产品还拥有智能化控制系统，可根据室内温度的变化进行自动调节，使室内温度始终保持舒适。
2. 安装使用在使用万家乐壁挂炉11l之前，我们需要进行简单的安装步骤。
首先，要选择合适的位置，确保安装处具备良好的通风条件和水电供应，并保证安装地面平整、牢固。
其次，插上电源，并连接好燃气管道和水管道。
最后，打开水龙头通水，排除管道内空气，点火开机，即可使用。
但在使用过程中，需要注意以下事项。
首先，不得在燃烧室中堆积易燃物，以免引起火灾。
其次，在使用过程中，要避免将壁挂炉12l遮挡，以免影响燃烧和散热效果。
最后，在拆卸和清洗时，要先切断燃气供应和电源，并等待十分钟以上，保证内部燃气排放完全。
同时，使用时应保持壁挂炉12l通风良好，不要将通风口和烟道堵塞，选择专业维修人员进行保养和检修。
3. 使用效果万家乐壁挂炉11l能够以极高的效率，将燃气转化为热能，使供暖和热水成本大大降低，同时也减少了对环境的不良影响。
此外，智能化控制系统能够智能调节室内温度，让您在家中始终保持舒适。
使用体验方面，万家乐壁挂炉11l具有触摸式面板，使用方便，而且还采用了静音技术，在保持室内安静的同时，也让使用更加舒适。
总的来说，万家乐壁挂炉11l作为一款高效、节能、智能的家电产品，在现代家庭和商业场所中得到了广泛的应用。
通过正确的安装和使用方法，可以让它发挥最佳效果，为我们的生活带来更多的便利和舒适。
