Hp交换机操作手册中文版

The N3200 switch series offers power-efficient and resilient 1GbEand 1/2.5/5/10GbE Multigigabit range of switching solution for advanced Layer 3 distribution for offices and campus networks. The series has high-performance capabilities and wire-speed performance utilizing a non-blocking architecture to easily handle unexpected traffic loads. Use dual internal hot-swappable 80PLUS Platinum certified power supplies for high availability and power efficiency. The switches offer simple management and scalability via an 400Gbps (full duplex) high-availability stacking architecture that allows management of up to 12 switches from a single IP address.Modernize campus network architecturesModernize campus network architectures with a power-efficientand resilient 1/2.5/5/10GbE switching solution with dense optionsof 802.3at (30W) or 802.3bt (60W/90W) PoE solutions to deliver clean power to wide range network devices such as wireless access points (APs), Voice-over-IP (VoIP) handsets, video conferencing systems, security cameras, LED luminaires and many more.Achieve high availability and full bandwidth utilization with Multichassis Link Aggregation (MLAG). N3200 series switches support MLAG to create active/active loop-free redundancy withoutspanning tree. Server rooms can deliver reliable server and storage connectivity with features to help save time and avoid configuration errors. N3200 supports VRF-lite, allowing it to be partitioned into multiple virtual routers with isolated control and data planes on the same physical switch. For greater interoperability in multivendor networks, N3200 switches offer the latest open-standard protocols. Leverage familiar tools and practicesAll N-Series switches include Dell EMC Networking OS6, designed for easier deployment, greater interoperability and a lower learning curve for network administrators. OS6 common command line interface (CLI) and graphic user interface (GUI) are intuitive, so skilled network administrators can get productive quickly. N3200 switches also support the Open Network Install Environment (ONIE), enabling installation of alternate network operating systems.Deploy with confidence at any scaleN3200 series switches help create performance assurance with a data rate up to 1560Gbps (full duplex) and a forwarding rate up to 2167Mpps. Scale easily with built-in rear stacking ports. Switch stacks of up to 624 1/2.5/5/10GbE/25GbE ports can be managed from a single screen using the highly available stacking architecture for high-density aggregation with seamless redundant availability. The N-series switches’ lifetime warranty covers software upgrades, hardware repair1Hardware, performance and efficiency• 1GbE Switches: 1RU switches with up to 48 line-rate 1GbE ports of copper or fiber, and four integrated 10GbE SFP+ ports. PoEvariants with up to 48 ports of 802.3at (30W) PoE.• Multigig Switches: 1RU switches with up to 48 line-rate 1G/2.5G/ 5G/10GbE copper ports with four integrated 25GbE SFP28 ports.PoE variants with up to 48 ports of 802.3bt (90W) PoE.• 400Gbps stacking bandwidth using two 100GbE QSFP28 integrated rear stacking ports.• Available with dual 80PLUS Platinum certified hot swappable internal power supplies. Optional external power supply to extend PoE budgets on specific models.• Variable speed fan operation helps decrease cooling and power costs.• Energy-Efficient Ethernet and lower power PHYs reduce power to inactive ports and idle links, providing energy savings from the power cord to the port.• Dell EMC Fresh Air compliance for operation in environments up to 113°F (45°C) reduces cooling costs.Deploying, configuring and managing• USB auto-configuration rapidly deploys the switch without complex TFTP configurations or sending technical staff to remote offices.• Management via an intuitive and familiar CLI, embedded web server (GUI), SNMP-based management console application(including Dell EMC OpenManage Network Manager), T elnet orserial connection.• Private VLAN extensions and Private VLAN Edge support.• AAA authorization, TACACS+ accounting and RADIUS support for comprehensive secure access support.• Authentication tiering allows network administrators to tier port authentication methods such as 802.1x, MAC AuthenticationBypass and Captive Portal in priority order so that a single portcan provide flexible access and security.• Achieve high availability and full bandwidth utilization with MLAG and support firmware upgrades without taking the network offline.• Layer 3 Advanced IPv4 and IPv6 functionality including BGP, VRF, BFD, PIM-SM/DM/SSM, IGMP/MLD, RIPv1/v2, OSPFv2/v3 • VXLAN support in hardware only 2DELL EMC POWERSWITCHN3200-ON SERIES SWITCHESHigh performance Open networking 1GbE and 10GbE Multigigabit switches for modern campus networks3 Planned in Roadmap4 Auto-negotiation not supported, using 1G optics require manual configuration and all 4x10G SFP+ or 4x25G SFP28 ports to be set to same speed. 100M speed not supported.5 Auto-negotiation not supported, using 10G cables or optics require manual configuration and all 4x25G SFP28 ports to be set to same speed. 100M/1G speed not supported.Hardware specificationsPhysical2 integrated rear 100GbE QSFP28 stacking ports(except N3208PX-ON)Out-of-band management port(10/100/1000BASE-T)USB (Type A) port for configuration via USB flash driveMicroUSB (Type B) console port (MicroUSB to USB connector cable included)RJ45 console port with RS232 signaling (RJ-45 to female DB-9 connector cable included)Auto-negotiation for speed and flow control Auto-MDI/MDIX, port mirroringFlow-based port mirroring Broadcast storm control Energy-Efficient Ethernet per port settings Redundant variable speed fansAir flow: I/O to power supplyPower supply:Integrated 320W (N3208PX-ON),550W (N3224T-ON, N3224F-ON,N3248TE-ON, N3248X-ON),1050W (N3224P-ON, N3248P-ON),1600W (N3224PX-ON, N3248PXE-ON)Dual firmware images on-boardSwitching engine model: Store and forward ChassisSize (1RU, H x W x D):N3208PX-ON: 1.71 in x 11 in x 12.28 in;All other models: 1.71 in x 17.09 in x 15.75 in(power supply/fan tray handle adds add’l 1.18 in) Approximate weight (Switch with 1 PSU installed):8.44lbs/3.83kg (N3208PX-ON),13.75lbs/6.24kg (N3224T-ON),14.25lbs/6.46kg (N3224F-ON),15.6lbs/7.08kg(N3224P-ON),16lbs/7.26kg (N3224PX-ON,15.4lbs/6.99kg (N3248TE-ON),16.7lbs/7.57kg (N3248P-ON),16.1lbs/7.3kg (N3248X-ON),17.6lbs/7.98kg (N3248PXE-ON)2-post rack mounting kitEnvironmentalPower supply efficiency: 87% or better in all operating modesMax. thermal output (BTU/hr):2821 (N3208PX-ON), 686 (N3224T-ON),764 (N3224F-ON), 3220 (N3224P-ON),9344 (N3224PX-ON), 723 (N3248TE-ON),5719 (N3248P-ON), 1637 (N3248X-ON),18224 (N3248PXE-ON)Power consumption max (watts):900 (N3208PX-ON), 201 (N3224T-ON),224 (N3224F-ON), 944 (N3224P-ON),2740 (N3224PX-ON), 212 (N3248TE-ON),1677 (N3248P-ON), 480 (N3248X-ON),5344 (N3248PXE-ON)Operating temperature: 32° to 113°F (0° to 45°C) Operating relative humidity: 95%Storage temperature: –40° to 158°F(–40° to 70°C)Storage relative humidity: 95%PerformanceCPU memory: 4GBSSD: 8GB (32GB for N3248TE-ON)Packet buffer memory:8MB (4MB for N3208PX-ON and 32MB forN3248X-ON and N3248PXE-ON)Switch fabric capacity (full-duplex):88Gbps (N3208PX-ON),528Gbps (N3224T-ON, N3224F-ON, N3224P-ON), 576Gbps (N3248TE-ON, N3248P-ON),1080Gbps (N3224PX-ON),1560Gbps (N3248X-ON, N3248PXE-ON)Forwarding rate:122Mpps (N3208PX-ON),733Mpps (N3224T-ON, N3224F-ON, N3224P-ON),800Mpps (N3248TE-ON, N3248P-ON),1500Mpps (N3224PX-ON),2167Mpps (N3248X-ON, N3248PXE-ON)Line-rate Layer 2 switching: All (non-blocking)Line-rate Layer 3 routing: All (non-blocking)Network Operating System specificationsSoftware specifications listed below areapplicable for OS6. For detailed specificationsof NOS, please contact your Dell Technologiesrepresentative.Scaling performanceMAC addresses: 32KLink aggregation:128 LAG groups, 144 dynamic ports per stack,8 member ports per LAGPriority queues per port: 8Static routes: 1,024 (IPv4)/1,024 (IPv6)Dynamic routes: 8,158 (IPv4)/4,096 (IPv6)OSPF routing interfaces: 8,158RIP routing interfaces: 512ECMP next hops per route: 16ECMP groups: 1024VLAN routing interfaces: 128VLANs supported: 4,094Protocol-based VLANs: SupportedMulticast forwarding entries:1,536 (IPv4), 512 (IPv6)ARP entries: 6,144NDP entries: 2,560Access control lists (ACL): SupportedMAC and IP-based ACLs: SupportedTime-controlled ACLs: SupportedMax number of ACLs: 100Max ACL rules system-wide: 3,914Max rules per ACL: 1,023Max ACL rules per interface (IPv4):1,023 (ingress), 511 (egress)Max ACL rules per interface (IPv6):1,021 (ingress), 509 (egress)Max VLAN interfaces with ACLs applied: 24IEEE compliance802.1AB LLDPDell Voice VLANDell ISDP802.1D Bridging, Spanning Tree802.1p Ethernet Priority (User Provisioning andMapping)Dell Adjustable WRR and Strict QueueScheduling802.1Q VLAN Tagging, Double VLAN Tagging,GVRP802.1S Multiple Spanning Tree (MSTP)802.1v Protocol-based VLANs802.1W Rapid Spanning Tree (RSTP)Dell RSTP-Per VLANDell Spanning tree optional features: STProot guard, BPDU guard, BPDU filtering802.1X Network Access Control, Auto VLAN802.2 Logical Link Control802.3 10BASE-T802.3ab Gigabit Ethernet (1000BASE-T)802.3ac Frame Extensions for VLANTagging802.3ad Link Aggregation with LACP802.3ae 10 Gigabit Ethernet (10GBASE-X)802.3at PoE (N3224P-ON, N3248P-ON,N3208PX-ON, N3224PX-ON,N3248PXE-ON)802.3bt PoE (N3208PX-ON, N3224PX-ON,N3248PXE-ON)802.3AX LAG Load BalancingDell Multi-Chassis LAG (MLAG)Dell Policy Based Forwarding802.3az Energy Efficient Ethernet (EEE)802.3u Fast Ethernet (100BASE-TX) onmanagement ports802.3x Flow Control802.3z Gigabit Ethernet (1000BASE-X)802.3bz 1G/2.5G/5G/10GANSI LLDP-MED (TIA-1057)Dell EqualLogic iSCSI Auto-configurationMTU 9,216 bytesGeneral Internet protocolsGeneral Internet protocols are supported. For adetailed list, please contact your Dell T echnologiesrepresentative.General IPv4 protocolsGeneral IPv4 protocols are supported. For adetailed list, please contact your Dell T echnologiesrepresentative.General IPv6 protocolsGeneral IPv6 protocols are supported. For adetailed list, please contact your Dell T echnologiesrepresentative.Layer 3 functionality1058 RIPv11724 RIPv2 MIB Extension1765 OSPF DB overflow1850 OSPF MIB2082 RIP-2 MD5 Auth2328 OSPFv22338 VRRP2370 OpaqueDell Policy Based Routing2453 RIPv22740 OSPFv32787 VRRP MIB3101 NSSA3137 OSPF Stub Router Advert3623 Graceful Restart3768 VRRP4271 BGP5187 OSPFv3 Graceful Routing RestartMulticast1112 IGMPv12236 IGMPv22365 Admin scoped IP2710 MLDv12932 IPv4 MIB2933 IGMP MIB3810 MLDv23973 PIM-DM4541 IGMP v1/v2/v3 Snooping and Querier5060 PIM MIB5061 PIM MIB3376 IGMPv3Dell Static IP MulticastDraft-ietf-pim-sm-bsr-05Draft-ietf-idmr-dvmrp-v3-10 DVMRPDraft-ietf-magma-igmp-proxy-06.txtIGMP/MLD ProxyingDraft-ietf-magma-igmpv3-and-routing-05.txtdraft-ietf-idmr-dvmrp-mib-11draft-ietf-magma-mgmd-mib-05draft-ietf-pim-bsr-mib-06IEEE 802.1ag draft 8.1 – Connectivity FaultManagement (CFM)IEEE 802.1p GMRP Dynamic L2 MulticastRegistrationDellTechnologies ServicesConsultingDell T echnologies Consulting Services provides industryprofessionals with a wide range of tools and the experience your need to design and execute plans to transform your business. DeploymentAccelerate technology adoption with ProDeploy Enterprise Suite. Trust our experts to lead deployments through planning, configuration and complex integrations.ManagementRegain control of operations with flexible IT management options. Our Residency Services help you adopt and optimize new technologies and our Managed Services allow you to outsource portions of your environment to us.SupportIncrease productivity and reduce downtime with ProSupportEnterprise Suite. Expert support backed by proactive and predictive artificial intelligence cationDell T echnologies Education Services help you develop the IT skills required to lead and execute transformational strategies. Get certified today.Learn more atDellT /ServicesPlan, deploy, manage and support your IT transformation with our top-rated servicesLearn more at DellT /NetworkingQuality of service 2474 DiffServ Field 2475 DiffServ Architecture 2597 Assured Fwd PHB Dell Port Based QoS Services (TCP/UDP) Mode Dell Red/WRED Dell Flow Based QoS Services Dell Audio Video Bridging Mode (IPv4/IPv6)Dell UDLD 2697 srTCM 4115 trTCMNetwork Management and Security Dell L4 Trusted Mode 1155 SMIv11157 SNMPv11212 Concise MIB Definitions 1213 MIB-II 1215 SNMP Traps 1286 Bridge MIB 1442 SMIv21451 Manager-to-Manager MIB 1492 TACACS+1493 Managed objects for Bridges MIB 1573 Evolution of Interfaces 1612 DNS Resolver MIB Extensions 1643 Ethernet-like MIB 1757 RMON MIB 1867 HTML/2.0 Forms with file upload extensions 1901 Community-based SNMPv21907 SNMPv2 MIB 1908 Coexistence between SNMPv1/v22011 IP MIB 2012 TCP MIB 2013 UDP MIB 2068 HTTP/1.12096 IP Forwarding Table MIB 2233 Interfaces Group using SMIv22246 TLS v12271 SNMP Framework MIB 2295 Transport Content Negotiation 2296 Remote Variant Selection 2576 Coexistence between SNMPv1/v2/v32578 SMIv22579 Textual Conventions for SMIv22580 Conformance Statements for SMIv22613 RMON MIB 2618 RADIUS Authentication MIB 2620 RADIUS Accounting MIB 2665 Ethernet-like Interfaces MIB 2666 Identification of Ethernet chipsets 2674 Extended Bridge MIB 2737 ENTITY MIB 2818 HTTP over TLS 2819 RMON MIB (groups 1, 2, 3, 9)2856 Text Conv. For High Capacity Data T ypes 2863 Interfaces MIB 2865 RADIUS 2866 RADIUS Accounting 2868 RADIUS Attributes for Tunnel Prot.2869 RADIUS Extensions3410 Internet Standard Mgmt. Framework3411 SNMP Management Framework 3412 Message Processing and Dispatching 3413 SNMP Applications 3414 User-based security model 3415 View-based control model 3416 SNMPv23417 Transport Mappings 3418 SNMP MIB 3577 RMON MIB 3580 802.1X with RADIUS 3737 Registry of RMON MIB 4086 Randomness Requirements 4113 UDP MIB 4251 SSHv2 Protocol 4252 SSHv2 Authentication 4253 SSHv2 Transport 4254 SSHv2 Connection Protocol 4419 SSHv2 Transport Layer Protocol 4521 LDAP Extensions 4716 SECSH Public Key File Format 5246 TLS v1.26101 SSL 6398 IP Router Alert Dell Enterprise MIB supporting routing featuresdraft-ietfhubmib- etherifmib- v3-00.txt (Obsoletes RFC 2665)Other certificationsN-Series products have the necessary features to support a PCI compliant network topology.Regulatory, environment and other complianceSafety and emissionsAustralia/New Zealand: ACMA RCA Class A Canada: ICES Class A; cUL China: CCC Class A; NAL Europe: CE Class A Japan: VCCI Class AUSA: FCC Class A; NRTL UL; FDA 21 CFR 1040.10 and 1040.11Eurasia Customs Union: EAC Germany: GS mark Product meets EMC and safety standards in many countries inclusive of USA, Canada, EU,Japan, China. For more country-specific regulatory information, and approvals, please see your Dell T echnologies representative.RoHSProduct meets RoHS compliance standards in many countries inclusive of USA, EU, China, and India. For more country-specific RoHS compliance information, please see your Dell T echnologies representative.EU WEEEEU Battery Directive REACH Energy Japan: JEL。

Data sheetProduct overviewHPE OfficeConnect 1850 Switch Series devices are basic smart managed, fixed configuration Gigabit plus 10 GigabitEthernet Layer 2 switches designed for small businesses looking for high performance in an easy-to-administer solution. The series is part of the HPE OfficeConnect portfolio of small business networking products.The series consists of five switch models. Four are Gigabit switches each with 10-Gigabit10GBASE-T uplink ports. One is an 8-port10-Gigabit aggregator switch. Together, youcan build a high-bandwidth network withGigabit edge port switches interconnectedat 10-Gigabit speeds. Non-PoE and PoE+models are also available.The 24-port models include two 10GBASE-Tports; the 48-port models include four10GBASE-T ports and an 8-port modelincludes eight 10GBASE-T ports withtwo dual-personality SFP+ ports. AllHPE OfficeConnect 1850 Switches support flexible installation options including mounting on a wall, under a table, or on a desktop.These Gigabit switches are plug-and-play out of the box, yet network operation can be fine-tuned through features available from a simple web browser-based GUI, if necessary. Customizable features include VLANs,Rapid Spanning Tree, IGMP Snooping, linkaggregation trunking, and DSCP QoS policies. All models include the latest energy-saving capabilities, including Energy Efficient Ethernet (EEE) and idle-port power down. All models include variable speed fans operating only at the speed necessary to maintain operating temperature to reduce excess noise and power consumption by the switch.HPE OfficeConnect 1850 Switch Series includes a limited lifetime warranty.HPE OfficeConnect1850 Switch SeriesKey features• 10-Gigabit 10GBASE-T on all models for high-speed interconnect • Non-PoE and PoE+ 24- and 48-port models• 8-port 10GBASE-T switch with 2 SFP+ dual-personality ports• Intuitive web management interface for easy switch configuration •Limited lifetime warrantyFeatures and benefits Management• Simple web managementAllows for easy management of the switch—even by nontechnical users—through an intuitive web GUI; supports HTTP and HTTP Secure (HTTPS)• SNMPv1, v2cEnables devices to be discovered and monitored from an SNMP management station• Port mirroringEnables traffic on a port to be simultaneously sent to a network analyzer for monitoring• Dual flash imagesProvides independent primary and secondary operating system files for backup while upgrading• Network time protocol (NTP) Synchronizes timekeeping among distributed time servers and clients; keeps timekeeping consistent among all clock-dependent devices within the network• Manual network time configuration Manually set the date and time on the switch in the absence of an NTP server• Default DHCP client modeAllows the switch to be directly connected to a network, enabling plug-and-play operation; in absence of a DHCP serveron the network, the switch falls back to a default, fixed IP address Quality of Service (QoS)• Traffic prioritizationProvides time-sensitive packets (such asVoIP and video) with priority over othertraffic based on DSCP or IEEE 802.1pclassification; packets are mapped toeight hardware queues for more effectivethroughput• Broadcast controlAllows limiting of broadcast traffic rate toreduce unwanted network broadcast traffic• IEEE 802.1p/QDelivers data to devices based on thepriority and type of traffic; supportsIEEE 802.1Q virtual LANs (VLANs)Connectivity• Auto-MDI/MDIXAdjusts for straight-through or crossovercables on all ports automatically• IEEE 802.3X flow controlProvides a flow throttling mechanismpropagated through the network to preventpacket loss at a congested node• Loop protectionIf the switch detects a loop, it disables thesource port from forwarding data packetsoriginating from the switch to avoidbroadcast storms• IEEE 802.3at Power over Ethernet (PoE+)Provides up to 30 W per port, which allowssupport of the latest PoE+ capable devicessuch as IP phones, wireless access points,and security cameras, as well as any IEEE802.3af-compliant end device; lowers thecost of additional electrical cabling andcircuits that would otherwise be necessaryfor IP phone and WLAN deployments• PoE+ port availabilityProvides PoE+ for Ports 1–12 on theHPE 1850 24G 2XGT PoE+ 185W Switch;provides PoE+ for ports 1–24 on theHPE 1850 48G 4XGT PoE+ 370W Switch• Auto PoE power configurationAssigns the required power to a port fora PD device automatically based on LinkLayer Discovery Protocol (LLDP); optionally,the switch permits manual, per port PoEpower configuration, and more• PoE shutdown modeProvides the ability to define the hoursof PoE power being supplied by a groupof switch ports based on a 24-hour day;the scheduler enables the flexibility toselect individual days of a week as well asrecurrence on a weekly basis with a startand end date• Energy Efficient EthernetIs compliant with IEEE 802.3az standardrequirements to save energy during periodsof low data activity• Auto port shutdownSaves power by automatically shutting downpower to inactive ports; power is restored ona port upon link detection• Energy-efficient coolingIncludes variable speed fans operatingonly at the speed necessary to maintainoperating temperature to reduce excessnoise and power consumption by the switch• Energy savings statusProvides an estimated cumulative energysavings due to green Ethernet featuresenabledSecurity• Secure Sockets Layer (SSL)Encrypts all HTTP traffic, allowing secureaccess to the browser-based managementGUI in the switch• Automatic denial-of-service protectionMonitors nine types of malicious attacksand protects the network by blocking theseattacks• Management passwordProvides security so that only authorizedaccess to the web browser interface isallowedPerformance• Half- or full-duplex auto-negotiatingcapability on every portDoubles the throughput of every port• IGMP snoopingImproves network performance throughmulticast filtering, instead of flooding trafficto all portsLayer 2 switching• VLAN support and taggingSupports up to 64 port-based VLANs and dynamic configuration of IEEE 802.1Q VLAN tagging, providing security between workgroups• Jumbo packet supportImproves the performance of large data transfers; supports frame size of up to 9220 bytesResiliency and high availability• IEEE 802.1D Spanning Tree Protocol (STP) and IEEE 802.1W Rapid Spanning Tree Protocol (RSTP)Provides redundant links while preventing network loops• Link aggregationBrings together groups of ports automatically using Link Aggregation Control Protocol (LACP) or, manually, toform an ultra-high-bandwidth connection tothe network backbone; helps prevent trafficbottlenecks; the 8-port model supports4 trunks, the 24-port models support8 trunks, and the 48-port models support16 trunks; the 8- and 24-port switches cansupport up to 4 ports per trunk, the 48-portswitches can support up to 8 ports pertrunkEase of use• Locator LEDAllows users to set the locator LED on aspecific switch to either turn on blink or turnoff; simplifies troubleshooting by making iteasy to locate a particular switch within arack of similar switches• Comprehensive LED display withper-port indicatorsProvides an at-a-glance view of status,activity, speed, and full-duplex operationFlexibility• Flexible installationAllows mounting on a wall, a desktop, orunder a table with supplied hardware• Rack mountableIncludes rack-mounting hardware formounting in a standard 19-inch telco rackWarranty and support• Limited lifetime warrantySee /officeconnect/support forwarranty and support information includedwith your product purchase.HPE OfficeConnect 1850 Switch SeriesSpecificationsHPE OfficeConnect 1850 6XGT and2XGT/SFP+ Switch (JL169A)HPE OfficeConnect 1850 24G2XGT Switch (JL170A)HPE OfficeConnect 1850 48G4XGT Switch (JL171A)I/O ports and slots 6 RJ-45 1/10GBASE-T ports2 dual-personality ports; each port can beused as either an RJ-45 1/10GBASE-T port oran SFP+ fixed 1000/10000 slot24 RJ-45 auto-negotiating 10/100/1000ports (IEEE 802.3 Type 10BASE-T,IEEE 802.3u Type 100BASE-TX,IEEE 802.3ab Type 1000BASE-T);Duplex: 10BASE-T/100BASE-TX: half or full;1000BASE-T: full only2 RJ-45 1/10GBASE-T ports48 RJ-45 auto-negotiating 10/100/1000ports (IEEE 802.3 Type 10BASE-T,IEEE 802.3u Type 100BASE-TX,IEEE 802.3ab Type 1000BASE-T);Duplex: 10BASE-T/100BASE-TX: half or full;1000BASE-T: full only4 RJ-45 1/10GBASE-T portsPhysical characteristicsDimensionsWeight9.96(w) x 10.26(d) x 1.73(h) in.(25.3 x 26.07 x 4.4 cm) (1U height)3.84 lb (1.74 kg)17.42(w) x 9.7(d) x 1.73(h) in.(44.25 x 24.64 x 4.4 cm) (1U height)5.86 lb (2.66 kg)17.42(w) x 9.7(d) x 1.73(h) in.(44.25 x 24.64 x 4.4 cm) (1U height)7.05 lb (3.2 kg)Memory and processor BCM53412 embedded ARM® Cortex-A9 @600 MHz, 128 MB DDR3 SDRAM; Packetbuffer size: 2 MBBCM53346 embedded ARM Cortex-A9 @400 MHz, 128 MB DDR3 SDRAM; Packetbuffer size: 1.5 MBBCM53346 embedded ARM Cortex-A9 @400 MHz, 128 MB DDR3 SDRAM; Packetbuffer size: 3 MBPerformance100 Mb Latency1000 Mb Latency10 Gbps LatencyThroughputSwitching capacityMAC address table size< 7.6 µs (64-byte packets)< 3.6 µs (64-byte packets)< 3.3 µs (64-byte packets)Up to 119 Mpps160 Gbps16000 entries< 9.1 µs (64-byte packets)< 3.7 µs (64-byte packets)< 3.7 µs (64-byte packets)Up to 65 Mpps (64-byte packets)88 Gbps16000 entries< 9.7 µs (64-byte packets)< 3.7 µs (64-byte packets)< 3.7 µs (64-byte packets)Up to 131 Mpps (64-byte packets)176 Gbps16000 entriesReliabilityMTBF (years)64.59979.4EnvironmentOperating temperatureOperating relative humidityNonoperating/StoragetemperatureNonoperating/Storagerelative humidityAltitudeAcousticAirflow direction32°F to 104°F (0°C to 40°C)15% to 95% @ 104°F (40°C), noncondensing-40°F to 158°F (-40°C to 70°C)15% to 95% @ 149°F (65°C), noncondensingUp to 9,842 ft (3 km)Maximum power: 45 dBSide-to-side32°F to 104°F (0°C to 40°C)15% to 95% @ 104°F (40°C), noncondensing-40°F to 158°F (-40°C to 70°C)15% to 95% @ 149°F (65°C), noncondensingUp to 9,842 ft (3 km)Maximum power: 36 dBSide-to-side32°F to 104°F (0°C to 40°C)15% to 95% @ 104°F (40°C), noncondensing-40°F to 158°F (-40°C to 70°C)15% to 95% @ 149°F (65°C), noncondensingUp to 9,842 ft (3 km)Maximum power: 34 dBSide-to-sideHPE OfficeConnect 1850 6XGT and 2XGT/SFP+ Switch (JL169A)HPE OfficeConnect 1850 24G2XGT Switch (JL170A)HPE OfficeConnect 1850 48G4XGT Switch (JL171A)Electrical characteristicsFrequencyVoltageCurrentMaximum power rating Idle powerNotes 50/60 Hz100–127/200–240 VAC, rated.9/.5 A42.8 W19.4 WIdle power is the actual power consumption ofthe device with no ports connected.Maximum power rating and maximum heatdissipation are the worst-case theoreticalmaximum numbers provided for planningthe infrastructure with fully loaded PoE (ifequipped), 100% traffic, all ports plugged in,and all modules populated.50/60 Hz100–120/200–240 VAC,rated (200–240 VAC, max).6/.4 A29.5 W19.1 WIdle power is the actual power consumption ofthe device with no ports connected.Maximum power rating and maximum heatdissipation are the worst-case theoreticalmaximum numbers provided for planningthe infrastructure with fully loaded PoE (ifequipped), 100% traffic, all ports plugged in,and all modules populated.50/60 Hz100–127/200–240 VAC, rated1/.6 A49.3 W30 WIdle power is the actual power consumption ofthe device with no ports connected.Maximum power rating and maximum heatdissipation are the worst-case theoreticalmaximum numbers provided for planningthe infrastructure with fully loaded PoE (ifequipped), 100% traffic, all ports plugged in,and all modules populated.Safety UL 60950-1; IEC 60950-1; EN 60950-1; CAN/CSA-C22.2 No. 60950-1; EN 60825-1UL 60950-1; IEC 60950-1; EN 60950-1; CAN/CSA-C22.2 No. 60950-1; EN 60825-1UL 60950-1; IEC 60950-1; EN 60950-1; CAN/CSA-C22.2 No. 60950-1; EN 60825-1Emissions VCCI Class A; CNS 13438; ICES-003 Issue 5Class A; FCC CFR 47 Part 15, Class A;EN 55032: 2015/CISPR-32VCCI Class A; CNS 13438; ICES-003 Issue 5Class A; FCC CFR 47 Part 15, Class A;EN 55032: 2015/CISPR-32VCCI Class A; CNS 13438; ICES-003 Issue 5Class A; FCC CFR 47 Part 15, Class A;EN 55032: 2015/CISPR-32ImmunityGenericENESDRadiatedEFT/BurstSurgeConductedPower frequency magnetic fieldVoltage dips and interruptions HarmonicsFlicker EN 55024, CISPR 24EN 55024, CISPR 24IEC 61000-4-2IEC 61000-4-3IEC 61000-4-4IEC 61000-4-5IEC 61000-4-6IEC 61000-4-8IEC 61000-4-11EN 61000-3-2, IEC 61000-3-2EN 61000-3-3, IEC 61000-3-3EN 55024, CISPR 24EN 55024, CISPR 24IEC 61000-4-2IEC 61000-4-3IEC 61000-4-4IEC 61000-4-5IEC 61000-4-6IEC 61000-4-8IEC 61000-4-11EN 61000-3-2, IEC 61000-3-2EN 61000-3-3, IEC 61000-3-3EN 55024, CISPR 24EN 55024, CISPR 24IEC 61000-4-2IEC 61000-4-3IEC 61000-4-4IEC 61000-4-5IEC 61000-4-6IEC 61000-4-8IEC 61000-4-11EN 61000-3-2, IEC 61000-3-2EN 61000-3-3, IEC 61000-3-3Management Web browser Web browser Web browserServices Refer to the Hewlett Packard Enterprisewebsite at /networking/servicesfor details on the service-level descriptionsand product numbers. For details aboutservices and response times in your area,please contact your local Hewlett PackardEnterprise sales office.Refer to the Hewlett Packard Enterprisewebsite at /networking/servicesfor details on the service-level descriptionsand product numbers. For details aboutservices and response times in your area,please contact your local Hewlett PackardEnterprise sales office.Refer to the Hewlett Packard Enterprisewebsite at /networking/servicesfor details on the service-level descriptionsand product numbers. For details aboutservices and response times in your area,please contact your local Hewlett PackardEnterprise sales office.HPE OfficeConnect 1850 Switch SeriesSpecifications (continued)HPE OfficeConnect 1850 Switch Series Specifications (continued)HPE OfficeConnect 1850 24G 2XGT PoE+ 185W Switch (JL172A)HPE OfficeConnect 1850 48G 4XGT PoE+ 370W Switch (JL173A)I/O ports and slots12 RJ-45 auto-negotiating 10/100/1000 PoE+ ports(IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX,IEEE 802.3ab Type 1000BASE-T, IEEE 802.3af PoE, IEEE802.3at); Duplex: 10BASE-T/100BASE-TX: half or full;1000BASE-T: full only12 RJ-45 auto-negotiating 10/100/1000 ports (IEEE 802.3Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3abType 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half orfull; 1000BASE-T: full only2 RJ-45 1/10GBASE-T ports 24 RJ-45 auto-negotiating 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3af PoE, IEEE 802.3at); Duplex: 10BASE-T/100BASE-TX: half or full;1000BASE-T: full only24 RJ-45 auto-negotiating 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T)4 RJ-45 1/10GBASE-T portsPhysical characteristicsDimensions Weight 17.42(w) x 9.7(d) x 1.73(h) in. (44.25 x 24.64 x 4.4 cm)(1U height)7.28 lb (3.3 kg)17.42(w) x 12.7(d) x 1.73(h) in. (44.25 x 32.26 x 4.4 cm)(1U height)10.3 lb (4.67 kg)Memory and processor BCM53346 embedded ARM Cortex-A9 @ 400 MHz, 128 MBDDR3 SDRAM; Packet buffer size: 1.5 MB BCM53346 embedded ARM Cortex-A9 @ 400 MHz, 128 MB DDR3 SDRAM; Packet buffer size: 3 MBPerformance100 Mb Latency 1000 Mb Latency10 Gbps Latency Throughput Switching capacity MAC address table size < 8.6 µs (64-byte packets)< 3.6 µs (64-byte packets)< 3.6 µs (64-byte packets)Up to 65 Mpps (64-byte packets)88 Gbps16000 entries< 10 µs (64-byte packets)< 3.8 µs (64-byte packets)< 3.8 µs (64-byte packets)Up to 131 Mpps (64-byte packets)176 Gbps16000 entriesReliabilityMTBF (years)71.457.1 EnvironmentOperating temperatureOperating relative humidity Nonoperating/Storage temperature Nonoperating/Storage relative humidity AltitudeAcousticAirflow direction 32°F to 104°F (0°C to 40°C)15% to 95% @ 104°F (40°C), noncondensing-40°F to 70°F (-40°C to 21.1°C)15% to 95% @ 149°F (65°C), noncondensingUp to 9,842 ft (3 km)Maximum power: 44 dBSide-to-side32°F to 104°F (0°C to 40°C)15% to 95% (40°C), noncondensing-40°F to 158°F (-40°C to 70°C)15% to 95% @ 149°F (65°C), noncondensingUp to 9,842 ft (3 km)Maximum power: 40 dBSide-to-sideHPE OfficeConnect 1850 24G 2XGT PoE+ 185W Switch (JL172A)HPE OfficeConnect 1850 48G 4XGT PoE+ 370W Switch (JL173A)Electrical characteristicsFrequencyVoltageCurrentMaximum power rating Idle powerPoE powerNotes 50/60 Hz100–127/200–240 VAC, rated2.5/1.3 A222.9 W24.4 W185 W PoE+Idle power is the actual power consumption of the device withno ports connected. Maximum power rating and maximum heatdissipation are the worst-case theoretical maximum numbersprovided for planning the infrastructure with fully loaded PoE(if equipped), 100% traffic, all ports plugged in, and all modulespopulated.PoE Power is the power supplied by the internal power supply,it is dependent on the type and quantity of power suppliesand may be supplemented with the use of an External PowerSupply (EPS).50/60 Hz100–127/200–240 VAC, rated5/2.4 A446.4 W46.5 W370 W PoE+Idle power is the actual power consumption of the device withno ports connected. Maximum power rating and maximum heatdissipation are the worst-case theoretical maximum numbersprovided for planning the infrastructure with fully loaded PoE(if equipped), 100% traffic, all ports plugged in, and all modulespopulated.PoE Power is the power supplied by the internal power supply,it is dependent on the type and quantity of power suppliesand may be supplemented with the use of an External PowerSupply (EPS).Safety UL 60950-1; IEC 60950-1; EN 60950-1; CAN/CSA-C22.2No. 60950-1; EN 60825-1UL 60950-1; IEC 60950-1; EN 60950-1; CAN/CSA-C22.2 No. 60950-1; EN 60825-1Emissions VCCI Class A; CNS 13438; ICES-003 Issue 5 Class A;FCC CFR 47 Part 15, Class A; EN 55032: 2015/CISPR-32VCCI Class A; CNS 13438; ICES-003 Issue 5 Class A; FCC CFR 47 Part 15, Class A; EN 55032: 2015/CISPR-32ImmunityGenericENESDRadiatedEFT/BurstSurgeConductedPower frequency magnetic field Voltage dips and interruptions HarmonicsFlicker EN 55024, CISPR 24EN 55024, CISPR 24IEC 61000-4-2IEC 61000-4-3IEC 61000-4-4IEC 61000-4-5IEC 61000-4-6IEC 61000-4-8IEC 61000-4-11EN 61000-3-2, IEC 61000-3-2EN 61000-3-3, IEC 61000-3-3EN 55024, CISPR 24EN 55024, CISPR 24IEC 61000-4-2IEC 61000-4-3IEC 61000-4-4IEC 61000-4-5IEC 61000-4-6IEC 61000-4-8IEC 61000-4-11EN 61000-3-2, IEC 61000-3-2EN 61000-3-3, IEC 61000-3-3Management Web browser Web browserServices Refer to the Hewlett Packard Enterprise website at/networking/services for details on the service-leveldescriptions and product numbers. For details about servicesand response times in your area, please contact your localHewlett Packard Enterprise sales office.Refer to the Hewlett Packard Enterprise website at/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office.HPE OfficeConnect 1850 Switch SeriesSpecifications (continued)Sign up for updatesData sheet© Copyright 2016-2018 Hewlett Packard Enterprise Development LP. The information contained herein is subject to change without notice. The only warranties for Hewlett Packard Enterprise products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. Hewlett Packard Enterprise shall not be liable for technical or editorial errors or omissions contained herein.ARM is a registered trademark of ARM Limited. All other third-party trademark(s) is/are property of their respective owner(s).4AA6-8123ENW, April 2018, Rev. 2Standards and Protocols(Applies to all products in series)Denial of service protection CPU DoS ProtectionGeneral protocolsIEEE 802.1AB-2005 Link Layer Discovery Protocol (LLDP)IEEE 802.1D Spanning Tree Protocol IEEE 802.1p PriorityIEEE 802.3X Flow Control RFC 1534DHCP/BOOTP InteroperationRFC 2030 Simple Network Time Protocol (SNTP) v4IEEE 802.1Q VLANsIEEE 802.1W Rapid Spanning Tree Protocol IEEE 802.3ad Link Aggregation Control Protocol (LACP)HPE OfficeConnect 1850 Switch Series accessoriesHPE OfficeConnect 1850 6XGT and 2XGT/SFP+ Switch (JL169A)Aruba 1G SFP LC SX 500m OM2 MMF Transceiver (J4858D)Aruba 1G SFP LC LX 10km SMF Transceiver (J4859D)Aruba 10G SFP+ LC SR 300m OM3 MMF Transceiver (J9150D)Aruba 10G SFP+ LC LR 10km SMF Transceiver (J9151D)Aruba 10G SFP+ LC LRM 220m OM2 MMF Transceiver (J9152D)Aruba 10G SFP+ to SFP+ 1m Direct Attach Copper Cable (J9281D)Aruba 10G SFP+ to SFP+ 3m Direct Attach Copper Cable (J9283D)Aruba 10G SFP+ to SFP+ 7m Direct Attach Copper Cable (J9285D)HPE OfficeConnect 1850 24G 2XGT Switch (JL170A)HPE X410 1U Universal 4-post Rack Mounting Kit (J9583A)HPE OfficeConnect 1850 48G 4XGT Switch (JL171A)HPE X410 1U Universal 4-post Rack Mounting Kit (J9583A)HPE OfficeConnect 1850 24G 2XGT PoE+ 185W Switch (JL172A)HPE X410 1U Universal 4-post Rack Mounting Kit (J9583A)HPE OfficeConnect 1850 48G 4XGT PoE+ 370W Switch (JL173A)HPE X410 1U Universal 4-post Rack Mounting Kit (J9583A)Learn more at/networking。

HP ProLiantBL p-Class C-GbE2Interconnect Kit Quick Setup Instructions Read instructions completely before beginninginstallation procedure.© 2003 Hewlett-Packard Development Company, L.P.Hewlett-Packard Company shall not be liable for technical or editorial errors or omissions contained herein. The information in this document is provided “as is” without warranty of any kind and is subject to change without notice. The warranties for HP products are set forth in the express limited warranty statements accompanying such products. Nothing herein should be construed as constituting an additional warranty.HP ProLiant BL p-Class C-GbE2 Interconnect Kit Quick Setup InstructionsFirst Edition (June 2003)Part Number 338797-021338797-021OverviewThe HP ProLiant p-Class C-GbE2 Interconnect Kit contains twoProLiant BL p-Class GbE2 Interconnect Switches and twoProLiant BL p-Class QuadT2 Interconnect Modules. This cardcontains information on how to set up the contents of the kit foryour use.For complete details on installing and configuring the GbE2Interconnect Switch, refer to the HP ProLiant BL p-Class GbE2Interconnect Switch User Guide located on the ProLiant BLp-Class GbE2 Interconnect Switch Management Utilities and UserDocumentation CD included in this kit.Kit Contents• Two ProLiant BL p-Class GbE2 Interconnect Switches• Two ProLiant BL p-Class QuadT2 Interconnect Modules• ProLiant BL p-Class GbE2 Interconnect Switch ManagementUtilities and User Documentation CD• This installation card• Limited Warranty and Material Limitations DocumentationRegulatory NoticeThis is a Class A digital device, pursuant to Part 15 of theFCC Rules. For complete details, refer to the HP ProLiant BLp-Class GbE2 Interconnect Switch User Guide located on the userdocumentation CD.WARNING:• Installation of this GbE2 Interconnect Switch should beperformed by individuals who are both qualified in theservicing of computer equipment and trained in the dangersassociated with products capable of producing hazardousenergy levels.• To reduce the risk of personal injury from hot surfaces, allowthe internal system components to cool before touching.Preparing for InstallationIMPORTANT: If you are replacing an existing ProLiant BL p-Class GbE2Interconnect Switch, or upgrading from a ProLiant BL p-Class GbEInterconnect Switch, a ProLiant BL p-Class RJ-45 Patch Panel, or aProLiant BL p-Class RJ-45 Patch Panel 2, refer to the HP ProLiant BLp-Class GbE2 Interconnect Switch User Guide.IMPORTANT: Before installing the GbE2 Interconnect Switch, make arecord of the switch MAC address (printed on the MAC address labelattached to your GbE2 Interconnect Switch). You may need this addresswhen you configure your GbE2 Interconnect Switch.Installation GuidelinesObserve the following guidelines during installation:• Always install GbE2 Interconnect Switches in pairs. Eachserver blade enclosure requires two GbE2 InterconnectSwitches for proper connectivity.• Always install the QuadT2 Interconnect Modules into thebottom-left-most and bottom-right-most bays on the rear sideof the server blade enclosure.• Be sure that each QuadT2 Interconnect Module is fully seated.The latch/handle will drop into place when the module is firmlyseated.• Always install the GbE2 Interconnect Switches into theinterconnect bays, which are the left-most (side A) andright-most (side B) bays on the front side of the server bladeenclosure.Installing the GbE2 InterconnectSwitches and QuadT2 InterconnectModulesPlanning the GbE2 InterconnectSwitch ConfigurationThe GbE2 Interconnect Switches ship with a default configurationin which all ports are enabled and assigned a default virtual LAN(VLAN) with VLAN ID equal to 1. This default configurationsimplifies your initial setup. Your environment might require otherconfigurations. For more information about planning the GbE2Interconnect Switch configuration, refer to the user guide on theuser documentation CD.The following Ethernet connectivity block diagram shows how theEthernet ports are connected within the server blade enclosure.NOTE: T he actual negotiated speed of any port is dependent uponthe capability of the device to which it is attached. For example, iLOtypically runs at 100 Mb/s.Cabling the GbE2 InterconnectSwitchesIMPORTANT: If you are replacing an existing ProLiant BL p-Class GbE2Interconnect Switch, or upgrading from a ProLiant BL p-Class GbEInterconnect Switch, a ProLiant BL p-Class RJ-45 Patch Panel, or aProLiant BL p-Class RJ-45 Patch Panel 2, and have strict securityrequirements, you can do one of the following:• Do not cable the GbE2 Interconnect Switch until after configuration.• Connect the GbE2 Interconnect Switch to the Diagnostic Station. TheDiagnostic Station enables you to power up, configure, and diagnose aProLiant p-Class server blade or a GbE2 Interconnect Switch outside ofthe rack environment.Continued on reverseConnect the network cables to the QuadT2 InterconnectModules.Item Description 1 Port (22x) RJ-45 connector for 10/100/1000T/TX/T Mb uplink for Switch B2 Port (21x) RJ-45 connector for 10/100/1000T/TX/T Mb uplink for Switch B3 Port (20x) RJ-45 connector for 10/100/1000T/TX/T Mb uplink for Switch B4 Port (19x) RJ-45 connector for 10/100/1000T/TX/T Mb uplink for Switch B5 Port (22x) RJ-45 connector for 10/100/1000T/TX/T Mb uplink for Switch A6 Port (21x) RJ-45 connector for 10/100/1000T/TX/T Mb uplink for Switch A7 Port (20x) RJ-45 connector for 10/100/1000T/TX/T Mb uplink for Switch A8Port (19x) RJ-45 connector for 10/100/1000T/TX/T Mb uplink for Switch APowering Up the GbE2 Interconnect SwitchIf the server blade enclosure has power applied, the GbE2 Interconnect Switch automatically begins to power up when installed. The power status LED on the front of the GbE2 Interconnect Switch will be amber to indicate that power isconnected to the GbE2 Interconnect Switch. After 30 seconds, the power status LED turns to green to indicate that the GbE2 Interconnect Switch is on. After the built-in self-test flashes all LEDs, the active links are illuminated and the power status LED stays green.You can manually force the GbE2 Interconnect Switch to power up by pressing the Pwr/Rst button through the access hole in the front panel of the GbE2 Interconnect Switch, while the power status LED is amber. HP recommends using a small, blunt object for this purpose.CAUTION: Pressing the Pwr/Rst button while the power status LED is green will reset the GbE2 Interconnect Switch.NOTE: If the server blade enclosure does not have power applied, refer to the setup and installation guide for the server blade enclosure .Accessing the GbE2 Interconnect SwitchThe GbE2 Interconnect Switch can be accessed locally using the front panel DB-9 serial management port, or remotely using either the 10/100/1000T/TX/T uplink Ethernet ports in the QuadT2Interconnect Module or the GbE2 Interconnect Switch front panel Ethernet ports.To access the GbE2 Interconnect Switch remotely, you need to assign it an IP address. By default, the GbE2 Interconnect Switch is set up to obtain its IP address from a BOOTP server existing on the attached network.To access the GbE2 Interconnect Switch remotely:1. From the BOOTP server, use the GbE2 Interconnect Switch MAC address to obtain the switch IP address.2. From a computer connected to the same network, use the IP address to access the GbE2 Interconnect Switch using a Web browser or Telnet application. This will allow you to access the GbE2 Interconnect Switch browser-based interface (BBI) or command line interface (CLI). The GbE2 Interconnect Switch logon prompt is displayed.If the GbE2 Interconnect Switch does not obtain the IP address by means of the BOOTP service, you can access the GbE2Interconnect Switch locally and configure the IP address manually. After assigning the IP address to the GbE2 Interconnect Switch, you can then access the switch remotely.To access the GbE2 Interconnect Switch locally:1. Connect the GbE2 Interconnect Switch DB-9 serial connector, using the null-modem serial cable (provided with the following option kits: Scalable Busbar, Mini Busbar, and Power Bus Box), to a local client device (such as a laptop computer) with VT100 terminal emulation software.2. Open a VT100 terminal emulation session with the following settings: 9600 baud rate, eight data bits, no parity, one stop bit, and no flow control.Logging On and Configuring the GbE2 Interconnect SwitchTo log on to the GbE2 Interconnect Switch, use admin for both the default user name and password.NOTE: If you are in the command line interface, you may need to press the ENTER key to display the login prompt.The GbE2 Interconnect Switch comes configured with the factory default configuration. For more information on configuring the GbE2 Interconnect Switch for your network environment, refer to the user guide on the user documentation CD.GbE2 Interconnect Switch Front PanelItem Description Status/Function 1 10G LED Reserved for future use2SAN LEDOff = HP ProLiant BL p-Class GbE2 Storage Connectivity Kit is not installed. On = Refer to the HP ProLiant BL p-Class GbE2 Storage Connectivity Kit Quick Setup Instructions for more information. 3Front panel RJ-45 connector link speed LEDs Amber = 1000 Mb/s Green = 100 Mb/s Off = 10 Mb/s4 Pwr/Rst button Forces the GbE2 Interconnect Switch to power up or reboot5DB-9 connectorUsed to access the local management console6 Front panelRJ-45 connector link activity LEDsGreen = Link and no activityGreen flashing = Link and activity Amber = Port disabled Off = No link7 M anagement status LED Flashing = Management session activeOff = No management session active 8 Power status LED Green = Power on Amber = Stand-by modeOff = Power off 9Link activity and speed LEDsRefer to the following figures and tables for LED assignments and functions.NIC LED FunctionsItem Description Status 1Link speedAmber = 1000 Mb/s Green = 100 Mb/s Off = 10 Mb/s2 Link activityGreen = Link and no activityGreen flashing = Link and activity Amber = Port disabled Off = No linkNIC LED AssignmentsItem Description 1 Server blade slot 1 Ethernet ports 2 Server blade slot 2 Ethernet ports 3 Server blade slot 3 Ethernet ports 4 Server blade slot 4 Ethernet ports 5 Server blade slot 5 Ethernet ports 6 Server blade slot 6 Ethernet ports 7 Server blade slot 7 Ethernet ports 8 Server blade slot 8 Ethernet ports 9 Interswitch cross-connect ports10 Port (19x) RJ-45 connector for rear panel uplink 11 Port (20x) RJ-45 connector for rear panel uplink 12 Port (21x) RJ-45 connector for rear panel uplink 13Port (22x) RJ-45 connector for rear panel uplinkQuadT2 Interconnect Module LEDsItem Description Status1Link activityGreen = Link and no activityGreen flashing = Link and activity Amber = Connector disabled Off = No link 2 Link speedAmber = 1000 Mb/s Green = 100 Mb/s Off = 10 Mb/s。

HP交换机简明使用手册HP5400/5300及HP26002006/10目录HP交换机简明使用手册 (1)第一章交换机的初始配置 (4)1.1使用CONSOLE口进行交换机的配置 (4)1.2使用TELNET或者WEB方式对交换机进行配置 (6)1.2.1使用TELNET方式对交换机进行配置 (6)1.2.2通过WEB方式对交换机进行配置 (6)1.3 设置用户名及密码 (7)1.4 配置SNMP相关信息 (8)1.5 LLDP配置 (9)1.6密码恢复方法 (11)1.7 交换机映像更新及配置文件备份与恢复 (11)1．将配置文件备份到TFTP服务器上 (11)2．将从TFTP服务器上的配置文件恢复到交换机 (12)3．升级交换机的映象文件 (12)第二章二层相关协议设置 (13)2.1端口的命名方式 (13)2.2端口物理参数配置 (13)1.设置端口的工作模式 (14)2．对端口的流量进行限制 (14)2.3 802.1qVLAN的基本概念 (15)2.4基于端口的VLAN划分方法 (15)2.5 GVRP的配置 (16)2.6 TRUNKING(LAG)的配置 (17)2.7 生成树的基本概念(STP/RSTP)及配置方法 (17)2.7.1.生成树的基本概念 (17)2.7.2.生成树的配置方法 (19)2.8 实验 (20)一、演示设备架构 (20)二、基本操作命令 (21)三、演示配置 (22)1、5304xl (22)2、2626_1 (23)3、2626_2 (24)4、测试结果 (24)第三章第三层相关设置 (25)3.1 VLAN间路由的配置 (25)3.2 静态路由的配置 (25)3.3 RIP路由协议基本概念 (26)3.4 RIP的配置 (26)3.5 OSPF路由协议的基本概念 (29)3.6 OSPF的配置 (30)3.7路由重分发 (31)3.8 VRRP/XRRP配置 (32)3.9 DHCP Relay 的配置 (34)第四章安全与认证 (36)4.1端口安全性(MAC绑定) (36)4.2访问控制表 (37)4．2．1标准访问控制列表 (37)4．2．2扩展访问控制表 (37)4.4 802.1X认证(OPEN VLAN) (37)4.5 WEB认证 (39)4.6 MAC认证 (40)4.7病毒抑制的原理与配置 (40)第五章组播协议 (42)5.1组播基本概念 (42)5.2 IGMP的配置 (42)5.3 PIM的配置 (42)附件A:5400交换机的许可证安装与删除 (44)第一章 交换机的初始配置1.1使用CONSOLE口进行交换机的配置1．超级终端配置如下：开始-附件-通讯-超级终端，在COM口属性的窗口中选择还原默认值。

惠普Procurve以太网交换机配置指南-Version-1.0中国惠普有限公司Administrator2011年5月5日惠普ProCurve以太网交换机安装配置指南Version1.0产品介绍ProCurve 6120系列交换机分为两种型号：●6120G/XG●6120XG产品名称的规则：以6120产品的G/XG为例，G和XG都指端口速率，其中G表示1Gb per second，XG表示10Gb per second；”/”以前的部分特指内部端口速率，”/”以后的部分特指外部端口速率。

前面板及端口介绍：端口•10GbE CX4—The CX4 interface requires the use of copper cabling, similar to the variety used in InfiniBand technology, and is designed to work up to a distance of15 m. CX4 technology is an attractive solution because ithas the lowest cost per port of all 10Gb interconnects, at the expense of range. CX4 has a bigger form factor than either SFP or SFP+.•10GbE XFP ports—These 10GbE ports support SR (multi-mode fiber, 300 m) and LR (single-mode fiber, 10 km) optic transceivers based on the XFP version of the small form factor pluggable specification. XFP transceivers have a smaller form factor compared to several standards (XENPAK, X2, XPAK) that preceded it. The XFP ports support Industry Standard Servers (ISS) optics only.•1GbE SFP ports—These 1GbE ports support SX (multi-modefiber, 550 m) and LX (single-mode fiber, 10 km) optictransceivers based on the SFP version of the small formfactor pluggable specification using an LC physicalconnector. These ports also support 1000BASE-T copperconnections using an RJ-45 connector. The SFP ports supportISS and ProCurve optics.•10/100/1000 RJ-45 ports—These ports support standard RJ-45 Ethernet cables and each port can operate at one ofthree autosensing speeds.•5x 10GbE SFP+ ports—These five ports are dedicated10GbE SFP+ ports that support SR (multi-mode fiber, 300 m), LR(single-mode fiber, 10 km), and LRM (multi-mode fiber, 220m) optic SFP+ transceivers.•2x 10GbE SFP+ ports—Individually, the two ports labeled23 and 24 can be used as either external 10GbE SFP+ portsor internal 10GbE switch-to-switch (cross-link) ports. ForSFP+ connectivity, these ports support the same fiber optictransceivers as the other SFP+ ports.•Internal Network Ports—The 6120G/XG also has “internal”Ethernet ports that function as downlinks to devices in the enclosure. The internals ports are essentially communication interfaces used to transfer data to and from server blades,storage blades, and even another 6120G/XG (if it is installed in an adjacent bay of the enclosure). The internal ports use the enclosure’s midplane circuitry to communicate with the other c-Class enclosure components.•Management Port—The IP address within the OA subnet that you assign to the blade switch is used by a switch component known as Out-Of-Band Management (OOBM).交换机系统指示灯：Module status LED：绿色表示交换机工作正常；橙色表示有故障Module locator LED：用户可以通过命令chassislocate <off|on|blink>来控制其状态，方便用户找到此交换机端口指示灯介绍：Link status LED：绿色表示已连接；橙色表示有故障Link activity LED绿色闪烁表示正在通讯RJ-45指示灯绿色闪烁表示端口正在10/100Mb per second速率通讯橙色闪烁表示端口正在1000Mb per second速率通讯管理口介绍：Mini USB接口，交换机产品包装里都有对应的线缆；使用其管理交换机时，需要先安装相应的驱动程序，并通过终端模拟器软件访问。

Aruba 8400 交换机系列初始硬件设置和安全/法规指南部件号： 5200-4156出版日期： 2017 年 9 月版次： 1© Copyright 2017, Hewlett Packard Enterprise Development LP声明本文档中包含的信息如有更改，恕不另行通知。

随 Hewlett Packard Enterprise 产品和服务提供的明确保修声明中阐明了此类产品和服务的全部保修服务。

本文档中的任何内容均不应理解为构成额外保证。

Hewlett PackardEnterprise 对本文档中出现的技术错误、编辑错误或遗漏之处概不负责。

保密的计算机软件。

拥有、使用或复制本软件须获得 Hewlett Packard Enterprise 颁发的有效许可证。

根据供应商的标准商业许可证的规定，美国政府应遵守 FAR 12.211 和 12.212 中有关“商业计算机软件”、“计算机软件文档”与“商业货物技术数据”条款的规定。

第三方网站链接将指向 Hewlett Packard Enterprise 网站之外的网站。

Hewlett Packard Enterprise 无法控制Hewlett Packard Enterprise 网站以外的信息，也不承担任何责任。

适用产品部件号简短描述详细描述JL375A Aruba 8400 Base Cbl Mgr X462Bndl Aruba 8400 8 插槽机箱/3 个风扇托架/18 个风扇/电缆管理器/ X462 套件JL376A Aruba 8400 1 MM 3 PS 2 FM 32/8Bndl Aruba 8400 1x Mgmt Mod 3x PS 2x 8400X Fabric Mod 1x 32p 10G Mod 和 1x 8p 40G Mod 套件JL363A Aruba 8400X 32p 10G SFP/SFP+Msec Mod Aruba 8400X 32 端口 10 GbE 高级 SFP/SFP+ 带 MACsec 高级模块JL365A Aruba 8400X 8p 40G QSFP+ AdvModAruba 8400X 8 端口 40 GbE QSFP+ 高级模块JL366A Aruba 8400X 6p 40G/100GQSFP28 Adv Mod Aruba 8400X 6 端口 40 GbE/100 GbE QSFP28 高级模块JL366A 是否支持 40GbE 收发器尚未确定。

赫斯曼交换机操作手册赫斯曼交换机操作手册本网络系统包含一台万兆以太网交换机（MACH 4002）作为核心交换机，两台模块化交换机（MS4128）作为次级交换机。

网络系统要求划分为两个VLAN，两个VLAN之间需要通讯。

1、 Vlan配置核心交换机（MACH 4002）的管理地址分别为172.16.8.251。

两台次级交换机（MS 4128）的管理地址分别为172.16.8.252，172.16.8.253。

第一步：连接好所有设备,不考虑Port口位置。

第二步：VLAN规划本网络划分了两个VLAN，第一个名称为VLAN1，第二个名称为VLAN2，还有一个默认VLAN，名称为Defult。

Port口详细划分如下：MACH4002：VLAN1 Port口：4.1~4.6， 6.3~6.14VLAN2 Port口：3.1~3.8上联Port口：4.7，4.8，6.15，6.16管理Port口：6.1，6.2MS4128：（两台配置一样）VLAN1 Port口：2.3~1.4，3.1~3.4，4.1~4.4，5.1~5.4VLAN2 Port口：无上联Port口：1.1，1.2，2.1，2.2第三步：划分VLAN使用HiDiscovery扫描到网络内所有的交换机设备，对交换机的管理地址进行设置。

使用HiVision，在Configration-Preference中添加交换机管理地址的扫描网段，可以扫描到网络内的所有交换机如图：单击Vlan-Manager选项卡,选择Agent list,如图：选择Discovered devices中的所有设备并单击添加按钮将它们添加到Participating agents 中,并点击OK按钮，如图:选择“Edit”下拉菜单中的“Groups”,空白处右击选择“New”,在“Name”中输Vlan名称“Vlan1”,单击“Members”选项卡,选中需要添加的Port口,点击OK,如图：按照相同的步骤，创建第二个VLAN，名称为VLAN2，添加相应的Port口，点击OK。

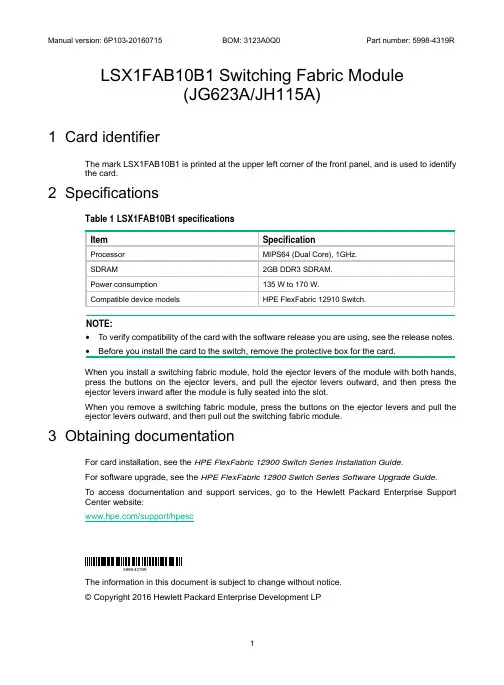

Manual version: 6P103-20160715 BOM: 3123A0Q0 Part number: 5998-4319R LSX1FAB10B1 Switching Fabric Module(JG623A/JH115A)1 Card identifierThe mark LSX1FAB10B1 is printed at the upper left corner of the front panel, and is used to identifythe card.2 SpecificationsTable 1 LSX1FAB10B1 specificationsItem SpecificationProcessor MIPS64 (Dual Core), 1GHz.SDRAM 2GB DDR3 SDRAM.Power consumption 135 W to 170 W.Compatible device models HPE FlexFabric 12910 Switch.NOTE:•To verify compatibility of the card with the software release you are using, see the release notes.•Before you install the card to the switch, remove the protective box for the card.When you install a switching fabric module, hold the ejector levers of the module with both hands,press the buttons on the ejector levers, and pull the ejector levers outward, and then press theejector levers inward after the module is fully seated into the slot.When you remove a switching fabric module, press the buttons on the ejector levers and pull theejector levers outward, and then pull out the switching fabric module.3 Obtaining documentationFor card installation, see the HPE FlexFabric 12900 Switch Series Installation Guide.For software upgrade, see the HPE FlexFabric 12900 Switch Series Software Upgrade Guide.To access documentation and support services, go to the Hewlett Packard Enterprise SupportCenter website:/support/hpesc5998-4319RThe information in this document is subject to change without notice.© Copyright 2016 Hewlett Packard Enterprise Development LP1。

HP A5810-48G Switch Data sheetProduct overviewThe HP A5810-48G Switch delivers unparalleled QoS across 48 10/100/1000Base-T Ethernet ports, two multiplex Gigabit Ethernet (GbE) combination SFP ports, and two 10-GbE SFP+ ports for the most demanding enterprise network environments.Key featuresHigh performance for core and distribution "Flex chassis": modular/stackable in onePowerful IPv4/IPv6 ACL/QoS/VoQPowerful buffer capability—24M bufferingRedundant, hot-swappable power supplies, fansFeatures and benefitsManagement•Remote configuration and management: is available through a secure Web browser or a command-line interface (CLI)•IEEE 802.1ab LLDP discovery: advertises and receives management information from adjacent devices on a network•USB support:–File copy: allows users to copy switch files toand from a USB flash drive•DHCP options: client allows automatic setting of IP address•sFlow: provides scalable, ASIC-based, network monitoring and accounting; this allows network operators to gather a variety of sophisticated network statistics and information for capacity planning and real-time network monitoring purposes •SNMPv1, v2c, and v3: facilitate centralized discovery, monitoring, and secure management of networking devicesConnectivity•Auto-MDIX: automatically adjusts forstraight-through or crossover cables on all 10/100 and 10/100/1000 ports•Jumbo frames: on Gigabit and 10-Gigabit ports, allow high-performance remote backup and disaster-recovery services•High-density port connectivity: provides10/100/1000 port configurations up to 80 ports, and an Intelligent Resilient Framework (IRF) stack of up to 576 10/100/1000 portsPerformance•Hardware-based wire-speed access control lists (ACLs): feature-rich ACL implementation (TCAM based) helps ensure high levels of security and ease of administration without impacting network performanceManageability•RMON (remote monitoring): provides advanced monitoring and reporting capabilities for statistics, history, alarms, and events•Web interface: allows configuration of the switch from any Web browser on the network•Multiple configuration files: allow multiple configuration files to be stored to flash image •Troubleshooting: ingress and egress port monitoring enable network problem solvingLayer 2 switching•16K MAC address table: provides access to many Layer 2 devices•4094 port-based VLANs: provide security between workgroups•Gigabit Ethernet port aggregation: allows grouping of ports to increase overall data throughput to a remote device•10 GbE port aggregation: allows grouping of ports to increase overall data throughput to a remote device•Spanning Tree/MSTP, RSTP, and STP Root Guard: prevent network loopsLayer 3 services•Address Resolution Protocol (ARP): determines the MAC address of another IP host in the same subnet; supports static ARPs; gratuitous ARP allows detection of duplicate IP addresses; proxy ARP allows normal ARP operation between subnets or when subnets are separated by a Layer 2 networkLayer 3 routing•Layer 3 IP routing:–Static IP routing: provides basic routing(supporting up to 1K static routes); allows manual configuration of routingSecurity•Port security: allows access only to specified MAC addresses, which can be learned or specified by the administrator•Advanced processor queuing mechanism: helps prevent denial-of-service (DoS) attacks, while DHCP snooping helps ensure that devices can only receive an IP address from a legitimate DHCP server on the network•IEEE 802.1X-based dynamic delivery of QoS, ACLs, and VLANs: allows complete control over user network access•MAC-based authentication: allows or denies access to the switch based on client MAC address•IP source guard: helps prevent IP spoofing attacks•HTTPS management: provides secure Web management•RADIUS/HWTACACS: eases switch managementsecurity administration by using a passwordauthentication server•Secure Shell (SSHv2): encrypts all transmitteddata for secure, remote command-line interface (CLI)access over IP networksConvergence•LLDP-MED: is a standard extension thatautomatically configures network devices, includingLLDP-capable IP phonesMonitor and diagnostics•Port mirroring: enables traffic on a port to besimultaneously sent to a network analyzer formonitoringAdditional information•Green IT and power: use the latest advances insilicon development, shut off unused ports, and usevariable-speed fans to improve power efficiencyWarranty and support•Lifetime warranty: for as long as you own theproduct with advance replacement andnext-business-day delivery (available in mostcountries)*•Electronic and telephone support: limitedelectronic and telephone support is available fromHP; refer to /networking/warranty fordetails on the support provided and the periodduring which support is available•Software releases: refer to/networking/warranty for details onthe software releases provided and the periodduring which software releases are available foryour product(s)*Hardware warranty replacement for as long as you own the product, with next business day advance replacement (available in most countries) with a five-year hardware warranty replacement for the disk drive included with HP AllianceONE Services zl Module, HP Threat Management Services zl Module, HP PCM+ Agent with AllianceONE Services zlSpecificationsHP A5810-48G Switch (JF242A)Ports48 RJ-45 auto-negotiating 10/100/1000 ports (IEEE 802.3 Type 10Base-T, IEEE 802.3u Type 100Base-TX, IEEE 802.3ab Type 1000Base-T)2 SFP 100/1000 Mbps ports2 SFP+ fixed 1000/10000 SFP+ ports; Duplex: full only1 RJ-45 serial console portPower supplies 2 power-supply slots1 minimum power-supplies required (ordered separately)Physical characteristicsDimensions16.54(d) x 17.32(w) x 1.72(h) in. (42 x 44 x 4.36 cm) (1U height)Weight17.64 lb. (8 kg)Memory and processor512 MB SDRAM, 512 MB flash; packet buffer size: 24 MBMounting Mounts in EIA-standard 19 in. telco rack or equipment cabinet (hardware included)PerformanceThroughput up to 101 million ppsRouting/Switching capacity136 GbpsMAC address table size16,000 entriesEnvironmentOperating temperature32°F to 113°F (0°C to 45°C)Operating relative humidity10% to 90%, non-condensingElectrical characteristicsMaximum heat dissipation614 BTU/hr (647.77 kJ/hr)Voltage100-120 / 200-240 VACFrequency50 / 60 HzSafety UL 60950-1; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1; Anatel;ULAR; GOST; EN 60950-1/A11; FDA 21 CFR Subchapter J; NOM; ROHS ComplianceEmissions VCCI Class A; EN 55022 Class A; ICES-003 Class A; ANSI C63.4 2003; AS/NZS CISPR22 Class A; EN 61000-3-2:2006; EN 61000-3-3:1995+A1:2001+A2:2005; EMC Directive 2004/108/EC; FCC (CFR 47, Part 15) Class AImmunityGeneric ETSI EN 300 386 V1.3.3EN EN 55024:1998+ A1:2001 + A2:2003ESD EN 61000-4-2; IEC 61000-4-2Radiated EN 61000-4-3; IEC 61000-4-3EFT/Burst EN 61000-4-4; IEC 61000-4-4Surge EN 61000-4-5; IEC 61000-4-5Conducted EN 61000-4-6; IEC 61000-4-6Power frequency magnetic field IEC 61000-4-8; EN 61000-4-8Voltage dips and interruptions EN 61000-4-11; IEC 61000-4-11Harmonics EN 61000-3-2, IEC 61000-3-2Flicker EN 61000-3-3, IEC 61000-3-3Management IMC - Intelligent Management Center; command-line interface; Web browser; out-of-band management; SNMP Manager; Telnet; HTTPS; RMON1; FTPNotes A5810 switch provides a power module when shipped. Customer can select two power modules to implement 1+1 power supply redundancy.Services3-year, 4-hour onsite, 13x5 coverage for hardware (UV882E)3-year, 4-hour onsite, 24x7 coverage for hardware (UV885E)3-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 software phone support (UV888E)3-year, 24x7 SW phone support, software updates (UV891E)4-year, 4-hour onsite, 13x5 coverage for hardware (UV883E)4-year, 4-hour onsite, 24x7 coverage for hardware (UV886E)4-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 software phone (UV889E)4-year, 24x7 SW phone support, software updates (UV892E)5-year, 4-hour onsite, 13x5 coverage for hardware (UV884E)5-year, 4-hour onsite, 24x7 coverage for hardware (UV887E)5-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 software phone (UV890E)5-year, 24x7 SW phone support, software updates (UV893E)3 Yr 6 hr Call-to-Repair Onsite (UW969E)4 Yr 6 hr Call-to-Repair Onsite (UW970E)5 Yr6 hr Call-to-Repair Onsite (UW971E)Specifications (continued)HP A5810-48G Switch (JF242A)Refer to the HP website at /networking/services for details on the service-level descriptions and product numbers. For details about services andresponse times in your area, please contact your local HP sales office.Standards and protocols General protocolsIEEE 802.1ag Service Layer OAMIEEE 802.1D MAC BridgesIEEE 802.1p PriorityIEEE 802.1Q VLANsIEEE 802.1s (MSTP)IEEE 802.1v VLAN classification by Protocol andPortIEEE 802.1w Rapid Reconfiguration of SpanningTreeIEEE 802.1X PAEIEEE 802.3ad Link Aggregation Control Protocol(LACP)IEEE 802.3ae 10-Gigabit EthernetIEEE 802.3x Flow ControlRFC 768 UDPRFC 792 ICMPRFC 793 TCPRFC 826 ARPRFC 854 TELNETRFC 925 Multi-LAN Address ResolutionRFC 951 BOOTPRFC 1519 CIDRRFC 1542 BOOTP ExtensionsRFC 2131 DHCPRFC 3576 Ext to RADIUS (CoA only)RFC 4675 RADIUS VLAN & Priority MIBsIEEE8021-PAE-MIBIEEE8023-LAG-MIBRFC 1213 MIB IIRFC 1493 Bridge MIBRFC 2011 SNMPv2 MIB for IPRFC 2013 SNMPv2 MIB for UDPRFC 2233 Interface MIBRFC 2273 SNMP-NOTIFICATION-MIBRFC 2571 SNMP Framework MIBRFC 2572 SNMP-MPD MIBRFC 2573 SNMP-Notification MIBRFC 2618 RADIUS Client MIBRFC 2620 RADIUS Accounting MIBRFC 2665 Ethernet-Like-MIBRFC 2674 802.1p and IEEE 802.1Q Bridge MIBRFC 2688 MAU-MIBRFC 2819 RMON MIBRFC 2925 Ping MIBRFC 3414 SNMP-User based-SM MIBRFC 3415 SNMP-View based-ACM MIBRFC 3418 MIB for SNMPv3RFC 3826 AES for SNMP's USM MIBRFC 4133 Entity MIB (Version 3)LLDP-EXT-DOT1-MIBLLDP-EXT-DOT3-MIBLLDP-MIBNetwork managementIEEE 802.1AB Link Layer Discovery Protocol (LLDP)RFC 2819 Four groups of RMON: 1 (statistics), 2(history), 3 (alarm) and 9 (events)RFC 3176 sFlowANSI/TIA-1057 LLDP Media Endpoint Discovery(LLDP-MED)SNMPv1/v2c/v3SecurityIEEE 802.1X Port Based Network Access ControlRFC 1492 TACACS+RFC 2865 RADIUS (client only)RFC 2866 RADIUS AccountingSecure Sockets Layer (SSL)SSHv2 Secure ShellHP A5810-48G Switch accessories© Copyright 2010 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an To learn more, visit /networkingTransceiversHP X124 1G SFP LC LH40 1310nm Transceiver (JD061A)HP X120 1G SFP LC LH40 1550nm Transceiver (JD062A)HP X125 1G SFP LC LH70 Transceiver (JD063B)HP X110 100M SFP LC LH40 Transceiver (JD090A)HP X110 100M SFP LC LH80 Transceiver (JD091A)HP X130 SFP+ LC SR Transceiver (JD092B)HP X130 SFP+ LC LRM Transceiver (JD093B)HP X130 SFP+ LC LR Transceiver (JD094B)HP X110 100M SFP LC FX Transceiver (JD102B)HP X125 1G SFP LC SX Transceiver (JD118B)HP X120 1G SFP LC LX Transceiver (JD119B)HP X110 100M SFP LC LX Transceiver (JD120B)HP X240 SFP+ SFP+ 0.65 m Direct Attach Cable (JD095B)HP X240 SFP+ SFP+ 1.2 m Direct Attach Cable (JD096B)HP X240 SFP+ SFP+ 3 m Direct Attach Cable (JD097B)CablesNEW HP 0.5 m PremierFlex OM3+ LC/LC Optical Cable(BK837A)Power SupplyHP A5800 300W AC Power Supply (JC087A)Fan TrayHP A5800 1RU Spare Fan Assembly (JC098A)。

HP DC SAN Backbone 交换机日常维护指导手册目录1、目的 (3)2、适用范围 (3)3、硬件设备信息概述 (3)4、登录及配置 (3)4.1 建立一个串行链接，登录到DC SAN Director (3)4.2 配置IP地址 (4)4.3 建立以太网连接 (5)4.4 定制一个交换机的名字 (5)4.5 定制一个机箱的名字 (6)4.6 设置domain ID (6)4.7 验证端口识别模式并连接 (6)4.8 使用软件许可证 (6)4.9 备份配置 (6)5、zone配置方法 (6)5.1 查看 zone 配置 (7)5.2 创建别名 (8)5.3 创建 zone(把别名或端口分配到 zone 中) (8)5.4 创建 zone 配置文件(把 zone 加入到配置文件中) (8)5.5 使 zone 配置生效 (8)5.6 保存配置 (9)6、常用命令及解释 (10)1、目的为保障*****中心HP DC SAN Backbone交换机设备的高效、稳定运行，制订本指导手册。

本手册详细描述了日常检查的主要步骤，从而指导现场工程师对其进行监控和维护。

2、适用范围使用者为****有限公司心工程师。

3、硬件设备信息概述服务器数量：2台，基本信息如下：4、登录及配置4.1 建立一个串行链接，登录到DC SAN Director1. 通过确认LED指示灯均为稳定的绿灯来确认DC SAN Director已启动，POST已完成。

2.从活跃CP的服务端口移除shipping cap，用DC SAN Director的串行电缆把服务端口和电脑的工作区域相连接。

3.通过终端应用程序(如Windows环境下的HyperTerminal或者Unix环境下的TERM)来访问DC SAN Director。

4.关闭运行在工作区域的任何串行通信程序（如同步程序）。

5.打开终端模拟应用程序并按如下方式配置：a.对于Microsoft W indows系统：Bits per second—9600 Databits—8 Parity—NoneStop bits—1Flow control—Noneb.对于UNIX 系统：tip /dev/ttyb -9600当终端模拟应用程序不再更新信息，按Enter键接下来登录会出现：CP0 Console Login:6.以admin登录DC SAN Director，默认密码是password7.修改密码密码可以8 - 40个字符长4.2 配置IP地址DC SAN Director默认的IP地址和主机名为：10.77.77.75 / CP0 (配置时，CP 刀片在槽6)10.77.77.74 / CP1 (配置时，CP 刀片在槽7)为CP刀片配置IP地址：1.以admin登录active CP2.通过ipaddrset -sw 0指令配置IP地址：swDir:admin> ipAddrSet -sw 03.通过ipaddrset -cp 0 指令:swDir:admin> ipAddrSet -cp 0建立CP0 IP地址4. Set up the CP1 IP address 通过ipaddrset -cp 1 指令配置CP1 IP地址: swDir:admin> ipAddrSet -cp 1配置IP地址如下例：swDir:admin> ipaddrset -sw 0Ethernet IP Address [0.0.0.0]: 123.123.123.120Ethernet Subnetmask [0.0.0.0]:123.123.123.123 Fibre ChannelIP Address [0.0.0.0]:Fibre ChannelSubnetmask[0.0.0.0]:IssuinggratuitousARP...Done.Committing configuration...Done.swDir:admin> ipaddrset -cp 0Host Name [cp0]:Ethernet IP Address [10.77.77.75]: 123.123.123.121Ethernet Subnetmask [0.0.0.0]: 123.123.123.123Gateway IP Address [0.0.0.0]: 123.123.123.124IP address isbeingchanged...Done.Committingconfiguration...Done.swDir:admin> ipaddrset -cp 1Host Name [cp1]:Ethernet IP Address [10.77.77.74]: 123.123.123.122Ethernet Subnetmask [0.0.0.0]: 123.123.123.123Gateway IP Address [0.0.0.0]: 123.123.123.124IP address of remote CP is beingchanged...Done. Committingconfiguration...Done.5.执行reboot命令，重启DC SAN Director。

Hp交换机操作⼿册中⽂版第⼀章交换机的初始配置1.1使⽤CONSOLE⼝进⾏交换机的配置1〃超级终端配置如下：开始-附件-通讯-超级终端，在COM⼝属性的窗⼝中选择还原默认值。

每秒位数（B）：9600数据位（D）：8奇偶校验（P）：⽆停⽌位（S）：1数据流控制（F）：⽆2〃配置好超级终端后，回车登陆。

H P系列产品默认需要认证，才能进⾏管理配置，默认的⽤户名为空，⼝令为空。

图：此时将进⼊登陆模式，登陆模式的符号是⼀个⼤于号“>”，在此模式下可以实现基本的状态查看功能,通过问号“？”可以查看此状态下所有可操作的命令.HP系列产品所有模式下（登陆模式，管理模式和配置模式）均有这种帮助功能，同时在输⼊命令时，可以通过键进⾏命令补⾜.登陆模式：以“>”开头，仅仅能够进⾏⼀些基本状态查看管理模式：以“#”开头，能够进⾏所有状态信息的查看，同⼀时刻允许有多个管理员处在此模式下。

从登陆模式进⼊管理模式的命令：en able（可简写为e n）,通过enab le⼝令认证后，即可进⼊管理模式。

配置模式：以“（con fig）”开头，能够对设备进⾏配置和管理，同⼀时刻仅仅允许⼀个管理⼈员处在配置模式下。

此模式下可以同时具有管理模式和登陆模式的功能。

从管理模式进⼊配置模式的命令为：conf igur e,即可进⼊配置模式。

从⾼级模式退出到低级模式的命令为exi t或disa b le。

3〃基本命令1、查看操作系统版本及硬件信息命令：s h o w v er sion作⽤：查看当前系统版本和状态信息系统当前版本：test_5304x l#s h o w v ers i onIm age sta mp:/s w/c ode/buil d/al pm o(m35)A ug2200511:27:11E.10.044015B oot Im age:Pr i m ar y系统主机名：系统C P U类型：系统内存容量：系统启动时间：系统当前时间：系统端⼝类型：系统序列号：系统当前能实现的功能:2.配置主机名：命令：hostname：其中主机名长度最长为64字节实例：例如需要配置设备的名称为B lue，则命令如下。
