第二十章电气设备第一节蓄电池1.车上检修本车采用的蓄电池为免维护蓄电池，如图20-1。
在检测蓄电池时可以通过安装在蓄电池上能够显示荷电状况的密度计来判断其状态，如图20-2。
图20-1图20-2（1）当电量超过65%时蓄电池正常，从密度计观察孔可以观察到绿色。
（2）当电量少于65%需要充电，从密度计观察孔可以观察到黑色。
（3）当从密度计观察孔观察到透明色时，表明蓄电池已报废，需要更换。
2.充电（1）若装在车上对蓄电池充电时，应拆下蓄电池连接线，以防损伤电气元件。
（2）对蓄电池充电的正常电流应该是该蓄电池容量的1/10左右。
因时间关系等原因需要进行快速充电时，充电电流绝对不要超过蓄电池以安培（A）表示的容量。
注意：在充电时不要靠近任何火源，否则可能产生爆炸。
在充电时不要在旁边进行易产生火花的作业。
3.蓄电池的试验方法试验顺序见图20-3。
蓄电池正常图20-3负载试验速率见表20-1。
表20-1第二节组合开关1.拆卸与安装拆卸顺序见图20-4：图20-41-组合开关罩2-组合开关上罩3-照明开关4-刮水器、洗涤器开关2.检查（1）照明开关的导通检查（见图20-5）图20-5（2）组合开关（开关本体部）导通检查（见图20-6）①卸下照明开关及刮水器、洗涤器开关。
②在组合开关本体各接头间，检查相同端子号（3~11）之间的导通关系。
第三节点火开关1.拆卸与安装拆卸步骤见图20-7：图20-71-驾驶员侧下罩2-方向盘3-组合开关上罩4-组合开关下罩5-组合开关6-转向锁芯7-点火开关拆卸操作要领。
点火开关锁的拆卸：①将钥匙插入转向锁芯，转到“ACC”位置。
②用十字槽螺刀或类似工具，把转向锁芯锁定销向里推，然后把转向锁芯往自己方向拉（见图20-8）。
图20-82.检查点火开关导通的检查（见图20-9）：图20-9①拆下组合开关下罩和组合开关上罩。
②从点火开关拆下线束插接件。
③操作开关，检查各端子之间的导通状况。

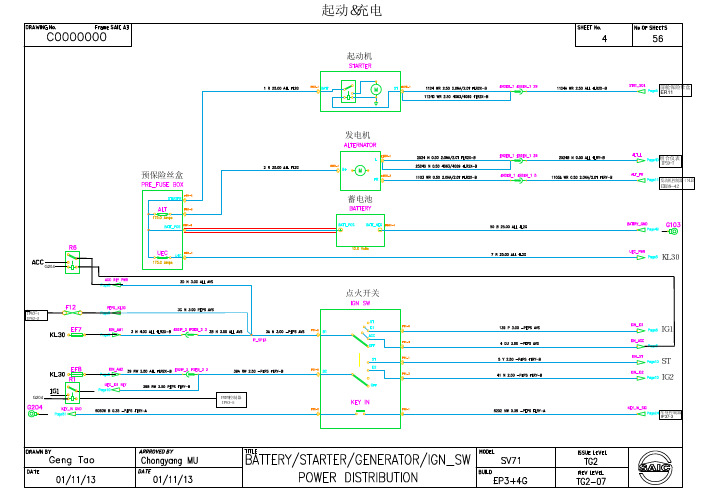

起动＆充电
电源分配
电源分配
IG1
P D F
电子油门
怠速控制阀＆制动开关＆离合器开关
传动系统（变速箱）
冷却系统（２．０Ｔ冷却风扇）
冷却系统（２．０ＮＡ冷却风扇）
制动系统（ＡＢＳ／ＥＳＰ）
车身控制系统（供电＆接地）
防盗系统（发动机防盗＆喇叭＆锁开关）
外灯系统（灯光开关＆前后雾灯＆高位制动灯）
外灯系统（前大灯）
外灯系统（自适应大灯＆仪表台开关）
外灯系统（尾灯）
后视镜＆后窗加热
娱乐系统（收音机）
娱乐系统（ＤＶＤ＆顶置屏）
乘员保护系统（安全气囊＆胎压监测）
乘员信息系统（倒车雷达）
乘员信息系统（组合仪表＆油泵）
天窗
辅助设备（点烟器＆逆变器＆诊断接口）
电动门窗系统（玻璃升降器）
空调系统（前空调）
空调系统（前空调＆空调压力开关）。
路宝完全维修手册发动机概述本发动机为四缸直列水冷四冲程发动机，双顶置凸轮轴，气门机构成"V"型排列，16气门(单缸两个进气门，两个排气门).气门由曲轴通过同步链驱动凸轮轴分别开启关闭。
本发动机采用联合汽车电子有限公司匹配的多点控制喷射系统，大大降低了尾气中的有害成分含量，是完全适应新配方法规要求的绿色环保动力。
此发动机采用多点燃油喷射，包括检测发动机工况的传感器，发动机的电子控制单元(ECU)根据这些传感器发出的信号控制该系统;各执行器在ECU的控制下工作。
ECU具有燃油喷射控制，怠速控制等功能，并且，ECU还具有发生故障简化故障排除的若干故障诊断方式。
变速器参数(括号内参数为7100)DABS10-8型变速器档位速比齿数比一档 3.416(3.818) 41/12二档 1.894(2.277) 36/19三档 1.280(1.521) 32/25四档0.914(1.030) 32/35五档0.757(0.783) 25/33倒档 3.818(3.583) 42/35/11主减速器 4.389(4.705) 79/18速度表0.944 17/18最大输入转矩72N.M外廓尺寸409X392X342.7(MM)变速器倾角5度润滑油:优先选用:南方全年80W-90或85W-140；北方冬季75W-90夏季80W-90也可选用；18#双曲线齿轮油发动机************************************************************启动困难A、启动机不运转1.蓄电池电极接先处松动或电量不足拧紧或充电2.电路有断开处检查和修理3.启动机有损坏修理或更换---------------------------------------------------------B、点火系统故障1.搭铁不良修理2.线束断路或短路检查和修理3.接插件松拖或损坏修理或更换4.点火线圈损坏更换5.高压阻尼线插错接查不好或损坏调整或更换6.火花塞间隙不当积炭或烧毁调整清洗或更换----------------------------------------------------------C、供油系统的故障1.喷油器接插件插错调整2.线束断路或短路检查和修理3.接插件松脱或损坏修理或更换4.油压调节器真空管脱落破坏装上或更换5.电动燃油泵供油压力不足修理或更换6.喷油器损坏或堵塞更换或清洗7.燃油软管弯折及燃油滤清器堵塞调整或更换----------------------------------------------------------D、EMS系统故障1.主继电器或燃油泵继电器损坏更换2.电子控制单元（ECU）有故障修理或更换3.转速传感器或引线损坏修理或更换-----------------------------------------------------------E、汽缸压缩压力减小1.汽缸垫破裂更换2.气门间隙调整不当或有损坏调整修理或更换3.活塞活塞环汽缸磨损修理或更换-----------------------------------------------------------**********************************************************F、怠速过高1.ECU断电后未进行自学习熄火进行自学习2.ECU故障代码未被清除清除3.节气门无法完全回位检查和调整4.进气系统漏气检查和修理5.怠速调节器（进步电机）损坏更换6.节气门位置传感器损坏更换***********************************************************G、运转中功率不足1.加速踏板与节气门体拉线调整不当调整2.汽缸压缩压力减小检查气门火花塞汽缸垫是否渗漏气门研磨3.燃油压力调节损坏造成燃油供给不足调整或更换4.进气不足检查进气系统5.排气堵塞检查排气系统和清楚积炭6.火花塞间隙不当积炭或损坏调整清理或更换7.单缸高压阻尼线损坏更换8.点火线圈性能下降各缸点火能量不足更换9.喷油器堵塞或损坏清洗或更换10.燃油滤清器堵塞更换11.节气门位置传感器损坏更换12.电动燃油泵供油压力不足修理或更换***********************************************************H、发动机内部有敲缸声1.轴瓦磨损凸轮轴凸轮磨损更换2.曲轴连杆轴颈和活塞销磨损严重更换和修理3.活塞环损坏更换4.气门间隙不当调整5.凸轮轴曲轴止推间隙太大调整6.爆震传感器损坏更换*************************************************************I、发动机过热1.火花塞间隙不当或积炭清理或调整2.进气管松动排气管堵塞拧紧或调整3.接插件插接不好或风扇损坏调整或更换4.冷却液不足或水管堵塞补充或清理5.水泵间隙不当或损坏修理或更换6.机油不足补充7.机油路堵塞或机油泵损坏清理或更换8.汽缸垫损坏更换9.离合器滑动修理或更换10.散热器被水垢堵塞清理或更换11.节温器打不开调整或更换12.水泵皮带张紧力不足调整************************************************************ J、机油消耗量过大1.气门导套油封磨损或损坏更换2.油环磨损或损坏更换3.活塞环对口未按规定错开调整4.汽缸垫损坏更换5.气门与气门导套磨损更换6.发动机过热内压增加部分机油通气口排出检查有关部位7.油封损坏漏油更换2离合器************************************************************* K、离合器有噪音1.分离轴承磨损或损坏更换2.前输出轴轴承磨损更换3.离合器轮毂松动修理4.离合齐压盘有裂纹更换5.压盘和膜片弹簧有松动修理或更换6.离合器摩擦片有油清理或更换7.离合器减震胶棒或弹簧损坏更换************************************************************* L、离合脱离不开和空离合1.踏板行程不够或钢索空行程太大调整2.没有空行程调整3变速器、************************************************************* 变速器换档困难1.同步齿圈磨损更换2.同步齿轮磨损更换3.定位球损坏更换4.拨叉变形或不均匀磨损修理或更换4排放************************************************************* M、排放不合格1.使用了含铅的燃油造成氧传感器及三元催化器损坏更换2.点火系统故障造成缺火并长期使用将氧传感器及三元催化器损坏更换3.排气系统漏气电子控制器得不到正确的氧传感器信号造成空燃比变浓更换5消声器************************************************************* N、消声器的性能太差1.排气管接头松动拧紧2.排气支管松动拧紧3.排气支管或消声器损坏修理或更换4.消声器衬套损坏更换5.车体和消声器之间干涉修理减少接点6冷却系统************************************************************* O、风扇不动作1.电源线断开接通2.电容器熔断更换3.风扇继电器不导通更换4.水温传感器有故障检查修理或更换5.风扇电机有故障检查修理或更换************************************************************* P、风扇不停止1.风扇继电器常通更换2.水温传感器有故障检查并更换7车轮及轮胎************************************************************* 轮胎磨损快或磨损不均匀1.四个轮胎气压不均调整轮胎气压2.四个轮胎直径不同调整或更换3.车轮轴承磨损或松动更换4.轮胎摆震修理或更换5.轮胎更换不当导致不平衡调整6.前轮定位调整不良按规定调整8传动轴************************************************************* 传动轴异响1.万向节过度磨损更换2.万向节缺少润滑油加规定油脂3.差速器润滑不良加润滑油4.防尘罩破碎更换5.差速器油封漏油更换9制动系统************************************************************* 制动力不够1.制动管中制动液泄露确定泄露部位并修理2.制动盘或摩擦块有油污清洁或更换3.制动器或热找出原因并维修4.制动鼓与制动蹄接触不良修理改善接触5.制动蹄有油污或水更换6.制动蹄严重磨损更换7.制动分泵有故障修理或更换8.制动钳总成有故障修理或更换************************************************************* 制动不均（制动器工作不协调）1.制动蹄有油污或水更换2.制动鼓与制动蹄的间隙失调检查制动调整机构是否工作3.制动鼓与制动蹄的间隙失调更换4.轮胎气压左右不均均匀充压5.制动分泵有故障修理或更换6.前轮定位不良按规定调整7.同轴轮胎不一致同一轴上用同一规格轮胎8.制动管路堵塞检查制动管路是否损失如有换新件9.悬架零件松动检查所以的悬架安装10.制动钳松动检查螺栓的扭矩是否达到规定值11.制动钳故障检查制动钳是否有卡滞滑销是否正确*********************************************************** 润滑修理或更换卡钳踏板行程过大1.部分制动系统故障检查制动系统必要时修理2.制动系统中有空气（踏板软/海绵状）制动系统排气3.后制动器间隙未调好修理或更换间隙调整机构调整制动间隙4.制动蹄弯曲变形更换制动蹄5.制动蹄磨损更换制动蹄6.制动液壶内制动液不足加制动液检查系统是否泄露************************************************************* 制动器未完全分离（制动踏板松开后制动器有轻微带刹车）1.主缸活塞回程不对修理主缸2.主缸回流堵塞清洗3.制动管路堵塞检查制动管路部件是否损坏如有更换新件4.驻车制动调整不正确检查并调整好5.制动器内复位弹簧变弱或损坏更换6.驻车制动钢索不灵活或卡滞修理或更换7.制动分泵或制动钳活塞卡滞必要时修理************************************************************* 踩下制动踏板时连续跳（不是轻微跳动）1.车轮轴承损坏或松动更换车轮轴承2.后轮制动鼓失圆检查跳动修理或更换3.制动盘轴向跳动太大按说明检查制动盘修理或更换************************************************************* 制动噪声1.制动蹄磨光或制动衬片粘有杂质修理或更换制动蹄制动衬片2.制动蹄制动衬片磨损或损坏更换制动蹄制动衬片3.前轮轴承松动更换轴承4.制动底板变形或安装螺母松动更换或拧紧固定螺母************************************************************* ABS警告灯亮1.旧故障代码未被清除使用诊断仪清除旧故障代码2.ABS部件工作不良或损坏使用诊断仪故障代码按故障代码检查故障修理或更换************************************************************* 转向系统转向困难1.轮胎气压不足调整压力2.转向横拉杆接头卡住修理或更换3.前轮定位不良按规定调整************************************************************* 转向轮摆（摆动颤动或震动）1.轮胎压力不足调整轮胎压力2.车轮摆动修理或更换3.左右轮胎直径不同更换相同规格的轮胎4.轮毂螺母松动拧紧5.横拉杆接头磨损或松动更换或拧紧6.转向器安装松动拧紧7.轮胎或车轮不平衡平衡车轮或轮胎8.轮胎鼓包或撞鼓更换轮胎9.前轮定位调整不良检查前轮定位************************************************************* 转向盘自动拉向一边（汽车行车）1.轮胎磨损不均更换2.在一个轮胎上制动器抱死修理3.轮胎充气不足调整轮胎压力4.转向拉杆磨损或变形更换5.前轮定位不准按规定调整6.前悬架或后悬架零件松动弯曲或损坏拧紧或更换悬架零件7.转向器齿合不良更换************************************************************* 转向盘受到冲击（或车轮的角震动）1.轮胎充气压力过高降至规定值2.减震器性能差更换3.轮胎直径不同调整或更换4.转向横拉杆接头磨损更换5.前轮轴承磨损或损坏更换6.前轮松动拧紧7.转向盘松动拧紧螺母8.轮胎鼓包或撞包更换轮胎9.转向器转动力矩过小调整************************************************************* 轮胎磨损快或磨损不均匀1.轮胎气压不均调整轮胎气压2.轮胎直径不同调整或更换3.车轮轴承磨损或松动更换4.轮胎摆震修理或更换5.轮胎更换不当导致不平衡调整6.前轮定位调整不良按规定调整7.行驶工况不良尽量降低车速*********************************************************** 转向噪声1.螺栓螺母松动拧紧2.钢板弹簧座松动拧紧3.车轮轴承损坏或其他不良更换4.转向横拉杆磨损或卡住更换5.转向横拉杆接头润滑不足润滑或更换************************************************************* 转向游隙太大1.车轮轴承磨损更换车轮轴承2.转向器安装螺栓松动拧紧或修理3.转向器间隙调整不良检查或调整4.转向横拉杆接头磨损或松旷更换接头************************************************************* 回位不良1.转向横拉杆接头卡住更换接头2.转向柱卡住修理或更换3.转向器润滑不良润滑4.前轮定位不准检查并调整5.转向器间隙调整不良检查并调整小齿轮扭矩6.轮胎压力不足调整压力************************************************************* 转向横拉杆噪声异常1.转向横拉杆接头磨损卡位或松动更换更拉杆接头2.减震器或安装件损坏更换或修理3.前稳定杆松动拧紧螺栓或更换衬套4.车轮螺母松动拧紧5.悬架螺栓或螺母松动拧紧悬架螺栓或螺母6.车轮轴承损坏或其他不良更换7.悬架弹簧损坏更换*********************************************************** 11悬架系统************************************************************* 调整高度低或不均1.弹簧折断或扭曲更换2.超载检查载荷3.弹簧规格不对更换************************************************************* 乘坐不舒服减震器有故障更换************************************************************* 悬架压到底部1.超载检查载荷2.减震器有故障更换3.弹簧规格不对更换*********************************************************** 12车速里程表************************************************************* 指示错误1.车速传感器故障更换2.变速器故障（润滑油不足或传动齿轮磨损）修理或更换3.车速里程表故障更换4.车速表指针卡滞修理5.接车速传感器的先束插接件接触不良修理*************************************************************没有指示1.仪表电源线断路修理2.车速传感器故障更换3.车速里程表故障更换4.车速表指针卡死修理5.接车速传感器的线束故障（正线断路或短路/搭铁线断路/信号线断路或短路）修理***********************************************************13发动机转速表*************************************************************指示错误1.发动机曲轴传感器故障更换2.发动机ECU故障更换3.信号输入线插接件接触不良修理4.转速表故障更换5.转速表针卡滞修理*************************************************************没有指示1.仪表电源线断路修理2.发动机曲轴传感器故障更换3.发动机ECU故障更换4.信号输入线断路修理5.转速表故障更换6.转速表指针卡死修理14燃油表************************************************************* 指示错误1.燃油传感器故障（浮子卡滞）修理或更换2.线束插接件接触不良修理3.接燃油传感器的线束搭铁修理4.燃油表故障更换5.燃油表针卡滞修理************************************************************* 没有指示1.仪表电源线断路修理2.燃油传感器故障（电阻开路）更换3.接燃油传感器的线束断路修理4.燃油表故障更换5.燃油表针卡死修理15水温表************************************************************* 指示错误1.水温传感器故障更换2.线束插接件接触不良修理3.接水温传感器的线搭铁修理4.水温表故障更换5.水温表指针卡滞修理************************************************************* 没有指示1.仪表电源线断路修理2.水温传感器故障（电阻开路）更换3.接水温传感器的线断路修理4.水温表故障更换5.水温表指针卡死修理17空调系统无热风或热风不足1.控制机构损坏或操作不正确修复控制机构2.阀们损坏更换阀们3.暖风导管堵塞检查并修复4.加热芯体泄露或堵塞更换加热芯体5.热水管泄露或堵塞更换水管++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++ +++++++++++++++++冷气不足暖风电机工作正常下1.通风口堵塞检修2.蒸发器结霜检修3.储液器过滤层堵塞更换储液器4.暖风导管堵塞检修暖风机电机故障下1.开关故障更换或修理2.电阻值不正常更换3.熔断丝熔断检查并修复4.线路连接故障检查并修复5.电机故障更换电机6.叶轮损坏更换叶轮+++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++空调不工作1.熔断器熔断更换熔断器2.线束接头不良修理线接头3.制冷剂不足或过量填充制冷剂修理泄露处或者释放一部分制冷剂4.空调压缩机继电器故障更换空调压缩机继电器5.空调压力开关故障更换压力开关6.空调压缩机电磁离合器故障更换空调压缩机7.压缩机过热保护开关故障更换压缩机过热保护开关8.空调开关不良更换空调开关9.风速开关不良更换风速开关10.发动机ECU不良更换发动机ECU++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++ +++++++++++++++++暖风电机不转1.熔断器熔断更换熔断器2.线接头不良修理线接头3.暖风机电机不良更换暖风机电机4.风速开关不良更换空调控制板组件5.调风速电阻不正常更换调速电阻6.叶轮故障更换叶轮++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++ +++++++++++++++++暖风电机旋转不停风速开关故障更换风速开关哈飞汽车诊断头位置、电脑、引擎、及适用系统哈飞路宝7110：OBD诊断头。
哈飞路宝的维修手册哈飞路宝维修手册本来想用制图的方法来制作~~但是单位配置有限~~只能用文本方式表达了~~但是主题和大框没有改变~我感觉还是很好看懂的~~文章里包括《路宝故障检查与检修》的17大项目分别是:1.发动机2.离合器3.变速器4.排放5.消6.冷却系统7.车轮及轮胎8.传动轴9.制动系统10.转向系统11.悬架系统12.车速里程表13.发动机转速表14.燃油表15.水温表16.收放机1 7.空调系统1 发动机启动困难a 启动机不运转1.蓄电池电极接先处松动或电量不足拧紧或充电2.电路有断开处检查和修理3.启动机有损坏修理或更换b 点火系统故障1.搭铁不良修理2.线束断路或短路检查和修理3.接插件松拖或损坏修理或更换4.点火线圈损坏更换5.高压阻尼线插错接查不好或损坏调整或更换6.火花塞间隙不当积炭或烧毁调整清洗或更换c 供油系统的故障1.喷油器接插见插错调整2.线束断路或短路检查和修理3.接插件松脱或损坏修理或更换4.油压调节器真空管脱落破坏装上或更换5.电动燃油泵供油压力不足修理或更换6.喷油器损坏或堵塞更换或清洗7.燃油软管弯折及燃油滤清器堵塞调整或更换d EMS系统故障1.主继电器或燃油泵继电器损坏更换2.电子控制单元（ECU）有故障修理或更换3.转速传感器或引线损坏修理或更换e 汽缸压缩压力减小1.汽缸垫破裂更换2.气门间隙调整不当或有损坏调整修理或更换3.活塞活塞环汽缸磨损修理或更换怠速过高1.ECU断电后未进行自学习熄火进行自学习2.ECU故障代码未被清除清除3.节气门无法完全回位检查和调整4.进气系统漏气检查和修理5.怠速调节器（进步电机）损坏更换6.节气门位置传感器损坏更换运转中功率不足1.加速踏板与节气门体拉线调整不当调整2.汽缸压缩压力减小检查气门火花塞汽缸垫是否渗漏气门研磨3.燃油压力调节损坏造成燃油供给不足调整或更换4.进气不足检查进气系统5.排气堵塞检查排气系统和清楚积炭6.火花塞间隙不当积炭或损坏调整清理或更换7.单缸高压阻尼线损坏更换8.点火线圈性能下降各缸点火能量不足更换9.喷油器堵塞或损坏清洗或更换10.燃油滤清器堵塞更换11.节气门位置传感器损坏更换12.电动燃油泵供油压力不足修理或更换发动机内部有敲缸声1.轴瓦磨损凸轮轴凸轮磨损更换2.曲轴连杆轴颈和活塞销磨损严重更换和修理3.活塞环损坏更换4.气门间隙不当调整5.凸轮轴曲轴止推间隙太大调整6.爆震传感器损坏更换发动机过热1.火花塞间隙不当或积炭清理或调整2.进气管松动排气管堵塞拧紧或调整3.接插件插接不好或风扇损坏调整或更换4.冷却液不足或水管堵塞补充或清理5.水泵间隙不当或损坏修理或更换6.机油不足补充7.机油路堵塞或机油泵损坏清理或更换8.汽缸垫损坏更换9.离合器滑动修理或更换10.散热器被水垢堵塞清理或更换11.节温器打不开调整或更换12.水泵皮带张紧力不足调整机油消耗量过大1.气门导套油封磨损或损坏更换2.油环磨损或损坏更换3.活塞环对口未按规定错开调整4.汽缸垫损坏更换5.气门与气门导套磨损更换6.发动机过热内压增加部分机油通气口排出检查有关部位7.油封损坏漏油2离合器离合器有噪音1.分离轴承磨损或损坏更换2.前输出轴轴承磨损更换3.离合器轮毂松动修理4.离合齐压盘有裂纹更换5.压盘和膜片弹簧有松动修理或更换6.离合器摩擦片有油清理或更换7.离合器减震胶棒或弹簧损坏更换离合器离合脱离不开和空离合1.踏板行程不够或钢索空行程太大调整2.没有空行程调整4排放排放不合格1.使用了含铅的燃油造成氧传感器及三元催化器损坏更换2.点火系统故障造成缺火并长期使用将氧传感器及三元催化器损坏更换3.排气系统漏气电子控制器得不到正确的氧传感器信号造成空燃比变浓更换5消声器*************************************************************消声器的性能太差1.排气管接头松动拧紧2.排气支管松动拧紧3.排气支管或消声器损坏修理或更换4.消声器衬套损坏更换5.车体和消声器之间干涉修理减少接点6冷却系统*************************************************************风扇不动作1.电源线断开接通2.电容器熔断更换3.风扇继电器不导通更换4.水温传感器有故障检查修理或更换5.风扇电机有故障检查修理或更换************************************************************* 风扇不停止1.风扇继电器常通更换2.水温传感器有故障检查并更换7车轮及轮胎************************************************************* 轮胎磨损快或磨损不均匀1.四个轮胎气压不均调整轮胎气压2.四个轮胎直径不同调整或更换3.车轮轴承磨损或松动更换4.轮胎摆震修理或更换5.轮胎更换不当导致不平衡调整6.前轮定位调整不良按规定调整8传动轴************************************************************* 传动轴异响1.万向节过度磨损更换2.万向节缺少润滑油加规定油脂3.差速器润滑不良加润滑油4.防尘罩破碎更换5.差速器油封漏油更换9制动系统************************************************************* 制动力不够1.制动管中制动液泄露确定泄露部位并修理2.制动盘或摩擦块有油污清洁或更换3.制动器或热找出原因并维修4.制动鼓与制动蹄接触不良修理改善接触5.制动蹄有油污或水更换6.制动蹄严重磨损更换7.制动分泵有故障修理或更换8.制动钳总成有故障修理或更换*************************************************************制动不均（制动器工作不协调）1.制动蹄有油污或水更换2.制动鼓与制动蹄的间隙失调检查制动调整机构是否工作3.制动鼓与制动蹄的间隙失调更换4.轮胎气压左右不均均匀充压5.制动分泵有故障修理或更换6.前轮定位不良按规定调整7.同轴轮胎不一致同一轴上用同一规格轮胎8.制动管路堵塞检查制动管路是否损失如有换新件9.悬架零件松动检查所以的悬架安装10.制动钳松动检查螺栓的扭矩是否达到规定值11.制动钳故障检查制动钳是否有卡滞滑销是否正确润滑修理或更换卡钳*************************************************************踏板行程过大1.部分制动系统故障检查制动系统必要时修理2.制动系统中有空气（踏板软/海绵状）制动系统排气3.后制动器间隙未调好修理或更换间隙调整机构调整制动间隙4.制动蹄弯曲变形更换制动蹄5.制动蹄磨损更换制动蹄6.制动液壶内制动液不足加制动液检查系统是否泄露*************************************************************制动器未完全分离（制动踏板松开后制动器有轻微带刹车）1.主缸活塞回程不对修理主缸2.主缸回流堵塞清洗3.制动管路堵塞检查制动管路部件是否损坏如有更换新件4.驻车制动调整不正确检查并调整好5.制动器内复位弹簧变弱或损坏更换6.驻车制动钢索不灵活或卡滞修理或更换7.制动分泵或制动钳活塞卡滞必要时修理踩下制动踏板时连续跳（不是轻微跳动）1.车轮轴承损坏或松动更换车轮轴承2.后轮制动鼓失圆检查跳动修理或更换3.制动盘轴向跳动太大按说明检查制动盘修理或更换制动噪声1.制动蹄磨光或制动衬片粘有杂质修理或更换制动蹄制动衬片2.制动蹄制动衬片磨损或损坏更换制动蹄制动衬片3.前轮轴承松动更换轴承4.制动底板变形或安装螺母松动更换或拧紧固定螺母*************************************************************ABS警告灯亮1.旧故障代码未被清除使用诊断仪清除旧故障代码2.ABS部件工作不良或损坏使用诊断仪故障代码按故障代码检查故障修理或更换10 转向系统*************************************************************转向困难1.轮胎气压不足调整压力2.转向横拉杆接头卡住修理或更换3.前轮定位不良按规定调整*************************************************************转向轮摆（摆动颤动或震动）1.轮胎压力不足调整轮胎压力2.车轮摆动修理或更换3.左右轮胎直径不同更换相同规格的轮胎4.轮毂螺母松动拧紧5.横拉杆接头磨损或松动更换或拧紧6.转向器安装松动拧紧7.轮胎或车轮不平衡平衡车轮或轮胎8.轮胎鼓包或撞鼓更换轮胎9.前轮定位调整不良检查前轮定位*************************************************************转向盘自动拉向一边（汽车行车）1.轮胎磨损不均更换2.在一个轮胎上制动器抱死修理3.轮胎充气不足调整轮胎压力4.转向拉杆磨损或变形更换5.前轮定位不准按规定调整6.前悬架或后悬架零件松动弯曲或损坏拧紧或更换悬架零件7.转向器齿合不良更换*************************************************************转向盘受到冲击（或车轮的角震动）1.轮胎充气压力过高降至规定值2.减震器性能差更换3.轮胎直径不同调整或更换4.转向横拉杆接头磨损更换5.前轮轴承磨损或损坏更换6.前轮松动拧紧7.转向盘松动拧紧螺母8.轮胎鼓包或撞包更换轮胎9.转向器转动力矩过小调整*************************************************************轮胎磨损快或磨损不均匀1.轮胎气压不均调整轮胎气压2.轮胎直径不同调整或更换3.车轮轴承磨损或松动更换4.轮胎摆震修理或更换5.轮胎更换不当导致不平衡调整6.前轮定位调整不良按规定调整7.行驶工况不良尽量降低车速************************************************************* 转向噪声1.螺栓螺母松动拧紧2.钢板弹簧座松动拧紧3.车轮轴承损坏或其他不良更换4.转向横拉杆磨损或卡住更换5.转向横拉杆接头润滑不足润滑或更换************************************************************* 转向游隙太大1.车轮轴承磨损更换车轮轴承2.转向器安装螺栓松动拧紧或修理3.转向器间隙调整不良检查或调整4.转向横拉杆接头磨损或松旷更换接头************************************************************* 回位不良1.转向横拉杆接头卡住更换接头2.转向柱卡住修理或更换3.转向器润滑不良润滑4.前轮定位不准检查并调整5.转向器间隙调整不良检查并调整小齿轮扭矩6.轮胎压力不足调整压力************************************************************* 转向横拉杆噪声异常1.转向横拉杆接头磨损卡位或松动更换更拉杆接头2.减震器或安装件损坏更换或修理3.前稳定杆松动拧紧螺栓或更换衬套4.车轮螺母松动拧紧5.悬架螺栓或螺母松动拧紧悬架螺栓或螺母6.车轮轴承损坏或其他不良更换7.悬架弹簧损坏11悬架系统*************************************************************调整高度低或不均1.弹簧折断或扭曲更换2.超载检查载荷3.弹簧规格不对更换*************************************************************乘坐不舒服减震器有故障更换*************************************************************悬架压到底部1.超载检查载荷2.减震器有故障更换3.弹簧规格不对更换12车速里程表*************************************************************指示错误1.车速传感器故障更换2.变速器故障（润滑油不足或传动齿轮磨损）修理或更换3.车速里程表故障更换4.车速表指针卡滞修理5.接车速传感器的先束插接件接触不良修理*************************************************************没有指示1.仪表电源线断路修理2.车速传感器故障更换3.车速里程表故障更换4.车速表指针卡死修理5.接车速传感器的线束故障（正线断路或短路/搭铁线断路/信号线断路或短路）修理13发动机转速表*************************************************************指示错误1.发动机曲轴传感器故障更换2.发动机ECU故障更换3.信号输入线插接件接触不良修理4.转速表故障更换5.转速表针卡滞修理*************************************************************没有指示1.仪表电源线断路修理2.发动机曲轴传感器故障更换3.发动机ECU故障更换4.信号输入线断路修理5.转速表故障更换6.转速表指针卡死修理14燃油表1.燃油传感器故障（浮子卡滞）修理或更换2.线束插接件接触不良修理3.接燃油传感器的线束搭铁修理4.燃油表故障更换5.燃油表针卡滞修理*************************************************************没有指示1.仪表电源线断路修理2.燃油传感器故障（电阻开路）更换3.接燃油传感器的线束断路修理4.燃油表故障更换5.燃油表针卡死修理15水温表*************************************************************指示错误1.水温传感器故障更换2.线束插接件接触不良修理3.接水温传感器的线搭铁修理4.水温表故障更换5.水温表指针卡滞修理*************************************************************没有指示1.仪表电源线断路修理2.水温传感器故障（电阻开路）更换3.接水温传感器的线断路修理4.水温表故障更换5.水温表指针卡死修理16收放机在发动机运转过程中，收放机混入杂音的故障原因及排除方法。
Edition 02.2006Position of relays and fusesPosition of fuses in fuse carrier, left dash panelFuse colours40 A - orange 30 A - green 25 A - white 20 A - yellow 15 A - blue 10 A - red 7,5 A - brown 5 A - beige 3 A - purple1 - Fuse carrier ST1 (red)2 - Fuse carrier ST2 (brown)3 - Fuse carrier ST3 (black)4 - CAN separating connector T46a - A up to D - vacantPosition of fuses in fuse carrier, left dash panel (left-hand drive)No.Current Flow Diagram designation Fuse carrier ST1 (red)NominalvalueFunction/component Terminal1-SB1 - Fuse 1 on fuse holder B--Vacant2-SB2 - Fuse 2 on fuse holder B--Vacant3-SB3 - Fuse 3 on fuse holder B--Vacant4-SB4 - Fuse 4 on fuse holder B 5 A-J502-Tyre pressure monitor control unit30 5-SB5 - Fuse 5 on fuse holder B20 A-J364 -Auxiliary heater control unit30 6-SB6 - Fuse 6 on fuse holder B10 A-E176-Driver seat lumbar support adjustment switch30 7-SB7 - Fuse 7 on fuse holder B35 A-J386-Driver door control unitV147-Driver side window regulator motorJ388-Rear left door control unitV26-Rear left window regulator motor308-SB8 - Fuse 8 on fuse holder B15 A-J386-Driver door control unitJ388-Rear left door control unit30 9-SB9 - Fuse 9 on fuse holder B 5 A-J644-Energy management control unit3010-SB10 - Fuse 10 on fuse holder B30 A-J518-Entry and start authorisation control unitE415-Entry and start authorisation switch30 11-SB11 - Fuse 11 on fuse holder B10 A-J527-Steering column electronics control unit3012-SB12 - Fuse 12 on fuse holder B 5 A-G273- Interior monitoring sensorH12- Alarm horn30Position of fuses in fuse carrier, left dash panel (left-hand drive)No.Current Flow Diagram designation Fuse carrier ST2 (brown)NominalvalueFunction/component Terminal1-SB1 - Fuse 1 on fuse holder B--Vacant2-SB2 - Fuse 2 on fuse holder B--Vacant3-SB3 - Fuse 3 on fuse holder B--Vacant4-SB4 - Fuse 4 on fuse holder B30 A-J400-Wiper motor control unitV-Windscreen wiper motor30 5-SB5 - Fuse 5 on fuse holder B 5 A-G397- Rain and light detector sensor306-SB6 - Fuse 6 on fuse holder B25 A-J4-Dual tone horn relayH2-Treble tone hornH7-Bass tone horn307-SB7 - Fuse 7 on fuse holder B30 A-J519-Onboard power supply control unit30 8-SB8 - Fuse 8 on fuse holder B25 A-J519-Onboard power supply control unit30 9-SB9 - Fuse 9 on fuse holder B25 A-J519-Onboard power supply control unit30 10-SB10 - Fuse 10 on fuse holder B10 A-J285-Control unit in dash panel insertY24-Display in dash panel insert30 11-SB11 - Fuse 11 on fuse holder B30 A-J39 -Headlight washer system relay30 12-SB12 - Fuse 12 on fuse holder B10 A-T16-Diagnostic connector30Position of fuses in fuse carrier, left dash panel (left-hand drive)No.Current Flow Diagram designation Fuse carrier ST3 (black)NominalvalueFunction/component Terminal1-SB1 - Fuse 1 on fuse holder B10 A-J745-Cornering light and headlight rangecontrol unit152-SB2 - Fuse 2 on fuse holder B 5 A-J428-Adaptive cruise control unitZ47-Sensor heater for adaptive cruisecontrol system153-SB3 - Fuse 3 on fuse holder B--Vacant4-SB4 - Fuse 4 on fuse holder B10 A-Lane-Departure-WarningJ759-Lane departure warning control unitZ67-Windscreen heater for lanedeparture warning155-SB5 - Fuse 5 on fuse holder B--Vacant6-SB6 - Fuse 6 on fuse holder B 5 A-J527-Steering column electronics controlunitJ518-Entry and start authorisation controlunitE1-Light switchJ393-Convenience system central controlunitJ345-Trailer detector control unit157-SB7 - Fuse 7 on fuse holder B 5 A-G226 -Oil level and oil temperaturesender15 8-SB8 - Fuse 8 on fuse holder B 5 A-T16-Diagnostic connector15 9-SB9 - Fuse 9 on fuse holder B 5 A-Y7 -Automatic anti-dazzle interior mirror15 10-SB10 - Fuse 10 on fuse holder B 5 A-J530-Garage door operation control unitE284-Garage door operating unit15 11-SB11 - Fuse 11 on fuse holder B 5 A-J533-Data bus diagnostic interface1512-SB12 - Fuse 12 on fuse holder B 5 A-E102-Headlight range control regulatorV48 -Left headlight range control motorV49 -Right headlight range control motor15Position of fuses in fuse carrier, left dash panel (right-hand drive)No.Current Flow Diagram designation Fuse carrier ST1 (red)NominalvalueFunction/component Terminal1-SB1 - Fuse 1 on fuse holder B--Vacant2-SB2 - Fuse 2 on fuse holder B--Vacant3-SB3 - Fuse 3 on fuse holder B--Vacant4-SB4 - Fuse 4 on fuse holder B 5 A-J502-Tyre pressure monitor control unit30 5-SB5 - Fuse 5 on fuse holder B20 A-J364 -Auxiliary heater control unit30 6-SB6 - Fuse 6 on fuse holder B10 A-E177-Front passenger seat lumbarsupport adjustment switch307-SB7 - Fuse 7 on fuse holder B35 A-J387-Front passenger side door controlunit308-SB8 - Fuse 8 on fuse holder B15 A-J387-Front passenger door control unitV148-Front passenger side windowregulator motorJ389-Rear right door control unitV27-Rear right window regulator motor309-SB9 - Fuse 9 on fuse holder B 5 A-J644-Energy management control unitJ389-Rear right door control unit3010-SB10 - Fuse 10 on fuse holder B 5 A-R118-Media player in position 1R119-Media player in position 2R41-CD changerR153-Mini Disc playerR129-Video recorder and DVD player3011-SB11 - Fuse 11 on fuse holder B10 A-E265-Rear Climatronic operating anddisplay unitJ391-Rear fresh air blower control unit3012-SB12 - Fuse 12 on fuse holder B 5 A-J393-Convenience system central controlunit30Position of fuses in fuse carrier, left dash panel (right-hand drive)No.Current Flow Diagram designation Fuse carrier ST2 (brown)NominalvalueFunction/component Terminal1-SB1 - Fuse 1 on fuse holder B--Vacant2-SB2 - Fuse 2 on fuse holder B--Vacant3-SB3 - Fuse 3 on fuse holder B--Vacant4-SB4 - Fuse 4 on fuse holder B30 A-J400-Wiper motor control unitV-Windscreen wiper motor30 5-SB5 - Fuse 5 on fuse holder B 5 A-G397- Rain and light detector sensor306-SB6 - Fuse 6 on fuse holder B25 A-H2 -Treble tone hornH7 - Bass tone hornJ4 -Dual tone horn relay307SB7 - Fuse 7 on fuse holder B--Vacant8-SB8 - Fuse 8 on fuse holder B20 A-U1-Cigarette lighter30 9-SB9 - Fuse 9 on fuse holder B25 A-U5 -12 V socketU18 -12 V socket 23010-SB10 - Fuse 10 on fuse holder B10 A-J255-Climatronic control unitJ126-Fresh air blower control unit30 11-SB11 - Fuse 11 on fuse holder B30 A-J39 -Headlight washer system relay30 12-SB12 - Fuse 12 on fuse holder B10 A-T16-Diagnostic connector30Position of fuses in fuse carrier, left dash panel (right-hand drive)No.Current Flow Diagram designation Fuse carrier ST3 (black)NominalvalueFunction/component Terminal1-SB1 - Fuse 1 on fuse holder B10 A-J745-Cornering light and headlight rangecontrol unit152-SB2 - Fuse 2 on fuse holder B 5 A-J428-Adaptive cruise control unitZ47-Sensor heater for adaptive cruisecontrol system153-SB3 - Fuse 3 on fuse holder B--Vacant4-SB4 - Fuse 4 on fuse holder B10 A-J759-Lane departure warning control unitZ67-Windscreen heater for lanedeparture warning155-SB5 - Fuse 5 on fuse holder B--Vacant6- SB6 - Fuse 6 on fuse holder B 5 A-Z10-Heated bench seat cushion for rearleft seatZ11-Heated rear left seat backrestZ12-Heated bench seat cushion for rearright seatZ13-Heated backrest for rear right seat157-SB7 - Fuse 7 on fuse holder B 5 A-G226 -Oil level and oil temperaturesender15 8-SB8 - Fuse 8 on fuse holder B 5 A-T16-Diagnostic connector15 9-SB9 - Fuse 9 on fuse holder B 5 A-Y7 -Automatic anti-dazzle interior mirror15 10-SB10 - Fuse 10 on fuse holder B 5 A-J530-Garage door operation control unitE284-Garage door operating unit15 11-SB11 - Fuse 11 on fuse holder B 5 A-J234-Airbag control unit1512-SB12 - Fuse 12 on fuse holder B 5 A-G238-Air quality sensorE265-Rear Climatronic operating anddisplay unitJ255-Climatronic control unit15Position of fuses in fuse carrier, right dash panelFuse colours40 A - orange 30 A - green 25 A - white 20 A - yellow 15 A - blue 10 A - red 7,5 A - brown 5 A - beige 3 A - purple1 - Fuse carrier ST1 (black)2 - Fuse carrier ST2 (brown)3 - Fuse carrier ST3 (red)4 - CAN separating connector T46b - A up to D - vacantPosition of fuses in fuse carrier, right dash panel (left-hand drive)No.Current Flow Diagram designation Fuse carrier ST1 (black)NominalvalueFunction/component Terminal1-SC1 - Fuse 1 on fuse holder C20 A-Z10-Heated bench seat cushion for rearleft seatZ11-Heated rear left seat backrestZ12-Heated bench seat cushion for rearright seatZ13-Heated backrest for rear right seat302-SC2-Fuse 2 on fuse holder C 10 A-J217-Automatic gearbox control unit(0AT)305 A-J217-Automatic gearbox control unit(09D)303-SC3 - Fuse 3 on fuse holder C30 A-Z45-Heated seat cushion for front leftseatZ46-Heated seat cushion for front rightseat304-SC4 - Fuse 4 on fuse holder C20 A-J104 -ABS control unit30 5-SC5 - Fuse 5 on fuse holder C15 A-J387-Front passenger door control unitJ389-Rear right door control unit306-SC6 - Fuse 6 on fuse holder C25 A-U19-12 V socket 3U20-12 V socket 4307-SC7 - Fuse 7 on fuse holder C10 A-E177-Front passenger seat lumbarsupport adjustment switch30 8-SC8 - Fuse 8 on fuse holder C20 A-U1-Cigarette lighter309-SC9 - Fuse 9 on fuse holder C25 A-U5 -12 V socketU18 -12 V socket 23010-SC10 - Fuse 10 on fuse holder C10 A-J255-Climatronic control unitJ126-Fresh air blower control unit3011- SC11 - Fuse 11 on fuse holder C 5 A-F-Brake light switchF47-Brake pedal switchJ104-ABS control unit30 12-SC12 - Fuse 12 on fuse holder C15 A-J520-Onboard supply control unit 230Position of fuses in fuse carrier, right dash panel (left-hand drive)No.Current Flow Diagram designation Fuse carrier ST2 (brown)NominalvalueFunction/component Terminal1-SC1 - Fuse 1 on fuse holder C10 A-J745-Cornering light and headlight rangecontrol unit152-SC2 - Fuse 2 on fuse holder C 5 A-J197-Adaptive suspension control unit15 3-SC3 - Fuse 3 on fuse holder C--Vacant4-SC4 - Fuse 4 on fuse holder C 5 A-J769-Lane change assist control unitJ770-Lane change assist control unit 2155-SC5 - Fuse 5 on fuse holder C 5 A-J508-Brake light suppression relayF36-Clutch pedal switch156-SC6-Fuse 6 on fuse holder C5 A-J217-Automatic gearbox control unit(0AT)1520 A-J217-Automatic gearbox control unit(09D)157-SC7 - Fuse 7 on fuse holder C 5 A-J104 -ABS control unit15 8-SC8 - Fuse 8 on fuse holder C 5 A-F125-Multifunction switchF189-Tiptronic switchJ587-Selector lever sensors control unit159-SC9 - Fuse 9 on fuse holder C 5 A-J446-Parking aid control unit15 10-SC10 - Fuse 10 on fuse holder C 5 A-J234-Airbag control unit15 11-SC11 - Fuse 11 on fuse holder C 5 A-E128-Heated rear left seat switch withregulatorE129-Heated rear right seat switch withregulator1512-SC12 - Fuse 12 on fuse holder C 5 A-G238-Air quality sensorE265-Rear Climatronic operating anddisplay unitJ255-Climatronic control unit15Position of fuses in fuse carrier, right dash panel (left-hand drive)No.Current Flow Diagram designation Fuse carrier ST3 (red)NominalvalueFunction/component Terminal1-SC1 - Fuse 1 on fuse holder C15 A-V12 -Rear window wiper motor75 2-SC2 - Fuse 2 on fuse holder C 5 A-Z20 -Left washer jet heater elementZ21 -Right washer jet heater element75 3-SC3 - Fuse 3 on fuse holder C--Vacant4-SC4 - Fuse 4 on fuse holder C--Vacant5-SC5 - Fuse 5 on fuse holder C 5 A-R36-Telephone transmitter and receiverunit306-SC6-Fuse 6 on fuse holder C 15 A-J523-Front information display andoperating unit control unitR24-Aerial amplifier305 A-J523-Front information display andoperating unit control unit307-SC7 - Fuse 7 on fuse holder C20 A-J245-Sliding sunroof adjustment controlunit30 8-SC8 - Fuse 8 on fuse holder C20 A-J392-Rear sliding sunroof control unit30 9-SC9 - Fuse 9 on fuse holder C20 A-J394-Sunroof roller blind control unit30 10-SC10 - Fuse 10 on fuse holder C 5 A-R118-Media player in position 1R119-Media player in position 2R41-CD changerR153-Mini Disc playerR129-Video recorder and DVD player3011-SC11 - Fuse 11 on fuse holder C35 A-J387-Front passenger door control unitV148-Front passenger side windowregulator motorJ389-Rear right door control unitV27-Rear right window regulator motor3012-SC12 - Fuse 12 on fuse holder C10 A-E265-Rear Climatronic operating anddisplay unitJ391-Rear fresh air blower control unit30Position of fuses in fuse carrier, right dash panel (right-hand drive)No.Current Flow Diagram designation Fuse carrier ST1 (black)NominalvalueFunction/component Terminal1-SC1 - Fuse 1 on fuse holder C20 A-Z10-Heated bench seat cushion for rearleft seatZ11-Heated rear left seat backrestZ12-Heated bench seat cushion for rearright seatZ13-Heated backrest for rear right seat302-SC2-Fuse 2 on fuse holder C 10 A-J217-Automatic gearbox control unit(0AT)305 A-J217-Automatic gearbox control unit(09D)303-SC3 - Fuse 3 on fuse holder C30 A-Z45-Heated seat cushion for front leftseatZ46-Heated seat cushion for front rightseat304-SC4 - Fuse 4 on fuse holder C20 A-J104 -ABS control unit30 5-SC5 - Fuse 5 on fuse holder C15 A-J386-Driver door control unitJ388-Rear left door control unit306-SC6 - Fuse 6 on fuse holder C25 A-U19-12 V socket 3U20-12 V socket 4307-SC7 - Fuse 7 on fuse holder C10 A-E176-Driver seat lumbar supportadjustment switch30 8-SC8 - Fuse 8 on fuse holder C25 A-J519-Onboard power supply control unit30 9-SC9 - Fuse 9 on fuse holder C25 A-J519-Onboard power supply control unit30 10-SC10 - Fuse 10 on fuse holder C10 A-J285 - Control unit in dash panel insert30 11-SC11 - Fuse 11 on fuse holder C 5 A-F-Brake light switchF47-Brake pedal switchJ104-ABS control unit30Position of fuses in fuse carrier, right dash panel (right-hand drive)No.Current Flow Diagram designation Fuse carrier ST2 (brown)NominalvalueFunction/component Terminal1-SC1 - Fuse 1 on fuse holder C10 A-J745-Cornering light and headlight rangecontrol unit152-SC2 - Fuse 2 on fuse holder C 5 A-J197-Adaptive suspension control unit15 3-SC3 - Fuse 3 on fuse holder C--Vacant4-SC4 - Fuse 4 on fuse holder C 5 A-J769-Lane change assist control unitJ770-Lane change assist control unit 2155-SC5 - Fuse 5 on fuse holder C 5 A-J508-Brake light suppression relayF36-Clutch pedal switch156-SC6-Fuse 6 on fuse holder C5 A-J217-Automatic gearbox control unit(0AT)1520 A-J217-Automatic gearbox control unit(09D)157-SC7 - Fuse 7 on fuse holder C 5 A-J104 -ABS control unit15 8-SC8 - Fuse 8 on fuse holder C 5 A-F125-Multifunction switchF189-Tiptronic switchJ587-Selector lever sensors control unit159-SC9 - Fuse 9 on fuse holder C 5 A-J446-Parking aid control unit15 10-SC10 - Fuse 10 on fuse holder C 5 A-J533-Data bus diagnostic interface15 11-SC11 - Fuse 11 on fuse holder C 5 A-J527-Steering column electronics controlunitJ518-Entry and start authorisation controlunitE1-Light switchJ393-Convenience system central controlunitJ345-Trailer detector control unit15 12-SC12 - Fuse 12 on fuse holder C 5 A-E102-Headlight range control regulator 15Position of fuses in fuse carrier, right dash panel (right-hand drive)No.Current Flow Diagram designation Fuse carrier ST3 (red)NominalvalueFunction/component Terminal1-SC1 - Fuse 1 on fuse holder C15 A-V12 -Rear window wiper motor75 2-SC2 - Fuse 2 on fuse holder C 5 A-Z20 -Left washer jet heater elementZ21 -Right washer jet heater element75 3-SC3 - Fuse 3 on fuse holder C30 A-J519-Onboard power supply control unit30 4-SC4 - Fuse 4 on fuse holder C--Vacant5-SC5 - Fuse 5 on fuse holder C 5 A-R36-Telephone transmitter and receiverunit306-SC6-Fuse 6 on fuse holder C 15 A-J523-Front information display andoperating unit control unitR24-Aerial amplifier305 A-J523-Front information display andoperating unit control unit307-SC7 - Fuse 7 on fuse holder C20 A-J245-Sliding sunroof adjustment controlunit30 8-SC8 - Fuse 8 on fuse holder C20 A-J392-Rear sliding sunroof control unit30 9-SC9 - Fuse 9 on fuse holder C20 A-J394-Sunroof roller blind control unit30 10-SC10 - Fuse 10 on fuse holder C30 A-J518-Entry and start authorisation controlunitE415-Entry and start authorisation switch3011-SC11 - Fuse 11 on fuse holder C35 A-J386-Driver door control unitV147-Driver side window regulator motorJ388-Rear left door control unitV26-Rear left window regulator motor3012-SC12 - Fuse 12 on fuse holder C10 A-J527-Steering column electronics controlunit30relay and fuse carrier centre dash panelFuse colours30 A - green 25 A - white 20 A - yellow 15 A - blue 10 A - red 7,5 A - brown 5 A - beige1 - Adaptive suspension compressor relay - J4032.1 - Terminal 75x voltage supply relay - J6942.2 - Dual tone horn relay - J43 - Headlight washer system relay - J394 - Brake light suppression relay - J5085 - Vacant6 - Heated rear window relay - J97.1 - Continued coolant circulation relay - J151 (V6 TDI; V8 MPI/FSI)8 - VacantA - VacantB - VacantC - VacantD - Driver seat adjustment thermal fuse 1 - S44, 30 AE - VacantF - VacantG - Vacant1b - Fresh air blower fuse 1 - S97, 40A2b - ABS control unit fuse 1 - S123, 40A3b - Fresh air blower fuse 2 - S98, 40A4b - Heated rear window single fuse - S41, 40A5b - Vacant Array 6b - Vacant A1 - Vacant B1 - Vacant C1 - Vacant D1 - Vacant 1a - Vacant 2a - Vacant3a - VacantRelay and fuse carrier right in luggage compartmentFuse colours30 A - green 25 A - white 20 A - yellow 15 A - blue 10 A - red 7,5 A - brown 5 A - beige 1 - Vacant 2 - Vacant 3 - Vacant4 - Fuse carrier ST1 (black)5 - Fuse carrier ST2 (brown)6 - Fuse carrier ST2 (red)Position of fuses in fuse carrier, right luggage compartmentNo.Current Flow Diagram designation Fuse carrier ST1 (black)NominalvalueFunction/component Terminal1-SF1 - Fuse 1 on fuse holder F--Vacant2-SF2 - Fuse 2 on fuse holder F--Vacant3-SF3 - Fuse 3 on fuse holder F15 A-J197-Adaptive suspension control unit30 4-SF4 - Fuse 4 on fuse holder F--Vacant5-SF5-Fuse 5 on fuse holder F 5 A-J446-Parking aid control unit30 6-SF6-Fuse 6 on fuse holder F15 A-J773-Convenience system central controlunit 2307-SF7-Fuse 7 on fuse holder15 A-J773-Convenience system central controlunit 2308-SF8-Fuse 8 on fuse holder F 5 A-R64-Remote control receiver for auxiliaryheating30 9-SF9-Fuse 9 on fuse holder F20 A-U26-12 V socket 53010-SF10-Fuse 10 on fuse holder F20 A-J393-Convenience system central controlunit3011-SF11-Fuse 11 on fuse holder F15 A-J723-Aerial reader unit for keyless entrysystem3012-SF12-Fuse 12 on fuse holder F30 A-J393-Convenience system central controlunit30Position of fuses in fuse carrier, right luggage compartmentNo.Current Flow Diagram designation Fuse carrier ST2 (brown)NominalvalueFunction/component Terminal1-SF1 - Fuse 1 on fuse holder F--Vacant2-SF2 - Fuse 2 on fuse holder F--Vacant3-SF3 - Fuse 3 on fuse holder F--Vacant4-SF4 - Fuse 4 on fuse holder F--Vacant5-SF5-Fuse 5 on fuse holder F 5 A-R-RadioR24-Aerial amplifier30 6-SF6-Fuse 6 on fuse holder F 5 A-R78-TV tuner307-SF7-Fuse 7 on fuse holder 5 A-J401-Navigation system with CD drivecontrol unit30 8-SF8-Fuse 8 on fuse holder F30 A-J525 - Digital sound package control unit30 9-SF9-Fuse 9 on fuse holder F 5 A-R147-Digital radio30 10-SF10-Fuse 10 on fuse holder F--Vacant11-SF11-Fuse 11 on fuse holder F 5 A-J772-Reversing camera system controlunitR189-Reversing camera30 12-SF12-Fuse 12 on fuse holder F--VacantPosition of fuses in fuse carrier, right luggage compartmentNo.Current Flow Diagram designation Fuse carrier ST3 (red)NominalvalueFunction/component Terminal1-SF1 - Fuse 1 on fuse holder F--Vacant2-SF2 - Fuse 2 on fuse holder F--Vacant3-SF3 - Fuse 3 on fuse holder F--Vacant4-SF4 - Fuse 4 on fuse holder F--Vacant5-SF5-Fuse 5 on fuse holder F--Vacant6-SF6-Fuse 6 on fuse holder F20 A-J393-Convenience system central controlunit307-SF7-Fuse 7 on fuse holder30 A-J605-Rear lid control unitV375-Motor in rear lid control unit308-SF8-Fuse 8 on fuse holder F30 A-J756-Rear lid control unit 2V376-Motor in rear lid control unit 230 9-SF9-Fuse 9 on fuse holder F15 A-J345-Trailer detector control unit30 10-SF10-Fuse 10 on fuse holder F15 A-J345-Trailer detector control unit30 11-SF11-Fuse 11 on fuse holder F15 A-J345-Trailer detector control unit30 12-SF12-Fuse 12 on fuse holder F30 A-J345-Trailer detector control unitV317-Hinged tow attachment ball headmotor30Relay and fuse carrier under driver seatFuse colours30 A - green 25 A - white 20 A - yellow 15 A - blue 10 A - red 7,5 A - brown 5 A - beige1 - Terminal 15 voltage supply relay - J3292 - Battery isolation igniter - N253A - Levelling system fuse - S110 40A SD1 - Strip fuse 150A SD2 - Strip fuse 125A SD3 - Strip fuse 50A SD4 - Strip fuse 60A SD5 - Strip fuse 125AFuse assignment and relay locations in E-box, left in plenum chamber -petrol eginesFuse colours60 A - blue 50 A - red 40 A - orange 30 A - green 25 A - white 20 A - yellow 15 A - blue 10 A - red 7,5 A - brown 5 A - beige 3 A - purpleA1 - Starter motor relay - J53A2 - Starter motor relay 2 - J695A3 - Engine component current supply relay - J757A4 - Secondary air pump relay - J299A5 - Brake servo relay - J569A6 - Continued coolant circulation relay - J151 Array B1 - VacantB2 - VacantB3 - Fuel pump relay - J17B4 - VacantB5 - Fuel cooling pump relay - J445B6 - Circulation pump relay - J160C1 - Additional coolant pump relay - J496C2 - Motronic current supply relay - J271D1 - 6-pin connector T6k, brownD2 - 10-pin connector T10e, greenD3 - 10-pin connector T10d, blueD4 - 10-pin connector T10c, pinkD5 - 6-pin connector T6m, whiteD6 - 10-pin connector T10m, blackS1 - Radiator fan - V7, 60A Array S2 - Secondary air pump motor - V101, 50AS3 - VacantS4 - Radiator fan 2 - V177, 60AS5 - Secondary air pump motor 2 - V189, 50AS6 - VacantS7 - Ignition coils, 30AS8 - Radiator fan control unit - J293, radiator fan control unit 2 - J671, 5AS9 - Injectors, 15AS10 - High pressure sender - G65, coolant circulation pump - V50, exhaust camshaftcontrol valve 1 - N318, 10AS11 - Engine control unit - J623, 5A Array S12 - Heater element for crankcase breather - N79, 5AS13 - Active charcoal filter system solenoid valve 1 - N80, fuel metering valve -N290, air mass meter - G70, 15AS14 - Lambda probe - G39, lambda probe 2 - G108, 15AS15 - Lambda probe after catalytic converter - G130, lambda probe 2 after catalytic converter - G131, 15AS16 - Fuel pump control unit - J538, 30AS17 - Engine control unit - J623, 5AS18 - Vacuum pump for brakes - V192, 15AFuse assignment and relay locations in E-box, left in plenum chamber -diesel enginesFuse colours60 A - blue 50 A - red 40 A - orange 30 A - green 25 A - white 20 A - yellow 15 A - blue 10 A - red 7,5 A - brown 5 A - beige 3 A - purpleA1 - Automatic glow period control unit - J179A2 - Starter motor relay - J53A3 - Glow period control unit 2 - J703A4 - Starter motor relay 2 - J695A5 - Brake servo relay - J569A6 - Continued coolant circulation relay - J151 Array B1 - VacantB2 - VacantB3 - Fuel pump relay - J17B4 - VacantB5 - Fuel cooling pump relay - J445B6 - Circulation pump relay - J160C1 - Fuel pump relay for auxiliary heater - J749 C2 - Terminal 30 voltage supply relay - J317D1 - 6-pin connector T6k, brownD2 - 10-pin connector T10e, greenD3 - 10-pin connector T10d, blueD4 - 10-pin connector T10c, pinkD5 - 6-pin connector T6m, whiteD6 - 10-pin connector T10m, blackS1 - Radiator fan - V7, 60A Array S2 - Automatic glow period control unit - J179, 80AS3 - VacantS4 - Radiator fan 2 - V177, 60AS5 - Glow period control unit 2 - J703, 80AS6 - VacantS7 - Exhaust gas recirculation valve - N18, intake manifold flap motor - V157, 15A S8 - Radiator fan control unit - J293, radiator fan control unit 2 - J671, 5AS9 - Engine control unit - J623, 15AS10 - Fuel metering valve - N290, fuel pressure regulating valve - N276, 10AS11 - Lambda probe - G39, 15A Array S12 - VacantS13 - Fuel cooling pump - V166, 10AS14 - Air mass meter- G70, 5AS15 - Engine control unit - J623, 5AS16 - Fuel system pressurisation pump - G6, 20AS17 - Fuel pump - G23, 20AS18 - Heater element for crankcase breather - N79, 7.5A。
第九章发动机电气系统第一节起动系统1.概述如果点火开关被转到“START”位置，则电流就流入电磁开关内的线圈而吸引铁心，当铁心被吸引时，连接到铁心的杆就动作使起动机离合器接合。
另一方面，被吸引的铁心将电磁开关接通，使B端与M端导通。
这时电流流通使起动机啮合。
当在发动机起动后点火开关返回到“ON”位置时，起动机离合器从齿圈脱开。
在小齿轮与电枢轴之间设有一个超速离合器，用于防止起动机损坏。
系统如图9-1。
图9-1起动机规格见表9-1。
项目规格型式用行星齿轮减速驱动额定输出功率（kw/V） 1.2/12小齿轮齿数（个）8检修规格见表9-2。
项目标准值极限值小齿轮间隙/mm0.65~2.0—换向器外径/mm32.031.4换向器偏心率/mm—0.05换向器切口/mm0.50.22.起动装置的安装拆卸拆卸顺序见图9-2：图9-21-进气歧管支架 2-起动机插接件 3-起动机3.检查1）小齿轮间隙的调整（见图9-3）图9-3（1）从电磁开关的M端子脱开励磁线圈配线。
（2）将12V蓄电池连接在S端子与M端子之间。
（3）将开关置于“ON”，小齿轮应伸出。
注意：这个试验应迅速完成（10s以内），以免线圈烧坏。
（4）用间隙规检查小齿轮至限位块的间隙（小齿轮间隙）（见图9-4）。
小齿轮间隙：0.5-2.0mm图9-4（5）如果小齿轮间隙不在规定范围内，用增加电磁开关与前盖间的垫片的方法予以调整（见图9-5）。
图9-52）电磁开关的吸入试验（见图9-6）图9-6（1）从电磁开关的M端子脱开励磁线圈配线。
（2）将12V蓄电池连接在S端子与M端子之间。
注意：这个试验应迅速完成（10s以内），以免线圈烧坏。
（3）如果小齿轮伸出，然后又缩进则表示线圈正常。
否则，应更换电磁开关。
3）电磁开关的保持试验（见图9-7）图9-7（1）从电磁开关的M端子脱开励磁线圈配线。
（2）将12蓄电池连接在S端子与车体之间。
注意：这个试验应迅速完成（10s以内），以免线圈烧坏。
