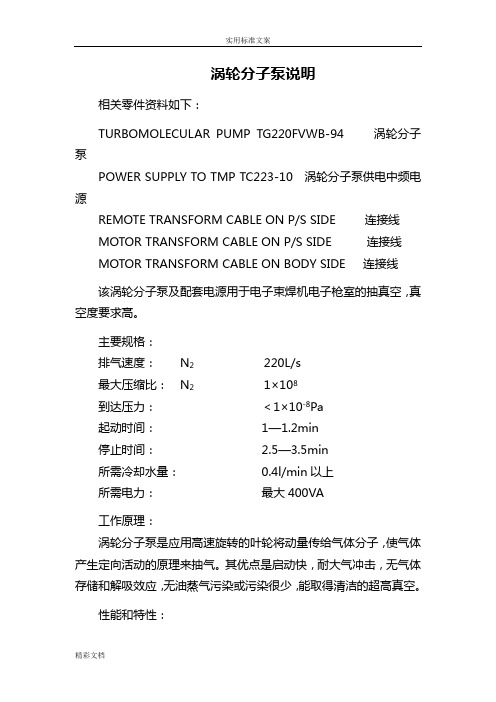

涡轮分子泵说明相关零件资料如下：TURBOMOLECULAR PUMP TG220FVWB-94 涡轮分子泵POWER SUPPLY TO TMP TC223-10 涡轮分子泵供电中频电源REMOTE TRANSFORM CABLE ON P/S SIDE 连接线MOTOR TRANSFORM CABLE ON P/S SIDE 连接线MOTOR TRANSFORM CABLE ON BODY SIDE 连接线该涡轮分子泵及配套电源用于电子束焊机电子枪室的抽真空，真空度要求高。

主要规格：排气速度：N2220L/s最大压缩比：N21×108到达压力：＜1×10-8Pa起动时间：1—1.2min停止时间： 2.5—3.5min所需冷却水量：0.4l/min以上所需电力：最大400VA工作原理：涡轮分子泵是应用高速旋转的叶轮将动量传给气体分子，使气体产生定向活动的原理来抽气。

其优点是启动快，耐大气冲击，无气体存储和解吸效应，无油蒸气污染或污染很少，能取得清洁的超高真空。

性能和特性：泵的排气压力与进气压力之比称为紧缩比。

紧缩比除与泵的级数和转速有关外，还与气体品种有关。

分子量大的气体有高的紧缩比。

对氮(或空气)的紧缩比为108～109;对氢为102～104；对分子量大的气体如油蒸气则大于1010。

泵的极限压力为10-9帕,工作压力范围为10-1～10-8帕,抽气速率为几十到几千升每秒(1升＝10-3米3)。

涡轮分子泵必需在分子流状态(气体分子的均匀自在程远大于导管截面最大尺寸的流态)下工作才干显现出它的优越性,因而请求配有工作压力为1～10-2帕的前级真空泵。

分子泵自身由转速为10000～60000转／分的中频电动机直联驱动。

Vane Type Single Pump (F3)-V10(*) Series -10 & 20 DesignsService Data Vickers®Vane PumpsRevised 05-01-87M-2005-S31767431767531767631767731767835564133181311156127824603964016662317681351247357286V10F control S/A2706 SeatTorque 41–61 N.m. (35–45 lb. ft.)229613233018232794232795232796232797232798232799233019233020923471923470923496923469923468923497923498295344432511295346SAE rated capacity (V10/F/P cartridge kits)USgpm Rotor Vane Kit Ring Pin (V10)Pin (V10F/V10P)Bolt (V10)Bolt (V10F)Bolt (V10P)Cart. Kitd d d d 1234567432509295344432511923499923500923501Pressure setting – V10P/V10F (Omit for V10)250 PSI 500 PSI 750 PSI 1000 PSI 1250 PSI 1500 PSI 1750 PSI 2000 PSI 2250 PSI 2500 PSICode A B C D E F G H J KPressure setting V10P/V10FV10P Spring252886228022822281z z x 2310422456351963d Included in V10 cartridge kit.YIncluded in seal kit 923548F3 equivalent seal kit 919772Eaton Hydraulics, Incorporated 2000All Rights ReservedShaft (See table) Model Shaft Key Nut Shaft typeV10–****–1 V10–****–3 V10–****–4 V10–****–6 V10–****–11 V10–****–12 V10–****–27 V10–****–34 V10–****–3837433837434037895938225037433937548038028137548538748114284316051606160989488948StraightTheadedTheadedStraightSplinedSplinedTangTheadedSplinedModelBodyV10–*F**–**–20V10–*P**–**–20V10–*S**–**–20V10–*T**–**–10574164352699317668370468 Typical Cutaway ViewK – 1 5/16–12 UN 2B thread P – 1” NPT threadS – 1 5/16–12 straight thread T – 1 3/16–12 straight threadF – Flow control cover P – Priority valve cover Omitted – Standard cover1 –2 Bolt flange (SAE “A ” size)2 – Foot bracket at 12 O ’Clock(Viewed from shaft end)23 – Foot bracket at 3 O ’Clock 26 – Foot bracket at 6 O ’Clock 29 – Foot bracket at 9 O ’ClockPump cover optionsModel CodeSpecial sealsVane PumpMountingF3 – Special “O ”Rings & seals for mineral oil & fire resistant fluidDesign & ModificationRotation(Viewed from shaft end of pump)Pressure setting ,V10F & V10P (Omit for standard cover)A – 250 psiB – 500 psiC – 750 psiD – 1000 psiE – 1250 psiCode Code F – 1500 psi G – 1750 psi H – 2000 psi J – 2250 psi K – 2500 psiL – Left hand for counterclockwise812345141011121315Series 10Outlet port connectionsK – 9/16–18 straight thread V10 standard cover V10F Flow control coverP – 3/4–16 straight thread T – 3/4–16 straight thread PressureTankP – 1/2” NPT threadT – 3/4–16 straight threadV10P Priority valve coverPrimary outletSecondary outletK – 3/4–16 straight thread K – 9/16–18 straight threadTankA – Opposite inletB – 90_ CCW from inletC – Inline with inletD – 90_ CCW from inletPressure port positions (Viewed from cover end)Flow rate in USGPM through orfice in cover1 – 1 USGPM (V10P)2 – 2 USGPM (V10F)Special feature suffixF – 1.156 DIS. portH – 1” O.D. tube connection K – 1 5/16–12 UN 2B thread P – 1” NPT threadS – 1 5/16–12 straight thread T – 1 3/16–12 straight threadInlet port connections61 – Straight –keyed 3 – Threaded 4 – Threaded6 – Straight stub –keyed 11 – Spline –9 tooth 12 – Spline –13 tooth 27 – Tang34 – Threaded38 – Spline –13 toothShaft types9SAE rated ring capacity USGPM(1200 RPM – 100 PSI)1 – 1 USgpm2 – 2 USgpm3 – 3 USgpm4 – 4 USgpm5 – 5 USgpm6 – 6 USgpm7 – 7 USgpm7Printed in U.S.A.。

nEXT TURBOMOLECULAR PUMPSEDWARDS THE PARTNER OF CHOICEEdwards is a world leader in the design, technology and manufacture of vacuum pumps with over 95 years’ history and more than 75 years’ manufacturing experience.We believe in delivering results that bring value to our customers by using our breadth of industry experience to identify and apply solutions to your problems. Using the most innovative and up-to-date modelling techniques and know-how, we can optimise the pumping configuration to achieve the maximum performance in the most reliable and cost-effective way.ApplicationsResearch & Development»Chamber evacuation, coating systems,turbomolecular pump systemsHigh Energy Physics»Beam Lines, accelerators, mobile pump carts, Electron Microscopy»TEM, SEM, EPMA, sample prep benches Industrial»Glove boxes, coating systems, XRD/XRF systems, lamp evacuationnEXT240 nEXT300 nEXT400 The pump name refers to the true peak pumping speed for nitrogen gas.BOOST TECHNOLOGYFor our Analytica Instrument OEMs the “T” variants of nEXT employ a unique viscous pumping stage which can be used to ‘boost’ the performance of the backing pump. This offers a much simplified vacuum solution with greatly improved pumping speeds and system power reduction. The example in the image below shows how the boost ports can be used to replace a primary pump on a differentially pumped system.Customers in general laboratory and R&D applications will also benefit from the improved compression achieved with the "T" variant. To take maximum advantage of boost technology, please contact Edwards.END USER SERVICEABLITYNew technologies employed in nEXT have enabled the pumps to be serviced by the end user in the field. An interim oil lubrication cartridge change can be performed, where access allows, typically in less than 5 minutes and a full bearing change can also be performed by the end user in around 10 minutes both with the minimum of specialist tooling. These simple interventions will, in many cases, mean that the pump never requires a full return to base service during its lifetime.nEXT turbomolecular pumps will advise the user when aservice is due and what level of intervention is required.The user is alerted to a service request by a simple flashingLED sequence on the pumps and by serial comms notification.Flexibility is again key as these simple services can beperformed either by the end user, on site by an EdwardsField Service Technician, or the pump can be returned to anEdwards service hub.Using remote diagnostics, a user can interrogate the pumpto determine how long it is to the next service so that aproactive approach to preventative maintenance can beplanned.systems for maximum system rationalisationnEXT300 turbomolecular pump sectional viewintegration* a smaller backing pump may be used depending on application.Controllers and AccessoriesThe TIC (Turbo and Instrument Controller) automatically recognisesand supports one turbomolecular pump from the nEXT range, plusthree Edwards active gauges. Cooling and vent valve support is provideddirectly from the controller. Backing pump power is provided for acompact 24V diaphragm pump (on 200W versions only), or where greaterpumping speeds are required, mains backing pumps (up to RV12) may becontrolled via an optional relay box.nXDS and large XDS pumps can be controlled directly via the backingpump connector on a TIC 200. The relay box can also be used to controla mains heater band and backing line isolation valve. Time delays andnormal speed signals may be used to control events such as turbo startand there is a comprehensive selection of protection and safety interlockfeatures. The TIC turbo controller may be either rack or bench mountedand provides a useful hub for the flexible operation of a wide range ofvacuum system configurations.The TAG (Turbo and Active Gauge) controller is a small,compact, low cost pumping system controller, which issuitable for a wide range of vacuum applications. It is a 24Vcontroller that is compatible with all Edwards DX and nEXTturbomolecular pumps. It contains no power source andtherefore you either need to supply your own power or buythe optional power supply. In addition to a turbomolecularpump it can control a backing pump, a vent valve, an aircooler and an Edwards active gauge. The TAG Controlleris controlled by an easy to use interface. A large clear LEDdisplay shows the pump speed or vacuum pressure. Thecompact size of the controller is ideal for use on bench-topsor suitable mobile platforms.nEXT Turbomolecular PumpsEDWARDSnEXT240 nEXT300 nEXT400EMEAUK+44 1444 253 000(localrate************ Belgium+32 2 300 0730 France+33 1 4121 1256 Germany 0800 000 1456 Italy+ 39 02 48 4471 Israel+ 972 8 681 0633ASIA PACIFICChina+86 400 111 9618 India+91 20 4075 2222 Japan+81 47 458 8836 Korea+82 31 716 7070 Singapore+65 6546 8408 Taiwan +886 3758 1000 AMERICASUSA+1 800 848 9800 Brazil+55 11 3952 5000Publication Number: 3601 0096 01© Edwards Limited 2016. All rights reservedEdwards and the Edwards logo are trademarks ofEdwards LimitedWhilst we make every effort to ensure that weaccurately describe our products and services,we give no guarantee as to the accuracy orcompleteness of any information provided inthis brochure.Edwards Ltd, registered in England and WalesNo. 6124750, registered office: Innovation Drive,Burgess Hill, West Sussex, RH15 9TW, UK.Global contactsnEXT Turbomolecular Pumps EDWARDSPart of the Atlas Copco Group。

分子泵TURBOVAC 450说明书分子泵安全使用说明在安装与使用分子泵前，泵的安装与操作人员都应仔细阅读本使用说明书，并按照说明书中规定的条款安装与操作，以免造成人员伤害与设备损坏。

安全警示说明危险：表示为了防止危及人身安全，需要引起高度注意且必须遵守的事项；警告：表示为了防止损伤或损坏泵，需要引起中度注意且必须遵守的事项：小心：表示为了使泵的使用效果最佳，需要引起轻度注意且需要遵守的事项。

保修说明凡购买我公司生产的分子泵，从发货之日起，用户凭保修单可保修一年。

凡属下列情况之一的，不予保修：1.用户未经授权对产品私自拆卸；2.用户保管或使用不当（如撞击、强放射性环境、强磁场环境等）;3.属于用户其他原因造成的损坏。

免责声明当用户严格遵照本说明书中的规定安装和使用时，分子泵TURBOVAC 450是安全、方便和有效的。

泵的操作人员必须仔细阅读并严格遵守本说明书中的条款。

由于用户没有仔细阅读说明书或未按照使用说明书的要求操作而造成的任何伤害和损失，KYKY 将不负担任何责任。

本说明书仅作为信息使用，如遇改版，恕不另行通知。

如本说明书与实际产品有所出入，本公司拥有最终解释权。

由本说明书引起、产生和包含的知识产权均属KYKY所有。

本说明书所列分子泵，按口径不同，从100mm到400mm （对应抽速从110l/s到3500/s）共5个系列，20种泵。

分子泵一般有两种结构形式，一种是由动静叶列组成的涡轮分子泵，一种是由涡轮级加牵引级构成的复合型分子泵。

复合型分子泵的特点是使得分子泵高压强区的抽速有所提高，另一特点是使得出口耐压得到提高，因此可以适当减小前级泵的规格，可使用户节省投资。

根据分子泵轴承润滑方式不同，分子泵有油润滑、脂润滑两种。

一一般情况下，油润滑分子泵需竖直安装（F一100/110、 F一100/150 可以水平安装），脂润滑分子泵可以任意角度安装。

企业通过ISO 9001质量管理体系认证分子泵全系列 使用说明书¾分子泵安全使用说明在安装与使用分子泵前，泵的安装与操作人员都应仔细阅读本使用说明书，并按照说明书中规定的条款安装与操作，以免造成人员伤害与设备损坏。

¾安全警示说明危险：表示为了防止危及人身安全，需要引起高度注意且必须遵守的事项；警告：表示为了防止损伤或损坏泵，需要引起中度注意且必须遵守的事项；小心：表示为了使泵的使用效果最佳，需要引起轻度注意且需要遵守的事项。

¾保修说明凡购买我公司生产的分子泵，从发货之日起，用户凭保修单可保修一年。

凡属下列情况之一的，不予保修：1)用户未经授权对产品私自拆卸；2)用户保管或使用不当（如撞击、强放射性环境、强磁场环境等）；3)属于用户其他原因造成的损坏。

¾免责声明当用户严格遵照本说明书中的规定安装和使用时，KYKY分子泵是安全、方便和有效的。

泵的操作人员必须仔细阅读并严格遵守本说明书中的条款。

由于用户没有仔细阅读说明书、或未按照使用说明书的要求操作而造成的任何伤害和损失，KYKY将不负担任何责任。

本说明书仅作为信息使用，如遇改版，恕不另行通知。

如本说明书与实际产品有所出入，本公司拥有最终解释权。

由本说明书引起、产生和包含的知识产权均属KYKY所有。

1概述1.1 分类与特点本说明书所列分子泵，按口径不同，从100mm到400mm（对应抽速从110l/s到3500l/s）共5个系列，12种泵。

分子泵一般有两种结构形式，一种是由动静叶列组成的涡轮分子泵，一种是由涡轮级加牵引级构成的复合型分子泵。

复合型分子泵的特点是使得分子泵高压强区的抽速有所提高，另一特点是使得出口耐压得到提高，因此可以适当减小前级泵的规格，可使用户节省投资。

根据分子泵轴承润滑方式不同，分子泵有油润滑、脂润滑两种。

一般情况下，油润滑分子泵需竖直安装（F-100/110可以水平安装），脂润滑分子泵可以任意角度安装。

6.安装6.1 注意事项分子泵不能用于抽除液体或者带有粉尘、固体颗粒的气体；除了耐腐蚀型泵以外，其他任何分子泵不能用于抽除腐蚀性气体，耐腐蚀型泵在抽除腐蚀性气体时，必须给分子泵的保护气体入口连续通惰性保护气体如氮气等，且泵油使用我公司提供的专用耐腐蚀分子泵油。

确认分子泵与电源相配套。

每种泵都只能使用本说明书中规定的与之匹配的电源供电，否则造成的损失，本公司概不负责。

确认安装环境必须满足如下条件：1)泵体表面径向和轴向磁场强度均不得大于3mT(30Gs)；2)环境放射性强度<105rad；3)环境温度为5~40℃；4)空气相对湿度：≤85%；5)电压：220±22V，频率：50±1Hz；6)海拔：≤3000米。

安装前应检查分子泵运输中是否被损坏：打开泵高真空端法兰盖板，戴好手套，拨动涡轮转子，应转动灵活，无异常现象。

若存在异常现象，应及时通知我公司，不得自行处理，否则由此带来损失我公司概不负责。

不允许将分子泵长期置于大气状态下存放，在打开进气口和排气口盲板时，应注意真空卫生要求，严禁杂物、灰尘等落入泵内。

安装环境应符合技术要求和真空卫生要求。

6.2 连接安装6.2.1真空联接分子泵的进气口和排气口法兰采用国际标准见表4分子泵技术数据表,尺寸见分子泵安装简图和分子泵排气口简图。

注意：法兰密封面不得有划痕、刀口不得磕碰。

泵的联接可利用进气口法兰吊装或将泵置于基座平面上，但F-400/4200不建议吊装，若一定要吊装必须用活套法兰（订货时单独订购）固定。

分子泵的进气口法兰通过金属波纹管与系统联接时，分子泵必须固定。

为保护分子泵转子，防止外界物质落入泵内，可在泵口装上防护网，但装入此网后，抽速约降低15％左右。

前级泵与分子泵的联接应采用具有减震效应的金属波纹管，管路上应装有隔断放气阀，作为停机时对前级机械泵放气。

放气阀可选用手动阀或电磁阀。

放气过程的操作请参照停机部分。

为保护泵体真空卫生，防止潮湿，放气时，可通氮气或干燥空气。
