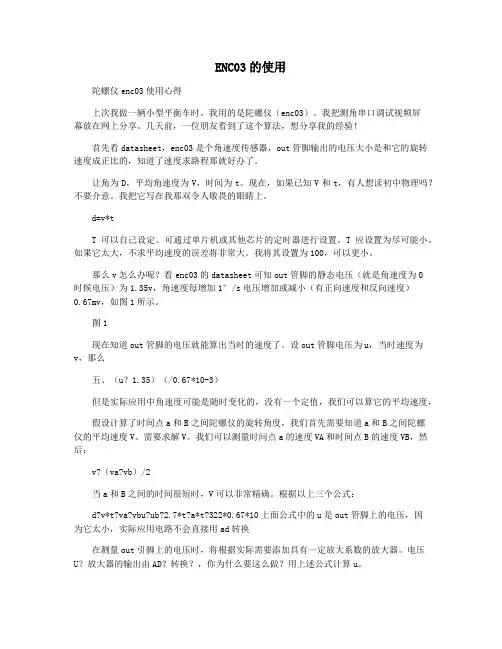

ENC03的使用陀螺仪enc03使用心得上次我做一辆小型平衡车时，我用的是陀螺仪（enc03）。

我把测角串口调试视频屏幕放在网上分享。

几天前，一位朋友看到了这个算法，想分享我的经验！首先看datasheet，enc03是个角速度传感器，out管脚输出的电压大小是和它的旋转速度成正比的，知道了速度求路程那就好办了。

让角为D，平均角速度为V，时间为t。

现在，如果已知V和t，有人想读初中物理吗？不要介意。

我把它写在我那双令人敬畏的眼睛上。

d=v*tT可以自己设定。

可通过单片机或其他芯片的定时器进行设置。

T应设置为尽可能小。

如果它太大，不求平均速度的误差将非常大。

我将其设置为100，可以更小。

那么v怎么办呢？看enc03的datasheet可知out管脚的静态电压（就是角速度为0时候电压）为1.35v，角速度每增加1°/s电压增加或减小（有正向速度和反向速度）0.67mv，如图1所示。

图1现在知道out管脚的电压就能算出当时的速度了。

设out管脚电压为u，当时速度为v，那么五、（u？1.35）（/0.67*10-3）但是实际应用中角速度可能是随时变化的，没有一个定值，我们可以算它的平均速度，假设计算了时间点a和B之间陀螺仪的旋转角度，我们首先需要知道a和B之间陀螺仪的平均速度V。

需要求解V。

我们可以测量时间点a的速度VA和时间点B的速度VB，然后：v?（va?vb）/2当a和B之间的时间很短时，V可以非常精确。

根据以上三个公式：d?v*t?va?vbu?ub?2.7*t?a*t?322*0.67*10上面公式中的u是out管脚上的电压，因为它太小，实际应用电路不会直接用ad转换在测量out引脚上的电压时，将根据实际需要添加具有一定放大系数的放大器。

电压U？放大器的输出由AD？转换？，你为什么要这么做？用上述公式计算u。

假如使用如下电路：因此，放大器输出out2的静态电压应通过测量确定。

VREF引脚的电压范围一般为1.25至1.35，设放大器放大倍数为?，放大器输出管脚out2静态电压为v0，放大器输出管脚电压为u?，可得：UA.UB2u0va？vbd？v*t？*t？*T22?*0.67*10?3当然实际应用时还要注意温漂等因数对放大器的静态电压和放大倍数的影响等等，我是在启动初始化程序中加入复测放大器的静态电压，解决静态点漂移问题。
