光纤收发器说明书NT-1100S

1-port 100M FX 2-Ports10/100M TX Media ConvertersUser’s Manual 1．OverviewThis Media Converter Complies with IEEE802.3 Standards. It is designed to Convert data signal between 10/100Base-TX and 100Base-FX fast Ethernet. The media converter is connected between Fiber cable and twisted cable segments with network operating smoothly. This converter can be used as a standalone unit or asa slide-in module to the 14 converter rack.2.ChecklistBefore you installing the Switch, verify that the package contains the following：1．The TP-Fiber Converter2．AC-DC Power Adapter.3．This User’s Manual.Piease notify your sales representative immediately if any of the aforementioned items is missing or damaged.3. LED DescriptionThere are 6 LED At Front View of 2 port Media ConverterLED Definition SpecificationPWRIndicator ofpowersupplyON when the power supply isturned on and in normal workingstatusFRXOpticalinterfacestatusindicatorBright when optic fiber cable isconnected well, but no datatransmissionBlinking when receiving dataTRXEthernetinterfacestatusindicatorBright when twisted pair isconnected well, but no datatransmissionBlinking, when receiving dataFDXEthernetinterfacemodeindicatorON, Full duplexOFF, Half duplex4.Technical SpecificationsOptical ParametersMultimodeFiber 62.5/125, 50/125,100/140µmOutputopticalpower-20~-14dBmReceivingsensitivity<-31dBDistance 0~2km or 0~5kmConnector SC, ST, FCWavelength 850nm/1310nmSinglemodeFiber 9/125,8.3/125,8.7/125or 10/125µmDistance 0~20km 0~40km 0~60kmOutputopticalpower-12~-8dBm -8~-3dBm -3~ 0dBmReceivingsensitivity< -37dBm < -37dBm < -38dBmConnector SC, ST, FCWavelength 1310nmDistance 0~80km 0~120kmOutputopticalpower-3~ 1dBm -3~ 2dBmReceivingsensitivity< -38dBm < -38dBmConnector SC, ST, FCWavelength 1550nm(DFB)when less than 15km, use attenuator5.Installing the ConverterFor as a standalone unita)Verify the AC-DC adapter conforms to your countryAC Power requirement and insert the power plugb)Connect the media cable for network connectionfor as a slide-in unitc)The slide-in Media Converter and Converter Rackshould be supplied only form the same source, bothMedia Converter and Rack are built to match eachother at dimensions, DC jack, DC receptacle andpower safelyd)Turn off the 19” converter rack powere)Ensure that there is no activity in the networkf)Locate +5VDC power jack on converter back,carefully slide in and plug to 19” rack +5VDCpower receptacleg)Connect the media cable for network connectionh)Turn on the converter rack power , the Power LEDwill light up6.Cable Connection Parameter100Base-X network allows 512-bit time delay between any two node stations in a collision domain. The overall Bit-timeof TP/Fiber wires and devices must be within 512bit in a segment. You may use a switch to break up collision domain and extend the cabling distance.●TP Cable Limitations：Cat.5 100m●Multi-mode Converter Fiber Cable Lions：SC/ST/FC/LC Multi-mode Converter Models：Multi-modeFull-duplexNode to Node ：2KmNode to Switch ：2KmSC/ST/FC/LC Single Mode Converter Models：SC．S20Full-duplexNode to Node ：20KmNode to Switch ：20Km7.TP-Fiber Technical Specifications●Standards:I EEE802.3 IEEE802.3u 10/100Base-TX 100Base-Fx●TP Port: RJ45●UTP Cable: Cat.5 cable up to 100m●Wavelength: 1310nm/1550nm●Fiber cable(um):50/125,62.5/125,or 100/140/um multi-mode8.3/125,8.7/125,9/125/or10/125/um single-mode●Max distance:Singlemode:20~120kmMultimode: 2km●LED Indicators:FDX, TRX FRX,PWR●Data Transfer Rate:Speed Forwarding Rate100Mbps 148,800PPS10Mbps 14,880PPS*Flow Control:IEEE802.3x compliant for full-duplex Backpressure flow control for half-duplex* Power Requirement:2A@+5VDC*Ambient Temperatur e:0 to 60℃* Humidity:5% to 90%*Dimensions: 25(H)70 (W)94(D)mm●Note: Connecting to Router, Bridge, or Switch, pleaserefer to the device's Technical Manual。

智能化系统方案之光纤收发器参数光纤收发器使用说明一. 概述以太网光纤收发器以太网光纤收发器在网络中可以完成以太网数据从铜线到光纤或从光纤到铜线传输介质的转换。

在网络中，电信号在铜线的极限传输距离（一次中继）仅为100 米，而光信号在光纤中可传输达百公里，因而光纤收发器使以太网无限延伸。

在光纤到楼这一运用领域中，他可作为楼道交换机光纤uplink, 也可作为宽带小区中汇接交换机的每个端口的光电转换器（机架式）。

光纤收发器广泛应用于城域网、大型企业网、校园网、宽带小区等网络的组建。

以太网光纤收发器功能特点采用优质光电一体化模块，提供良好的光特性和电气特性，保证数据传输的可靠性，MTBF>10 5小时，符合电信运营标准。

支持外置、内置、2U 机架、3U 机架，方便用户选择。

全双工/ 半双工自适应，直连线/ 交叉线自适应。

支持10/100/100Base-Fx 光纤传输标准，可与其他网络产品相通。

支持IEEE802.1Q 及ISL 可选骨干连接。

支持SPANNING TREE 构造容错网络。

支持热插拔。

二．以太网10/100M 自适应收发器以太网光纤收发器可以将10/100Base-Tx 双绞线电信号和100Basw-Fx 的光信号进行相互转化。

他将网络的传输距离极限从铜线的100 米扩展到100 公里（单模光纤）。

光纤收发器的典型应用是以太网长距离互联，由于具有自适应的功能，在与交接机相连时，交换机不需要任何设置。

状态指示灯说明PWR（POW）: 电源指示灯FDX: 光纤连接指示及全双工与半双工状态指示灯FX: 光纤连接动态指示灯TX: 双绞线连接动态指示灯10/100 ：速率10/100Mbps 指示灯Tx: 双绞线连接指示灯双电口百兆收发器LINK亮光纤连接正常，闪烁光纤链路在传输数据SPD1-2 亮双绞线连接正常，闪烁双绞线链路在传输数据FDX1-2 全双工PWR 电源技术标准支持IEEE802.3Ethernet 、IEEE802.3u100Base-Tx/10Base-Tx 和IEEE802.3u100Base-Fx 三．以太网千兆光纤收发器内置高频交换核心芯片，数据速率达1000Mbps ，大大提高网络运行速度，满足用户宽带需要。

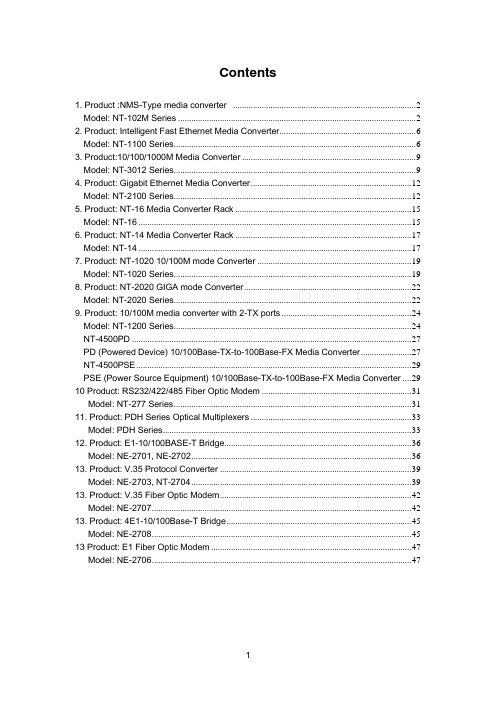

Contents1. Product :NMS-Type media converter (2)Model: NT-102M Series (2)2. Product: Intelligent Fast Ethernet Media Converter (6)Model: NT-1100 Series (6)3. Product:10/100/1000M Media Converter (9)Model: NT-3012 Series (9)4. Product: Gigabit Ethernet Media Converter (12)Model: NT-2100 Series (12)5. Product: NT-16 Media Converter Rack (15)Model: NT-16 (15)6. Product: NT-14 Media Converter Rack (17)Model: NT-14 (17)7. Product: NT-1020 10/100M mode Converter (19)Model: NT-1020 Series (19)8. Product: NT-2020 GIGA mode Converter (22)Model: NT-2020 Series (22)9. Product: 10/100M media converter with 2-TX ports (24)Model: NT-1200 Series (24)NT-4500PD (27)PD (Powered Device) 10/100Base-TX-to-100Base-FX Media Converter (27)NT-4500PSE (29)PSE (Power Source Equipment) 10/100Base-TX-to-100Base-FX Media Converter (29)10 Product: RS232/422/485 Fiber Optic Modem (31)Model: NT-277 Series (31)11. Product: PDH Series Optical Multiplexers (33)Model: PDH Series (33)12. Product: E1-10/100BASE-T Bridge (36)Model: NE-2701, NE-2702 (36)13. Product: V.35 Protocol Converter (39)Model: NE-2703, NT-2704 (39)13. Product: V.35 Fiber Optic Modem (42)Model: NE-2707 (42)13. Product: 4E1-10/100Base-T Bridge (45)Model: NE-2708 (45)13 Product: E1 Fiber Optic Modem (47)Model: NE-2706 (47)1. Product: NMS-Type Media ConverterModel: NT-102M SeriesProduct OverviewNT-102M, a 10/100M adaptive fast Ethernet media converter with network management system, supports Web interface management, remote Telnet management & software upgrade, and serial port management & software upgrade, which can monitor working status and configure the modes of the local and the remote device.The 10/100M media converter completely complies with such international standards as 10Base-T, 100Base-TX, 100Base-FX and IEEE 802.3x, and is fully compatible with network interface cards, relays, hubs and switches of other manufacturers. It provides a low-cost and high-reliability hardware solution for information transmission in broadband private networks and fiber broadband metropolitan area networks.Function & Features∙Graphic management interface based on WEB address and SNMP protocol;∙Supporting LFP (Link Fault Pass Through) of the local and remote;∙The network interfaces of the NMS proxy module and NMS media converter module support the auto-sense of MDI-MDIX∙Compliance with IEEE 802.3u 100BASE-FX/TX and IEEE802.3 10BASE-T;∙Supporting IEEE 802.1Q VLAN;∙Supporting 10/100M auto sensed, full/half-duplex auto sensed;∙Supporting the transmission of packets of 1600 bytes at the maximum;∙Supporting Quality of Service (QoS), and he transmission of VoIP packets;∙Supporting Spanning Tree Protocol (STP) to form a redundant network;∙Supporting hot swapping in the rack;∙Card type can be plug into both desktop box and the rack;∙Extremely low power consumption, low heat, reliable and stable performance, and long lifetime;∙Options in multimode dual fiber, single mode and single mode single fiber∙Options in different types of optical interfaces, such as SC, ST, etc.Technical ParametersOptical FeaturesTypical Application of Media Converter in overall Network Connection in centralized management modeConnection in point-to-point modeOrder Information2. Product: Fast Ethernet Media ConverterModel: NT-1100 SeriesIntelligent Fast Ethernet Media Converter SeriesOverviewDue to its unique function of link failure alert between electrical port and optical one, the intelligent 10/100M adaptive fast Ethernet media converter can replace the media converter with network management to greatly reduce the system cost.NT-1100 Ethernet media converter can interconvert electrical signals of 10Base-T and100Base–TX twisted pairs with optical signals of 100Base-FX. It extends the network transmission distance from 100m via copper cables to 120 km via fiber optical cable. It enables the data to transmit in two different mediums of electrical and optical networks either by the technology of data link L2 store-and-forward, or by the one of PHY L1cut-through). It supports transmission in multi-mode dual fiber, single mode dual fiber and single mode single fiber.Features∙10/100Mbps auto-sensed, facilitating network upgrade∙Built-in efficient switching core to implement flow control and reduce broadcast packets∙full-duplex and half-duplex auto-sensed∙Supporting automatic cross connection of twisted pair interfaces, facilitating system commissioning and installation∙Supporting Link Failure Alert (LFA)∙Supporting half /full-duplex of FX and link failure alert with optional dip-switch∙Supporting 10/100Mbps store-and-forward and 100Mbps cut-through transmission with optional dip-switch(unique)∙Supporting low-timelag transmission∙Supporting the transmission of extra-long packets up to1600 bytes∙Supporting the transmission of extra-long VLAN packets∙Supporting Quality of Service (QoS) , ensuring the transmission of VoIP packets ∙Supporting STP to form a redundant network∙Extremely low power consumption (less than 2W), low heat, reliable and stable performance, and long lifetime;∙Options in single mode dual fiber, multi-mode dual f fiber, and single mode in single fiberApplication10/100Mbps fast optical Ethernet long-distance transmitting network Technical IndexesOrder Information3. Product: 10/100/1000M Media ConverterModel: NT-3012 Series10/100/1000M Self-sensed Gigabit Ethernet Media Converter SeriesOverviewNT-3012 10/100/1000Mbps adaptive Gigabit Ethernet media converter adopts switching technology to fulfill media conversion. It complies with IEEE802.3, IEEE802.3u, IEEE802.3z and IEEE802.3ab standards. Presently it supports two types of media network connections: 10Base-T/100Base-TX/1000Base-T, and 1000Base-SX/LX, inter-converting electrical signals of 10Base-T/100Base-TX/1000Base-T twisted pairs with optical signals of 1000Base-SX/LX. It extends the transmission distance of network from 100m via copper cable to 20 km via fiber optical cables. It supports transmission in multi-mode dual fiber, single mode dual fiber and single mode single fiber.Features∙Completely compatible with products of CISCO, HUAWEI and 3COM.∙The product adopts a low-power-consumption chip; the heat output is so low that no heat dissipation facility is needed.Supporting inter-conversion between adaptive 10Base-T/100Base-TX/1000Base-T and ∙1000Base-SX/LX∙Supporting full-duplex and half-duplex and its auto-sensed∙Supporting automatic cross connection of twisted pair interfaces, facilitating system commissioning and installation∙Supporting the transmission of extra-long VLAN packets∙Supporting Quality of Service (QoS) and ensuring the transmission of VoIP packets;∙Supporting STP to form a redundant network;∙Options in single mode dual fiber, multi-mode dual fiber, and single mode in single fiberApplication10/100/1000Mbps Gigabit optical Ethernet long-distance transmitting network Technical IndexesOrder Information4. Product: Gigabit Ethernet Media ConverterModel: NT-2100 SeriesGigabit Ethernet Media Converter SeriesOverviewNT-2100 1000Mbps Gigabit Ethernet media converter adopts switching technology to fulfill media conversion. It complies with IEEE802.3z and IEEE802.3ab standards, and supports two types of media network connections: 1000Base-T and 1000Base-SX/LX. It inter-converts electrical signals of 1000Base-T twisted pairs with optical signals of 1000Base-SX/LX, extending the transmission distance of a network from 100m via copper cables to 50 km via fiber optical cables. It supports transmission in multi-mode dual fiber, single mode dual fiber and single mode single fiber.Features∙Supporting inter-conversion between 1000Base-T and 1000Base-SX/LX∙Supporting full-duplex and half-duplex and its auto-sensed∙Supporting automatic cross connection of twisted pair interfaces, facilitating system commissioning and installation∙Supporting the transmission of extra-long VLAN packets∙Supporting Quality of Service (QoS) and ensuring the transmission of VoIP packets;∙Supporting STP to form a redundant network;∙Options in single mode dual fiber, multi-mode dual fiber, and single mode in single fiberApplication1000Mbps Gigabit optical Ethernet long-distance transmitting networkTechnical IndexesOrder Information5. Product: NT-16 Media Converter RackModel: NT-16OverviewNT-16 is a kind of cost-effective media converter rack (2U) widely used in the equipment room. Different types of module type media converter developed by our company can be inserted into this rack, which total slots up to 16. It is furnished with two power supplies: main power supply and spare one, and supports its automatic switch-over.Features∙The configuration of active/standby power supply ensures uninterruptible operation of the system.∙Provide two power supplies (AC 220V, and DC -48V), enabling the system can work under many operating environments;∙Supporting simultaneous operation of several module type (module type) media converters at different rates, which greatly improves system adaptability;∙Each card supports hot swapping;∙Applicatory module types: NT-1100 series, NT-102F series, NT-S102F series, NT-S1100P series, NT-102M series, NT-2100F series, NT-2100D series, andNT-3012P series.Technical IndexesOrder Information6. Product: NT-14 Media Converter RackModel: NT-14OverviewNT-14 is a kind of cost-effective media converter rack (2U) widely used in the equipment room. Different types of module type media converter developed by our company can be inserted into this rack, which total slots up to 14. It is furnished with two power supplies: main power supply and spare one, and supports its automatic switch-over.Features∙The configuration of active/standby power supply ensures uninterruptible operation of the system.∙Provide two power supplies (AC 220V, and DC -48V), enabling the system can work under many operating environments;∙Supporting simultaneous operation of several module type (module type) media converters at different rates, which greatly improves system adaptability;∙Each card supports hot swapping;∙Applicatory module types: NT-1100 series, NT-1100S series, and NT-2100 series. Technical IndexesOrder Information7. Product: NT-1020 Single-/Multi-mode Converter Model: NT-1020 SeriesOverviewNT-1020 series single-/multi-mode converters are applied in 100Mbps fast Ethernet Network which is wired with both single mode fibers and multi-mode fibers. It can not only fulfill the conversion of single mode and multi mode at 1310nm wavelength, but also that of 850nm/1310nm and 1550nm wavelengths, which functions as a relay and then makes multi-mode fibers transmit farther. It supports transmission in multi-mode dual fiber, single mode dual fiber and single mode single fiber.Features∙Supporting IEEE802.3u 100Base-FX standards∙Supporting full-duplex and half-duplex and its auto-sensed∙Supporting conversion between 850nm/1310nm multi-mode fibers and 1310nm/1550nm single mode fibers∙Supporting direct and transparent transmission of packets at different lengths ∙Supporting the transmission of extra-long VLAN packets∙Supporting Quality of Service (QoS) and ensuring the transmission of VoIP packets;∙Supporting STP to form a redundant network;∙Low power consumption, low heat, reliable and stable performance, and long lifetime;∙Options in single mode in dual fiber, multi-mode in dual fiber, and single mode in single fiberApplication100Mbps optical Ethernet long-distance transmitting systemTechnical IndexesOrder Information8. Product: NT-2020 Single-/Multi-mode Converter Series Model: NT-2020 SeriesOverviewThe NT-2020 series single-/multi-mode converters are applied in 1000Mbps fast Ethernet Network, which is wired with both single mode fibers and multi-mode fibers. It can not only fulfill the conversion of single mode and multi mode at 1310nm wavelength, but also that of 850nm/1310nm and 1550nm wavelengths, which functions as a relay and then makes multi-mode fibers transmit farther. It supports transmission in multi-mode dual fiber, single mode dual fiber and single mode single fiber.Features∙Supporting IEEE802.3z 1000Base-SX/LX standards∙Supporting full-duplex/half-duplex∙Supporting conversion between 850nm multi-mode fibers and 1310nm/1550nm single mode fibers∙Supporting direct and transparent transmission of packets at different lengths ∙Supporting the transmission of extra-long VLAN packets∙Supporting Quality of Service (QoS) and ensuring the transmission of VoIP packets;∙Supporting STP to form a redundant network;∙Low power consumption, low heat, reliable and stable performance, and long lifetime;∙Options in single mode in dual fiber, multi-mode in dual fiber, and single mode in single fiberApplication1000Mbps optical Ethernet long-distance transmitting systemTechnical IndexesOrder Information9. Product: Media Converter with Two Electrical Ports Model: NT-1200 SeriesOverviewNT-1200 series, one kind of 10/100Mbps adaptive fast Ethernet media converter, with a two-port 10M/100Mbps adaptive switch built in, can inter-convert electrical signals of 10Base-T and/or 100Base-TX twisted pairs with optical signals of 100Base-FX. It extends the transmission distance of a network from 100m via copper cables to 120 km (via single mode full duplex fiber optical cables). The product supports two different types of network connection mediums: 10/100Base-TX and 100Base-FX, and fulfills data transmission between the two types of network connection mediums with switching technology and store-and-forward technology. It supports transmission in multi-mode dual fiber, single mode dual fiber and single mode single fiber.Features∙10/100Mbps auto-sensed, facilitating network upgrade∙Built-in efficient switching core to implement flow control and reduce broadcast packets∙Providing four respective 10M/100Mbps adaptive twisted pair switching ports to implement the backup of electrical ports and the access of multiple users ∙Providing two electrical ports based on VLAN switch, to support the connection of different unit users∙Supporting full-duplex and half-duplex and its auto-sensed∙Supporting automatic cross connection of twisted pair interfaces, facilitating system commissioning and installation∙Supporting the transmission of extra-long packets up to 1552 bytes∙Supporting STP to form a redundant network;∙Low power consumption, low heat, reliable and stable performance, and long lifetime;∙Options in single mode in dual fiber, multi-mode in dual fiber, and single mode in single fiberApplication10/100Mbps fast optical Ethernet long-distance transmitting networkTechnical IndexesOrder InformationNT-4500PDPD (Powered Device) 10/100Base-TX-to-100Base-FX Media ConverterNT-4500PD converts 10/100Base-TX to 100Base-FX. It supports the LFP (Link Fault Pass Through) function. If the link at TP or FX end fails, its LFP function will force the other end to close, which will make the engineers easy to trace whether a network link fails or not. It greatly firms the integrity and consistency of the connection between twisted pairs and fibers, and therefore improves the network maintainability.Features∙Compliance with the IEEE802.3af PoE (Power over Ethernet) PD standard∙Supporting LFP (Link Fault Pass-through)∙Options in connectors (SC, ST or LC), and multi-mode or single mode∙With side switch, easy setting∙External power supplyTechnical Indexes∙Standards: IEEE802.3u, 10/100Base-TX, 100Base-FX∙Data transmission rate♦100Mbps: 148,800 pps♦10Mbps: 14,880 pps∙Interface♦RJ-45: 10/100Mbps (Auto-sensed)♦MM SC, SM SC, MM MTRJ, MM VF-45, SM BiDi, MM LC, SM LC: 100M bps∙Cable♦Fibers (multi-mode): 50/125, 62.5/125, 100/140μm♦Fibers (single mode): 8.3/125, 8.7/125, 9/125, 10/125μm∙Flow control♦IEEE802.3x compliant for full-duplex (full duplex)♦Backpressure flow control for half-duplex (half duplex)∙LED indicators: FX Link/Act, FX FDX/Col, TX Link/Act, TX 100, PSE Power Good, PSE Power Bad, Power∙Power supply: 1A@+5VDC from AC-DC Adapter 0.5A@+5VDC from PoE∙Temperature 0~50°C∙Humidity 5%~90%∙Dimensions 26.2(H) x 70.3(W) x 94(D) mm∙Safety Regulations: FCC Part 15 Class A, CE MarkNT-4500PSE (Power Source Equipment)10/100Base-TX-to-100Base-FX Media ConverterNT-4500PSE converts 10/100Base-TX to 100Base-FX. It supports the LFP (Link Fault Pass Through) function. If the link at TP or FX end fails, its LFP function will force the other end to close, which will make the engineers easy to trace whether a network link fails or not. It greatly firms the integrity and consistency of the connection between twisted pairs and fibers, and therefore improves the network maintainability. It also supports the FEF (Far End Fault) function: the converter senses the status of the optical interface at the remote. If the optical interface at the remote does not receive the information, the electrical port will automatically close and data transmitting will stop. As the result, the loss of important data will be efficiently avoided. The product complies with the IEEE802.3af PoE (Power over Ethernet) standard. As one kind of PSE(Power Sourcing Equipment), it obtains -48V DC voltage through the fiber optic link for data transmitting, and then supply power to the PD (powered device) in compliance with the IEEE802.3af standard via UTP.NT-450PSE delivers such functions as PD sensation, power monitor, over voltage protection, undervoltage detection, and fault protection input.Features∙Compliance with the IEEE802.3af PoE (Power over Ethernet) PSE standard∙Supporting LFP (Link Fault Pass-through)∙Options in connectors (SC, ST or LC), and multi-mode or single mode∙With side switch, easy setting∙Internal power supplyTechnical Indexes∙Standard: IEEE802.3u, 10/100Base-TX, 100Base-FX∙Data transmission rate♦100Mbps: 148,800 pps♦10Mbps: 14,880 pps∙Interface♦RJ-45: 10/100Mbps (Auto-sensed)♦MM SC, SM SC, MM MTRJ, MM VF-45, SM BiDi, MM LC, SM LC: 100Mbps∙Cable♦Fibers (multi-mode): 50/125, 62.5/125, 100/140μm♦Fibers (single mode): 8.3/125, 8.7/125, 9/125, 10/125μm∙Flow control♦IEEE802.3x compliant for full-duplex (full duplex)♦Backpressure flow control for half-duplex (half duplex)∙LED indicators: FX Link/Act, FX FDX/Col, TX Link/Act, TX 100, PSE Power Good, PSE Power Bad, Power∙Power Supply: 100 – 240 VAC, 47 –63 Hz∙Power consumption: 45W (maximum)∙Temperature 0~50°C∙Humidity 5%~90%∙Dimensions 30(H) x 185W) x 112(D) mm∙Safety Regulations: FCC Part 15 Class A, CE Mark10 Product: RS232/422/485 Fiber Optic ModemModel: NT-277 SeriesRS 232/485/422 Serial Port Fiber Optic Modem OverviewNT-277 is a type of RS-232/RS-485/RS-422 serial port fiber optic Modem. It adopts industrial standard design and its wall type outface design supports DIN-rail standard lead rail installation, featuring easy installation. Presently, many users make use ofRS-232/RS-485/RS-422 serial port fiber optic Modem to solve the electromagnetic interference in engineers and to extend the RS-232/RS-485/RS-422 serial port transmission distance to several or even tens of kilometers. NT-277 can provide users with RS-232/RS-485/RS-422 serial port end-to-end transparent transmission. Since signals are transmitted over fibers and these optical signals are free of electrical conductivity, they have strong anti-interference capacity and are immune to high-voltage power or thunders.Features∙Zero-Delay automatic forwarding∙Supporting three types of interfaces: RS232/485/422∙Automatic detection of serial port rate, judgment and control of data transmission direction∙Working wavelength: 850 nm (multi-mode); 1310 nm (single mode)∙Maximum communication rate: 500 Kbps∙Optional optical interfaces: ST/SC/FC∙Up to 2 kilometers in multi-mode transmission and up to 40 kilometers in single mode transmission∙Broad voltage inputs: 5-40 VDC or 85-265 VAC∙The interface supports 1500W surge protection and 15KV ESD protection∙External power supplyCommunication IndexesOrder Information11. Product: PDH Series Optical MultiplexersModel: PDH SeriesPDH Optical Multiplexer1) Product OverviewPDH optical multiplexer is a kind of point-to-point optical transmission equipment developed by our company on the core of large-scale integrated circuit chips. It is applicable to remote transmission of switches, and small/medium-capacity applications transmitted over fibers, including mobile communication base stations, wireless local communication base stations and paging stations. The equipment features perfect overall performance, stable and reliable operation, low power consumption, high integration, small size and easy installation and maintenance. It is intended for carries and such fields as post and telecommunications, electrical power, railway, water resources, oilfields, and banks.2) Main Features∙NT240B+/NT480B+ adopts two integrated media converter modules operating in active/standby mode (optional);∙Providing 4 to 16 E1 (2.048KB/S) interfaces and one wire speed 10/100M adaptive Ethernet interface;∙Full duplex/half-duplex adaptive operating mode;∙Full digital clock recovery and smooth phase lock technology;∙The code pattern of the E1 interfaces is HDB3 code, and the E1 jitter tolerance, transfer characteristic and output jitter completely meet the ITU-T G.703, G.823and G.742 protocol.∙One PCM, without occupying 2M channel for transmission;∙Providing a user RS232 transparent data channel, and supporting unified network management;∙Providing perfect alarm and indication signals as well as alarm mask functions, using LED to display local and remote alarms and general alarms, capable ofcontrolling remote loopback;∙Ensuring a transmission distance of over 40 km without relay;∙Board-level design for the integrated equipment, featuring high reliability and stable performance;∙Optional 220V AC power supply or -48V DC power supply.3) Technical Indexes4) Typical Application5) Order Information12. Product: E1-10/100BASE-T BridgeModel: NE-2701, NE-2702E1-10/100BASE-T Bridge1) Product OverviewThe design of NE-2701 Ethernet-E1 converter adopts the ASIC chip as the core, which features simple circuits and compact structure and enhances the reliability of the integrated equipment. The Ethernet-E1 converter provides data transmission channels at a maximum bandwidth of 2.048M for the Ethernet over coaxial cables and connects two LANs through coaxial cables. It is applicable to multiple application scenarios including LAN extension, network isolation, and access of LAN into WAN. It connects an Ethernet network to a telecommunications transmission network, a private network or a WAN.2) Product Features∙Supporting IEEE802.3Q VLAN frames and 1536 bytes jumbo frames∙Supporting data transmission from 10/100M Ethernet to E1∙Configurable Ethernet bandwidth, supporting a maximum rate of 2.048 Mbps ∙Supporting full-duplex PAUSE flow control function∙Supporting address filtering function∙RJ45 interface, supporting adaptive crossover and straight-through cabling∙Supporting the reset of a remote system from a local system∙Supporting audio alarm function, with the audio alarm system to be disabled by the user at any time∙Supporting E1 line loopback function∙Built-in switching power supply, overall power consumption < 3W; external 220V AC and -48V DC interface3) Technical ParametersTypical ApplicationsE thernet E1 converter E1 linkE thernet E1converterTypical Application (1)E thernet fiberoptic Modem Centralized E1 fiberoptic ModemE thernet E1converterTypical Application (2) 4) Order Information13. Product: V.35 Protocol ConverterModel: NE-2703, NT-2704V.35 ConverterProduct OverviewNE-2703 converter implements the conversion from V.35 interface to E1 (2048 Kbps) interface and the conversion from E1 (2048 Kbps) to V.35 interface. Therefore, it implements the connection between the router without G7.03 interfaces and the transmission equipment such as optical multiplexes. It has been widely applied to data communication equipment, for example, connection between a router and a WAN interface, access of DDN network, transmission optimization of mobile telephone network, and various transmission access of E1-based PCM network.Features∙Outstanding performance in jitter transmission features of E1 channel input, far superior to industrial standards∙E1 interface supports two working modes of framed/unframed and provides 120Ω/balanced and 75Ω/unbalanced impedance interfaces at the same time ∙E1 port adopts digital clock recovery circuit and smooth phase-locked circuit∙V.35 interface supporting automatic detection function, capable of automatic detection and adaptation of the phase which receives data, and optimizingsampling points∙Providing three clock modes: master clock, external clock, and slave clock∙Perfect link alarm indication function, supporting local and remote tributary loopback, facilitating test∙Simple circuit design, stable equipment operation, and low fault rate∙All settings performed on the panel, making operation easyTechnical IndexesTypical ApplicationsV.35/E1 converter E1 linkV.35/E1converter13. Product: V.35 Fiber Optic ModemModel: NE-2707Product OverviewV.35 fiber optic Modem is a kind of communication equipment to transmit one channel of V.35 data over a pair of fibers. It uses ASIC chip, adopts modular structure inside, integrates the functions of coding, decoding, information insertion, and alarm switchover,. Therefore its circuit is simple, structure is compact and power consumption is low. It is widely used in the occasions that require high reliability and complete auxiliary functions.Features∙Providing one optical port, supporting point-to-point connection in pairs or connection to E1 fiber optic Modem;∙Providing one V.35 port, with the rate of N ⨯ 64 Kb/s (N = 1-32), adjustable∙Providing three timing modes: mater timing, tracing V.35 port, and tracing optical port∙Supporting automatic tracing function of remote timeslot bandwidth∙Providing auto-sensation between the receive clock and data phase at V.35 port ∙Supporting multiple loopback functions and bit error of internal link test function, facilitating engineering commissioning∙Providing the remote electrical outage detection function, which can tell whether it is fiber cut or the remote electrical outage∙Rich panel display enables the user easy to identify the faultTypical ApplicationsV.35 fiber optic ModemV.35 fiber optic ModemLocalRemoteTwo V.35 fiber optic modems are connected through fibers, which connects two routers with V.35 interface.Figure 1-3-1 Typical Application (1)A V.35 fiber optic Modem is connected with a E1 fiber optic Modem through fibers. The router connected with the V.35 fiber optic Modem has a V.35 interface, and the router connected with the E1 fiber optic Modem has E1 interface.Figure 1-3-2 Typical Application (2)V.35 fiberoptic ModemV.35 fiberoptic ModemV.35 fiber optic ModemCentralized E1 fiber optic ModemBased on application (2), transmit transparently the E1 circuit to the equipment room of the user through SDH/PDH network, and connect with a V.35-to-E1 converter, and then to a router.Figure 1-3-3 Typical Application (3)Technical ParametersTechnical Parameters of Optical Interface1) Optical link rate: 4.096 Mb/s2) Wavelength: 1310 nm (standard) / 1550 nm (optional)3) Transmission distance: 40 km (standard) / 60 km, 80 km, 120 km (optional)。

PUBLIC_REV2017_AProduct GuideTransceivers for Datacom and TelecomApplicationsData CenterOptimized fiber optic solution for Data Center Application FTTHBroad Product Portfoloio and Technology for FTTH Broadband Networks WirelessEnabling Rapid Expnsion of Mobile Broadband Enterprise - CampusWe provides the enterprise network market with the most comprehensive product combinationsSkylane Optics is a leading provider of transceivers for optical communication. We offer an extensive portfolio for the enterprise, access, and metropolitan fiber optical market.The offerings provided by Skylane Optics are characterized by high quality and performance. In combination with our strong technical support, we enable our customers to build cost optimized network solutions solving existing and future capacity needs.SolutionsOur Engineering and Logistics Center> Inventory, logistics, programming and quality control based in Fraire, Belgium> IQC [Incoming Quality Control] and OQC [Outgoing Quality Control]> 100% optimized for handling of transceivers > SD [ANSI/ESD S20.20] compliant > Clean room environment; class 100K > Traceability> High CapacityOur Laboratory> Lab, based in Fraire, Belgium > Technical support > RMA handling> Qualification tests:- Measure performance over the temperaturerange to verify compliance with standards - Compliance with standards (IEEE, IEC, MSA)- Power consumption - Eye diagram - Sensitivity- WavelengthQualityCompatibilityAdva Agilent Alcatel - Nokia Allied Telesis Apac Opto AristaArborAruba Networks AsgaAvaya – Nortel BlackMagic Broadcom BrocadeBTI System BullCalix Carelink CienaCiscoCitrixCOE Commscope Coriant Corrigent CPECyanD-Link datacomDellDNWPECIEdge-Core Enterasys EricssonEricsson RedbackExtremeFibrolanForce10Fortigate (Fortinet)GeneexisGigamonHirschmanHPHP - ProcurveHP - H3CHP - BladeSystemHP - SANHP - ServerHSEHuaweiIBMID QuanticInfineraIntelIXIAJDSUWavereadyJuniperKeymileKTILANCOMLinksysLynxMellanoxMerakiMicrosensMikrotikMoxaMRVLynxMarconiMikrotikMyricomNECNetgearNexansOptowayOrckitPacketfrontPacketlightPalo AltoPica8Procera NetworksQlogicRADRadwareRiverstoneSorentoTellabsTP-LinktrendnetTransition NetworksUnifi - SwitchVSSWestermoWTDZhoneZTEZyxelHIGHLY COMPATIBLE : MAKE YOUR TRANSCEIVER COMPATIBLE FOR ALL MAJOR PLATFORM.WhySkylane Optics ?CustomizationDue to our high experienced engineers, we are enable to modify the hardware and software of the transceivers. We are also able to produce transceivers with withelabelling.Technical SupportHighly experienced Skylane Optics engi -neers will visit your facility to solve your issues.Quality & AssuranceWe have cutting-edge test equipment to ensure we supply high quality products.Mutli CompatibilitySkylane Optics offers the most cost-effec -tive solutions for all major platforms withthe proprietary firmware.Innovations for Early AdoptersThe manufacturing environment is strictly compliant to most avanced standard, whichensure long term reliability.Skylane Optics transceivers are certified by TUV.> E N 60950-1:2006 ITE, Safety, General require -ments > EN 60825-1:2007 Safety of laser products > EN 60825-2:2004 Safety of Optical Fiber Com -munication SystemsSkylane Optics transceivers are CE and ROHS compliant.Skylane Optics transceivers are certified by ULCertificationsT R A N S C E I V E R ST R A N S C E I V E R S P O NC A B L E SC OD I N G B O XP A S S I V E S(V i s i b i l e o n o u r w e b s i t e )Q S F P28100GBase-SR4Q2885P10C0PF103 Gb/s Multi Mode850nm 100m0°C to 70°C 100GBase-SR4/OTU4Q2885P10C1PF112 Gb/s Multi Mode850nm100m0°C to 70°C 100GBase-eSR4Q2885P30C0PF103 Gb/s Multi Mode850nm300m0°C to 70°C 100GBase-eSR4/OTU4Q2885P30C1PF112 Gb/s Multi Mode850nm300m0°C to 70°C 100GBase-PSM4Q2813P50C0PD103 Gb/s Single Mode1310nm500m0°C to 70°C100GBase-CWDM4Q28QL002C00F103 Gb/s Single Mode1270/1290/1310/1330nm2km 0°C to 70°C 100GBase-CLR4Q28QL002C00D103 Gb/s Single Mode1270/1290/1310/1330nm 2km 0°C to 70°C 100GBase-LR4Q28QD010C00D103 Gb/s Single Mode LAN-WDM 800GHz10km 0°C to 70°C 100GBase-LR4/OTU4Q28QD010C10D112 Gbps Single Mode LAN-WDM 800GHz10km 0°C to 70°C 100GBase-ER4 Lite Q28QD040C00F103 Gb/s Single Mode LAN-WDM 800GHz40km 0°C to 70°C 100GBase-ER4/OTU4 Lite Q28QD040C10F112 Gbps Single Mode LAN-WDM 800GHz40km 0°C to 70°CC F P4100GBase-LR4CF4QD010C00D103 Gb/s Single Mode LAN-WDM 800GH z10km0°C to 70°C 100GBase-LR4/OTU4CF4QD010C10D112 Gbps Single Mode LAN-WDM 800GH z10km 0°C to 70°C 100GBase-ER4 Lite CF4QD040C00F103 Gb/s Single Mode LAN-WDM 800GH z40km0°C to 70°C 100GBase-ER4/OTU4 Lite CF4QD040C10F112 Gbps Single Mode LAN-WDM 800GH z40km 0°C to 70°CC F P2100GBase-LR4CF2QD010C00D103 Gb/s Single Mode LAN-WDM 800GH z10km0°C to 70°C 100GBase-LR4/OTU4CF2QD010C10D112 Gbps Single Mode LAN-WDM 800GH z10km 0°C to 70°C 100GBase-ER4CF2QD040C00D103 Gb/s Single Mode LAN-WDM 800GH z40km0°C to 70°C 100GBase-ER4/OTU4CF2QD040C10D112 Gbps Single Mode LAN-WDM 800GH z40km 0°C to 70°CC F P100GBase-LR4CFPQD010C00D103 Gb/s Single Mode LAN-WDM 800GH z10km0°C to 70°C 100GBase-LR4 OTU4CFPQD010C10D112 Gbps Single Mode LAN-WDM 800GH z10km 0°C to 70°C 100GBase-ER4CFPQD040C00D 103 Gb/s Single Mode LAN-WDM 800GH z40km0°C to 70°C 100GBase-ER4/OTU4CFPQD040C10D112 Gbps Single Mode LAN-WDM 800GH z40km 0°C to 70°CQ S F P+40GBase-SR4QFP85xxx40PD 40 Gb/s Multi Mode850nm 100/300m0°C to 70°C 40GBase-PSM4 IR4 QFP13C1440PD40 Gb/s Single Mode1310nm1,4km0°C to 70°C 40GBase-PSM4 LR4QFP1301040PD40 Gb/s Single Mode1310nm10km 0°C to 70°C40GBase-IR4QFPQLC1400D40 Gb/s Single Mode1270/1290/1310/1330nm1,4km 0°C to 70°C 40GBase-LX4QFPQL002400U40 Gb/s Single/Multi Mode1270/1290/1310/1330nm2km 0°C to 70°C 40GBase-LR4QFPQL010400D40 Gb/s Single Mode1270/1290/1310/1330nm 10km 0°C to 70°C 40GBase-ER4QFPQL040400D40 Gb/s Single Mode1270/1290/1310/1330nm40km 0°C to 70°CS F P2825GBase-SR S2885P10250F25 Gb/s Multi Mode850nm100m-40°C to 85°C 25GBase-LR S2813010250D25 Gb/s Single Mode1310nm10km-40°C to 85°C 25GBase-ER S2813040250F25 Gb/s Multi Mode1310nm40km0°C to 70°C25GBase-CWDM S2CXX010250D25 Gb/s Single Mode CWDM ITU ch. 10km-20°C to 85°CX F P10GBase-SR XFP85P3010xD10.3 Gb/s Multi Mode850nm 300m -40°C to 85°C 10GBase-LR XFP1301010xD10.3 Gb/s Single Mode1310nm 10km -40°C to 85°C 10GBase-LR/OC-192XFP130100HxD11.35 Gb/s Single Mode1310nm 10km -40°C to 85°C 10GBase-LR XFP1302010xD10.3 Gb/s Single Mode1310nm 20km -40°C to 85°C 10GBase-ER XFP1504010xD10.3 Gb/s Single Mode1550nm 40km -40°C to 85°C 10GBase-ER/OC-192XFP150400HxD11.35 Gb/s Single Mode1550nm 40km -40°C to 85°C 10GBase-ZR XFP1508010xD10.3 Gb/s Single Mode1550nm 80km -40°C to 85°C 10GBase-ZR/OC-192XFP150800HxD11.35 Gb/s Single Mode1550nm 80km -40°C to 85°C10GBase-CWDM XFCxxB1010xD10.3 Gb/s Single Mode CWDM ITU ch. 10dB -40°C to 85°C 10GBase-CWDM XFCxx04010xD10.3 Gb/s Single Mode CWDM ITU ch. 14dB/40km -40°C to 85°C 10GBase-CWDM XFCxx07010xD10.3 Gb/s Single Mode CWDM ITU ch. 23dB/70km -40°C to 85°C10GBase-DWDM XFDxx04010xD10.3 Gb/s Single Mode DWDM ITU ch. 14dB/40km -40°C to 85°C 10GBase-DWDM/OC-192XFDxx0400HxD11.35 Gb/s Single Mode DWDM ITU ch. 14dB/40km -40°C to 85°C 10GBase-DWDM XFDxx08010xD10.3 Gb/s Single Mode DWDM ITU ch. 23dB/80km -40°C to 85°C 10GBase-DWDM OC-192XFDxx0800HxD11.35 Gb/s Single Mode DWDM ITU ch. 23dB/80km -40°C to 85°C10GBase-Tunable XFDTU0800H0D11.35 Gb/s Single Mode50GHz DWDM tun 23dB/80km0°C to 70°C10GBase-Bidi XFB23xxx10xD10.3 Gb/s Single Mode1270/1330nm 10/20/40/60km-40°C to 85°C 10GBase-Bidi XFB32xxx10xD10.3 Gb/s Single Mode1330/1270nm10/20/40/60km-40°C to 85°CX2X2X2S00000100D 10.3 Gb/s n/a n/a n/a0°C to 70°C X E N P A KXenpak XPS00000100D 10.3 Gb/s n/a n/a n/a0°C to 70°CS F P+16x Fiber Channel SW SPP85P10160C14.025 Gb/s Multi Mode850nm100m0°C to 70°C 16x Fiber Channel LW SPP13010160C14.025 Gb/s Single Mode1310nm10km0°C to 70°C 6G CPRI SR SPP85P30L6xD 6.144 Gb/s Multi Mode850nm300m-20°C to 85°C 6G CPRI LR SPP13002L6xD 6.144 Gb/s Single Mode1310nm2km-40°C to 85°C 6G CPRI LR SPP13010L62D 6.144 Gb/s Single Mode1310nm10km-40°C to 85°C 10GBase-SR SPP85P3010xD10.3 Gb/s Multi Mode850nm300m-40°C to 85°C 10GBase-LRM SPP13P2210xA10.3 Gb/s Multi Mode1310nm220m-40°C to 85°C 10GBase-LR SPP13xxx10xD10.3 Gb/s Single Mode1310nm10/20km-40°C to 85°C 10GBase-ER SPP1504010xD10.3 Gb/s Single Mode1550nm40km-40°C to 85°C 10GBase-ZR SPP1508010xD10.3 Gb/s Single Mode1550nm80km-40°C to 85°C 10GBase-ZR100SPP15100100D10.3 Gb/s Single Mode1550nm100km0°C to 70°C10GBase-CWDM SPCxxB1010xD10.3 Gb/s Single Mode CWDM ITU ch. 10dB-40°C to 85°C 10GBase-CWDM SPCxx04010xD10.3 Gb/s Single Mode CWDM ITU ch.14dB/40km-40°C to 85°C 10GBase-CWDM SPCxx07010xD10.3 Gb/s Single Mode CWDM ITU ch.23dB/70km-40°C to 85°C6G CPRI CWDM SBHxDxxxL62D 6.144 Gb/s Single Mode CWDM ITU ch.10dB/18dB-40°C to 85°C 6G CPRI CWDM SBHxUxxxL62D 6.144 Gb/s Single Mode CWDM ITU ch.10dB/18dB-40°C to 85°C10GBase-DWDM SPDxx04010xD10.3 Gb/s Single Mode DWDM ITU ch. 14dB/40km -40°C to 85°C 10GBase-DWDM SPDxx08010xD10.3 Gb/s Single Mode DWDM ITU ch.23dB/80km-40°C to 85°C10GBase-Tunable SPDTU08010xD11.35 Gb/s Single Mode50GHz DWDM tun23dB/80km-40°C to 85°C10GBase-Bidi SPB23xxx10xD10.3 Gb/s Single Mode1270/1330nm 10/20/40/60km-40°C to 85°C 10GBase-Bidi SPB32xxx10xD10.3 Gb/s Single Mode1330/1270nm10/20/40/60km-40°C to 85°C 10GBase-Bidi SPB45080100D10.3 Gb/s Single Mode1490/1550nm80km0°C to 70°C 10GBase-Bidi SPB54080100D10.3 Gb/s Single Mode1550/1490nm80km0°C to 70°C10GBase-T SPT00M30100010.3 Gb/s Copper n/a30m0°C to 70°CS F P100Base-LX SF P13xxxFExD125 Mb/s Single Mode1310nm2/10/20/30/40/60km-40°C to 85°C 100Base-LX SGMII SGP13xxxFExD125 Mb/s Single/Multi Mode1310nm2/10km -40°C to 85°C 100Base-ZX SFP15080FExD125 Mb/s Single Mode1550nm 80km -40°C to 85°C 1000Base-SX SFP85P55GExD 1.25 Gb/s Dual Fibre-MM850nm 550m -40°C to 85°C 1000Base-LX SFP13001GExD 1.25 Gb/s Dual Fibre-MM1310nm 2km -40°C to 85°C 1000Base-LX40SFP13xxxGExD 1.25 Gb/s Single Mode1310nm 10/20km -40°C to 85°C 1000Base-EX SFP13040GExD 1.25 Gb/s Single Mode1310nm 40km -40°C to 85°C 1000Base-ZX SFP15xxxGExD 1.25 Gb/s Single Mode1550nm 60/80/120km -40°C to 85°C 0C-48 Multi Rate SX SFP13002PAxD 2.67 Gb/s Single Mode1310nm 2km -40°C to 85°C 0C-48 Multi Rate LX SFP13020PAxD 2.67 Gb/s Single Mode1310nm 20km -40°C to 85°C OC-48 Multi Rate LX40SFP13040PAxD 2.67 Gb/s Single Mode1310nm 40km -40°C to 85°C 0C-48 Multi Rate EX SFP15040PAxD 2.67 Gb/s Single Mode1550nm 40km -40°C to 85°C 0C-48 Multi Rate ZX SFP15080PAxD 2.67 Gb/s Single Mode1550nm 80km -40°C to 85°C 3G CPRI Base-SX SFP85P30L31D 3.072 Gb/s Multi Mode850nm300m-20°C to 85°C 3G CPRI SX SFP13002L32D 3.072 Gb/s Single Mode1310nm2km-40°C to 85°C 3G CPRI LX SFP13010L32D 3.072 Gb/s Single Mode1310nm10km-40°C to 85°C1000Base-CWDM SFCxx040GE0D 1.25 Gb/s Single Mode CWDM ITU ch. 16dB/40km 0°C to 70°C 1000Base-CWDM SFCxx080GE0D 1.25 Gb/s Single Mode CWDM ITU ch. 24dB/80km 0°C to 70°C 1000Base-CWDM SFCxx120GE0D 1.25 Gb/s Single Mode CWDM ITU ch. 32dB/120km 0°C to 70°C 1000Base-CWDM SFCxx160GE0D 1.25 Gb/s Single Mode CWDM ITU ch. 40dB/160km 0°C to 70°C 4x Fiber Channel-CWDM SFCxx0404F0D 4.25Gb/s Single Mode CWDM ITU ch. 16dB/40km0°C to 70°C 4x Fiber Channel-CWDM SFCxx0804F0D 4.25Gb/s Single Mode CWDM ITU ch. 24dB/80km0°C to 70°C OC-48 Multi Rate CWDM SFCxx040PAxD 2.67Gb/s Single Mode CWDM ITU ch. 16dB/40km-20°c to 85°C OC-48 Multi Rate CWDM SFCxx080PAxD 2.67Gb/s Single Mode CWDM ITU ch. 24dB/80km-20°c to 85°C3G CPRI Bidi CWDM SBHxDB22L32D 3.072 Gb/s Single Mode CWDM ITU ch. 22dB-40°C to 85°C 3G CPRI Bidi CWDM SBHxUB22L32D 3.072 Gb/s Single Mode CWDM ITU ch. 22dB-40°C to 85°C1000Base-DWDM SFDxxyyyGE0D 1.25 Gb/s Single Mode DWDM ITU ch. 80/100/120km0°C to 70°C1000BASE-T SFT00P10GE0x 1.25 Gb/s Copper n/a100m 0°C to 70°C 1000BASE-T SGT00P10DR0x 1.25 Gb/s Copper n/a100m 0°C to 70°C1000Base-BXD SBD53xxxFExD125 Mb/s Single Mode1550/1310nm 10/20/40/60km -40°C to 85°C 1000Base-BXU SBU35xxxFExD125 Mb/s Single Mode1310/1550nm 10/20/40/60km -40°C to 85°C 1000Base-BXD SGMII SGD53010FExD125 Mb/s Single Mode1550/1310nm 10km -40°C to 85°C 1000Base-BXU SGMII SGU35010FExD125 Mb/s Single Mode1310/1550nm 10km -40°C to 85°C 1000Base-BXD SBD53xxxGExD 1.25 Gb/s Single Mode1550/1310nm 3/10/20/40/60km -40°C to 85°C 1000Base-BXU SBU35xxxGExD 1.25 Gb/s Single Mode1310/1550nm 3/10/20/40/60km -40°C to 85°C 1000Base-BXD SBD43xxxGExD 1.25 Gb/s Single Mode1490/1310nm 10/20/40/60km -40°C to 85°C 1000Base-BXU SBU34xxxGExD 1.25 Gb/s Single Mode1310/1490nm 10/20/40/60km -40°C to 85°C 1000Base-BXD SBD43xxxDRxD 1.25 Gb/s Single Mode1490/1310nm 10/20km -40°C to 85°C 1000Base-BXU SBU34xxxDRxD 1.25 Gb/s Single Mode1310/1490nm 10/20km -40°C to 85°C 1000Base-BXD SBD53xxxDRxD 1.25 Gb/s Single Mode1550/1310nm 10/20km -40°C to 85°C 1000Base-BXU SBU35xxxDRxD 1.25 Gb/s Single Mode1310/1550nm 10/20km -40°C to 85°C1000Base-BXD CSFP SCD53xxxDRxD 1.25 Gb/s Single Mode1550/1310nm 10/20km 0°C to 70°C 1000Base-BXD CSFP SCD53xxxGExD 1.25 Gb/s Single Mode1550/1310nm 10/20km 0°C to 70°C 1000Base-BXD CSFP SCD43xxxGExD 1.25 Gb/s Single Mode1490/1310nm 10/20/40km0°C to 70°CTransceivers PONGPON OLT B+SBM43CBPDGxD 2,488 Mbps 1,244 Mbps Bidi SFP 1490/1310nm DFB APD B+ -40°C to 85°C SC GPON OLT C+SBM43CCPDGxD 2,488 Mbps 1,244 Mbps Bidi SFP 1490/1310nm DFB APD C+ -40°C to 85°C SC GPON OLT C++SBM43CCCDG3D2,488 Mbps1,244 MbpsBidi SFP1490/1310nmDFBAPDC++0°C to 70°CSCXGSPON OLTXSM52CN1NN3D9,953 Mbps9,953 MbpsBidi XFP1577/1270nmEMLAPDN10°C to 70°CSCXGSPON OLT SSM52CN1NN3D 9,953 Mbps 9,953 Mbps Bidi SFP+1577/1270nm EML APD N10°C to 70°C SC XGSPON ONUSSN25CN1XXxD10,3125 Mbps10,3125 MbpsBidi SFP+1270/1577nmEMLAPDN1-40°C to 85°CSC10GEPON OLTSPH53C30XR3D 10,3125 Mbps 1,25 Mbps Bidi SFP+1577/1310nm EML APD PRX300°C to 70°C SC 10GEPON ONUSPI25C30PR3D 10,3125 Mbps 10,3125 Mbps Bidi SFP+1270/1577nm EML APD PR300°C to 70°C SC SPI35C30RX3D 1,25 Mbps 10,3125 Mbps Bidi SFP+1310/1577nm DFB APD PRX300°C to 70°C SC XGPON1 OLT SPF52CN1ND3D 9,953 Mbps 2,488 Mbps Bidi SFP+1577/1270nm EML APD N10°C to 70°C SC XGPON1 ONUSPG25CN1DNxD2,488 Mbps9,953 MbpsBidi SFP+1270/1577nmDFBAPDN1-40°C to 85°CSC10GEPON OLT XBO52C30PR3D 10,3125 Mbps 10,3125 Mbps Bidi XFP 1577/1270nm EML APD PR300°C to 70°C SC XGPON1 OLTXBM52CN1ND3D9,953 Mbps2,488 MbpsBidi XFP1577/1270nmEMLAPDN10°C to 70°CSCX F PS F PS F P +A L L P R O D U C T S A R E D D MQ S F P 28Q S F P +100GBase-T DAPQQMxxC000QSFP28 to QSFP28103 Gb/s n/a n/a n/a 50cm/1/2/3m 100xGigabit Ethernet 0°C to 70°C 1100GBase-T Breakout CableDAPQSMxxC000QSFP28 to 4x SFP28103 Gb/sn/an/an/a50cm/1/2/3m25x/100x Gigabit Ethernet0°C to 70°C1,2100GBase DAOQQMxxC00D QSFP28 to QSFP28103 Gb/s 850nm 4x VCSEL 4xPIN 1/3/5/10/15/30/50/75/100m 100xGigabit Ethernet 0°C to 70°C 1100GBaseBreakout CableDAOQSMxxC00DQSFP28 to 4x SFP28103 Gb/s850nm4x VCSEL4xPIN50cm/1/2/3m25x/100x Gigabit Ethernet0°C to 70°C1,240GBase-T (passive)DAPQQxxx4000QSFP+ to QSFP+40 Gb/s n/a n/a n/a 50cm/1/2/3/4/5m 40xGigabit Ethernet 0°C to 70°C 140GBase-T Breakout DAPQSxxx4000QSFP+ to 4x SFP+40 Gb/s n/a n/a n/a 50cm/1/2/3/4/5m10x/40x Gigabit Ethernet 0°C to 70°C 1,240GBase-T (active)DAAQQMxx4000QSFP+ to QSFP+40 Gb/sn/an/an/a7/10m40xGigabit Ethernet0°C to 70°C140GBase DAOQQxxx400D QSFP+ to QSFP+40 Gb/s 850nm 4x VCSEL 4xPIN 3/5/10/30/50/100m 40xGigabit Ethernet 0°C to 70°C 140GBaseBreakout CableDAOQSMxx400DQSFP+ to 4x SFP+40 Gb/s850nm4x VCSEL4xPIN3/5/10/30/50/100m10x/40x Gigabit Ethernet0°C to 70°C1,21 M x x & x x x I N P A R T N U M B E R I N D I C A T E S C A B L E L E N G T H.2 B R E A K O U T C A B L E.25GBaseDAOSSMxx250DSFP28 to SFP2825 Gb/s850nmVCSELPIN1/2/3/5/10/20/30/50/100m25xGigabit Ethernet0°C to 70°C1S F P 28S F P +25GBase-TDAPSSMxx2500SFP28 to SFP2825 Gb/sn/an/an/a50cm/1/2/3/5m25xGigabit Ethernet0°C to 70°C110GBaseDAOSSxxx100DSFP+ to SFP+10.3 Gb/s850nmVCSELPIN1/3/5/7/10/15/20/30/50/100m10x Gigabit Ethernet 10x Fibre Channel0°C to 70°C110GBase-T (passive)DAPSSMxx1000SFP+ to SFP+10.3 Gb/s n/a n/a n/a 50cm/1/2/3/5/7m 10x Gigabit Ethernet 10x Fibre Channel 0°C to 70°C 110GBase-T (active)DAASSxxx1000SFP+ to SFP+10.3 Gb/sn/an/an/a1/2/3/5/7/10m10x Gigabit Ethernet 10x Fibre Channel0°C to 70°C11 M x x & x x x I N P A R T N U M B E R I N D I C A T E S C A B L E L E N G T H.2 B R E A K O U T C A B L E.Coding BoxThe SkyBox is a solution, provided and managed by Skylane Optics , enabling our customer to program Skylane Optics transceivers by themselves.Customers can now easily make SFP/ SFP+/ SFP28 / CSFP , XFP , QSFP+/ QSFP28 and XFP transceivers compatible with equipment from a large number of vendors (Cisco, Juniper, HP , …).The wavelength of Skylane tunable transceivers can also be set to the desired value using SkyBox . To allow use of SkyBox in any situation, the box comes with a battery.By the way, you never know where you must reprogram and install your transceivers!As the world is getting more and more connected the SkyBox comes with a mobile and desktop applica -tion compatible with android ® and Mac OS ®.With this toolbox, you are able to code your transceivers but also to see the history of all your previous coding activities.Furthermore, other options can be added such as OTDR, Power Meter, VOA, Wavelength meter.There is no other brand offering a battery-powered coding box.The SkyBox is a real partner for you engineers on the field. With SkyBox, you do not need to code your transceiver before leaving the office. You can do everything on the field.M ain benefitsUser Friendly The SkyBox is provided with a mobile and desktop application.Cost-effective Solution Less part numbers needed and stock management/logistics will be simplified.H ighly CompatibleMake your transceiver compatible for all major platform.ContactP20PRODUCT GUIDE B E L G I U MR u e d u M o u l i n , 18B -5650 F r a i r e B e l g i u mT. +32 71 610 640F. +32 71 610 649E. i n f o @s k y l a n e o p t i c s.c o m R u a U m b u 286 - 1º p a v i m e n t o A l p h a v i l l e C a m p i n a s E m p r e s a r i a l C E P 13.098-325 C a m p i n a s S ão P a u l o - B r a s i l T.+55 (19) 3514-6000E. i n f o @s k y l a n e o p t i c s.c o m V i k d a l s g r än d , 10A 13140 N a c k a S w e d e n E. i n f o @s k y l a n e o p t i c s.c o m B R A Z I L S W E D E N U S A (C O M I N G S O O N )F O L L O W U S O N :Tw i t t e r | L i n k e d I nO U R O F F I C E S A R O U N D T H E W O R L D。

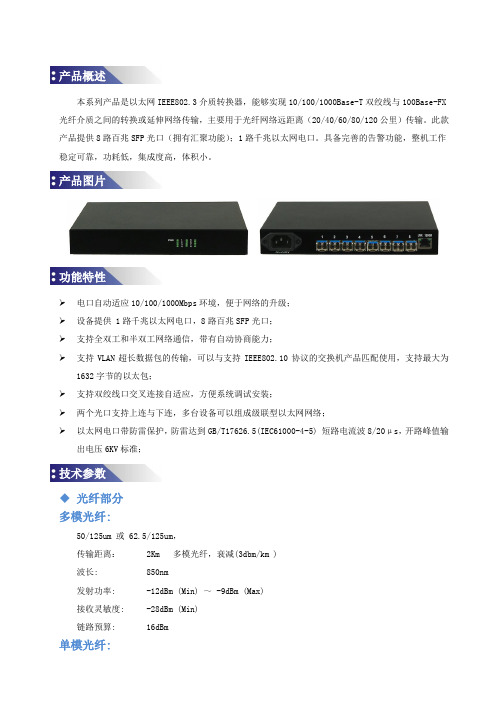

本系列产品是以太网IEEE802.3介质转换器，能够实现10/100/1000Base-T双绞线与100Base-FX 光纤介质之间的转换或延伸网络传输，主要用于光纤网络远距离（20/40/60/80/120公里）传输。

此款产品提供8路百兆SFP光口（拥有汇聚功能）；1路千兆以太网电口。

具备完善的告警功能，整机工作稳定可靠，功耗低，集成度高，体积小。

➢电口自动适应10/100/1000Mbps环境，便于网络的升级；➢设备提供 1路千兆以太网电口，8路百兆SFP光口；➢支持全双工和半双工网络通信，带有自动协商能力；➢支持VLAN超长数据包的传输，可以与支持IEEE802.10协议的交换机产品匹配使用，支持最大为1632字节的以太包；➢支持双绞线口交叉连接自适应，方便系统调试安装；➢两个光口支持上连与下连，多台设备可以组成级联型以太网网络；➢以太网电口带防雷保护，防雷达到GB/T17626.5(IEC61000-4-5) 短路电流波8/20μs，开路峰值输出电压6KV标准；◆光纤部分多模光纤:50/125um 或 62.5/125um，传输距离： 2Km 多模光纤，衰减(3dbm/km )波长: 850nm发射功率: -12dBm (Min) ～ -9dBm (Max)接收灵敏度: -28dBm (Min)链路预算: 16dBm单模光纤:8/125um 或 9/125um,传输距离： 20Km 单模光纤，衰减(0.35dbm/km ) (实际如需更大距离需定制)波长: 1310nm（超长距离传输时选用1550nm波长）发射功率: -9dBm (Min) ～-5dBm (Max)接收灵敏度: -27dBm (Min)链路预算: 18dBm◆以太网接口协议：符合IEEE 802.3，IEEE 802.1Q(VLAN)速率：10/100/1000M自适应，全/半双工完全自适应MAC地址表：可以学习4096个MAC地址物理接口：RJ45座, 支持Auto-MDIX（交叉/直通线自适应）◆电气和机械特性系统电源： AC180V ～260V功耗：≤5W外观结构: (长×宽×高) 216*138*31mm 桌面式◆环境指标工作温度：-10℃—+70℃或-40℃—+85℃（工业级）储存温度：-40℃—+85℃工作湿度：0%—95%（无凝结）MTBF：＞100,000小时产品型号FC8M-G1（汇聚型）产品功能描述8路百兆SFP光口转1*10/100/1000M以太网电口，可与单口收发器连接，拥用汇聚功能，8个光方向，中继链路组网，应用灵活，桌面式，内置电源业务端口描述8个百兆SFP光口，1个千兆以太网电口电源AC220V或DC-48V（电源可选）产品尺寸(长×宽×高) 216*138*31mm 桌面式重量 1.1Kg/台飞畅科技专注光纤通信研发、生产、销售20年，为客户提供个性化技术服务与定制解决方案。

产品名称: N-net 10/100M自适应以太网光纤收发器N-net 10/100M自适应以太网光纤收发器产品说明:N-net 10/100M自适应以太网光纤收发器概述NT-1100/NT-1100S 10/100M自适应以太网光纤收发器，可以将10/100Base-TX的双绞线电信号和100Base-FX的光信号进行相互转换。

它将网络的传输距离极限从铜线的100米扩展到100公里（单模光纤）。

典型应用是以太网距离互连，例如小区机房与城域网的连接。

由于具有自适应的功能，在与交换机连接时，交换机不需要任何设置。

新增防雷功能，保证了设备的安全性。

外置电源、内置电源可选交流220V、直流-48V 可选N-net 10/100M自适应以太网光纤收发器产品特性：自适应NT-1100/NT-1100S具有10/100M速率自适应，全/半双工自适应功能。

在网络升级时极大保护了原有的网络投资。

大容量缓存独有的缓存技术可以保证您的网络在数据传输及多媒体应用时表现得更为出色，缓存为2M。

N-net 10/100M自适应以太网光纤收发器性能：N-net 10/100M自适应以太网光纤收发器骨干特性符合：IEEE802.3 10Base-T标准符合：IEEE802.3U 100Base-TX/FX标准符合：IEEE802.3X 标准N-net 10/100M自适应以太网光纤收发器端口传输速率光口:100Mbps电口:10/100Mbps交叉线与直通线自动识别NT-1100/NT-1100S与交换机或服务器等设备相连时，既可以使用交叉线也可以用直通线。

TX LINK/ACT灯亮，表示链路连通正确。

N-net 10/100M自适应以太网光纤收发器双工支持NT-1100/NT-1100S支持全/半双工自适应，10/100M自适应。

N-net 10/100M自适应以太网光纤收发器网络线缆10/100Base-TX UTP 5类线100Base-FX：多模光纤50/125，62.5/125或100/140μm单模光纤8.3/125，8.7/125，9/125或10/125μmN-net 10/100M自适应以太网光纤收发器传输距离10/100Base-TX：100米100Base-FX：2公里（多模），25/40/60/100公里（单模）N-net 10/100M自适应以太网光纤收发器光接口特性：波长：1310nm（25公里、40公里、2公里）1550nm（100公里）1310nm（多模2公里）N-net 10/100M自适应以太网光纤收发器LED显示：PWR：电源指示灯FX LINK/ACT：光链路连接/活动状态指示灯TX LINK/ACT：电链路连接/活动状态指示灯FX100：光口速率指示灯TX100：电口速度指示灯FDX：全、半双工指示灯N-net 10/100M自适应以太网光纤收发器端口配置：1个RJ45 10/100Base-TX端口1个SC/ST 多模/单模双工连接头N-net 10/100M自适应以太网光纤收发器电源要求：外置电源：5VDC 1A功耗：＜5W内置电源：220VAC、-48VDC功耗：＜5WN-net 10/100M自适应以太网光纤收发器环境要求：工作温度范围：0℃～60℃储存温度范围：-40℃～85℃相对湿度：5%～90%尺寸：电源外置式：26mm×71mm×94mm电源内置式：40mm×110mm×140mm以太网光纤收发器以太网光纤收发器机架说明书(使用前先阅本说明书)目录第一章10/100M光纤收发器说明书 (8)简介 (8)包装清单 (10)安装 (10)指示灯的说明: (11)光传输特性: (12)单纤双向光传输特性: (12)主要特性 (12)技术参数 (12)外型尺寸 (13)DIP开关说明 (13)使用注意事项 (13)常见故障排除 (14)第二章网管式光纤收发器用户使用指导 (14)第一章产品简介 (14)1.1产品描述 (14)1.2产品特点 (14)1.3技术参数 (14)第二章操作手册 (16)2.1前面板 (16)2.1.1指示灯 (16)2.1.2光接口 (17)2.1.3以太网接口（NODE/HUB） (17)2.2SW1设置 (17)第三章安装 (19)3.1安装及调试 (19)3.2简易故障分析及处理 (19)第三章1000M光纤收发器说明书 (19)简介: (19)包装清单 (20)安装 (20)指示灯的说明: (22)光纤参数 (22)技术参数 (22)使用注意事项 (23)第四章10/100/1000M光纤收发器说明书 (23)概述 (23)型号描述 (23)包装清单 (23)LED描述: (24)安装转换器的步骤： (24)链接到吉比特装置： (25)电缆连接参数： (25)TP-光纤技术规格： (25)第五章NT-R14/R16/R16M光纤收发器机架 (25)简介： (25)清单： (26)系统概述： (26)安装方法 (26)技术规格： (26)第六章MODEL277RS-232/RS-485/RS-422接口光纤MODEM (27)一、技术参数 (27)二、产品简介 (27)三、面板丝印图如图1 (28)四、接口说明 (28)五、指示灯说明 (28)M ODEL277RACK A型 (29)指示灯说明 (29)接口说明 (29)M ODEL277RACK B型 (30)指示灯说明 (30)接口说明 (30)第七章多电口交换型收发器 (30)简介 (30)包装清单 (32)安装 (32)指示灯的说明 (34)主要特性： (35)技术参数： (35)使用注意事项： (36)第八章光纤模式转换器 (36)G IGABIT 1000SX-1000LX多模到单模光纤介质转换器 (37)型号说明 (37)装箱单 (37)安装转换器 (37)光缆连接参数 (38)LED说明 (38)直流插孔和AC-DC适配器 (38)技术规格 (39)100SX-100LX快速以太网多模到单模光纤介质转换器 (39)概述 (39)型号说明 (40)装箱单. (40)安装转换器 (40)光缆连接参数 (40)LED说明 (41)直流插孔和AC-DC适配器 (41)技术规格 (41)第一章10/100M光纤收发器说明书简介感谢您购买N-net快速以太网光纤收发器！该收发器支持IEEE802.3U100Base-TX/FX,支持全双工或半双要参照以下订购指南选购。

以太网光纤收发器 以太网光纤收发器机架 说明书(使用前先阅本说明书) 简介:感谢您购买千兆光纤收发器！该千兆光纤收发器支持IEEE802.3Z/AB 1000Base-SX/LX协议，支持全双工或半双工工作模式,自适应直通线与交叉线功能。

本手册适用于1000 Base-T 自适应各型号的光纤收发器，请用户购买时按需要参照以下订购指南选购。

光纤收发器订购指南:型号 规格说明NT-2100 1000M，多模500米NT-2100S-10 1000M，单模0-10公里NT-2100S-20 1000M，单模0-20公里NT-2100S-50 1000M，单模0-50公里NT-2100S-80 1000M，单模0-80公里NT-2100F 卡式铝合金外壳1000M,多模500米NT-2100F-10 卡式铝合金外壳1000M,单模0-10公里NT-2100F-20 卡式铝合金外壳1000M，单模0-20公里NT-2100F-50 卡式铝合金外壳1000M，单模0-50公里NT-2100F-80 卡式铝合金外壳1000M，单模0-80公里NT-2100P 卡式1000M，多模500米NT-2100P-10 卡式1000M,单模0-10公里NT-2100P-20 卡式1000M,单模0-20公里NT-2100P-50 卡式1000M,单模0-50公里NT-2100P-80 卡式1000M,单模0-80公里NT-S2100-10 单纤双向1000M，单模0-10公里NT-S2100-20 单纤双向1000M，单模0-20公里NT-S2100-40 单纤双向1000M，单模0-40公里NT-S2100P10 卡式单纤双向1000M,单模0-10公里NT-S2100P20 卡式单纤双向1000M,单模0-20公里NT-S2100P50 卡式单纤双向1000M,单模0-50公里包装清单在安装收发器前，请确认包装内是否有以下物品。
