N9340B手持式频谱分析仪技术资料

目录目录 (1)1、N9340B简介 (2)1.1前端面板概述 (2)1.2顶部面板介绍 (3)1.3显示屏幕简介 (4)1.4设置N9340B (5)1.5进行基本测量 (5)1.6文件保存及查看 (6)1.7按键结构及功能 (7)2、南京现场扫描结果及分析 (13)2.1 初步分析： (13)2.2 GSM信号： (14)2.3 PHS信号： (16)2.4 TDL信号： (18)3、南京干扰情况定位结果 (20)3.1干扰定位结论 (20)3.2存在的问题 (24)1、N9340B简介1.1前端面板概述1.2顶部面板介绍1.3显示屏幕简介1.4设置N9340B(1)按[SYS] > {设置} > {通用} 来设置时间和电源节能模式。

按{时间/日期} 来设置频谱仪的时间和日期。

按{电源管理} 来选择节能模式：关闭背景灯或显示屏，以及同时关闭背景灯和显示屏。

(2)按[SYS] > {设置} > {语言} 来选择屏幕显示语言。

共有11种语言供您选择。

(3)按[SYS] > {亮度} 手动调节N9340B频谱仪的显示亮度(4)按[SYS] > {按键音} 来开关按键音。

1.5进行基本测量(1)用信号源产生一个连续波信号(1 GHz, 0 dBm)。

(2)按[SYS] > {设置} > {开机/复位} ，选择默认定为出厂设置。

(3)选择面板上绿色的[PRESET] 键可将仪器恢复至出厂设置。

(4) 将频谱仪顶部的RF IN与信号源的RF OUT连接上。

(5)按[FREQ] > {中心频率} > 1> {GHz}将中心频率设置为1 GHz。

(6)按[SPAN] > 5 > {kHz} 将扫宽设置为5KHz。

(7)按[MARKER] > {搜索峰值} > {峰值}为显示的最高峰值（1 GHz处）作标记（标记为1）。

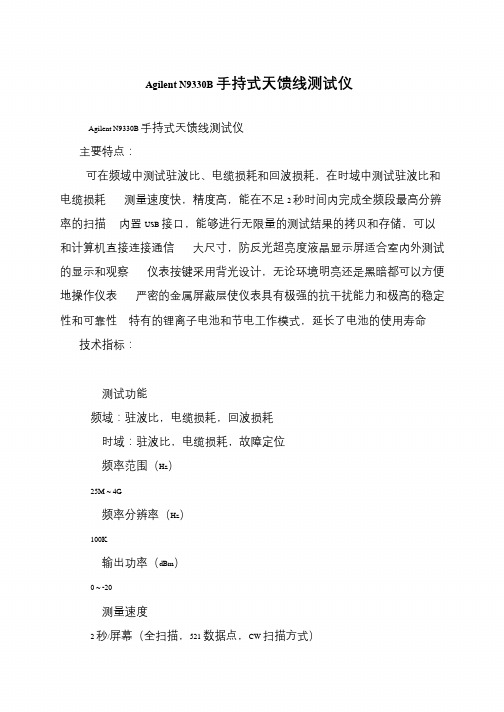

Agilent N9330B 手持式天馈线测试仪
Agilent N9330B 手持式天馈线测试仪
主要特点：
可在频域中测试驻波比、电缆损耗和回波损耗，在时域中测试驻波比和电缆损耗测量速度快，精度高，能在不足2 秒时间内完成全频段最高分辨率的扫描内置USB 接口，能够进行无限量的测试结果的拷贝和存储，可以和计算机直接连接通信大尺寸，防反光超亮度液晶显示屏适合室内外测试的显示和观察仪表按键采用背光设计，无论环境明亮还是黑暗都可以方便地操作仪表严密的金属屏蔽层使仪表具有极强的抗干扰能力和极高的稳定性和可靠性特有的锂离子电池和节电工作模式，延长了电池的使用寿命技术指标：
测试功能
频域：驻波比，电缆损耗，回波损耗
时域：驻波比，电缆损耗，故障定位
频率范围（Hz）
25M ~ 4G
频率分辨率（Hz）
100K
输出功率（dBm）
0 ~ -20
测量速度
2 秒/屏幕（全扫描，521 数据点，CW 扫描方式）。

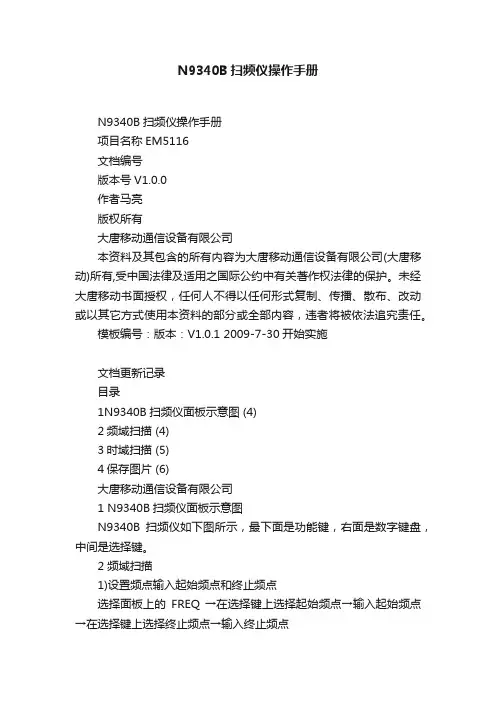

N9340B扫频仪操作手册N9340B扫频仪操作手册项目名称EM5116文档编号版本号V1.0.0作者马亮版权所有大唐移动通信设备有限公司本资料及其包含的所有内容为大唐移动通信设备有限公司(大唐移动)所有,受中国法律及适用之国际公约中有关著作权法律的保护。

未经大唐移动书面授权，任何人不得以任何形式复制、传播、散布、改动或以其它方式使用本资料的部分或全部内容，违者将被依法追究责任。

模板编号：版本：V1.0.1 2009-7-30开始实施文档更新记录目录1N9340B扫频仪面板示意图 (4)2频域扫描 (4)3时域扫描 (5)4保存图片 (6)大唐移动通信设备有限公司1 N9340B扫频仪面板示意图N9340B扫频仪如下图所示，最下面是功能键，右面是数字键盘，中间是选择键。

2 频域扫描1)设置频点输入起始频点和终止频点选择面板上的FREQ →在选择键上选择起始频点→输入起始频点→在选择键上选择终止频点→输入终止频点2)设置幅度开启高灵敏度选择面板上的AMPTD →在选择键上选择开启高灵敏度3)设置TRACE为最大值保持选择面板上的TRACE →在选择键上选择最大值保持4)等待一段时间后选择Maker到要观察的点选择面板上的MARKER →在选择键上选择搜索峰值，此时marker会自动找到最大值，如果需要观察其他点，可以通过旋钮调整，也可以继续打开其他marker5)抓图（方法见第4章）3 时域扫描1)设置频点输入中心频点选择面板上的FREQ →在选择键上选择中心频点→输入中心频点2)设置幅度开启高灵敏度选择面板上的AMPTD →在选择键上选择开启高灵敏度3)设置SPAN为零扫宽选择面板上的SPAN →在选择键上选择零扫宽4)设置扫描时间选择面板上的BW/SWP →在选择键上选择扫描时间→设置扫描时间为5ms（或者10ms）5)选择单次扫描选择面板上的BW/SWP →在选择键上选择单次扫描多按几次，观察抓到得图是否有规律6)设置marker选择面板上的MARKER →然后滚动旋钮找到需要观察的点7)抓图（方法见第4章）4 保存图片选择面板上的SYS →保存屏幕→输入文件名→ENTER。

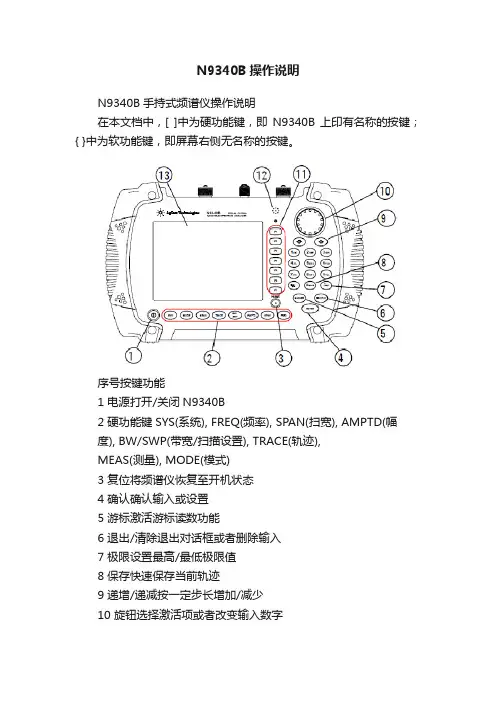

N9340B操作说明N9340B手持式频谱仪操作说明在本文档中，[ ]中为硬功能键，即N9340B上印有名称的按键；{ }中为软功能键，即屏幕右侧无名称的按键。

序号按键功能1 电源打开/关闭N9340B2 硬功能键SYS(系统), FREQ(频率), SPAN(扫宽), AMPTD(幅度), BW/SWP(带宽/扫描设置), TRACE(轨迹),MEAS(测量), MODE(模式)3 复位将频谱仪恢复至开机状态4 确认确认输入或设置5 游标激活游标读数功能6 退出/清除退出对话框或者删除输入7 极限设置最高/最低极限值8 保存快速保存当前轨迹9 递增/递减按一定步长增加/减少10 旋钮选择激活项或者改变输入数字11 软功能键对应屏幕右侧功能12 扬声器在解调模式下激活扬声器13 显示屏显示测量结果以1.0GHz, 0dBm正弦波信号为例，N9340B测量步骤如下：1，仪表复位：按[SYS] > {Setting/设置} > {PwrOn/Preset开机/预设} > {Preset Type/预设类型} 并选择Default默认，将仪表恢复到出厂状态2，设置中心频率：按[FREQ] > 1 > {GHz}3，设置扫宽：按[SPAN] > 5 > {MHz}4，激活游标：按[MARKER] > {Peak Search/峰值搜索}，此时在屏幕上将出现被测信号的频率和功率读数，如下图。

5，设置衰减值：按[AMPTD/幅度] > {Attenuation/衰减}，可以设置频谱仪的衰减值，如20dB。

6，设置分辨率带宽值：按[BW/SWP带宽/扫描]>{RBW/分辨率带宽}，选择{Man/手动}，可以设置频谱仪的分辨率带宽值，如1kHz。

7，保存文件：按[SYS] > {File/文件} > {File Setup/文件设置} > {File type/文件类型}，可以选择以下文件类型：Trace/轨迹(*.DAT)，存储测量结果Screen/屏幕(*.JPG)，存储当前显示屏幕State/状态(*.STA)，存储当前的设置状态，如频率范围、带宽等，供将来调用Pattern/极限值(*.PTN)，存储极限线设置Spectrum Mask/频谱模板(*.MSK)，存储频谱模板CSV/数据(*.CSV)，存储测量结果，可用计算机打开Setup/设置(*.SET)，存储系统设置，如时间、语言等8，调用文件：按[SYS] > {File/文件} > {View/查看}，可以选择文件目录，按{Load Now}可以调用文件。

频谱分析仪N9340B频谱分析仪N9340B是一款便携式频谱分析仪，由Keysight Technologies推出。

它是在现有技术基础上的一项巨大突破，具有高灵敏度、高分辨率和高动态范围等特点，适用于无线通信和电子设备等领域的频率分析和测量。

首先，N9340B频谱分析仪具有高灵敏度。

它能够捕捉到非常微弱的信号，使用户能够分析并监测到低信噪比的信号。

其灵敏度达到了-148dBm。

这种高灵敏度对于无线通信和射频设备的调试和故障排查非常重要。

其次，N9340B频谱分析仪还拥有高分辨率。

它能够提供高精度的频率分析结果，帮助用户获取更准确的频谱特性。

分辨率带宽范围从10Hz到3MHz，分辨率带宽和测量时间可以根据需求进行灵活设置。

此外，N9340B频谱分析仪还具有高动态范围。

它能够处理动态范围较大的信号，同时保持准确性和稳定性。

它的动态范围为100dB，可以满足各种应用的需求。

除了上述的关键功能外，N9340B频谱分析仪还具有其他一些重要的特点。

它拥有7英寸TFT彩色显示屏，用户可以清晰地查看信号频谱图和测量结果。

它还支持无线局域网连接，并配备了标准的USB接口，方便用户进行数据传输和存储。

作为一款便携式频谱分析仪，N9340B具有小巧轻便的外观设计。

它重量只有 4.3 kg，便于用户在实地操作时携带。

另外，它的电池寿命长，可支持长时间的工作。

总结起来，N9340B频谱分析仪在高灵敏度、高分辨率和高动态范围等方面具有突出的优势。

它不仅非常适用于无线通信和电子设备的频率分析和测量，而且便携轻便的特点使得它非常适合实地操作。

无论是在实验室环境中还是在现场应用中，N9340B都能提供精准、稳定和可靠的测量结果，为用户提供了一个非常强大的工具。

安捷伦N9340B®索外部干扰源使用说明1、首先用安捷伦仪器专用连接线连接定向天线〔天线建议最好使用八木天线〕和安捷伦测试仪的INPUT接口。

2、按安捷伦测试仪的电源开关，开机后按仪表右边面板上的“F2 〔起始频率〕〞按钮，右侧数字面板输入850MHZ在按“ F3 〔终止频率〕〞按钮，右侧数字面板按数字输入970MHZ.3、按显示屏幕下面的“ AMPTD按钮，按F3按钮〔把“预放〞设置成“开〞状态〕，再按F6按钮〔把“高灵敏度〞设置成“开〞状态〕同时还要设置参考电平，建议设置为-40db。

形成图像如下所示：图像中有两个显著波峰的是电信C网使用的下行频点，图像右侧是移动的频点。

我们测是否对我们的频点产生干扰主要是看对图像右侧的波形的幅度变化时否很大，看右侧的图像的电平值是否整体都有提升，如下列图：如果出现如红色线所示的整体抬升的如果出现如上图所示的红色波形，就是外部干扰源。

找到了外部干扰源后，可以拿起手中的八木天线，有指向性的来找干扰源，当你指向的某个方向出现的波形抬升最明显时，就是干扰源的方向。

PS: C网的下行频段和移动G网上行频段有重叠局部，因此G网的上行容易受到C网的下行影响。

但是这种干扰不是外部干扰源，不会引起整个波形的整体抬升。

附件：〈〈频率小常识?：濒率小常"t1.1.1.测试根本工具1.安捷伦手持式频谱仪N9340B最根本的测试频率范围为100KH A 3000MHz,适用丁CDMA应用的主要频段：450M、800M及1900MHz,其应用丁EVDO频段扫描和邻频干扰测试分析时的根本配置活单如下:序号测试工具活单[数量备注1N9340B主机12测试天线13数据电缆14笔记本电脑或其他PC12.N9340B频谱仪外观如下列图示:3.N9340B前面板的按键分布如下列图所示:1.1.2.测试与分析软件手持频谱仪N9340B主机软件，最新的版本为N9340B Firmware Upgrade Version A.01.021.1.3.现场测试操作以测量CDMA上行频段为例，步骤说明：1.设置频率扫描宽度1〕点击N9340B前面板功能键②中的［FREQ犍；2〕点击N9340B前面板软按键键③中的｛起始频率｝，然后输入825MHz;3〕点击N9340B前面板软按键键③中的｛终止频率｝，然后输入835MHz;2.设置衰减为0dB及翻开预防1〕点击N9340B前面板功能键②中的［AMPTD谜；2〕点击N9340B前面板软按键键③中的｛衰减｝，然后输入0dB;3〕点击N9340B前面板软按键键③中的｛预防｝，然后设置为“ ON〞；3.设置RBW1〕点击N9340B前面板功能键②中的［BW/SW巳键；2〕点击N9340B前面板软按键键③中的｛分辨率带宽｝,设置为｛手动｝;然后输入1KHz4.设置检波方式1〕点击N9340B前面板功能键②中的［TRACE］键；2〕点击N9340B前面板软按键键③中的｛检波｝,检波设置为平均方式5.设Marker测量信号的大小1〕点击N9340B前面板功能键⑤［Marker］键；2〕可用峰值搜索找到最大的信号；6.测试结果保存1〕点击N9340B前面板功能键②中的［SYSSg,在｛文件｝菜单下，将文件类型选为“保存屏幕〞〔大.jpg〕，文件路径选择“本地〞，2〕按SAVES，循环按数字键盘输入需要的字符命名结果文件，ENTER呆存结果，以便在PC上进行后处理分析1.1.4.后台软件操作将U盘插到N 340B频谱仪上，点击N9340B前面板功能键②中的［SYSfl, 在｛文件｝菜单下选择“拷贝文件〞，文件会自动保存到U盘。
