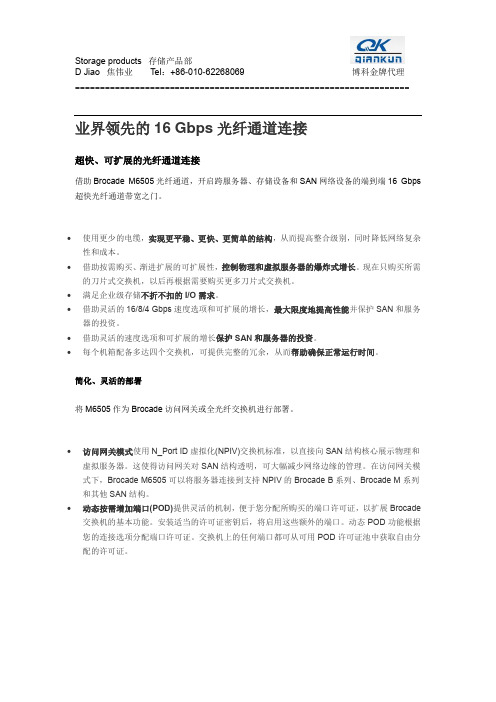

------------------------------------------------------------------- 业界领先的16 Gbps光纤通道连接超快、可扩展的光纤通道连接借助Brocade M6505光纤通道，开启跨服务器、存储设备和SAN网络设备的端到端16 Gbps 超快光纤通道带宽之门。
•使用更少的电缆，实现更平稳、更快、更简单的结构，从而提高整合级别，同时降低网络复杂性和成本。
•借助按需购买、渐进扩展的可扩展性，控制物理和虚拟服务器的爆炸式增长。
现在只购买所需的刀片式交换机，以后再根据需要购买更多刀片式交换机。
•满足企业级存储不折不扣的I/O需求。
•借助灵活的16/8/4 Gbps速度选项和可扩展的增长，最大限度地提高性能并保护SAN和服务器的投资。
•借助灵活的速度选项和可扩展的增长保护SAN和服务器的投资。
•每个机箱配备多达四个交换机，可提供完整的冗余，从而帮助确保正常运行时间。
简化、灵活的部署将M6505作为Brocade访问网关或全光纤交换机进行部署。
•访问网关模式使用N_Port ID虚拟化(NPIV)交换机标准，以直接向SAN结构核心展示物理和虚拟服务器。
这使得访问网关对SAN结构透明，可大幅减少网络边缘的管理。
在访问网关模式下，Brocade M6505可以将服务器连接到支持NPIV的Brocade B系列、Brocade M系列和其他SAN结构。
•动态按需增加端口(POD)提供灵活的机制，便于您分配所购买的端口许可证，以扩展Brocade 交换机的基本功能。
安装适当的许可证密钥后，将启用这些额外的端口。
动态POD功能根据您的连接选项分配端口许可证。
交换机上的任何端口都可从可用POD许可证池中获取自由分配的许可证。
-------------------------------------------------------------------•光纤通道端口•交换模式：12端口和24端口配置（通过按需增加端口[PoD]许可证增加12个端口），通用(E、F、M、D)端口可扩展性•全结构体系结构，最多可有239台交换机-------------------------------------------------------------------标准最大支持数•6000个主动节点；Brocade Fabric OS®结构中有56台交换机，19个跃点；Brocade M-EOS 结构中有31台交换机，三个跃点；可根据需要认证更大的结构互操作性•Brocade 3XXX、4XXX、5XXX和6XXX交换机；Brocade DCX®和Brocade DCX 8510 Backbones访问网关模式支持Brocade、McDATA和思科结构性能•自动感应2、4、8和16 Gbps的端口速度ISL中继•每个ISL端口聚合最多八个16 Gbps端口；每个ISL端口聚合最高128 Gbps。
DS_200B:admin> helpaaaconfig Configure RADIUS for AAA servicesad Specifies all administration domain (AD)-leveloperationsag Configure the Access Gateway featureagshow Displays the Access Gateway information registered with the fabricagtcfgdefault Reset SNMP agent to factory defaultaliadd Add a member to a zone aliasalicreate Create a zone aliasalidelete Delete a zone aliasaliremove Remove a member from a zone aliasalishow Print zone alias informationaptpolicy Get and set Advanced Performance Tuning policy auditcfg Modifies and displays audit log filterconfiguration.authutil Get and set authentication configuration backplanetest Backplane connection test for multi-blade systems. backport Test for back-end ASIC pair to ASIC pair links. bannerset Set security bannerbannershow Display security bannerbcastshow Display broadcast routing informationbladebeacon Enables or disables blade beaconing or displays the current mode.bladedisable Disables all user ports on a blade.bladeenable Enables all User Ports on a blade.burninerrclear Clear errors that are stored in the non-volatilestorageburninerrshow Display errors that are stored in the non-volatilestorageburninstatus Display the diagnostics burnin status.camtest Verify QuickLoop's Content Addressable Memory(CAM).SID translationcentralmemorytest Test ASIC central memory operation. cfgactvshow Display Effective zone configuration information cfgadd Add a member to a configurationcfgclear Clear all zone configurationscfgcreate Create a zone configurationcfgdelete Delete a zone configurationcfgdisable Disable a zone configurationcfgenable Enable a zone configurationcfgremove Remove a member from a configurationcfgsave Save zone configurations in flashcfgshow Print zone configuration informationcfgsize Print size details of zone databasecfgtransabort Abort zone configuration transactioncfgtransshow Print zone configurations in transaction buffer chassisconfig Display or set the chassis configuration chassisname Display or set the chassis's Namechassisshow Display all Field Replaceable Units (FRU) chipregshow Displays the port registers for a given chipnumber.cmemretentiontest Data retention test of the central memory SRAMs. cmitest Verify CMI bus between ASICs.configdefault Reset config to factory defaultconfigdownload Load switch config from a serverconfigshow Print switch config parametersconfigupload Save switch config to a serverconfigure Set switch config parametersdatatypeshow Display available diagnostic data types.date Print/set the system date and timedbgshow Display debug levels of various modulesdefzone Activates or deactivates a default zoneconfiguration.diagclearerror Clears diagnostics failure status. diagcommandshow Display diagnostic command descriptions. diagdisablepost Disable diagnostic POST.diagenablepost Enable diagnostic POST.diagenv Diagnostic debug parameters management package. diaghelp Display diagnostic command descriptions. diagloopid Select the diagnostics loop ID.diagmodeshow Displays diagnostic mode configuration. diagpost Displays the contents of port registers andmemories.diagretry Sets diagnostic retry modediagsetburnin Initializes the blade for a burnin run.diagsetcycle Set diagnostic script parameters.diagsetesdmode Set or display ESD mode.diagsetshowtime Set or display diagnostic show-time mode. diagshow Display diagnostic status.diagshowtime Set or display diagnostic show-time mode. diagstatus Display currently running diagnostic tests. diagstopburnin Terminate burnin run on a blade.distribute Distributes data to switches in a fabric.dlsreset Turn off the dynamic load sharing (DLS) optiondlsset Turn on the dynamic load sharing (DLS) option dlsshow Display the state of the dynamic load sharingoptiondnsconfig Configure DNS serviceenclosureshow Display the switch enclosure attributes errclear Clear error logerrdelimiterset Sets the error log start and end delimiter formessages sent to the console and syslogerrdump Print error log (no page breaks)errfilterset Sets a filter for an error log destination errmoduleshow Displays all the defined modules in the system errshow Print error logfabportshow Display contents of a particular port's data fabretryshow Display retry count of various fabric commands fabriclog Displays or manipulates the fabric log fabricprincipal Displays/Enables/Disables Principal SwitchSelection modefabricshow Print fabric membership infofabstateclear Clears the fabric state information fabstateresize Changes the number of state entries fabstateshow Displays the fabric state information fabstatsshow Displays the fabric statistics information fabswitchshow Display fabric switch state information fandisable Disables a fan unit.fanenable Enables a fan unit.fanshow Print fan statusfastboot Reboot this switch and bypass POST fastwritecfg Configure FC fastwrite featurefazoneadd Add a member to a fabric assist zone fazonecreate Create a fabric assist zonefazonedelete Delete a fabric assist zonefazoneremove Remove a member from a fabric assist zone fazoneshow Print Fabric Assist Zone information fcipchiptest Functional Test of Components in FCIP Complex. fciphelp Print FCIP help infofcippathtest Data Path Test of the FCIP complex.fcping Sends a FC ELS ECHO request to a port fcplogclear Clear the FCP logfcplogdisable Disable logging of FCP eventsfcplogenable Enable logging of FCP eventsfcplogshow Display FCP probing log information fcpprobeshow Display FCP probing informationfcprlsshow Display FCP RLS (read link state) information fcrchiptest Functional Test of FCR FPGA.fcrconfigure Sets FC Router configuration parameters. fcrfabricshow Displays FC Routers on a backbone fabric. fcrlsancount Display maximum LSAN zone limit.fcrlsanmatrix Manage LSAN fabric matrix configuration.fcrpathtest Data Path Test on Connection between FCR FPGA andCentral ASIC.fcrphydevshow Displays FC Router physical device information. fcrproxyconfig Displays or configures proxy devices presented byan FC Router.fcrproxydevshow Displays FC Router proxy device information. fcrresourceshow Displays FC Router physical resource usage. fcrrouterportcost Displays FC Router route information.fcrrouteshow Displays FC Router route information.fcrxlateconfig Displays or persistently configures a translate(xlate) domain's domain ID for bothEX_Port-attached fabric and backbone fabric.fddcfg fddcfg manages the fabric data distributionconfiguration parameters.fdmicacheshow Display abbreviated remote FDMI device informationaccording to remote domain IDfdmishow Display detailed FDMI device informationficonclear Clears contents of the specified FICON managementdatabaseficoncupset Sets FICON-CUP parameters for a switchficoncupshow Displays FICON-CUP parameters for a switchficonhelp Displays FICON commandsficonshow Displays contents of the specified FICON managementdatabasefiltertest Run frame filter test for bloom ASICs.firmwarecommit Commit firmware to stable storagefirmwaredownload Download firmware into switch firmwaredownloadstatus Display the progress and status of firmwareDownload firmwarerestore Restore the old firmware in the switchfirmwareshow Display firmware versions in the switchfosconfig Enable/disable FabOS servicesfporttest Functional test of F->N N->F point to point path. framerpathtest Tests data path between ASICsfrureplace Replace a Field Replacable Unitfspfshow Print FSPF global informationfwalarmsfilterset Configure alarms filtering for Fabric Watch fwalarmsfiltershow Show alarms filtering for Fabric Watchfwclassinit Initialize all Fabric Watch classesfwconfigreload Reload Fabric Watch configurationfwconfigure Configure Fabric Watchfwfrucfg Configure FRU state and notificationfwhelp Print Fabric Watch help infofwmailcfg Configure Fabric Watch Email Alertfwportdetailshow Create a report with detailed port information fwsamshow Show availability monitor informationfwset Set port persistence timefwsettocustom Set boundary & alarm level to custom fwsettodefault Set boundary & alarm level to defaultfwshow Show thresholds monitored and port persistence time grep Linux grep commandh Print shell historyhadisable Disables the High Availability feature in theswitch.hadump Displays information about the status of the HighAvailability feature in the switch.haenable Enables the High Availability feature in the switch hafailover Forces the failover mechanism so that the Standby Control Processor (CP)becomes the Active CP.hashow Displays control processor (CP) statushasyncstart Enables HA state synchronization.hasyncstop Disables the HA state synchronization.help Print this listhistorylastshow Displays last history recordhistorymode Display or set the mode of the history log historyshow Displays entire history loghttpcfgshow Used to show the version of the Java plug-in used by the Webtoolsi Display process summaryifmodeset Set the link operating mode for a network interface ifmodeshow Display the link operating mode for a networkinterfaceinterfaceshow Display the FSPF (TM) interface information interopmode Displays/enables/disables Brocade switchinteroperability with switches from othermanufacturersiodreset Turn off the in-order delivery (IOD) optioniodset Turn on the in-order delivery (IOD) optioniodshow Display the state of the in-order delivery option ipaddrset Set ethernet and FC IP addressesipaddrshow Print ethernet and FC IP addressesipfilter Manage/display IP filtersiscsihelp Print iSCSI help infoislshow Display the current connections and statuskilltelnet Terminate telnet/serial login sessionsinteractivelylicenseadd Adds license keys to switchlicensehelp Print license help infolicenseidshow Displays the system license IDlicenseport Configure per-port POD license assignments licenseremove Removes a license key from this systemlicenseshow Displays current license keyslinkcost Set or print the FSPF cost of a linklogin Login as a new userlogout Logout from remote sessionloopporttest Functional test of L-port M->M path on a loop.lsdbshow Displays the FSPF link state databasememshow Display memory usage in the system.minicycle Functional test of internal and external transmitand receive paths at full speed.minispropshow Displays ASIC pair properties.more Linux more commandmscapabilityshow Display Management Server Capability.msconfigure Configure Management Servermsplatshow Display the Management Server Platform Database msplatshowdbcb Display the Management Server Database ControlBlockmsplcleardb Clear the Management Server Platform Databasefabric-widemsplmgmtactivate Activate the Management Server Platform Databasefabric-widemsplmgmtdeactivate Deactivate the Management Server Platform Database fabric-widemstddisable Disables the Management Server Topology DiscoveryManagement Servicemstdenable Enables the Management Server Topology DiscoveryManagement Servicemstdreadconfig Display status of Management Server TopologyDiscovery Servicemyid Display the current login session detailsnbrstateshow Display FSPF (TM) neighbors' statesnbrstatsclear Reset the FSPF (TM) interface countersnetstat Display network connections and statisticsnodefind Display all the devices' PID matching the givenworld wide namensaliasshow Display local Name Server information with Aliases nsallshow Print global Name Server informationnscamshow Print local Name Server Cache informationnsshow Print local Name Server information information nszonemember Display the information of all the online deviceswhich are zoned with the given device.opensource Display information on open source softwareutilized in FabOSpasswd Set usernames and passwordspasswdcfg passwdcfg manages the password policies. pathinfo Display routing information between two ports pdshow Show information from Panic Dump file perfaddeemonitor Add end-to-end monitorperfaddipmonitor Add monitor for IP trafic frame count perfaddreadmonitor Add filter-based monitor - SCSI Read perfaddrwmonitor Add monitor - SCSI Read and Write perfaddscsimonitor Add monitor for SCSI frame count perfaddusermonitor Add filter-based monitorperfaddwritemonitor Add filter-based monitor - SCSI Write perfcfgclear Clear Performance settings from FLASH perfcfgrestore Restore Performance configuration from FLASH perfcfgsave Save Performance configuration to FLASH perfclearalpacrc Clears the CRC error count associated with a port and Arbitrated Loop Physical Address (AL_PA). perfcleareemonitor Clears statistics counters of one or moreend-to-end performance monitors. perfclearfiltermonitor Clears counters of one or more filter-basedperformance monitors.perfdeleemonitor Delete end-to-end monitorperfdelfiltermonitor Delete filter-based monitorperfhelp Print Performance Monitoring help info perfmonitorclear Clear end-to-end/filter-based/ISL monitors perfmonitorshow Show end-to-end/filter-based/ISL monitors perfsetporteemask Set overall mask for end-to-end monitors perfshowalpacrc Get ALPA CRC count by port and ALPA perfshoweemonitor Show user-defined end-to-end monitors perfshowfiltermonitor Show filter-based monitors perfshowporteemask Show the current end-to-end maskpkicreate Creates public key infrastructure (PKI) objects pkiremove Removes existing public key infrastructure (PKI)objectspkishow Displays existing public key infrastructure (PKI)objectspolicy Configure IPSec encryption and authenticationalgorithmsportalpashow Show the ALPAs of a portportbuffershow Print the buffer allocations for the ports of aquadportcamshow Display filter utilizationportcfg Create/Delete a new ip interface/route/arp entry onthe GigE portportcfgdefault Restore the port configuration to defaults portcfgeport Enable/Disable a port from becoming E_Port portcfgexport Sets a port to be an EX_Port and sets and displays EX_Port configuration parameters.portcfggport Lock a port as a G_Portportcfgislmode Configure a port to be ISL R_RDY Modeenabled/disabledportcfglongdistance Configure a Long Distance Portportcfglport Lock a port as a L_Portportcfgnpivport Enables and disables NPIV functionality on a port. portcfgnport Enable/disable N_Port capability for a port portcfgpersistentdisable Persistently disable a port portcfgpersistentenable Enable a persistently disabled port portcfgshow Displays port configuration settings.portcfgspeed Configure a port to a particular speed level portcfgtrunkport Configure a port for trunkingportcfgvexport Sets a port to be an VEX_Port connected to FC-IP and sets and displays VEX_Port configurationparameters.portcmd Execute commands (ping etc) on the GigE port portdebug Set debug level and verbosity level of port modules portdisable Disable a specified portportenable Enable a specified portporterrshow Print port error summaryportflagsshow Display the port status bitmaps of all ports in aswitchportledtest Cycle user port LEDs.portlogclear Clear port activity logportlogconfigshow Display portlog configurationportlogdisable Disable portlog facilityportlogdump Print port log (no page breaks)portlogdumpport Print port log (no page breaks)portlogenable Enables port log facilityportlogeventshow Display information about port log events portloginshow Display port login informationportlogpdisc Set or clear the debug_pdisc_flagportlogreset Enable portlog facilityportlogresize Resize the port logportlogshow Print port activity logportlogshowport Print port activity logportlogtypedisable Disable port loggingportlogtypeenable Enable port loggingportloopbacktest Functional test of port N->N path.portmirror Set a port's configuration to be disabled orenabledportname Assign or display the name associated with a port portperfshow Print port throughput numbersportregtest Write/read test of the ASIC SRAMs portregtest. portrouteshow Display various routing tables for a portportshow Show configured ip interfaces/routes/arp entries onthe GigE Portportstats64show Display the 64-bit hardware statistics for a port portstatsclear Clear the status of a specified switch port portstatsshow Print hardware statisticsportswap Swaps area numbersportswapdisable Disable portswap featureportswapenable Enable portswap featureportswapshow Display port and area informationporttest Functional test on a live fabric. Starts porttest. porttestshow Retreive information from porttest.portzoneshow Displays the enforced zone type of the F/FL-portsof a switch.powerofflistset sets slot power off list orderpowerofflistshow Displays slot power-off order.psshow Print power supply statusquietmode Displays/enables/disables quietmode on telnetsessionreboot Reboot this processorroutehelp Print routing help infosaschiptest Functional Test of Components in SAS Complex. saspathtest Data Path Test of the SAS complex.secactivesize Displays size of the active (security) database secauthsecret Creates/Manages DHCHAP secret key details seccertutil Creates/Manages/Displays third party PKIcertificatessecdefinesize Displays size of the defined (security) database secfabricshow Displays security related fabric information secfcsfailover Forces primary role to this FCS switchsecglobalshow Displays current internal security stateinformationsechelp Displays information about security commands secmodedisable Disables secure modesecmodeenable Enables secure modesecmodeshow Displays whether secure mode is enabled or disabled secnonfcspasswd Sets the admin passwd for non-FCS switches secpolicyabort Aborts changes to defined policysecpolicyactivate Activates all policy setssecpolicyadd Adds members to an existing policysecpolicycreate Creates a new policysecpolicydelete Deletes an existing policysecpolicydump Displays all members of existing policies secpolicyfcsmove Moves a member in the FCS policy secpolicyremove Removes members from an existing policy secpolicysave Saves defined policy set and sends to all switches secpolicyshow Shows members of one or more policies secstatsreset Resets security statisticssecstatsshow Displays security statisticssectemppasswdreset Resets temporary password sectemppasswdset Sets temporary passwordsectransabort Aborts current transactionsecversionreset Resets version stampsensorshow Display sensor readingssetdbg Set debug level of the specified modulesetesdmode Set or display ESD mode.setmfgmode Set or display diagnostic MFG mode.setmodem Enables or disables modem login to a controlprocessor (CP)setsplbmode Set or display SPLB mode.setverbose Set verbosity level of the specified modulesfpshow Print Serial ID SFP information shellflowcontroldisable Disable xon-xoff flow control on console serialportshellflowcontrolenable Enable xon-xoff flow control on console serial port slotpoweroff Removes power from a slot.slotpoweron Restores power to a slot.slotshow Displays the status of all slots in the system.sltest Serial link test of port N->N path.snmpconfig Configure SNMPsnmpmibcapset Set options for configuring SNMP Mib/TrapCapabilitysnmpmibcapshow Show SNMP Mib/Trap Configurationspinfab Functional test of switch to switch ISL cabling andtrunk group operation.spinjitter line-speed jitter measurementspinsilk Functional test of internal and external transmitand receive paths at full speedsramretentiontest Data retention test of the miscellaneous SRAMs in ASIC.statsclear Clear port and diagnostic statistics.statstest Statistics counter test for the ASICs.stopporttest Terminate the running porttest.supportffdc Modifies or displays first-failure data capture(FFDC) configuration.supportftp set support Ftp parameterssupportsave retrieve support data from switch to hostsupportshow Prints switch information for debugging purposes. supportshowcfgdisable Disables a group of commands under supportshow command.supportshowcfgenable Enables a group of commands under supportshow command.supportshowcfgshow Displays the groups of commands enabled fordisplay. by the supportshow command.switchbeacon Set switch beacon on or off switchcfgpersistentdisable Persistently disable a switch switchcfgpersistentenable Enable a persistently disabled switch switchcfgspeed Configures all ports of the switch to a particularspeed levelswitchcfgtrunk Configure all ports on the switch for trunking switchdisable Disable this switchswitchenable Enable this switchswitchname Print/set this switch's nameswitchreboot Halts and restarts the operational switch.switchshow Print switch and port statusswitchstatuspolicyset Set policy parameters for overall switch status switchstatuspolicyshow Print policy parameters for overall switch status switchstatusshow Print overall switch statusswitchuptime Display the amount of time for which the switch isupsyslogdfacility Change the syslog facilitysyslogdipadd Add syslog daemon IP addresssyslogdipremove Remove syslog daemon IP addresssyslogdipshow Print the syslog daemon targetssysshutdown Provides a graceful shutdown to protect the switchfile systems.systemverification Run a suit of diagnostic tests on all switches in asystem.tempshow Print temperature readingstimeout Set/show the IDLE timeout value for a login session topologyshow Display the unicast fabric topologytracedump generate/remove trace dump or display trace dumpstatustrackchangeshelp Print Track Changes help infotrackchangesset Configure alert for login/logout/config update trackchangesshow Displays status of track changestrunkdebug Debug a trunk link failuretrunkshow Display trunking informationtsclockserver Displays or sets the NTP server address tstimezone Displays or sets the time zoneturboramtest Turbo SRAM test for bloom ASICs.txdpath Functional test of ASIC pair TXA TXD connections. uptime Print how long switch has been upurouteconfig Configure a static routeurouteremove Remove a static routeurouteshow Display unicast routing informationuserconfig Display or configure user accountsuserrename Rename user login nameversion Print firmware versionwwn Display or set the world wide namezone Copies/Removes/Validates zone objectszoneadd Add a member to a zonezonecreate Create a zonezonedelete Delete a zonezonehelp Print zoning help infozoneobjectcopy Copies a zone objectzoneobjectexpunge Expunges a zone object zoneobjectrename Rename a zoning Objectzoneremove Remove a member from a zonezoneshow Print zone information。
交换机如何搭配光模块使用？在企业网络部署、数据中心建设都离不开光模块与交换机。
光模块主要是用来将电信号与光信号进行转换，而交换机则是对光电信号起到转发作用。
在众多光模块中，SFP+光模块是目前被应用的最多的光模块之一，在与交换机搭配使用时采用不同的连接方式可实现不同的网络需求。
一、SFP+光模块是什么SFP+光模块是属于SFP光模块中的一种10G光纤模块，它独立于通信协议。
一般与交换机、光纤路由器、光纤网卡等相连接，被应用在10G bps 以太网以及8.5G bps光纤通道系统中，能满足数据中心更高的速率需求，实现数据中心的网络扩展与转换。
SFP+光模块线卡密度高、体积小，可与其他类型的10G模块互通，为数据中心提供更高的安装密度，节约成本。
也因此而成为市场上主流的可插拔光模块。
二、SFP+光模块的种类常规情况下，SFP+光模块是按照实际应用来进行分类的，常见的有10G SFP+、BIDI SFP+、CWDM SFP+、DWDM SFP+这几种类型。
10G SFP+光模块该种类型的光模块即为普通SFP+光模块，也可视作10G SFP光模块的升级版，是目前市场上的主流设计。
BIDI SFP+光模块该种类型的光模块采用波分复用技术，速率可达到11.1G bps，功耗低。
拥有两个光纤插孔，一般成对使用，在数据中心进行网络建设时，可减少光纤的使用量，降低建设成本。
CWDM SFP+光模块该种光模块采用粗波分复用技术，常与单模光纤搭配使用，可节省光纤资源，在组网中更加灵活、可靠，且功耗小。
DWDM SFP+光模块该种光模块采用密波分复用技术，多用于长距离的数据传输中，传输距离最大可达80km，具有高速率、大容量、扩展性强等特点。
三、SFP+光模块与交换机如何搭配使用不同类型的光模块与交换机连接，可应用于不同的组网方案中，下面为大家介绍几种SFP+光模块与交换机的实际搭配应用方案。
方案一：10G SFP+万兆光模块与交换机之间的连接依次将4块10G SFP+光模块插入一台交换机的10-Gbps SFP+端口中，再将一块40G QSFP+光模块插入另一台交换机的40-Gbps QSFP+端口中，最后在中间以一根分支光纤跳线进行连接。
与交换机交互，可以使用三种方式：串口以太网口光纤口缺省的串口参数是：9600，N，8，1缺省IP访问方式是：IP地址： 10.77.77.77用户名： admin密码：password时区： Pacific time交换机名称：switch可使用ipAddrSet命令来重新设置交换机的IP地址。
在2000和3000系列交换机之中，只能同时支持一个Telnet进程。
Brocade的交换机可以使用命令行和图形界面方式进行管理。
代表性的CLI方法代表性的如：Telnet,HyperTerm和tip。
对于Fabric OS v4.1，SSH v2可以被使用。
如果Brocade Secure Fabric OS被设置有效，CLI 接口必须是Brocade Secure Telnet.Brocade API v2.1提供给用户扩展访问到交换机的方法；可以轻松的整合Brocade SAN Fabric的智能到已经存在的管理应用中，或者快速的开发用户SAN 的特殊功能。
该工具包可以通过Brocade Connect 站点获得。
Brocade Fabric Manager v4.0 是一个实时管理多台Brocade 光纤交换机的很好的一个工具，它提供了有效的配置、监控、动态资源分配管理。
Brocade Web Tool是一个直观简单的管理小型SAN网络的管理工具。
运行支持JRE的Web Browser上。
Brocade 提供基于SNMP的MIBs用来在交换机上读和配置公共设置。
串口管理:n 一条串口连接电缆DB9 (female-to-female)n 使用超级终端或UNIX终端n Windows: Hyper Terminaln UNIX: tipu Microsoft Windows® 环境之中–传输速率: 9600bit/sec–数据位: 8–校验位: None–停止位: 1–流控制: Noneu UNIX® 环境下, 输入以下命令# tip /dev/ttyb –9600u 安装步骤1. 通过串口线将两者进行连接2. 确保交换机已经加电3. 通过ipAddrSet命令设置IP地址(注意: 命令是大小写敏感，但是全大写或全小写也可。

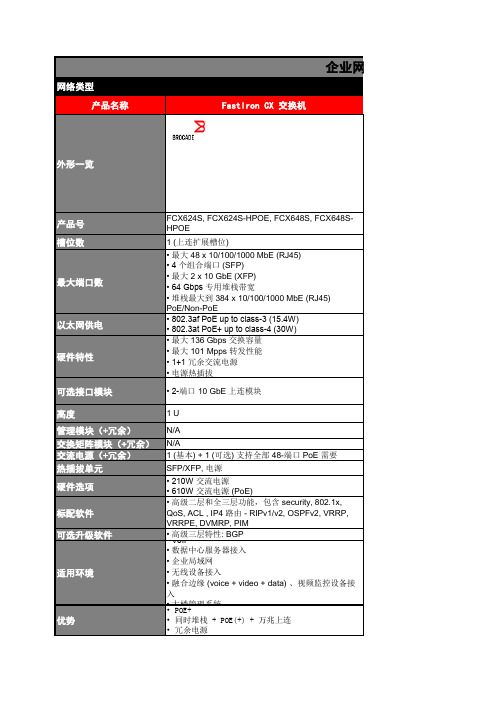

网络类型产品名称FastIron CX 交换机外形一览产品号FCX624S, FCX624S-HPOE, FCX648S, FCX648S-HPOE槽位数 1 (上连扩展槽位)最大端口数• 最大 48 x 10/100/1000 MbE (RJ45)• 4 个组合端口 (SFP)• 最大 2 x 10 GbE (XFP)• 64 Gbps 专用堆栈带宽• 堆栈最大到 384 x 10/100/1000 MbE (RJ45) PoE/Non-PoE以太网供电• 802.3af PoE up to class-3 (15.4W)• 802.3at PoE+ up to class-4 (30W)硬件特性• 最大 136 Gbps 交换容量• 最大 101 Mpps 转发性能• 1+1 冗余交流电源• 电源热插拔可选接口模块• 2-端口 10 GbE 上连模块高度 1 U管理模块（+冗余）N/A交换矩阵模块（+冗余）N/A交流电源（+冗余） 1 (基本) + 1 (可选) 支持全部 48-端口 PoE 需要热插拔单元SFP/XFP, 电源硬件选项• 210W 交流电源• 610W 交流电源 (PoE)标配软件• 高级二层和全三层功能，包含 security, 802.1x, QoS, ACL , IP4 路由 - RIPv1/v2, OSPFv2, VRRP, VRRPE, DVMRP, PIM可选升级软件• 高级三层特性: BGP适用环境• VoIP• 数据中心服务器接入• 企业局域网• 无线设备接入• 融合边缘 (voice + video + data) 、视频监控设备接入优势• POE+• 同时堆栈 + POE(+) + 万兆上连• 冗余电源企业网路Catalyst 3750EH3C S56003750E-24TD, 3750E-48TD, 3750E-24PD,3750E-48PD, 3750E-48PD-F S5600-26C, S5600-26C-PWR, H3C S5600-50C/S5600-50C-PWR 1 (上连扩展槽位)1 (上连扩展槽位)• 最大 48 x 10/100/1000 MbE (RJ45)• 4 个千兆光纤 (SFP) - 不可同时有万兆上连• 最大 2 x 10 GbE (XFP)• 64 Gbps 专用堆栈带宽• 堆栈最大到 468 x 10/100/1000 MbE (RJ45)Non-PoE 或者 432 POE 端口• 最大 48 x 10/100/1000 MbE (RJ45)• 8 个千兆光纤 (SFP) - 不可同时有万兆上连• 最大 2 x 10 GbE (XFP)• 96 Gbps 专用堆栈带宽• 堆栈最大到 416 x 10/100/1000 MbE (RJ45)• 802.3af PoE up to class-3 (15.4W)• 802.3af PoE up to class-3 (15.4W)• 最大 136 Gbps 交换容量• 最大 101 Mpps 转发性能• 单个交流电源 、无内置冗余电源• 最大 240 Gbps 交换容量• 最大 102 Mpps 转发性能• 1+1 冗余交流/直流电源• 1/2-端口 10 GbE 上连模块或者2/4端口千兆SFP 上连• 1/2-端口 10 GbE 上连模块或者8端口SFP 模块1 U1 U N/AN/A N/AN/A 多种类型单电源交流、直流冗余（1+1）SFP/XFPSFP/XFP, 电源多种类型单电源多种类型交流和直流电源-S: 基本三层，仅本地路由和RIP全三层，包含 BGP -E: 全三层无N/A N/A 整体解决方案、一个堆栈支持最大9个交换机整体解决方案、指标最强、陷阱多多业网路由/交换机接入层设备。
博科Brocade 交换机配置与交换机交互，可以使用三种方式：串口以太网口光纤口缺省的串口参数是：9600，N，8，1缺省IP访问方式是：IP地址：10.77.77.77用户名：admin密码：password时区：Pacific time交换机名称：switch可使用ipAddrSet命令来重新设置交换机的IP地址。
在2000和3000系列交换机之中，只能同时支持一个Telnet进程。
Brocade的交换机可以使用命令行和图形界面方式进行管理。
代表性的CLI方法代表性的如：Telnet,HyperTerm 和tip。
对于Fabric OS v4.1，SSH v2可以被使用。
如果Brocade Secure Fabric OS被设置有效，CLI 接口必须是Brocade Secure Telnet.Brocade API v2.1提供给用户扩展访问到交换机的方法；可以轻松的整合Brocade SAN Fabric的智能到已经存在的管理应用中，或者快速的开发用户SAN的特殊功能。
该工具包可以通过Brocade Connect 站点获得。
Brocade Fabric Manager v4.0 是一个实时管理多台Brocade 光纤交换机的很好的一个工具，它提供了有效的配置、监控、动态资源分配管理。
Brocade Web Tool是一个直观简单的管理小型SAN网络的管理工具。
运行支持JRE的Web Browser上。
Brocade 提供基于SNMP的MIBs用来在交换机上读和配置公共设置。
串口管理:⏹一条串口连接电缆DB9 (female-to-female)⏹使用超级终端或UNIX终端⏹Windows: Hyper Terminal⏹UNIX: tip◆Microsoft Windows® 环境之中–传输速率: 9600bit/sec–数据位: 8–校验位: None–停止位: 1–流控制: None◆UNIX® 环境下, 输入以下命令# tip /dev/ttyb –9600◆安装步骤1. 通过串口线将两者进行连接2. 确保交换机已经加电3. 通过ipAddrSet命令设置IP地址(注意: 命令是大小写敏感，但是全大写或全小写也可。
