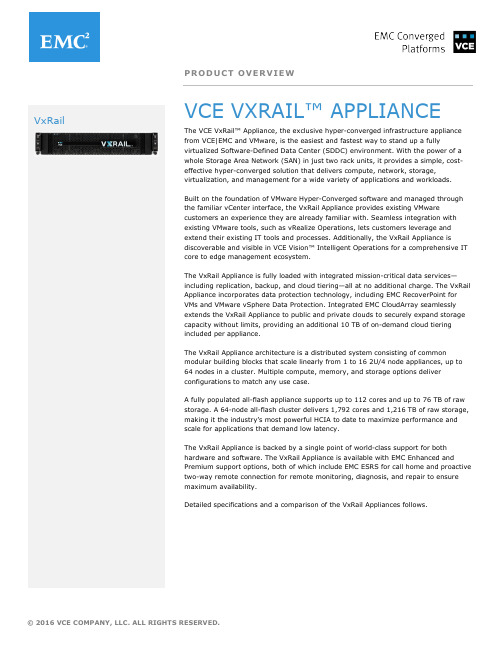

PRODUCT OVERVIEWVCE VXRAIL™ APPLIANCEThe VCE VxRail™ Appliance, the exclusive hyper-converged infrastructure appliance from VCE|EMC and VMware, is the easiest and fastest way to stand up a fully virtualized Software-Defined Data Center (SDDC) environment. With the power of a whole Storage Area Network (SAN) in just two rack units, it provides a simple, cost-effective hyper-converged solution that delivers compute, network, storage,virtualization, and management for a wide variety of applications and workloads. Built on the foundation of VMware Hyper-Converged software and managed through the familiar vCenter interface, the VxRail Appliance provides existing VMware customers an experience they are already familiar with. Seamless integration with existing VMware tools, such as vRealize Operations, lets customers leverage and extend their existing IT tools and processes. Additionally, the VxRail Appliance is discoverable and visible in VCE Vision™ Intelligent Operations for a comprehensive IT core to edge management ecosystem.The VxRail Appliance is fully loaded with integrated mission-critical data services—including replication, backup, and cloud tiering—all at no additional charge. The VxRail Appliance incorporates data protection technology, including EMC RecoverPoint for VMs and VMware vSphere Data Protection. Integrated EMC CloudArray seamlessly extends the VxRail Appliance to public and private clouds to securely expand storage capacity without limits, providing an additional 10 TB of on-demand cloud tiering included per appliance.The VxRail Appliance architecture is a distributed system consisting of common modular building blocks that scale linearly from 1 to 16 2U/4 node appliances, up to 64 nodes in a cluster. Multiple compute, memory, and storage options deliver configurations to match any use case.A fully populated all-flash appliance supports up to 112 cores and up to 76 TB of raw storage. A 64-node all-flash cluster delivers 1,792 cores and 1,216 TB of raw storage, making it the industry’s most powerful HCIA to date to maximize performance and scale for applications that demand low latency.The VxRail Appliance is backed by a single point of world-class support for both hardware and software. The VxRail Appliance is available with EMC Enhanced and Premium support options, both of which include EMC ESRS for call home and proactive two-way remote connection for remote monitoring, diagnosis, and repair to ensure maximum availability.Detailed specifications and a comparison of the VxRail Appliances follows.VxRailVXRAIL APPLIANCE SPECIFICATIONS—HYBRID NODESCOMPONENTS VXRAIL APPLIANCE 60 VXRAIL APPLIANCE 120 VXRAIL APPLIANCE 160 VXRAIL APPLIANCE 200 PROCESSOR CORES(PER NODE)6 12 16 20PROCESSOR (PER NODE)1 Intel® Xeon® ProcessorE5-2603 v3 1.6 GHz2 Intel® Xeon® ProcessorE5-2620 v3 2.4 GHz2 Intel® Xeon® ProcessorE5-2630 v3 2.4 GHz2 Intel® Xeon® ProcessorE5-2660 v3 2.6 GHzMEMORY/RAM (PER NODE)64 GB (4 x 16 GB) 128 GB (8 x 16 GB) or192 GB (12 x 16 GB) or256 GB (16 x 16 GB)256 GB (16 x 16 GB) or512 GB (16 x 32 GB)256 GB (16 x 16 GB) or512 GB (16 x 32 GB)CACHING SSD(PER NODE)200 GB 400 GB or 800 GB 400 GB or 800 GB 400 GB or 800 GBSTORAGE-RAW(PER NODE)3.6 – 10 TB 3.6 – 10 TB4.8 – 10 TB 4.8 – 10 TBMINIMUM NODES PERCLUSTER4 4 4 4MAXIMUM NODES PERCLUSTER164 64 64 64SCALING INCREMENTS(IN NODES)1 1 1 1CHASSIS 2U, 19” rack-mounted chassis supporting 4 hot swappable nodes and 2 hot swappable power suppliesPOWER SUPPLIES 2 1200W high-efficiencyredundant PSUs,110/220V AC 50/60Hz 2 1600W high-efficiencyredundant PSUs, 220VAC 50/60Hz2 1600W high-efficiencyredundant PSUs, 220VAC 50/60Hz2 1600W high-efficiencyredundant PSUs, 220VAC 50/60HzCOOLING Dedicated cooling/node (no single point of failure) – 4 80X5M6 mm variable-speed fans MAX TOTAL POWERCONSUMPTION (FULLYLOADED APPLIANCE-KVA)1003 1337 1337 1486MAX HEATDISSIPATION (FULLY-LOADED APPLIANCE-BTU/HR)3422.236 4561.844 4561.844 5070.232NETWORK CONNECTION 4 x 1 GbE RJ45 2 x 10 GbE SFP+ or2 x RJ45 ports2 x 10 GbE SFP+ or2 x RJ45 ports2 x 10 GbE SFP+ or2 x RJ45 portsMANAGEMENT PORT(OPTIONAL, PER NODE)1 x 100 Mbps RJ45 port 1 x 100 Mbps RJ45 port 1 x 100 Mbps RJ45 port 1 x 100 Mbps RJ45 port 1Scale to 64 nodes via approved RPQ only.VXRAIL APPLIANCE SPECIFICATIONS—ALL-FLASH NODESCOMPONENTS VXRAIL 120F VXRAIL 160F VXRAIL 200F VXRAIL 240F VXRAIL 280F CORES(PER NODE)12 16 20 24 28PROCESSOR (PER NODE) 2 Intel® Xeon®Processor E5-2620v3 2.4GHz /15M Cache2 Intel® Xeon®Processor E5-2630v3 2.4GHz /20M Cache2 Intel® Xeon®Processor E5-2660v3 2.6GHz /25M Cache2 Intel® Xeon®Processor E5-2680v3 2.5GHz /30M Cache2 Intel® Xeon®Processor E5-2683v3 2.0GHz /35M Cache(PER NODE)or 512GB (16 x32GB) or 512GB (16 x32GB)or 512GB (16 x32GB)or 512GB (16 x32GB)(PER NODE)STORAGE-RAW(PER NODE)MINIMUM NODESPER CLUSTER4 4 4 4 4MAXIMUM NODESPER CLUSTER164 64 64 64 64SCALINGINCREMENTS(IN NODES)CHASSIS 2U, 19” rack-mounted chassis supporting 4 hot swappable nodes and 2 hot swappable power suppliesPOWER SUPPLIES 2 1600W high-efficiencyredundant PSUs,220V AC 50/60Hz 2 1600W high-efficiencyredundant PSUs,220V AC 50/60Hz2 1600W highefficiencyredundant PSUs,220V AC 50/60Hz2 1600W high-efficiencyredundant PSUs,220V AC 50/60Hz2 1600W high-efficiencyredundant PSUs,220V AC 50/60HzCOOLING Dedicated cooling/node (no single point of failure) – 4 80X5M6 mm variable-speed fansMAX TOTALPOWERCONSUMPTION(FULLY LOADEDAPPLIANCE-KVA)1240 1240 1389 1500 1500MAX HEATDISSIPATION(FULLY-LOADEDAPPLIANCE-BTU/HR)4230.88 4230.88 4739.268 5118 5118NETWORK CONNECTION 2 x 10GbE SFP+ orRJ45 ports2 x 10GbE SFP+ orRJ45 ports2 x 10GbE SFP+ orRJ45 ports 2 x 10GbE SFP+ 2 x 10GbE SFP+(OPTIONAL, PERNODE)port port port port port 1Scale to 64 nodes via approved RPQ only.PHYSICAL SPECIFICATIONSCOMPONENTS HEIGHT (MM/IN)WIDTH (MM/IN)DEPTH (MM/IN)WEIGHT (MAX KG/LB)APPLIANCE87.3mm/3.44” 447mm/17.6IN 774.7mm/30.5”41.42KG / 91.31LBOPERATING RANGEAMBIENT OPERATING TEMPERATUREO° to 40° COPERATING AND STORAGE RELATIVE HUMIDITY 10% to 85% (non-condensing) STORAGE TEMPERATURE RANGE- 40°C to + 65°CTRANSPORTATION TEMPERATURE RANGE - 40C to + 70C (short-term storage) OPERATING ALTITUDE WITH NO DERATINGS3200m (about 10656ft)ABOUT VCEVCE, an EMC Federation Company, is the world market leader in converged infrastructure and converged solutions. VCE accelerates the adoption of converged infrastructure and cloud-based computing models that reduce IT costs while improving time to market. VCE delivers the industry's only fully integrated and virtualized cloud infrastructure systems, allowing customers to focus on business innovation instead of integrating, validating, and managing IT infrastructure. VCE solutions are available through an extensive partner network, and cover horizontal applications, vertical industry offerings, and application development environments, allowing customers to focus on business innovation instead of integrating, validating, and managing IT infrastructure.For more information, go to .© 2016 VCE Company, LLC. All rights reserved. Vblock, VxBlock, VCE Vscale,VCE Vision, and the VCE logo are trademarks or registered trademarks of VCE Compare features, see options, get pricing at /vxrailCONFIGURE AND QUOTE VXRAIL。

VxRail超融合产品功能详解超融合架构凭借效率、灵活性、规模、成本和数据保护，已经成为最近几年的热门词汇。

超融合是指在同一套单元设备中不仅仅具备计算、网络、存储和服务器虚拟化等资源和技术，同时拥有横向扩展能力，可以为用户提供一个统一的资源池部署应用程序。

VxRail系列设备就是一款基于VMware vSphere、vSAN 和EMC软件的超融合解决方案，旨在帮助用户实现一体化IT基础架构的转型。

它采用模块化的分布式存储设计，实现了计算和存储的融合，用户可以从小规模起步，按需扩展，同时提供多种计算、内存和存储选项以满足各种使用情形的配置。

本文将主要介绍VxRail的硬件、网络和功能软件。

VxRail是Dell EMC今年推出的超融合产品，定位的目标市场包括虚拟桌面架构VDI、远程办公室、私有云和中小企业。

用户通过VxRail和vBlock或者VxRack就可以搭建一套完整的企业级解决方案，适合所有类型的工作负载，通过VMware vCenter实现统一管理，同时还拥有企业级的复制和保护能力。

VxRail 以集群的形式存在，集群由多个节点组成，系统最多支持16个硬件盒子，64个节点，3000台以上的虚拟机。

单个节点拥有独立的CPU、内存、存储和网络资源，采用X86架构，支持横向扩展功能。

硬件配置部分VxRail提供混合模式和全闪存模式二种硬件配置，全闪存模式单节点最多支持28个CPU内核，512GB 内存和19TB存储容量，混合模式单节点最多支持20个CPU内核，512GB内存和10TB存储容量。

具体配置见下图：VxRail全闪存模式推出了5种型号，具体配置见下表：VxRail混合模式推出4种型号，具体配置见下表：VxRail硬件配置规则汇总：∙在3.5版本中，单个集群最低配置为4个节点。

在4.0版本中，单个集群最低配置为3个节点；∙单个逻辑集群最多支持64个节点，超过32个节点需要进行RPQ；∙集群中前4个节点必须使用相同硬件型号；∙单个集群中不支持混合模式和全闪存模式二种节点共存；∙单个集群中不支持10G模块和1G模块混合使用；VxRail硬件扩展规则汇总：∙节点可以无中断地添加到集群o节点可以增量地添加到VxRail集群；o每个Quanta节点扩展都需要一个磁盘包。

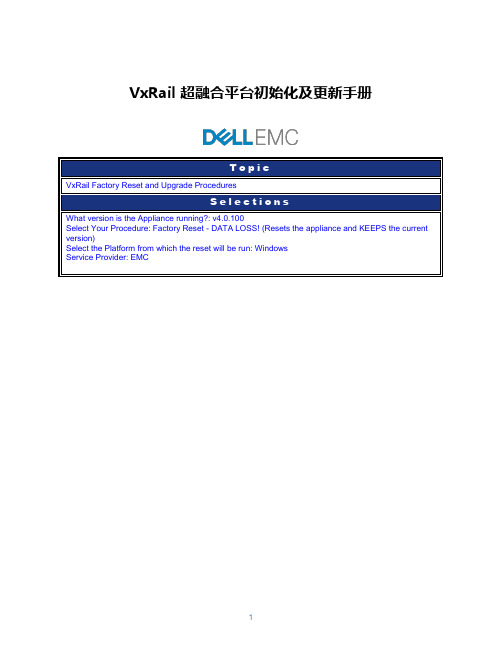

VxRail 超融合平台初始化及更新手册目录Preliminary Activity Tasks (3)Read, understand, and perform these tasks (3)Service Provider, Project Information and Customer Contact form (4)VxRail Reset Procedure (4)Attention: (4)Warnings and Disclaimers (4)Intended Audience: (5)Materials Required: (5)Reset Procedure (5)Prerequisites (5)Preparing for Reset (5)Running Reset (8)Example using Reset on Windows (8)After Reset (8)Reset Command Options (9)Best Practices and Troubleshooting (10)Resetting Clusters with Multiple Appliances (10)If you want to restore a multi-appliance VxRail cluster: (10)If you want to separate the appliances into multiple VxRail clusters: (10)Reset Output: Example output of Successful reset: (10)Reset Failure (11)Known Issues (12)Appendix A:VxRail Appliances with a Custom Initial IP address (13)Preliminary Activity TasksThis section may contain tasks that you must perform before going to the customer site. Make sure these tasks are complete before performing the procedure.Read, understand, and perform these tasks1. [ ] Table 1 lists tasks, cautions, warnings, notes, knowledgebase (KB) solutions, and Top 10 ServiceTopics that you need to be aware of before performing this activity. Read, understand, and when necessary perform any tasks contained in this table and any tasks contained in any associatedknowledgebase solution.Table 1 List of cautions, warnings, notes, KB solutions, and Top 10 Service Topics for thisactivityService Provider, Project Information and Customer Contact formThis form is automatically populated based on the information that is provided in the VxRail® Procedure Generator questionnaire prior to generating the procedure. This information is collected and used for reference purposes when referring back to this procedure at a later date and time.Section 2:Section 3:VxRail Reset ProcedureThese instructions describe how to reset the VxRail Appliance using the Factory Reset Script which returns the appliance to a first run state but leaves the underlying software load unchanged. The reset script can be executed in the field by a VxRail Appliance reseller, distributor, or EMC CSE.Use this process to reset between demonstrations or moves between customer sites for evaluation.The reset script takes approximately 30 minutes to complete, however if there are environmental problems (network connectivity, i.e.) it can fail.The unit must be in an otherwise healthy state, connected to the network and functioning for the reset script to be used.Attention:The reset script tool will wipe all data and defined User VMs from the appliance. If the customer wants to keep their data or VMs, they must back them up prior to running the tool.Always use the latest VxRail Reset tool for the factory reset function based on your model of VxRail. Warnings and Disclaimers•Reset destroys all virtual machines and datastores in your VxRail Cluster. VMs on mounted datastores that you don’t want the reset to delete should be unregistered.prior to executing the reset.The process cannot be interrupted and there are no data recovery options available once the Reset starts.•The Reset script and documentation may only be utilized by properly trained personnel.•The Reset script and documentation are only available to properly trained engineering, support, and sales organizations.•The Reset script and documentation must not be provided to anyone who is identified as a direct end-user of a VxRail product.•The Reset script and documentation must be removed from the customer’s appliance and premises after Reset is performed by qualified personnel.Note: Reset script 4.0.100 is required for all VxRail appliances with Release 4.0.100 software. Intended Audience:This procedure is intended to be used by QEP Distribution Partners and VARs performing POC demos. This Procedure is not to be used on production systems!Materials Required:From the website, download the reset package:•File Name: v4.0.100_reset.zip•MD5Sum: 966d86f7ef0b9b02445bcb06eb263dcbWARNING: This procedure deletes all data on the system. It should never be used on a production system.Reset ProcedureReset restores an appliance to factory settings. It uses the original software images and the factory-created backup file to restore your appliance:/vmfs/volumes/<service_datastore>/images,/vmfs/volumes/<service_datastore>/reset/configBundle.tgzPrerequisites• A workstation/laptop with a web browser is required. It must be either plugged into the 10GbE switch or able to logically reach the VxRail management VLAN on the 10GbE switch.Note: This PC must be able to access both the pre-reset and post-reset VLANs and IP Addresses. •The VxRail appliance must have all software images and the configBundle.tgz file on the service datastore.•The document assumes you are familiar with the VxRail Setup Guide, the VxRail Product Guide, vSphere Web Client usage, and ESXi usage (DCUI/CLI).•All ESXi hosts must have the same version of both the ESXi and VxRail VIB on them. Preparing for ResetWARNING: To prevent a possible issue with the decompression of the software bundle, EMC recommends that the upgrade bundle is decompressed using a 3rd party decompression utilitysuch as WinZip. Windows Explorer decompression may have difficulty handling large files resulting in file corruption.1. [ ] Download reset bundle v4.0.100_reset.zip from the EMC Support Zone website to VxRailworkstation/laptop.Note: All files can be found in bundle with name v4.0.100_reset.zip from the VxRail Support page on https:///downloads. EMC Highly recommends that all files be verified using the md5 sum for each ova file to ensure integrity.2. [ ] On the VxRail workstation/laptop, uncompress it into a folder that you can browse, such asC:\reset or /tmp/reset. This archive contains:•Reset script: consisting of two python scripts: reset.pyc and gen_ovfenv.pyc •reset.pyc is in the package reset_4.0.100-4907696.zip.•You should uncompress it first in order to get the reset script.•The v4.0.100_reset.zip bundle contains three files:•reset_4.0.100-4907696.zip•Python-2.7.8.msi•VMware-viclient-all-6.0.0-3562874.exe•Python libraries: pyVim and pyVMomiPython 2.7 is required for Reset. Python 2.6 will fail. If necessary, python 2.7.8 is recommended and includes the install exe for installation on your VxRail Management workstation/laptop.The Reset script is backwards compatible with all versions of VxRail so users should update to the latest version of the reset script. If previous versions of Python are installed on the managementworkstation, those versions should be uninstalled first and Python v2.7 installed.3. [ ] For VxRail appliances connected to an External vCenter, manually remove thecluster/VDS/management accounts in the External vCenter.4. [ ] (Optional) In the vSphere Web Client, go to the Marvin-Virtual-SAN-Datastore. Click on Manageand then Files. Delete the ISO and UPGRADE directories. DO NOT delete any directories named witha UUID.5. [ ] For each VxRail host in the VxRail cluster, identify the IP address assigned to the factory-createdVMkernel management interface (vmk0) in one of the following ways:a. The IP address is displayed in the vSphere Web Client (use vcserver to locate the networkinformation for the VMkernel adapter on each ESXi host)orb. The IP address is displayed in DCUI (console user interface for ESXi)orc. ssh into each ESXi host (or connect a console or monitor via BMC) and run the esxcli networkip interface ipv4 get command on each host. The username is root. Use the password for the ESXi hosts that was set during VxRail Initial Configuration. (For an un-configured VxRail appliance, the password is Passw0rd!) The output will be similar to what is shown below:esxcli network ip interface ipv4 get | grep "vmk0"vmk0 MARVIN Management IPv4 10.10.10.5 255.255.255.0 10.10.10.25500:25:90:eb:bc:0a 1500 65535 true STATICOn an un-configured VxRail appliance, ESXi IP addresses are either assigned by DHCP (if it was available in your network) or configured as IPv4 link-local addresses (starting with 169.254.x.y). On a configured VxRail appliance, ESXi IP addresses are specified by the user who set up the appliance.6. [ ] Fill in the IPv4 address of each ESXi host in the cluster (use additional space if there is more thanone appliance in a cluster):Host IPv4 AddressESXi host on node 1ESXi host on node 2ESXi host on node 3ESXi host on node 47. [ ] From the VxRail workstation/laptop, verify that you can ping each IPv4 addressNote: If you cannot access a host, try power-cycling the node first.8. [ ] Use vSphere Client to login vCenter Server to check current Management VLAN as below:Figure 1 Example: the management VLAN ID in this appliance is 117Note: If you cannot access vCenter Server, you will have to ask the customer for the management VLAN ID.Running ResetReset is run from the VxRail workstation/laptop, using the options described in the Reset Command Options section. Before running Reset, be sure to read the section on Best Practices and Troubleshooting so that you can use the Reset script correctly.Note: Using the --vlan option for Reset is recommended even if current management VLAN is not set ( in this case, use 0 for VLAN ID). It will modify the management VLAN ID saved in configBundle first before actually using the configBundle. It simplifies initial setup because the management VLAN ID is configured on all 4 ESXi hosts. Likewise, the --initialIpAddress,--initialSubnet, and --initialGateway options also simplify initial setup.Another benefit comes when a VxRail appliance is reset and remains in the same environment (I.e. It is not relocated to another network). In this case, retaining the management VLAN ID and initial IP information during a reset permits the VxRail Manager workstation/laptop to remain set for the correct VLAN and IP. If these options are not used, the instructions in the VxRail SetupGuide can be followed at a later time.If the VLAN option is not used, no changes will be made to the Management VLAN settings. It will remain exactly as previously set.All appliances and nodes in a VxRail cluster should be reset if one appliance or node needs to be reset. Use the following procedure:•If you have more than one appliance in your VxRail cluster, reset each secondary appliance, one at a time. We recommend that the secondary appliances be reset in the order in which they were added to the cluster. Power off all nodes after each appliance is reset.•If you only have one appliance in the VxRail cluster, or when you have finished resetting and shutting down all secondary appliances, reset the primary appliance.Example using Reset on Windows1. [ ] To reset the appliance use the following command:Example:C:\Python27\python.exe c:\reset\reset.pyc -d --destroyAllVMs -f <IPv4_node1> -a <IPv4_node2> -a <IPv4_node3> -a <IPv4_node4> --vlan <vlan_id>[ --initialIpAddress=<init_IPaddr> --initialSubnet=<init_netmask>--initialGateway=<init_gateway> ]After ResetNote: The password is now Passw0rd! for all ESXi hosts, vCenter Server Appliance, and VxRail Manager.1. [ ] For VxRail appliances connected to an External vCenter, manually remove thecluster/VDS/management accounts in the External vCenter.2. [ ] Point a browser to the VxRail Manager user interface to begin VxRail initial configuration followingthe instructions in “VxRail Initial Configuration” in the VxRail Setup Guide. The location is one of the following:<init_IPaddr>specified in the ‘--initialIpAddress’ option supplied to Resetorhttps://192.168.10.200, the default value for ResetIf you cannot reach VxRail at one of these IP addresses after Reset, follow the instructions in AppendixA to configure another initial IP address.Reset Command OptionsBest Practices and TroubleshootingResetting Clusters with Multiple AppliancesIf you want to restore a multi-appliance VxRail cluster:After performing initial configuration on the primary appliance in the VxRail cluster, power on and configure each secondary appliance, one at a time. The primary appliance will discover each secondary appliance when it is powered on. Then you will add it to the cluster before continuing with the next secondary appliance. For more information, including configuring the Management VLAN, see the VxRail Setup Guide, “Adding Appli ances to a VxRail Cluster”.If you want to separate the appliances into multiple VxRail clusters:When you run Reset on each appliance, assign a unique <init_IPaddr> with the ‘--initialIpAddress’option. Then point your browser to each <init_IPaddr> and run VxRail initial configuration to create separate VxRail clusters.Reset Output: Example output of Successful reset:Reset succeeds with INFO and WARNING output similar to the following:c:\Python27\python.exe reset.py -d --destroyAllVMs -f 10.10.10.11 --initialIpAddress=10.10.10.250 --initialSubnet=255.255.254.0--initialGateway=10.10.10.253 -a 10.10.10.12 -a 10.10.10.13 -a 10.10.10.14 Post-configuration Password:INFO Primary node supplied: 10.10.10.11 INFO Secondary node supplied:10.10.10.12 INFO Secondary node supplied: 10.10.10.13 INFO Secondary nodesupplied: 10.10.10.14INFO MARVIN VIB 3.x discovered on hostsVxRail 3.x WARNING================================================WARNING THE FOLLOWING ARE THE CURRENTLY REGISTERED VIRTUAL MACHINES:WARNING ['VMware vCenter Server Appliance', 'VxRail Manager', 'VMware vRealize Log Insight'] WARNING CONTINUING WILL DESTROY ALL VIRTUAL MACHINES REGISTERED WITH THE APPLIANCE.CONFIRM (YES/NO): YESWARNING DESTROYING ALL VMs ON 10.10.10.11: ['VMware vCenter Server Appliance', 'VxRail Manager', 'VMware vRealize Log Insight']…INFO Host 10.10.10.11 has VMs [] remaining. INFO Removing hosts from VSAN cluster.INFO Putting hosts in maintenance mode. INFO Resetting and rebooting hosts.INFO Waiting for hosts to finish rebooting to confirm reset ...…INFO Trying to connect to 10.10.10.14 ...INFO Host 10.10.10.14 not yet available, still waiting ... INFO Trying to connect to 10.10.10.14 ...INFO Connection to host 10.10.10.14 successful.INFO Regenerating VSAN and VMs on primary node (10.10.10.11). Assuming default password. INFO Deploying VM: VMware vCenter Server Appliance fromimages/vcsa-restore-original/.INFO Deploying VM: VxRail Manager from images/evorail-restore-original/. INFO Upgrading hardware on VM: VMware vCenter Server ApplianceINFO Enabling Ivy Bridge EVC for VM: VMware vCenter Server Appliance INFO Upgrading hardware on VM: VxRail ManagerINFO Enabling Ivy Bridge EVC for VM: VxRail ManagerINFO Setting VM AutostartInfo for: VxRail manager on 10.10.10.11. INFOstartAction: powerOn; stopAction: guestShutdownINFO Powering on VM: VxRail ManagerINFO Deploying VM: VMware vRealize Log Insight fromimages/log-insight-original/. INFO Reconfiguring VM 'VMware vRealize Log Insight' OVF environment: success.INFO Upgrading hardware on VM: VMware vRealize Log InsightINFO Enabling Ivy Bridge EVC for VM: VMware vRealize Log Insight INFO Restarting 'loudmouth'.INFO Finalizing settings on Shamu.Reset FailureReset can fail for a variety of reasons. If it does not complete successfully on all nodes in an appliance, it can be rerun just on the node(s) that did not reset properly.Infrequently, Reset can report a failure but eventually succeed. This can happen if an ESXi host takes longer to reboot than the 720-second timeout in Reset. The ESXi node can still continue to boot and it may finally succeed. You can determine whether or not an ESXi host was successfully reset by attempting to login in via ssh or DCUI. The password should have been reset to Passw0rd!If you cannot login with this default password, the host was NOT reset properly. Run Reset again only on the host that did not boot successfully.Another reason that Reset could fail is if the IPv4 address for vmk0 does not match the information saved in configBundle.tgz. This would happen if ESXi was assigned a static IP address instead of link-local DHCP after configBundle.tgz was created, but before initial configuration. The failure message displayed would indicate failure to connect to all hosts.Usin g the ‘--onlyRegeneratePrimary’ option will quickly redeploy the service VMs.Note: Since you have already reset the appliance, the default password, Passw0rd!, must be used instead of your original password.C:\Python27\python.exe c:\reset\reset.pyc -f <IPv4_node1>--onlyRegeneratePrimary --initialIpAddress=<init_IPaddr>--initialSubnet=<init_netmask> --initialGateway=<init_gateway>The reasons that Reset can fail include the following:•Failing to connect to or locate a specified ESXi host•Using an invalid IPv4 address as Reset command options•Having a proxy server configured on the VxRail workstation/laptop•Failing to deploy the Log Insight VM or VxRail Manager•Still failing after several automatic retriesKnown IssuesIf you have a typo on the Reset command line, such as using a space instead of ‘=’ in the option/value pairs that require one (--initialIpAddress, --initialSubnet, --initialGateway), all 3 options will be ignored. (e.g--initialIpAddress=10.10.10.200 is correct; --initialIpAddress 10.10.10.200 is incorrect) If Reset otherwise succeeds, you can follow the instructions in Appendix A to set the initial IP address.Appendix A: VxRail Appliances with a Custom Initial IP address WARNING: The following steps are to configure a custom IP address for initial access to VxRail if you cannot use the <init_IPaddr> specified in the ‘--initialIpAddress’ option or the default IP address, 192.168.10.200.Note: You are setting the IP address for the VxRail Manager in Release 4.0.1. [ ] Connect the vSphere (C#) Client to the IP address of ESXi host 1 using the root user and thepassword that Reset configured during ESXi software installation, Passw0rd!2. [ ] Click the Virtual Machines tab and select “VxRail Manager”. The VM should already be poweredon. If not, click the green play button to power it on and wait for it to boot.3. [ ] Open the Console and login as root with the default password Passw0rd!4. [ ] Stop vmware-marvin:/usr/bin/systemctl stop vmware-marvin.service5. [ ] Using the vami_set_network command, change the default IP address to a custom IP address,netmask, and gateway using the following syntax (all arguments are required)./opt/vmware/share/vami/vami_set_network eth0 STATICV4 <init_IPaddr><init_netmask> <init_gateway>6. [ ] Start vmware-marvin and restart loudmouth on VxRail Manager:/usr/bin/systemctl start vmware-marvin.service/usr/bin/systemctl restart vmware-loudmouth.service7. [ ] Restart loudmouth on the primary ESXi host:/etc/init.d/loudmouth restart。

VxRail超融合产品功能详解VxRail超融合产品功能详解超融合架构凭借效率、灵活性、规模、成本和数据保护，已经成为最近⼏年的热门词汇。

超融合是指在同⼀套单元设备中不仅仅具备计算、⽹络、存储和服务器虚拟化等资源和技术，同时拥有横向扩展能⼒，可以为⽤户提供⼀个统⼀的资源池部署应⽤程序。

VxRail系列设备就是⼀款基于VMware vSphere、vSAN 和EMC软件的超融合解决⽅案，旨在帮助⽤户实现⼀体化IT基础架构的转型。

它采⽤模块化的分布式存储设计，实现了计算和存储的融合，⽤户可以从⼩规模起步，按需扩展，同时提供多种计算、内存和存储选项以满⾜各种使⽤情形的配置。

本⽂将主要介绍VxRail的硬件、⽹络和功能软件。

VxRail是Dell EMC今年推出的超融合产品，定位的⽬标市场包括虚拟桌⾯架构VDI、远程办公室、私有云和中⼩企业。

⽤户通过VxRail和vBlock或者VxRack就可以搭建⼀套完整的企业级解决⽅案，适合所有类型的⼯作负载，通过VMware vCenter实现统⼀管理，同时还拥有企业级的复制和保护能⼒。

VxRail 以集群的形式存在，集群由多个节点组成，系统最多⽀持16个硬件盒⼦，64个节点，3000台以上的虚拟机。

单个节点拥有独⽴的CPU、内存、存储和⽹络资源，采⽤X86架构，⽀持横向扩展功能。

硬件配置部分VxRail提供混合模式和全闪存模式⼆种硬件配置，全闪存模式单节点最多⽀持28个CPU内核，512GB 内存和19TB存储容量，混合模式单节点最多⽀持20个CPU内核，512GB内存和10TB存储容量。

具体配置见下图：VxRail全闪存模式推出了5种型号，具体配置见下表：VxRail混合模式推出4种型号，具体配置见下表：VxRail硬件配置规则汇总：在3.5版本中，单个集群最低配置为4个节点。

在4.0版本中，单个集群最低配置为3个节点；单个逻辑集群最多⽀持64个节点，超过32个节点需要进⾏RPQ；集群中前4个节点必须使⽤相同硬件型号；单个集群中不⽀持混合模式和全闪存模式⼆种节点共存；单个集群中不⽀持10G模块和1G模块混合使⽤；VxRail硬件扩展规则汇总：节点可以⽆中断地添加到集群o节点可以增量地添加到VxRail集群；o每个Quanta节点扩展都需要⼀个磁盘包。

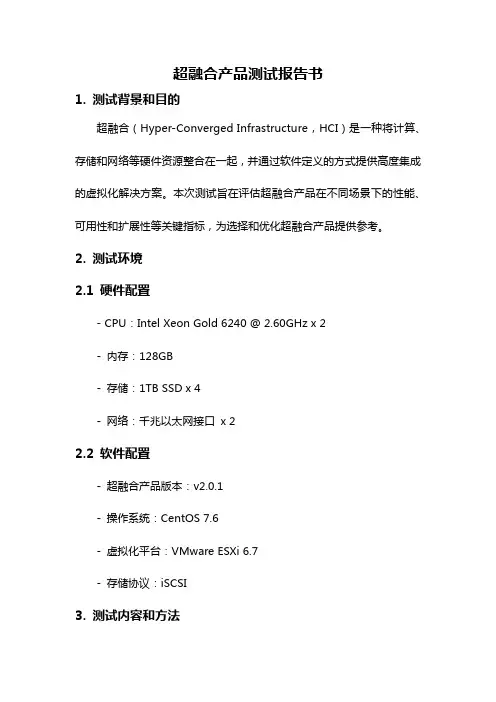

超融合产品测试报告书1. 测试背景和目的超融合（Hyper-Converged Infrastructure，HCI）是一种将计算、存储和网络等硬件资源整合在一起，并通过软件定义的方式提供高度集成的虚拟化解决方案。

本次测试旨在评估超融合产品在不同场景下的性能、可用性和扩展性等关键指标，为选择和优化超融合产品提供参考。

2. 测试环境2.1 硬件配置- CPU：***************************- 内存：128GB- 存储：1TB SSD x 4- 网络：千兆以太网接口x 22.2 软件配置- 超融合产品版本：v2.0.1- 操作系统：CentOS 7.6- 虚拟化平台：VMware ESXi 6.7- 存储协议：iSCSI3. 测试内容和方法3.1 性能测试- 测试场景1：模拟虚拟机大量读写操作，评估存储性能和响应时间。

- 测试场景2：模拟网络负载，评估网络性能和带宽利用率。

- 测试场景3：模拟虚拟机迁移和故障恢复，评估超融合产品的可用性和恢复速度。

3.2 可扩展性测试- 测试场景1：逐步添加虚拟机节点，评估超融合产品的水平扩展性。

- 测试场景2：增加存储容量和计算资源，评估超融合产品的垂直扩展性。

3.3 其他测试- 安全性测试：评估系统的安全性和权限管理能力。

- 系统稳定性测试：长时间运行虚拟机和进行负载测试，评估系统的稳定性和资源管理能力。

- 灾难恢复测试：测试系统在硬件故障和断电等非预期情况下的恢复能力。

4. 测试结果和分析4.1 性能测试结果- 测试场景1：平均读写响应时间为5ms，满足高性能要求。

- 测试场景2：网络带宽利用率达到90%，保证大规模并发访问时的高效率。

- 测试场景3：虚拟机迁移时间平均为10s，故障恢复时间平均为30s，满足业务连续性要求。

4.2 可扩展性测试结果- 测试场景1：添加虚拟机节点后，集群吞吐量线性增加，展现出良好的水平扩展性。

- 测试场景2：增加存储容量和计算节点后，系统性能线性增加，具备良好的垂直扩展性。

VxRail 超融合平台初始化及更新手册目录Preliminary Activity Tasks (3)Read, understand, and perform these tasks (3)Service Provider, Project Information and Customer Contact form (4)VxRail Reset Procedure (4)Attention: (4)Warnings and Disclaimers (4)Intended Audience: (5)Materials Required: (5)Reset Procedure (5)Prerequisites (5)Preparing for Reset (5)Running Reset (8)Example using Reset on Windows (8)After Reset (8)Reset Command Options (9)Best Practices and Troubleshooting (10)Resetting Clusters with Multiple Appliances (10)If you want to restore a multi-appliance VxRail cluster: (10)If you want to separate the appliances into multiple VxRail clusters: (10)Reset Output: Example output of Successful reset: (10)Reset Failure (11)Known Issues (12)Appendix A:VxRail Appliances with a Custom Initial IP address (13)Preliminary Activity TasksThis section may contain tasks that you must perform before going to the customer site. Make sure these tasks are complete before performing the procedure.Read, understand, and perform these tasks1. [ ] Table 1 lists tasks, cautions, warnings, notes, knowledgebase (KB) solutions, and Top 10 ServiceTopics that you need to be aware of before performing this activity. Read, understand, and when necessary perform any tasks contained in this table and any tasks contained in any associatedknowledgebase solution.Table 1 List of cautions, warnings, notes, KB solutions, and Top 10 Service Topics for thisactivityService Provider, Project Information and Customer Contact formThis form is automatically populated based on the information that is provided in the VxRail® Procedure Generator questionnaire prior to generating the procedure. This information is collected and used for reference purposes when referring back to this procedure at a later date and time.Section 2:Section 3:VxRail Reset ProcedureThese instructions describe how to reset the VxRail Appliance using the Factory Reset Script which returns the appliance to a first run state but leaves the underlying software load unchanged. The reset script can be executed in the field by a VxRail Appliance reseller, distributor, or EMC CSE.Use this process to reset between demonstrations or moves between customer sites for evaluation.The reset script takes approximately 30 minutes to complete, however if there are environmental problems (network connectivity, i.e.) it can fail.The unit must be in an otherwise healthy state, connected to the network and functioning for the reset script to be used.Attention:The reset script tool will wipe all data and defined User VMs from the appliance. If the customer wants to keep their data or VMs, they must back them up prior to running the tool.Always use the latest VxRail Reset tool for the factory reset function based on your model of VxRail. Warnings and Disclaimers•Reset destroys all virtual machines and datastores in your VxRail Cluster. VMs on mounted datastores that you don’t want the reset to delete should be unregistered.prior to executing the reset.The process cannot be interrupted and there are no data recovery options available once the Reset starts.•The Reset script and documentation may only be utilized by properly trained personnel.•The Reset script and documentation are only available to properly trained engineering, support, and sales organizations.•The Reset script and documentation must not be provided to anyone who is identified as a direct end-user of a VxRail product.•The Reset script and documentation must be removed from the customer’s appliance and premises after Reset is performed by qualified personnel.Note: Reset script 4.0.100 is required for all VxRail appliances with Release 4.0.100 software. Intended Audience:This procedure is intended to be used by QEP Distribution Partners and VARs performing POC demos. This Procedure is not to be used on production systems!Materials Required:From the website, download the reset package:•File Name: v4.0.100_reset.zip•MD5Sum: 966d86f7ef0b9b02445bcb06eb263dcbWARNING: This procedure deletes all data on the system. It should never be used on a production system.Reset ProcedureReset restores an appliance to factory settings. It uses the original software images and the factory-created backup file to restore your appliance:/vmfs/volumes/<service_datastore>/images,/vmfs/volumes/<service_datastore>/reset/configBundle.tgzPrerequisites• A workstation/laptop with a web browser is required. It must be either plugged into the 10GbE switch or able to logically reach the VxRail management VLAN on the 10GbE switch.Note: This PC must be able to access both the pre-reset and post-reset VLANs and IP Addresses. •The VxRail appliance must have all software images and the configBundle.tgz file on the service datastore.•The document assumes you are familiar with the VxRail Setup Guide, the VxRail Product Guide, vSphere Web Client usage, and ESXi usage (DCUI/CLI).•All ESXi hosts must have the same version of both the ESXi and VxRail VIB on them. Preparing for ResetWARNING: To prevent a possible issue with the decompression of the software bundle, EMC recommends that the upgrade bundle is decompressed using a 3rd party decompression utilitysuch as WinZip. Windows Explorer decompression may have difficulty handling large files resulting in file corruption.1. [ ] Download reset bundle v4.0.100_reset.zip from the EMC Support Zone website to VxRailworkstation/laptop.Note: All files can be found in bundle with name v4.0.100_reset.zip from the VxRail Support page on https:///downloads. EMC Highly recommends that all files be verified using the md5 sum for each ova file to ensure integrity.2. [ ] On the VxRail workstation/laptop, uncompress it into a folder that you can browse, such asC:\reset or /tmp/reset. This archive contains:•Reset script: consisting of two python scripts: reset.pyc and gen_ovfenv.pyc •reset.pyc is in the package reset_4.0.100-4907696.zip.•You should uncompress it first in order to get the reset script.•The v4.0.100_reset.zip bundle contains three files:•reset_4.0.100-4907696.zip•Python-2.7.8.msi•VMware-viclient-all-6.0.0-3562874.exe•Python libraries: pyVim and pyVMomiPython 2.7 is required for Reset. Python 2.6 will fail. If necessary, python 2.7.8 is recommended and includes the install exe for installation on your VxRail Management workstation/laptop.The Reset script is backwards compatible with all versions of VxRail so users should update to the latest version of the reset script. If previous versions of Python are installed on the managementworkstation, those versions should be uninstalled first and Python v2.7 installed.3. [ ] For VxRail appliances connected to an External vCenter, manually remove thecluster/VDS/management accounts in the External vCenter.4. [ ] (Optional) In the vSphere Web Client, go to the Marvin-Virtual-SAN-Datastore. Click on Manageand then Files. Delete the ISO and UPGRADE directories. DO NOT delete any directories named witha UUID.5. [ ] For each VxRail host in the VxRail cluster, identify the IP address assigned to the factory-createdVMkernel management interface (vmk0) in one of the following ways:a. The IP address is displayed in the vSphere Web Client (use vcserver to locate the networkinformation for the VMkernel adapter on each ESXi host)orb. The IP address is displayed in DCUI (console user interface for ESXi)orc. ssh into each ESXi host (or connect a console or monitor via BMC) and run the esxcli networkip interface ipv4 get command on each host. The username is root. Use the password for the ESXi hosts that was set during VxRail Initial Configuration. (For an un-configured VxRail appliance, the password is Passw0rd!) The output will be similar to what is shown below:esxcli network ip interface ipv4 get | grep "vmk0"vmk0 MARVIN Management IPv4 10.10.10.5 255.255.255.0 10.10.10.25500:25:90:eb:bc:0a 1500 65535 true STATICOn an un-configured VxRail appliance, ESXi IP addresses are either assigned by DHCP (if it was available in your network) or configured as IPv4 link-local addresses (starting with 169.254.x.y). On a configured VxRail appliance, ESXi IP addresses are specified by the user who set up the appliance.6. [ ] Fill in the IPv4 address of each ESXi host in the cluster (use additional space if there is more thanone appliance in a cluster):Host IPv4 AddressESXi host on node 1ESXi host on node 2ESXi host on node 3ESXi host on node 47. [ ] From the VxRail workstation/laptop, verify that you can ping each IPv4 addressNote: If you cannot access a host, try power-cycling the node first.8. [ ] Use vSphere Client to login vCenter Server to check current Management VLAN as below:Figure 1 Example: the management VLAN ID in this appliance is 117Note: If you cannot access vCenter Server, you will have to ask the customer for the management VLAN ID.Running ResetReset is run from the VxRail workstation/laptop, using the options described in the Reset Command Options section. Before running Reset, be sure to read the section on Best Practices and Troubleshooting so that you can use the Reset script correctly.Note: Using the --vlan option for Reset is recommended even if current management VLAN is not set ( in this case, use 0 for VLAN ID). It will modify the management VLAN ID saved in configBundle first before actually using the configBundle. It simplifies initial setup because the management VLAN ID is configured on all 4 ESXi hosts. Likewise, the --initialIpAddress,--initialSubnet, and --initialGateway options also simplify initial setup.Another benefit comes when a VxRail appliance is reset and remains in the same environment (I.e. It is not relocated to another network). In this case, retaining the management VLAN ID and initial IP information during a reset permits the VxRail Manager workstation/laptop to remain set for the correct VLAN and IP. If these options are not used, the instructions in the VxRail SetupGuide can be followed at a later time.If the VLAN option is not used, no changes will be made to the Management VLAN settings. It will remain exactly as previously set.All appliances and nodes in a VxRail cluster should be reset if one appliance or node needs to be reset. Use the following procedure:•If you have more than one appliance in your VxRail cluster, reset each secondary appliance, one at a time. We recommend that the secondary appliances be reset in the order in which they were added to the cluster. Power off all nodes after each appliance is reset.•If you only have one appliance in the VxRail cluster, or when you have finished resetting and shutting down all secondary appliances, reset the primary appliance.Example using Reset on Windows1. [ ] To reset the appliance use the following command:Example:C:\Python27\python.exe c:\reset\reset.pyc -d --destroyAllVMs -f <IPv4_node1> -a <IPv4_node2> -a <IPv4_node3> -a <IPv4_node4> --vlan <vlan_id>[ --initialIpAddress=<init_IPaddr> --initialSubnet=<init_netmask>--initialGateway=<init_gateway> ]After ResetNote: The password is now Passw0rd! for all ESXi hosts, vCenter Server Appliance, and VxRail Manager.1. [ ] For VxRail appliances connected to an External vCenter, manually remove thecluster/VDS/management accounts in the External vCenter.2. [ ] Point a browser to the VxRail Manager user interface to begin VxRail initial configuration followingthe instructions in “VxRail Initial Configuration” in the VxRail Setup Guide. The location is one of the following:<init_IPaddr>specified in the ‘--initialIpAddress’ option supplied to Resetorhttps://192.168.10.200, the default value for ResetIf you cannot reach VxRail at one of these IP addresses after Reset, follow the instructions in AppendixA to configure another initial IP address.Reset Command OptionsBest Practices and TroubleshootingResetting Clusters with Multiple AppliancesIf you want to restore a multi-appliance VxRail cluster:After performing initial configuration on the primary appliance in the VxRail cluster, power on and configure each secondary appliance, one at a time. The primary appliance will discover each secondary appliance when it is powered on. Then you will add it to the cluster before continuing with the next secondary appliance. For more information, including configuring the Management VLAN, see the VxRail Setup Guide, “Adding Appli ances to a VxRail Cluster”.If you want to separate the appliances into multiple VxRail clusters:When you run Reset on each appliance, assign a unique <init_IPaddr> with the ‘--initialIpAddress’option. Then point your browser to each <init_IPaddr> and run VxRail initial configuration to create separate VxRail clusters.Reset Output: Example output of Successful reset:Reset succeeds with INFO and WARNING output similar to the following:c:\Python27\python.exe reset.py -d --destroyAllVMs -f 10.10.10.11 --initialIpAddress=10.10.10.250 --initialSubnet=255.255.254.0--initialGateway=10.10.10.253 -a 10.10.10.12 -a 10.10.10.13 -a 10.10.10.14 Post-configuration Password:INFO Primary node supplied: 10.10.10.11 INFO Secondary node supplied:10.10.10.12 INFO Secondary node supplied: 10.10.10.13 INFO Secondary nodesupplied: 10.10.10.14INFO MARVIN VIB 3.x discovered on hostsVxRail 3.x WARNING================================================WARNING THE FOLLOWING ARE THE CURRENTLY REGISTERED VIRTUAL MACHINES:WARNING ['VMware vCenter Server Appliance', 'VxRail Manager', 'VMware vRealize Log Insight'] WARNING CONTINUING WILL DESTROY ALL VIRTUAL MACHINES REGISTERED WITH THE APPLIANCE.CONFIRM (YES/NO): YESWARNING DESTROYING ALL VMs ON 10.10.10.11: ['VMware vCenter Server Appliance', 'VxRail Manager', 'VMware vRealize Log Insight']…INFO Host 10.10.10.11 has VMs [] remaining. INFO Removing hosts from VSAN cluster.INFO Putting hosts in maintenance mode. INFO Resetting and rebooting hosts.INFO Waiting for hosts to finish rebooting to confirm reset ...…INFO Trying to connect to 10.10.10.14 ...INFO Host 10.10.10.14 not yet available, still waiting ... INFO Trying to connect to 10.10.10.14 ...INFO Connection to host 10.10.10.14 successful.INFO Regenerating VSAN and VMs on primary node (10.10.10.11). Assuming default password. INFO Deploying VM: VMware vCenter Server Appliance fromimages/vcsa-restore-original/.INFO Deploying VM: VxRail Manager from images/evorail-restore-original/. INFO Upgrading hardware on VM: VMware vCenter Server ApplianceINFO Enabling Ivy Bridge EVC for VM: VMware vCenter Server Appliance INFO Upgrading hardware on VM: VxRail ManagerINFO Enabling Ivy Bridge EVC for VM: VxRail ManagerINFO Setting VM AutostartInfo for: VxRail manager on 10.10.10.11. INFOstartAction: powerOn; stopAction: guestShutdownINFO Powering on VM: VxRail ManagerINFO Deploying VM: VMware vRealize Log Insight fromimages/log-insight-original/. INFO Reconfiguring VM 'VMware vRealize Log Insight' OVF environment: success.INFO Upgrading hardware on VM: VMware vRealize Log InsightINFO Enabling Ivy Bridge EVC for VM: VMware vRealize Log Insight INFO Restarting 'loudmouth'.INFO Finalizing settings on Shamu.Reset FailureReset can fail for a variety of reasons. If it does not complete successfully on all nodes in an appliance, it can be rerun just on the node(s) that did not reset properly.Infrequently, Reset can report a failure but eventually succeed. This can happen if an ESXi host takes longer to reboot than the 720-second timeout in Reset. The ESXi node can still continue to boot and it may finally succeed. You can determine whether or not an ESXi host was successfully reset by attempting to login in via ssh or DCUI. The password should have been reset to Passw0rd!If you cannot login with this default password, the host was NOT reset properly. Run Reset again only on the host that did not boot successfully.Another reason that Reset could fail is if the IPv4 address for vmk0 does not match the information saved in configBundle.tgz. This would happen if ESXi was assigned a static IP address instead of link-local DHCP after configBundle.tgz was created, but before initial configuration. The failure message displayed would indicate failure to connect to all hosts.Usin g the ‘--onlyRegeneratePrimary’ option will quickly redeploy the service VMs.Note: Since you have already reset the appliance, the default password, Passw0rd!, must be used instead of your original password.C:\Python27\python.exe c:\reset\reset.pyc -f <IPv4_node1>--onlyRegeneratePrimary --initialIpAddress=<init_IPaddr>--initialSubnet=<init_netmask> --initialGateway=<init_gateway>The reasons that Reset can fail include the following:•Failing to connect to or locate a specified ESXi host•Using an invalid IPv4 address as Reset command options•Having a proxy server configured on the VxRail workstation/laptop•Failing to deploy the Log Insight VM or VxRail Manager•Still failing after several automatic retriesKnown IssuesIf you have a typo on the Reset command line, such as using a space instead of ‘=’ in the option/value pairs that require one (--initialIpAddress, --initialSubnet, --initialGateway), all 3 options will be ignored. (e.g--initialIpAddress=10.10.10.200 is correct; --initialIpAddress 10.10.10.200 is incorrect) If Reset otherwise succeeds, you can follow the instructions in Appendix A to set the initial IP address.Appendix A: VxRail Appliances with a Custom Initial IP address WARNING: The following steps are to configure a custom IP address for initial access to VxRail if you cannot use the <init_IPaddr> specified in the ‘--initialIpAddress’ option or the default IP address, 192.168.10.200.Note: You are setting the IP address for the VxRail Manager in Release 4.0.1. [ ] Connect the vSphere (C#) Client to the IP address of ESXi host 1 using the root user and thepassword that Reset configured during ESXi software installation, Passw0rd!2. [ ] Click the Virtual Machines tab and select “VxRail Manager”. The VM should already be poweredon. If not, click the green play button to power it on and wait for it to boot.3. [ ] Open the Console and login as root with the default password Passw0rd!4. [ ] Stop vmware-marvin:/usr/bin/systemctl stop vmware-marvin.service5. [ ] Using the vami_set_network command, change the default IP address to a custom IP address,netmask, and gateway using the following syntax (all arguments are required)./opt/vmware/share/vami/vami_set_network eth0 STATICV4 <init_IPaddr><init_netmask> <init_gateway>6. [ ] Start vmware-marvin and restart loudmouth on VxRail Manager:/usr/bin/systemctl start vmware-marvin.service/usr/bin/systemctl restart vmware-loudmouth.service7. [ ] Restart loudmouth on the primary ESXi host:/etc/init.d/loudmouth restart。

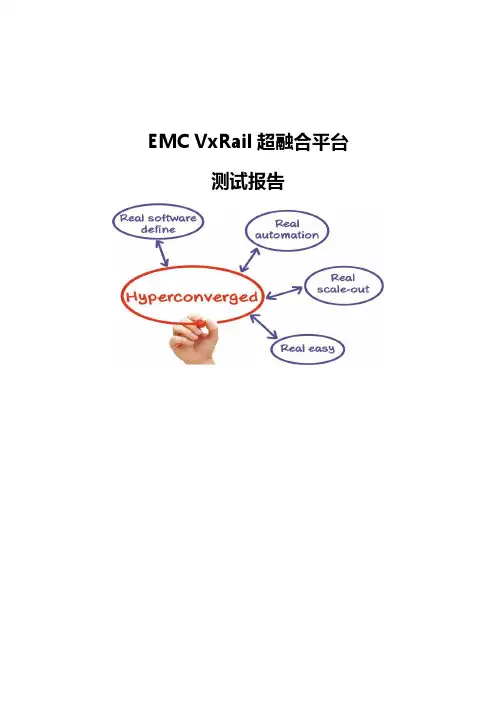

EMC VxRail超融合平台测试报告目录1.前言 01.1.VxRail介绍 01.2.VxRail配置灵活性和高可扩展性 01.3.软件环境 (1)1.4.配置 (1)2.VxRail 功能测试 (2)2.1.VSAN配置 (2)2.2.管理界面VxRail Manager (3)3.VxRail系统冗余测试 (6)3.1.网络冗余测试 (6)3.2.磁盘冗余测试 (8)3.3.SSD 缓存冗余测试 (12)3.4.节点冗余测试 (13)3.5.电源冗余测试 (15)4.测试记录 (16)1.前言1.1.VxRail介绍由EMC和VMware联合开发的VxRail是一款基于VMware虚拟化架构并真正实现系统核心层全面集成、预先配置和测试的超融合架构。

VCE VxRail 应用装置是由VCE和VMware提供的超级融合基础架构应用装置，它借助仅占用两个机架单元的完整存储区域网络提供了一个简单、经济高效的超级融合解决方案，此解决方案为范围广泛的一系列应用程序和工作负载提供了计算、网络、存储、虚拟化和管理。

VxRail基于VMware超级融合软件而构建并通过熟悉的vCenter Server界面进行管理，从而为我们提供了一种熟悉的管理体验。

VxRail应用装置装有全套集成的任务关键型数据服务，包括复制、备份。

VxRail应用装置配备了数据保护技术，包括EMCRecoverPoint for VMs和VMware vSphere Data Protection。

VxRail 应用装置体系结构是一个由通用模块化构造块组成的分布式系统，可从1个2U/4节点应用装置线性扩展到16个，从而在单个群集中达到最多64个节点。

多个计算、内存和存储选项提供了可适合任何使用情形的配置。

一个填满的混合应用装置可支持多达80个核心和多达24TB的原始存储容量。

一个64节点群集可提供1280个核心和384TB的原始存储容量。
