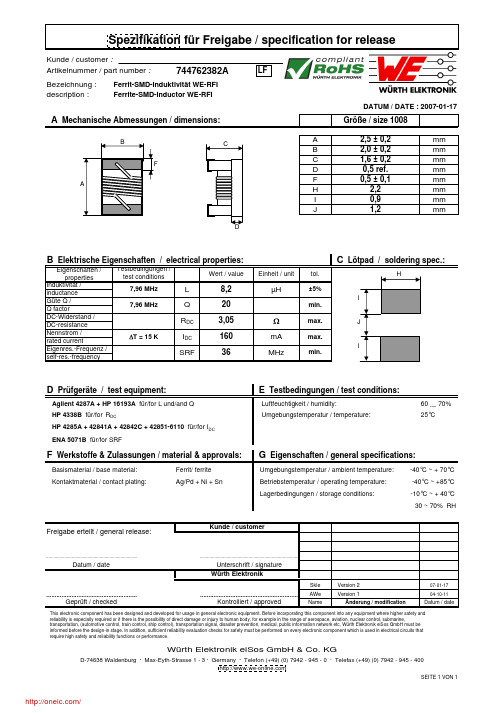

2.1 2.0 1.02012-07-172012-07-172010-09-30SStSStSBaSStSBaWürth Elektronik eiSos GmbH & Co. KGEMC & Inductive SolutionsMax-Eyth-Str. 174638 WaldenburgGermanyTel. +49 (0) 79 42 945 - 0A Dimensions: [mm]F Typical Impedance Characteristics:H1: Classification Reflow Profile for SMT components:H2: Classification Reflow ProfilesProfile FeaturePreheat- Temperature Min (T smin ) - Temperature Max (T smax ) - Time (t s ) from (T smin to T smax )Ramp-up rate (T L to T P )Liquidous temperature (T L )Time (t L ) maintained above T L Peak package body temperature (T p )Time within 5°C of actual peak temperature (t p )Ramp-down rate (T P to T L )Time 25°C to peak temperature Pb-Free Assembly 150°C 200°C60-180 seconds 3°C/ second max.217°C60-150 seconds See Table H320-30 seconds 6°C/ second max.8 minutes max.refer to IPC/JEDEC J-STD-020DH3: Package Classification Reflow TemperaturePB-Free Assembly PB-Free Assembly PB-Free Assembly Package Thickness< 1.6 mm 1.6 - 2.5 mm ≥ 2.5 mmVolume mm³<350260°C 260°C 250°CVolume mm³350 - 2000260°C 250°C 245°CVolume mm³>2000260°C 245°C 245°Crefer to IPC/JEDEC J-STD-020DH Soldering Specifications:I Cautions and Warnings:The following conditions apply to all goods within the product series of WE-CNSWof Würth Elektronik eiSos GmbH & Co. KG:General:All recommendations according to the general technical specifications of the data sheet have to be complied with.The disposal and operation of the product within ambient conditions which probably alloy or harm the wire isolation has to be avoided.If the product is potted in customer applications, the potting material might shrink during and after hardening. Accordingly to this the product is exposed to the pressure of the potting material with the effect that the core, wire and termination is possibly damaged by this pressure and so the electrical as well as the mechanical characteristics are endanger to be affected. After the potting material is cured, the core, wire and termination of the product have to be checked if any reduced electrical or mechanical functions or destructions have occurred.The responsibility for the applicability of customer specific products and use in a particular customer design is always within the authority of the customer. All technical specifications for standard products do also apply for customer specific products.Cleaning solvents which are used to clean the application might damage or change the characteristics of the component.Direct mechanical impact to the product shall be prevented as the ferrite material of the core could flake or in the worst case it could break. Product specific:Follow all instructions mentioned in the datasheet, especially:•The soldering profile has to be complied with according to the technical reflow soldering specification, otherwise no warranty will be su-stained.•All products are supposed to be used before the end of the period of 12 months based on the transfer of title, if not a 100% solderability can´t be warranted.•Violation of the technical product specifications such as exceeding the nominal rated current will result in the loss of warranty.1. General Customer ResponsibilitySome goods within the product range of Würth Elektronik eiSos GmbH & Co. KG contain statements regarding general suitability for certain application areas. These statements about suitability are based on our knowledge and experience of typical requirements concerning the are-as, serve as general guidance and cannot be estimated as binding statements about the suitability for a customer application. The responsibi-lity for the applicability and use in a particular customer design is always solely within the authority of the customer. Due to this fact it is up to the customer to evaluate, where appropriate to investigate and decide whether the device with the specific product characteristics described in the product specification is valid and suitable for the respective customer application or not.2. Customer Responsibility related to Specific, in particular Safety-Relevant ApplicationsIt has to be clearly pointed out that the possibility of a malfunction of electronic components or failure before the end of the usual lifetime can-not be completely eliminated in the current state of the art, even if the products are operated within the range of the specifications.In certain customer applications requiring a very high level of safety and especially in customer applications in which the malfunction or failure of an electronic component could endanger human life or health it must be ensured by most advanced technological aid of suitable design of the customer application that no injury or damage is caused to third parties in the event of malfunction or failure of an electronic component.3. Best Care and AttentionAny product-specific notes, warnings and cautions must be strictly observed.4. Customer Support for Product SpecificationsSome products within the product range may contain substances which are subject to restrictions in certain jurisdictions in order to serve spe-cific technical requirements. Necessary information is available on request. In this case the field sales engineer or the internal sales person in charge should be contacted who will be happy to support in this matter.5. Product R&DDue to constant product improvement product specifications may change from time to time. As a standard reporting procedure of the Product Change Notification (PCN) according to the JEDEC-Standard inform about minor and major changes. In case of further queries regarding the PCN, the field sales engineer or the internal sales person in charge should be contacted. The basic responsibility of the customer as per Secti-on 1 and 2 remains unaffected.6. Product Life CycleDue to technical progress and economical evaluation we also reserve the right to discontinue production and delivery of products. As a stan-dard reporting procedure of the Product Termination Notification (PTN) according to the JEDEC-Standard we will inform at an early stage about inevitable product discontinuance. According to this we cannot guarantee that all products within our product range will always be available. Therefore it needs to be verified with the field sales engineer or the internal sales person in charge about the current product availability ex-pectancy before or when the product for application design-in disposal is considered.The approach named above does not apply in the case of individual agreements deviating from the foregoing for customer-specific products.7. Property RightsAll the rights for contractual products produced by Würth Elektronik eiSos GmbH & Co. KG on the basis of ideas, development contracts as well as models or templates that are subject to copyright, patent or commercial protection supplied to the customer will remain with Würth Elektronik eiSos GmbH & Co. KG.8. General Terms and ConditionsUnless otherwise agreed in individual contracts, all orders are subject to the current version of the “General Terms and Conditions of Würth Elektronik eiSos Group”, last version available at .J Important Notes:The following conditions apply to all goods within the product range of Würth Elektronik eiSos GmbH & Co. KG:分销商库存信息: WURTH-ELECTRONICS 744230181。

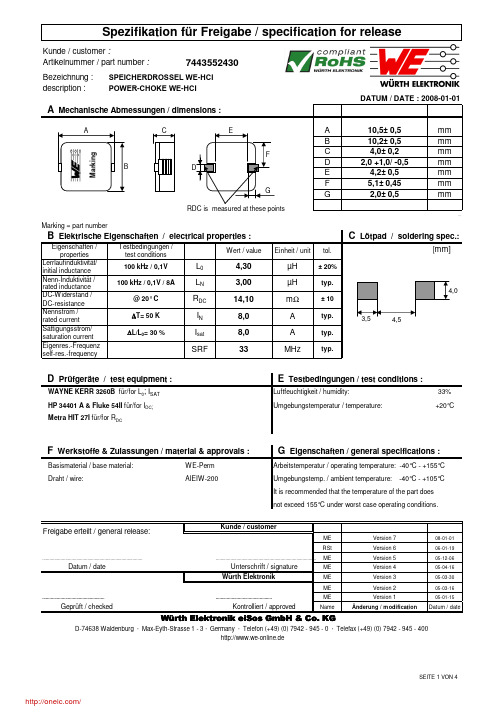

Bezeichnung :description :Marking = part numberEigenschaften / properties Lerrlaufinduktivität/initial inductance Nenn-Induktivität /33%Umgebungstemperatur / temperature:+20°CWE-Perm ME 08-01-01RSt06-01-19ME 05-12-06ME 05-04-16ME 05-03-30ME05-03-16ME 05-01-15NameDatum / dateIt is recommended that the temperature of the part does not exceed 155°C under worst case operating conditions.http://www.we-online.deDatum / date..................................................................................Unterschrift / signatureWürth Elektronik..................................................................................Arbeitstemperatur / operating temperature: -40°C - +155°C Freigabe erteilt / general release:Kunde / customerDraht / wire:Metra HIT 27I für/for R DCE Testbedingungen / test conditions :AIEIW-200Basismaterial / base material:Umgebungstemp. / ambient temperature: -40°C - +105°C F Werkstoffe & Zulassungen / material & approvals :G Eigenschaften / general specifications :Kontrolliert / approvedWürth Elektronik eiSos GmbH & Co. KGD-74638 Waldenburg · Max-Eyth-Strasse 1 - 3 · Germany · Telefon (+49) (0) 7942 - 945 - 0 · Telefax (+49) (0) 7942 - 945 - 400Geprüft / checked .................................................................................................SPEICHERDROSSEL WE-HCI POWER-CHOKE WE-HCIArtikelnummer / part number :7443552430Elektrische Eigenschaften / electrical properties :D Prüfgeräte / test equipment :HP 34401 A & Fluke 54II für/for I DC; Luftfeuchtigkeit / humidity:WAYNE KERR 3260B für/for L 0; I SAT Änderung / modificationVersion 1Version 2Version 3Version 4Version 5Version 6Version 7Bezeichnung :description :H Induktivitätskurve / Inductance curve :ME 08-01-01RSt06-01-19ME 05-12-06ME 05-04-16ME 05-03-30ME05-03-16ME 05-01-15NameDatum / dateD-74638 Waldenburg · Max-Eyth-Strasse 1 - 3 · Germany · Telefon (+49) (0) 7942 - 945 - 0 · Telefax (+49) (0) 7942 - 945 - 400http://www.we-online.deGeprüft / checked Kontrolliert / approvedÄnderung / modificationWürth Elektronik eiSos GmbH & Co. KGVersion 2..............................................................................................................................................Version 1Datum / dateUnterschrift / signature Version 4Würth ElektronikVersion 3Version 6....................................................................................................................................................................Version 5Freigabe erteilt / general release:Kunde / customerVersion 7SPEICHERDROSSEL WE-HCI POWER-CHOKE WE-HCIDATUM / DATE : 2008-01-01Bezeichnung :description :I Temperaturanstieg / Temperature rise curve :ME 08-01-01RSt06-01-19ME 05-12-06ME 05-04-16ME 05-03-30ME05-03-16ME 05-01-15NameDatum / datehttp://www.we-online.deD-74638 Waldenburg · Max-Eyth-Strasse 1 - 3 · Germany · Telefon (+49) (0) 7942 - 945 - 0 · Telefax (+49) (0) 7942 - 945 - 400Würth Elektronik eiSos GmbH & Co. KGWürth ElektronikVersion 3Version 2..........................................................................................................................................Geprüft / checked Kontrolliert / approvedÄnderung / modificationVersion 6...............................................................................................................................................................Datum / dateUnterschrift / signatureVersion 4Version 5Version 1Version 7Freigabe erteilt / general release:Kunde / customerBezeichnung :description :ME 05-12-06ME 05-04-16ME 05-03-30ME05-03-16ME 05-01-15NameDatum / dateD-74638 Waldenburg · Max-Eyth-Strasse 1 - 3 · Germany · Telefon (+49) (0) 7942 - 945 - 0 · Telefax (+49) (0) 7942 - 945 - 400Geprüft / checked Kontrolliert / approvedÄnderung / modificationWürth Elektronik eiSos GmbH & Co. KGVersion 2................................................................................................................................................Version 1Datum / dateUnterschrift / signature Version 4Würth ElektronikVersion 3....................................................................................................................................................................Version 5Freigabe erteilt / general release:Kunde / customerSPEICHERDROSSEL WE-HCI POWER-CHOKE WE-HCIThe Force for tearing off cover tape is 20 to 70 grams in arrow direction150°feeding directionThis electronic component has been designed and developed for usage in general electronic equipment. Before incorporating this component into any equipment where higher safety and reliability is especially required or if there is the possibility of direct damage or injury to human body, for example in the range of aerospace, aviation, nuclear control, submarine, transportation, (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc, Würth Elektronik eiSos GmbH must be informed before the design-in stage. In addition, sufficient reliability evaluation checks for safety must be performed on every electronic component which is used in electrical circuits that require high safety and reliability functions or performance.分销商库存信息: WURTH-ELECTRONICS 7443552430。

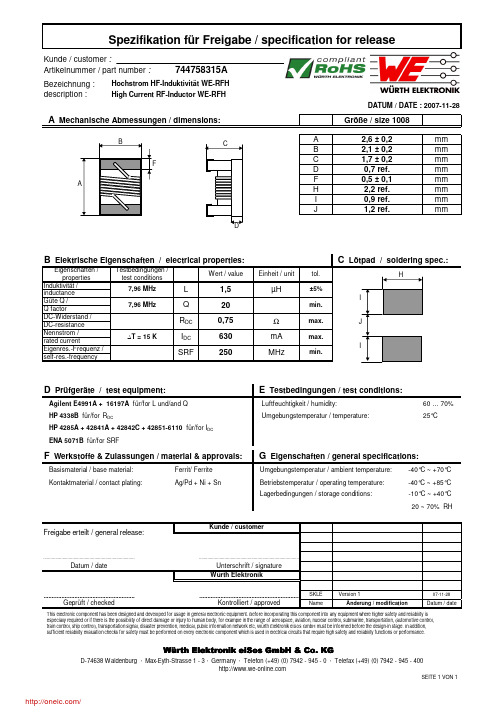

Bezeichnung :description :Größe / size 1008A 2,5 ± 0,2mmB 2,0 ± 0,2mmC 1,6 ± 0,2mmD 0,5 ref.mm F 0,5 ± 0,1mm H 2,2mm I 0,9mm J1,2mm60 70%25°CFerrit/ ferrite SkleVersion 207-01-17AWeVersion 104-10-11Name Änderung / modificationDatum / dateWürth ElektronikENA 5071B für/for SRFD Prüfgeräte / test equipment:Agilent 4287A + HP 16193A für/for L und/and Q HP 4338B für/for R DCHP 4285A + 42841A + 42842C + 42851-6110 für/for I DC Lagerbedingungen / storage conditions: -10°C ~ + 40°C 30 ~ 70% RHF Werkstoffe & Zulassungen / material & approvals:A Mechanische Abmessungen / dimensions:Kunde / customerFerrite-SMD-Inductor WE-RFID-74638 Waldenburg · Max-Eyth-Strasse 1 - 3 · Germany · Telefon (+49) (0) 7942 - 945 - 0 · Telefax (+49) (0) 7942 - 945 - 400Geprüft / checked Betriebstemperatur / operating temperature: -40°C ~ +85°C Kunde / customerFreigabe erteilt / general release:..........................................................................................................................................................................................................DATUM / DATE : 2007-01-17Datum / date..............................................................................Unterschrift / signature Kontrolliert / approvedWürth Elektronik eiSos GmbH & Co. KGKontaktmaterial / contact plating:Ag/Pd + Ni + SnBasismaterial / base material: E Testbedingungen / test conditions:Umgebungstemperatur / ambient temperature: -40°C ~ + 70°C Luftfeuchtigkeit / humidity:Umgebungstemperatur / temperature:G Eigenschaften / general specifications:This electronic component has been designed and developed for usage in general electronic equipment. Before incorporating this component into any equipment where higher safety and reliability is especially required or if there is the possibility of direct damage or injury to human body, for example in the range of aerospace, aviation, nuclear control, submarine,transportation, (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc, Würth Elektronik eiSos GmbH must be informed before the design-in stage. In addition, sufficient reliability evaluation checks for safety must be performed on every electronic component which is used in electrical circuits that require high safety and reliability functions or performance.SEITE 1 VON 1/分销商库存信息: WURTH-ELECTRONICS 744762382A。

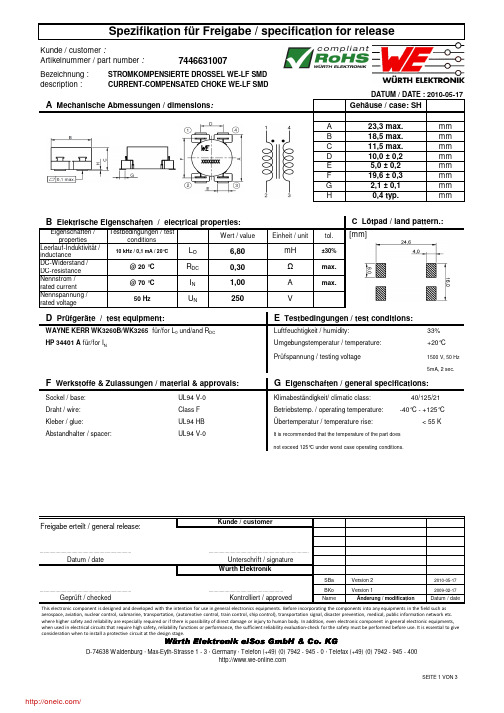

description :Gehäuse / case: SHA 23,3 max.mmB 18,5 max.mmC 11,5 max.mmD 10,0 ± 0,2mmE 5,0 ± 0,2mmF 19,6 ± 0,3mmG 2,1 ± 0,1mm H0,4 typ.mmEigenschaften / propertiesWert / valueEinheit / unittol.Leerlauf-Induktivität /inductanceDC-Widerstand /DC-resistance Nennstrom /rated current Nennspannung /rated voltage33%+20°CPrüfspannung / testing voltage1500 V, 50 Hz 5mA, 2 sec.SBaVersion 22010-05-17BKo Version 12009-02-17NameÄnderung / modificationDatum / dateÜbertemperatur / temperature rise: < 55 KKlimabeständigkeit/ climatic class: 40/125/21.............................................................Datum / dateCURRENT-COMPENSATED CHOKE WE-LF SMDmH R DC WAYNE KERR WK3260B/WK3265für/for L 0 und/and R DC U NI N Luftfeuchtigkeit / humidity:Class F Betriebstemp. / operating temperature: -40°C - +125°C HP 34401 A für/for I N...............................................................................1,00max.0,30±30%B Elektrische Eigenschaften / electrical properties:25050 HzUnterschrift / signatureKontrolliert / approvedWürth Elektronik.................................................................................................................................................................DATUM / DATE : 2010-05-17max.A Testbedingungen / testconditionsVΩA Mechanische Abmessungen / dimensions :10 kHz / 0,1 mA / 20°CC Lötpad / land pattern.:Umgebungstemperatur / temperature:L O 6,80D Prüfgeräte / test equipment:E Testbedingungen / test conditions:@ 20 °C @ 70 °C UL94 HB It is recommended that the temperature of the part does not exceed 125°C under worst case operating conditions.G Eigenschaften / general specifications:Sockel / base:Draht / wire:UL94 V-0F Werkstoffe & Zulassungen / material & approvals:Kleber / glue:Freigabe erteilt / general release:Kunde / customerAbstandhalter / spacer:UL94 V-0Würth Elektronik eiSos GmbH & Co. KGGeprüft / checked This electronic component is designed and developed with the intention for use in general electronics equipments. Before incorporating the components into any equipments in the field such as aerospace, aviation, nuclear control, submarine, transportation, (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc. where higher safety and reliability are especially required or if there is possibility of direct damage or injury to human body.In addition, even electronic component in general electronic equipments, when used in electrical circuits that require high safety, reliability functions or performance, the sufficient reliability evaluation-check for the safety must be performed before use. It is essential to give consideration when to install a protective circuit at the design stage.[mm]description :SBaVersion 22010-05-17BKoVersion 12009-02-17NameÄnderung / modificationDatum / dateH Einfügungsdämpfung / insertion loss:Freigabe erteilt / general release:Geprüft / checked Kontrolliert / approvedDatum / dateWürth ElektronikWürth Elektronik eiSos GmbH & Co. KG.................................................................................................................................................................CURRENT-COMPENSATED CHOKE WE-LF SMDDATUM / DATE : 2010-05-17Unterschrift / signature ............................................................................................................................................Kunde / customer01020304050600,010,1110E i n f üg u n g s d äm p f u n g / i n s e r t i o n l o s s [d B ]Frequenz / frequency [MHz]typischer Dämpfungsverlauf / typical attenuation curveThis electronic component is designed and developed with the intention for use in general electronics equipments. Before incorporating the components into any equipments in the field such as aerospace, aviation, nuclear control, submarine, transportation, (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc. where higher safety and reliability are especially required or if there is possibility of direct damage or injury to human body.In addition, even electronic component in general electronic equipments, when used in electrical circuits that require high safety, reliability functions or performance, the sufficient reliability evaluation-check for the safety must be performed before use. It is essential to give consideration when to install a protective circuit at the design stage.description :Gurtspezifikation / Tape specification:A24mmB4mmC44mma330 ± 2,0mmb21 ± 0,8mmc13 ± 0,5mmd150 ±1,0mme48,4mmf44mm165 to 180°SBa Version 22010-05-17BKo Version 12009-02-17NameÄnderung / modification Datum / date Datum / date Unterschrift / signatureWürth Elektronik.............................................................Geprüft / checked Kontrolliert / approvedWürth Elektronik eiSos GmbH & Co. KGI Rollenspezifikation / tape and reel specification:Rollenspezifikation / Reel specification: Freigabe erteilt / general release:Kunde / customer..................................................................................CURRENT-COMPENSATED CHOKE WE-LF SMDDATUM / DATE : 2010-05-17............................................................................... ...............................................................................The force for tearing off cover tape is10 to 130 grams in arrow directionfeeding directionØ ca b dA BefCThis electronic component is designed and developed with the intention for use in general electronics equipments. Before incorporating the components into any equipments in the field such as aerospace, aviation, nuclear control, submarine, transportation, (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc. where higher safety and reliability are especially required or if there is possibility of direct damage or injury to human body.In addition, even electronic component in general electronic equipments, when used in electrical circuits that require high safety, reliability functions or performance, the sufficient reliability evaluation-check for the safety must be performed before use. It is essential to give consideration when to install a protective circuit at the design stage.分销商库存信息: WURTH-ELECTRONICS 7446631007。

8.1 8.0 7.02012-07-172012-07-172004-10-11SStSStMSTSStSBaWürth Elektronik eiSos GmbH & Co. KGEMC & Inductive SolutionsMax-Eyth-Str. 174638 WaldenburgGermanyTel. +49 (0) 79 42 945 - 0A Dimensions: [mm]F Typical Impedance Characteristics:H1: Classification Reflow Profile for SMT components:H2: Classification Reflow ProfilesProfile FeaturePreheat- Temperature Min (T smin ) - Temperature Max (T smax ) - Time (t s ) from (T smin to T smax )Ramp-up rate (T L to T P )Liquidous temperature (T L )Time (t L ) maintained above T L Peak package body temperature (T p )Time within 5°C of actual peak temperature (t p )Ramp-down rate (T P to T L )Time 25°C to peak temperature Pb-Free Assembly 150°C 200°C60-180 seconds 3°C/ second max.217°C60-150 seconds See Table H320-30 seconds 6°C/ second max.8 minutes max.refer to IPC/JEDEC J-STD-020DH3: Package Classification Reflow TemperaturePB-Free Assembly PB-Free Assembly PB-Free Assembly Package Thickness< 1.6 mm 1.6 - 2.5 mm ≥ 2.5 mmVolume mm³<350260°C 260°C 250°CVolume mm³350 - 2000260°C 250°C 245°CVolume mm³>2000260°C 245°C 245°Crefer to IPC/JEDEC J-STD-020DH Soldering Specifications:I Cautions and Warnings:The following conditions apply to all goods within the product series of WE-SL2of Würth Elektronik eiSos GmbH & Co. KG:General:All recommendations according to the general technical specifications of the data sheet have to be complied with.The disposal and operation of the product within ambient conditions which probably alloy or harm the wire isolation has to be avoided.If the product is potted in customer applications, the potting material might shrink during and after hardening. Accordingly to this the product is exposed to the pressure of the potting material with the effect that the core, wire and termination is possibly damaged by this pressure and so the electrical as well as the mechanical characteristics are endanger to be affected. After the potting material is cured, the core, wire and termination of the product have to be checked if any reduced electrical or mechanical functions or destructions have occurred.The responsibility for the applicability of customer specific products and use in a particular customer design is always within the authority of the customer. All technical specifications for standard products do also apply for customer specific products.Cleaning solvents which are used to clean the application might damage or change the characteristics of the component.Direct mechanical impact to the product shall be prevented as the ferrite material of the core could flake or in the worst case it could break. Product specific:Follow all instructions mentioned in the datasheet, especially:•The soldering profile has to be complied with according to the technical reflow soldering specification, otherwise no warranty will be su-stained.•All products are supposed to be used before the end of the period of 12 months based on the transfer of title, if not a 100% solderability can´t be warranted.•Violation of the technical product specifications such as exceeding the nominal rated current will result in the loss of warranty.1. General Customer ResponsibilitySome goods within the product range of Würth Elektronik eiSos GmbH & Co. KG contain statements regarding general suitability for certain application areas. These statements about suitability are based on our knowledge and experience of typical requirements concerning the are-as, serve as general guidance and cannot be estimated as binding statements about the suitability for a customer application. The responsibi-lity for the applicability and use in a particular customer design is always solely within the authority of the customer. Due to this fact it is up to the customer to evaluate, where appropriate to investigate and decide whether the device with the specific product characteristics described in the product specification is valid and suitable for the respective customer application or not.2. Customer Responsibility related to Specific, in particular Safety-Relevant ApplicationsIt has to be clearly pointed out that the possibility of a malfunction of electronic components or failure before the end of the usual lifetime can-not be completely eliminated in the current state of the art, even if the products are operated within the range of the specifications.In certain customer applications requiring a very high level of safety and especially in customer applications in which the malfunction or failure of an electronic component could endanger human life or health it must be ensured by most advanced technological aid of suitable design of the customer application that no injury or damage is caused to third parties in the event of malfunction or failure of an electronic component.3. Best Care and AttentionAny product-specific notes, warnings and cautions must be strictly observed.4. Customer Support for Product SpecificationsSome products within the product range may contain substances which are subject to restrictions in certain jurisdictions in order to serve spe-cific technical requirements. Necessary information is available on request. In this case the field sales engineer or the internal sales person in charge should be contacted who will be happy to support in this matter.5. Product R&DDue to constant product improvement product specifications may change from time to time. As a standard reporting procedure of the Product Change Notification (PCN) according to the JEDEC-Standard inform about minor and major changes. In case of further queries regarding the PCN, the field sales engineer or the internal sales person in charge should be contacted. The basic responsibility of the customer as per Secti-on 1 and 2 remains unaffected.6. Product Life CycleDue to technical progress and economical evaluation we also reserve the right to discontinue production and delivery of products. As a stan-dard reporting procedure of the Product Termination Notification (PTN) according to the JEDEC-Standard we will inform at an early stage about inevitable product discontinuance. According to this we cannot guarantee that all products within our product range will always be available. Therefore it needs to be verified with the field sales engineer or the internal sales person in charge about the current product availability ex-pectancy before or when the product for application design-in disposal is considered.The approach named above does not apply in the case of individual agreements deviating from the foregoing for customer-specific products.7. Property RightsAll the rights for contractual products produced by Würth Elektronik eiSos GmbH & Co. KG on the basis of ideas, development contracts as well as models or templates that are subject to copyright, patent or commercial protection supplied to the customer will remain with Würth Elektronik eiSos GmbH & Co. KG.8. General Terms and ConditionsUnless otherwise agreed in individual contracts, all orders are subject to the current version of the “General Terms and Conditions of Würth Elektronik eiSos Group”, last version available at .J Important Notes:The following conditions apply to all goods within the product range of Würth Elektronik eiSos GmbH & Co. KG:分销商库存信息: WURTH-ELECTRONICS 744225S。

Bezeichnung :description :Größe / size 1008A 2,6 ± 0,2mmB 2,1 ± 0,2mmC 1,7 ± 0,2mmD 0,7 ref.mm F 0,5 ± 0,1mm H 2,2 ref.mm I 0,9 ref.mm J1,2 ref.mm60 … 70%25°CFerrit/ Ferrite SKLEVersion 107-11-28Name Änderung / modificationDatum / dateUmgebungstemperatur / ambient temperature: -40°C ~ +70°C Luftfeuchtigkeit / humidity:Umgebungstemperatur / temperature:G Eigenschaften / general specifications:Basismaterial / base material: E Testbedingungen / test conditions:Kontaktmaterial / contact plating:Ag/Pd + Ni + SnSpezifikation für Freigabe / specification for releaseDATUM / DATE : 2007-11-28Datum / date...............................................................................Unterschrift / signature Kontrolliert / approvedWürth Elektronik eiSos GmbH & Co. KGD-74638 Waldenburg · Max-Eyth-Strasse 1 - 3 · Germany · Telefon (+49) (0) 7942 - 945 - 0 · Telefax (+49) (0) 7942 - 945 - 400Geprüft / checked Betriebstemperatur / operating temperature: -40°C ~ +85°C Kunde / customerFreigabe erteilt / general release:...............................................................................................................................................................................................................Kunde / customerHigh Current RF-Inductor WE-RFHA Mechanische Abmessungen / dimensions:Würth ElektronikENA 5071B für/for SRFD Prüfgeräte / test equipment:Agilent E4991A + 16197A für/for L und/and Q HP 4338B für/for R DCHP 4285A + 42841A + 42842C + 42851-6110 für/for I DC Lagerbedingungen / storage conditions: -10°C ~ +40°C 20 ~ 70% RHF Werkstoffe & Zulassungen / material & approvals:This electronic component has been designed and developed for usage in general electronic equipment. Before incorporating this component into any equipment where higher safety and reliability is especially required or if there is the possibility of direct damage or injury to human body, for example in the range of aerospace, aviation, nuclear control, submarine, transportation, (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc, Würth Elektronik eiSos GmbH must be informed before the design-in stage. In addition, sufficient reliability evaluation checks for safety must be performed on every electronic component which is used in electrical circuits that require high safety and reliability functions or performance.SEITE 1 VON 1/分销商库存信息: WURTH-ELECTRONICS 744758315A。

PACKAG PACKAGING INFORMATIONOrderable Device Status (1)Package Type PackageDrawing Pins Package Qty Eco Plan (2)Lead/Ball FinishMSL PeaSN5445J ACTIVE CDIP J161TBD A42N / A for PkgSN7445N ACTIVE PDIP N1625Pb-Free (RoHS)CU NIPDAU N / A for PkgSN7445N ACTIVE PDIP N1625Pb-Free (RoHS)CU NIPDAU N / A for PkgSN7445N3OBSOLETE PDIP N16TBD Call TI Call TISN7445N3OBSOLETE PDIP N16TBD Call TI Call TISN7445NE4ACTIVE PDIP N1625Pb-Free (RoHS)CU NIPDAU N / A for PkgSN7445NE4ACTIVE PDIP N1625Pb-Free (RoHS)CU NIPDAU N / A for PkgSNJ5445J ACTIVE CDIP J161TBD A42N / A for PkgSNJ5445J ACTIVE CDIP J161TBD A42N / A for PkgSNJ5445W ACTIVE CFP W161TBD A42N / A for PkgSNJ5445W ACTIVE CFP W161TBD A42N / A for Pkg(1) The marketing status values are defined as follows:ACTIVE: Product device recommended for new designs.LIFEBUY: TI has announced that the device will be discontinued, and a lifetime-buy period is in effect.NRND: Not recommended for new designs. Device is in production to support existing customers, but TI does not recommend using this part in a new PREVIEW: Device has been announced but is not in production. Samples may or may not be available.OBSOLETE: TI has discontinued the production of the device.(2) Eco Plan - The planned eco-friendly classification: Pb-Free (RoHS), Pb-Free (RoHS Exempt), or Green (RoHS & no Sb/Br) - please check http://www.tinformation and additional product content details.TBD: The Pb-Free/Green conversion plan has not been defined.Pb-Free (RoHS): TI's terms "Lead-Free" or "Pb-Free" mean semiconductor products that are compatible with the current RoHS requirements for all lead not exceed 0.1% by weight in homogeneous materials. Where designed to be soldered at high temperatures, TI Pb-Free products are suitable fo Pb-Free (RoHS Exempt): This component has a RoHS exemption for either 1) lead-based flip-chip solder bumps used between the die and package, the die and leadframe. The component is otherwise considered Pb-Free (RoHS compatible) as defined above.Green (RoHS & no Sb/Br): TI defines "Green" to mean Pb-Free (RoHS compatible), and free of Bromine (Br) and Antimony (Sb) based flame retard in homogeneous material)(3) MSL, Peak Temp. -- The Moisture Sensitivity Level rating according to the JEDEC industry standard classifications, and peak solder temperature.Important Information and Disclaimer:The information provided on this page represents TI's knowledge and belief as of the date that it is provided. TI provided by third parties, and makes no representation or warranty as to the accuracy of such information. Efforts are underway to better integrate inf continues to take reasonable steps to provide representative and accurate information but may not have conducted destructive testing or chemical an TI and TI suppliers consider certain information to be proprietary, and thus CAS numbers and other limited information may not be available for releas //PACKAG Array In no event shall TI's liability arising out of such information exceed the total purchase price of the TI part(s) at issue in this document sold by TI to CuOTHER QUALIFIED VERSIONS OF SN5445, SN7445 :•Catalog: SN7445•Military: SN5445NOTE: Qualified Version Definitions:•Catalog - TI's standard catalog product•Military - QML certified for Military and Defense ApplicationsIMPORTANT NOTICETexas Instruments Incorporated and its subsidiaries(TI)reserve the right to make corrections,modifications,enhancements,improvements, and other changes to its products and services at any time and to discontinue any product or service without notice.Customers should obtain the latest relevant information before placing orders and should verify that such information is current and complete.All products are sold subject to TI’s terms and conditions of sale supplied at the time of order acknowledgment.TI warrants performance of its hardware products to the specifications applicable at the time of sale in accordance with TI’s standard warranty.Testing and other quality control techniques are used to the extent TI deems necessary to support this warranty.Except where mandated by government requirements,testing of all parameters of each product is not necessarily performed.TI assumes no liability for applications assistance or customer product design.Customers are responsible for their products and applications using TI components.To minimize the risks associated with customer products and applications,customers should provide adequate design and operating safeguards.TI does not warrant or represent that any license,either express or implied,is granted under any TI patent right,copyright,mask work right, or other TI intellectual property right relating to any combination,machine,or process in which TI products or services are rmation published by TI regarding third-party products or services does not constitute a license from TI to use such products or services or a warranty or endorsement e of such information may require a license from a third party under the patents or other intellectual property of the third party,or a license from TI under the patents or other intellectual property of TI.Reproduction of TI information in TI data books or data sheets is permissible only if reproduction is without alteration and is accompanied by all associated warranties,conditions,limitations,and notices.Reproduction of this information with alteration is an unfair and deceptive business practice.TI is not responsible or liable for such altered rmation of third parties may be subject to additional restrictions.Resale of TI products or services with statements different from or beyond the parameters stated by TI for that product or service voids all express and any implied warranties for the associated TI product or service and is an unfair and deceptive business practice.TI is not responsible or liable for any such statements.TI products are not authorized for use in safety-critical applications(such as life support)where a failure of the TI product would reasonably be expected to cause severe personal injury or death,unless officers of the parties have executed an agreement specifically governing such use.Buyers represent that they have all necessary expertise in the safety and regulatory ramifications of their applications,and acknowledge and agree that they are solely responsible for all legal,regulatory and safety-related requirements concerning their products and any use of TI products in such safety-critical applications,notwithstanding any applications-related information or support that may be provided by TI.Further,Buyers must fully indemnify TI and its representatives against any damages arising out of the use of TI products in such safety-critical applications.TI products are neither designed nor intended for use in military/aerospace applications or environments unless the TI products are specifically designated by TI as military-grade or"enhanced plastic."Only products designated by TI as military-grade meet military specifications.Buyers acknowledge and agree that any such use of TI products which TI has not designated as military-grade is solely at the Buyer's risk,and that they are solely responsible for compliance with all legal and regulatory requirements in connection with such use. TI products are neither designed nor intended for use in automotive applications or environments unless the specific TI products are designated by TI as compliant with ISO/TS16949requirements.Buyers acknowledge and agree that,if they use any non-designated products in automotive applications,TI will not be responsible for any failure to meet such requirements.Following are URLs where you can obtain information on other Texas Instruments products and application solutions:Products ApplicationsAudio /audio Communications and Telecom /communicationsAmplifiers Computers and Peripherals /computersData Converters Consumer Electronics /consumer-appsDLP®Products Energy and Lighting /energyDSP Industrial /industrialClocks and Timers /clocks Medical /medicalInterface Security /securityLogic Space,Avionics and Defense /space-avionics-defense Power Mgmt Transportation and Automotive /automotiveMicrocontrollers Video and Imaging /videoRFID OMAP Mobile Processors /omapWireless Connctivity /wirelessconnectivityTI E2E Community Home Page Mailing Address:Texas Instruments,Post Office Box655303,Dallas,Texas75265Copyright©2011,Texas Instruments Incorporated分销商库存信息:TISN7445N SN7445NE4SN7445NSR SN7445NSRE4SN7445NSRG4。

Bezeichnung : description :Gehäuse / case: UTA17,00 max mmB11,00 max mmC17,00 max mmD8,00 ± 0,2mmE7,00 ± 0,2mmF4,00 max mmG0,60 typ mm Eigenschaften /propertiesWert / value Einheit / unit tol.Induktivität /inductanceDC-Widerstand /DC-resistanceNennstrom /rated currentNennspannung /rated voltage33%20°C2000V, 50HzMKe Version 0112.12.2010NameÄnderung / modification Datum / dateUnterschrift / signatureKontrolliert / approvedWürth Elektronik eiSos GmbH & Co. KGD Prüfgeräte / test equipment:E Testbedingungen / test conditions:V AC max.Prüfspannung / insulation test voltage: WAYNE KERR WK3260B/WK3265 für / for L0 und / and R DCKlimabeständigkeit/ climatic class: 40/125/21Datum / date ................................................................................D-74638 Waldenburg · Max-Eyth-Strasse 1 - 3 · Germany · Telefon (+49) (0) 7942 - 945 - 0 · Telefax (+49) (0) 7942 - 945 - 400 Geprüft / checked .............................................................................................................................................Kern / core:Luftfeuchtigkeit / humidity:HP 34401 A für / for I RA Mechanische Abmessungen / mechanical dimensions:10 kHz / 100 mV / 20°CB Elektrische Eigenschaften / electrical properties:25050 Hz U RI RDATUM / DATE : 2010-12-12max.ATestbedingungen /test conditions0,25max.3,60+50 / -30%C Schaltbild / schematic:mHR DCL O25,00@ 20 °C@ 70 °CSTROMKOMPENSIERTE DROSSEL WE-TFCCURRENT-COMPENSATED CHOKE WE-TFCUmgebungstemperatur / ambient temperature:Würth Elektronik..................................................................................G Eigenschaften / general specifications:Gehäuse / case:Freigabe erteilt / general releaseKunde / customerDraht / wire:UL94V-0F Werkstoffe & Zulassungen / material & approvals:MnZn-Ferrite / MnZn ferriteIt is recommended that the temperature of the part doesnot exceed 125°C under worst case operating conditions.Polysol 155-N Betriebstemp. / operating temperature: -40°C - +125°CÜbertemperatur / temperature rise: < 55K12N134N2MKe Version 0112.12.2010NameÄnderung / modificationDatum / dateWürth Elektronik eiSos GmbH & Co. KGD-74638 Waldenburg · Max-Eyth-Strasse 1 - 3 · Germany · Telefon (+49) (0) 7942 - 945 - 0 · Telefax (+49) (0) 7942 - 945 - 400H Einfügedämpfung / insertion loss:Geprüft / checked Kontrolliert / approvedGeprüft / checked Kontrolliert / approved Datum / date ..................................................................................Common ModeDifferential Mode0102030405060700,010,1110100E i n f üg u n g s d äm p f u n g / i n s e r t i o n l o s s [d B ]Frequenz / frequency [MHz]10203040506070800,010,1110100E i n f üg e d äm p f u n g / i n s e r t i o n l o s s [d B ]Frequenz / frequency [MHz]Typische Einfügedämpfung / typical insertion lossCommon modeDifferential modeThis electronic component has been designed and developed for usage in general electronic equipment. Before incorporating thi s component into any equipment where higher safety and reliability is especially required or if there is the possibility of direct damage or injury to human body, for example in the range of aero space, aviation, nuclear control, submarine, transportation, (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc, W ürth Elektronik eiSos GmbH must be informed before the design-in stage. In addition, sufficient reliability evaluation checks for safety must be performed on every electronic component which is used i n electrical circuits that require high safety and reliability functions or performance.分销商库存信息: WURTH-ELECTRONICS 744862250。
