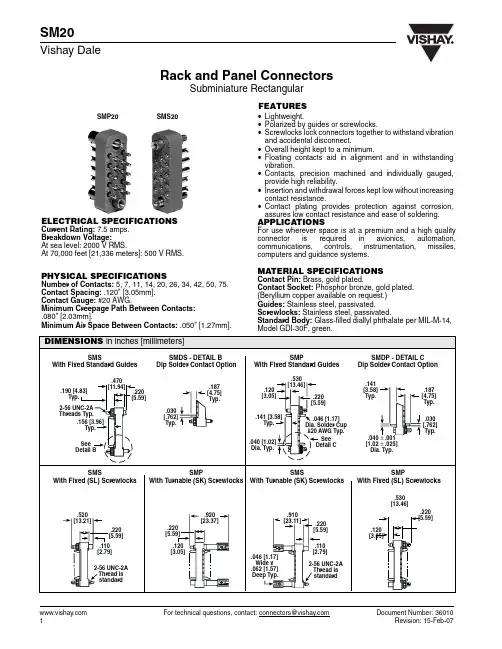

Rack and Panel ConnectorsSubminiature Rectangular For technical questions, contact: connectors@Document Number: 36010SM20Vishay DaleFEATURES•Lightweight.•Polarized by guides or screwlocks.•Screwlocks lock connectors together to withstand vibration and accidental disconnect.•Overall height kept to a minimum.•Floating contacts aid in alignment and in withstanding vibration.•Contacts, precision machined and individually gauged,provide high reliability.•Insertion and withdrawal forces kept low without increasing contact resistance.•Contact plating provides protection against corrosion,assures low contact resistance and ease of soldering.SMP20SMS20ELECTRICAL SPECIFICATIONSCurrent Rating: 7.5 amps.Breakdown Voltage:At sea level: 2000 V RMS.At 70,000 feet [21,336 meters]: 500 V RMS.PHYSICAL SPECIFICATIONSNumber of Contacts: 5, 7, 11, 14, 20, 26, 34, 42, 50, 75.Contact Spacing: .120" [3.05mm].Contact Gauge: #20 AWG.Minimum Creepage Path Between Contacts:.080" [2.03mm].Minimum Air Space Between Contacts: .050" [1.27mm].APPLICATIONSFor use wherever space is at a premium and a high quality connector is required in avionics, automation,communications, controls, instrumentation, missiles,computers and guidance systems.MATERIAL SPECIFICATIONSContact Pin: Brass, gold plated.Contact Socket: Phosphor bronze, gold plated.(Beryllium copper available on request.)Guides: Stainless steel, passivated.Screwlocks: Stainless steel, passivated.Standard Body: Glass-filled diallyl phthalate per MIL-M-14,Model GDI-30F, green.SM20Vishay DaleDocument Number: 36010For technical questions, contact: connectors@ For technical questions, contact: connectors@Document Number: 36010SM20Vishay DaleVishay DaleDocument Number: 36010For technical questions, contact: connectors@ Disclaimer Legal Disclaimer NoticeVishayAll product specifications and data are subject to change without notice.Vishay Intertechnology, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively, “Vishay”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained herein or in any other disclosure relating to any product.Vishay disclaims any and all liability arising out of the use or application of any product described herein or of any information provided herein to the maximum extent permitted by law. The product specifications do not expand or otherwise modify Vishay’s terms and conditions of purchase, including but not limited to the warranty expressed therein, which apply to these products.No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document or by any conduct of Vishay.The products shown herein are not designed for use in medical, life-saving, or life-sustaining applications unless otherwise expressly indicated. Customers using or selling Vishay products not expressly indicated for use in such applications do so entirely at their own risk and agree to fully indemnify Vishay for any damages arising or resulting from such use or sale. Please contact authorized Vishay personnel to obtain written terms and conditions regarding products designed for such applications.Product names and markings noted herein may be trademarks of their respective owners.元器件交易网。

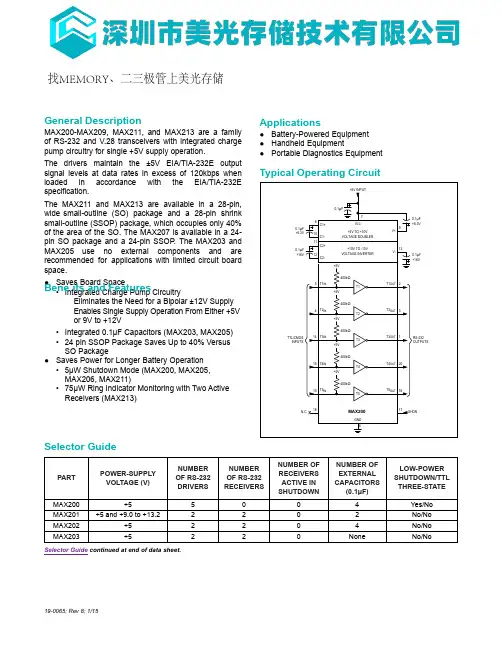

●Saves Board Space •Integrated Charge Pump CircuitryEliminates the Need for a Bipolar ±12V SupplyEnables Single Supply Operation From Either +5Vor 9V to +12V•Integrated 0.1μF Capacitors (MAX203, MAX205)•24 pin SSOP Package Saves Up to 40% VersusSO Package●Saves Power for Longer Battery Operation•5μW Shutdown Mode (MAX200, MAX205,MAX206, MAX211)•75μW Ring Indicator Monitoring with Two ActiveReceivers (MAX213)Applications ●Battery-Powered Equipment ●Handheld Equipment ●Portable Diagnostics Equipment Selector Guide continued at end of data sheet.19-0065; Rev 8; 1/15PART POWER-SUPPLYVOLTAGE (V)NUMBER OF RS-232 DRIVERS NUMBER OF RS-232 RECEIVERS NUMBER OF RECEIVERS ACTIVE IN SHUTDOWN NUMBER OF EXTERNAL CAPACITORS (0.1μF)LOW-POWER SHUTDOWN/TTL THREE-STATE MAX200+55004Yes/No MAX201+5 and +9.0 to +13.22202No/No MAX202+52204No/No MAX203+5220None No/No General DescriptionMAX200-MAX209, MAX211, and MAX213 are a family of RS-232 and V.28 transceivers with integrated charge pump circuitry for single +5V supply operation.The drivers maintain the ±5V EIA/TIA-232E output signal levels at data rates in excess of 120kbps when loaded in accordance with the EIA/TIA-232E specification.The MAX211 and MAX213 are available in a 28-pin, wide small-outline (SO) package and a 28-pin shrink small-outline (SSOP) package, which occupies only 40% of the area of the SO. The MAX207 is available in a 24-pin SO package and a 24-pin SSOP . The MAX203 and MAX205 use no external components and are recommended for applications with limited circuit board space.Bene its and FeaturesSelector GuideTypical Operating Circuit 找MEMORY、二三极管上美光存储MAX200–MAX209/ MAX211/MAX213+5V, RS-232 Transceivers with 0.1μF External CapacitorsIntegrated │9MAX200 Pin Configuration/Typical Operating Circuit。
