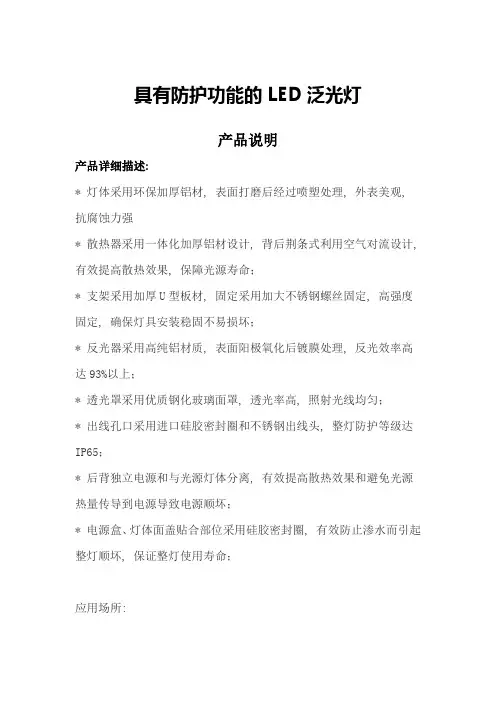

具有防护功能的LED泛光灯
产品说明
产品详细描述:
* 灯体采用环保加厚铝材, 表面打磨后经过喷塑处理, 外表美观, 抗腐蚀力强
* 散热器采用一体化加厚铝材设计, 背后荆条式利用空气对流设计, 有效提高散热效果, 保障光源寿命；
* 支架采用加厚U型板材, 固定采用加大不锈钢螺丝固定, 高强度固定, 确保灯具安装稳固不易损坏；
* 反光器采用高纯铝材质, 表面阳极氧化后镀膜处理, 反光效率高达93%以上；
* 透光罩采用优质钢化玻璃面罩, 透光率高, 照射光线均匀；
* 出线孔口采用进口硅胶密封圈和不锈钢出线头, 整灯防护等级达IP65；
* 后背独立电源和与光源灯体分离, 有效提高散热效果和避免光源热量传导到电源导致电源顺坏；
* 电源盒、灯体面盖贴合部位采用硅胶密封圈, 有效防止渗水而引起整灯顺坏, 保证整灯使用寿命；
应用场所:
广场照明、机场、码头、车站中杆灯、高杆灯照明、体育场照明、广告招牌、十字路口照明、公园景观照明等。
产品展示:。
