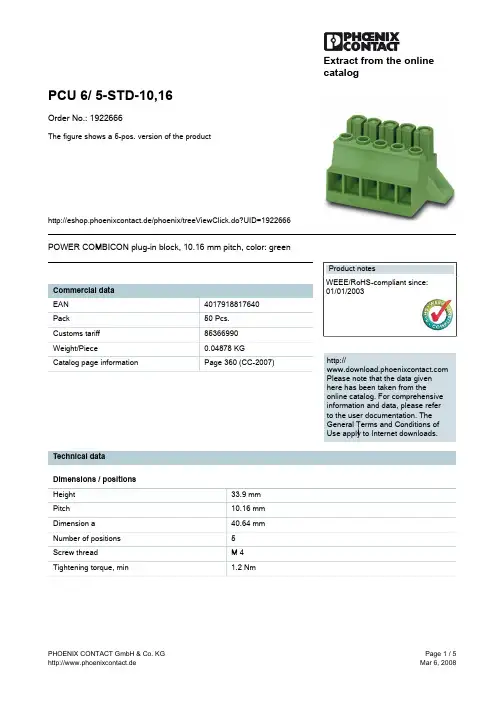

PHOENIX CONTACT GmbH & Co. KGPage 1 / 5http://www.phoenixcontact.de

Mar 6, 2008Extract from the onlinecatalog PCU 6/ 5-STD-10,16Order No.: 1922666The figure shows a 5-pos. version of the producthttp://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1922666 POWER COMBICON plug-in block, 10.16 mm pitch, color: green Commercial dataEAN4017918817640Pack50 Pcs.Customs tariff85366990Weight/Piece0.04878 KGCatalog page informationPage 360 (CC-2007)Product notesWEEE/RoHS-compliant since:01/01/2003http://www.download.phoenixcontact.comPlease note that the data givenhere has been taken from theonline catalog. For comprehensiveinformation and data, please referto the user documentation. TheGeneral Terms and Conditions ofUse apply to Internet downloads.Technical dataDimensions / positionsHeight33.9 mmPitch10.16 mmDimension a40.64 mmNumber of positions5Screw threadM 4Tightening torque, min1.2 Nm元器件交易网www.cecb2b.comPCU 6/ 5-STD-10,16Order No.: 1922666http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1922666

PHOENIX CONTACT GmbH & Co. KGPage 2 / 5http://www.phoenixcontact.deMar 6, 2008Technical dataInsulating material groupIRated surge voltage (III/3)8 kVRated surge voltage (III/2)8 kVRated surge voltage (II/2)8 kVRated voltage (III/2)1000 VRated voltage (II/2)1000 VConnection in acc. with standardEN-VDENominal current IN41 ANominal voltage UN1000 VNominal cross section6 mm2Insulating materialPAInflammability class acc. to UL 94V0Internal cylindrical gageA5Stripping length12 mmConnection dataConductor cross section solid min.0.5 mm2Conductor cross section solid max.10 mm2Conductor cross section stranded min.0.5 mm2Conductor cross section stranded max.6 mm2Conductor cross section stranded, with ferrulewithout plastic sleeve min.0.5 mm2Conductor cross section stranded, with ferrulewithout plastic sleeve max.6 mm2Conductor cross section stranded, with ferrulewith plastic sleeve min.0.5 mm2Conductor cross section stranded, with ferrulewith plastic sleeve max.6 mm22 conductors with same cross section, solid min.0.5 mm22 conductors with same cross section, solid max.6 mm22 conductors with same cross section, strandedmin.0.5 mm22 conductors with same cross section, strandedmax.6 mm22 conductors with same cross section, stranded,ferrules without plastic sleeve, min.0.5 mm2元器件交易网www.cecb2b.comPCU 6/ 5-STD-10,16Order No.: 1922666http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1922666

PHOENIX CONTACT GmbH & Co. KGPage 3 / 5http://www.phoenixcontact.deMar 6, 20082 conductors with same cross section, stranded,ferrules without plastic sleeve, max.2.5 mm22 conductors with same cross section, stranded,TWIN ferrules with plastic sleeve, min.0.5 mm22 conductors with same cross section, stranded,TWIN ferrules with plastic sleeve, max.4 mm2Conductor cross section AWG/kcmil min.20Conductor cross section AWG/kcmil max7Certificates / ApprovalsApproval logo CULNominal voltage UN600 VNominal current IN50 AAWG/kcmil20-8ULNominal voltage UN600 VNominal current IN50 AAWG/kcmil20-8CertificationCUL, GOST, ULAccessoriesItemDesignationDescriptionPlug/Adapter1600027CP-HCC 4Coding profile, is inserted into the slot on the plug and header, redinsulating materialTools1205066SZS 1,0X4,0Screwdriver, bladed, matches all screw terminal blocks with 10mm² and 16 mm² connection cross section, blade: 1.0 x 4.0 mm元器件交易网www.cecb2b.comPCU 6/ 5-STD-10,16Order No.: 1922666http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1922666

PHOENIX CONTACT GmbH & Co. KGPage 4 / 5http://www.phoenixcontact.deMar 6, 2008DrawingsDrilling diagramDiagramDimensioned drawing元器件交易网www.cecb2b.comPCU 6/ 5-STD-10,16Order No.: 1922666http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1922666

PHOENIX CONTACT GmbH & Co. KGPage 5 / 5http://www.phoenixcontact.deMar 6, 2008AddressPHOENIX CONTACT GmbH & Co. KGFlachsmarktstr. 832825 Blomberg,GermanyPhone +49 5235 3 00Fax +49 5235 3 41200http://www.phoenixcontact.de© 2008 Phoenix ContactTechnical modifications reserved;元器件交易网www.cecb2b.com
