高频功率放大器的工作原理高频功率放大器是一种电子器件，主要用于放大高频信号，并将其输出到负载上。

其工作原理基于电子管或晶体管的放大作用，在输入的高频信号上增加电压，从而实现信号放大的目的。

高频功率放大器广泛应用于无线电通信、雷达、卫星通信等领域。

最常用的高频功率放大器是基于晶体管的，其内部结构由多个不同功能的电路组成。

其中，收发信道通过变压器进行隔离，从而实现信号的单向传输。

在信号放大方面，晶体管的三个引脚分别为基极、集电极和发射极。

输入信号通过基极进入晶体管，集电极则是放大后的信号输出。

发射极则是提供功率的地方，通常在晶体管的大功率管中被找到。

高频功率放大器通常需要很高的驱动电压，它可以由直流电源提供。

晶体管的放大过程是通过电荷扩散和电场漂移来完成的。

在多数晶体管中，材料内部的电子浓度是不均匀的，因此电子在晶体中移动时会发生扩散。

此外，由于电场的存在，电子也会沿着电场方向移动，从而形成漂移的过程。

这两种运动将使得电子的浓度差异减小，最终导致电流被放大。

需要注意的是，在高频电路中，信号通常在不同的电阻、电容和电感之间进行传输，因此高频功率放大器要求不仅具有高放大倍数、低噪声等特点，还需要适应各种不同的阻抗，防止信号反射和损耗。

为了保证高频信号的传输质量，高频功率放大器通常采用多级级联的方式，以达到更高的放大倍数和更佳的工作效率。

总之，高频功率放大器是电子工程领域中极为重要的技术，其工作原理基于电子器件的放大作用。

通过不同级联和高数据速率的设计，高频功率放大器可以实现高精度的信号传输和处理，对无线电通讯、雷达、卫星通讯等领域具有举足轻重的作用。

高频功率放大器的基本原理(一)高频功率放大器的基本原理1. 什么是高频功率放大器高频功率放大器是一种用于增强高频信号幅度的电子设备。

它通常用于无线通信、雷达、高频电视和天线系统等领域。

高频功率放大器可以将低功率的高频信号放大到足够大的功率，以便传输和处理。

2. 高频功率放大器的工作原理高频功率放大器的工作原理可以简单分为三个步骤：放大输入信号、增加信号的功率和输出放大后的信号。

2.1 放大输入信号高频功率放大器的第一个任务是放大输入信号。

它通常使用晶体三极管（BJT）或场效应晶体管（FET）作为放大器的关键元件。

这些元件根据输入信号的幅度和频率变化进行放大操作。

2.2 增加信号的功率放大后的信号仍然可能是低功率的，因此高频功率放大器的下一个任务是增加信号的功率。

这一步骤通常通过使用功率放大器级联来实现。

级联多个放大器可以将信号功率从较低级别逐步增加到所需的功率级别。

2.3 输出信号在增加信号的功率之后，高频功率放大器将输出放大后的信号。

这个信号可以被用于进一步的处理或传输。

输出信号的幅度将取决于放大器的设计和配置。

3. 高频功率放大器的关键考虑因素在设计高频功率放大器时，需要考虑一些关键因素来确保性能和稳定性。

3.1 频率响应高频功率放大器应该能够在指定的频率范围内提供稳定的放大。

对于不同的应用，频率范围和响应要求会有所不同。

3.2 功率输出高频功率放大器应该能够提供足够的功率输出，以满足特定应用的需求。

功率输出的大小通常由设备和系统的要求来确定。

3.3 效率高频功率放大器的效率是指输入功率与输出功率之间的比率。

高效率的放大器能够最大限度地利用输入能量，减少能量浪费。

3.4 线性度高频功率放大器的线性度是指输出信号与输入信号之间的线性关系。

较好的线性度可以保持输入信号的准确度和完整性。

3.5 稳定性高频功率放大器的稳定性是指在各种工作条件下保持良好的性能。

它应该能够在不出现振荡或失真的情况下工作。

高频功率放大器简介
高频功率放大器，又称射频功率放大器，是一种能量转换器件，它将电源供给的直流能量转换成为高频交流输出。

高频功率放大器用于发射机的末级，作用是将高频已调波信号进行功率放大，以满足发送功率的要求，然后经过天线将其辐射到空间，保证在一定区域内的接收机可以接收到满意的信号电平，并且不干扰相邻信道的通信。

高频功率放大器是通信系统中发送装置的重要组件。

按其工作频带的宽窄划分为窄带高频功率放大器和宽带高频功率放大器两种，窄带高频功率放大器通常以具有选频滤波作用的选频电路作为输出回路，故又称为调谐功率放大器或谐振功率放大器；宽带高频功率放大器的输出电路则是传输线变压器或其他宽带匹配电路，因此又称为非调谐功率放大器。

高频功率放大器大多工作于丙类。

但丙类放大器的电流波形失真太大，因而只能用于采用调谐回路作为负载的谐振功率放大。

由于调谐回路具有滤波能力，回路电流与电压仍然极近于正弦波形，失真很小。

一、高频放大器的特点
1. 采用谐振网络作负载。

2. 一般工作在丙类或乙类状态。

3. 工作频率和相对通频带相差很大。

4. 技术指标要求输出功率大、效率高。

二、高频功率放大器的技术指标
主要技术指标有：输出功率、效率、功率增益、带宽和谐波抑制度（或信号失真度）等。

这几项指标要求是互相矛盾的，在设计放大器时应根据具体要求，突出一些指标，兼顾其他一些指标。

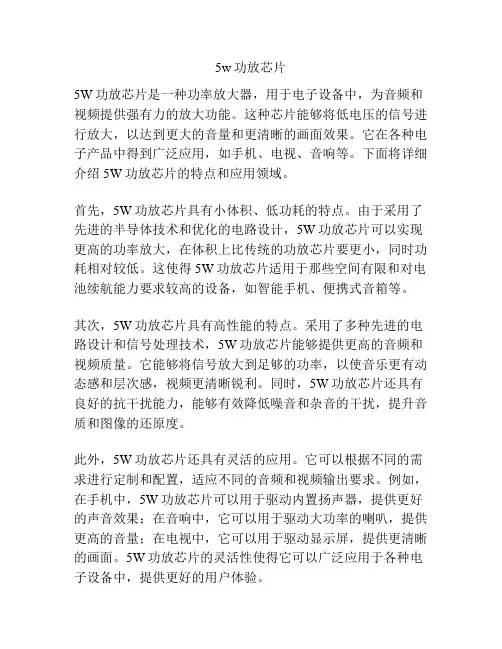

5w功放芯片5W功放芯片是一种功率放大器，用于电子设备中，为音频和视频提供强有力的放大功能。

这种芯片能够将低电压的信号进行放大，以达到更大的音量和更清晰的画面效果。

它在各种电子产品中得到广泛应用，如手机、电视、音响等。

下面将详细介绍5W功放芯片的特点和应用领域。

首先，5W功放芯片具有小体积、低功耗的特点。

由于采用了先进的半导体技术和优化的电路设计，5W功放芯片可以实现更高的功率放大，在体积上比传统的功放芯片要更小，同时功耗相对较低。

这使得5W功放芯片适用于那些空间有限和对电池续航能力要求较高的设备，如智能手机、便携式音箱等。

其次，5W功放芯片具有高性能的特点。

采用了多种先进的电路设计和信号处理技术，5W功放芯片能够提供更高的音频和视频质量。

它能够将信号放大到足够的功率，以使音乐更有动态感和层次感，视频更清晰锐利。

同时，5W功放芯片还具有良好的抗干扰能力，能够有效降低噪音和杂音的干扰，提升音质和图像的还原度。

此外，5W功放芯片还具有灵活的应用。

它可以根据不同的需求进行定制和配置，适应不同的音频和视频输出要求。

例如，在手机中，5W功放芯片可以用于驱动内置扬声器，提供更好的声音效果；在音响中，它可以用于驱动大功率的喇叭，提供更高的音量；在电视中，它可以用于驱动显示屏，提供更清晰的画面。

5W功放芯片的灵活性使得它可以广泛应用于各种电子设备中，提供更好的用户体验。

最后，5W功放芯片具有高可靠性和稳定性。

它经过严格的品质控制和稳定性测试，能够在不同的工作环境和温度条件下正常运行。

此外，5W功放芯片还具备过压、过流和短路保护功能，可以有效保护设备和芯片自身的安全。

这使得5W功放芯片可以长时间稳定地工作，无需频繁维修和更换。

总而言之，5W功放芯片是一种具有小体积、低功耗、高性能、灵活应用、高可靠性和稳定性的功率放大器。

它广泛应用于各种电子设备中，为音频和视频的放大提供强有力的支持。

随着科技的不断进步和应用需求的不断增加，5W功放芯片将进一步改进和提升，为用户带来更好的音视频体验。

第2章高频功率放大器第2章高频功率放大器2.1 谐振功率放大器基本工作原理2.2 丙类谐振功率放大器的工作状态分析2.3 谐振功率放大器的高频特性2.4 谐振功率放大器电路2.5 高效率高频功率放大器及功率合成技术第2章高频功率放大器一、工作状态分类A 类(甲类)、B 类(乙类)、C 类(丙类)等。

i i BEC tCu QA 类(甲类)：工作点Q 较高(I CQ 大)，信号360°内，管子均导通。

通角：θ＝180 °U CCR LR L′N 1∶N 2RBVCBu i第2章高频功率放大器甲类功放电路及交、直流负载线i Ct 0I C Q I C QI C Qu CE i Cu CEt00U CE QU CU CCQ直流负载线交流负载线i B1R L′－I CR B 为偏置电阻，决定Q 点的I CQ 及I BQ 。

变压器是理想的，则直流工作点电压U CEQ =U CC ，直流负载线为一垂直线，而交流负载线通过Q 点，其斜率为(-1/R ′L )第2章高频功率放大器CQCC C CQ CC TE I U dt t I I U TP ⋅=+=∫)sin (10ω1.电源功率P E2. 交流输出功率P LLC C C C C TL R U I U tdt I t U TP ′=⋅=⋅=∫22121sin sin 1ωωCC Cm U U =CQCm I I =CQCC CC E L I U I U P P 21==ηA 类放大器无信号时，效率为零，信号最强时最大效率只有50%。

这是A 类放大器的致命弱点，也是晶体管功率放大器极少采用A 类放大器的原因。

%50max =η一般: 20%~30%第2章高频功率放大器i C t 0i Cu BEQπ2π0u iV 1V 2V 0VD1VD 2I COi C1i C2U CCu o－U EER Li C1i C2B 类(乙类)：工作点Q 选在截止点，管子只有半周导通，另外半周截止。
