背负式催泪驱散器品牌：浦喆型号：PZQSQ09河南浦喆电子科技有限公司便携式远程催泪驱散器式结合国内相关产品研发的一种新型非致命驱散制暴装备。
该装备采用高压氮气作动力源，结构简单，携带使用方便，可反复灌装使用。
适用于公安机关、武警部队处置大规模突发性群体性事件，数秒内可驱散过大面积的群体目标。
具有超静音、高效安全、操作简单、覆盖范围大、作用迅速等优点。
能快速扩散至150米以外，作用空间达3000m³以上，是处置群体性事件、防暴、反恐作战或瞬间有效处置挟持案件的最佳大威力非杀伤性武器。
主要性能指标1、喷射方式：续或间歇喷射，雾状喷射，也可以射流喷射2、射程：≥20m3、覆盖面积：2000㎡以上4、装液量：≥10L5、喷射时间：连续喷射为18s~30s6、工作压力：12Mpa7、工作温度：-30℃~+50℃8、重量：≥20kg9、有效期：三年产品特点驱散器采用高压氮气作动力源，选用优质不锈钢材料制气压罐。
喷射结构为细孔贯通和锥形喷孔相结合，使喷射效果具有良好的稳定性。
特制密封圈能确保气压容器的密封性能。
该产品容积量大，气压适中，喷射时间及喷射距离长，从而确保作用效果及警察自身安全。
该装备外装气压表，能反应罐体内部气压，从而知道警察合理适用。
驱散液体采用OC/CS，呈射流状喷射，受风力影响小，对人体无损害，对环境无污染。
适用方法喷射使用时：将其肩带背在肩部将安全栓拔出一般用左手紧握支架前端，右手拇指握住支架后端，其余四指握住扳机将喷射口对准目标，用力向下扣动扳机，溶剂立即喷射目标使用时根据现场情况，可一次性连续喷射，喷射时可左右摇摆，也可间歇性进行点射灌装使用时：取下压力表，将加长螺丝拧入，螺丝可以当扳手使用，从而打开罐体将装有10L的溶剂瓶瓶口对准储存罐罐口，将溶剂导入袋中，并将储存罐与支架部分重合旋转拧紧将安全栓插好；如自行灌装有困难可发回本厂重新灌装。
警用防弹头盔
品牌：浦喆
描述：
本产品采用进口芳纶纤维，经特殊工艺制作成型，经国家权威部门实弹检测，本公司系列公安II级防弹盔，能有效阻止五四式手枪7.62mm铅芯弹的穿透，适用于军、警单兵防护。
执行标准：《GA 293-2012警用防弹头盔及面罩》技术标准。
防弹头盔采用进口9mm芳纶机织布材料，浸胶压制而成，结构由外罩、盔壳、下颏带及盔顶悬挂系统组成。
头盔佩戴舒适、稳定，材料无毒，对人体无自然伤害。
具有防弹性能好，重量轻等特点。
头盔外观有专用头盔套。
详细技术参数：
重量：符合标准的小于等于1.5kg，质量为1.4kg。
防护面积：≥0.12㎡。
防护级别：公安二级（能有效防护54式7.62手枪发射的1951年式7.62mm手枪弹（铅芯））。
头盔在5发有效命中的情况下头盔可以阻断弹头进去，并在常温、高温、低温及浸水后着弹无零件脱落且最大弹痕高度远远小于标准的25mm（最高为11.6mm）
盔壳侧向刚性测试中，最大变形量小于等于40mm（为17.8mm），残余变形量小于等于15mm（为7.5mm），盔壳外表经过特殊处理后，外表面续燃时间小于等于5s，下颚带装置强度牢固度大于500N，但在外力大于1000N时可解脱或断裂，有效保证人员的安全不受二次伤害。
质保期：5年。
提供80万产品责任保险。
使用说明：
首先帽顶的收放可调节合适的高度，通过调节内帽箍带的收放可将内箍带调节到合适的头围大小，这样可使头盔佩戴位置正确、舒适，再通过调节合适颈部长度，下额托处于下额正中位置，扣紧紧急脱扣，收紧下额带即可。
勤务头盔/执勤头盔
品牌：浦喆
警用勤务头盔可用于防止头部受到打击或其它潜在的伤害性攻击的警用装备工具。
具有外形美观，线条流畅，视野宽阔、佩戴牢靠、舒适、解脱方面等特点，是警务人员在执勤过程中保障自身安全的必备防护装备。
1、材质：工程塑料
2、结构：由壳体、佩戴装置等组成
3、颜色：白色/黑蓝色可选
4、规格：小：适用头围尺寸：540~560mm
中：适用头围尺寸560~580mm
大：适用头围尺寸：580~600mm
5、佩戴装置性能：佩戴牢靠舒适，解脱方便。
施加工23kg载荷维持2分钟，系带部撕裂；连接件、搭扣不松脱。
6、头盔重量：0.71kg
7、吸收碰撞能量性能：加速度峰值≤400g，超过150g的作用时间<4ms，壳体未出现裂口。
8、耐穿透性能：钢锥质量3kg，钢锥落高1m，钢锥未穿透头盔。
9、耐候性能：按GB/T16422.2规定老化试验，持续时间7个循环，头盔外表面无明显侵蚀、变形和失色现象。

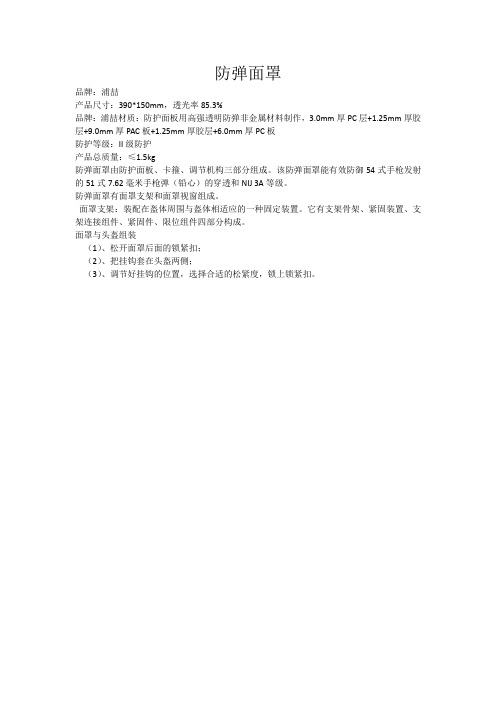

防弹面罩
品牌：浦喆
产品尺寸：390*150mm，透光率85.3%
品牌：浦喆材质：防护面板用高强透明防弹非金属材料制作，3.0mm厚PC层+1.25mm厚胶层+9.0mm厚PAC板+1.25mm厚胶层+6.0mm厚PC板
防护等级：II级防护
产品总质量：≤1.5kg
防弹面罩由防护面板、卡箍、调节机构三部分组成。
该防弹面罩能有效防御54式手枪发射的51式7.62毫米手枪弹（铅心）的穿透和NIJ 3A等级。
防弹面罩有面罩支架和面罩视窗组成。
面罩支架：装配在盔体周围与盔体相适应的一种固定装置。
它有支架骨架、紧固装置、支架连接组件、紧固件、限位组件四部分构成。
面罩与头盔组装
（1）、松开面罩后面的锁紧扣；
（2）、把挂钩套在头盔两侧；
（3）、调节好挂钩的位置，选择合适的松紧度，锁上锁紧扣。
panoramaxxseries Maxximize your horizon.The all new2.5cltquattroThe only common ground with conventional welding helmets is that it is still a welding helmet.The light at the end of the tunnel. The new panoramaxx series.Closer. Further ahead.A nose cut-outchanges everything.Industry standardoptrel panoramaxx field of visionWelcome to the top league. The panoramaxx2.5 combines the enormous field of vision with optrel's well-known 2.5 technology and offers excellent visibility in every working situation – whether for welding, cutting, grinding or straight-ening work. Whatever you want, the optrel panoramaxx2.5 automatically follows your versatile field of activity.Very big cinema.You decide on the movie.Light level2.5Shade Levels5-12Panoramic field of visionpanoramaxx 2.5Luke, 23 yearspanoramaxx quattroAlex, 49 yearspanoramaxx cltThe world famous Crystal Lens Technology 2.0 is now also available in the panoramaxx clt version. optrel engineers have thus once again pushed the limits of what is possible to a new level.Anyone who has ever welded with CLT technology will barely be able to believe their eyes.The colour perception in the light state comes very close to the view through the clear window glass and in the dark state you get a detailed and high-contract view of the welding pool in a clarity never seen before. Unlock your true potential – with the panoramaxx clt.You will not believeyour eyes.Light level2.0Shade Levels4-12Panoramic field of visionKarl-Friedrich, 46 yearsIndividually adjustable forehead stabiliserInside, flexible layer supportOutside, secure layer positionIndividually adjustable stabiliser for the back of the headLarge, replaceable comfort pad to make wearing it pleasantoffers 100% more contact surface for perfect weight distributionPrecise and infinitely adjustable cable pull system for a perfect fit.With a quick release function to allow it to be opened immediately in millisecondsIndividuallyheight adjustableComes with every optrel panoramaxx helmet as standard.The optrel IsoFit ® headgear sets a new standard in terms of wearing comfort. It is the only product worldwide that can be adjusted in width, length and height – i.e. three-dimensionally – to any head shape, so that the helmet really fits "like a glove". panoramaxx 2.5, quattro and clt all come with this headgear as standard.Just fits perfectly.headgearIn addition to the large field of vision and crystal-clear optics, which form an actual assistance system, all members of the panoramaxx series are equipped with the latest digital electronics. The patented Shadetronic and Fadetronic technologies in combination with the 5-point sensor system and the re-charge energy concept are the core elements.They enable welders to focus on their work and allow them to work without interruption. This results in quality and efficien-cy. Thanks to the ergonomic design of the perfectly fitting optrel lsoFit ® headgear, the panoramaxx is light as a feather and fatigue-free. All panoramaxx welding helmets are highly robust at the lowest weight and protect users against external me-chanical impacts such as high speed particles which hit the helmet at up to 120 m/s. And thanks to grinding mode, which can be easily operated externally, and the incomparable appearance, even grinding work is more fun.optrel re-chargeThe unique and environmentally-friendly optrel re-charge energy concept ensures that welding helmets always have enough energy. Thanks to the latest solar technology, a rechargeable lithium-polymer battery isrecharged either by the welding light or by the ambient light. In addition, the battery can also be charged directly with any USB charger via a micro-USB interface. The tiresome changing of batteries is no longer necessary and the environment is protected.5-point detectionThe optrel 5-point detection integrated in the panoramaxx series is an intelligent sensor control with five sensors. Sophisticated soft-ware and clever positioning of four sensors at the corners and one sensor in the upper cen-tre ensures the glare shield is switched on and off perfectly, even in the most difficult light-ing conditions and in constrained positions, as well as permanent dark level adjustment (Shadetronic ®, patented) during welding.ShadeTronic ®The patented optrel ShadeTronic ® technology automatically adjusts the protection level to the changing light conditions of the welding arc. This allows welders to work without inter-ruption. A sophisticated Shadetronic sensor continuously measures the light intensity of the welding arc and regulates the glare pro-tection progressively and fully automatically.FadeTronicWith the patented optrel Fadetronic technol-ogy, the opening of the anti-glare display can be continuously adjusted after welding. The unpleasant afterglow is faded out – especially for high ampere applications. Eye fatigue is significantly reduced thanks to the display opening smoothly and being adapted to the eye.Grinding modeLike most optrel welding helmets, the prod-ucts in the panoramaxx series have a grind-ing mode. It can be conveniently operated externally by means of a robust and well-pro-tected pressure switch. Once activated, the anti-glare display remains deactivated, which guarantees trouble-free grinding work. At the touch of another button, the glare shield is then immediately ready for welding work. Your optrel welding helmet becomes a true multi-functional work safety device.The optrel panoramaxx as a personal assistance system.Fully equipped as standard.SHADE TRONICThe optrel e3000X blower respiratory protection system.Professionalrespiratory protection is a must in mostworking environments.optrel respiratory protection systems are uncompromisingly designed for profes-sional use. The optrel e3000X with TH3 particle filter of the highest safety level filters 99.8% of harmful particles out of the air.During arc welding, grinding and many other dust-intensive activities, your airways are always ex-posed to harmful smoke, dust and often toxic gases. Wearing a per-sonal respiratory pro-tection system is therefore essential – no matter how well ventilated your working environment may be.– Provides reliableprotection againstsmoke, aerosol and dust – Can be extended to includean A1B1E1 gas filter– Automatic air flow control and adjustment – Can be extended to include an activatedcarbon odour filterProduct comparison panoramaxx 2.5panoramaxx quattropanoramaxxcltx x xx xx xxxUp to 280 A Up to 350 A Up to 280 A2.53.02.0xxx1/1/1/21/1/1/11/1/1/2xxxProducts1345627Spare parts and accessories1Viewing pane (5x)2 Nose protection pads (2x)3 Inside cover pane (5x)4 IsoFit ® headgear, black, black buttons IsoFit ® headgear, black, green buttons IsoFit ® headgear, black, grey buttonsYour optrel retailer:。
防弹防刺衣
品牌：浦喆
型号;pzfdy-034
制造商：河南浦喆电子科技有限公司
防护等级：二级
结构：浸胶芳纶机织布+高性能聚乙烯纤维无纬布+浸胶芳纶机织布
+0.4厚泡沫
经公安部装备财务局送公安部特种警用装备质量监督检验中心检验合格
国家特种防护服装质量监督检验中心检验合格
该防弹防刺服的防护层采用PE无纬布和新型软质防刺材料制成，该防弹防刺服可阻止54式手枪、79式轻型冲锋枪发射的51式7.62mm 铅锌弹和标准试验刀具24焦耳动能的穿刺，使人体主要器官不受到枪伤和刺伤。
以通过国家特种防护服装质量监督检验中心监测合格。
